| Type d'appareil | Lave-linge frontal (hublot) |
| Gamme | Frigidaire Affinity |
| Capacite IEC | 4,0 pi³ (environ 113 litres) |
| Capacite DOE | 3,47 pi³ (environ 98 litres) |
| Nombre de programmes de lavage | 7 cycles |
| Vitesse d'essorage maximale | 1 100 tr/min |
| Selections de temperature | 5 niveaux |
| Hauteur | 91,4 cm (36") |
| Largeur | 68,6 cm (27") |
| Profondeur | 77 cm (30-5/16") |
| Poids (expedition) | environ 101 kg (222 lbs) |
| Alimentation electrique | 120 V / 60 Hz / 15 A |
| Pression d'eau requise | 30 a 120 psi |
| Debit d'evacuation | 17 gallons par minute |
| Systeme anti-vibration | SilentDesign + Vibration Control System |
| Synchronisation lavage/sechage | TimeWise Technology |
| Rincage avance | Fresh Water Rinse |
| Option economie d'energie | Energy Saver (jusqu'a -35%) |
| Type de commandes | Express-Select Controls |
| Piedestal optionnel | SpaceWise Pedestal Drawer (vendu separement) |
FOIRE AUX QUESTIONS - FAFW4011L FRIGIDAIRE
Questions des utilisateurs sur FAFW4011L FRIGIDAIRE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Lave-linge au format PDF gratuitement ! Retrouvez votre notice FAFW4011L - FRIGIDAIRE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil FAFW4011L de la marque FRIGIDAIRE.
MODE D'EMPLOI FAFW4011L FRIGIDAIRE

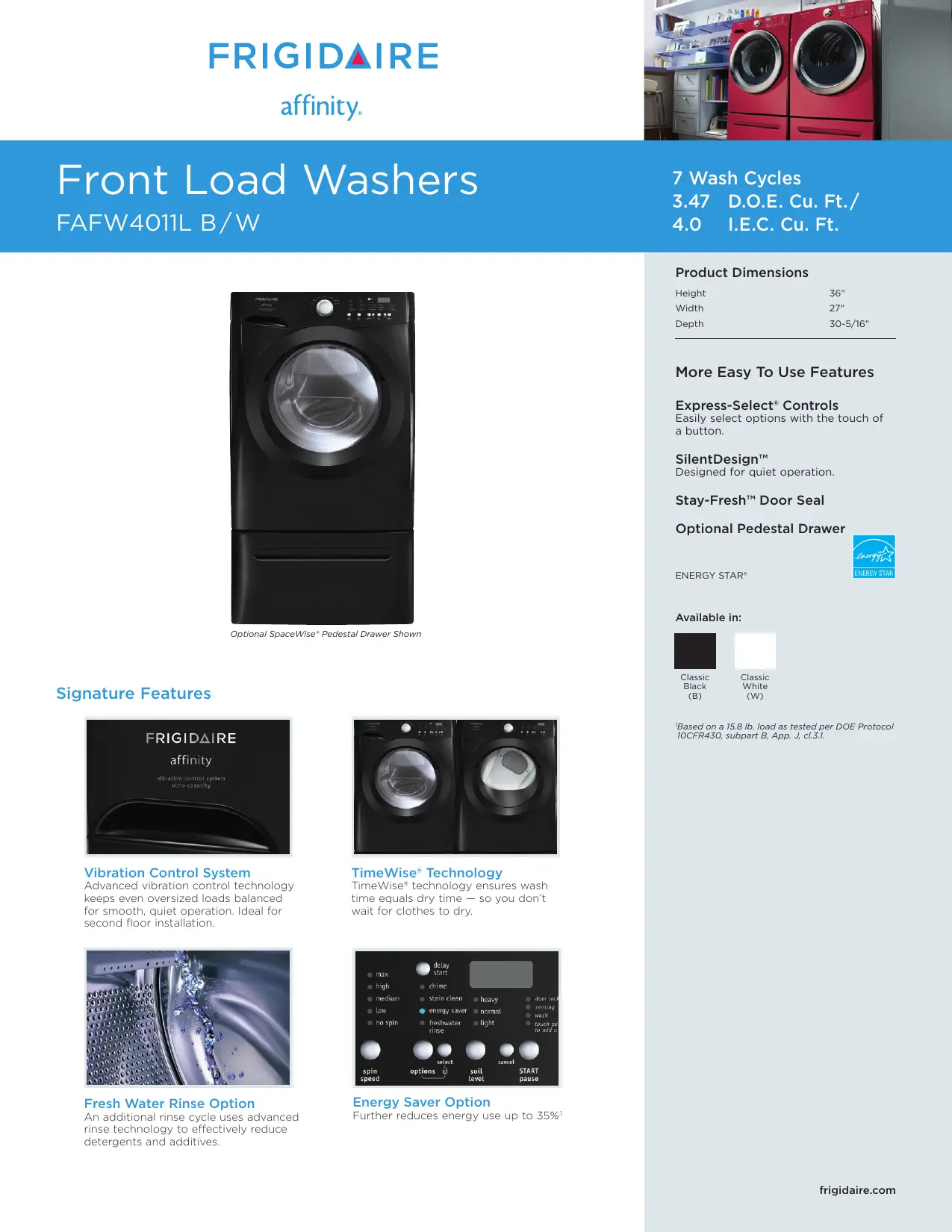

Front Load Washers
FAFW4011L B/W
7 Wash Cycles
3.47 D.O.E. Cu. Ft./
4.0 I.E.C. Cu. Ft.

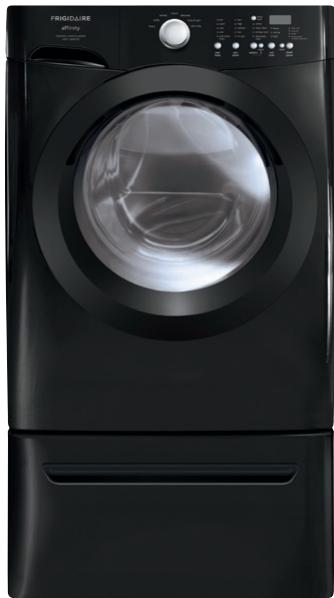

Optional SpaceWise* Pedestal Diagram Shown
Signature Features
Vibration Control System
Advanced vibration control technology keeps even oversized loads balanced for smooth, quiet operation. Ideal for second floor installation.

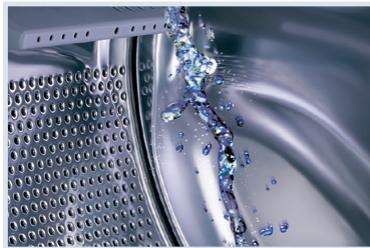

Fresh Water Rinse Option
An additional rinse cycle uses advanced rinse technology to effectively reduce detergents and additives.
TimeWise® Technology
TimeWise® technology ensures wash time equals dry time - so you don't wait for clothes to dry.
Energy Saver Option
Further reduces energy use up to 35% .
Product Dimensions
| Height | 36" |
| Width | 27" |
| Depth | 30-5/16" |
More Easy To Use Features

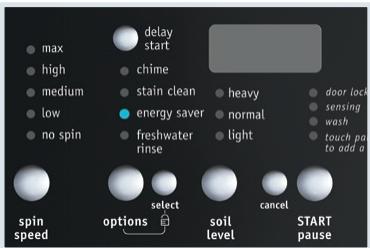

Express-Select Controls
Easily select options with the touch of a button.
SilentDesign™
Designed for quiet operation.
Stay-Fresh™ Door Seal
Optional Pedestal Drawer
ENERGY STAR
Available in:
Classic
Black
(B)
Classic
White
(W)
Based on a 15.8 lb. load as tested per DOE Protocol 10CFR430, subpart B, App. J, cl.3.1.
| Features | |
| Total Capacity D.O.E./I.E.C. (Cu.Ft.) | 3.47/4.0 |
| Controls | Express-Select® |
| Washer Drum Interior | Stainless Steel |
| Interior Light/Door Trim | Yes/Color-Coordinates |
| Vibration Control System | Yes |
| Wash System | Tumble Action |
| Advanced Rinse Technology | Yes |
| TimeWise®Technology | Yes |
| Ready CleanTM/Ready SteamTM | |
| Fresh Water Rinse Option | Yes |
| Stay-FreshTMDoor Seal | Yes |
| Automatic Temperature Control | Yes |
| Automatic Water Level Adjustments | Yes |
| Auto Prewash Detergent Dispenser | |
| Auto Bleach Dispenser | Yes |
| Auto Detergent Dispenser | Yes |
| Auto Fabric Softener Dispenser | Yes |
| Time Remaining Indicator | Yes |
| Cycle Status Lights | Yes |
| Cycle Signal/Cycle Signal “On/Off” | Chime/Yes |
| Cycle Signal Volume Control | Yes |
| Door Lock Indicator Light | Yes |
| Control Lock/Stay-Put Door | Yes/Yes |
| Start/Pause/Cancel Buttons | Yes |
| Energy Saver Option | Yes |
| Delay Start | 1 to 10 Hours |
| Integral Water Heater | |
| Tumble Speed (RPM) | 33/47 |
| Spin Speed (Maximum RPM) | 1100 |
| Sound Package | SilentDesignTM |
| Adjustable Leveling Legs | Yes |
| Cycles | |
| Wash Cycles/Specialty Cycles | 7/0 |
| Options | |
| Water Temperature Selections | 5 |
| Water Levels | Automatic |
| Spin Speed/Soil Level Selections | 5/3 |
| Allergen | |
| Optional Accessories | |
| Dryer Stacking Kit | PN#STACKIT4X |
| 15" Frigidaire Affinity®Pedestal Drawers | |
| Classic Red (R) | |
| Classic Blue (N) | |
| Classic Silver (A) | |
| Classic Black (B) | (B) PN#CFPWD15B |
| Classic White (W) | (W) PN#CFPWD15W |
| Mobile Home Installation Kit | PN#137067200 |
| Drain Hose Extension Kit | PN#137098000 |
| Certifications | |
| ENERGY STAR® | Yes |
| NSF®Certified Sanitize/Allergen | |
| Specifications | |
| Power Supply Connection Location | Right Top Rear |
| Water Inlet Connection Location | Left Top Rear |
| Voltage Rating | 120V/60Hz/15A |
| Connected Load (kW Rating) @ 120 Volts1 | 1.4 |
| Watts @ 120 Volts/Amps @ 120 Volts | 1,000/8 |
| Minimum Circuit Required (Amps) | 20 |
| Shipping Weight (Approx.) | 222 Lbs. |
1For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

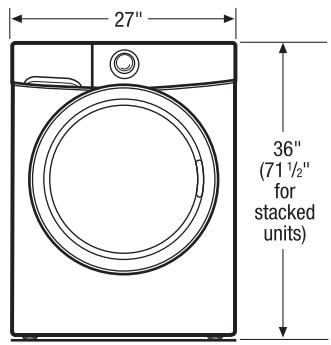

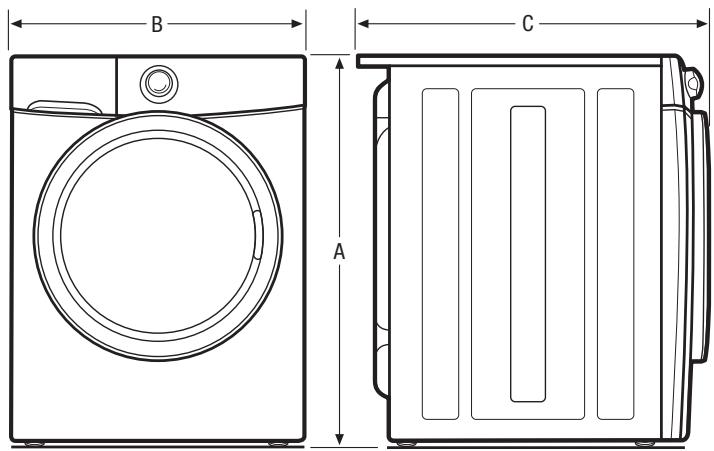

| Product Dimensions | |
| A-Height (Single) | 36" |
| Height (Stacked) | 71-1/2" |
| B-Width | 27" |
| C-Depth | 30-5/16" |

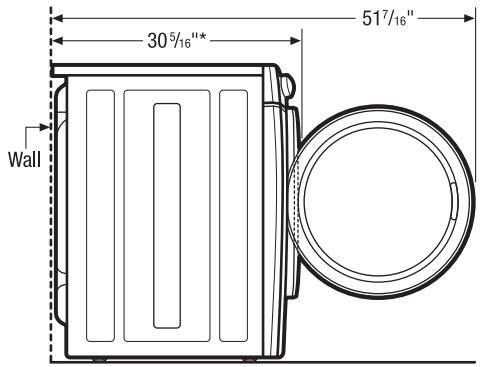

| Depth with Door Open 90° | 51-7/16" |

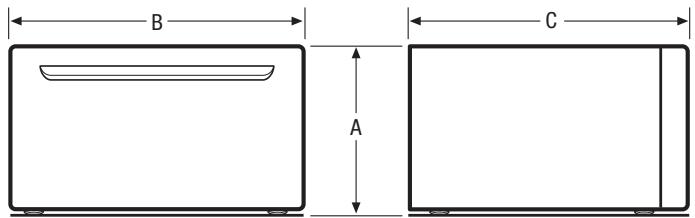

| Pedestal Dimensions | |
| A-Height | 15-1/4" |
| B-Width | 27" |
| C-Depth | 26-1/4" |
Accessories information available on the web at frigidaire.com
Front
Side

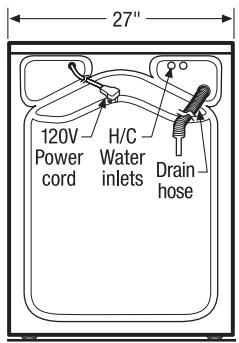

Rear
15"Drawer Pedestal Installation
Elevates washer height to 51% For detailed pedestal installation, refer to instructions included with pedestal or on web. Note: Pedestal Installation requires modified utility hookup locations. For details, refer to Product Installation Guide on web.
Built-In Installations
For built-in installations, NO minimum clearance required around sides or backs of units. For closet installation, allow additional 1" clearance between fronts of units and door. Location of plumbing, exhaust and utility hookups MUST be considered in built-in installations. For additional installation details, refer to Product Installation Guides on web.

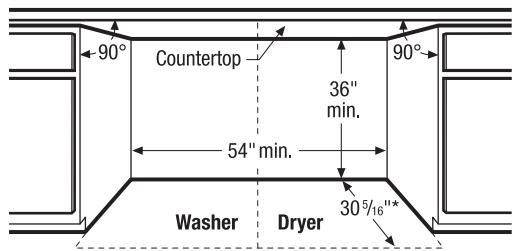

Side-by-Side Units in Under-Counter Installation
Can be installed with standard countertop and/or cabinetry.
- To achieve minimal installation depth dimensions, dryer MUST be vented straight back. For installation with quick-turn 90^ elbow, refer to Product Installation Guide on web for approximate clearances incurred with multi-directional exhausting options in freestanding, pedestal-mounted, or stacked installation.

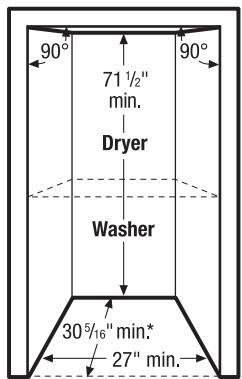

Stacked Units in Recessed or Closet Installation
For detailed stacked installation, refer to instructions included with Stacking Kit or on web. Note:Stacked installation requires modified utility hookup locations for dryer. For details, refer to Product Installation Guide on web.
Front Load Washer Specifications
Product Shipping Weight (approx.) - 222 Lbs.
- An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (ANSI/NFPA 70) and local codes & ordinances. (Do not use same circuit as dryer.)
Voltage Rating - 120V/60 Hz/15 Amps
- Amps @ 120 Volts = 8 Amps
- Equipped with 120V 3-wire power supply cord, approx. 60^ long.
- Always consult local and national electric & plumbing codes.
- To maximize detergent effectiveness, ambient temperature should never be below 60^ F.
- Can be installed alone, with or without optional 15"Drawer Pedestal, or stacked below matching Frigidaire® Affinity Dryer, which requires installation of optional Dryer Stacking Kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.)
- Can be built in with matching Frigidaire® Affinity Dryer in undercounter, recessed or closet installation. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.)
- Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3'' from top and bottom of door. Full-length 120 sq. in. opening also acceptable. Allow additional 1'' clearance between fronts of units and closed door.
- Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.
- Floor MUST be solid with 1^ maximum slope. To minimize vibration or movement, reinforcement of floor may be necessary. Do NOT install on carpeted surface.
- Leveling legs supplied to level washer properly and reduce excessive noise and vibration.
- H/C water faucets MUST be installed within 42^ of washer's water inlet and MUST be 3/4^ to connect to 43^ inlet hoses.
Water pressure MUST be between 30 and 120 psi with NOT more than 10 psi pressure difference between hot and cold. - Drain required with standpipe diameter of 1/1/4'' min. and height of 24'' min./96" max. above floor, capable of eliminating 17 gallons per minute. Attached 52'' drain hose can reach 74'' -high standpipe. For higher standpipe, optional Drain Hose Extension Kit available.
Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.
Optional Accessories
- Dryer Stacking Kit - (PN# STACKIT4X).
- 15" Classic Black Painter Pedestal - (PN# CFPWD15B).
- 15" Classic White Drawing Pedestal - (PN# CFPWD15W).
- Mobile Home Installation Kit - (PN# 137067200).
- Drain Hose Extension Kit - (PN#137098000).
