| Type de produit | Lave-linge frontal |
| Marque | FRIGIDAIRE |
| Modèle | FAFW3801L |
| Capacité (IEC) | 3,8 pi³ (environ 107 L) |
| Hauteur | 36 pouces (91,4 cm) |
| Largeur | 27 pouces (68,6 cm) |
| Profondeur | 30-5/16 pouces (77,0 cm) |
| Profondeur porte ouverte à 90° | 51-7/16 pouces (130,6 cm) |
| Poids (expédition) | 222 livres (environ 100,7 kg) |
| Alimentation électrique | 120 V, 60 Hz, 15 A |
| Puissance connectée | 1,4 kW |
| Matériau du tambour | Acier inoxydable |
| Type de commande | Express-Select™ |
| Système de lavage | Action culbutage (Tumble Action) |
| Technologie TimeWise™ | Oui (temps de lavage égal au temps de séchage) |
| Rinçage à l'eau fraîche | Oui (réduit les résidus de détergent) |
| Contrôle des vibrations | Oui (Vibration Control System) |
| Joint de porte antimicrobien | Oui (Stay-Fresh Antimicrobial Seal) |
| Nombre de cycles de lavage | 5 |
| Vitesse d'essorage maximale | 1100 tr/min |
| Départ différé | 1 à 10 heures |
| Niveau sonore | SilentDesign™ (silencieux) |
| Pieds réglables | Oui |
| Distributeurs automatiques | Lessive, assouplissant, eau de Javel |
FOIRE AUX QUESTIONS - FAFW3801L FRIGIDAIRE
Questions des utilisateurs sur FAFW3801L FRIGIDAIRE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Lave-linge au format PDF gratuitement ! Retrouvez votre notice FAFW3801L - FRIGIDAIRE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil FAFW3801L de la marque FRIGIDAIRE.
MODE D'EMPLOI FAFW3801L FRIGIDAIRE

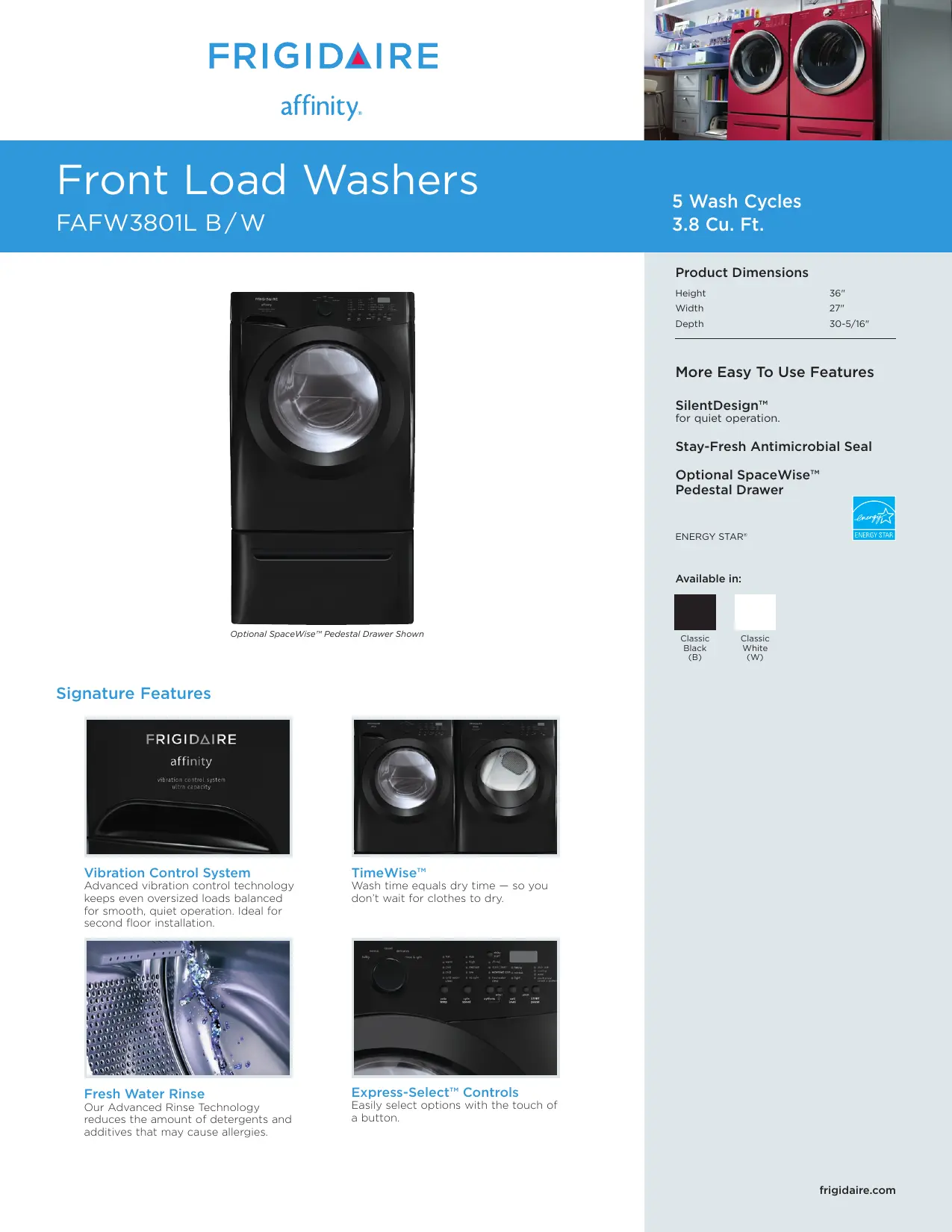

Front Load Washers

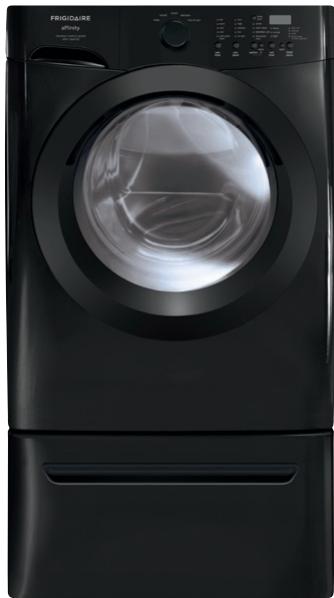

FAFW3801L B/W
Optional SpaceWiseTM Pedestal Diagram Shown
5 Wash Cycles
3.8 Cu. Ft.
Product Dimensions
| Height | 36" |
| Width | 27" |
| Depth | 30-5/16" |
More Easy To Use Features
SilentDesignTM
for quiet operation.
Stay-Fresh Antimicrobial Seal
Optional SpaceWiseTM
PedestalDrawer
ENERGY STAR
Available in:
Signature Features
Vibration Control System
Advanced vibration control technology keeps even oversized loads balanced for smooth, quiet operation. Ideal for second floor installation.

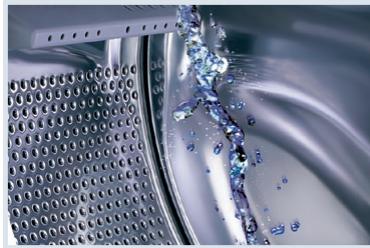

Fresh Water Rinse
Our Advanced Rinse Technology reduces the amount of detergents and additives that may cause allergies.
TimeWiseTM
Wash time equals dry time - so you don't wait for clothes to dry.
Express-Select™ Controls
Easily select options with the touch of a button.
| Features | |
| Total Capacity I.E.C. (Cu.Ft.) | 3.8 |
| Controls | Express-SelectTM |
| Washer Drum Interior | Stainless Steel |
| Interior Light/Door Trim | No/Color-Coordinates |
| Vibration Control System | Yes |
| Wash System | Tumble Action |
| Advanced Rinse Technology | Yes |
| TimeWiseTM Technology | Yes |
| Ready CleanTM/Ready SteamTM | |
| Freshwater Rinse | Yes |
| Stay-Fresh Antimicrobial Seal | Yes |
| Automatic Temperature Control | Yes |
| Automatic Water Level Adjustments | Yes |
| Auto Prewash Detergent Dispenser | |
| Auto Bleach Dispenser | Yes |
| Auto Detergent Dispenser | Yes |
| Auto Fabric Softener Dispenser | Yes (LED Segment) |
| Time Remaining Indicator | Yes |
| Cycle Status Lights | Yes |
| Cycle Signal/Cycle Signal "On/Off" | Chime/Yes |
| Cycle Signal Volume Control | Yes |
| Door Lock Indicator Light | Yes |
| Control Lock/Stay-Put Door | Yes/Yes |
| Start/Pause/Cancel Buttons | Yes |
| Energy Saver Option | |
| Delay Start | 1 to 10 Hours |
| Integral Water Heater | |
| Tumble Speed (RPM) | 33/47 |
| Spin Speed (Maximum RPM) | 1100 |
| Reversible Door | |
| Sound Package | SilentDesignTM |
| Adjustable Leveling Legs | Yes |
| Cycles | |
| Wash Cycles/Specialty Cycles | 5/0 |
| Options | |
| Water Temperature Selections | 5 |
| Water Levels | Automatic |
| Spin Speed/Soil Level Selections | 5/3 |
| Allergen | |
| Optional Accessories | |
| Dryer Stacking Kit | PN#STACKIT4X |
| 15" Frigidaire Affinity® Pedestal Drawers | |
| Classic Red (R) | |
| Classic Blue (N) | |
| Classic Silver (A) | |
| Classic Black (B) | (B) PN#CFPWD15B |
| Classic White (W) | (W) PN#CFPWD15W |
| Mobile Home Installation Kit | PN#137067200 |
| Drain Hose Extension Kit | PN#137098000 |
| Certifications | |
| ENERGY STAR® | Yes |
| NSF® Certified Sanitize/Allergen | |
| Specifications | |
| Power Supply Connection Location | Right Top Rear |
| Water Inlet Connection Location | Left Top Rear |
| Voltage Rating | 120V/60Hz/15A |
| Connected Load (kW Rating) @ 120 Volts1 | 1.4 |
| Watts @ 120 Volts/Amps @ 120 Volts | 1,000/8 |
| Minimum Circuit Required (Amps) | 20 |
| Shipping Weight (Approx.) | 222 Lbs. |
1For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

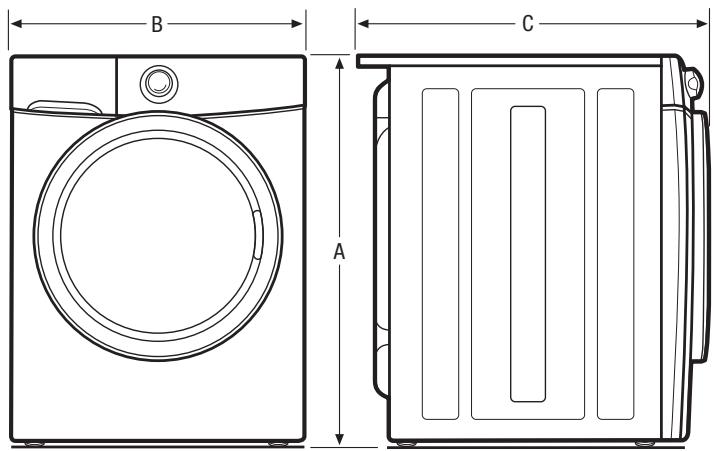

| Product Dimensions | |
| A-Height (Single) | 36" |
| Height (Stacked) | 71-1/2" |
| B-Width | 27" |
| C-Depth | 30-5/16" |
| Depth with Door Open 90° | 51-7/16" |

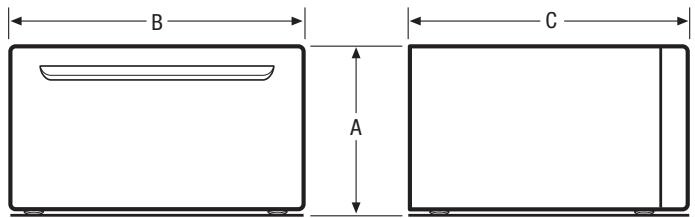

| Pedestal Dimensions | |
| A-Height | 15-1/4" |
| B-Width | 27" |
| C-Depth | 26-1/4" |
Accessories information available on the web at frigidaire.com
