Type de produit	Climatiseur de fenêtre
Marque	Frigidaire
Modèle	FAS25ER2AB
Alimentation électrique	115 V ~ 60 Hz (vérifier la plaque signalétique)
Fonctions principales	Refroidissement, Chauffage (selon modèle), Ventilation, Déshumidification
Modes de fonctionnement	Auto, Veille, Économie d'énergie, Ventilation seule
Vitesses de ventilation	Haute, Moyenne, Basse, Auto
Plage de température de refroidissement	16 °C à 32 °C (60 °F à 90 °F)
Plage de température de chauffage	13 °C à 27 °C (55 °F à 80 °F) (selon modèle)
Minuterie	Démarrage/arrêt différé jusqu'à 24 heures
Télécommande	Oui, avec piles AAA
Détection à distance (Remote Sensing)	Oui (sur certains modèles)
Purification d'air (Clean Air)	Oui (sur certains modèles)
Filtre à air	Lavable, avec indicateur de vérification après 250 h
Entretien	Nettoyer le filtre mensuellement ; nettoyer le boîtier avec un chiffon humide
Sécurité	Cordon d'alimentation avec dispositif de détection de courant (boutons TEST/RESET) ; prise à trois broches avec mise à la terre
Garantie	1 an pièces et main-d'œuvre ; 2 à 5 ans système scellé (compresseur et tuyauterie)
Pays d'origine	Non spécifié dans la notice
Dimensions (approx.)	Non spécifiées dans la notice
Poids (approx.)	Non spécifié dans la notice

FOIRE AUX QUESTIONS - FAS25ER2AB FRIGIDAIRE

Comment nettoyer le filtre à air ?

Débranchez l'appareil. Ouvrez le panneau avant, saisissez le filtre par le centre et tirez vers le haut. Lavez-le à l'eau tiède avec un détergent doux, rincez et séchez soigneusement avant de le remettre en place. Vous pouvez aussi le passer à l'aspirateur.

Comment réinitialiser l'indicateur de vérification du filtre ?

Après avoir nettoyé le filtre, appuyez sur le bouton Check Filter sur le panneau de commande. Le voyant s'éteindra.

Que signifient les codes d'erreur HS, AS ou ES sur l'affichage ?

Ces codes indiquent une défaillance d'un capteur. Contactez un centre de service agréé Frigidaire pour obtenir de l'aide.

Comment passer de l'affichage en Fahrenheit à Celsius ?

Maintenez enfoncés simultanément les boutons de réglage de la température ▲ et ▼ pendant 3 secondes. L'affichage bascule entre °F et °C.

Pourquoi l'eau s'écoule-t-elle à l'intérieur lorsque le climatiseur refroidit ?

Cela est généralement dû à une mauvaise inclinaison de l'appareil. Le climatiseur doit être légèrement incliné vers l'extérieur pour permettre l'évacuation de l'eau de condensation. Consultez les instructions d'installation.

Comment utiliser la fonction de minuterie (démarrage/arrêt différé) ?

Pour un arrêt différé, l'appareil doit être en marche. Appuyez sur Timer, puis réglez le délai (par incréments de 5 heures jusqu'à 10 h, puis par 1 heure jusqu'à 24 h). Pour un démarrage différé, l'appareil doit être éteint. Procédez de même. Le délai s'affiche en heures restantes.

Comment activer le mode Veille (Sleep) ?

Appuyez sur le bouton Sleep sur le panneau de commande ou la télécommande. La température augmentera de 2 °F après 30 minutes, puis encore de 2 °F après 30 minutes supplémentaires. Cette température sera maintenue pendant 7 heures, puis reviendra à la température initiale.

Que faire si le climatiseur ne s'allume pas ?

Vérifiez que la fiche est bien branchée. Appuyez sur le bouton RESET sur la tête de la prise (le bouton TEST doit déclencher un clic). Vérifiez aussi le fusible ou le disjoncteur. Assurez-vous que l'appareil est allumé et réglé sur la fonction souhaitée.

Comment utiliser la fonction de détection à distance (Remote Sensing) ?

Cette fonction est disponible sur certains modèles. Depuis la télécommande, appuyez sur le bouton Remote Sensing en mode refroidissement. La télécommande mesure la température à son emplacement et envoie le signal à l'unité. Le voyant sur l'appareil clignote pour confirmer. Pour désactiver, rappuyez sur le même bouton.

Pourquoi le compresseur met-il du temps à redémarrer après avoir éteint puis rallumé l'appareil ?

Le circuit de refroidissement comporte un délai de sécurité de 3 minutes pour protéger le compresseur. Le ventilateur continue de tourner. Attendez environ 3 minutes, le compresseur redémarrera automatiquement.

MODE D'EMPLOI FAS25ER2AB FRIGIDAIRE

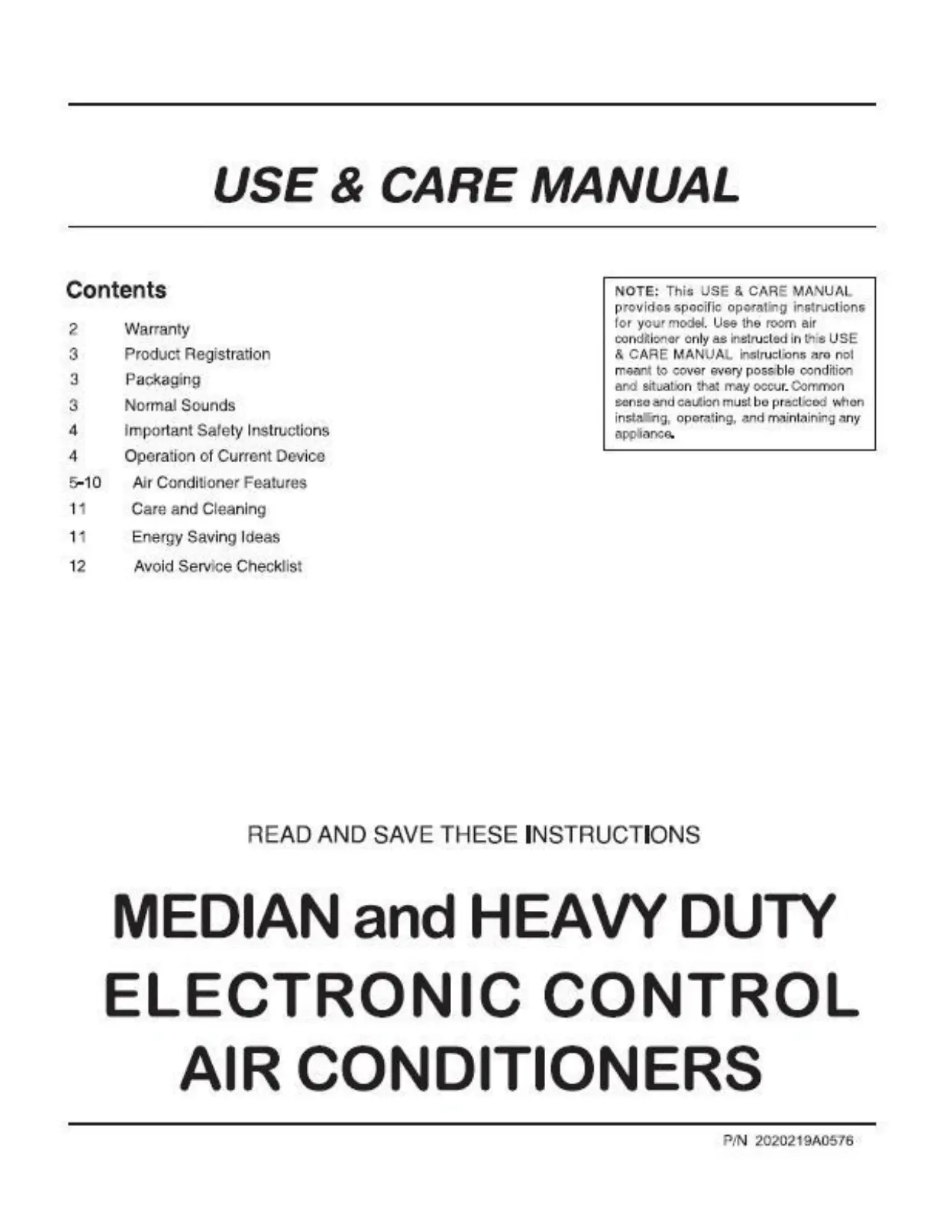

USE & CARE MANUAL

Contents

2 Warranty
3 Product Registration
3 Packaging
3 Normal Sounds
4 Important Safety Instructions
4 Operation of Current Device

5-10 Air Conditioner Features

11 Care and Cleaning
11 Energy Saving Ideas
12 Avoid Service Checklist

NOTE: This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as instructed in this USE & CARE MANUAL instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

READ AND SAVE THESE INSTRUCTIONS

MEDIAN and HEAVY DUTY ELECTRONIC CONTROL AIR CONDITIONERS

ROOM AIR CONDITIONER WARRANTY

Your product is protected by this warranty

Your appli is warrd by Electrolux. Eelctrolux has aorized Frigidae Conseres and their aortized servicers to perform service under this warranty. Electrolux authorizes no one else to change or add to any of these obligations under this warranty. Any obligations for service and parts under this warranty must be performed by Frigidae Consumer Services or an authorized Frigidae servicer.

	WARRANTY PERIOD	FRIGIDAIRE, THROUGHITS AUTHORIZATION SERVICERS, WILL:	THE CONSUMER WILL BE RESPONSIBLE FOR:
FULL ONE-YEAR WARRANTY	One year from original purchase date.	Pay all costs for repairing or replacing parts of this appliance which prove to be defective in materials or workmanship.	Costs of service calls that are listed under NORMAL RESPONSES/BILITIES OF THE CONSUMER.*
LIMITED 2-5 YEAR WARRANTY (Sealed System)	Second through fifth years from original purchase date.	Repair or replace any parts in the Sealed Refrigeration System (compressor, condenser, evaporator and tubing) proves to be defective in materials or workmanship.	Diagnostic costs and any removal, transportation and reinstallation costs which are required because of service. Costs for labor, parts and transportation other than with respect to the Sealed Refrigeration System.

NORMAL RESPONSIBLES OF THE CONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below.

1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance with local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blowtues, repair of loose connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation
6. Damage to unit after removal from packaging carton.

EXCLUSIONS

This warranty does not cover the following:

1. CONSEQUENTAL OR NCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than authorized Frigidaire servicers; use of parts other than Frigidaire Genuine Renown Parts; obtained from persons other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED SERVICE

Keep your bill of sales, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be obtained by following these steps, in order:

1. Contact Frigidaire Consumer Services or an authorized Frigidaire service.
2. If there is a question as to where to obtain service, contact our Consumer Relations Department at:

Frigidaire

P.O.Box 212378

Augusta, GA 30917

800-444-4944

Frigidaire

CANADA

Electrolux Canada Group

6150 McLaughIn Road

Mississauga, Ontario L5R 4C2

1-800-265-8352

Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by Electrolux,

This warranty applies only in the 50 states of the U.S.A., Puerto Rico and Canada.

FOR SERVICE CALL 1-800-444-4944.

Product Registration

Record Your Model and Serial Numbers

Record in the space provided below the model and serial numbers. On a models, the serial plate is located on the outside of the cabinet.

Model No.

Serial No.

Register Your Product

The self-addressED PRODUCT REGISTRATION CARD should be filled in completely, signed and returned to the Frigidaire Company.

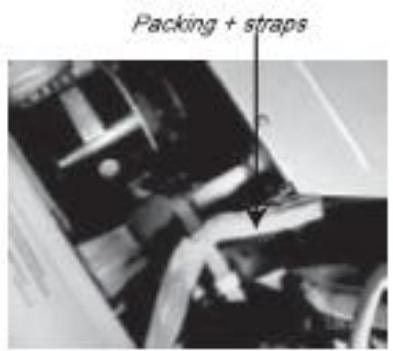

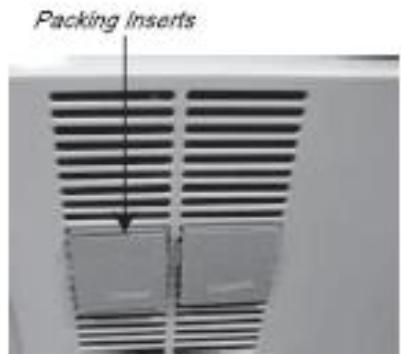

Packaging

Remove straps as indicated from inside the unit, along with any inserts placed into the side louvers.

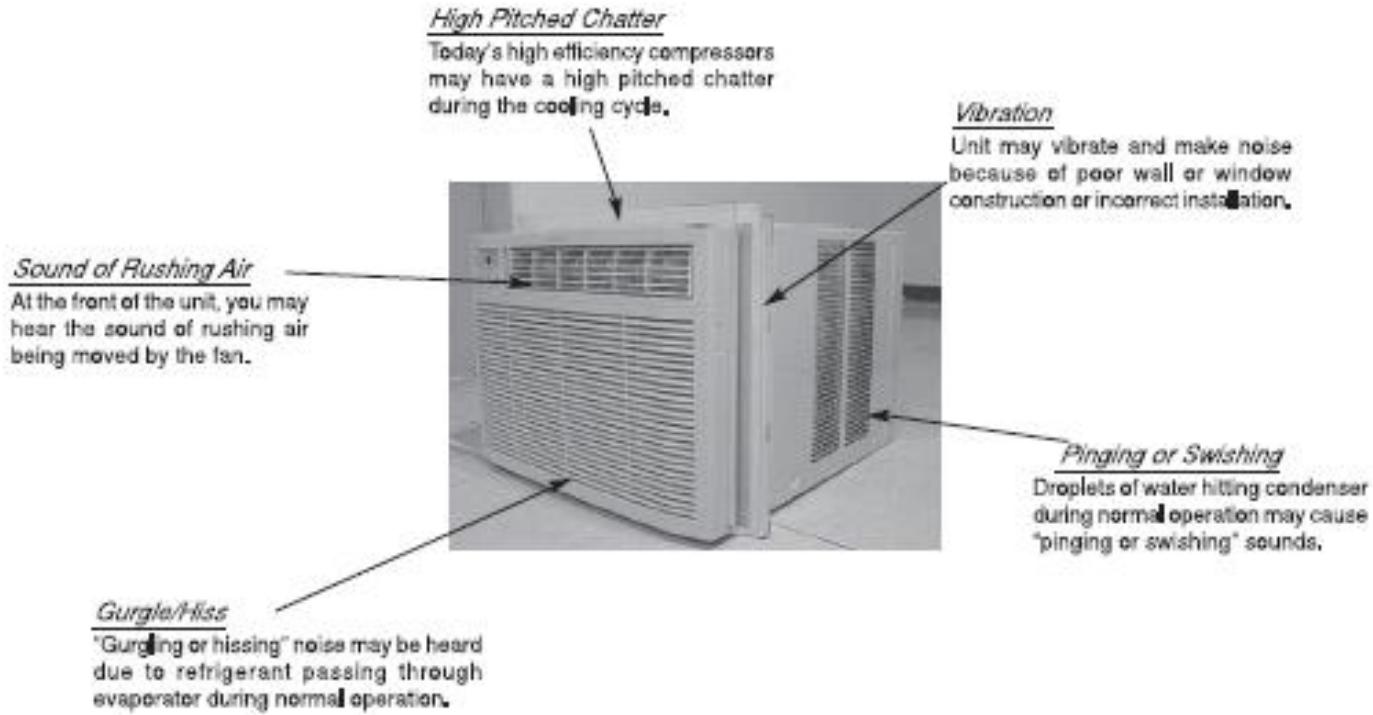

Normal Sounds

Important Safety Instructions

A NOTE

The power supply cord with

this air conditioner contains a current detection device designed to reduce the risk of fire.
Please refer to the section 'Operation of Current Device' for details.
In the event that the power supply cord is damaged, it cannot be repaired. It must be replaced with a cord from the Product Manufacturer.

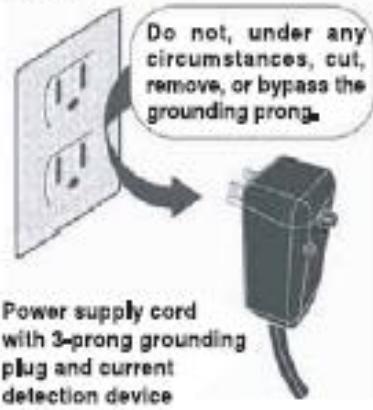

WARNING

Avoid fire hazard or electronic

shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

Grounding type wall receptacle

Read all instructions before using this air conditioner.

WARNING For Your Safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

AWARNING Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following:

• Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille.
  If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window is a triple-track type with a screen panel included, remove the screen completely before installation.
• Be sure the air conditioner has been securely and correctly installed according to the separate installation instructions provided with this manual. Save this manual and the installation instructions for possible future use in removing or reinstating this unit.
• When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils.

WARNING Electrical Information

The complete electrical rating of your new room air conditioner is stated on the serial plate. Refer to the rating when checking the electrical requirements.

• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle.
  Do not run air conditioner without outside protective cover in place. This could result in mechanical damage within the air conditioner.
  Do not use an extension cord or an adapter plug.

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER. Unit must be upright for one hour prior to operating.

Operation of Current Device

Plug in & press RESET

The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do the following:

1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will notice a click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head).

NOTES:

Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply cord must be replaced if it fails to reset when either the TEST button is pushed, or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply card is damaged, it CAN NOT be repaired. I MUST be replaced by one obtained from the product manufacturer.

Air Conditioner Features

Fig. "A"

Fig."B"

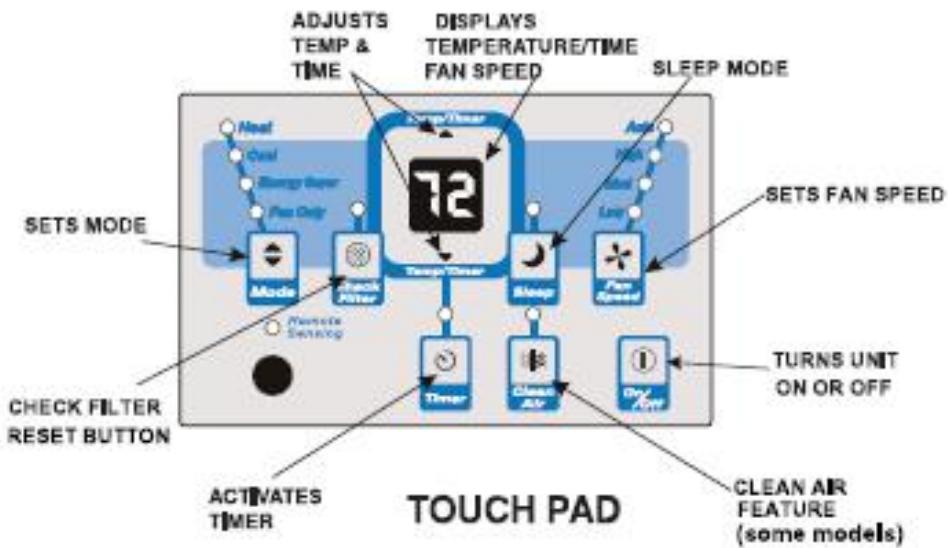

ELECTRONIC CONTROL OPERATING INSTRUCTIONS

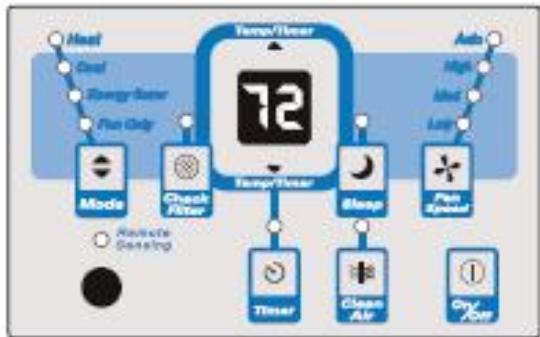

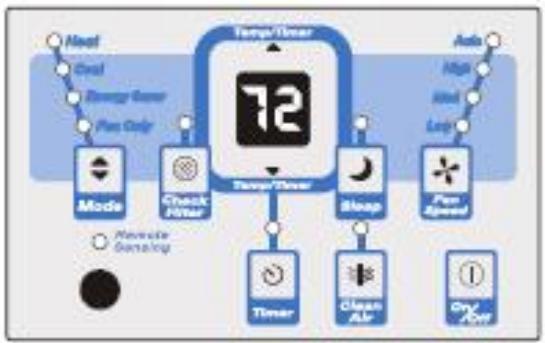

Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and its functions, then follow the symbol for the functions you desire. The unit can be controlled by the touch pad alone or with the remote.

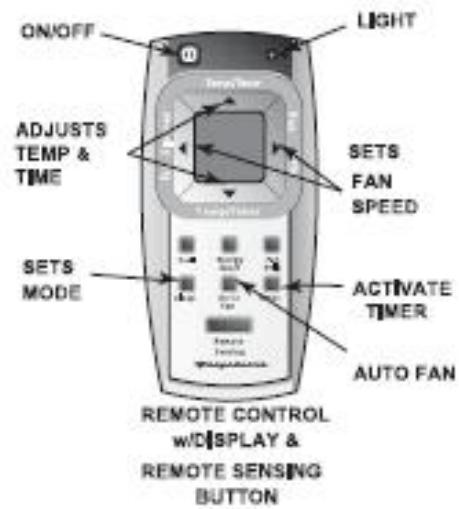

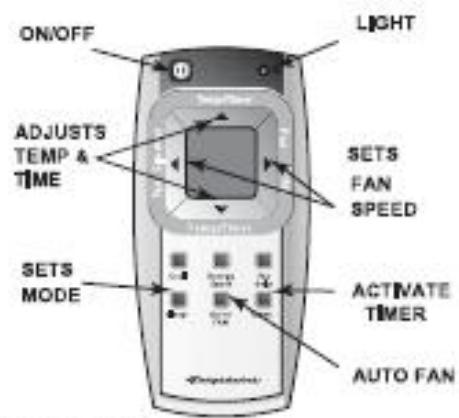

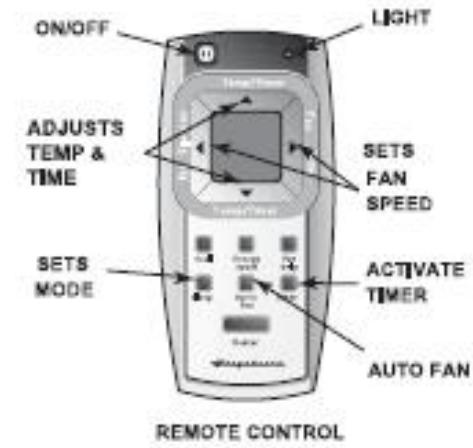

STANDARD REMOTE

Battery Size: AAA

Warning: do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

NOTE: The following instructions represent the Touch Pad, the same Instructions can be used for the Remote Control.

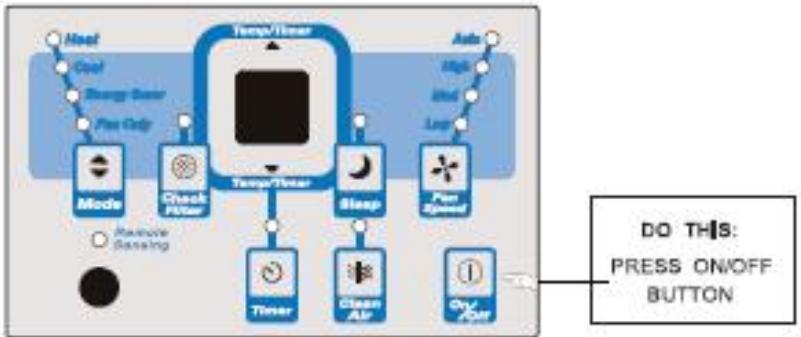

TO TURN UNIT ON:

YOU WILL SEE:

Air Conditioner Features

(continued)

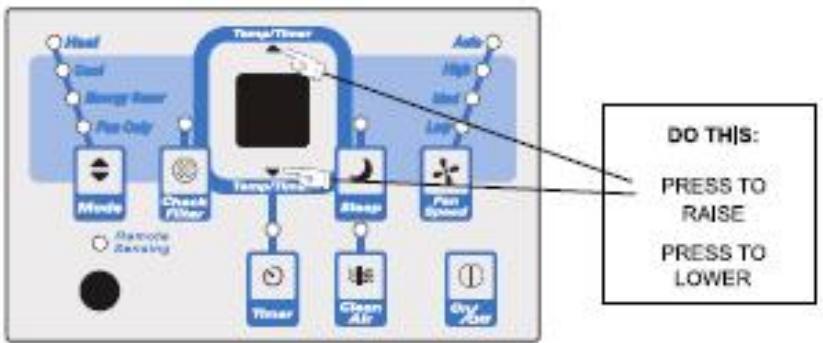

TO CHANGE TEMPERATURE SETTING:

YOU WILL SEE:

Note: Tap or hold either up (▲) or down (▼) button until the desired temperature is seen on the display. This temperature will be automatically maintained anywhere between 60^ (16°C) and 90^ (32°C) for cooling mode. The temperature will be automatically maintained anywhere between 55°F (13°C) and 80°F (27°C) for heating mode. If you want the display to read the actual room temperature. See "To Operate on Fan Only" section on Page 7.

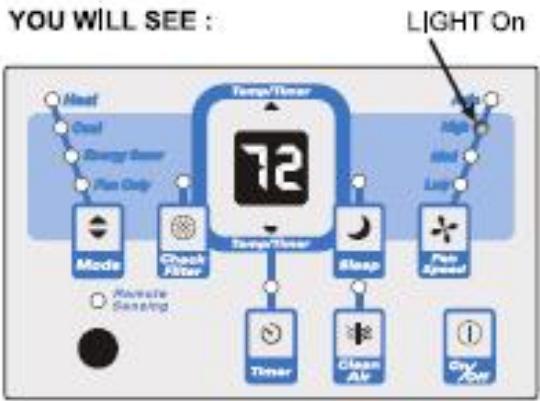

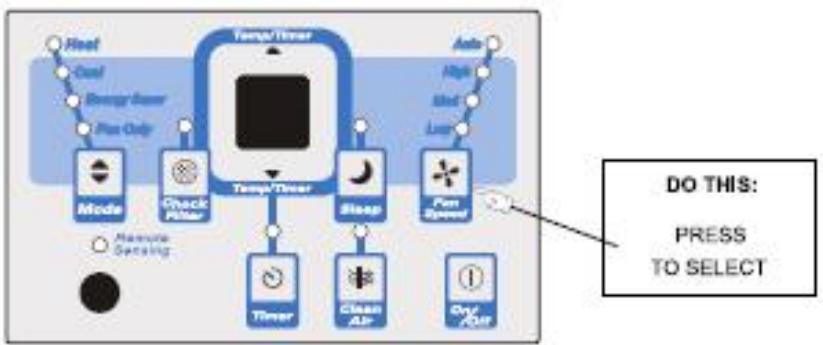

TO ADJUST FAN SPEEDS:

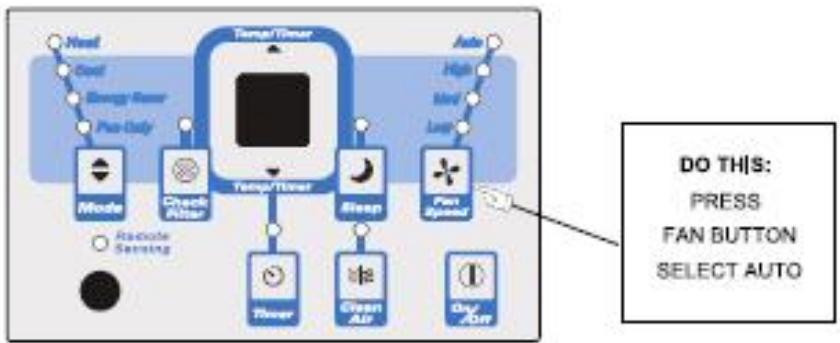

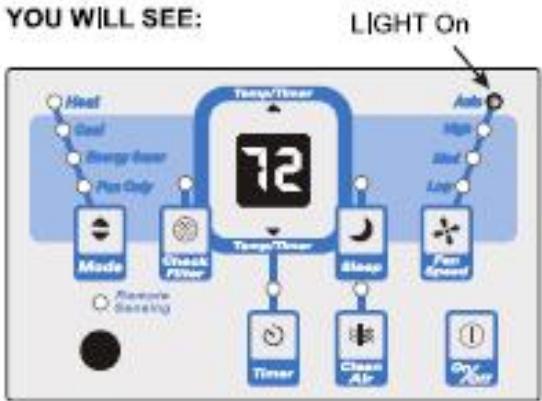

TO USE AUTO FAN FEATURE:

Note: Fan speed starts at High Speed and adjusts to a slower speed as the room temperature dictates. For example if the room doesn't get too warm, it will stay at the slowest speed. If the room temperature rises quickly, such as a door being opened, it will automatically go to the highest speed. The fan speeds will re-adjust back to the slowest speed as the room returns to the original set temperature.

Air Conditioner Features

(continued)

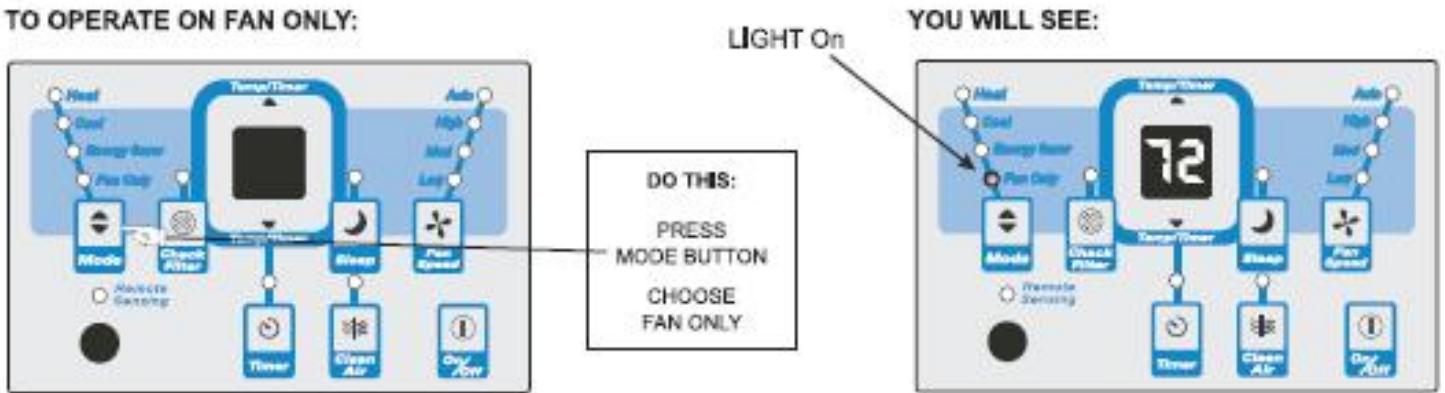

Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air. (Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer. (Exe- pect "Auto Fan").

During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode.

Fan Only cannot be selected when the unit is in the 'Remote Sensing' Mode. (On those units with that feature).

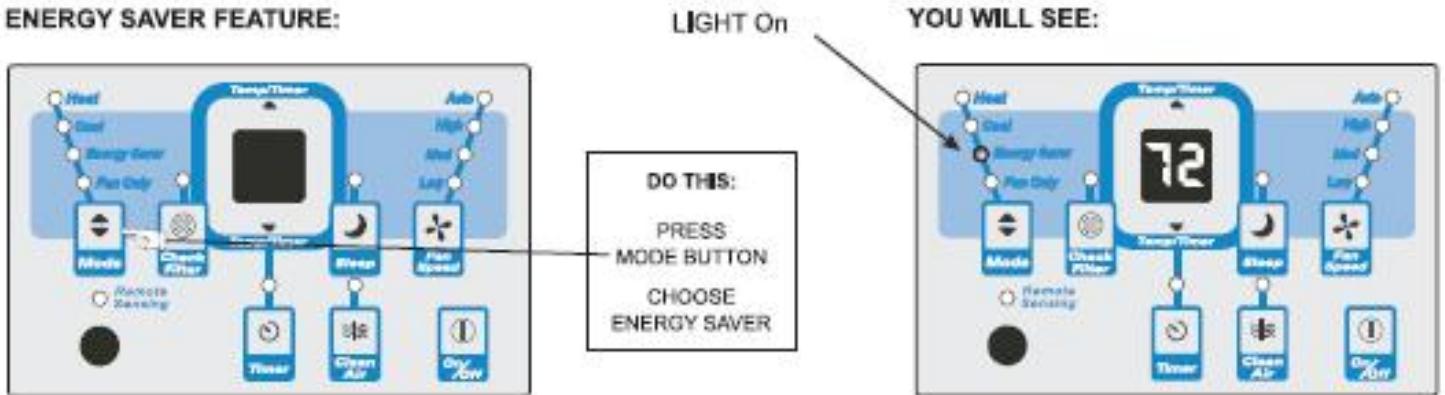

TO USE THE

Note: In this mode, the fan will continue to run for another 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the set temperature, at which time the cooling system turns back on.

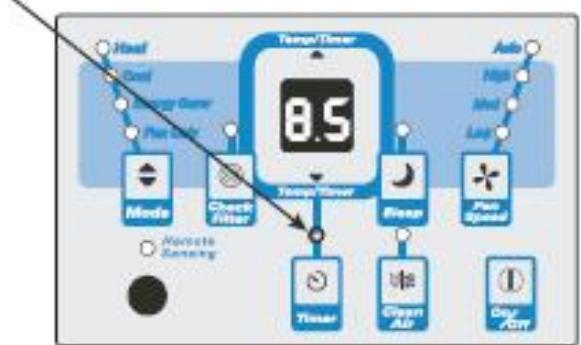

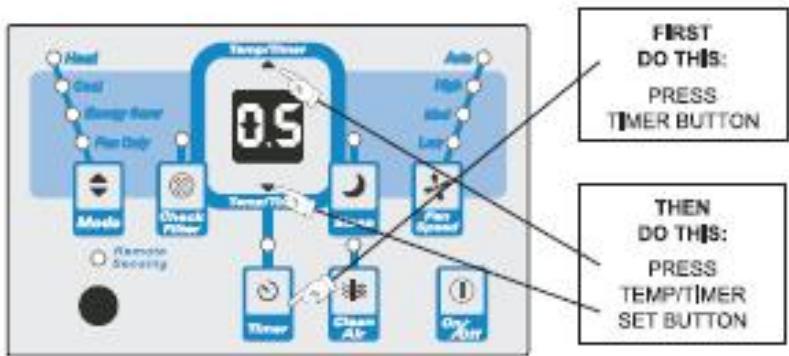

TIMER: DELAY START/STOP FEATURE:

LIGHT ON YOU WILL SEE HOW MUCH TIME IS CHOSEN:

Note 1: For Delay Stop, the unit must be in the On position.
Note 2: For Delay Start, the unit must be in the Off position.
First, PRESS TIMER BUTTON
Then to adjust timer setting, tap or hold the UP arrow (▲) or the DOWN arrow (▼) to change delay timer at 5 hour increments, up to 10 hours, then by 1 hour increments up to 24 hours. The control will count down the time remaining until start (8, 7, 5, 7, etc.). The Delay Start Operation automatically selects High Cool mode (if Cool Energy Saver, or Fan Only was the last mode selected) or High Heat mode (if Heat was the last mode selected). Note: On 115V models only low speed can be selected.) The temperature maintained will be the same as previously set. To change the set temperature, press "COOL" then Up or Down arrows until the desired temperature is indicated on the display. After 5 seconds, the control will automatically change the display back to the hours remaining until the unit will start/stop. PRESSING the unit On/Off button at any time will cancel the Delay Start/Stop function. The Delay Start/Stop Feature will work until the unit either starts or stops. Once that happens he above steps have to be repeated again.

Air Conditioner Features

(continued)

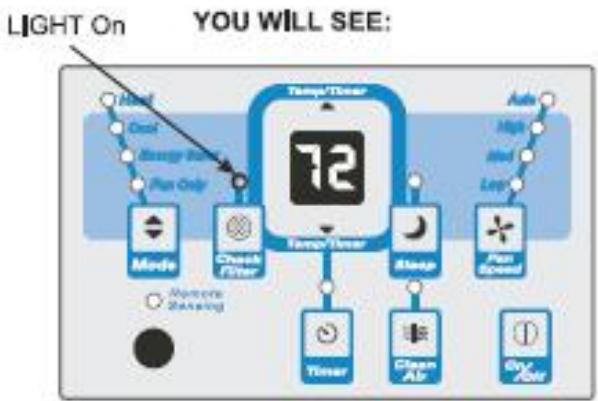

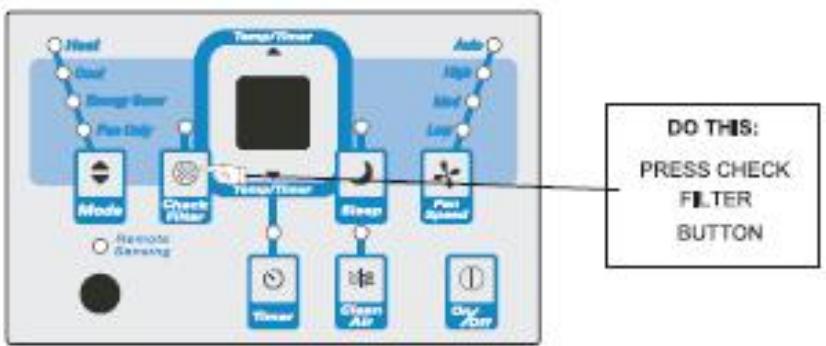

CHECK FILTER FEATURE:

Note: This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation and cooling. The LED (light) will illuminate after 250 hours of operation. To reset after cleaning the filter, press the "Check Filter" button and the light will go off.

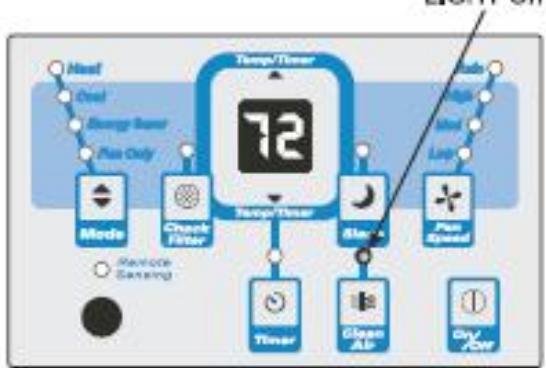

CLEAN AIR FEATURE (on some models):

YOU WILL SEE:

Note: When this feature is "ON", the electronic air purifier is energized to remove pollen and impurities from the air. To cancel this feature, press the Clean Air button (the LIGHT will turn off).
Note: This feature can be activated on the unit touchpad ONLY.

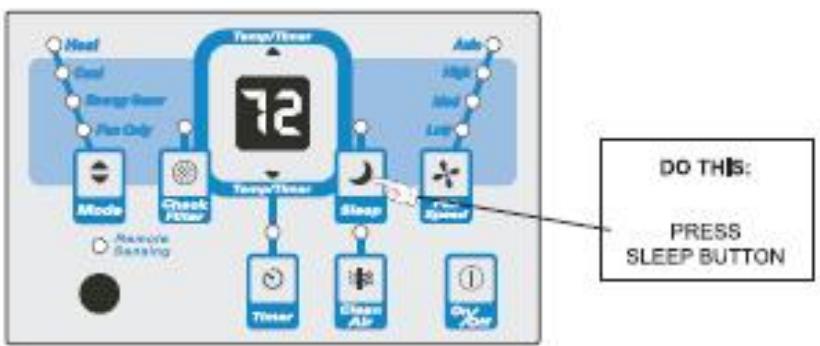

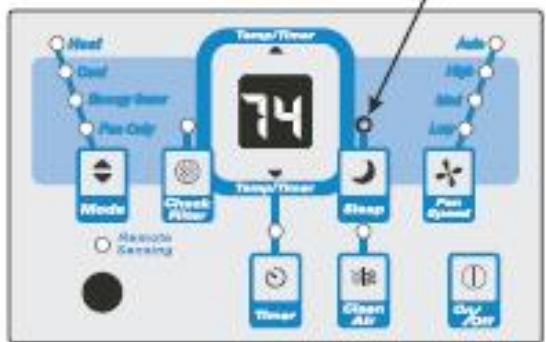

SLEEP FEATURE:

YOU WILL SEE: LIGHT On

Note: In this "MODE" the set temperature will increase by 2 degrees F 30 minutes after the mode is selected. The temperature will then increase by another 2 degrees F after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the "Sleep" MODE and the unit will continue to operate as originally programmed. The "Sleep" MODE program can be canceled at any time during operation by again pressing the "Sleep" button.

Air Conditioner Features (continued)

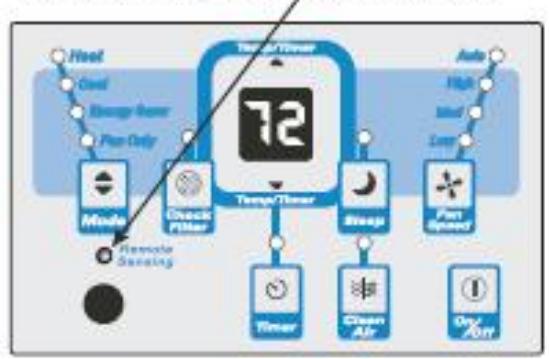

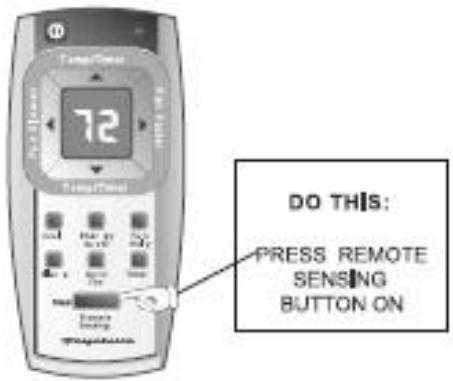

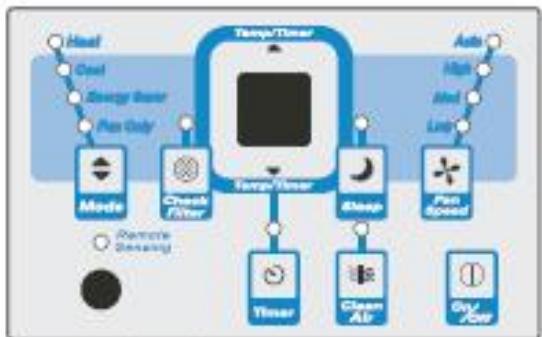

REMOTE SENSING FEATURE (on some models) :

LIGHT pulsing On & Off intermittently.

NOTE:Unit display shows set temperature

NOTE: Remote display is actual temperature at remote control only

Note: This feature can be activated from the remote control ONLY, the unit must be in a cooling mode.

To activate the remote sensing feature, point the remote control towards the unit and press the remote sensing button. Next, use the buttons to set the desired temperature at the remote. (Note that the set temperature will only be displayed on the unit itself). The LIGHT on the unit control will pulse to indicate it received the signal. The LIGHT on the remote control will pulse each time it sends a signal. It will continue to send this signal until the feature is deactivated by pressing the remote sensing button if the unit does not receive the remote sensing signal during any 3 minute interval, the unit will beep to indicate the remote sensing mode has ended. The display on the remote control indicates the temperature at the remote ONLY. The unit display indicates the set temperature.

Remote Sensing: The Remote Sensing function is terminated using the remote control Start/Stop button or the Remote Sensing Stop button, and also the main Start/Stop button on the unit.

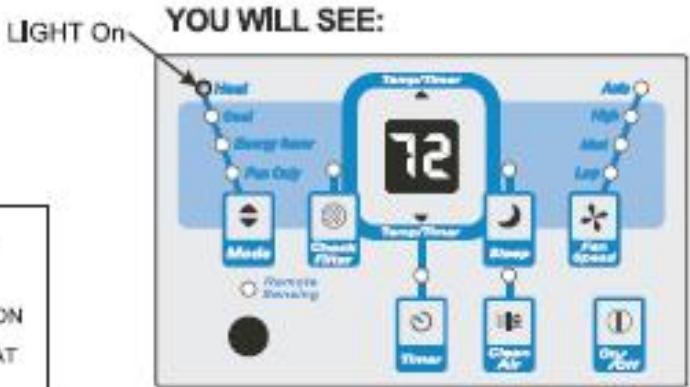

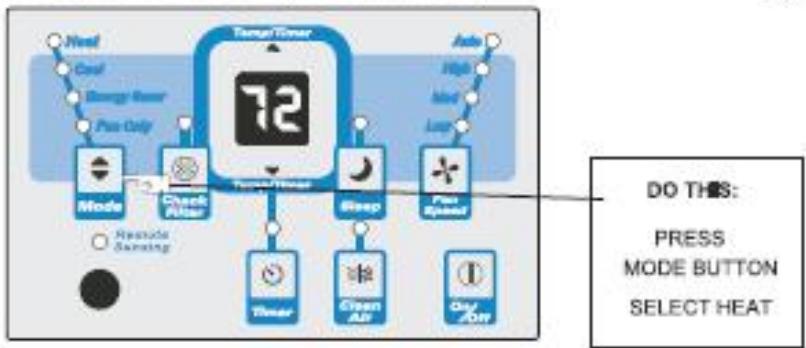

HEATING FEATURE (on some modes)

Note: This feature can be used with any combination of FAN Speeds (Low speed only on 115V modes), Timer, or Sleep Modes. When in the "Heat" Mode, the fan will run continuously while heat is needed. The temperature will automatically be maintained anywhere between 55^ F ( 13^ C ) and 80^ F ( 27^ C ) When the room set temperature is satisfied, the fan will cycle off and on to circulate and sample the room air.

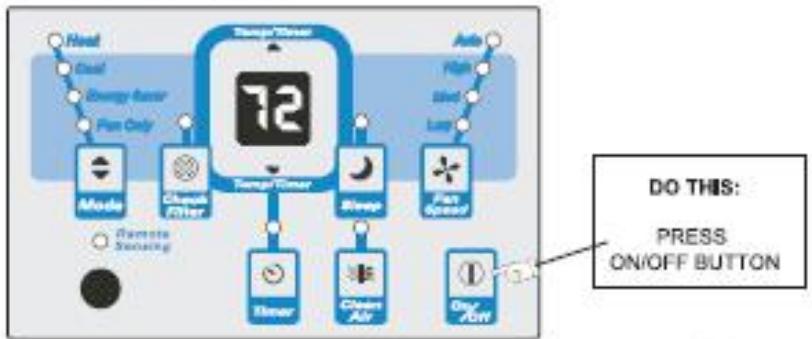

TO TURN UNIT OFF:

YOU WILL SEE:

Note: When unit is shut off in the Heat Mode, the fan will continue to run for a few seconds to dissipate residual heat within the unit.

Air Conditioner Features

(continued)

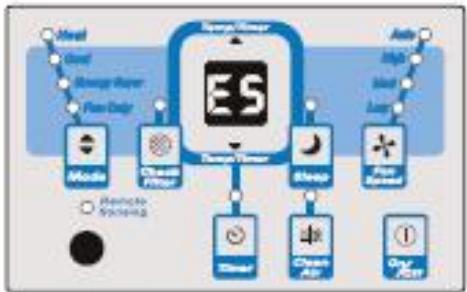

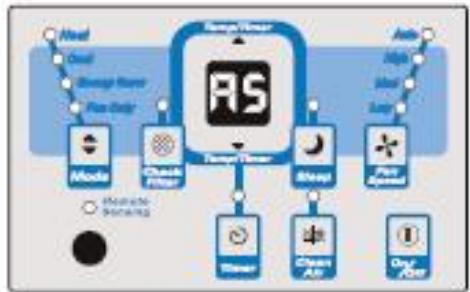

FAULT CODES

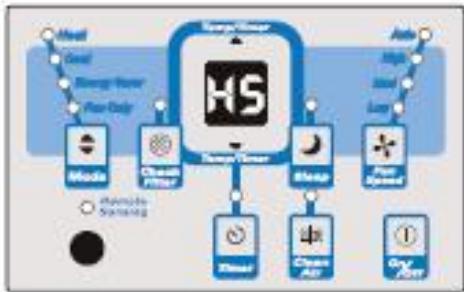

If the display reads "HS", a sensor has failed. Contact your Authorized Frigidaire Service Center.

If the display reads "AS", a sensor has failed. Contact your Authorized Frigidaire Service Center.

If the display reads "ES", a sensor has failed. Contact your Authorized Frigidaire Service Center.

ADDITIONAL THINGS YOU SHOULD KNOW

Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with:

• The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this times.

The control w maintain the set temperature within 2 degrees Fahrenheit,between 60F and 90F degrees.
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and back, Press and hold the TEMP/TIMER"Up (▲) and Down (▼) buttons together for 3 seconds.

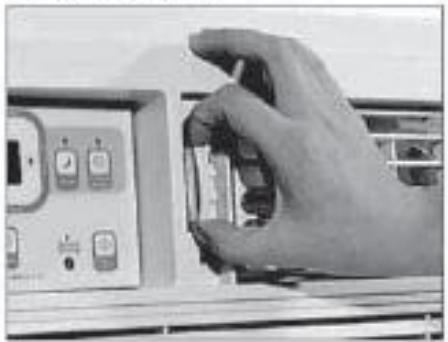

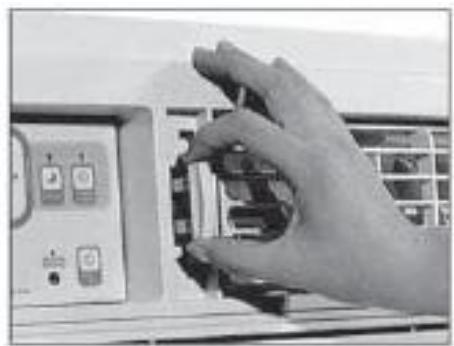

Fresh Air Vent Control(On some models)

The Fresh Air Vent allows the air conditioner to:

1. Recirculate inside air - Vent Closed (see Fig. 1)
2. Draw fresh air into the room - Vent Open (see Fig. 2)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig. 3)

Fig.1(OFF)

Fig.2(FRESHAR)

Fig. 3 (VENT)

AUGER WHEEL

The buyers will allow you to direct the air down Up or Down and Left or Right throughout the room as needed. Rotate the Auger Wheel up or Down until the desired direction is obtained.

Care and Cleaning

Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

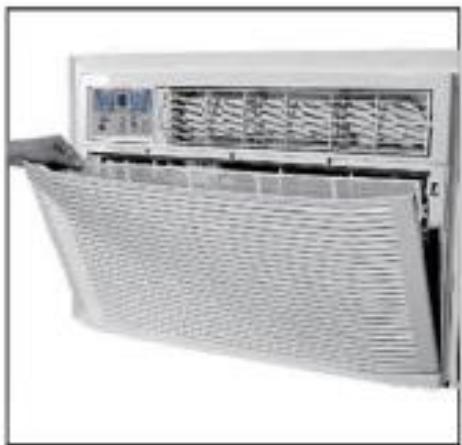

Air Filter Cleaning

The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils.

• Push the vent handle to the Vent Closed position (where applicable).
• Open the front panel
• Grasp the filter by the center and pull up and out.
• Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. Gently shake excess water from the filter. Be sure filter is thoroughly dry before replacing.
  Or, instead of washing you may vacuum the filter clean.

Cabinet Cleaning

• Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the cabinet front.
• Be sure to wing excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner.
  Plug in air conditioner.

Winter Storage

If you plan to store the air conditioner during the winter, remove it carefully from the window according to the installation instructions. Cover it with plastic or return it to the original carton.

Energy Saving Ideas

Do not block air flow inside with blinds, curtains or furniture; or outside with shrubs, enclosures, or other buildings.
The capacity of the room air conditioner must fit the room size for efficient and satisfactory operation.
- Install the room air conditioner on the shady side of your home. A window that faces north is best because it is shaded most of the day.
- Close the fireplace damper, floor and wall registers so cool air does not escape up the chimney and into the duct work.
- Keep blinds and drapes in other windows closed during the sunniest part of the day.
Clean the air filter as recommended in the section "Care and Cleaning."
Proper insulation and weather stripping in your home will help keep warm air out and cool air in.
External house shading with trees, plants or awnings will help reduce the air conditioner's work load.
- Operate heat producing appliances such as ranges, washers, dryers and dishwashers during the coolest part of the day.

Avoid Service Checklist

Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE	SOLUTION
Air conditioner will not operate.	Wall plug disconnected, Push plug firmly into wall outlet.
	Plug Current Device Tripped. Press the RESET button.
	House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
	Control is OFF. Turn Control ON and set to desired setting.
Air from unit does not feel cold enough.	Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above 60°F (16°C).
	Temperature sensing element touching cold coil located behind air filter, Straighten away from coil.
	Reset to a Lower temperature.
	Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart when set in the COOL mode.
Air conditioner cooling, but room is too warm - ice forming on cooling coil behind decorative front.	Outdoor temperature below 60°F (16°C). To defrost the coil set FAN ONLY Mode.
	Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY Mode.
	Temperature is set too low for night-time cooling. To defrost the coil set to FAN ONLY Mode. Then, set Temperature to a Higher setting.
Air conditioner cooling, but room is too warm - NO ice forming on cooling coil behind decorative front.	Dirty air filter - air restricted, Clean air filter, Refer to Care and Cleaning section.
	Temperature is set too high. Set temperature to a Lower setting.
	Air directional louvers positioned improperly. Position louvers for better air distribution.
	Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.
	Doors, windows, registers, etc, open - cold air escapes, Close doors, windows, registers, etc.
	Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture.
Air conditioner turns on and off rapidly.	Dirty air filter - air restricted, Clean air filter.
	Outside temperature extremely hot. Set FAN speed to a faster setting to bring air past cooling coils more frequently.
Noise when unit is cooling.	Air movement sound. This is normal. If too loud, set to a slower FAN setting.
	Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping INSIDE when unit is cooling.	Improper installation. The air conditioner slightly to the outside to allow water drainage. Refer to installation instructions - check with installer.
Water dripping OUTSIDE when unit is cooling.	Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
Remote Sensing Deactivating Prematurely (Some Models).	Remote control not located within range. Place remote control within 20 feet & 180°, radius of the front of the unit.
	Remote control signal obstructed, Remove obstruction.
Room Too Cold.	Set temperature too low. Increase set temperature.
	Remote Sensing activated (on some models) and remote control located in Hot Spot - Relocate remote control or deactivate remote sensing.

If These Solutions Fail, Call 1-800-444-4944 For Frigidaire Service.
