BLUES DEVILLE - Amplificateur de guitare FENDER - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Amplificateur de guitare à lampes
Marque	FENDER
Modèle	BLUES DEVILLE
Nombre de canaux	2 (Normal et Drive)
Puissance de sortie	60 Watts sous 8 Ohms (Blues Deville), 60 Watts sous 4 Ohms (Blues Deville 212)
Haut-parleurs (Blues Deville)	4 haut-parleurs Fender Re-issue Blue Alnico de 10 pouces (8 Ohms chacun)
Haut-parleurs (Blues Deville 212)	2 haut-parleurs Fender Re-issue Gold Label de 12 pouces (8 Ohms chacun)
Dimensions - Modèle 410 (H x L x P)	59,7 cm x 59,7 cm x 27,3 cm
Dimensions - Modèle 212 (H x L x P)	53,3 cm x 61,6 cm x 27,3 cm
Poids - Modèle 410	22,7 kg
Poids - Modèle 212	24,2 kg
Alimentation (version 120V)	120 V AC, 60 Hz, 2 A max
Alimentation (version 230V)	230 V AC, 50 Hz, 1 A max
Impédance d'entrée (Input 1)	1 MOhm
Impédance d'entrée (Input 2)	136 kOhms
Fonctions principales	Réverbération, sélection de canal (Normal/Drive), Drive, Master, égalisation (Treble, Bass, Middle), Presence, Bright, Standby, prise pour footswitch, boucle d'effets (Preamp Out / Power Amp In), haut-parleur externe
Entretien et nettoyage	Débrancher avant nettoyage. Utiliser un chiffon sec. Ne pas exposer à l'humidité.
Consignes de sécurité	Ne pas exposer à la pluie ou à l'humidité. Utiliser une prise de courant mise à la terre. Ne pas modifier la fiche d'alimentation. Confier toute réparation à un technicien qualifié.
Pièces détachées et réparabilité	Utiliser exclusivement des tubes Fender d'origine (12AX7A et 5881) et fusibles de type spécifié. Consulter un réparateur agréé pour toute intervention.
Accessoires inclus	Pédale de commutation à 2 boutons (pour canal et réverbération)
Informations générales	Amplificateur à lampes de style vintage, circuit inspiré des Bassman des années 50. Revêtement en tweed véritable, grille Oxblood.

FOIRE AUX QUESTIONS - BLUES DEVILLE FENDER

Comment brancher un haut-parleur externe sur le Blues Deville ?

Utilisez la prise EXTERNAL SPEAKER (F) avec une enceinte de 8 Ohms (modèle 410) ou 4 Ohms (modèle 212). La prise principale doit toujours être utilisée simultanément, sinon il n'y aura pas de son.

Quelle est la différence entre les entrées Input 1 et Input 2 ?

L'entrée Input 1 a une impédance élevée (1 MOhm) pour les guitares passives. L'entrée Input 2 a une impédance plus faible (136 kOhms) pour les guitares avec préampli actif, offrant un son plus sombre. Les deux entrées sont identiques si utilisées simultanément.

Comment utiliser la fonction Standby ?

Le commutateur Standby (R) met l'ampli hors tension tout en maintenant les filaments des lampes chauffés (si l'interrupteur général est allumé). Utilisez-le pendant les pauses courtes pour prolonger la durée de vie des lampes.

Comment régler le canal Drive pour un son saturé ?

Appuyez sur Drive Select (E) pour activer le canal Drive. Augmentez la commande Drive (F) pour ajouter de la saturation, puis ajustez le volume global avec Master (K). Des réglages élevés de Drive donnent un sustain et un son vintage.

Que faire si l'ampli ne s'allume pas ?

Vérifiez que le cordon d'alimentation est bien branché et que la prise est alimentée. Assurez-vous que l'interrupteur On/Off (S) est en position marche. Si l'ampli ne s'allume toujours pas, vérifiez le fusible (H) et remplacez-le si nécessaire par un fusible de même type et calibre.

Comment brancher des effets externes ?

Utilisez la boucle d'effets : connectez la sortie de l'effet à la prise Power Amp In (P) et la sortie de l'effet à l'entrée Preamp Out (O). Pour utiliser uniquement le préampli, insérez une fiche de court-circuit dans Power Amp In.

Quels tubes utilise le Blues Deville ?

L'ampli utilise trois lampes 12AX7A (préampli) et deux lampes 5881 (étage de puissance). Utilisez exclusivement des tubes Fender d'origine (références 013341 et 039214).

Comment nettoyer l'ampli ?

Débranchez toujours l'ampli avant tout nettoyage. Utilisez un chiffon doux et sec. N'utilisez pas de produits chimiques ou d'eau. Évitez d'exposer l'ampli à l'humidité.

Puis-je utiliser l'ampli avec un casque ?

Non, le Blues Deville ne dispose pas de sortie casque. Utilisez un atténuateur de puissance ou un simulateur d'ampli si nécessaire.

Comment utiliser la pédale de commutation incluse ?

Branchez la pédale à la prise Footswitch (N) à l'aide d'un câble (de préférence un câble enceinte). La pédale permet de basculer entre les canaux Normal et Drive et d'activer/désactiver la réverbération. Elle remplace les boutons frontaux.

MODE D'EMPLOI BLUES DEVILLE FENDER

gend

Blues De Ville

TYPE:PR:247

Owner's Manual

P/N 047444

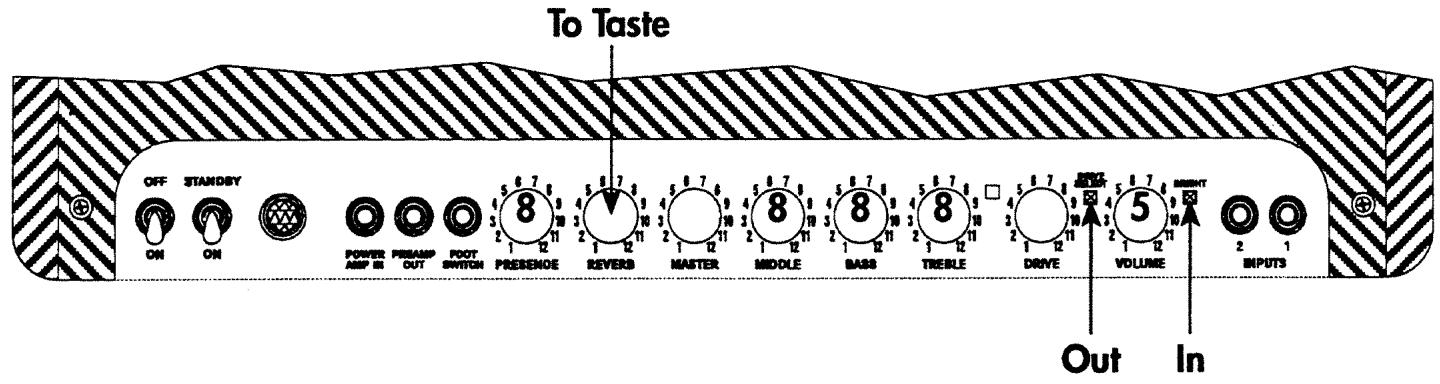

Classic Blues / Middle or Neck Pickup

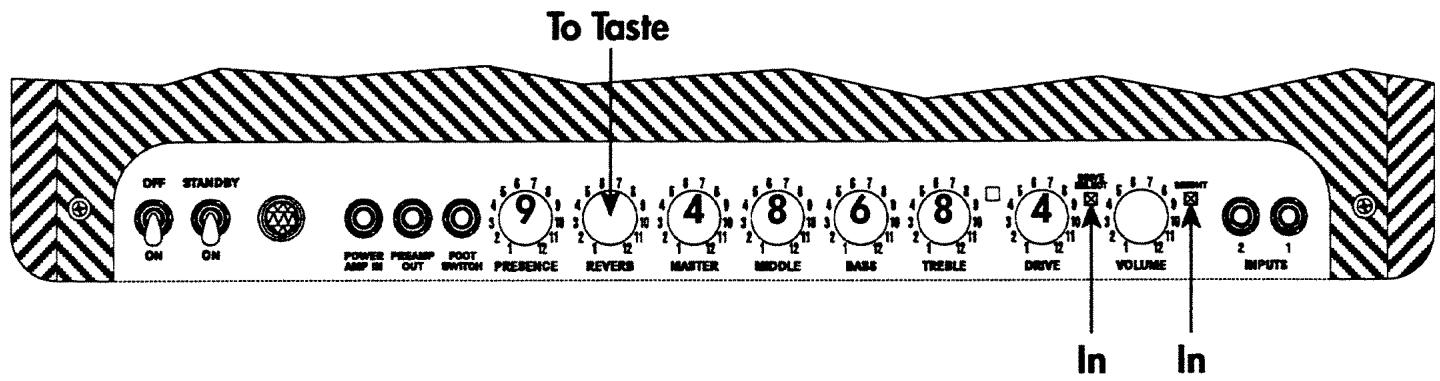

Tweed with a Bite / Any Pickup Combination

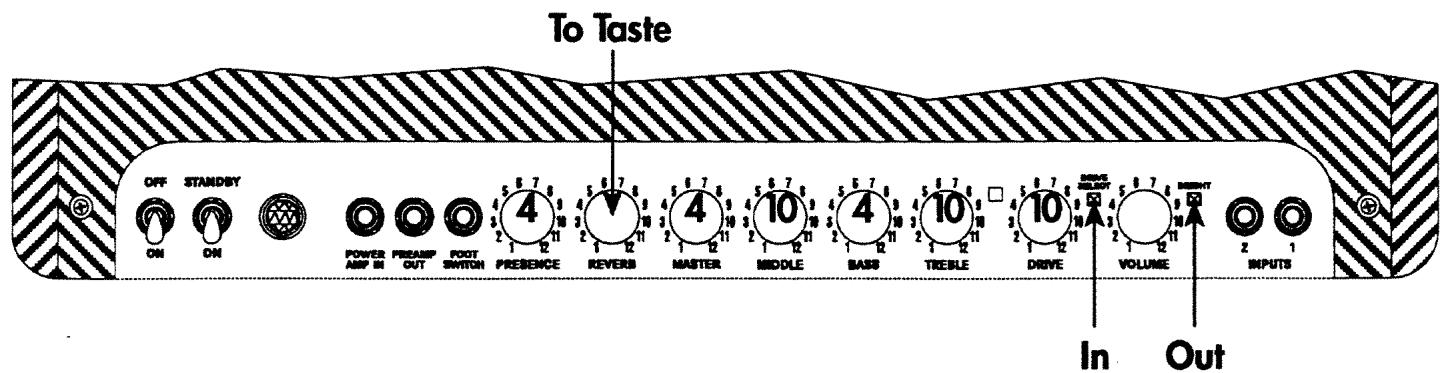

Sweet Solo / Humbucking Bridge or Middle Pickup

Introduction

The new Fender Blues De Ville offers classic Fender looks and bluesy sound with useful modern features. For years, the choice of professional musicians has been Fender vintage amplifiers because of their incredibly warm tone and dynamic performance characteristics. Unfortunately, not only are these amps getting harder to find, but, during a performance there is only one sound available. Channel switching didn't exist in the 50's! This is too bad because the old amps have many great sounds available, especially when played LOUD!

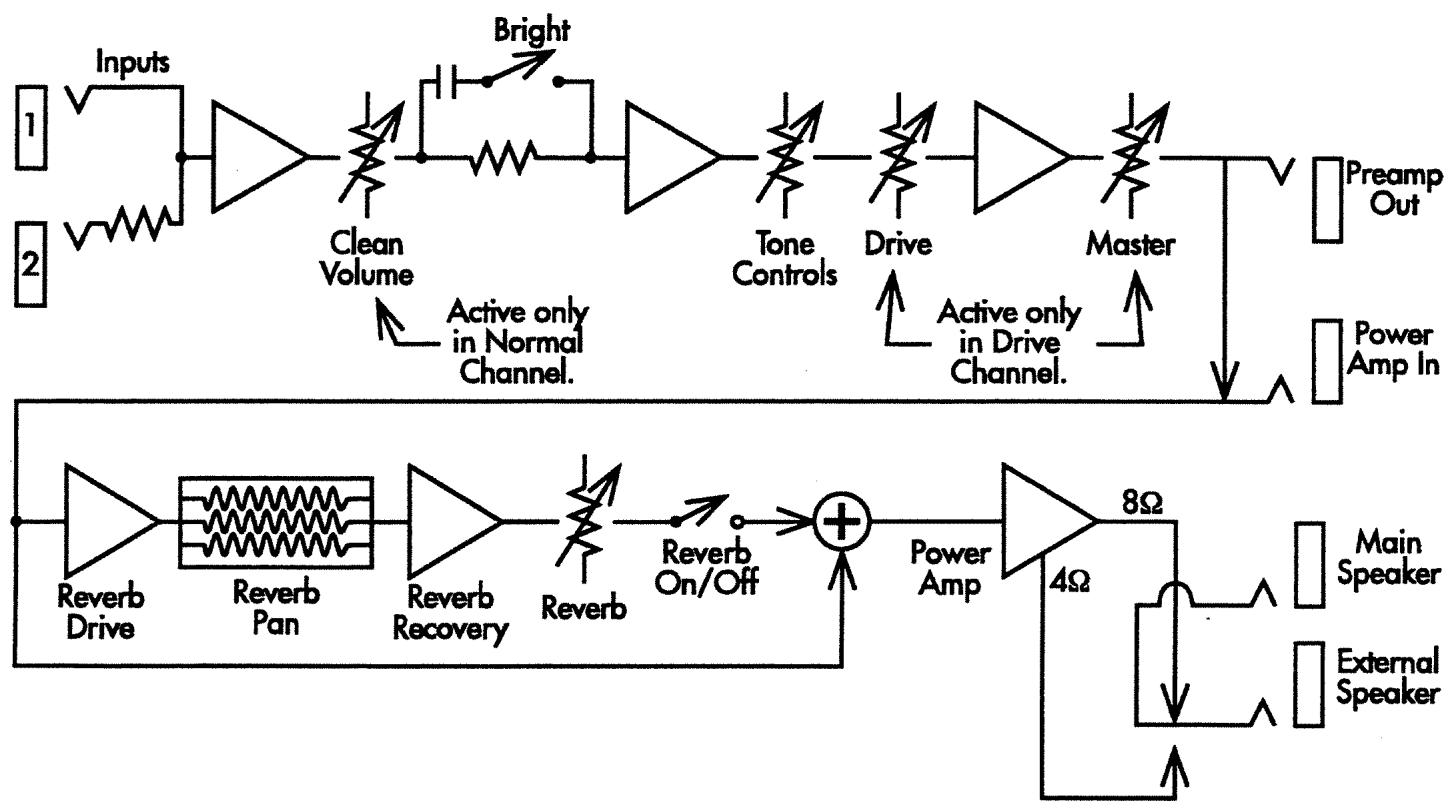

Due to its channel switching capabilities, the Blues De Ville is really two vintage amps in one. The "NORMAL" channel is based on the original tweed BASSMAN circuit of the late 1950's and is capable of delivering every performance characteristic you would expect of that type of amplifier. Even the "Bright" inputs of the BASSMAN have been accommodated by incorporating a bright switch that adds the familiar vintage "sparkle".

The "DRIVE" channel shares the same tone controls as the NORMAL channel but has separate "Drive" and "Master" controls. Using the "Drive" control, the overdrive sound of this channel can be set anywhere from clean and almost identical to the "NORMAL" channel to the sweet, singing, "on ten" BASSMAN sound. The "Master" control can then be used to adjust the overall loudness of this tone. The "DRIVE" channel allows you to have gain and sustain without getting evicted from your neighborhood, or it can be used to supply that extra edge for a solo.

The Fender Blues De Ville features four 10" vintage re-issue "blue-alnico" speakers and the Blues Deville 212 features two 12" vintage re-issue "gold label" speakers.

The Fender Blues De Ville also provides the lush REVERB typical of the Fender Reverb Unit that is commonly used with BASSMAN amplifiers.

The included 2-button footswitch allows remote channel switching and the ability to turn the REVERB on and off.

Preamp Out and Power Amp In jacks provide a signal path for an endless supply of effects devices. Further, using the Preamp Out Jack the Fender Blues De Ville's preamp signal can be sent to an additional guitar power amp, mixing console, etc. Note that if you wish to silence the power amp in the Fender Blues De Ville while doing this, you need to insert a shorting plug into the Power Amp In jack. Conversely, the Fender Blues De Ville's power amp can be used by another preamp by sending a signal from that preamp to the Fender Blues De Ville's Power Amp In jack.

An impedance-switching EXTERNAL SPEAKER jack is provided to allow the use of an additional 8 Ohm speaker cabinet.

The 60 Watt tube power amplifier is derived from the BASSMAN and uses a 12AX7A driver for that renown vintage "soft clip" when the power amplifier is overdriven.

The Fender Blues De Ville consists of a rear-loaded chrome chassis, "Oxblood" grille cloth over the speaker baffle and a cabinet covered in real vintage tweed. Real tweed is used because it's tough and it stands up to travel on the road, just like the amps themselves.

The selection of a Fender amplifier will reward you with years of quality performance and a wide range of musical sounds. This manual is designed to familiarize you with the equipment and to acquaint you with its many features. Please read it carefully so you will benefit from all of the features as soon as you start using the amplifier.

The built-in quality of a Fender amplifier is the result of over four decades of dedication and the combined research and development skills of our musicians and engineers. That is why we proudly say...

FENDER, The Sound That Creates Legends.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Blues De Ville top panel functions

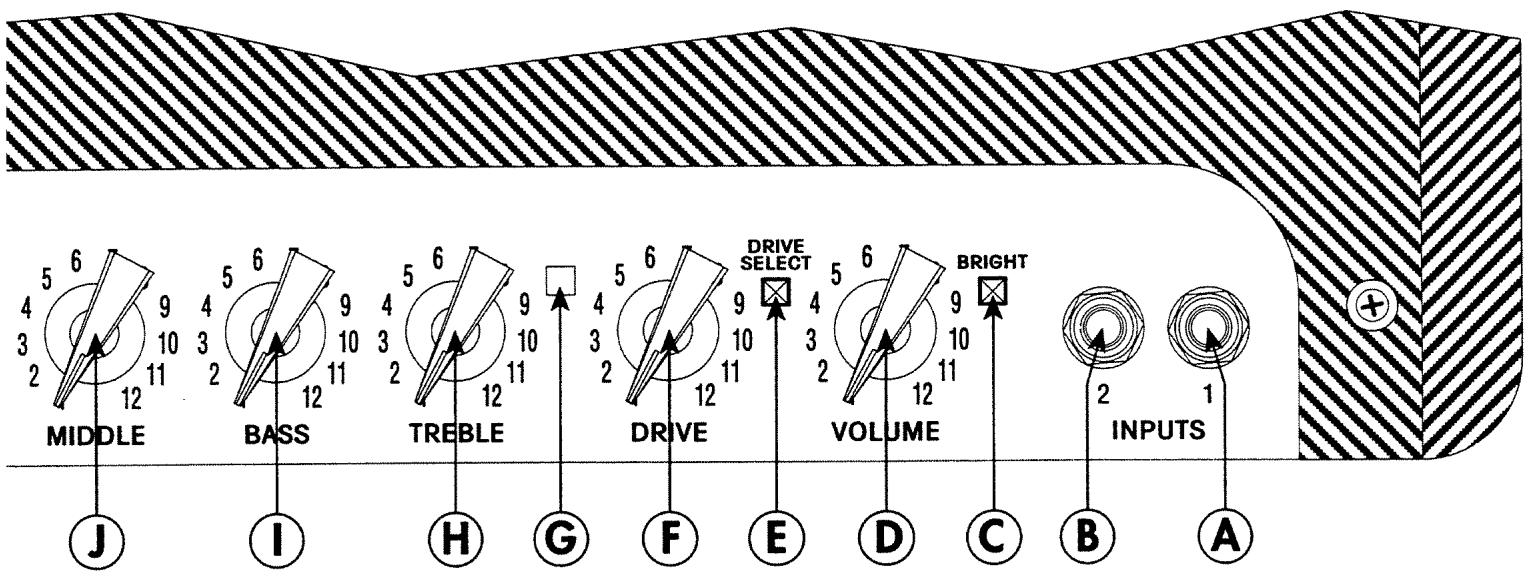

A. Input 1-A high impedance, high sensitivity plug-in connection for instruments.
B. Input 2-Plug-in connection for instruments. This input exhibits a lower input impedance and sensitivity than INPUT 1 and is useful with active preamp guitars, and will provide a darker tone with passive guitars. Both inputs are identical if used simultaneously.
C. Bright-This switch adds a top end brightness to both channels.
D. Volume-Adjusts the overall loudness of the Normal Channel.
E. Drive Select-When this button is depressed, the amp switches from the Normal channel to the Drive channel.
F. Drive-Adjusts the amount of preamp gain in the Drive Channel. Turning this control up will increase the amount of gain and overdrive. This control works in conjunction

with the Master control to set the overall loudness at the output while the drive channel is active.

G. Drive Channel Indicator-This LED is illuminated when the Drive Channel is selected.

H. Treble-Adjusts the amount of boost or cut in the high frequency range of both channels. Performance Tip: The "Drive" channel is capable of a variety of available sounds. At high gain settings, the drive channel's apparent treble response "comes alive" as the channel generates sustain. With high gain settings, lower treble settings will produce a vintage tone, higher settings will produce a tone with "crunch".

I. Bass-Adjusts the amount of boost or cut in the low frequency range of both channels. Performance Tip: When playing at higher volume levels, the tube power amp enhances bass when its overdriven. It may be necessary to use lower bass settings when playing at high volume settings.

J. Middle-Adjusts the amount of boost or cut in the middle frequency range of both channels.
K. Master-Adjusts the overall volume in the Drive Channel.
L. Reverb-Adjusts the amount of reverb present in both channels.
M. Presence-Adjusts the amount of very high frequency content in both channels. This control adds brilliance to the overall tone.

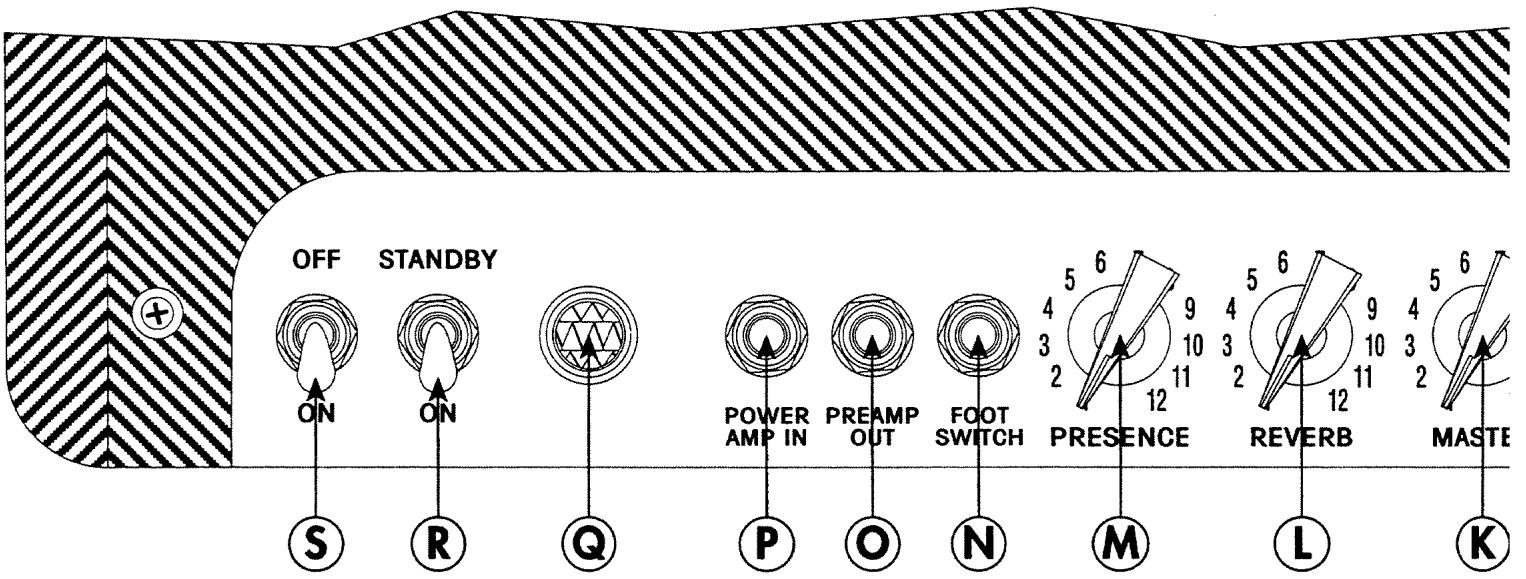

N. Footswitch-Plug-in connection for remote footswitch to switch between the Normal Channel and Drive Channel, and to turn the reverb on and off. NOTE: Any good quality patch cord will work with the remote footswitch; however, a speaker grade cord is preferable to a coax guitar cord when it's available. Using the footswitch overrides the front panel select buttons.

O. Preamp Out-This jack provides output from the preamp, pre-reverb. It is used to patch into effects.
P. Power Amp In-This jack provides a return from effects gear into the power amp and is pre-reverb.
Q. Pilot Light-This lamp is illuminated when the power is ON.
R. Standby Switch-This switch turns the amplifier on and off. In the STANDBY position, the amplifier is off; however, power is applied to the tube filaments so as to eliminate warm-up time provided the "On/Off" switch (item S) is on. Use of this feature during short breaks versus using the On/Off switch will increase tube life.
S. On/Off Switch-Turns the AC power on and off. When the switch is in the off position, the amplifier is completely shut down.

Blues De Ville bottom panel functions

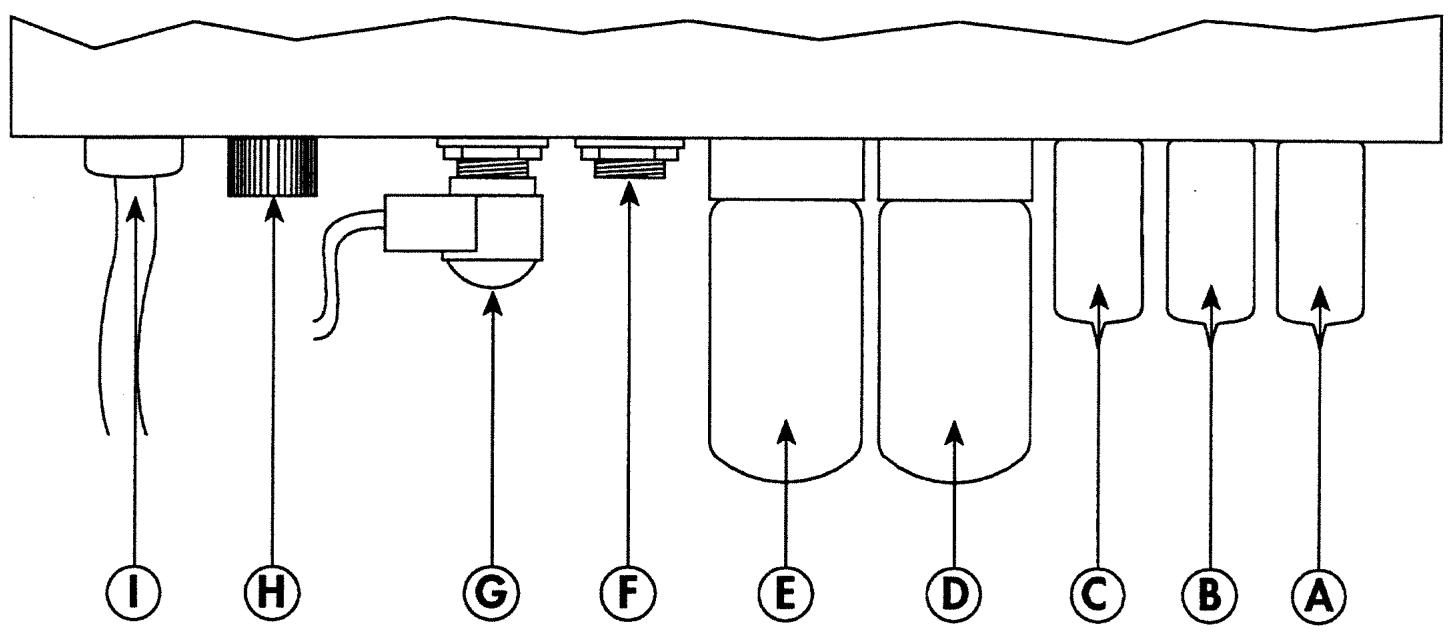

A-E. The Fender Blues De Ville tube complement consists of three Fender Special Design 12AX7As (part number 013341) and two Fender Special Design 5881s (part number 039214) and provide optimum performance in this amplifier. For best results, replace with Fender original equipment 12AX7A and 5881 tubes only. Tube location is printed on the tube label located inside the cabinet.
F. External Speaker-Plug-in connection for an external speaker. This jack is wired in parallel with the main speaker jack, and must only be used in conjunction with the main speaker jack. Should the external speaker jack be used without also using the main speaker jack, there will be no sound. The external speaker jack must be used with an 8 Ohm speaker enclosure for the Blues Deville, or 4 Ohm speaker enclosure for the Blues Deville 212. When the external speaker jack is used in this fashion the resulting speaker load will be optimum for full power.
G. Main Speaker-Plug-in connection for speakers. This jack must always be used as the primary connection to speakers.
H. Fuse-The fuse is in the AC supply of the amplifier and will help to protect the amplifier and the operator in the event of an electrical fault. If a fuse blows, it should only be replaced with a fuse in accordance with the listing at the fuse holder. If an amplifier repeatedly blows fuses, it should be checked out by a qualified technician. UNDER

NO CIRCUMSTANCES should a fuse of a different type, higher current rating, or a fuse bypass be used, as this could damage the equipment and present a serious safety hazard.

I. Line Cord-This amplifier is equipped with a grounding type supply cord to reduce the possibility of shock hazard caused by leakage current. Be sure to connect it to a grounded AC receptacle. DO NOT ALTER THE AC PLUG.

NOTE: The tubes, external speaker jack, speaker jack, and fuse are not accessible by the user in Scandinavian countries. Refer any servicing or changes of this nature to a qualified technician.

Troubleshooter's Checklist

Is the power cord properly plugged into an electrical outlet? Is there power at the outlet?

Is the speaker properly connected to the amplifier?

Are all the control knobs turned above four?

Is the volume control on the instrument turned up?

Is the instrument properly connected to the amplifier?

(Eliminate all effects and try another guitar cord.)

If, after checking all of the above, the amplifier is still not working correctly, consult your Fender Service Dealer.

Blues De Ville specifications

	Blues Deville	Blues Deville 212
Part Number:
120V Version:	21-3101	21-3100
230V Version:	21-3161	21-3160
Input Impedance:
Input 1:	1M Ohms	same
Input 2:	136K Ohms	same
Power Output:	60 Watts into 8 Ohms at 5% THD	60 Watts into 4 Ohms at 5% THD
Preamp Out
Output Impedance:	1.5K Ohms Maximum	same
Power Amp In Sensitivity:	300mV for clipping	same
Power Amp In Input Impedance:	220K Ohm Minimum	same
Power Requirements:
120V Version:	120 Volts AC, 60Hz, 2 Amp Max	same
230V Version:	230 Volts AC, 50Hz, 1 A Max	same
Speakers:	Four 8 Ohm Fender Re-issue "Blue alnico" 10-inch speakers (P/N 036457)	Two 8 Ohm Fender Re-issue "Gold Label" 12-inch speakers (P/N 037617)
Dimensions:	Height: 23 1/2" (59.7 cm)	Height: 21" (53.3 cm)
	Width: 23 1/2" (59.7 cm)	Width: 24 1/4" (61.6 cm)
	Depth: 10 3/4" (27.3 cm)	Depth: 10 3/4" (27.3 cm)
	Weight: 50 lbs. (22.7 Kg)	Weight: 53 1/2 lbs. (24.2 Kg)

WARNING:

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
