BT16 - Humidificateur BIONAIRE - Notice d'utilisation et mode d'emploi gratuit

Type d'appareil	Ventilateur colonne
Puissance	Non précisé
Vitesse	Plusieurs vitesses réglables
Oscillation	Oui
Minuterie	Oui
Mode silencieux	Non précisé
Alimentation	Électrique
Type de commande	Manuelle et télécommande
Hauteur	Non précisé
Poids	Non précisé
Matériau	Plastique
Couleur	Non précisé
Protection contre la surchauffe	Oui
Facilité de nettoyage	Grille amovible
Utilisation	Intérieur
Garantie	Non précisé

FOIRE AUX QUESTIONS - BT16 BIONAIRE

Comment puis-je allumer le BIONAIRE BT16 ?

Assurez-vous que l'appareil est branché. Appuyez sur le bouton d'alimentation situé sur le panneau de contrôle.

Pourquoi mon BIONAIRE BT16 ne produit-il pas de vapeur ?

Vérifiez si le réservoir d'eau est rempli. Si le réservoir est vide, remplissez-le et essayez à nouveau.

Quelle est la capacité du réservoir d'eau du BIONAIRE BT16 ?

Le réservoir d'eau du BIONAIRE BT16 a une capacité de 1,5 litre.

Comment nettoyer le BIONAIRE BT16 ?

Débranchez l'appareil, videz le réservoir d'eau, puis essuyez l'extérieur avec un chiffon humide. Pour l'intérieur, utilisez un mélange de vinaigre et d'eau si nécessaire.

Le BIONAIRE BT16 émet-il des bruits étranges ?

Des bruits peuvent se produire si le réservoir est presque vide ou s'il y a des dépôts minéraux. Assurez-vous que le réservoir est plein et nettoyez l'appareil si nécessaire.

Quelle est la durée de fonctionnement du BIONAIRE BT16 ?

La durée de fonctionnement dépend de la quantité d'eau dans le réservoir. En général, il peut fonctionner jusqu'à 12 heures avant de nécessiter un remplissage.

Puis-je utiliser des huiles essentielles avec le BIONAIRE BT16 ?

Non, il n'est pas recommandé d'utiliser des huiles essentielles avec cet appareil, car cela pourrait endommager le mécanisme.

Comment régler le niveau de vapeur sur le BIONAIRE BT16 ?

Utilisez le bouton de réglage de la vapeur sur le panneau de contrôle pour choisir le niveau de vapeur souhaité.

Mon BIONAIRE BT16 affiche un code d'erreur, que dois-je faire ?

Consultez le manuel d'utilisation pour comprendre le code d'erreur. Généralement, cela indique un problème qui nécessite une attention particulière.

Est-ce que le BIONAIRE BT16 a une fonction d'arrêt automatique ?

Oui, le BIONAIRE BT16 est équipé d'une fonction d'arrêt automatique qui s'active lorsque le réservoir d'eau est vide.

MODE D'EMPLOI BT16 BIONAIRE

CLEANING AND MAINTENANCE

• Always unplug the fan before cleaning or assembly.
• Do not allow water to drip on or into the fan motor housing.

JCS/THG, LLC reserves the right to change or modify any specifications without notice.

FITTING A REPLACEMENT PLUG (U.K AND IRELAND ONLY)

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. For correct type and correct installation please refer to "installation of a plug".

INSTALLATION OF A PLUG - Applicable to U.K. and Ireland.

The wires in this mains lead are coloured as such:

BROWN - Live

BLUE Neutral

This product is fitted with 13 amp plug. The fuse should be rated at 3 amps and ASTA approved to BS1362 standard. However if the plug is not in accordance with this, please remove and follow the below installation details:

• The BROWN coloured wire must be connected to the pin terminal, which is marked with the letter L (Live) or is coloured RED.
• The BLUE coloured wire must be connected to the pin terminal which is marked with the letter N (Neutral) or is coloured BLACK.
  DO NOT CONNECT either of these wires to the earth terminal in the plug. The earth terminal plug is marked with the letter E (12) or is coloured GREEN, or GREEN&YELLOW.

NOTE: If you are in any doubt about wiring and the installation of the plug. Please contact a qualified electrician.

If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to the BS1363 standard. Replacement 3 amp fuses must also be BSI or ASTA approved and complaint with the BS1362 standard.

GUARANTEE

PLEASE KEEP YOUR RECEIPT AS THIS WILL BE REQUIRED FOR ANY CLAIMS UNDER THIS GUARantee.

• This product is guaranteed for 3 years.
  In the unlikely event of breakdown, please take it back to the place of purchase, with your till receipt and a copy of this guarantee
• The rights and benefits under this guarantee are additional to your statutory rights which are not affected by this guarantee.
  Holmes Products Europe undertakes within the specific period, to repair or replace free of charge, any part of the appliance found to be defective provided that:

We are promptly informed of the defect.
- The appliance has not been altered in any way or subjected to misuse or repair by a person other than a person authorised by Holmes Products Europe.
- No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal uses.
- Any repaired or replaced appliance will be guaranteed on these terms for the remaining portion of the guarantee.

THIS PRODUCT IS MANUFACTURED TO COMPLY WITH THE E.E.C. DIRECTIVES 73/23/EEC,89/336/EEC and 98/37/EEC.

Waste electrical products should not be disposed of with Household waste. Please recycle where facilities exist. Check on the following website for further recycling and WEEE information: www.bionaire.com or e-mail: [e-mail]

If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to the BS1363 standard. Replacement 3 amp fuses must also be BSI or ASTA approved and complaint with the BS1362 standard.

BIONAIRE

Holmes Products (Europe) Ltd.

1 Francis Grove

London SW19 4DT

England

Fax: [phone]

Email: [e-mail]

Website address: www.bionaire.com

UK - Free phone Customer Service Helpline - 0800 052 3615

© 2005 JCS/THG, LLC

Bionaire® and the Bionaire logo® are registered trademarks of JCS/THG, LLC.

9100010006906 BT16IUK05EM2

BIONAIRE

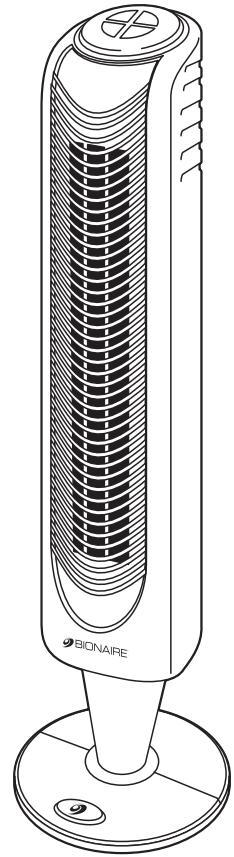

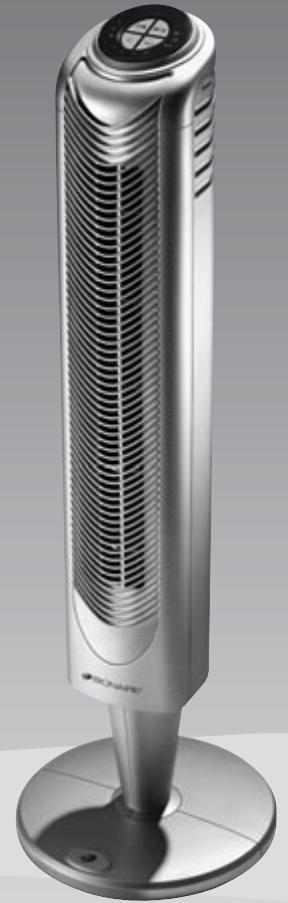

Tower Fan

BT16

INSTRUCTION MANUAL

BT16
Fig. 1
Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

U.K. and IRELAND

PLEASE READ AND SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken including the following:-

• Use the fan only for purposes described in the instruction manual.
• To protect against electrical shock, do not immerse the fan, plug or cord in water or spray with liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the electrical outlet when not in use, when moving the fan from one location to another, before putting on or taking off parts and before cleaning.
• Avoid contact with any moving parts.
• Do not operate in the presence of explosive and/or flammable fumes.
• Do not place the fan or any parts near an open flame, cooking or other heating appliance.
• Do not operate any appliance with a damaged cord, plug, after the appliance malfunctions, or has been dropped/damaged in any manner.
• The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or come into contact with hot surfaces.
• To disconnect from the electrical supply, grip the plug and pull from the wall outlet. DO NOT pull on the cord.
  Always use on a dry, level surface.
  The fan should not be operated without its column and base fitted.
• The fan should not be operated laying on its side.
• This product is intended for household use ONLY and not for commercial or industrial applications.
• Should the fan stop working, first check the fuse in the plug (UK only) or fuse/circuit break at the distribution board is operating, before contacting the manufacturer or service agent.

• If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

• Under the environment with electrical fast transient, the product may malfunction and require user to reset the product.

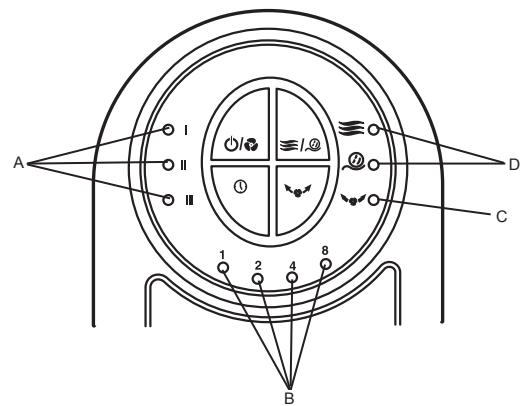

DESCRIPTIONS:

A. Power/Speed Control
B. Timer Control
C.Oscillation Button
D. Breeze Modes
E. Front Column
F. Rear Column
G.4 Screws
H. Rear Base
I. Front Base
J. 4 Screws
K. Power Cord
L. Wiring Clip Slot
M.Fan Housing

MISSED A PART FOR YOUR FAN?

Please call 0800 052 3615 for assistance.

ASSEMBLY INSTRUCTIONS

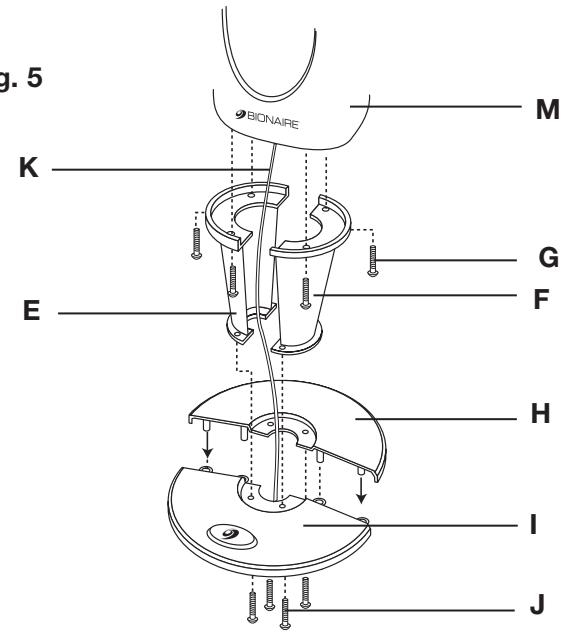

1. Assemble Column (E, F) to Fan housing (M) making sure the cord is enclosed between the Column (E, F). Secure together with 4 screws (G). Refer to Fig. 5.
2. Assemble Base (H, I) to already assembled Fan housing and Column (E, F, M) making sure the cord is enclosed between the Base (H, I). Secure together with 4 screws (J). Refer to Fig. 5.

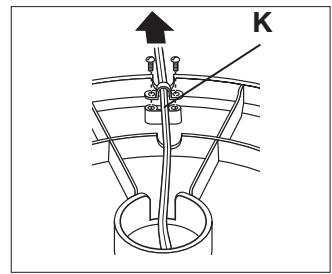

3. Secure Power Cord (K) to bottom of base (H I).

OPERATING INSTRUCTIONS (See Fig. 2, 3, 4)

Remote Control: Remote Control requires 2 AAA batteries (not included) for operation. There is a slot on the back of the unit (Refer to Fig. 2) to store the remote when not using. In case remote is being discarded, please remove batteries before discarding.
A. Power/Speed Settings

Press 口 /口 = On,I,II,III,Off

B. Timer Control ①
Press 日 =Turns Off in 1,2,4,8 hours
C.Oscillation Control
Press = Oscillation On, Off

D. Natural Breeze, Sleep Breeze Modes ≈I.2 Press ≈I.2 = Natural Breeze, Sleep Breeze Natural Breeze Mode ≈ will cycle through the fan speed settings randomly.

Sleep Breeze Mode will cycle through the fan speed settings in order.
