| Type de produit | Contrôleur de mouvement |
| Marque | OMRON |
| Modèle | CS1W-MCH |
| Nombre d'axes gérés | Jusqu'à 32 axes |
| Interface de communication | MechatroLink-II (10 MHz) |
| Temps de cycle de communication | 0,5 ms (1-4 axes) à 4 ms (22-30 axes) |
| Programmation | Langage BASIC |
| Multitâche | Jusqu'à 8 programmes en parallèle, 8 branches par programme |
| Fonctions principales | Interpolation linéaire et circulaire, synchronisation d'axes, profils CAM électroniques, registration matérielle |
| Entrées/sorties dédiées | Oui, sur le contrôleur |
| Compatibilité | Servovariateurs série W OMRON |
| Logiciel de configuration | MCH-Tool |
| Alimentation | 24 V DC, 0,5 A (estimé) |
| Dimensions (L x H x P) | 90 x 65 x 80 mm (approximatif) |
| Poids | Environ 200 g |
| Entretien et nettoyage | Aucun entretien particulier ; nettoyer avec un chiffon sec et doux |
| Sécurité | Protection contre les surtensions et les courts-circuits (intégrée) |
| Pièces détachées et réparabilité | Unité scellée, aucune pièce détachable ; contacter le service technique OMRON |
FOIRE AUX QUESTIONS - CS1W-MCH OMRON
Questions des utilisateurs sur CS1W-MCH OMRON
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Contrôleur de mouvement au format PDF gratuitement ! Retrouvez votre notice CS1W-MCH - OMRON et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil CS1W-MCH de la marque OMRON.
MODE D'EMPLOI CS1W-MCH OMRON
Co-ordinating motion

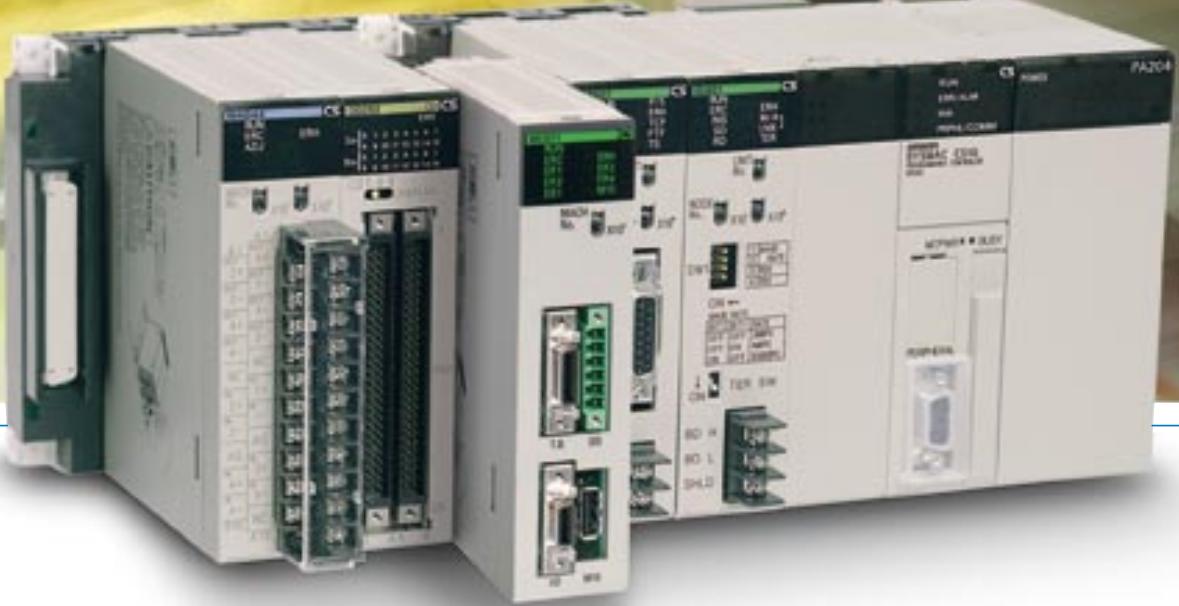

CS1W-MCH
up to 30 axes over high- speed motion link
Advanced Industrial Automation
With Omron's new CS1W-MCH motion control unit, today's manufacturers have the speed, accuracy and flexibility they need for their motion control systems. CS1W-MCH is a PLC-based advanced motion control unit that offers control of up to 30 axes. Its dedicated MechatroLink-II high-speed motion bus provides instant communications between the motion controller and the servo drives. And its powerful processor handles the multiple tasks and all of their parallel programs every system cycle.

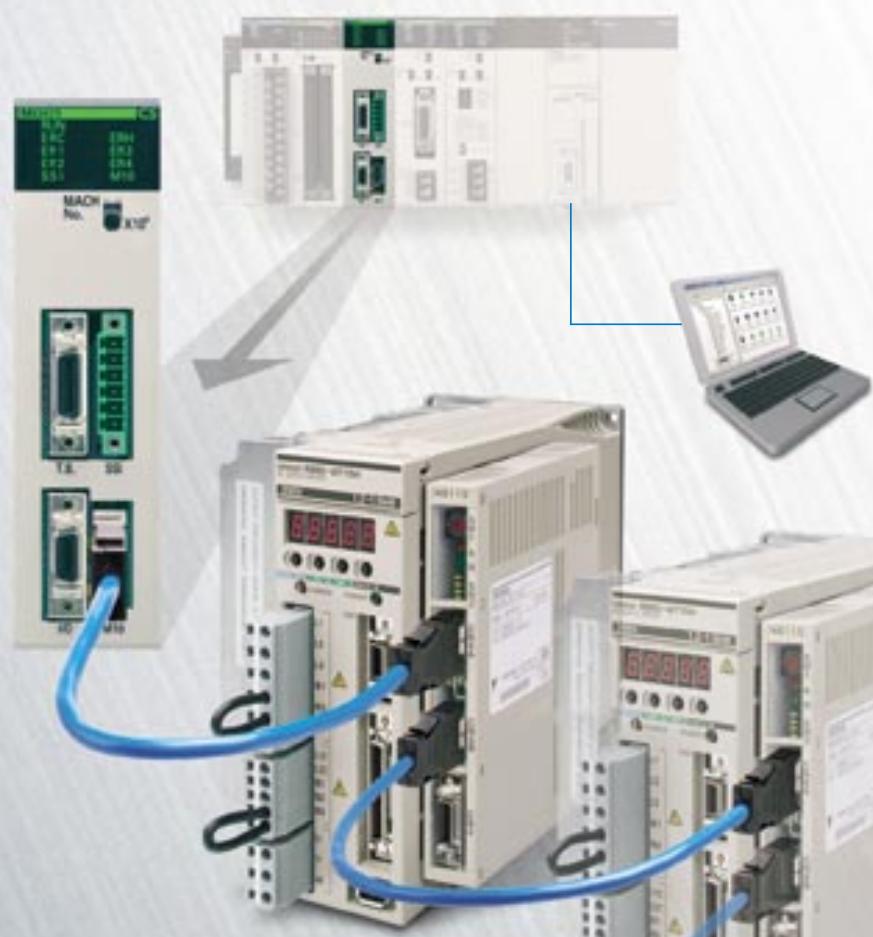

Motion control over multi-axes link
MechatroLink-II cable
The CS1W-MCH motion controller is the perfect solution for satisfying all your complex motion application requirements, including packaging, electronics, converting, food processing, textiles – in fact any multi-axes application is solved and integrated perfectly in a complete factory line.
Quick and easy programming and access to all information via PC.
The perfect solution for:
- packaging
- food processing
- electronics
- textile
- converting
Features
- PLC-based motion controller
- Complete digital control of drives via MechatroLink-II
Controls a total of 32 axes - Simplified wiring saves cost and design time
Real multi-tasking and parallel programming - Simple to develop and modify using BASIC
- Access to the complete system from one point
- Linear and circular interpolation
Electronic axes synchronisation
Electronic CAM profiles - One hardware registration per axis
- Dedicated inputs / outputs on the controller
- All features of the W-Series are available
MechatroLink-II high-speed motion link
This high-speed interface replaces the costly discrete wiring required with traditional systems. Just one MechatroLink-II cable eliminates the need for about 15 for each axis, which simplifies wiring, and reduces the cost and time needed for installation. It also means that maintenance and troubleshooting are minimised. With a frequency of 10MHz , the MechatroLink-II link provides communication cycle times of 0.5ms for 4 axes, to 4 ms for 30 axes, ensuring fast, precise motion control.
MechatroLink-II Communications cycle
| Number of axes | communications cycle [ms] |
| 1~4 | 0.5 |
| 5~9 | 1.0 |
| 10~21 | 2.0 |
| 22~30 | 4.0 |
Multi-tasking
With CS1W-MCH you can have up to eight different motion program tasks running simultaneously, and every program accepts up to eight parallel branches. All the branches in all tasks will be executed every system cycle.
Operates using BASIC language
The motion program is written in a simple-to-use BASIC language, making the system easy to design, install and commission. The CS1W-MCH can be used in applications involving cam curve creation, gearing and synchronising axes.
Easy information management system
Using Omron's MCH-Tool you can create programs, read and write system parameters and servo parameters, positional data and cam data, and download or upload these to the CS1W-MCH unit, seamlessly. You can also access the entire system from one point - all you need is a laptop and Omron's software package to program the system!

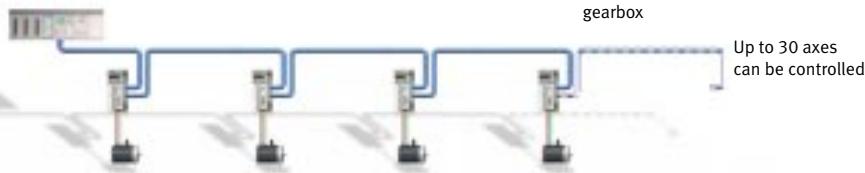

Enhancing Omron's W-series
The CS1W-MCH fits perfectly into the Omron's renowned W-series servo driver, bringing enhanced functionality to this servo driver.
Conventional mechanical solution
Gearing
CAM 1
CAM2
Differential gearbox
Flexible electrical solution
Gearing
CAM 1
CAM 2
Differential gearbox
