BP480PP - Lave-linge BLAUPUNKT - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Mini projecteur
Marque	BLAUPUNKT
Modèle	BP480PP
Résolution native	800 x 480 pixels
Résolution supportée	Jusqu'à 1080p Full HD
Taille de projection	Jusqu'à 98 pouces
Luminosité	40 ANSI lumens
Format d'image	16:9, 4:3, AUTO
Alimentation	12V DC 3A
Port USB	5V, max 500mA
Dimensions	142 x 116 x 99 mm
Poids net	0,61 kg
Connectiques	HDMI, USB, AV IN, Micro SD, prise casque
Formats vidéo	AVI, FLV, RMVB, MKV, MP4, 3GP, MOV, MPG, MPEG, TS, TP, VOB
Formats audio	MP3, WMA, OGG, AAC, FLAC
Formats photo	JPG, PNG, BMP
Télécommande incluse	Oui
Modes de projection	Avant, arrière, plafond avant, plafond arrière
Réglages image	Mode image, température de couleur, réduction de bruit
Minuterie de sommeil	Off, 10, 20, 30, 60, 90, 120 min
Entretien	Essuyer avec un chiffon sec et doux
Sécurité	Ne pas regarder directement la lentille, ventiler correctement

FOIRE AUX QUESTIONS - BP480PP BLAUPUNKT

Comment brancher mon projecteur BP480PP ?

Connectez l'adaptateur secteur à la prise DC IN située à l'arrière, puis branchez-le à une prise murale. Pour la transmission vidéo, utilisez un câble HDMI ou un périphérique USB. Appuyez sur le bouton Source pour sélectionner l'entrée correspondante.

Comment régler la netteté de l'image ?

Utilisez la molette de mise au point située sur l'objectif. Tournez-la lentement jusqu'à obtenir une image nette. Si besoin, ajustez la distance entre le projecteur et l'écran.

Quels formats de fichiers puis-je lire via le port USB ?

Les formats pris en charge sont : Vidéo : AVI, FLV, RMVB, MKV, MP4, 3GP, MOV, MPG, MPEG, TS, TP, VOB. Audio : MP3, WMA, OGG, AAC, FLAC. Photo : JPG, PNG, BMP.

Puis-je utiliser une clé USB ou un disque dur externe ?

Oui, le port USB accepte les clés et disques durs externes. La consommation maximale est de 500 mA. Pour une compatibilité optimale, formatez votre périphérique en FAT32.

Comment retourner l'image à l'envers ?

Appuyez sur le bouton Flip de la télécommande pour inverser l'image de 180°. Vous pouvez également modifier le mode de projection dans le menu Option (avant, arrière, plafond).

Comment nettoyer le projecteur ?

Débranchez le projecteur avant tout nettoyage. Utilisez un chiffon sec et doux pour enlever la poussière et les traces. N'utilisez jamais de produits chimiques ou de chiffon humide.

Puis-je installer le projecteur au plafond ?

Oui, vous pouvez utiliser un support de plafond (non inclus). Assurez-vous que le plafond peut supporter le poids du projecteur et du support. Suivez les instructions fournies avec le support.

Que faire si je ne vois pas d'image ?

Vérifiez que le projecteur est allumé, puis appuyez sur Source pour choisir la bonne entrée (HDMI, USB, AV). Assurez-vous que le câble est bien connecté. Si le problème persiste, redémarrez l'appareil.

Comment régler la minuterie d'extinction ?

Accédez au menu Réglages avec la télécommande, puis ouvrez l'option Minuterie de sommeil. Choisissez la durée souhaitée : 10, 20, 30, 60, 90 ou 120 minutes.

Quelles précautions de sécurité dois-je respecter ?

Ne regardez jamais directement la lentille. Ne couvrez pas les fentes de ventilation et placez le projecteur dans un endroit bien ventilé, à l'abri de l'humidité et des sources de chaleur. Gardez l'appareil hors de portée des enfants.

MODE D'EMPLOI BP480PP BLAUPUNKT

Instruction Manual

480p Mini Projector - BP480PP

CONTENTS

General Safety	4
Product Overview	8
Remote Control	10
First Time Setup	11
Installation	12
Home Dashboard	14
Settings
Picture	15
Sound	16
Option	17
Specifications	18
Customer Helpline	Last Page

GENERAL SAFETY

Read this manual thoroughly before you start using the Projector.

Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduce the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

IMPORTANT INFORMATION

• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the projector or its controls and to call for an adult to assist.

GENERAL SAFETY (CONT.)

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.

Installation

Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling and can cause injury, particularly to children if it positioned incorrectly.

• Before installing this Projector set, make sure your outlet voltage corresponds to the voltage stated on the product rating label
• Do not use a damaged power cord, plug or loose outlet. Doing so may cause an electric shock.
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not bend, twist or kink the power adaptor excessively.
• Do not allow anything to rest on or roll over the power adaptor. Doing so may cause a fire or an electric shock.
• Do not run the power adaptor near heat-producing appliances such as radiators, stoves or irons. The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock.
• Unplug this Projector during lightning storms or when unused for long periods of time. Not doing so may result in fire or electric shock.
• Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power cord from the wall socket.

GENERAL SAFETY (CONT.)

• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• Batteries from the remote control must be only removed by an adult, the adult must ensure to keep them out of reach of infants and children. Seek medical attention immediately if a child has swallowed a battery.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.

! CAUTION !

DO NOT look directly into Project LENS. This can cause damage to a persons or children's eyes. Take all nessecary precautions to make sure that no one looks into the LENS while turned on.

MAKE SURE this project is out of reach of children or baby so that they do not stand and look into the project LENS.

DO NOT cover the vents, the vents are needed to let out hot air. Placing objects near or covering the vents can cause the product to overheat and permanently damage the projector.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the Projector set near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the Projector set.
  • Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.

HIGH-DEFINITION MULTIMEDIA INTERFACE

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

PRODUCT OVERVIEW

PRODUCT OVERVIEW (Cont.)

1. POWER ON/OFF
2. USB Port
3. HDMI Port
4. IR window
5. DC IN Plug
6. Micro SD Port
7. AV IN Port
8. Headphone Port

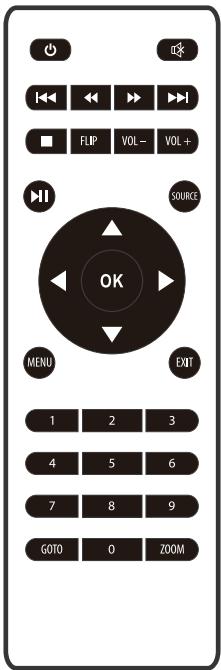

REMOTE CONTROL

Your projector comes with a Remote Control to access and control your projector from a distance. (Batteries not included).

Power

Press to power ON.

Press twice to power OFF.

Previous / Next ▶▶

Press to skip between chapters or tracks.

Stop

Press to stop playback.

Flip

Press to flip display image 180°.

▶|| Play/Pause

Press to play or pause an individual

chapter or track.

Arrows/OK

Press to navigate and confirm selections in

Settings and other menus.

Menu

Press to access projector Settings.

Go To/Number Keypad

Press to enter specific chapter or track numbers. Use Play button to begin playing.

Mute

Press to mute volume.

◀◀ Back / Fwd ▶▶

Press to search through an individual chapter or track.

VOL+ / VOL-

Press to adjust audio level.

Source

Press to select media source (AV, PC, HDMI, MEDIA).

Exit

Press to exit menus.

Zoom

Press to zoom display image in or out.

Using the Remote Control

• Do not mix old and new batteries in the remote
• Do not use different types of battery
• If you do not intend to use the unit for a long time, please remove batteries from the remote to avoid accident.
• Keep batteries away from children and pets.
• Never throw batteries into a fire.
• Do not drop, or impact the remote control as it void warranty immediately.
• The remote control operate at a range of 5 to 6M effectively
• Do not expose the remote control sensor to a bright light.

FIRST TIME SETUP

Make sure to place the projector on a flat and stable surface that is level. So that the projector projects the video/image onto the wall nice and straight.

1. Fix the handle on the unit.

1. Plug in the power adaptor into back of unit (DC IN) and then plug in Adaptor end into wall power socket.

INSTALLATION

DISTANCE BETWEEN PROJECTOR AND SCREEN

Projection Distance	1m	2m	3m
Projection Size	30 inch	68 inch	98 inch
Light, brightness, etc. will affect the projection distance, this data is for reference only.

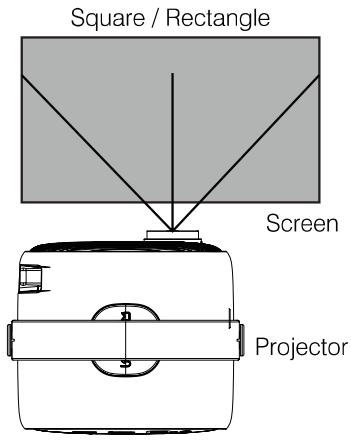

Projection Position
It is recommended to place the projector in front of the center of the screen.

VIEWING OPTIONS

The projector can be used to project onto a wall or screen, mounted from the ceiling or on a table. When projecting from a rear position, a special screen will be needed (not included) to display the image. Be sure to aim the remote at the sensor on the front or rear of the projector.

Front Table

Rear Ceiling

Front Ceiling

Rear Ceiling

INSTALLATION (Cont.)

When installing the projector in the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount.

Before installing the projector in the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount. If in doubt please ask the advise from an installation professional.

NOTE: Projector Mount and Screw(s) are not included.

ADJUSTING FOCUS

As shown in picture, adjust the lens focus wheel until you get a clear picture.

HOME DASHBOARD

No Device

Movie

Music


Setup

This dashboard above appears when you finish turning on your projector.

From here you can select your file types to view depending the device you want to project or other media devices and menu options.

SETTING - PICTURE

To Access the setting PICTURE menu:

1. Press the MENU button on the Remote Control.
2. With the directional keys, Press the RIGHT >> arrow button to enter PICTURE settings.
3. To navigate back to PICTURE/SOUND/OPTION, with nothing selected, Press MENU button.

PICTURE MODE:

Standard, Mild, Dynamic, User

(contrast, brightness, sharpness, color).

COLOUR TEMP:

Adjust between Medium, Cool, Warm.

NOISE REDUCTION:

Off, Low, Middle, High.

SETTING - SOUND

To Access the setting PICTURE menu:

1. Press the MENU button on the Remote Control.
2. With the directional keys, Press the DOWN ∨ button, when on AUDIO, Press the RIGHT ▷arrow button to enter SOUND settings.
3. To navigate back to PICTURE/SOUND/OPTION, with nothing selected, Press MENU button.

OSD LANGUAGE:

ASPECT RATIO:

PROJECTION MODE:

RESET:

INFO:

Adjust between Languages English (default)

Adjust video aspect ratio

Front, F/Ceiling, Rear, Rear/ceiling

Press Yes to reset your projector settings and device.

Display information about the projector

SETTING - OPTION

To Access the setting OPTION menu:

1. Press the MENU button on the Remote Control.
2. With the directional keys, Press the DOWN ∨ button, when on OPTION, Press the RIGHT ➞ arrow button to enter OPTION settings.
3. To navigate back to PICTURE/SOUND/OPTION, with nothing selected, Press MENU button.

OSD LANGUAGE: Adjust between Languages: English (default)

RESTORE FACTORY: Press Yes to reset your projector settings and device.

PANEL FLIP ROATATE: Press to flip th screen between Rotate: 0, 1, 2, 3...

SETTING-TIME

Clock: Select clock to Day, Month, Year, Hour and Minutes.

Off Time: Select turn off time to Off, Once, Every day, Hour and Minutes.

On time: Select turn off time to Off, Once, Every day, Hour and Minutes.

Sleep Timer: Select sleep time to Off, 10min, 20min, 30min, 60min, 90min, 120min.

Auto Sleep: Select auto sleep function to Off, 1 hour, 2 hours, 4 hours, 8 hours.

SPECIFICATIONS

Resolution	800 x 480 Native Resolution (supports up to 1080p Full HD)
Projection Size	Up to 98" (inches)
Lumens	40 ANSI
Aspect Ratio	16:9, 4:3, AUTO
Multimedia Playback Format under USB Mode	Movie: AVI / FLV / RMVB / MKV / MP4 / 3GP / MOV / MPG / MPEG / TS / TP / VOB
	Music: MP3 / WMA / OGG / AAC / FLAC
	Photo: JPG / PNG / BMP
Ratings	12VDC 3A
USB	5V --- max. 500mA
Dimensions	142 (w) × 116 (d) × 99 (h) mm
Weight	Net: 0.61 kg
	Gross: 1.1 kg
Accessories	1 x Instruction Manual	1 x Remote Control
	1 x Power Adaptor	1 x Warranty Card

NOTE: This document is for reference only, the operation interface is subject to software.
