FAX 170 - Fax OKI - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil FAX 170 OKI au format PDF.
| Intitulé | Description |
|---|---|
| Type de produit | Fax numérique |
| Caractéristiques techniques principales | Impression thermique, résolution d'impression de 203 x 392 dpi |
| Alimentation électrique | AC 220-240V, 50/60 Hz |
| Dimensions approximatives | 365 x 275 x 160 mm |
| Poids | Environ 3,5 kg |
| Compatibilités | Compatible avec les lignes téléphoniques analogiques |
| Fonctions principales | Envoi et réception de fax, impression de documents |
| Entretien et nettoyage | Nettoyage régulier des rouleaux d'impression, vérification des cartouches d'encre |
| Pièces détachées et réparabilité | Pièces détachées disponibles, réparabilité modérée |
| Sécurité | Conforme aux normes de sécurité électrique, protection contre les surcharges |
| Informations générales utiles | Idéal pour les petites entreprises, garantie limitée de 1 an |
FOIRE AUX QUESTIONS - FAX 170 OKI
Questions des utilisateurs sur FAX 170 OKI
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Fax au format PDF gratuitement ! Retrouvez votre notice FAX 170 - OKI et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil FAX 170 de la marque OKI.
MODE D'EMPLOI FAX 170 OKI

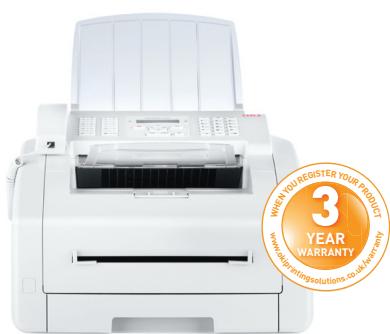

High performance, easy to use business fax
The OKIFAX 170 is a professional fax device for the general office or small business. This reliable, high performance fax system boasts many time and money saving features as standard. Top of the list is an intuitive, easy to use operator panel guiding you through each task with dedicated function buttons giving instant access to frequently used operations.
The OKIFAX 170 is fast, reliable, easy to operate and economical to run - making it perfect for your business.
Professional faxing
- Provides a fast, economical approach to faxing, thanks to the 33.6 Kbps Super G3 mode
- 30-sheet automatic document feeder simplifies the transmission of large, multipage documents
- 200 page flash memory makes sure faxes are always received and not lost even if power fails
- Speed dials store up to 250 contacts for highly efficient working
- Delivers outstanding performance and exceptional reliability
Zero standby noise and quiet operation, for seamless integration into any small office
Everything made simple for the user
- The single cartridge system combines toner and drum for easy consumable replacement

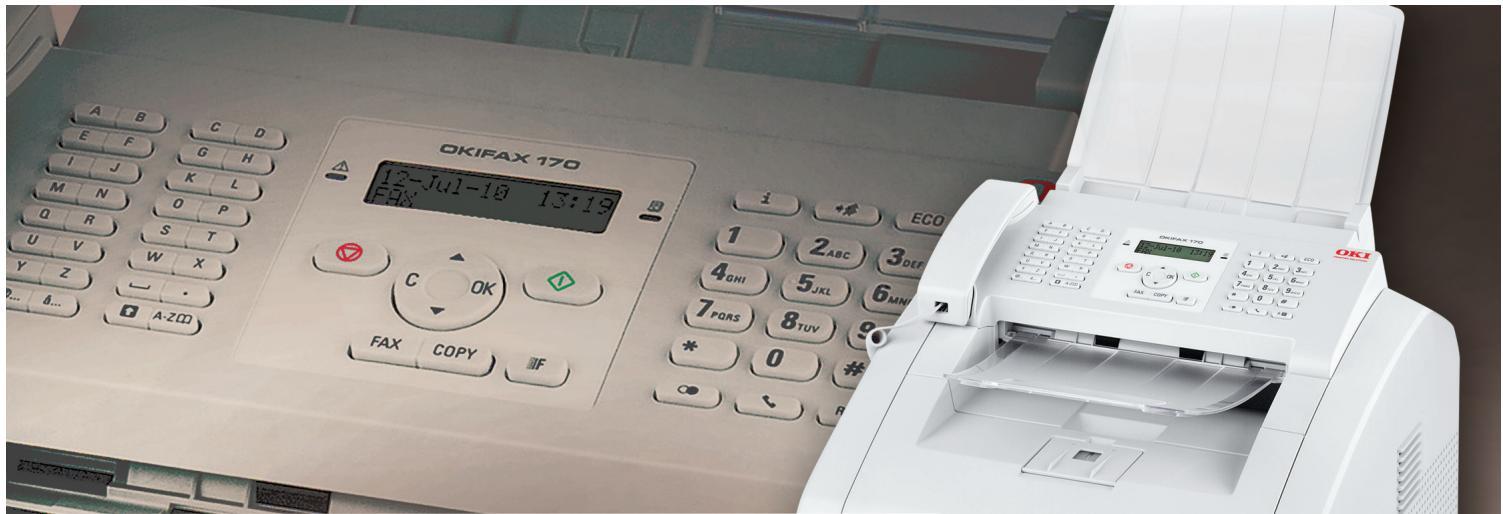

- Intuitive, easy to use operator panel with 2 x 16 character LCD display gives clear on-screen guidance
- Saves the last 10 numbers dialed to put commonly used numbers at your fingertips
- Alpha keyboard makes name searching speed dials quick and easy
250-page paper tray ensures less user intervention
Added value functionality for extra versatility
- Integrated telephone handset as standard
- Five pre-defined fax templates available for your convenience
- Secure fax reception protects confidential faxes
Fast and Efficient Working
- Quick scan means less time waiting at the machine
High performance 20ppm print speed quickly delivers incoming faxes - Two user configurable copy profiles are available for added convenience
- Provides total professional support for business fax needs
- Industry-leading three-year warranty as standard
FAX
| Connectivity | RJ11 x 2 (Line/Tel), PSTN, PBX Line |
| Speed | ITU-T30 G3(Super G3) 33.6kbps, 2.5 seconds/page |
| Group dial | Up to 249 entries |
| Functions | Automatic send & receive, Manual send, Send later, Manual receive, Polling receive, Auto radial, Broadcasting, Secure fax reception, Page header, Quick scan |
| Data compression | MH, MR, MMR |
| Broadcast | 20 |
| Page memory | Stores up to 200 pages |
TELEPHONE
| Keypad | 12 keys, A to Z |
| Functions | On-hook dialling, CLIP, 8 ringer melodies (including VIP function) |
| Call-log | Up to 50 entries |
| Phonebook | 250 name dial entries, Quick search via alpha keys, Select entry in off-hook state |
SCANNER
| Resolution | Up to 200dpi |
| Speed | 4.6 seconds per page |
| Mono depth | 256 grey scales |
| Document input | 30-sheet (80gsm) Automatic Document Feeder (ADF) |
| Contrast | 7 Levels |
COPY
| Speed | Up to 20cpm (multi-copy mode) |
| Resolution | 200dpi optical, 400dpi interpolated |
| Reduction / Enlargement | Zoom 25-400% |
| Maximum copies | 99 |
PRINT QUALITY
Resolution 600x600dpi
PAPER HANDLING
| Paper capacity | Tray 1: 250 sheets of 80gsm; MPT: 1 sheet of 80gsm; ADF: 30 sheets of 80gsm |
| Paper sizes | Tray 1: A4, A5, Letter, Legal; ADF: A4, A5, Letter, Legal |
| Paper weight | Tray 1: 60 to 105gsm; MPT: 60 to 165gsm; ADF: 60 to 90gsm |
| Paper output | Up to 100 sheets face down |
OPERATOR PANEL
| LCD display | 2 lines x 16 characters with 19 selectable display languages |
| Keypad | 59 keys |
GENERAL FEATURES
| Memory | Standard RAM: 32MB; Maximum RAM: 32MB |
| Operating conditions | Temperature/Humidity: 10° - 32°C / 20% - 80% RH max |
| Storage: -20°C to 40°C, 20% to 80% RH non-condensing | |
| Power supply | 230 VAC +/- 15%, 50 or 60Hz |
| Power consumption | Transmission and Reception: <15W; Printing: <550W; Power Save: <4W |
| Noise level | Operating: 52B(A) or less; Standby: 30dB(A) or less; Power Save: Background level |
| Dimensions (HxWxD) | 291 x 390 x 390mm |
| Weight¹ | Approx. 8.8kgs |
| Duty cycle | Maximum: 10,000 pages/month; Recommended: 500 pages per month |
| Warranty | 3 years extended warranty upon registration within 30 days of purchase² |
| Product order number | 01290501 |
CONSUMABLES (ORDER NUMBERS)
Toner cartridge* 01200801
(2,000 pages) 012
*Toner: Number of A4 pages yield compliant with ISO/IEC 19752. Fax shipped with toner for 500 pages yield compliant with ISO/IEC 19752.
1 Including all consumables; 2 Without registration the standard 1 year warranty will apply
Consumables Information: For the protection of your fax, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine OKI Printing Solutions toner cartridges. These can be identified by the OKI trademark. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your products performance and print quality may be degraded.
Simply Unique - 3 Year Warranty
Our devices are manufactured to the highest standards of quality and technology, which has been confirmed by independent tests. We are so convinced of the high quality of our products that we are offering you an extension of the standard warranty period to 3 years – for free! Simply register your product within 30 days of purchase to be eligible for our unique all inclusive offer. Fully covered by OKI! For further information please visit: www.okiPRINTINGSOLUTIONS.CO.UK/WARRANTY
Without registration, the standard pan-European 1 year warranty applies.
OKI SYSTEMS (UK) LTD.
550 Dundee Road, Slough,
Berkshire, SL1 4LE
United Kingdom
T+44(0) 1753 819819
F+44(0)1753819899
WWW.OKIPRINTINGSOLUTIONS.CO.UK
