CASQUE SANS FIL BLUETOOTH #F8V9017EA - Casque sans fil BELKIN - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Casque sans fil Bluetooth
Caractéristiques techniques principales	Technologie Bluetooth, son stéréo, microphone intégré
Alimentation électrique	Batterie rechargeable via USB
Dimensions approximatives	Non spécifiées
Poids	Non spécifié
Compatibilités	Compatible avec la plupart des appareils Bluetooth
Type de batterie	Batterie lithium-ion
Tension	Non spécifiée
Puissance	Non spécifiée
Fonctions principales	Écoute de musique, appels mains libres, commandes tactiles
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter l'eau
Pièces détachées et réparabilité	Non spécifié, vérifiez auprès du fabricant
Informations générales	Vérifiez la compatibilité avec vos appareils avant l'achat

FOIRE AUX QUESTIONS - CASQUE SANS FIL BLUETOOTH #F8V9017EA BELKIN

Comment connecter le casque sans fil Bluetooth BELKIN #F8V9017EA à mon appareil ?

Pour connecter le casque, mettez-le sous tension, puis maintenez enfoncé le bouton d'alimentation jusqu'à ce que le voyant LED clignote en bleu et rouge. Activez le Bluetooth sur votre appareil, recherchez les appareils disponibles, puis sélectionnez 'BELKIN F8V9017EA' pour établir la connexion.

Que faire si le son est faible ou distordu ?

Assurez-vous que le casque est entièrement chargé. Vérifiez également le niveau de volume sur votre appareil et sur le casque. Si le problème persiste, essayez de déconnecter et reconnecter le casque.

Comment recharger le casque sans fil ?

Utilisez le câble USB fourni pour connecter le casque à une source d'alimentation. Le voyant LED s'allume en rouge pendant la charge et s'éteint lorsque le casque est complètement chargé.

Puis-je utiliser le casque pendant qu'il se charge ?

Non, il n'est pas recommandé d'utiliser le casque pendant qu'il se charge. Cela pourrait endommager la batterie à long terme.

Comment réinitialiser le casque sans fil ?

Pour réinitialiser le casque, éteignez-le, puis maintenez enfoncé le bouton d'alimentation pendant environ 10 secondes jusqu'à ce que le voyant clignote en rouge et bleu. Cela effacera toutes les connexions Bluetooth précédentes.

Le casque ne s'allume pas, que faire ?

Vérifiez si le casque est chargé. Si le casque ne s'allume toujours pas après avoir été chargé pendant au moins 2 heures, contactez le service client de BELKIN pour assistance.

Comment ajuster les paramètres de son du casque ?

Vous pouvez ajuster le volume directement sur le casque en utilisant les boutons de volume situés sur les écouteurs. Pour d'autres paramètres sonores, utilisez les réglages audio de votre appareil connecté.

Le casque est-il compatible avec tous les appareils Bluetooth ?

Le casque BELKIN #F8V9017EA est compatible avec la plupart des appareils Bluetooth, y compris les smartphones, tablettes et ordinateurs. Il est recommandé de vérifier la version Bluetooth de votre appareil pour assurer une compatibilité optimale.

Comment savoir si le casque est en mode appairage ?

Le casque est en mode appairage lorsque le voyant LED clignote alternativement en bleu et rouge. Cela indique qu'il est prêt à être connecté à un nouvel appareil.

MODE D'EMPLOI CASQUE SANS FIL BLUETOOTH #F8V9017EA BELKIN

I. Important Information for Safe Use

En

Driving

Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so.

Fr

Driving

Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so.

De

Driving

Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so.

NL

Driving

Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so.

It

Driving

Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so.

Es

Driving

Check the regulations affecting the use of hands-free devices where you drive. Only use the Headset when and where it is safe to do so.

II. Controls and Functions

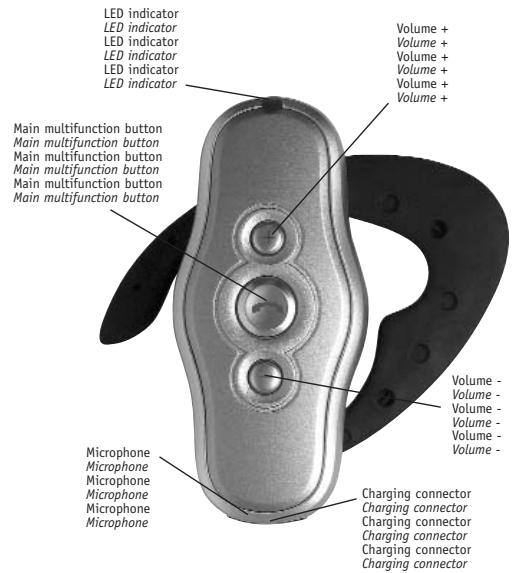

LED indicator LED indicator LED indicator LED indicator Main multifunction button Main multifunction button Main multifunction button Main multifunction button Microphone Microphone Microphone Microphone Microphone Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume - Volume - Volume - Volume - Volume - Volume - Charging connector Charging connector Charging connector Charging connector Charging connector

Shown configured for wearing on the right ear / Shown configured for wearing on the right ear / Shown configured for wearing on the right ear / Shown configured for wearing on the right ear / Shown configured for wearing on the right ear / Shown configured for wearing on the right ear

En

Keypad

• One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call
• Two switches to control receive-volume

Fr

Keypad

- One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call

- Two switches to control receive-volume

De

Keypad

- One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call

- Two switches to control receive-volume

NL

Keypad

- One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call

- Two switches to control receive-volume

Es

Keypad

- One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call

- Two switches to control receive-volume

It

Keypad

- One push button to switch the Headset on/off, to select PAIRING mode, or to initiate or answer a call

- Two switches to control receive-volume

II. Controls and Functions / Sounds

En

In order to make operation easier, the Headset generates several sounds:

Switch-on tone / Switch-off tone / Pairing tone / Reset tone / Confirmation tone / Error tone / Alert tone / Mute tone / Ring tone

Fr

In order to make operation easier, the Headset generates several sounds:

Switch-on tone / Switch-off tone / Pairing tone / Reset tone / Confirmation tone / Error tone / Alert tone / Mute tone / Ring tone

De

In order to make operation easier, the Headset generates several sounds:

Switch-on tone / Switch-off tone / Pairing tone / Reset tone / Confirmation tone / Error tone / Alert tone / Mute tone / Ring tone

NL

In order to make operation easier, the Headset generates several sounds:

Switch-on tone / Switch-off tone / Pairing tone / Reset tone / Confirmation tone / Error tone / Alert tone / Mute tone / Ring tone

Es

In order to make operation easier, the Headset generates several sounds:

Switch-on tone / Switch-off tone / Pairing tone / Reset tone / Confirmation tone / Error tone / Alert tone / Mute tone / Ring tone

It

In order to make operation easier, the Headset generates several sounds:

Switch-on tone / Switch-off tone / Pairing tone / Reset tone / Confirmation tone / Error tone / Alert tone / Mute tone / Ring tone

III. Operation

En

Wearing the Headset

• The Headset can be worn on either ear, by changing the orientation of the ear hook.
  • To remove the ear hook, carefully lever it from the back of the Headset by hand.
• The ear hook can be replaced either way up. Note the indentation in the center to properly orient the ear hook on the Headset.
• With the user controls facing the user and the LED at the top, the closed loop of the ear hook should "point" right for operation on the right ear, and left for the left ear.
  • To place on the ear, hold the Headset in the hand and push the open end of the hook slightly away from the Headset body.

Fr

Wearing the Headset

• The Headset can be worn on either ear, by changing the orientation of the ear hook.
  • To remove the ear hook, carefully lever it from the back of the Headset by hand.
• The ear hook can be replaced either way up. Note the indentation in the center to properly orient the ear hook on the Headset.
• With the user controls facing the user and the LED at the top, the closed loop of the ear hook should "point" right for operation on the right ear, and left for the left ear.
  • To place on the ear, hold the Headset in the hand and push the open end of the hook slightly away from the Headset body.

III. Operation (continued)

De

Wearing the Headset

• The Headset can be worn on either ear, by changing the orientation of the ear hook.
  • To remove the ear hook, carefully lever it from the back of the Headset by hand.
• The ear hook can be replaced either way up. Note the indentation in the center to properly orient the ear hook on the Headset.
• With the user controls facing the user and the LED at the top, the closed loop of the ear hook should "point" right for operation on the right ear, and left for the left ear.
  • To place on the ear, hold the Headset in the hand and push the open end of the hook slightly away from the Headset body.

NL

Wearing the Headset

• The Headset can be worn on either ear, by changing the orientation of the ear hook.
  • To remove the ear hook, carefully lever it from the back of the Headset by hand.
• The ear hook can be replaced either way up. Note the indentation in the center to properly orient the ear hook on the Headset.
• With the user controls facing the user and the LED at the top, the closed loop of the ear hook should "point" right for operation on the right ear, and left for the left ear.
  • To place on the ear, hold the Headset in the hand and push the open end of the hook slightly away from the Headset body.

Es

Wearing the Headset

• The Headset can be worn on either ear, by changing the orientation of the ear hook.
  • To remove the ear hook, carefully lever it from the back of the Headset by hand.
• The ear hook can be replaced either way up. Note the indentation in the center to properly orient the ear hook on the Headset.
• With the user controls facing the user and the LED at the top, the closed loop of the ear hook should "point" right for operation on the right ear, and left for the left ear.
  • To place on the ear, hold the Headset in the hand and push the open end of the hook slightly away from the Headset body.

It

Wearing the Headset

• The Headset can be worn on either ear, by changing the orientation of the ear hook.
  • To remove the ear hook, carefully lever it from the back of the Headset by hand.
• The ear hook can be replaced either way up. Note the indentation in the center to properly orient the ear hook on the Headset.
• With the user controls facing the user and the LED at the top, the closed loop of the ear hook should "point" right for operation on the right ear, and left for the left ear.
  • To place on the ear, hold the Headset in the hand and push the open end of the hook slightly away from the Headset body.

IV. Preparing the Headset for Use—Pairing

En

PIN Code: The PIN code for the Headset is preset to 1234. It will be needed for pairing.

Before the Headset can communicate, it must be paired to the companion device it will be used with, such as a mobile phone. This is to ensure the Headset only communicates with the device chosen by the user and not any other Bluetooth devices in range.

Pairing information is stored by the Headset and can be changed at any time.

The exact process to pair the Headset will also depend on the device it is paired with. The user manual for that device will give instructions on how to do this. In all cases, the Headset will need to be put into PAIRING mode, which is described here:

1. If the Headset is on, switch it off.
2. Press and hold the main button.
3. When the short tone is heard, keep the button pressed until the pairing melody is generated.
4. The LED will alternately flash red/green.
5. Follow instructions for the companion device to pair to the Headset.
6. When prompted on the companion device, enter the PIN code for the Headset.
7. When paired, the Headset will give a short confirmation tone and switch to STANDBY, ready for operation.

Fr

PIN Code: The PIN code for the Headset is preset to 1234. It will be needed for pairing.

Before the Headset can communicate, it must be paired to the companion device it will be used with, such as a mobile phone. This is to ensure the Headset only communicates with the device chosen by the user and not any other Bluetooth devices in range.

Pairing information is stored by the Headset and can be changed at any time.

The exact process to pair the Headset will also depend on the device it is paired with. The user manual for that device will give instructions on how to do this. In all cases, the Headset will need to be put into PAIRING mode, which is described here:

1. If the Headset is on, switch it off.
2. Press and hold the main button.
3. When the short tone is heard, keep the button pressed until the pairing melody is generated.
4. The LED will alternately flash red/green.
5. Follow instructions for the companion device to pair to the Headset.
6. When prompted on the companion device, enter the PIN code for the Headset.
7. When paired, the Headset will give a short confirmation tone and switch to STANDBY, ready for operation.

De

PIN Code: The PIN code for the Headset is preset to 1234. It will be needed for pairing.

Before the Headset can communicate, it must be paired to the companion device it will be used with, such as a mobile phone. This is to ensure the Headset only communicates with the device chosen by the user and not any other Bluetooth devices in range.

Pairing information is stored by the Headset and can be changed at any time.

The exact process to pair the Headset will also depend on the device it is paired with. The user manual for that device will give instructions on how to do this. In all cases, the Headset will need to be put into PAIRING mode, which is described here:

1. If the Headset is on, switch it off.

2. Press and hold the main button.

3. When the short tone is heard, keep the button pressed until the pairing melody is generated.
4. The LED will alternately flash red/green.
5. Follow instructions for the companion device to pair to the Headset.
6. When prompted on the companion device, enter the PIN code for the Headset.
7. When paired, the Headset will give a short confirmation tone and switch to STANDBY, ready for operation.

NL

PIN Code: The PIN code for the Headset is preset to 1234. It will be needed for pairing.
Before the Headset can communicate, it must be paired to the companion device it will be used with, such as a mobile phone. This is to ensure the Headset only communicates with the device chosen by the user and not any other Bluetooth devices in range.
Pairing information is stored by the Headset and can be changed at any time.
The exact process to pair the Headset will also depend on the device it is paired with. The user manual for that device will give instructions on how to do this. In all cases, the Headset will need to be put into PAIRING mode, which is described here:
1. If the Headset is on, switch it off.
2. Press and hold the main button.
3. When the short tone is heard, keep the button pressed until the pairing melody is generated.
4. The LED will alternately flash red/green.
5. Follow instructions for the companion device to pair to the Headset.
6. When prompted on the companion device, enter the PIN code for the Headset.
7. When paired, the Headset will give a short confirmation tone and switch to STANDBY, ready for operation.

Bluetooth™ Hands-Free Headset

Experience the freedom of wireless communication

Close-up of a silver and black handheld device with three circular buttons (no visible text or symbols)

Bluetooth™

For use with mobile phones enabled with Bluetooth™ technology.

User Manual

F8V9017

Belkin Corporation

501 West Walnut Street Compton • CA • 90220 • USA Tel: [phone] Fax: [phone]

Belkin Components, Ltd.

Express Business Park Shipton Way • Rushden • NN10 6GL United Kingdom Tel: [phone] Fax: [phone]

Belkin Components B.V.

Starparc Building Boeing Avenue 333 1119 PH Schiphol-Rijk The Netherlands Tel: [phone] Fax: [phone]

Belkin GmbH

Hanebergstrasse 2 80637 München • Germany Tel: [phone] Fax: [phone]

Tech Support

US: 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040

© 2003 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed.

P74195ea

IV. Preparing the Headset for Use—Pairing (continued)

Es

PIN Code: The PIN code for the Headset is preset to 1234. It will be needed for pairing.

Before the Headset can communicate, it must be paired to the companion device it will be used with, such as a mobile phone. This is to ensure the Headset only communicates with the device chosen by the user and not any other Bluetooth devices in range.

Pairing information is stored by the Headset and can be changed at any time.

The exact process to pair the Headset will also depend on the device it is paired with. The user manual for that device will give instructions on how to do this. In all cases, the Headset will need to be put into PAIRING mode, which is described here:

1. If the Headset is on, switch it off.

2. Press and hold the main button.

3. When the short tone is heard, keep the button pressed until the pairing melody is generated.

4. The LED will alternately flash red/green.

5. Follow instructions for the companion device to pair to the Headset.

6. When prompted on the companion device, enter the PIN code for the Headset.

7. When paired, the Headset will give a short confirmation tone and switch to STANDBY, ready for operation.

It

PIN Code: The PIN code for the Headset is preset to 1234. It will be needed for pairing.

Before the Headset can communicate, it must be paired to the companion device it will be used with, such as a mobile phone. This is to ensure the Headset only communicates with the device chosen by the user and not any other Bluetooth devices in range.

Pairing information is stored by the Headset and can be changed at any time.

The exact process to pair the Headset will also depend on the device it is paired with. The user manual for that device will give instructions on how to do this. In all cases, the Headset will need to be put into PAIRING mode, which is described here:

1. If the Headset is on, switch it off.

2. Press and hold the main button

3. When the short tone is heard, keep the button pressed until the pairing melody is generated.

4. The LED will alternately flash red/green.

5. Follow instructions for the companion device to pair to the Headset.

6. When prompted on the companion device, enter the PIN code for the Headset.

7. When paired, the Headset will give a short confirmation tone and switch to STANDBY, ready for operation.

V. Troubleshooting

En

- If the Headset stops operating, first ensure it is charged by charging it for five hours.

- If the Headset remains non-functional, it may be reset by the following method: Press and hold the volume-down button, and at the same time, plug in the charger as though to place the unit on charge.

- The Headset will reset itself and be left in OFF mode.

Fr

- If the Headset stops operating, first ensure it is charged by charging it for five hours.

- If the Headset remains non-functional, it may be reset by the following method: Press and hold the volume-down button, and at the same time, plug in the charger as though to place the unit on charge.

• The Headset will reset itself and be left in OFF mode.

De

- If the Headset stops operating, first ensure it is charged by charging it for five hours.

- If the Headset remains non-functional, it may be reset by the following method: Press and hold the volume-down button, and at the same time, plug in the charger as though to place the unit on charge.

• The Headset will reset itself and be left in OFF mode.

NL

- If the Headset stops operating, first ensure it is charged by charging it for five hours.

- If the Headset remains non-functional, it may be reset by the following method: Press and hold the volume-down button, and at the same time, plug in the charger as though to place the unit on charge.

• The Headset will reset itself and be left in OFF mode.

Es

- If the Headset stops operating, first ensure it is charged by charging it for five hours.

- If the Headset remains non-functional, it may be reset by the following method: Press and hold the volume-down button, and at the same time, plug in the charger as though to place the unit on charge.

• The Headset will reset itself and be left in OFF mode.

It

- If the Headset stops operating, first ensure it is charged by charging it for five hours.

- If the Headset remains non-functional, it may be reset by the following method: Press and hold the volume-down button, and at the same time, plug in the charger as though to place the unit on charge.

• The Headset will reset itself and be left in OFF mode.

LED Indicator

A red/green LED is used to indicate various functions.

LED Color
Effect in Current Mode

	Steady ON	Alternate Blinking	Slow Flashing	Fast Flashing	...with 2 blinks	Steady OFF
Red	Switched OFF and on charge, battery low		STAND BY-mode and battery low	TALK or INCOMING CALL and battery low	TALK and muted and battery low	OFF-mode
Green	Switched OFF and on charge, battery high		STAND BY-mode and battery lhigh	TALK or INCOMING CALL and battery high	TALK and muted and battery high
Red and Green		PAIRING mode

Note: When on charge with the Headset not switched OFF, the LED flashing sequence is not changed, but the LED color will change from red to green as the battery reaches full charge.

LED Indicator

A red/green LED is used to indicate various functions.

LED Color
Effect in Current Mode

	Steady ON	Alternate Blinking	Slow Flashing	Fast Flashing	...with 2 blinks	Steady OFF
Red	Switched OFF and on charge, battery low		STAND BY-mode and battery low	TALK or INCOMING CALL and battery low	TALK and muted and battery low	OFF-mode
Green	Switched OFF and on charge, battery high		STAND BY-mode and battery lhigh	TALK or INCOMING CALL and battery high	TALK and muted and battery high
Red and Green		PAIRING mode

Note: When on charge with the Headset not switched OFF, the LED flashing sequence is not changed, but the LED color will change from red to green as the battery reaches full charge.

LED Indicator

ES A red/green LED is used to indicate various functions.

LED Color
Effect in Current Mode

	Steady ON	Alternate Blinking	Slow Flashing	Fast Flashing	...with 2 blinks	Steady OFF
Red	Switched OFF and on charge, battery low		STAND BY-mode and battery low	TALK or INCOMING CALL and battery low	TALK and muted and battery low	OFF-mode
Green	Switched OFF and on charge, battery high		STAND BY-mode and battery lhigh	TALK or INCOMING CALL and battery high	TALK and muted and battery high
Red and Green		PAIRING mode

Note: When on charge with the Headset not switched OFF, the LED flashing sequence is not changed, but the LED color will change from red to green as the battery reaches full charge.

Key Press

Key Press
Effect in Current Mode

	OFF	PAIRING	STANDBY	INCOMING CALL	TALK
Short (less than 3 sec.)		Exit PAIRING mode and got to STANDBY	Initiate a call	Answer a call	End current call (Not possible when microphone is muted)
Medium (3-10 sec.)	Switch on and go into STANDBY mode	Exit PAIRING mode, reset PAIRING data and switch OFF	Switch OFF Headset	Switch OFF Headset	Mute and un-mute the microphone
Long (more than 3 sec.)	Switch on and go into PAIRING mode				Mute and un-mute the microphone

Key Press

Key Press
Effect in Current Mode

	OFF	PAIRING	STANDBY	INCOMING CALL	TALK
Short (less than 3 sec.)		Exit PAIRING mode and got to STANDBY	Initiate a call	Answer a call	End current call (Not possible when microphone is muted)
Medium (3-10 sec.)	Switch on and go into STANDBY mode	Exit PAIRING mode, reset PAIRING data and switch OFF	Switch OFF Headset	Switch OFF Headset	Mute and un-mute the microphone
Long (more than 3 sec.)	Switch on and go into PAIRING mode				Mute and un-mute the microphone

Key Press

Key Press
Effect in Current Mode

	OFF	PAIRING	STANDBY	INCOMING CALL	TALK
Short (less than 3 sec.)		Exit PAIRING mode and got to STANDBY	Initiate a call	Answer a call	End current call (Not possible when microphone is muted)
Medium (3-10 sec.)	Switch on and go into STANDBY mode	Exit PAIRING mode, reset PAIRING data and switch OFF	Switch OFF Headset	Switch OFF Headset	Mute and un-mute the microphone
Long (more than 3 sec.)	Switch on and go into PAIRING mode				Mute and un-mute the microphone

LED Indicator

A red/green LED is used to indicate various functions.

LED Color
Effect in Current Mode

	Steady ON	Alternate Blinking	Slow Flashing	Fast Flashing	...with 2 blinks	Steady OFF
Red	Switched OFF and on charge, battery low		STAND BY-mode and battery low	TALK or INCOMING CALL and battery low	TALK and muted and battery low	OFF-mode
Green	Switched OFF and on charge, battery high		STAND BY-mode and battery high	TALK or INCOMING CALL and battery high	TALK and muted and battery high
Red and Green		PAIRING mode

Note: When on charge with the Headset not switched OFF, the LED flashing sequence is not changed, but the LED color will change from red to green as the battery reaches full charge.

LED Indicator

A red/green LED is used to indicate various functions.

LED Color
Effect in Current Mode

	Steady ON	Alternate Blinking	Slow Flashing	Fast Flashing	...with 2 blinks	Steady OFF
Red	Switched OFF and on charge, battery low		STAND BY-mode and battery low	TALK or INCOMING CALL and battery low	TALK and muted and battery low	OFF-mode
Green	Switched OFF and on charge, battery high		STAND BY-mode and battery high	TALK or INCOMING CALL and battery high	TALK and muted and battery high
Red and Green		PAIRING mode

Note: When on charge with the Headset not switched OFF, the LED flashing sequence is not changed, but the LED color will change from red to green as the battery reaches full charge.

LED Indicator

A red/green LED is used to indicate various functions.

LED Color
Effect in Current Mode

	Steady ON	Alternate Blinking	Slow Flashing	Fast Flashing	...with 2 blinks	Steady OFF
Red	Switched OFF and on charge, battery low		STAND BY-mode and battery low	TALK or INCOMING CALL and battery low	TALK and muted and battery low	OFF-mode
Green	Switched OFF and on charge, battery high		STAND BY-mode and battery high	TALK or INCOMING CALL and battery high	TALK and muted and battery high
Red and Green		PAIRING mode

Note: When on charge with the Headset not switched OFF, the LED flashing sequence is not changed, but the LED color will change from red to green as the battery reaches full charge.

Key Press

Key Press
Effect in Current Mode

	OFF	PAIRING	STANDBY	INCOMING CALL	TALK
Short (less than 3 sec.)		Exit PAIRING mode and got to STANDBY	Initiate a call	Answer a call	End current call (Not possible when microphone is muted)
Medium (3-10 sec.)	Switch on and go into STANDBY mode	Exit PAIRING mode, reset PAIRING data and switch OFF	Switch OFF Headset	Switch OFF Headset	Mute and un-mute the microphone
Long (more than 3 sec.)	Switch on and go into PAIRING mode				Mute and un-mute the microphone

Key Press

Key Press
Effect in Current Mode

	OFF	PAIRING	STANDBY	INCOMING CALL	TALK
Short (less than 3 sec.)		Exit PAIRING mode and got to STANDBY	Initiate a call	Answer a call	End current call (Not possible when microphone is muted)
Medium (3-10 sec.)	Switch on and go into STANDBY mode	Exit PAIRING mode, reset PAIRING data and switch OFF	Switch OFF Headset	Switch OFF Headset	Mute and un-mute the microphone
Long (more than 3 sec.)	Switch on and go into PAIRING mode				Mute and un-mute the microphone

Key Press

Key Press
Effect in Current Mode

	OFF	PAIRING	STANDBY	INCOMING CALL	TALK
Short (less than 3 sec.)		Exit PAIRING mode and got to STANDBY	Initiate a call	Answer a call	End current call (Not possible when microphone is muted)
Medium (3-10 sec.)	Switch on and go into STANDBY mode	Exit PAIRING mode, reset PAIRING data and switch OFF	Switch OFF Headset	Switch OFF Headset	Mute and un-mute the microphone
Long (more than 3 sec.)	Switch on and go into PAIRING mode				Mute and un-mute the microphone
