Type de produit	Récepteur audio Bluetooth avec amplificateur et éclairage LED
Marque	Rockville
Modèle	BluTube LED
Dimensions (approx.)	30 cm x 10 cm x 10 cm
Poids (approx.)	1,5 kg
Alimentation	230 V AC, 50/60 Hz
Consommation électrique	30 W (max)
Version Bluetooth	5.0
Portée Bluetooth	Jusqu'à 10 mètres
Entrées audio	Bluetooth, entrée auxiliaire 3,5 mm, entrée RCA
Sorties audio	Bornes pour haut-parleurs (2 canaux)
Puissance de sortie	2 x 50 W RMS
Impédance des haut-parleurs	4-8 ohms
Éclairage LED	Intégré, commutable (plusieurs modes/couleurs)
Entretien et nettoyage	Débrancher avant nettoyage ; utiliser un chiffon doux et sec. Ne pas utiliser de produits abrasifs.
Sécurité	Ne pas exposer à l'eau ou à l'humidité. Ne pas obstruer les ventilations. Débrancher en cas d'orage.
Pièces détachées et réparabilité	Pièces détachées non fournies par le fabricant. Contacter le service après-vente Rockville pour les réparations.
Accessoires inclus	Câble d'alimentation, câble auxiliaire, télécommande (selon modèle)
Garantie	1 an (selon revendeur)

FOIRE AUX QUESTIONS - BluTube LED Rockville

Comment connecter mon téléphone en Bluetooth au Rockville BluTube LED ?

Allumez le récepteur et activez le Bluetooth sur votre téléphone. Recherchez "BluTube LED" dans la liste des appareils disponibles et sélectionnez-le. Le code PIN par défaut est 0000 si demandé.

Puis-je utiliser le BluTube LED sans Bluetooth ?

Oui, vous pouvez utiliser l'entrée auxiliaire 3,5 mm ou l'entrée RCA pour connecter des sources audio filaires comme un lecteur MP3 ou un téléviseur.

Comment changer les couleurs ou modes de l'éclairage LED ?

Utilisez le bouton dédié sur l'appareil ou la télécommande (si fournie) pour parcourir les différents modes et couleurs. Maintenez le bouton enfoncé pour éteindre les LED.

Quelle puissance puis-je attendre du BluTube LED ?

L'amplificateur délivre 2 x 50 watts RMS sous 4 ohms, ce qui est suffisant pour une écoute domestique avec des enceintes de bibliothèque.

L'appareil chauffe-t-il normalement ?

Oui, un léger échauffement est normal en fonctionnement. Assurez-vous que les fentes de ventilation ne sont pas obstruées et ne placez pas l'appareil dans un espace confiné.

Puis-je connecter plusieurs enceintes ?

Le BluTube LED dispose de deux canaux de sortie (gauche et droite). Vous pouvez connecter une paire d'enceintes de 4 à 8 ohms. Ne connectez pas d'enceintes d'impédance inférieure à 4 ohms.

Comment réinitialiser l'appareil en cas de problème ?

Débranchez l'appareil de l'alimentation pendant 30 secondes, puis rebranchez-le. Cela réinitialise les paramètres Bluetooth et résout la plupart des problèmes.

Que faire si le son est déformé ou faible ?

Vérifiez le volume sur l'appareil et sur la source. Assurez-vous que les connexions des enceintes sont correctes et que l'impédance correspond. Évitez de pousser le volume au maximum.

Le BluTube LED est-il compatible avec les TV ?

Oui, si votre téléviseur dispose d'une sortie audio (prise casque ou RCA), vous pouvez la connecter à l'entrée auxiliaire ou RCA du récepteur. Pour le Bluetooth, assurez-vous que le TV prend en charge le profil A2DP.

Où puis-je trouver la notice complète ?

Vous pouvez télécharger la notice PDF gratuitement sur notice-facile.com en recherchant "Rockville BluTube LED".

MODE D'EMPLOI BluTube LED Rockville

ROCKVILLE

BluTube Series

70W TUBE AMPLIFIER/HOME STEREO

RECEIVER w/WIRELESS STREAMING

OWNER'S MANUAL

ATTENTION:

WATCH THIS VIDEO BEFORE FIRST USE!

Scan the QR codes or go to the URLs for essential information, guides (video and/or written), and tips to make the most out of your purchase.

If you prefer written instructions, please read ahead! With

Rockville you get many options.

rockvillesupport.com/blutube-ledrock

rockvillesupport.com/blutube-dk

rockvillesupport.com/blutube-wd

rockvillesupport.com/blutube-sg

Missing items? If you ordered a bundle that includes more than one product and you are missing part of your bundle then it just means your order shipped from two different warehouses. You will receive the remaining items very soon. If you have any concerns or inquiries, feel free to call our customer support center at 1-646-758-0144, 24 hours a day/7 days a week.

Thank you for purchasing this Rockville BluTube Series 70W Tube Amplifier. Please read this owner's manual carefully for proper use of your Rockville BluTube. Should you need assistance, please call our technical help line at 1-646-758-0144, 24 hours a day/7 days a week.

Includes

• Tube Amplifier/Receiver
• 5 ft RCA to 3.5mm cable
• Owner's manual

PLEASE NOTE: You may hear a humming noise when the BluTube unit is first powered on. This is normal and is due to the tubes warming up. The humming noise will go away after approximately 1 minute.

IMPORTANT SAFETY INSTRUCTIONS

• To reduce risk of electric shock, never open the unit. There are no user serviceable parts, refer service to the Rockville service center.
• Do not expose this unit to any kind of moisture. No objects filled with liquids, such as vases or cups, should be placed on or near this appliance.
• Please ensure that the unit is situated in a properly ventilated area.
• Avoid direct sunlight or heat radiating appliances.
• Avoid placing on surfaces that are subject to constant vibration.
• Make sure the unit is placed on a level and stable surface.
• No open flames, such as a lit candles, should be placed on or near the unit.
• Before turning on the power for the first time, make sure the power cord is properly plugged in and fully uncoiled.

Functions

BluTube SG, BluTube WD, BluTube DK, and BluTube LED

1. Power switch

PLEASE NOTE: You may hear a humming noise when the BluTube unit is first powered on. This is normal and is due to the tubes warming up. The humming noise will go away after approximately 1 minute.

1. USB port (supports charging)
2. Speaker output/3.5mm headphone output selector button
3. 3.5mm headphone output
4. Play/pause - Previous/next control knob while in BT/USB mode.
5. Treble adjustment knob
6. Bass adjustment knob
7. VU meter: displays input signal level
8. Wireless streaming LED indicator
9. Input selector switch
10. Volume knob
11. Auxiliary Input Tiffany RCA jacks
12. Subwoofer Output Tiffany RCA jacks
13. HDMI input
14. HDMI/Optical/Coaxial input selector switch
15. Optical input
16. Coaxial input
17. Left and Right banana plug/binding post speaker terminals
18. Fuse
19. Power cord

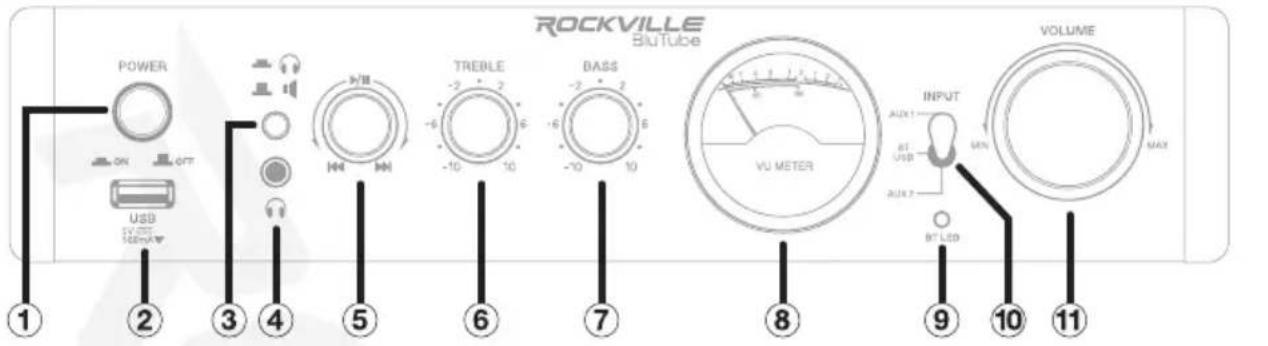

Functions (continued) BluTube

1. Power switch

PLEASE NOTE: You may hear a humming noise when the BluTube unit is first powered on. This is normal and is due to the tubes warming up. The humming noise will go away after approximately 1 minute.

1. USB port (supports charging)
2. Speaker output/3.5mm headphone output selector button
3. 3.5mm headphone output
4. Play/pause - Previous/next control knob while in BT/USB mode.
5. Treble adjustment knob
6. Bass adjustment knob
7. VU meter: displays input signal level
8. Wireless streaming LED indicator

9. Input selector switch

10. Volume knob

11. AUX 1 Input Tiffany RCA jacks

12. AUX 2 Input Tiffay RCA jacks

13. Left and Right banana plug/binding post speaker terminals

14. Fuse

15. Power cord

Setup

Front Panel: BluTube SG, BluTube WD, BluTube DK, and BluTube LED

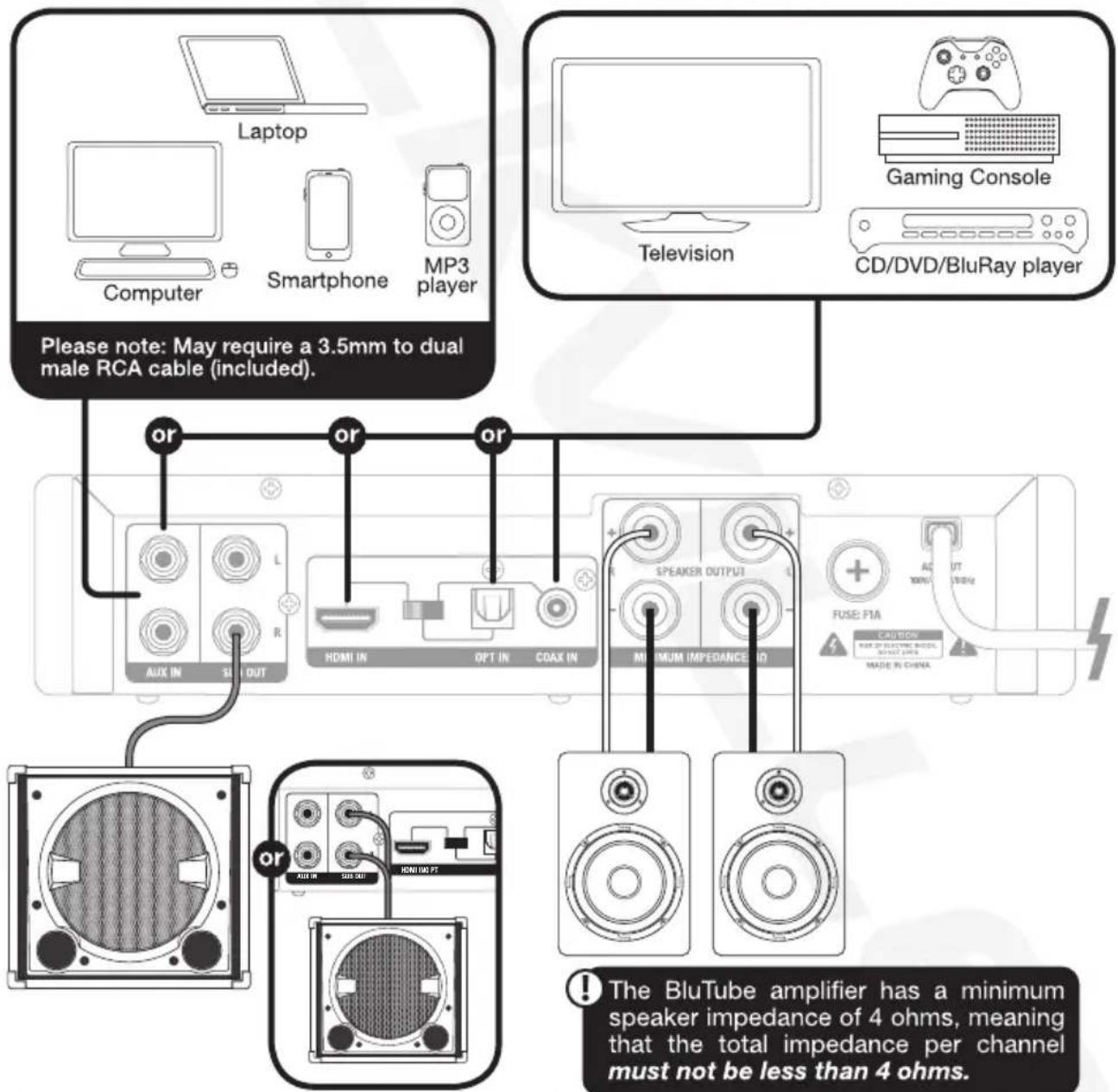

Rear Panel: BluTube SG, BluTube WD, BluTube DK, and BluTube LED

ATTENTION: If your sub has one RCA input, use a male to dual male Y cable.

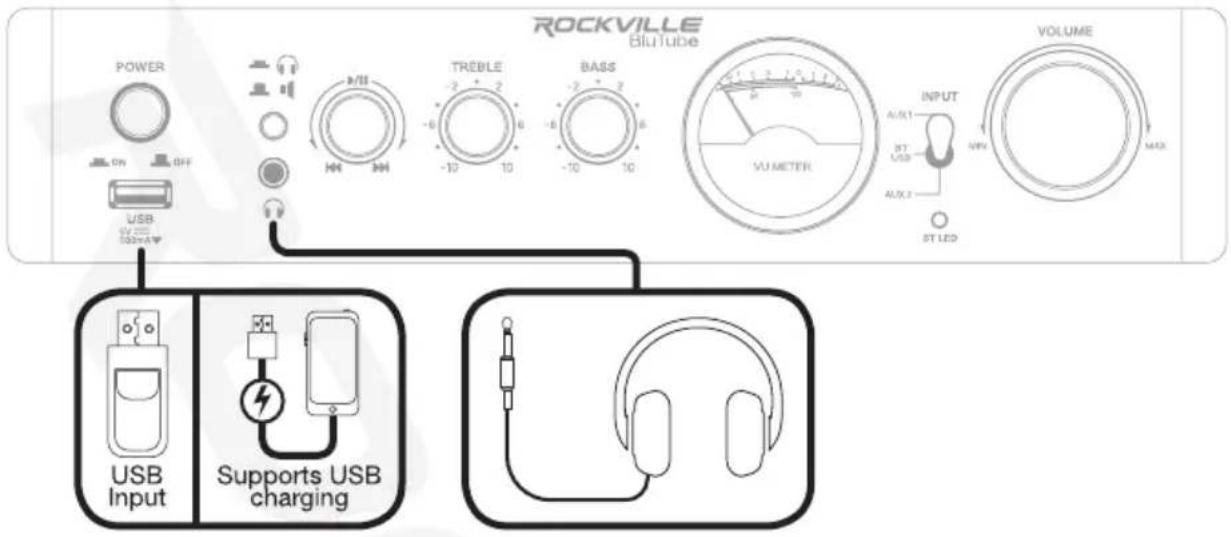

Setup (continued)

Front Panel: BluTube

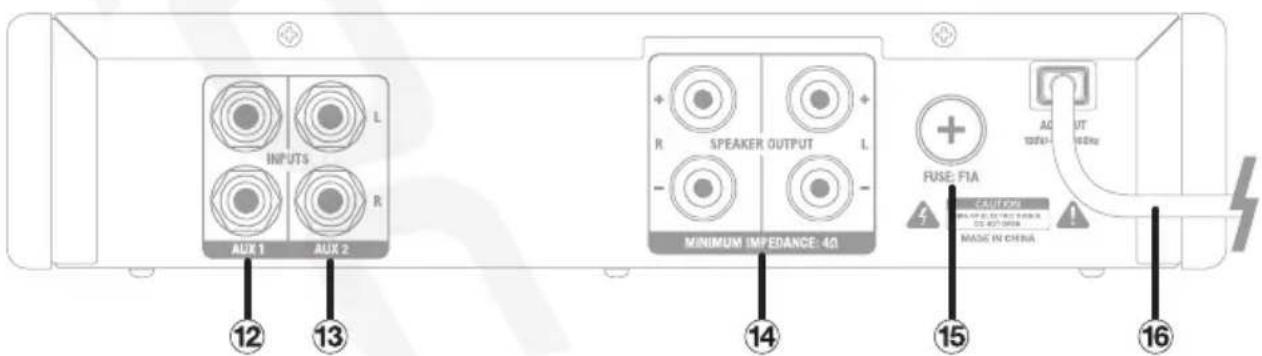

Rear Panel: BluTube

Inputs

Wireless Streaming

All models

1. Turn on the unit and place the input selector switch to BT/USB (middle position). Please note: if there is a USB drive inserted, be sure to remove it as this will override wireless streaming mode.
2. Turn on the wireless streaming feature on your device and ensure that it is in "discoverable" mode.
3. Find and select (depending on your model) BluTube, BluTube SG, BluTube LED, BluTube WD, or BluTube DK in the list of discoverable devices.
4. If you are prompted for a paring code, please enter: 0000.
5. Play/pause: press the knob to play or pause playback. Previous/next control knob: turn the knob to the left for previous tracks, turn the knob to the right for next tracks.
6. Playback may also be controlled from your Bluetooth device.
7. Adjust the source device's volume, then use the BluTube's volume knob to control volume. Please note: The amplifier will remember and automatically connect to the last paired device.

USB

All models

1. Place the input selector switch to BT/USB (middle position).
2. Insert a USB drive into the USB port on the front panel.
3. The unit will automatically begin to play music stored on the external device.
4. Play/pause: press the knob to play or pause playback Previous/next control knob: turn the knob to the left for previous tracks, turn the knob to the right for next tracks.
   Please note: Inserting a USB drive will override wireless streaming mode.

Auxiliary

BluTube

You can use either of the RCA inputs when you wish to hook up an external stereo signal source such as a CD player, MP3 player, computer, TV, gaming console, etc.

1. Place the input selector switch to AUX 1 (up position) or AUX 2 (down position).
2. Connect the your source device to the RCA input labeled AUX 1 or AUX 2. Please note, for some devices you may need a 3.5mm to dual male RCA cable.
3. Adjust the source device's volume, then use the BluTube's volume knob to control volume.

BluTube SG, BluTube WD, BluTube DK, and BluTube LED

You can use the RCA input labeled AUX IN when you wish to hook up an external stereo signal source such as CD player, MP3 player, computer, etc.

1. Place the input selector switch to AUX (up position).
2. Connect the your source device to the RCA input labled AUX IN. Please note, for some devices you may need a 3.5mm to dual male RCA cable.
3. Adjust the source device's volume, then use the BluTube's volume knob to control volume.

HDMI/Optical/Coaxial

BluTube SG, BluTube WD, BluTube DK, and BluTube LED only

Many TVs, Digital set-top boxes, game consoles, and DVD/BluRay players have HDMI, optical (fiber optic), or coaxial outputs. To connect via HDMI, optical, or coaxial input, follow the steps listed on the next page.

Inputs (continued)

1. Place the input selector switch on the front of the unit to HDMI/Optical/Coaxial.
2. Set the HDMI/Optical/Coaxial input selector switch on the back of the unit to the desired mode.
3. Use an HDMI cabe, a digital optical audio cable, or a coaxial cable to connect the source to the appropriate input port on the amplifier.
4. Use the BluTube's volume knob to control volume.

Outputs

Speakers

The amplifier features left and right banana plug/binding post terminals to connect two speakers. When connecting your speakers, be sure to observe correct polarity. The total impedance of your speakers must not be less than 4 ohms.

Subwoofer

BluTube SG, BluTube WD, BluTube DK, and BluTube LED only

There are two RCA subwoofer outputs. You can use either one to feed the signal to a powered subwoofer. Please refer to the two preferred configurations detailed below.

1. Use standard L/R RCA jacks to feed the signal from both outputs to any powered sub with L/R RCA inputs. Please note: since both outputs are putting out an identical mono signal, it doesn't matter which one you hook the left and right RCA jacks to.
2. Use a monoaural RCA cable to feed the signal from either jack to any powered subwoofer with an LFE (Low Frequency Effect) RCA input or a single RCA sub input.

3.5mm Headphone Output

All models

The 3.5mm headphone output is a direct plug and play connection. Simply connect your headphones, make sure the headphone/speaker output selector button is in the down position, and you are ready to listen.

Please note, when the 3.5mm jack is in use, all other output will be cut off. To switch back to speaker/sub output, simply depress the headphone/speaker output selector button.

Features and Specifications

BluTube

• 25 watts RMS x 2 @ 8 ohms
• 35 watts RMS x 2 @ 4 ohms
• Built-in Preamplifier
- 2 sets of Tiffany Auxiliary RCA (AUX 1 and AUX 2) inputs to connect devices like a TV, DVD player, Laptop, MP3 player, Smart phone etc.
- VU meter
- Adjustable bass and treble (2-band equalizer)
• Built-in wireless streaming with 33-foot range
- Bluetooth: 2.1 +EDR
• USB: Supports WAV/MP3/WMA/APE/FLAC
- USB input for music files from USB thumb drive. Can also charge your USB device.
- Rear Speaker Terminals: Banana plug/binding post outputs for 2 speakers
• Headphone output
• Frequency Response (±3dB): 25Hz – 20kHz
• Input Impedance: 47kΩ
- Input Sensitivity: 300mV

• Output Impedance: 4 – 8 ohms
• Total Harmonic Distortion(THD): ≤0.02%
• Signal-to-Noise Ratio(S/N): ≥86dB
• 100/120V Auto-switching power supply
• Unit weight: 6.6 lbs
- Unit dimension: 10.6'' × 10.2'' × 5.1''

BluTube SG, BluTube WD, BluTube DK, and BluTube LED

• 25 watts RMS x 2 @ 8 ohms
• 35 watts RMS x 2 @ 4 ohms
• Built-in Preamplifier
- 2 Tiffany RCA (AUX) inputs to connect devices like a TV, DVD player, Laptop, MP3 player, Smartphone etc.
- HDMI input
- Optical input
- Coaxial input
- VU meter
- Tubes and knobs feature blue LED illumination (BluTube LED model only)
- Adjustable bass and treble (2-band equalizer)
• Built-in wireless streaming with 33-foot range
- Bluetooth: 2.1 +EDR
• USB: Supports WAV/MP3/WMA/APE/FLAC
- USB input for music files from USB thumb drive. Can also charge your USB device.
• USB can charge your phone or other USB device
- Rear Speaker Terminals: Banana plug/binding post outputs for 2 speakers
- Subwoofer output
• Headphone output
• Frequency Response (±3dB): 25Hz – 20kHz
- Input Impedance: 47kΩ
- Input Sensitivity: 300mV
• Output Impedance: 4 – 8 ohms
• Total Harmonic Distortion(THD): ≤0.02%
• Signal-to-Noise Ratio(S/N): ≥86dB
• 100/120V Auto-switching power supply
- Unit weight: 6.6 lbs
- Unit dimension: 10.6'' × 10.2'' × 5.1''

Troubleshooting

PROBLEM	SOLUTION
No power	1. Make sure the unit is plugged in and the power switch is in the ON position.2. Check and replace the fuse if necessary.
Humming noise when powered on	The humming noise is due to the tubes warming up and is completely normal. They take approximately 1 minute to warm up and the hum will go away at that point.
No sound/distorted sound	1. Check that all cables are plugged in correctly.2. Check the amplifier and input source volume settings.3. Check the input switch to ensure the proper source is selected.4. Check the headphone/speaker output selector button to ensure the proper output is selected.5. Check that the HDMI/Optical/Coaxial selector switch at the rear of the unit is set to the proper input mode (BluTube SG, WD, and LED).6. Check and adjust (if necessary) the Volume, Bass, and Treble settings which boost the signal which, in turn, can cause clipping and/or distortion.
Wireless Streaming	1. Check to see that both devices are turned on and that your Bluetooth device is discoverable.2. Turn both devices off and then on again.3. Make sure you've selected the proper source.4. Make sure that the wireless streaming device is within 5 feet of the unit.5. Move both devices away from other wireless streaming devices, microwaves, wireless routers, and other electronics.6. Make sure that the unit is not paired to another device.7. Make sure there are no USB devices plugged in.
No USB playback	1. Make sure you've selected the proper source.2. Make sure that the audio files are in the specified formats.3. Check the USB drive for damage.

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

Responsible party name: Rockville

Address: 600 Bayview Ave.

Entrance A

Inwood, NY 11096

Hereby declares that the product(s) BluTube, BluTube SG, BluTube WD, BluTube DK, and BluTube LED Tube Amplifiers comply with FCC rules as mentioned in the following paragraph:

These devices comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
