Type de produit	Haut-parleur de sonorisation
Marque	Valcom
Modèle	V-1080 FlexHorn
Dimensions (L x H x P)	200 x 120 x 100 mm
Poids	0,9 kg
Alimentation	24 V CC (tension constante)
Puissance nominale	10 W
Impédance	8 Ω
Réponse en fréquence	200 Hz – 10 kHz
Angle de couverture	120°
Type de montage	Mural ou au plafond
Matériau du boîtier	ABS plastique
Couleur	Blanc
Indice de protection	IP30
Température de fonctionnement	-20 °C à +50 °C
Entretien et nettoyage	Dépoussiérer avec un chiffon sec et doux
Sécurité	Ne pas immerger, éviter les chocs
Utilisation prévue	Sonorisation intérieure
Connectivité	Bornier à vis

FOIRE AUX QUESTIONS - V-1080 FlexHorn Valcom

Quelle est la puissance du Valcom V-1080 FlexHorn ?

La puissance nominale du haut-parleur est de 10 W, adaptée pour une sonorisation de taille moyenne.

Quel type d'alimentation nécessite le V-1080 FlexHorn ?

Il fonctionne en 24 V CC, typique des systèmes de sonorisation professionnels.

Comment installer le V-1080 FlexHorn ?

Le haut-parleur se fixe au mur ou au plafond à l'aide du support fourni. Raccordez les fils au bornier à vis en respectant la polarité.

Quelle est l'impédance du V-1080 FlexHorn ?

L'impédance est de 8 Ω, compatible avec la plupart des amplificateurs.

Peut-on utiliser le V-1080 FlexHorn en extérieur ?

Non, l'indice de protection IP30 le limite à une utilisation en intérieur, à l'abri de l'humidité.

Quelles sont les dimensions du V-1080 FlexHorn ?

Les dimensions sont approximativement 200 x 120 x 100 mm, ce qui le rend compact.

Comment nettoyer le V-1080 FlexHorn ?

Utilisez un chiffon doux et sec pour dépoussiérer la grille et le boîtier. Évitez les produits chimiques.

Le V-1080 FlexHorn est-il compatible avec un amplificateur 100 V ?

Non, ce modèle est conçu pour une alimentation 24 V CC basse tension, pas pour les lignes 100 V.

Quelle est la réponse en fréquence du V-1080 FlexHorn ?

Elle s'étend de 200 Hz à 10 kHz, adaptée à la voix et à la musique.

Où puis-je trouver la notice du V-1080 FlexHorn ?

Vous pouvez la télécharger gratuitement sur notice-facile.com au format PDF.

MODE D'EMPLOI V-1080 FlexHorn Valcom

V-1080 FLEXHORN THREE WATT ONE-WAY PAGING HORN

INTRODUCTION

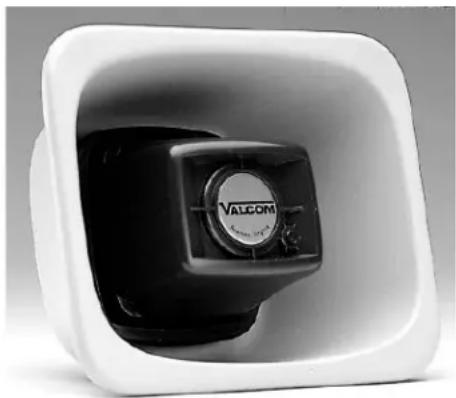

The Valcom V-1080 Flexhorn is a one-way self-amplified paging horn designed to provide voice paging as well as background music. This horn is weatherproof and can be used indoors or outside in environments ranging from -20 to +55°C. A volume control is accessible on the front of the cone. The horn is offered in gray, beige and white.

Model V-1080-GY Gray

Model V-1080-BG Beige

Model V-1080-W White

Dimensions/Weight

• 6.80"H x 8.30"W x 3.30"D
  (17.27cm H x 21.08cm W x 8.38cm D)
  • 2.1 lbs. (0.95 kg)

The V-1080 requires -24VDC, 150mA (3 Valcom Power Units) and is FCC Part 68 Registered under BAFUSA-69358-KX-N.

CONNECTIONS

NOTE: Do not connect this speaker directly to a 25/70/100 Volt amplifier as damage to both the amplifier and speaker may occur. A V-1095 can be used to provide an interface between a centrally amplified speaker line and Valcom self-amplified horns.

POWER WIRE RUN

# Horns per Power Run	Wire Run Length (feet)
V-1080(3 Watts)	24 AWG	22 AWG
5	250	400
2	500	800
1	760	1200

MOUNTING INSTRUCTIONS

FLUSH MOUNT

Using the template packaged with the speaker, draw the speaker outline on the wall to be cut. Make appropriate wiring connections and test the speaker for operation. Using appropriate mounting screws (not furnished) drill and mount the flange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves by loosening or removing the handle and hardware. Using the back leaf as a template, mark the wall through the mounting holes, drill and mount to the wall using appropriate screws (not furnished) or mount directly to a junction box.

Mount the T-bracket to the back of the horn as shown using the (2) 1/2 inch screws provided.

"C" CLAMP FOR "I" BEAM MOUNTING

A "C" clamp is provided with the horns to allow mounting to a beam. Place the bolt through the hole in the bottom of the base to secure the "C" clamp to the beam. It is suggested that the horn be mounted to the underside of the "I" beam to provide maximum positioning adjustments. Mount "C" clamp with (2) 1/2 inch screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is properly connected and there are no broken connections leading to this unit. Ascertain volume control is turned up.

Assistance in troubleshooting is available from the factory. When calling, you should have a VOM and a test set and call from the job site. Call [phone] and press 1 for Technical Support or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating company name, address, phone number, contact person and the nature of the problem. Send the unit to:

Repair and Return Dept.

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019-5056

TROUBLESHOOTING CHART
PROBLEM	PROBABLE CAUSE AND CORRECTION
No Sound	- Check volume control turned up (clockwise).- Check presence and polarity of -24VDC and GND.- Using a telephone test set, check for the proper audio level on the Tip and Ring leads and if necessary also at the source.
Low Volume	- Check volume control is turned up (clockwise).- Check voltage at the horn when in use, -20 to -24VDC required.- Using a telephone test set, check for proper audio level on Tip and Ring leads. It is possible that some low level audio will be heard with only one side of Tip and Ring connected.
Loud Squeal	- Lower volume of horn.- Aim horn in different direction.- Increase the distance between the telephone and horn.- Install a confidencer on the telephone in severe problem areas.- Add a V-9964, Stacking Feedback Eliminator.

UNIVERSAL BRACKET

SURFACE MOUNTED WITH A UNIVERSAL MOUNTING BRACKET

"C" CLAMP FOR "I" BEAM MOUNTING

ATTACH CLAMP TO HORN

ATTACH FLEXHORN TO BEAM

USING MOUNTING SCREWS:

USING THE TEMPLATE, MARK LOCATION OF OPENING AND MOUNTING HOLES ON WALL. BRILL HOLES APPROPRIATE TO YOUR MOUNTING HARDWARE AND CUT OUT THE OPENING.

HOLDING FLEXHORN FIRMLY AGAINST A FLAT SURFACE, DRILL THROUGH EACH MOUNTING BOSS AS SHOWN

FLUSH MOUNTED IN A STUD WALL INSTALLED WITH MOUNTING SCREWS OR CONSTRUCTION CEMENT

PENDANT MOUNTING WITH OPTIONAL CHAIN AND 'EYE' SCREW

OTHER MOUNTING OPTIONS:

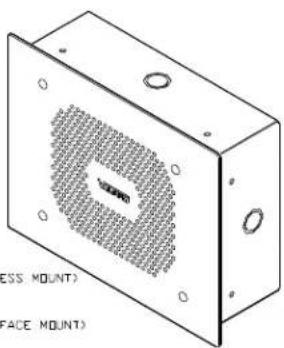

OPTIONAL V-9805

VANDAL RESISTANT ENCLOSURE (RECESS MOUNT)

OPTIONAL V-9809

VANDAL RESISTANT ENCLOSURE (SURFACE MOUNT)

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim:
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
