VTC-T4B4HR2MD - Caméra de surveillance Vitek - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Caméra de surveillance IP
Marque	Vitek
Modèle	VTC-T4B4HR2MD
Résolution	4 Mégapixels (2688x1520)
Vision nocturne	Oui, jusqu'à 30 mètres
Angle de vue	90° horizontal
Alimentation	12V DC ou PoE (Power over Ethernet)
Consommation électrique	≤ 10W
Dimensions	100 x 100 x 150 mm
Poids	0,5 kg
Matériau du boîtier	Aluminium et plastique résistant
Indice de protection	IP67 (résistant à la poussière et à l'eau)
Fonctions principales	Détection de mouvement, enregistrement continu ou programmé, flux vidéo H.265+
Stockage	Carte microSD jusqu'à 128 Go ou enregistrement sur NVR
Connectivité	Ethernet RJ45 10/100 Mbps, Wi-Fi non intégré
Audio	Microphone intégré et sortie audio (1 canal)
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Éviter les solvants.
Sécurité	Protection par mot de passe, cryptage HTTPS
Pièces détachées et réparabilité	Aucune pièce détachable par l'utilisateur. Contacter le SAV.
Informations générales	Garantie 2 ans. Compatible avec les systèmes de vidéosurveillance Vitek.

FOIRE AUX QUESTIONS - VTC-T4B4HR2MD Vitek

Comment installer la caméra Vitek VTC-T4B4HR2MD ?

Fixez la caméra au mur ou au plafond à l'aide du support fourni. Branchez l'alimentation 12V ou le câble Ethernet PoE. Téléchargez l'application Vitek Viewer ou connectez-vous via le navigateur web. Suivez les instructions de l'assistant de configuration.

Puis-je utiliser la caméra sans enregistreur ?

Oui, la caméra peut enregistrer directement sur une carte microSD (non incluse) ou via un stockage NAS compatible. Pour une surveillance avancée, un NVR Vitek est recommandé.

Comment activer la vision nocturne ?

La vision nocturne s'active automatiquement en mode faible luminosité. Vous pouvez également forcer le mode nuit dans les paramètres de l'application ou du firmware. Les LED infrarouges offrent une portée jusqu'à 30 mètres.

Quelle est la résolution maximale de la caméra ?

La résolution maximale est de 4 mégapixels (2688 x 1520 pixels) à 20 images par seconde. Vous pouvez réduire la résolution pour augmenter la fluidité jusqu'à 30 ips.

Comment réinitialiser la caméra aux paramètres d'usine ?

Maintenez enfoncé le bouton de réinitialisation situé sous le capot arrière pendant 10 secondes. Les voyants clignoteront pour confirmer. La caméra redémarrera avec les réglages par défaut.

Que faire si l'image est floue ou de mauvaise qualité ?

Vérifiez que la lentille n'est pas obstruée ou sale. Nettoyez-la avec un chiffon doux. Assurez-vous que la mise au point est correcte (certains modèles permettent un réglage manuel). Réduisez le débit binaire si la bande passante est insuffisante.

La caméra est-elle compatible avec les assistantes vocales ?

Non, la caméra VTC-T4B4HR2MD n'est pas compatible avec Alexa ou Google Assistant. Elle fonctionne via son application propriétaire ou un système de vidéosurveillance tiers compatible ONVIF.

Comment nettoyer et entretenir la caméra ?

Utilisez un chiffon en microfibre sec pour essuyer le boîtier et la lentille. N'utilisez pas de produits chimiques. Vérifiez périodiquement les connexions et les câbles. La caméra résiste aux intempéries (IP67).

Quels types de câbles sont nécessaires ?

Un câble Ethernet standard (Cat5e ou supérieur) pour la connexion réseau et l'alimentation PoE. Si vous utilisez l'alimentation 12V, un adaptateur secteur est fourni. Le câble réseau peut atteindre 100 mètres sans perte.

Où trouver le manuel d'utilisation complet ?

Le manuel d'utilisation est disponible en téléchargement gratuit au format PDF sur le site notice-facile.com. Il comprend 8 pages avec les instructions détaillées d'installation, de configuration et de dépannage.

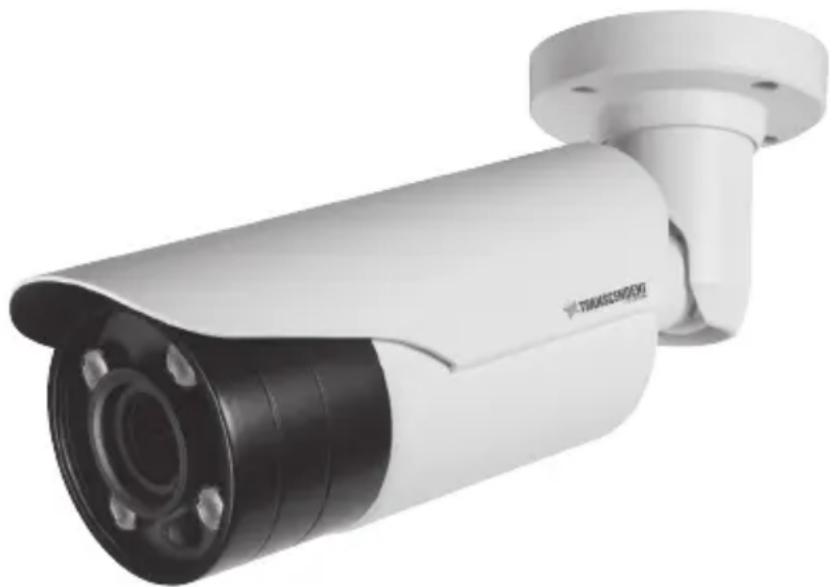

MODE D'EMPLOI VTC-T4B4HR2MD Vitek

FEATURES

• 1/2.9" 2.1 Megapixel Sony® Exmor™ Progressive Scan CMOS Sensor
  • 30fps live view @ 1920 x 1080p
  • True Day/Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
• Motorized 2.8\~12mmMegaPixel IR Corrected Auto Focus Varifocal Lens with CoC
• 4 Integrated High Power Dynamic IR LEDs with up to 165' IR Range
• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction
  • Double Shutter Wide Dynamic Range (WDR)
  • 16:9 Video format
  • IP66 Weather Resistance
  • Supports Up The COAX Control (CoC)
  • Over 1500' HD Video Transmission (Depending on cable characteristics and integrity)
• Optional Junction Box Mount Available (VT-TJB04)
  • 12VDC / 24VAC Dual Voltage Operation
  • 3 Year Warranty

Safety Precaution

- To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source..

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

- Warning :

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.

- Caution :

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user of the model requires continued operation during power interruptions, it is recommended that the device be powered from an uninterruptible power supply (UPS).

Installation

1) Disconnect power before installation.
2) Confirm proper 12VDC or 24VAC power supply is used to prevent damage to the camera.
3) Do not use in an environment beyond the boundaries of the specifications.

Power & Video Connections

Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to a DVR. Next connect the power connector to a 12VDC or 24VAC power adaptor.

BNC Connections:

Green: HD Connection

Yellow: SD Connection

On Cable Switch:

Press & Hold button to cycle between HD-TVI, AHD, and CVI Modes (Green BNC Connection required).

Press & Release the Switch quickly to enter OSD Menu Screen.

Main Menu		Secondary menu
LENS	ELC	NORMAL, DEBLUR
	ALC	INDOOR, OUTDOOR, DEBLUR
EXPOSURE	BRIGHTNESS	0~20
	SHUTTER	AUTO, MANUAL, FLICKER
	SENS-UP	OFF, X2, X4, X8, X16, X32
	AGC	0~20
WHITE BALANCE	AUTO
	AUTOext
	PRESET
	MANUAL	KELVIN	LOW, MIDDLE, HIGH
		R-GAIN	0~20
		B-GAIN	0~20
BACKLIGHT	OFF
	HLC	MODE	ALL DAY, NIGHT ONLY
		LEVEL	0~20
	BLC	H-POS	0~20
		V-POS	0~20
		H-SIZE	0~20
		V-SIZE	0~20
	WDR WEIGHT		LOW, MIDDLE, HIGH
DNR	OFF, LOW, MIDDLE, HIGH
DAY&NIGHT	MODE	AUTO, COLOR, B&W, EXTERN
	DELAY	0~20
	D->N LEVE	0~20
	N->D LEVE	0~20
	IR LED	OFF, ON
	SMART-IR LVL	0~20
	POLARITY	HIGH, LOW
IMAGE	SHARPNESS	0~20
	COLOR GAIN	0~20
	FREEZE	OFF, ON
	FLIP	OFF, H-INV, V-INV, HV-INV
	ACE	OFF, LOW, MIDDLE, HIGH
	GAMMA	0.45, 0.5, 0.55, 0.6, 0.65
	DEFOG	OFF
		ON	MODE	AUTO, MANUAL
			LEVEL	LOW, MIDDLE, HIGH

Main Menu Secondary menu
SPECIAL	SYSTEM	OUTPUT MOD	E1080P, 720P
		COLOR SPACE	HD-CbCr, YUV, SD-CbCr
		FRAME RATE	25/30, 50/60
		CVBS	PAL, NTSC
		BLACK LEVEL	FULL
			COMP
			USER OFFSET 0~20
		VERSION	V0.0.2
	LANGUAGE	ENG, CHN
	PRIVACY	OFF
		ON	ZONE NUM	0~15
			ZONE DISP	OFF, ON
			H-POS	0~60
			V-POS	0~40
			H-SIZE	0~40
			V-SIZE	0~40
			Y LEVEL	0~20
			CR LEVEL	0~20
			CB LEVEL	0~20
	MOTION	OFF
		ON	SENSITIVITY	0~20
			WINDOW TONE	0~6
			WINDOW USE	0~3
			WINDOW ZONE	OFF, ON
			DET H-POS	0~60
			DET V-POS	0~40
			DET H-SIZE	0~60
			DET V-SIZE	0~40
			ALARM	OFF, ON
	SHADING	OFF
		ON WEIGHT 0%~100%
	ADJUST COLORBAR		OFF, ON
	LENS ADJ LENS ADJ
RESET ON
EXIT

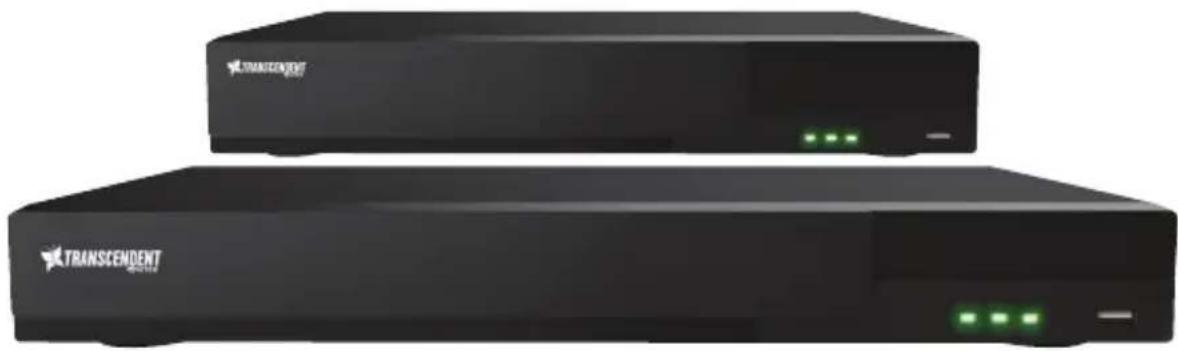

VT-TTAR Series

Transcendent Series 4, 8, and 16 Channel HD-TVI/AHD/960H/IP Digital Video Recorders

• 4, 8, or 16 Channel HD-TVI/AHD/960H BNC Inputs + IP Camera Support
• 1-Channel IP Camera Support (VT-TTAR410 / VT-TTAR810) / 4-Channel IP Camera Support (VT-TTAR1620)
- Simple plug and play, point-to-point connection from camera to DVR
• H.264 Compression
• HDMI, VGA, and BNC (Spot) Video Outputs
• 2-Way Audio
• PTZ Control over RS-485
• 4 Alarm inputs / 1 Alarm Output
- Pentaplex: Live Display / Record / Playback / Backup / Remote Access
- 1 Internal SATA2/SATA3 HDD Slot supporting up to 6TB (VT-TTAR410 / VT-TTAR810) / 2 Internal SATA2/SATA3 HDD Slots supporting up to 12TB (VT-TTAR1620)
• Applications for iOS & Android
- Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote control

VT-TJB04

Optional Junction Box for Cable Management for use with VTC-T4T3HR2MD & VTC-T4B4HR2MD

Detailed Specifications

Image Sensor	1/2.9" 2.1 Megapixel Sony® ExmorTM Progressive Scan CMOS Sensor
Signal System	PAL/NTSC
Effective Pixels	1945(H) × 1097 (V)
Resolution	HD-TVI / HD-CVI / AHD: 1080p/720p (2.1 MegaPixel) / CVBS: 960H
Video Output	HD-TVI / HD-CVI / AHD & 960H (Selectable)
Lens	Motorized 2.8~12mmMegaPixel IR Corrected Varifocal Lens
Day/Night	True Day/Night by ICR
Min. Illumination	0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
IR LEDs	4x High Power Dynamic IR LEDs
IR Distance	165'
DSS (Sens-Up)	OFF / X2 ~ X32
S/N Ratio	≥50dB (AGC Off)
WDR	Double Shutter Wide Dynamic Range (WDR)
Digital Noise Reduction (DNR)	XD-DNR (2D-DNR & 3D-DNR)
White Balance	Auto / Present / External / Manual
BLC	Adjustable
Defog	Adjustable
Privacy Mask	16 Programmable Areas
Motion Detection	4 Programmable Areas
Up the COAX Control (COC)	YES
Transmission Distance	Up to 1500' (Depending on cable characteristics & integrity)
Power Input	Dual Voltage: 12VDC / 24VAC
Power Consumption (12VDC)	600mA (IR ON) / 120mA (IR OFF)
Power Consumption (24VAC)	300mA (IR ON) / 60mA (IR OFF)
Weather Resistance	IP66
Operation Conditions	-4~122 / 10%~90% Humidity
Weight	31.04 oz. / 1.94 lbs. / 880g
Dimensions	2.97" x 3.02" x 11.17" (75.4 x 76.8 x 283.7mm)

LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller.

The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.

The product must not have been tampered with in any way or the guarantee will be considered null and void.

This guarantee does not affect your statutory rights.

Contact your local VITEK Reseller should servicing become necessary.

VITEK makes no warranty or guarantee whatsoever with respect to products sold or purchased through unauthorized sales channels. Warranty support is available only if product is purchased through a VITEK Authorized Reseller.
