Z-STREAM - Microphone Rockville - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Microphone de streaming
Marque	Rockville
Modèle	Z-STREAM
Type de micro	Condensateur à électret
Directivité	Cardioïde
Réponse en fréquence	20 Hz – 20 kHz
Impédance	32 ohms
Sensibilité	-40 dBV/Pa
Connectique	USB Type-A
Alimentation	Bus USB (5V/500mA)
Dimensions (approx.)	15 x 5 x 5 cm
Poids (approx.)	300 g
Fonctions principales	Plug-and-play, bouton mute, contrôle de gain, voyant LED
Compatibilité	Windows, macOS, Linux
Accessoires inclus	Câble USB, support de bureau, adaptateur fileté
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Éviter l'humidité et les chocs.
Sécurité	Ne pas exposer à l'eau, ne pas démonter, utiliser à température ambiante.
Garantie	1 an
Pièces détachées et réparabilité	Pas de pièces détachées disponibles. En cas de panne, contacter le SAV.

FOIRE AUX QUESTIONS - Z-STREAM Rockville

Comment connecter le micro Z-STREAM à mon ordinateur ?

Branchez simplement le câble USB fourni sur le micro et sur un port USB de votre ordinateur. Le micro est reconnu automatiquement (plug-and-play) sans besoin de pilote.

Comment régler le niveau de gain sur le micro ?

Tournez la molette de gain située sur le micro. Tournez vers la droite pour augmenter le volume, vers la gauche pour le diminuer. Un voyant LED peut indiquer le niveau.

Comment activer/désactiver le mute sur le micro ?

Appuyez sur le bouton mute situé sur le micro. Une LED rouge indique que le micro est en sourdine, une LED blanche ou bleue indique qu'il est actif.

Le micro Z-STREAM est-il compatible avec les consoles de jeux ?

Il est compatible avec les consoles qui supportent les périphériques audio USB, comme la PlayStation 4/5 et certaines Xbox. Vérifiez la compatibilité de votre console.

Comment réduire les bruits de fond lors de l'enregistrement ?

Utilisez la directivité cardioïde qui capte principalement devant le micro. Placez le micro près de la source sonore et éloignez les sources de bruit. Vous pouvez aussi utiliser un logiciel de réduction de bruit.

Puis-je utiliser le micro avec un logiciel de streaming comme OBS ou Discord ?

Oui, le micro est reconnu comme périphérique audio standard. Dans les paramètres audio de OBS, Discord, etc., sélectionnez 'Rockville Z-STREAM' comme microphone.

Comment installer le micro sur un pied de micro ?

Vissez l'adaptateur fileté fourni dans le pas de vis du micro. Fixez ensuite l'adaptateur sur tout pied de micro standard (pas 5/8 pouce).

Que faire si le micro n'est pas détecté par l'ordinateur ?

Essayez un autre port USB. Vérifiez dans les paramètres audio que le périphérique est activé. Redémarrez l'ordinateur. Si le problème persiste, testez sur un autre PC pour isoler la cause.

Comment nettoyer le micro Z-STREAM ?

Débranchez le micro. Utilisez un chiffon doux et sec pour essuyer la grille et le corps. Évitez les produits chimiques. Ne soufflez pas dans le micro pour le nettoyer.

Est-ce que le micro est vraiment plug-and-play ?

Oui, le micro Rockville Z-STREAM est plug-and-play. Branchez-le sur un port USB, et il sera automatiquement reconnu par la plupart des systèmes d'exploitation (Windows, macOS, Linux) sans installation de pilote.

MODE D'EMPLOI Z-STREAM Rockville

ROCKVILLE

Z-STREAM

LIVE STREAMING USB MICROPHONE

OWNER'S MANUAL

WHO READS MANUALS?

Instead, go to vimeo.com/509006463 or scan the QR code and watch a short video, which shows you how to set this item up and how to use it.

If you prefer written instructions please read ahead!

With Rockville we offer many options.

Missing items? If you ordered a bundle that includes more than one product and you are missing part of your bundle then it just means your order shipped from two different warehouses. You will receive the remaining items very soon. If you have any concerns or inquiries, feel free to call our customer support center at 646-758-0144, Monday through Thursday, 9am to 10pm EST, and Fridays, 9am to 3pm EST.

Thank you for purchasing this Rockville Z-STREAM live streaming USB microphone. Please read this owner's manual carefully for proper use of your Z-STREAM. Should you need assistance, please call our technical help line at 1-646-758-0144, Monday through Thursday, 9am to 10pm EST., and Fridays, 9am to 3pm EST.

INCLUDES

• Microphone with USB cable
• Desktop Mic Stand
• Foam Windscreen
• Owner's Manual
• Warranty Card

FUNCTIONS

1. Omnidirectional mic
2. ON/OFF button
3. USB Type A plug

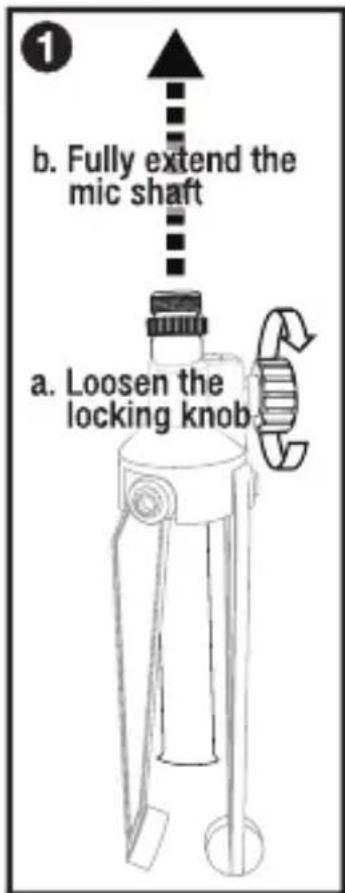

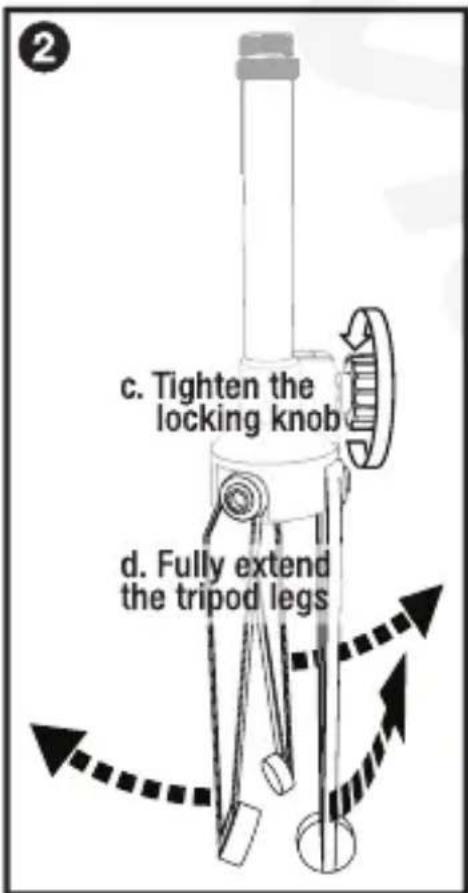

SETUP

OPERATION

The Z-STREAM is a plug-and-play microphone compatible with Macs running OS X or any PC running Windows XP or later. Connect it to your computer via a USB port and it will automatically install the necessary drivers. Once the drivers are installed, press the ON/OFF button at the top of the mic body. Your computer should automatically set it as the default recording device. If the computer does not recognize the mic, follow the procedure below.

PC

1. Go to the bottom right-hand corner of the desktop and right click on the speaker icon (fig. a). Select "Open Sound settings" from the menu (fig. b).

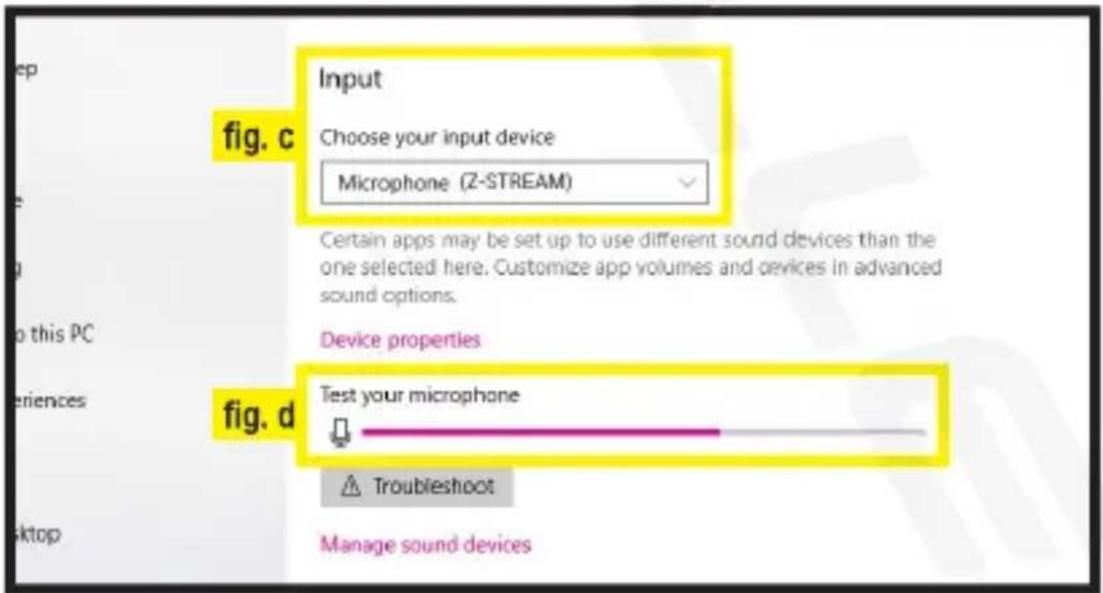

1. On the Sound menu, go to Input and select Z-STREAM from the "Choose your input device" drop-down menu (fig. c). Make sure the microphone is on then talk. The "Test your microphone" meter should move (fig. d), indicating that the mic is connected and working properly.

OPERATION (continued)

If after performing the procedure on the previous page your computer still doesn't recognize the microphone, please refer to the procedure below.

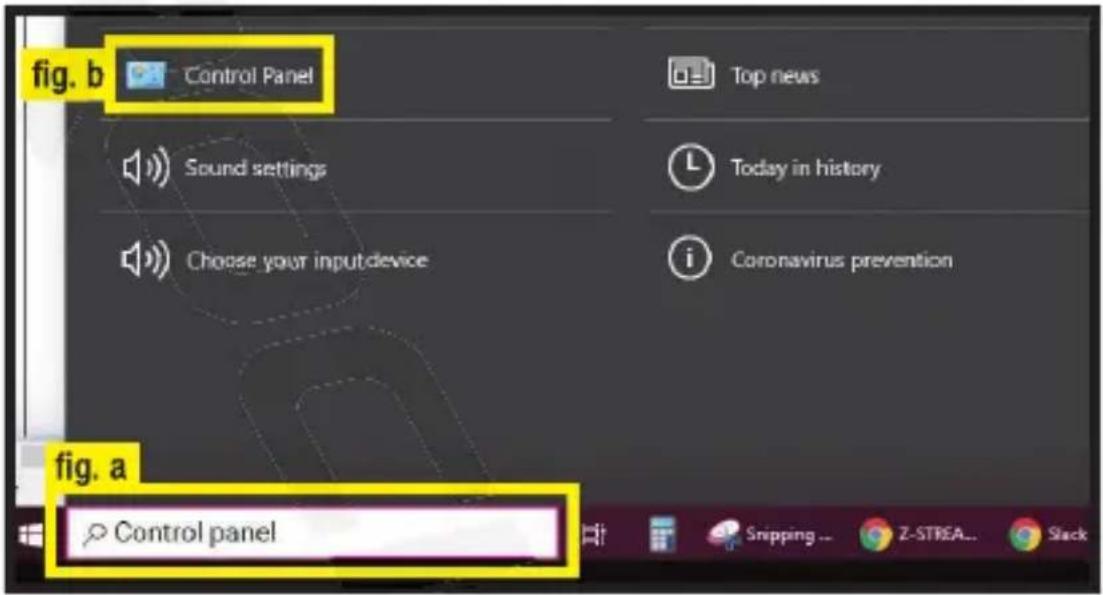

1. Go to the bottom left-hand corner of the desktop, type "control panel" into the search bar (fig. a) and select the Control Panel app (fig. b).

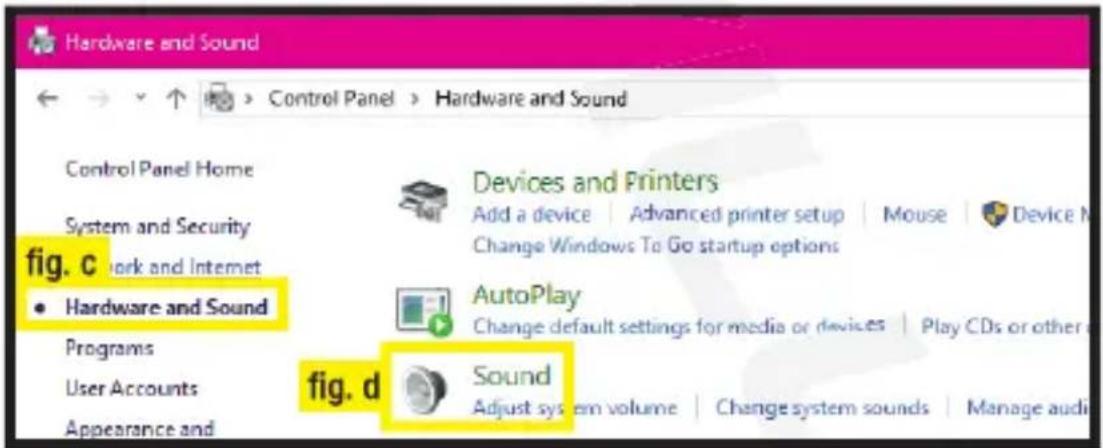

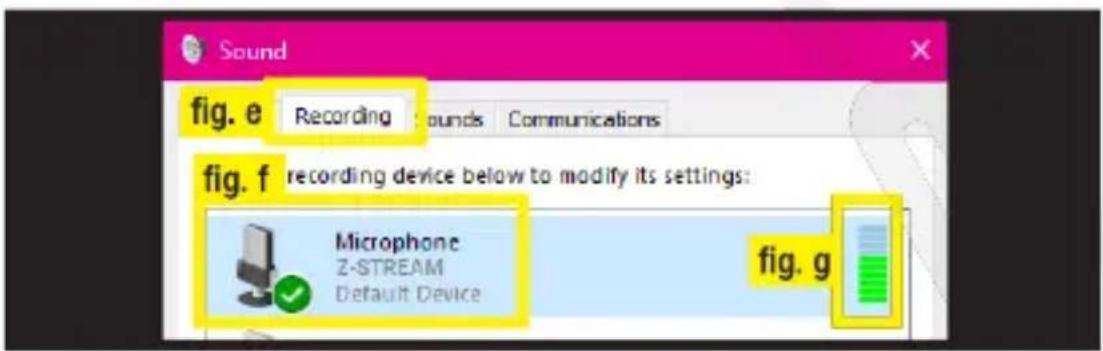

1. On the Control Panel screen click on Hardware and Sound (fig. c). Now click on Sound. (fig. d). Click on the Recording tab (fig. e), then left click on Z-STREAM (fig. f) and select "Set Default" from the pop-up menu. Make sure the microphone is on, then speak into it. You should see the green bars on the meter moving (fig. g), indicating that the mic is connected and working properly.

Fine-Tuning Microphone Output

Follow the steps below to adjust the quality of the microphone's output.

1. On the Sound menu, click on Device properties (fig. a).

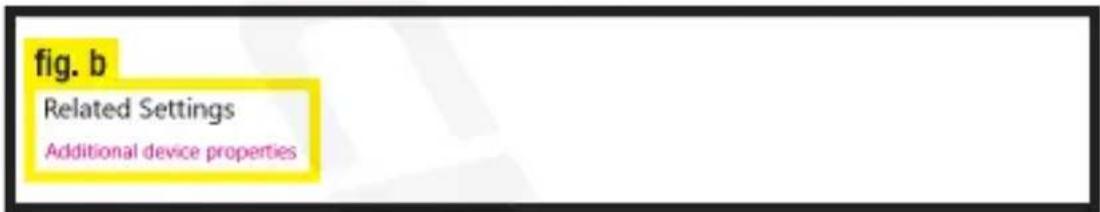

1. On the Device properties screen, scroll down to Related Settings and click on Additional device properties (fig. b).

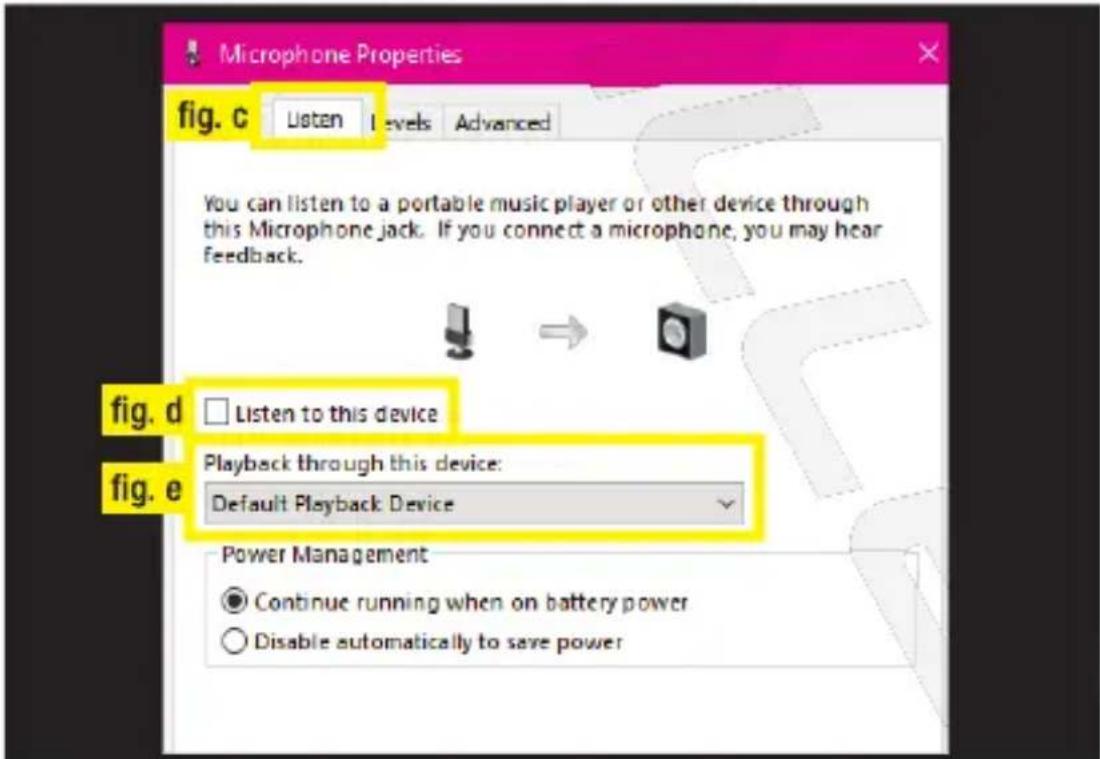

1. Click on the Listen tab (fig. c), then check the "Listen to this device" box (fig. d). Click on the Default Playback Device drop-down menu (fig. e) to select the playback device. We strongly recommend headphones, as speakers can potentially pick up feedback and cause damage to your hearing. Now click Apply and talk into the mic to hear how you would sound to other people. Make sure to uncheck the Listen to this device box and click Apply, otherwise it will constantly listen back.

OPERATION (continued)

To adjust the mic input levels, click on the Levels tab (fig. a) and use the slider (fig. b) or enter the desired value (fig. c). You also have the option of muting the mic by clicking on the speaker icon to the right of the mic levels value field (fig. d). Click Apply when you're done.

Mac

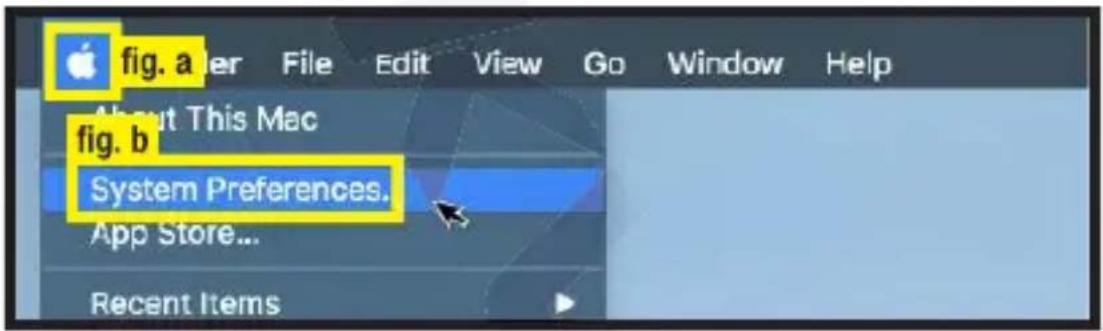

1. Plug the USB cable into a USB port on your Mac. Click on the apple icon (fig. a) on the top left-hand corner of the desktop. In the drop-down menu, click on System Preferences (fig. b).

1. In the System Preferences panel, click on the speaker icon labeled Sound (fig. c).

1. In the Sound panel, click on Input (fig. d). Select Z-STREAM to set it as your sound input device (fig. e). Now you can adjust the Input volume and check the Input level (fig. f).

FEATURES and SPECIFICATIONS

• Plug-and-play mic is perfect for participating in Zoom meetings, recording, podcasting, streaming, gaming, and more
• Compatible with all Windows & Mac computers
  • Great natural sound
• Blocks out unwanted noises such as fans and air-conditioning, making this perfect for business, school, home recording, gaming, and any type of streaming applications
• 14mm cartridge
• Omnidirectional
• Mic sensitivity adjustable via computer
  • High-quality steel microphone head
  • Aluminum microphone body
• Open Circuit Sensitivity: -30dB ±2dB (0dB = 1V/Pa @ 1kHz)
  • Frequency Response: 20Hz - 20kHz
  • Impedance: 100 Ohms
  • Electrical Current: 500Ua
  • Dynamic Range (typical): 120dB, 1kHz @ Max SPL
  • Signal-to-Noise Ratio: 93.5dB, 1kHz @ 1Pa
• Fixed Crossover Filter Cutoff Frequency: 50Hz – 16kHz
  • Power requirements: 5V computer USB input
  • Output connector: USB A Plug
  • Unit weight: 0.83Lbs.

TROUBLESHOOTING

PROBLEM	SOLUTION
No Sound/ Distortion	1. Make sure the microphone is on.2. Check all connections to ensure everything is properly connected.3. Make sure the Z-STREAM microphone is selected as your audio source.4. Check the computer's input and volume settings (see pages 3–6 for PC and pages 6–7 for Mac).
Dull Sound	1. Clean internal and external windscreens.

Visit us at:

RockvilleAudio.com

©2021 ROCKVILLE Features and specifications are subject to change and/or improvement without notice.
