Type de produit	Microphone sans fil UHF
Marque	Rockville
Modèle	RWM-U2
Catégorie	Microphone
Dimensions du récepteur	200 x 150 x 40 mm
Poids du récepteur	0,5 kg
Alimentation du récepteur	Adaptateur secteur 12V DC
Alimentation du microphone	2 piles AA (non incluses)
Nombre de canaux	2 canaux (UHF)
Fréquence de fonctionnement	500-900 MHz (selon région)
Portée maximale	50 mètres en champ libre
Réponse en fréquence	40 Hz - 18 kHz
Fonctions principales	Transmission sans fil, syntonisation automatique, affichage LCD
Entretien et nettoyage	Essuyer avec un chiffon doux et sec. Ne pas utiliser de produits chimiques.
Sécurité	Ne pas exposer à l'humidité ou à des températures extrêmes
Pièces détachées et réparabilité	Piles, antennes, câbles audio disponibles séparément
Informations générales	Microphone dynamique cardioïde inclus

FOIRE AUX QUESTIONS - RWM-U2 Rockville

Comment allumer le microphone Rockville RWM-U2 ?

Assurez-vous que les piles sont insérées correctement, puis maintenez enfoncé le bouton d'alimentation situé sur le microphone jusqu'à ce que le voyant s'allume.

Comment coupler le microphone avec le récepteur ?

Allumez le récepteur, puis appuyez sur le bouton SYNC du récepteur. Ensuite, allumez le microphone et placez-le à moins de 30 cm du récepteur. La synchronisation s'effectue automatiquement.

Quelle est la portée maximale de ce système ?

La portée peut atteindre jusqu'à 50 mètres en champ libre. Des obstacles comme des murs peuvent réduire cette distance.

Combien de canaux sont disponibles ?

Le Rockville RWM-U2 dispose de 100 canaux UHF répartis sur 2 bandes, avec syntonisation automatique pour éviter les interférences.

Quel type de piles utilise le microphone ?

Le microphone fonctionne avec 2 piles AA alcalines (non incluses). L'autonomie est d'environ 8 heures.

Puis-je utiliser plusieurs microphones simultanément ?

Oui, le récepteur prend en charge jusqu'à 2 microphones en même temps, chacun sur son propre canal.

Comment résoudre les problèmes d'interférences ?

Essayez de changer de canal à l'aide du bouton de sélection de canal sur le récepteur ou utilisez la fonction de balayage automatique pour trouver un canal libre.

Le microphone est-il compatible avec d'autres marques de récepteurs ?

Il est conçu pour fonctionner exclusivement avec le récepteur Rockville RWM-U2, car les fréquences sont appairées. L'utilisation avec d'autres récepteurs n'est pas garantie.

Comment nettoyer le microphone ?

Utilisez un chiffon doux légèrement humide pour essuyer l'extérieur. Évitez tout contact avec des liquides et n'utilisez pas de solvants.

Où trouver les pièces de rechange ?

Les pièces détachées (piles, antennes, câbles) sont disponibles auprès du fabricant ou de revendeurs agréés. Contactez le service client pour plus d'informations.

MODE D'EMPLOI RWM-U2 Rockville

ROCKVILLE

RWM-U2

DUAL UHF HANDHELD RECHARGEABLE

WIRELESS MICROPHONE SYSTEM

OWNER'S MANUAL

WHO READS MANUALS?

Instead, go to vimeo.com/494481584 or scan the QR code and watch a short video, which shows you how to set this item up and how to use it.

If you prefer written instructions please read ahead!

With Rockville we offer many options.

Missing items? If you ordered a bundle that includes more than one product and you are missing part of your bundle then it just means your order shipped from two different warehouses. You will receive the remaining items very soon. If you have any concerns or inquiries, feel free to call our customer support center at 646-758-0144, Monday through Thursday, 9am to 10pm EST, and Fridays, 9am to 3pm EST.

ROCKVILLE

Thank you for purchasing this Rockville RWM-U2 Wireless Microphone System. Please read this owner's manual carefully for proper use of your wireless microphone system. Should you need assistance, please call our technical help line at 1-646-758-0144, Monday through Thursday, 9am to 10pm EST., and Fridays, 9am to 3pm EST.

INCLUDES

• Two rechargeable microphones
  • Full metal rack mount receiver with rack ears
• 6ft 1/4'' to 1/4'' cable (connects mic receiver to mixer or speaker)
  • AC power adapter with a 5ft cord
• Two 1200mA lithium batteries (14650 version)
• Two antennas
• Manual
• Warranty card

Table of Contents

Specs 1

Receiver (Front) 2

Receiver (Back) 2

Microphone 3

Charging.... 3

LCD Displays 4

Setup and Operation 4

Troubleshooting 5

Specs

Operating Range*: 250' - 350' (indoor), 165' - 200' (outdoor)

Channel: 20 x 2 channel selection

Frequency Range: 500MHz - 599MHz

Frequency Stability: ±0.005%

Modulation Mode: UHF

Frequency Response: 50Hz - 20KHz (±3 dB)

Dynamic Range: 96dB

S/N: 92dB

T.H.D: < 0.1%(1KHz)

Audio Output: Mix Out: XLR balanced + 1/4" unbalanced

Channel A Out: XLR balanced

Channel B Out: XLR balanced

Power Voltage: AC110V - 240V 50/60Hz

Operating Temperature: 14°F - 122°F

Mic Battery Operating Time: up to 10 hours

Mic Recharge Time: 4 hours

Includes: RWM-U2 transmitter with two hand held rechargeable microphones, two lithium batteries, 1/4 " to 1/4 " cable, power cable, two antennas, user manual, and warranty card

*Operating range is subject to environmental conditions. Results may vary.

Tip:

To minimize feedback avoid operating the microphones in close proximity of or in front of speakers.

Receiver (Front)

a. Antenna
b. Channel A LCD display
c. Channel A volume control knob
d. Channel B LCD display
e. Channel B volume control knob
f. Power on/off

Receiver (Back)

a. Antenna ports
b. DC 12V Power input
c. 1/4 " Mix out: outputs a mix of both channels
d. XLR Mix out: outputs a mix of both channels
e. Channel B Balanced XLR output
f. Channel A Balanced XLR output

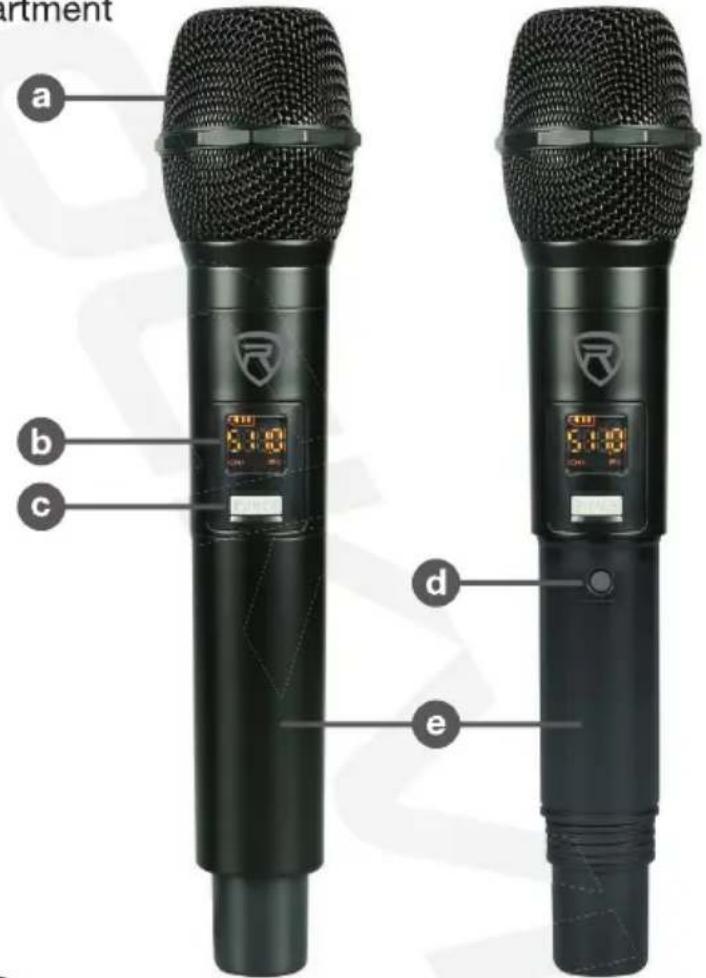

Microphone

a. Microphone windscreen

b. LCD screen displays channel frequency and battery level

c. Power on/off button: Press and hold for 2 – 3 seconds to power on or off. While the microphone is on, press the button to mute or unmute the mic.

d. Frequency button: Press this button to switch the mic's frequency

e. Battery compartment

Charging

To charge the microphones, simply place them in the charging dock on top of the receiver (fig. a). Please ensure the microphone is properly seated in the charging dock (fig. b). Charge time is 4 hours.

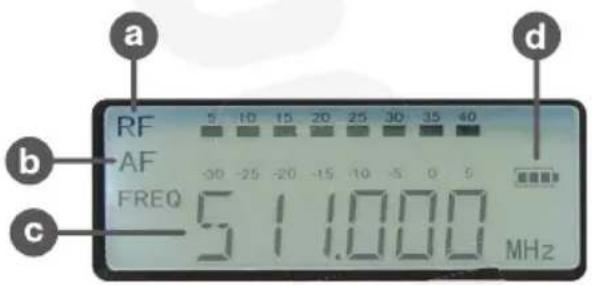

LCD Displays

a. Radio frequency (RF) strength
b. Audio frequency (AF) strength
c. Channel frequency
d. Battery status
e. Mic battery level indicator
f. Mic frequency
g. Mic channel

Setup and Operation

• Plug in the power supply and turn on the receiver.
• The receiver should be at least 3 feet off the ground for optimal transmission.
• Connect the antennas.
  • The antennas should extend vertically.
• Depending on your set-up, connect the appropriate outputs.
• Make sure the microphone battery is charged, is properly inserted, and the base is secure.
• Turn on the microphone. It should automatically connect to the receiver.
• If necessary, use the frequency button on the mic to change its frequency.
• Adjust channel volume as necessary.

Problem	Solution
No sound or faint sound	Verify all sound system connections and adjust channel volume as needed.Verify that the mic receiver is connected to the mixer/amplifier.
	Verify your mics are turned on and not muted (see page 3, item c).Check the mics frequency and adjust if necessary (see page 3).Make sure the batteries are installed correctly.Charge the microphones.
	Make sure AC adapter is securely connected to the unit and to the electrical outlet.Make sure receiver is powered on.
Audio artifacts or dropouts	Change receiver and mic to a different frequency.Identify nearby sources of interference (cell phones, Wi-Fi access points, signal processor, etc...) and shutdown or remove source.Charge the microphones (see page 3).System must be set up within recommended range and receiver kept away from metallic surfaces.Microphone must be used in line of sight from receiver for optimal sound.
Distortion	Reduce microphone channel volume.
Sound level variations when switching to different sources	Adjust microphone volume as necessary.
Transmitter information does not appear on the receiver LCD	Microphone is off. Please turn it on and charge if necessary (see page 3)

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

Responsible party name: Rockville

Address: 600 Bayview Ave, Entrance A, Inwood, NY 11096

Hereby declares that the product Rockville RWM-U2 UHF microphone kit complies with FCC rules as mentioned in the following paragraph:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
