MODE D'EMPLOI STX-15F KAWASAKI
2009 JET SKI®
STX®-15F
Kawasaki
Let the good times roll.

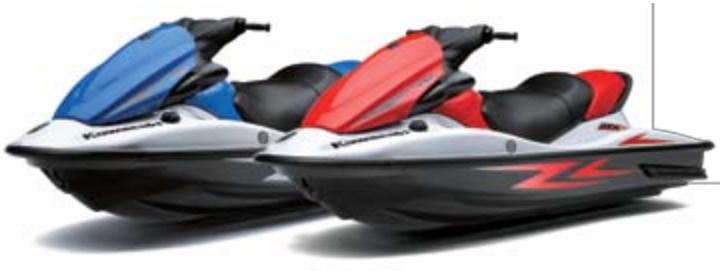

Jet White/Valiant Blue
Jet White/Sunbeam Red

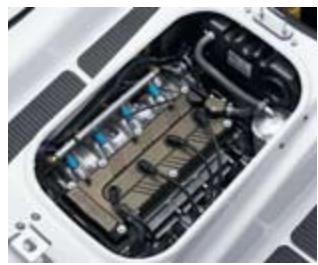

High performance and great value go together with the STX®-15F watercraft. We start with our powerful 160-hp* DOHC Marine In-Line Four engine and stuff it into a short, low, and light hull to provide a huge amount of dash for the cash. Result? The STX-15F is among the quickest watercraft available, letting you wakeboard, ski or conquer open water with authority. Three-person seating gets the party going and Smart Learning Operation (SLO) lets novice riders better control the power output while learning.
With Ultra-Low emissions, the STX-15F has a green side too. Precise multi-port digital fuel injection helps the potent Marine engine make the most power with the lowest fuel consumption.


Conveniently located on the right side of the console, this forward-reverse gear lever lets the rider change thrust direction for delicate maneuvers such as docking or berthing.
| SPECIFICATIONS | STX®-15F |
| Engine type | Four-stroke, DOHC, four valve per cylinder, In-Line Four-cylinder |
| Displacement | 1498cc |
| Bore x stroke | 83.0 x 69.2mm |
| Compression ratio | 10.6:1 |
| Seating Capacity | 3 |
| Instrumentation | Digital speedometer, tachometer, fuel level guage, FI indicator |
| Horsepower | 160 hp at 7,750 rpm* |
| Cooling system | Inducted water |
| Fuel system | Digital Fuel Injection |
| Ignition | TCBI with digital advance |
| Starting | Electric |
| Lubrication | Semi-Dry Sump system |
| Coupling | Direct drive from engine |
| Propulsion system | 148mm jet pump, axial-flow, single stage |
| Impeller | Three-blade, oval-edge stainless steel |
| Thrust | 434 kg (957 pounds) |
| Dimensions (LxWxH) | 3120 x 1180 x 1050 mm (122.8 x 46.5 x 41.3 inches) |
| Curb weight** | 383 kg (845 pounds)** |
| Smart Learning Operation (SLO) | SLO mode, FPO mode |
| Storage capacity | 89 litres (19.5 gallons) |
| Fuel capacity | 62 litres (13.6 gallons) |
| Oil capacity | 5 litres (5.3 quarts) |
| Take an in-depth tour of this machine at kawasaki.ca/jetski |
*Measured in PS at the crankshaft under controlled conditions. Actual performance may vary. ** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)
Safe Riding's More Fun
Ride responsibly. Kawasaki believes safety begins with us and continues with you. Never ride under the influence of drugs or alcohol. Respect the rights of shoreline
residents and other marine recreationists. Riding is more fun on a well-maintained machine...follow the instructions in your owner's manual. Remember, riding safe is smart.

Specifications subject to change without notice. Availability may be limited. Accessories available at extra cost. JET SKI watercraft are inboard boats a use is subject to all applicable provincial and local boating laws. Always w approved personal flotation device, eyewear, and other appropriate safety : Action Photography: Professional riders on a closed course.
One Year Warranty
Your new Kawasaki JET SKI® personal watercraft comes with a 12-month limited factory warranty. Read the next paragraph to find out how you can extend your coverage inexpensively, or ask your dealer for details about the factory warranty and available extended coverage.
Up to Three Years
Additional Coverage*
Let Kawasaki protectyour new machine foryears to come ’ with

the exclusive Good Times™ Protection Plan. This plan repairs or replaces most components free of charge if found defective in material or workmanship. Everything about the plan is easy: There's no deductible. It's honored at every authorized Kawasaki JET SKI watercraft dealer nationwide. And it's transferable to another owner with no fee. Just ask your dealer how you can buy additional coverage of 24 or 36 months. Imagine, for just pennies a day, you can ride with no worry and no hassle. Just tell your dealer you want the Good Times Protection Plan.
*Depending on the program purchased.
To view our complete accessory catalogue, find your nearest dealer or take an in-depth tour of this machine visit:
kawasaki.ca/jetski
