MODE D'EMPLOI Z1000 KAWASAKI
METALLIC SPARK BLACK/ATOMIC SILVER
Z1000
In order to deliver a kindof “excitement” never beforeexperienced with Super Nakedmodels, Kawasaki developedthe all new Z1000 fromscratch - resulting in atrailor-made Super Naked forhard core enthusiasts.
KEY FEATURES
ALL-New ENGINE OFFERS GREATER TORQUE AND STRONGER TOP-END RUSH
HIGHLY RIGID ALL-NEW ALUMINUM BACKBONE FRAME
BACK-LINK HORIZONTAL MONOSHOCK REAR SUSPENSION
FULLY ADJUSTABLE 41MM INVERTED FRONT FORK
TILTING INSTRUMENT PANEL
NEW COOL AIR SYSTEM
Z1000

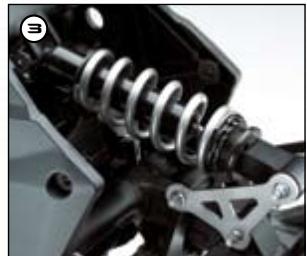

HORIZONTAL BACK-LINK REAR SUSPENSION
New rear monoshock suspension arrangement offers excellent performance while contributing to mass centralization.
Specifications
Engine type Four-stroke, DOHC, 4-valves per cylinder, In-Line Four
Displacement 1043cc
Bore x stroke 77.0 x 56.0 mm
Compression ratio 11.8:1
Maximum torque 110 N.m {11.2 kgf.m} @ 7,800 rpm
Fuel system Digital fuel injection with four 38mm Keihin with oval sub-throttles
Cooling system Liquid
Ignition Digital
Starting Electric
Transmission 6-speed
Final drive Chain
Frame type Aluminum backbone
Rake/trail 24.5^ / 103mm (4.1 in.)
Suspension/ 41 mm inverted fork with stepless compression and rebound front wheel travel damping and spring preload adjustability/120 mm (4.7 in.)
Suspension/ Back-link Horizontal Monoshock, gas-charged, with stepless rear wheel travel rebound damping and spring preload adjustability/ 135 mm (5.3 in.)
Tire,front/rear 120/70-17;190/50-17
Brakes,front Dual 300~mm petal discs with four-piston caliper
Brakes, rear Single 250~mm petal disc with single-piston caliper
Wheelbase 1440 mm (56.7 in.)
Seat height 815 mm (32.1 in.)
Length, width, height 2095 x 805 x 1085 mm (82.5 x 31.7 x 42.7 in.)
Fuel capacity 15.5 litres (3.4 gal.)
Curb weight* 218 kg (480.6 lbs.)
Warranty 12 month
- Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)
SAFE RIDING'S MORE FUN
Ride responsibly. Kawasaki believes safety begins with us and continues with you. Always wear a helmet, eye protection, and proper apparel. Passengers, too. Ride defensively. If riding off-highway, use authorized areas only. Obey the Basic Speed Law. Never ride under the influence of drugs or alcohol. Riding is more fun on a well-maintained motorcycle... follow the instructions in your owner's manual. Remember, riding safe is smart.
