MODE D'EMPLOI FT2A-PWR-AU-1-BASIC Crestron

CRESTRON

Quick Start

FT2A-PWR-AU

AC Power Outlet Modules for FT2 Series

Suitable for use in Australia, New Zealand, China and other countries using Type IAC power panels, the Crescon® FT2A-PWR-AU-1-BASIC and FT2A-PWR-AU-2 ore modules designed for installation in Crescon FT2 FlipTop™ cable management assemblies.

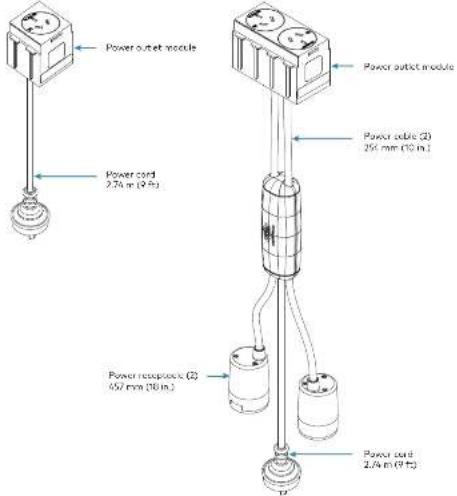

The outlet modules provide up to two Type IAC power collection on top of the table. A 2.74 m (9 ft) power card is fixed to the bottom of the module. The premium power module (FT2A PWR AU-2) provides two under-the-table receptacles for power switchers, HDBase transmitters, chargers, and other devices. Each module is rated for 10 A (total) at 220-240 V, 50/60 Hz. The following table provides a size and feature comparison among models.

Module Model Module Slots Required Outlets on Top of the Table

Outlets Beneath the Table

PT2A-PWR-AU-BASIC 21 None

PT2A-PWR-AU-2422

FT2A-PWR-AU-1-BASIC

Check the Box

Item Qty

FT2A-PWR-AU-1-BASIC or FT2A-PWR-AU-2 1

> Install the Module

Install the power module into the FT2 FlipTop assembly. If the bezel and locking bars have not been installed on the FT2 FlipTop assembly, strip to step 5.

NOTE: For ease of installation, install power outlet modules before installing any other module. To install the power outlet module:

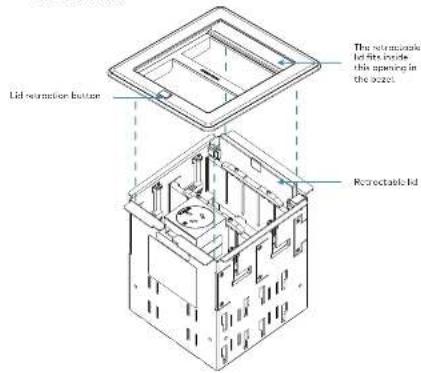

1. Top the lid retraction button to retract the one-touch lid, which disappears into the FT2 FlipTop assembly. If the assembly has two lids retract both.
2. Remove and retain the magnetic bazel from the FT2 FlipTop assembly by grasping the inside of the bazel and firmly pulling it up and away from the assembly until the magnetic hold is broken.
3. Use a manual torque screwdriver to unscrew, remove and retain the two locking bars on either side of the module row where the module is to be installed.

Remove Two Locking Bars

1. Lift and remove the modules to be replaced.
2. Insert the new module's power cable(s) through the empty module slots
3. Orient the module as shown in the following illustration and slide it down into the appropriate module slots. Use the guide ribs on the front and rear of the module to help position it in the assembly.

Position the Module (FT2A-PWR-AU-1-BASIC shown)

FT2A-PWR-AU-1-BASIC

1. Confirm that all modules are level with their surroundings and place the locking bars (removed in step 3) into position so that the screws on either side engage the screw holes in the assembly.
   B. Use a manual torque screwdriver set to its lowest possible setting to tighten the locking bar screws until the lock bars are secured to the FT2 Laptop assembly.
2. Place the bezel (removed in step 2) onto the FT2 FlipTop assembly so that the retractable lid fits inside the bezel opening. The bezel is held in place by magnets.

Attach the Bezel

Connect the Module

The FT2A-PWR-AU-2 provides two Type IAC power receptacles beneath the table (the FT2A-PWR-AU-T-BASIC does not). Use these receptacles to provide power to an electrical FT2 FlipTop assembly and to devices installed below the surface within the FT2 FlipTop assembly system.

To activate the power outlet module, insert the three-prong plug into a nearby AC wall or floor outlet.

Operate the Module

To operate the power outlet module:

1. Top the lid retraction button to retract the one touch lid, which disappears into the FT2 FlipTop assembly.
2. Connect the device needing power to one of the variable outlets on the module.
3. Confirm that the power indicator on the device shows that the device is receiving power.

Additional Information

Scan or click the QR code for detailed product information.

FT2A PWR AL 1 BASIC FT2A PWR AL 2

Compliance and Legal

Original instructions: The U.S. English version of this document, is the original instructions all other language versions or translations of the original instructions.

Regulatory Model M201907002

in at the date of manufacture, the product "as been tested and found to comply with specifications are for C" marking

CE

The Waste Electric & Electronic Equipment (WEE) directive marking our product indicators that I think not be disposed of with general household waste, instead, you are encouraged to reuse or recycle the product in accordance with Directive 2017/43. of the European Union. Proper scope of this product will help prevent potential negative effects on the environment and human health, which could otherwise be caused by improper the waste funding. There was no may be applicable

For incorrect disposal of this waste, it is overdue with your national legislation. For information above, recycling this product, please contact your household website disposal reader, your original distribution or One-train.

The proof, we only can be "well at the right" (com/vea/vea).

The specific contents that cover Creation products are listed at www.creation.com/legalpotents.

Certain Construction products containing open source software. For special information, this version is ____

Creation, the Creator logo, and FlyTongre other instrument mark on registered documents of Creation Electronics Inc. in the United States and/or other countries. HTRay7 is a trademark or registry trademark of the HTRay7.4 Limited in the United States and/or other countries. Other trademarks, registered trademarks, one trade name may be used in this document to refer to the audit to defining the marks and norms of the products. Creation Disclaiming proprietary interest in the marks and norms of others. Creation's not responsible for errors in typographic or photographic

60217 Creative Electronics Inc.

Crentron Electronics, Inc.

E. We do the

141 SCHLRESTON

www.csc108.com

Quick Start - Dec 05/014

(2014245)
