MODE D'EMPLOI RXM-T2 Rockville

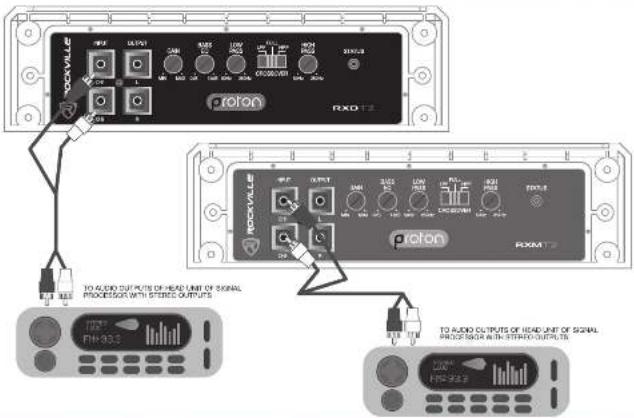

INPUT

4

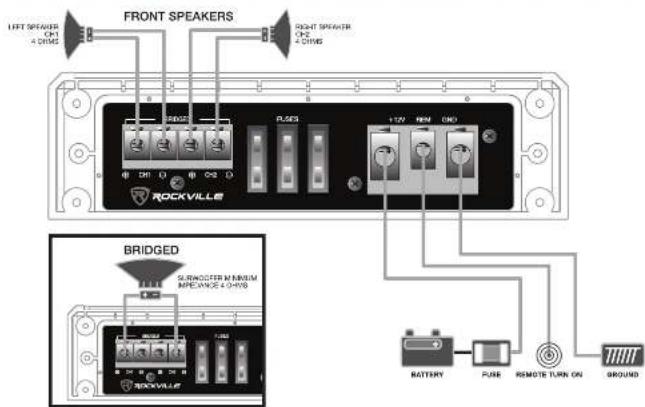

SPEAKER CONFIGURATIONS

FEATURES / SPECIFICATIONS
• Full-Range Class D Amplifier Architecture
• Dyno Certified RMS Power Ratings (Certified Dyno Test / Less
than 1% THD (Use these ratings when comparing with top brands such
as Kicker, Rockford Foagate, etc.;
800 Watts (2 x 400 Watts) at 4 ohms and 1% THD+N
1200 Watts (2 x 600 Watts) at 2 ohms < 1% THD
1200 Watts (1 x 1200 Watts) bridged @ 4 Ohms < 1% THD
- Peak Use these ratings when comparing with the top budget brands such
sa Boss, Power Acoustik, etc;
2400 Watts: (2 x 1200 Watts) @ 2 Ohms
(1 x 2400 Watts) @ 4 Ohms bridged
- Fully marine grade amplifier with conformal-coated PCB board
- Protected from moisture, saltwater, UV, bumps, vibrations.
heat, cold, and more
• Double Sided Surface Mount (SMD) PCB Design
• High-Speed MOSEET Power Supply
• High speed motor: Power supply
• Studio Grade Bipolar Output Stage Transistors
• 2-Ohm Stable Stereo
• 4 Ohm Mono Bridgeable
- Mute and Delay Soft Start System
• Full IC-Controlled Protection Circuitry
- PTA Distributed Protection Group
- PCA Program Line Output
• RCA PreSHIP Line Output
- Status Mode LED Indicator
• 8 Volt Preamp Circuitry
• 4 Gauge Lucite Encapsulated Power/Ground Terminals
• 12 Gauge Lucite Encapsulated Speaker Terminals
• Fully Adjustable 12dB / Octave Crossover
• Low Pass 50Hz - 250Hz
• High Pass 50Hz 250Hz
• Fully Adjustable 12dB Bass Equalizer with Differential Circuitry
■ Minimum THD at Rated Power < 0.05%
• Financial Services Inc. 2016
• Frequency Response: 15Hz - 20kHz
• S/N Ratio: 100dB
• S/N Ratio: >97dB
• Damping Factor: > 200 @ 100Hz
• 3 x 35 Amp Fuses
• Dimensions: (W x H x L) 6.7" x 1.98" x 12.25"

ROCKVILLE
06084 ROCKVILLE / The information presented is subject to change and/or improvement without notice.
ROCKVILLE

proton
RXDT2
RXMT2
OWNER'S MANUAL
INTRODUCTION
Thank you for purchasing this Rockville Protoon Series amplifier. Please read this owner's manual carefully for proper use. Should you need assistance, please call our technical help line at 1-546-758-0144, 24 hours a day/7 days a week. Alternately, you can scan the QRs or visit the URLs to access how to videos, the owner's manual, as well as other important information.

rockvilesupport.com/rxd-t2

rockvillesupport.com/rxm-l2
INSTALLATION
Mount the amplifier in the trunk or hatch area of your vehicle. Never install an amplifier in the engine compartment or on the firewall. Please be sure to leave breathing room around the amplifier heat sink so that it can dissipate the heat it produces efficiently. When mounting the amplifier on the trunk floor, be sure to watch for your gas tank, gas lines and electrical lines. Do not drill or mount any screws where they might penetrate the gas tank of your car. Keep your wire connections as short as possible and make sure to use the proper gauge wire in order to minimize power losses and provide higher audio output. For safety reasons, try to route a cables through existing cable paths.
PRECAUTIONS
This unit is for negative ground 12V DC operation only. Use speakers with an impedance of 2 or 4 ohms (4 to 8 ohms when used as a bridging amplifier). Avoid installing the unit where:
- It would be subject to high temperatures, such as from direct sunlight or hot air from the heater.
- It would be exposed to rain or moisture.
- It would be subject to dust or dirt. If your car is parkedin direct sunlight and there is a considerable rise in temperature inside the car, allow the unit to cool off before operation. When installing the unit horizontally, be sure not to cover the heatsink vents. If this unit is placed too close to the vehicle's radio, interference may occur. In this case, separate the amplifier from the radio. This amplifier employs a protection circuit to protect the transistors and speakers if the amplifier malfunctions. Do not attempt to test the protection circuits by covering the heatsink or connecting improper loads. Doing so may cause irreparable damage to the amplifier.
WIRING INSTRUCTIONS
2
TROUBLESHOOTING
3
POWER CONNECTION: The amplifier power terminal labeled +12V must be connected directly to the positive terminal of the vehicle's battery. Connecting the +12V cable to any other point, such as the fuse block, will reduce power output and cause noise & distortion. We suggest you construct a Red wiring harness with 2 additional fuses. One fuse should be located near the car battery. This fuse offers protection against damage from short circuits to the car chassis between the battery and the amplifier. A second fuse closer to the amplifier offers additional safety to the amplifier itself. This fused red power wire should be attached to the amplifier power terminal marked +12V. The wire harness should be made of red primary cable of at least 8 gauge. The harness should terminate in a large ring terminal for connection directly to the positive terminal of the car battery.
GROUND: A second black color wire of equal gauge should be used as a ground connection to a welded chassis member. When connecting the ground wire make sure that there is no paint or other insulator blocking a good ground connection. Fasten the cable and with a ring terminal using a screw. Attach the black ground wire to the amplifier screw terminal marked GND. Ensure that the ground connection is as short as possible. When installing multiple amplifiers, mount them in a close proximity so that they can all share the same ground point.
REMOTE TURN-ON: The remote turn-on connection is located in between the power and ground connectors. This connection is responsible for turning the amplifier on and off with the rest of the system. 12 gauge wire can be used to make this connection to your radio's power antenna lead. Should your system not have any turn on leads, you can wire the remote terminal to an accessory lead or radio terminal in the vehicle's fuse brock which turns on with your car's ignition. This connection type will turn the amplifier on or off with the ignition, independent of whether the radio is on or off.
SPEAKER CONNECTIONS: Depending on the type and number of speakers used with the amplifier, wire them to the speaker terminals as per the wiring diagram. For most applications 18 gauge speaker wire (but no thinner than 20 gauge) should be used. For runs in excess of 10 feet, 18 gauge speaker wire is recommended. When wiring the speakers, pay special attention to the polarity of the speaker terminals. Make sure they match the polarity of the corresponding amplifier speaker terminal. Do not ground any speaker leads to the chassis of the vehicle.
NO FUNCTION
- Make sure all connections are properly seated and secure fastened.
- Fuse may be blown. Replace fuse with one of the same value and of the same type. Never use any other value / type fuse.
NO SOUND:
- Check speaker connections and ensure that they are connected correctly.
NO SOUND / RED PROTECTION LED IS ON:
- The negative and positive speaker wires maybe touching thus causing a short circuit. Find the point of contact and separate the wires. - If you use a 2 ohm speaker in stereo mode, a 4 ohm speaker in bridge mode and the set is overloaded, turn the gain contro to
MIN until operation returns to normal.
POOR SOUND QUALITY (DISTORTION):
- The speakers are overloaded. Turn down the volume on your radio and check the gain levels on the amplifier.
NO STEREO SOUND / WEAK BASS:
- Speaker cables may be hooked up backwards. Please double check all speaker connections.
