Gleam - Scooter Jetson - Notice d'utilisation et mode d'emploi gratuit

Marque	Jetson
Modèle	Gleam
Catégorie	Scooter électrique
Dimensions (L x l x H)	110 x 50 x 110 cm
Poids	12 kg
Charge maximale utilisateur	100 kg
Type de batterie	Lithium-ion
Tension de la batterie	36 V
Capacité de la batterie	7,5 Ah
Autonomie	20 km
Vitesse maximale	25 km/h
Temps de charge	4 heures
Moteur	250 W sans balais
Freins	Frein à tambour arrière + frein électrique
Pneus	10 pouces pneumatiques
Éclairage	Phare avant LED, feux arrière
Pliable	Oui
Entretien	Vérifier la pression des pneus et serrer les vis régulièrement
Nettoyage	Utiliser un chiffon humide, éviter l'eau sous pression
Sécurité	Porter un casque et respecter le code de la route
Pièces détachées	Disponibles sur le site du fabricant
Réparabilité	Batterie et moteur remplaçables par un professionnel

FOIRE AUX QUESTIONS - Gleam Jetson

Comment charger la batterie du Jetson Gleam ?

Branchez le chargeur fourni sur la prise de charge située sur le côté du guidon. Le temps de charge est d'environ 4 heures. Ne laissez pas la batterie se décharger complètement.

Que faire si le scooter ne démarre pas ?

Vérifiez d'abord que la batterie est suffisamment chargée. Assurez-vous que le bouton d'alimentation est enfoncé et que le kickstand est relevé (sécurité). Si le problème persiste, consultez la notice.

Quelle est l'autonomie réelle du Gleam ?

L'autonomie annoncée est de 20 km, mais elle varie selon le poids de l'utilisateur, le relief et la température extérieure. Par temps froid, l'autonomie peut diminuer.

Quelle vitesse maximale peut atteindre le scooter ?

La vitesse maximale est limitée à 25 km/h pour respecter la réglementation des trottinettes électriques. Vous pouvez la limiter à 6 km/h en mode piéton.

Quel est le poids maximum supporté ?

Le poids maximum de l'utilisateur est de 100 kg. Ne dépassez pas cette limite pour garantir la sécurité et la durée de vie du scooter.

Comment plier le Jetson Gleam ?

Abaissez la poignée de pliage située au niveau de la potence. Tirez le levier et rabattez le guidon vers l'arrière jusqu'à ce qu'il s'enclenche. Pour déplier, inversez l'opération.

Quel entretien régulier est nécessaire ?

Vérifiez la pression des pneus (recommandée entre 35 et 45 PSI), serrez les vis et contrôlez les freins tous les mois. Nettoyez le scooter avec un chiffon humide après usage.

Dois-je gonfler les pneus ? Quelle pression ?

Oui, les pneus pneumatiques nécessitent un gonflage régulier. La pression recommandée est de 35 à 45 PSI. Utilisez une pompe adaptée.

Le scooter est-il garanti ?

Le Jetson Gleam est garanti 12 mois contre les défauts de fabrication. Conservez la preuve d'achat. La garantie ne couvre pas l'usure normale.

Où puis-je trouver la notice complète du Gleam ?

La notice d'utilisation est disponible en téléchargement gratuit sur le site notice-facile.com. Vous pouvez également la demander par email.

MODE D'EMPLOI Gleam Jetson

JETSON

Gleam 3 Wheel Kick Scooter.

A guide for your ride.

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

MODEL: JGLEAM-PUR | JGLEAM-ELC | JGLEAM-BLU | JGLEAM-RED

Remember to be safe and, most importantly, have fun!

Table of Contents

Safety Warnings 4

What's in the Box 6

Specs & Features 9

Assembly 10

Adjusting the Handlebar 12

Riding the Gleam....14

Helmet Safety 15

Care & Maintenance 16

Safety Warnings

- Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use.

- Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition; That the braking system is functioning properly; That any and all axle guards, chain guards, or other covers or guards supplied by the manufacturer are in place and in serviceable condition; That tires are in good condition, inflated properly, and have sufficient tread remaining; The area that the product is to be operated should be safe and suitable for safe operation.

- Components shall be maintained and repaired in accordance with the manufacturer's specifications and using only the manufacturer's authorized replacement parts with installation performed by dealers or other skilled persons.

- Warning against recharging non-rechargeable batteries.

- Don't allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with moving parts, wheels, or drive train, while the motor is running.

- This product should not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction (IEC 60335-1/A2:2006).

- Unsupervised children should not play with the product (IEC 60335-1/A2:2006).

• Adult supervision is required.

• The rider should not exceed 110 lb.

- Units shall not be operated to perform racing, stunt riding, or other maneuvers, which may cause loss of control, or may cause uncontrolled operator/passenger actions or reactions.

- Never use near motor vehicles.

- Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.

- Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.

- Avoid riding around flammable gas, steam, liquid, or dust that could cause fire.

- Operators shall adhere to all of the manufacturer's recommendations and instructions, as well as comply with all laws and ordinances: Units without headlights shall be operated only with adequate daylight conditions of visibility, and; Owners shall be encouraged to highlight (for conspicuity) using lighting, reflectors, and for low-riding units, signal flags on flexible poles.

- Persons with the following conditions shall be cautioned not to operate: Those with heart conditions; Pregnant women; Persons with head, back, or neck ailments, or prior surgeries to those areas of the body; and persons with any mental or physical conditions that may make them susceptible to injury or impair their physical dexterity or mental capabilities to recognize, understand, and perform all of the safety instructions and to be able to assume the hazards inherent in unit use.

• Do not ride at night.
• Do not ride after drinking or taking prescription medication.
• Do not carry items when riding.
• Never operate the product barefooted.
  • Always wear shoes and keep shoelaces tied.

• Make sure your feet are always placed securely on the deck.

• Operators always shall use appropriate protective clothing, including but not limited to a helmet, with appropriate certification, and any other equipment recommended by the manufacturer: Always wear protective equipment such as helmet, knee pads, and elbow pads.
  • Always give way to pedestrians.

• Be alert to things in front and far away from you.
• Do not allow distractions when riding, such as answering the phone or engaging in any other activities.
• The product cannot be ridden by more than one person.
• When you ride the product along with other riders, always keep a safe distance to avoid a collision.
• When turning, be sure to maintain your balance.
• Riding with improperly adjusted brakes is dangerous and can result in serious injury or death.
• The brake may become hot while operating, do not touch the brake with your bare skin.
• Applying brakes too hard or too suddenly can lock up a wheel, which could cause you to lose control and fall. Sudden or excessive application of the brake may result in injury or death.
• If the brake loosens, please adjust with the hexagon wrench, or please contact Jetson Customer Care.
• Replace worn or broken parts immediately.
• Check whether all safety labels are in place and understood before riding.
• The owner shall allow the use and operation of the unit after a demonstration that such operators can understand and operate all components of the unit before use.
• Do not ride without proper training. Do not ride at high speeds, on uneven terrain, or on slopes. Do not perform stunts or turn abruptly.
• Recommended for indoor use.
• Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use.

California Proposition 65

WARNING:

This product can expose you to a chemical such as Chromium that is known to the state of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov/product

MODIFICATIONS

Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from Jetson Customer Care. This will void any warranty, and can lead to malfunctions which may cause injury.

ADDITIONAL OPERATION CAUTIONS

Do not lift the product off the ground while it is on and the wheels are in motion. This can result in freely spinning wheels, which may cause injury to yourself or others nearby. Do not jump on or off the product, and do not jump while using it. Always keep your feet firmly planted on the foot rest while in operation. Always check the battery charge before using.

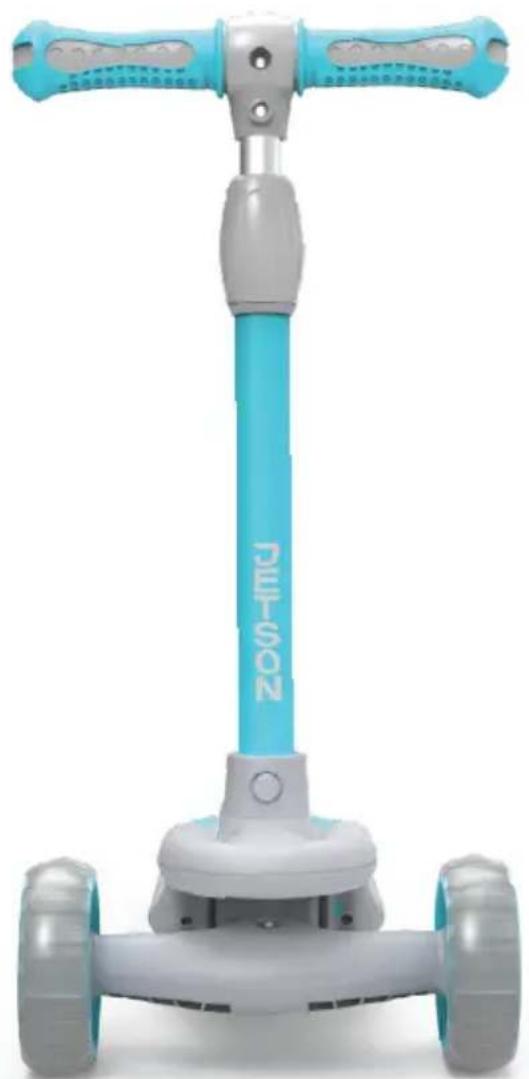

What's in the Box

1. HANDLEBAR
2. HEIGHT ADJUSTER
3. STEM
4. PUSH BUTTON
5. FRONT WHEEL
6. DECK
7. REAR FOOT BRAKE
8. REAR WHEEL

*ADULTS MUST ASSIST CHILDREN IN THE INITIAL ADJUSTMENT PROCEDURES OF THE PRODUCT.

PLEASE NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.

Specs & Features

• PRODUCT DIMENSIONS: 24" × 11" × 29"
• HANDLEBAR EXTENSION: 29"-33"
- DECK SIZE: 6" × 24"
• WHEEL SIZE: F: 5"; R: 3.5"
• WHEEL MATERIAL: PVC WHEEL W/ LED LIGHTS
• PRODUCT WEIGHT: 6 LB
• WEIGHT LIMIT: 110 LB
• RECOMMENDED AGE: 3+

1. Get Started

1.1 Assembly

- INSERT STEM WITH PUSH BUTTON FACING THE FRONT WHEELS.

PRESS IN

NOTE: CHECK THE STEM AND HANDLEBAR BEFORE EACH RIDE TO ENSURE THEY ARE SECURE.

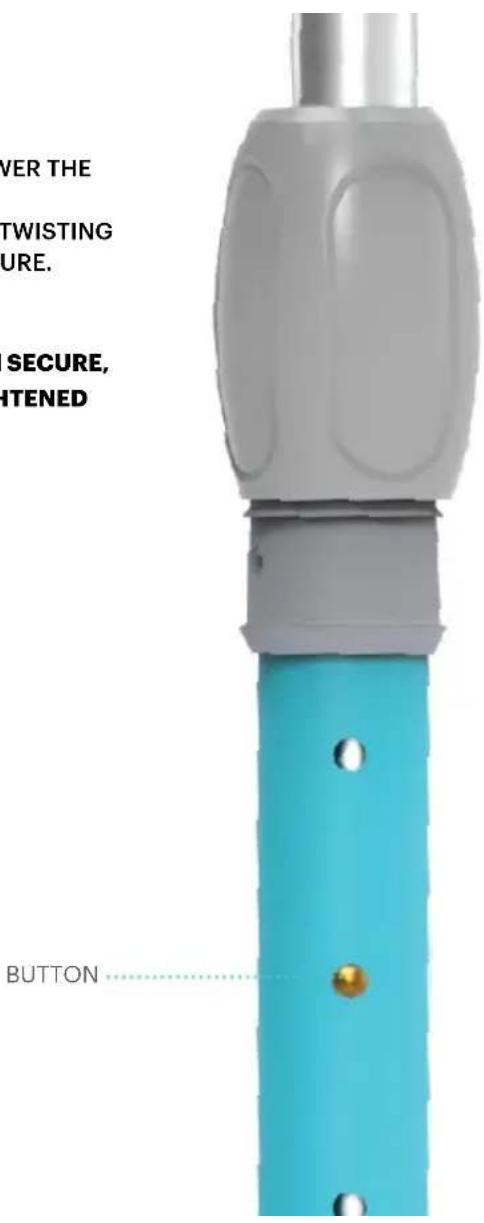

1.2 Adjusting the Handlebar

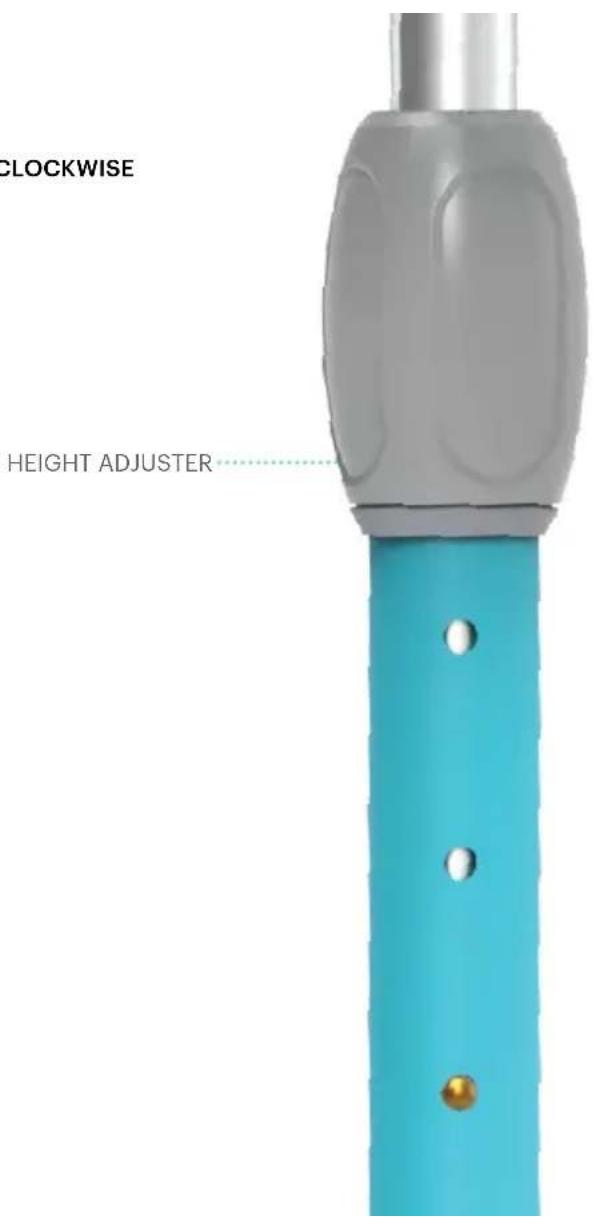

- TWIST THE HEIGHT ADJUSTER COUNTERCLOCKWISE TO OPEN THE LOCK.

• WHILE PRESSING DOWN THE BUTTON, LIFT OR LOWER THE HANDLEBAR.
• WHEN YOU HEAR IT CLICK, TIGHTEN THE LOCK BY TWISTING IT CLOCKWISE. MAKE SURE THE HANDLEBAR IS SECURE.

CAUTION: THE STEM PIN WILL NOT KEEP THE STEM SECURE, PLEASE MAKE SURE THE HEIGHT ADJUSTER IS TIGHTENED AND CLOSED PRIOR TO RIDING.

2. Make Moves

21 Riding the Gleam

• PLACE ONE FOOT IN FRONT.
• PLACE THE OTHER FOOT IN BACK AT 70 - 90°ANGLE.
• SIMPLY LEAN LEFT OR RIGHT TO DIRECT GLEAM. HOLD ONTO HANDLEBAR FOR BALANCE.

2.2 Helmet Safety

THE FOREHEAD IS COVERED BY THE HELMET.

THE FOREHEAD IS EXPOSED. COULD CAUSE SERIOUS INJURY.

Care & Maintenance

CLEANING THE GLEAM

TO CLEAN THE GLEAM, CAREFULLY WIPE WITH A DAMP CLOTH, THEN DRY WITH A DRY CLOTH. DO NOT USE WATER TO CLEAN THE GLEAM, THIS MAY DAMAGE THE FRAME.

FEW MUST-DO'S

• KEEP AWAY FROM FIRE AND EXCESSIVE HEAT.
• AVOID INTENSE PHYSICAL IMPACT AND / OR SEVERE VIBRATION.
• PLEASE RIDE THE GLEAM ON A SMOOTH, FLAT SURFACE.
  • PROTECT FROM WATER OR MOISTURE.
• CONTACT JETSON CUSTOMER CARE IF THERE ARE ANY ISSUES WITH THE GLEAM.

STORAGE

• STORE THE GLEAM INDOORS, IN A DRY PLACE.
  • COVER THE GLEAM TO PROTECT AGAINST DUST.

Enjoying the ride?

Leave a review on ridejetson.com/reviews or share your photos with us online using the #RideJetson hashtag!

Follow us @ridejetson

MakeMoves

JETSON

Questions? Let us know.

support.ridejetson.com

Hours of Operation:

7 Days a Week, 10am-6pm

Manufactured by Zhejiang, China

Imported by Jetson Electric Bikes LLC.

86 34th Street 4th Floor, Brooklyn, New York 11232

www.ridejetson.com

Made in China

Date Code: 07/2021
