Solace 30 - Vélo SCOTT - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Vélo de route
Marque	Scott
Modèle	Solace 30
Année	2023
Cadre	Carbone HMX
Fourche	Carbone HMX
Groupes	Shimano 105, 11 vitesses
Freins	Shimano 105 hydrauliques, disque
Pédalier	Shimano 105, 50-34 dents
Cassette	Shimano 105, 11-34 dents
Roues	Syncros RR2.0
Pneus	Continental Grand Sport Race, 28 mm
Selle	Syncros Tofino 2.0
Guidon	Syncros Creston 2.0
Potence	Syncros RR1.5
Poids	9,5 kg (taille M)
Alimentation	Aucune (vélo mécanique)
Entretien	Nettoyage régulier, lubrification chaîne toutes les 200 km
Sécurité	Freins puissants, réflecteurs avant/arrière
Pièces détachées	Disponibles chez revendeur Scott agréé

FOIRE AUX QUESTIONS - Solace 30 SCOTT

Comment régler la hauteur de selle ?

Desserrez le collier de selle, ajustez la tige de selle à la hauteur souhaitée (jambe légèrement fléchie en bas de course), puis resserrez le collier au couple recommandé (5-6 Nm).

Comment lubrifier la chaîne ?

Appliquez un lubrifiant spécifique pour chaîne de vélo sur chaque rouleau, faites tourner la pédale pour répartir, puis essuyez l'excès avec un chiffon.

Quelle pression pour les pneus ?

La pression recommandée est indiquée sur le flanc du pneu. Pour un usage route, comptez 6-8 bar (85-115 psi) selon votre poids.

Comment entretenir les freins à disque ?

Vérifiez régulièrement l'usure des plaquettes (épaisseur > 1 mm) et des disques. Nettoyez les disques avec un chiffon imbibé d'alcool isopropylique.

Comment changer une chambre à air ?

Démontez la roue, déchaussez le pneu avec des démonte-pneus, retirez la chambre percée, placez une nouvelle chambre légèrement gonflée, remontez le pneu et gonflez.

Comment ajuster les vitesses ?

Utilisez les vis de réglage H et L sur le dérailleur pour les butées, et la molette de tension du câble pour affiner le passage des vitesses.

Comment nettoyer le cadre ?

Utilisez un chiffon doux humidifié avec de l'eau savonneuse. Évitez les nettoyeurs haute pression et les produits agressifs qui pourraient endommager la peinture.

Comment vérifier l'usure de la chaîne ?

Utilisez un indicateur d'usure de chaîne. Si la chaîne s'allonge de plus de 0,5 % (ou 0,75 % pour un usage intensif), remplacez-la.

Comment serrer les vis de potence ?

Utilisez une clé dynamométrique pour serrer les vis de potence au couple indiqué (généralement 5-6 Nm pour les vis de guidon, 8-10 Nm pour la potence sur le pivot fourche).

Comment transporter le vélo en voiture ?

Utilisez un support de vélo adapté (coffre, attelage ou toit). Retirez les roues si nécessaire et protégez les zones de contact avec des mousses.

MODE D'EMPLOI Solace 30 SCOTT

2023 SCOTT

SOLACE eRIDE ROAD

& GRAVEL MANUAL

CONTENT

THE SOLACE eRIDE SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

GEOMETRY & TECHNICAL DATA 03

TQ SYSTEM MANUALS 04

CABLE ROUTING 05

SPARE PARTS 06

MANUFACTURE'S GUARANTEE 09

LEGEND

TORQUE REQUIRED

NO GREASE REQUIRED

GREASE REQUIRED

CARBON GREASE REQUIRED

THREADLOC REQUIRED

BEARING FIT REQUIRED

TORX TOOL SIZE

TORQUE AMOUNT

TASK DIFFICULTY

HEX TOOL SIZE

GEOMETRY & TECHNICAL DATA

SEATPOST Syncros Duncan D-Shape SL

SEATPOST CLAMP Addict RC Seatpost Clamp

HEADSET mm IS52/31.8 IS52/40

REAR AXLE mm 142

FRONT AXLE mm 100

MAX TYRE WIDTH mm 50 Gravel/50 Road

FORK STEERER in 11/4 - 11/2

MAX/MIN FRONT ROTOR mm 180/160

MAX/MIN REAR ROTOR mm 160/140

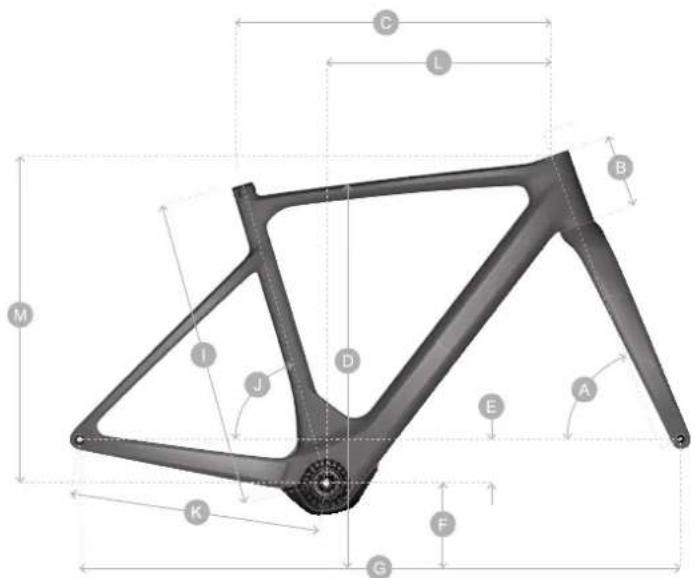

MY23 SOLACE eRIDE			XS49	S52	M54	L56	XL58
A Head tube angle		°	69.5	70 71 71 71
B Head tube length		mm 85	110 128	154	175
C Top tube horizontal		mm	518	534.2	554.5	578.4	592.5
D standover height		mm	759	785	803	824	841
E BB offset		mm	76	76	76	76	76
F BB height Road		mm	283	283	283	283	283
BB height Gravel		mm	294	294	294	294	294
G Wheelbase		mm	1021.5	1030.1	1036.8	1056.2	1071.1
I BB center to TST		mm	477	507	527	547	567
J Seat angle		°	74.5	74	73.5	73	73
K Chainstay		mm	435	435	435	435	435
L Reach		mm	374	378	387	398	406
M Stack		mm	519.3	544.7	565.6	590.2	610
Fork Length		mm	406	406	406	406	406
Fork Rake		mm	50	50	50	50	50

SOLACE eRIDE

GEOMETRY & TECHNICAL DATA

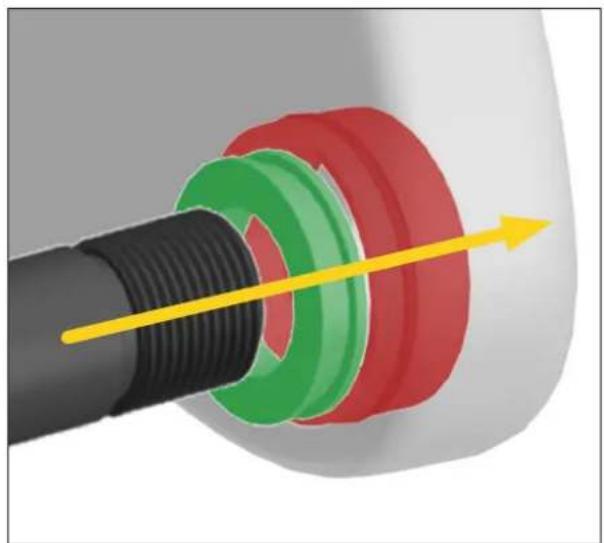

When removing and re-attaching the rear wheel to the frame make sure the non drive side dropout has both the indicated parts correctly positioned inside the dropout before inserting the rear axle.

TQ SYSTEM MANUALS

Charger Manual

Motor Manual

Battery Manual

Display Manual

Range Extender Manual

SOLACE eRIDE

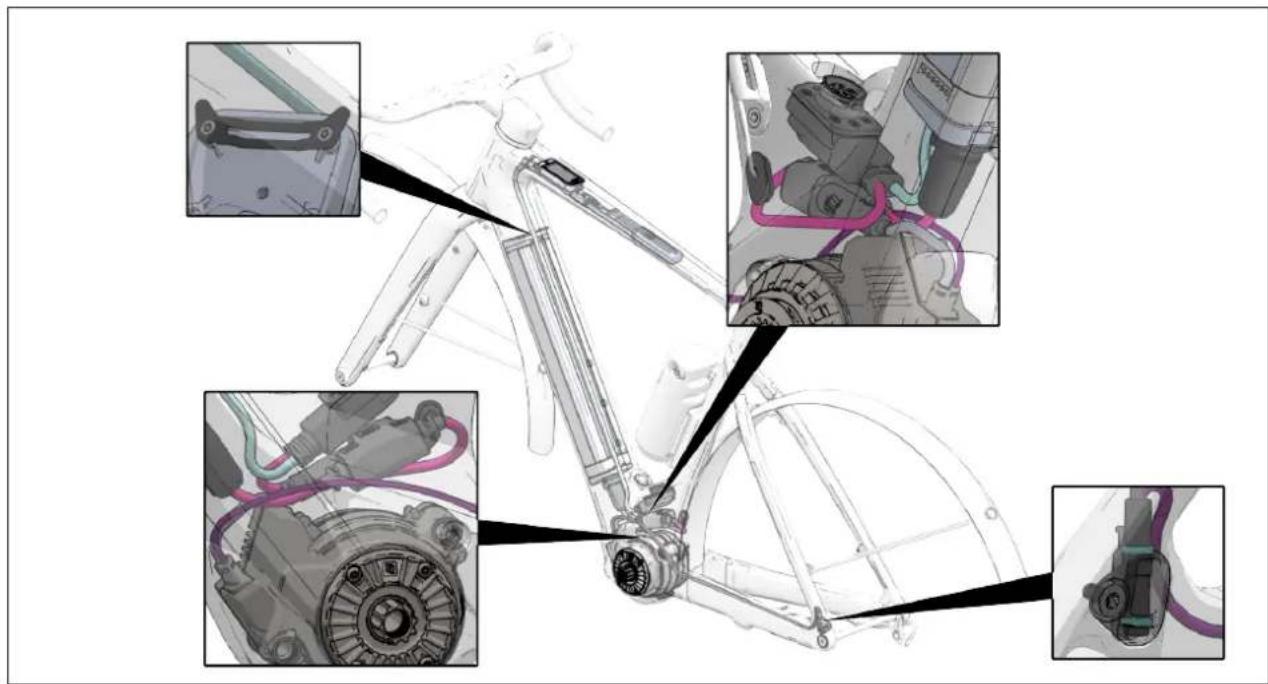

CABLE ROUTING

Mechanical

TQ System

SOLACE eRIDE

SPARE PARTS

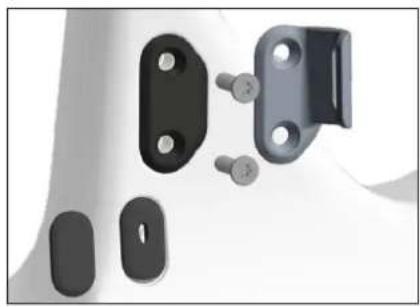

297262 SCO eRIDE FD MOUNT & BLANK SOLACE 23

297135 SCO eRIDE TQ INTERNAL CABLE GUIDE 23

297667 SCO ERIDE CABLE GUIDES C-STAY SOLACE 23

297521 SCO HEADSET TOP CAP CRESTON 23 288249 SYN HEADSET IS52/31.8 - IS52/42

297516 SCO eRIDE INTERNAL CABLEGUIDE 23

SOLACE eRIDE

SPARE PARTS CONT.

277543 SCO SEATCLAMP ADDICT RC 20

277028 SCO AXLE FRONT ADDICT RC/PLASMA 6 TP 20 419858 SCO AXLE SOLACE R 23

286000 SCO DROPOUT SRAM UDH 21

297263 SCO eRIDE MOTOR COVER SOLACE 23

296623 SYN FRAME PROTECTION KIT SOLACE eRIDE 420008 SCO SOLACE eRIDE CHAINSTAY PROTECTOR 420009 SCO SOLACE eRIDE CHAINSTAY PROTECT.PLATE

SOLACE eRIDE

SPARE PARTS CONT.

292915 SYN FENDER SET SOLACE GRAVEL eRIDE

292914 SYN FENDER SET SOLACE ROAD eRIDE

296220 SCO eRIDE TQ SMART BOX 23

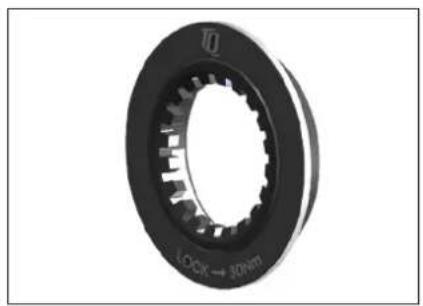

296217 SCO eRIDE TQ LOCKRING SET 23

294533 SYN KICKSTAND ROAD eRIDE TQ 2 BOLT

294537 SCO eRIDE TQ RANGE EXTENDER

294539 SCO eRIDE TQ RANGE EXT. CABLE ROAD/GR

294540 SCO eRIDE TQ RANGER EXTENDER HOLDER

MANUFACTURER'S GUARANTEE,

When purchasing a new SCOTT bicycle from an authorized SCOTT dealer, SCOTT grants a manufacturer's guarantee subject to the following provisions.

CONDITIONS

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.

DURATION

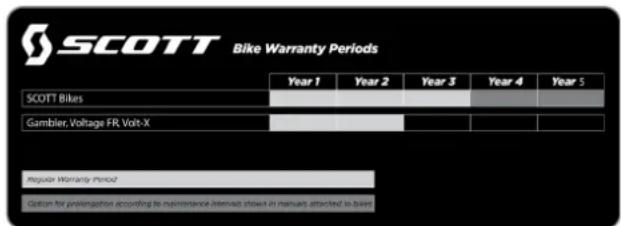

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the SCOTT manual and must be confirmed there by the stamp and signature of the authorized SCOTT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer's guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.

ASSERTION

The manufacturer's guarantee is provided by SCOTT Sports SA, Route du Crochet 11, 1762 Givisiez, Switzerland. The buyer must inspect the SCOTT bicycle immediately after purchase and notify his authorized SCOTT dealer at once in writing of any obvious defects. Hidden defects must be reported immediately after their discovery. In the event of a guarantee claim, the SCOTT bicycle must be handed over to an authorized SCOTT dealer. The latter will contact SCOTT to remedy the defect. The assertion of a guarantee claim always requires the presentation of the original proof of purchase as well as the proof of maintenance service in the SCOTT manual.

Performance of SCOTT in the event of a guarantee claim

In the event of a guarantee claim, SCOTT will, at its own discretion, repair the defect or replace the defective product with a product of similar quality, whereby colour and model deviations are possible. If a repair or replacement is not possible, a purchase price refund will be made taking into account previous use. SCOTT is entitled to commission third parties to remedy the defect.

LIMITATIONS

The manufacturer's guarantee applies exclusively to frames, swingarms and rigid forks of SCOTT bicycles. Bicycle components are excluded from this manufacturer's guarantee.

The manufacturer's guarantee does not apply to normal wear and tear, damage caused by accidents or other excessive force on the SCOTT bicycle, corrosion, improper maintenance, incorrect assembly and assembly of unsuitable components or accessories as well as cosmetic defects, for example in the varnish.

The manufacturer's guarantee does not apply to SCOTT bicycles that have been used in a rental shop.

MISCELLANEOUS

These manufacturer's guarantee provisions apply to all SCOTT bicycles as of model year 2023. Statutory warranty rights of the buyer and guarantees of component manufacturers (Shimano,

SRAM etc.) remain unaffected by this manufacturer's guarantee.

The place of jurisdiction for all disputes in connection with this manufacturer's guarantee is Freiburg, Switzerland. This manufacturer's guarantee is subject to Swiss law to the exclusion of all legislation that refers to foreign law.

© SCOTT Sports SA 2023. All rights reserved.

The information contained in this manual is in various languages but only the English version will be relevant in case of conflict.
