MODE D'EMPLOI CUBCADET 1000 GARDEN AND COMPACT TRACTOR MTD

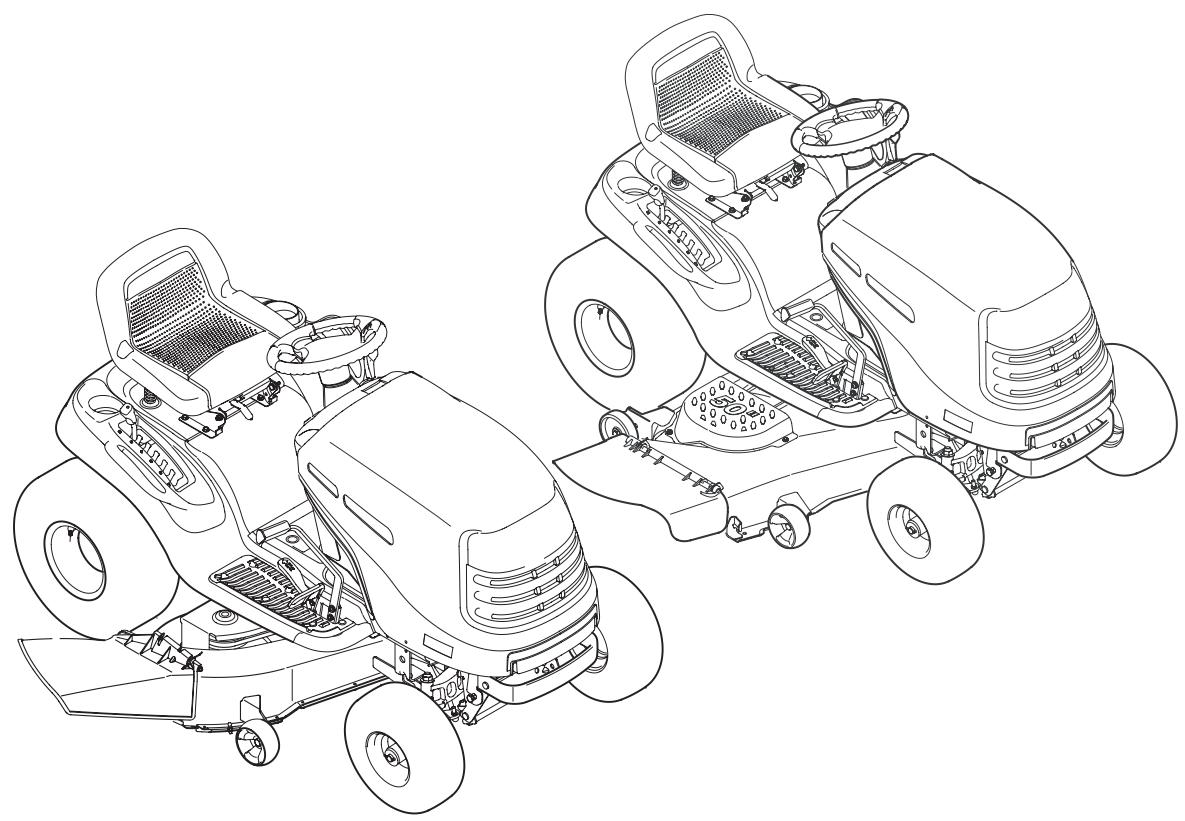

1
Model A
Model B
2a
Model A
2a
Model B
2b
2c
3
4
5
6
7
9
10
8
11
12b
Table of Contents
For your safety 4
Assembling the appliance. 5
Operation and Display Elements. 6
Operating safety. 7
Tips on lawn care. 8
Transporting the appliance. 8
Cleaning / Servicing. 9
Removing/Installing and adjusting cutter deck. 10
Shutting down the machine. 10
Warranty. 10
Engine. 10
Troubleshooting. 10
Information on rating plate
This information is very important for the identification of your unit when ordering replacement parts and for customer service. The rating plate can be found under the driver's seat. Enter all the details on your appliance's rating plate in the following fields.
This and other information on the unit can be found on the separate CE Declaration of Conformity which is a component of these operating instructions.
For your safety
Use the appliance properly
The unit is intended for use
- as a lawn tractor for mowing lawns of domestic and leisure gardens
- in accordance with the descriptions and safety instructions indicated in this operating manual,
The appliance must not be put to any other use. The operator is liable for all damages to third parties and their property.
The manufacturer accepts no responsibility for damages resulting from unauthorised alterations to the unit that have been carried out by the owner or operator. This mower is not licensed for use on public roads or for transporting people.
General safety instructions
Before you use this machine for the first time, carefully read all instructions in this guide and observe them accordingly. Inform all other users how to use the unit correctly.
Use the unit under the technical conditions prescribed by the manufacturer and in which the unit is supplied.
Keep these Operating Instructions in a safe place and have them at the ready whenever you use the unit.
These Operating Instructions should be given to the subsequent owner in the event of the unit changing hands. Replacement parts must comply with the requirements specified by the manufacturer. You should therefore only use original replacement parts or those deemed compatible by the manufacturer. Have repair work carried out by aspecialist workshop only.
Before working with the unit
Any person intending to use this machine must not be under the influence of intoxicants such as alcohol, drugs or medicines.
Persons under the age of 16 may not operate the unit. Bylaws may stipulate a different minimum age.
Familiarise yourself with all features and control elements, and their functions, before using the unit.
Store fuel in appropriate containers only, and never in the vicinity of heat sources (e.g. ovens or hot-water cylinders).
Replace the exhaust, fuel tank or fuel cap immediately if they become damaged.
Attach trailers and accessory equipment in accordance with the guidelines. Driving performance, especially steering, braking capability, and overall stability are affected by attachments, towed items, ballast weights and the weight of a grass catcher when full.
While working with the unit
While working with or on the machine, wear appropriate clothing (e.g. safety shoes, long trousers, close-fitting clothes, protective goggles).
The unit should only be operated when it is in perfect working order.
Never refuel the unit while the engine is running or hot. Refuel the unit in open spaces only.
Open fire or sparks must be avoided and you should not smoke while refuelling the unit.
Ensure that no persons, especially children, or animals are in the area of operation.
Check the area in which you intend to use the unit and remove all objects that could be hit and propelled by the unit. You can thus avoid injuries and damage to the unit.
Never mow on slopes that are steeper than 20% . Working on slopes is dangerous; the risk of rollover and sliding is increased. When working on slopes, always drive off and halt the unit gently and gradually. The transmission should always be engaged when driving down a slope – never coast – and drive at a low speed. Never drive across the face of a slope, always up and down the slope. Only use the unit in daylight or with a sufficient level of artificial lighting.
The unit is not authorised for the transport of people. Never allow passengers on the unit.
Before all work on the unit
Protect yourself against injury. Before all work on this unit
- Switch off the engine.
- Take out the ignition key.
- Actuate the parking brake.
- wait until all moving parts have come to rest and the engine has fully cooled,
- pull off the cap of the spark plug so that the engine cannot inadvertently start.
After working with the unit
Only leave the unit unattended after you have switched off the engine, engaged the parking brake and withdrawn the key from the ignition.
Safety features
Safety features serve to protect you and must always be functional.
You may not make any alterations to the safety features or circumvent their proper functioning.
Safety features are:
Grass flap

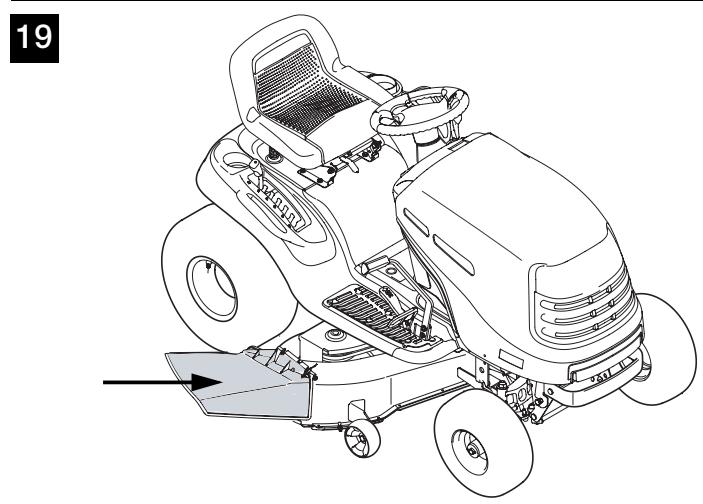

Figure 19 The grass flap protects you against possible injuries resulting from the cutting blade or objects that are propelled by it. The unit may only be operated with the grass flap attached.
Safety lock feature
With the safety lock feature, the engine can only be started if
- he driver is sitting on the driver seat,
- the brake pedal is fully depressed, and/or the parking brake is engaged,
- the engage switch (PTO) is switched off.
The safety lock feature switches off the engine automatically as soon as the driver leaves the driver seat without engaging the parking brake and/or without having switched off the engage switch (PTO).
The safety interlock system automatically switches off the clutch switch (PTO) as soon as the reverse pedal is depressed (provided the OCR function has not been activated). To turn on the engage switch (PTO) again, you must first switch it off and then switch it on again.
Symbols on the unit
Various symbols are on stickers on the unit. These symbols are explained below:
Caution! Please read the operating instructions before putting lawnmower into operation!
Keep third parties away from the danger area!
Risk of injury from rotating blades and other rotating parts.
Always remove the spark plug connector before working on the cutters! Keep fingers and feet well away from the cutters! Always switch off the appliance and remove the spark plug connector before adjusting, cleaning or checking it.
Risk of injury from propelled grass or solid objects that are propelled.
There must be no persons, especially children, or animals in the area of operation.
Working on steep slopes increases danger.
Caution! Risk of explosion.
Battery acid/ Risk of injury.
Withdraw the key from the ignition before all work on the unit and observe the instructions in this document.
Ensure that these symbols on the unit remain legible and are not obscured or covered.
Symbols in these Operating Instructions
The following symbols are used in these instructions:
Danger
This informs you of the potential dangers associated with the described activity that represent a risk of injury.
Caution
This informs you of the potential dangers associated with the described activity that might result in damage to property.
Note
This indicates important information and application tips.
Positional information
Where a position on, or in relation to, the unit is described (e.g. left, right), this is always from the perspective of the driver, sitting on the driver seat and facing forward.
Note
The illustrations may differ in detail from the machine which you have purchased.
i Disposal information
Packaging remains, old appliances, etc., must be disposed of in accordance with the local rules and regulations.
Assembling the appliance
Commissioning the battery
Danger
Risk of poisoning and injury from battery acid
Wear protective goggles and gloves. Do not allow battery acid to come into contact with the skin. Should battery acid splash into your face or eyes, wash immediately with cold water and consult a doctor. Should you inadvertently swallow battery acid, drink plenty of water and consult a doctor immediately. Store batteries in a safe place out of the reach children. Never tilt the battery; the battery acid may run out.
Bring the remaining, unused battery acid to your dealer or to a waste disposal company.
Caution
Risk of fire, explosion and corrosion from the battery acid and emitted gases
Should battery acid spill or splash onto parts of the unit, clean it off immediately. Battery acid has corrosive effects.
Do not smoke. Keep burning and hot objects away from the battery and battery acid. Charge the battery in well-ventilated, dry enclosures only. A short-circuit may occur when working on the battery. Never lay tools or metal objects on the battery.
If a "maintenance-free/sealed" battery (type 1) is supplied
(Battery without filler plugs)
The battery is filled with battery acid and sealed in production. However, even a "maintenance-free" battery requires maintenance if it is to have a longer service life.
- Keep the battery clean.
- Avoid tilting the battery or turning it over. Even a "sealed" battery will leak electrolyte if is tilted or turned over.
If an empty battery (type 2) is supplied
(Battery with filler plugs)

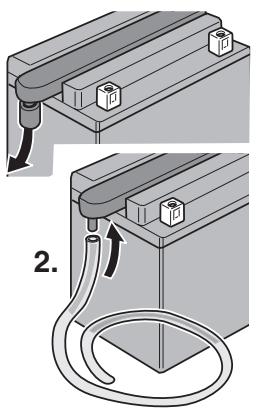

Figure 2
- Remove the filler plugs of the battery cells.
Fill each cell slowly with battery acid up to 1 cm below the filling opening. - Leave the battery to stand for 30 minutes so that the lead can soak up the battery acid.
- Check the level of the battery acid, add more if necessary.
Before using the battery for the first time, charge it using a battery charger (max. charging current 12 Volt/6 Ampere) for 2 to 6 hours. After charging the battery, first unplug the charger and then disconnect the battery (see also the operating instructions for the battery charger). - Re-insert the filler plugs of the battery cells.

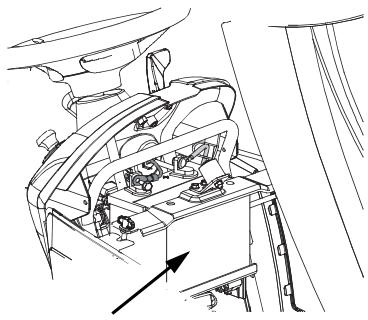

Install the battery in the unit. - Remove the strip seal from the battery vent. Connect the venting hose so that the free end points downwards in the appliance. The hose must always allow free passage! (Figure 2b)

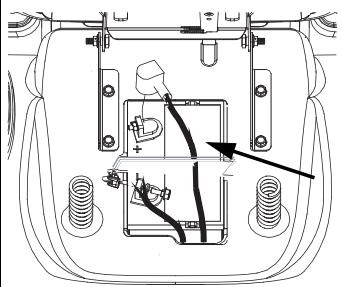

- First connect the red cable (+), and then the black cable (-).
Thereafter, use only distilled water to top up the battery (check every 2 months). - Keep the battery clean.
Caution
Note the order of terminals when connecting and disconnecting the battery. Installation:
- First connect the red cable (+/positive post), and then the black cable (-/negative post).
Removal: - First disconnect the black cable (-/negative post), and then the red cable (+/positive post).

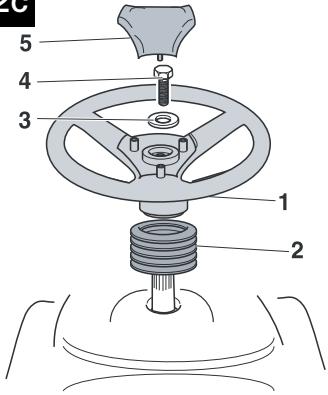

Installing the steering wheel
Figure 2c
- Place the collar (2, if provided with model) and the steering wheel (1) on the steering shaft.
- Place on top the washer (3) with the convex side up, and secure the steering wheel with the screw (4).
Insert the cover (5).

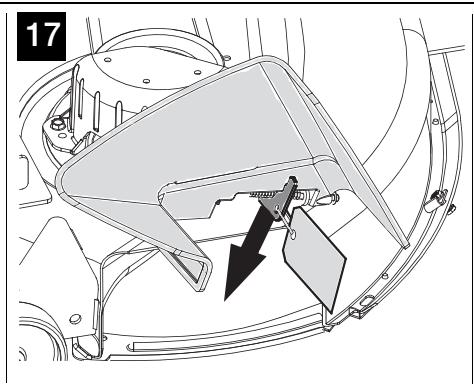

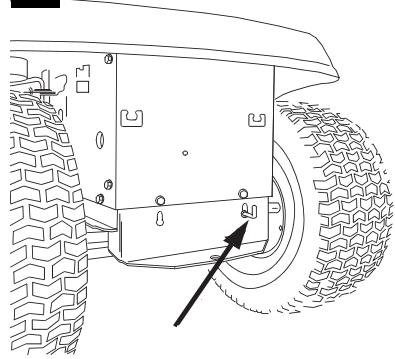

Removing the transport securing device at the ejector flap
Figure 17
Depending on the model remove the locking plate or cable tie. The deflector closes automatically.
Operation and Display Elements
Caution. Damage to the machine.
It is primarily the functions of the controls and display elements which are described here. Do not perform any functions yet!

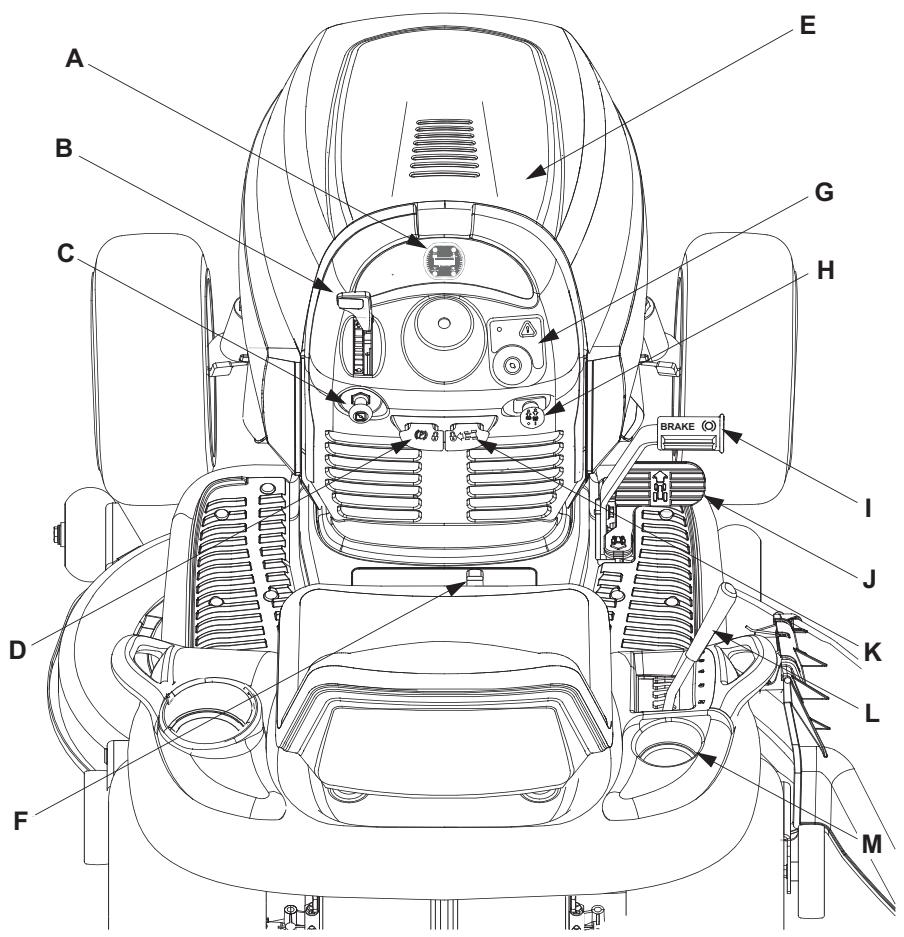

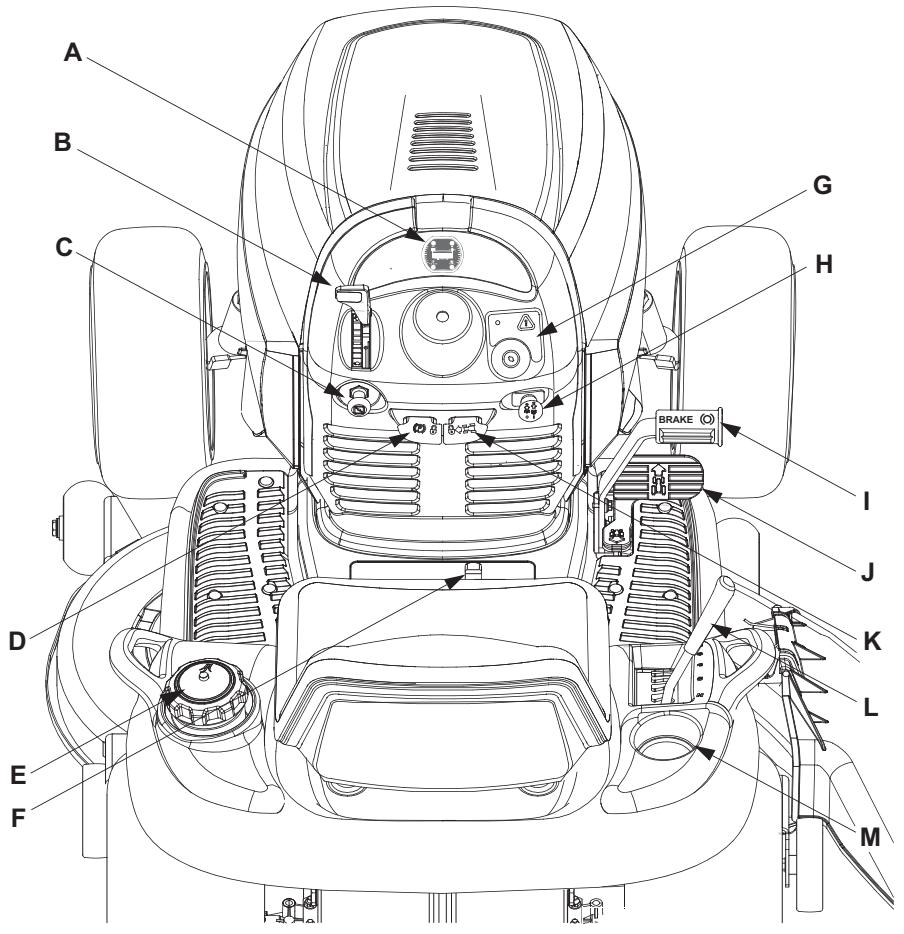

Figure 1
A Display cluster
B Throttle
C Choke
D Parking brake switch
E Fuel tank
F Level for the seat
G Ignition lock with OCR function
H PTO-switch
I Brake pedal
J Drive pedal
K Cruise control switch
L Lever for setting the cutting height
M Can holder
i Note
Steering wheel not shown.
Display cluster (A)

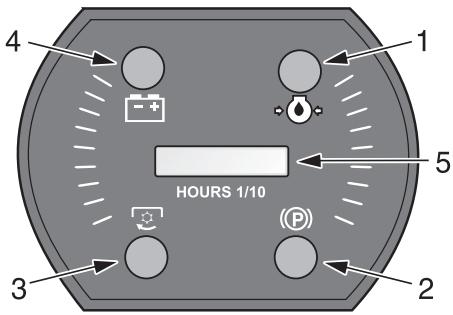

Figure 7
The display cluster can consist of the following elements, depending on the model.
Oil pressure (1):
When this indicator lamp lights up and the engine is running, immediately switch off the engine and check the oil level. If necessary, consult a garage.
Brake (2):
Indicator lamp lights up if the brake pedal is not depressed or the parking brake is not locked when the engine starts.
Cutter deck (PTO) (3):
The indicator lamp lights up when the cutters are not switched OFF at engine start (PTO).
Battery charge indicator (4):
When this indicator lamp lights up and the engine is running, the battery is low. If necessary, consult a garage.
Engine hour indicator/battery voltage (5): Indicates the operating hours in hours and 1/10 hours on the display.
i Note
When the ignition is switched on, the battery voltage is displayed briefly and then the display switches to operating hours.
Operating hours are always counted except when the ignition key is on "Stop" or has been removed.
Note
Every 50 operating hours (depending on model) oil change "CHG/OIL" is indicated on the display for a period of 5 minutes. This message is indicated for the next 2 operating hours. See engine handbook for oil change intervals.

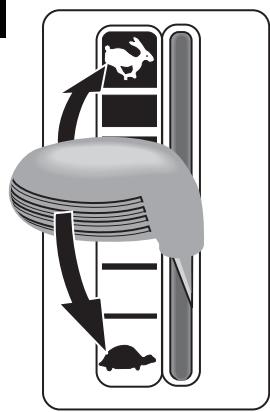

Throttle lever (B)
Figure 4
The engine speed can be adjusted continuously.
Fast engine speed = 2.
Slow engine speed =
Choke (C)
Figure 5
To start a cold engine, pull out the choke.
Parking brake switch (D)
Figure 10
Actuate the parking brake:
Press down the brake pedal fully, and press the switch.
Releasing the parking brake:
Press down the brake pedal fully, the switch disengages.

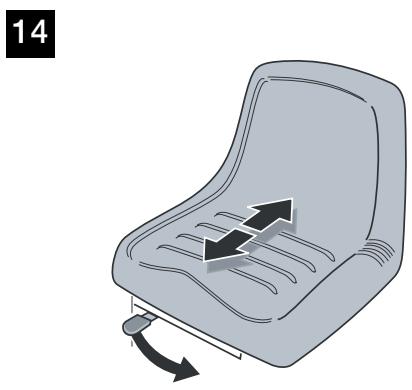

Adjusting lever for seat (F)
Figure 14
The driver's seat can be set with the seat adjustment lever.

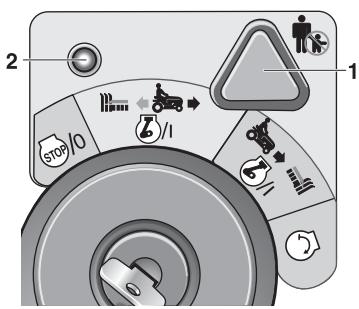

Ignition lock with OCR-Function (G
Figure 3
This ignition lock features an OCR function (= user-controlled mowing in reverse gear).
Start:
Turn the key to the right until the engine is running, then release. The key at (normal) allows mowing in the drive direction.
OCR position:
Turn key to left of normal position to reverse mowing position /1_mm and press the switch (1). The indicator light (2) comes on and indicates to the user that the unit can now mow in reverse and forward gear.
Stopping:
Turn the key to left to 0
Note
Do not use the OCR function unless absolutely necessary, otherwise work with the key in the normal position. The OCR function switches off automatically as soon as the key is turned to the normal position or the engine is switched off (stop position or disconnection of the engine by the safety interlock system).
PTO-switch (H)
Figure 6
The PTO switch switches the cutter deck/accessories on and off via an electromechanical clutch.
ON = pull the switch.
OFF = press the switch.
i Note
When the safety lock system has automatically switched OFF the appliance (e.g. when reversing with activated cutters), first switch ON and then OFF the PTO switch to release the lock on the clutch.

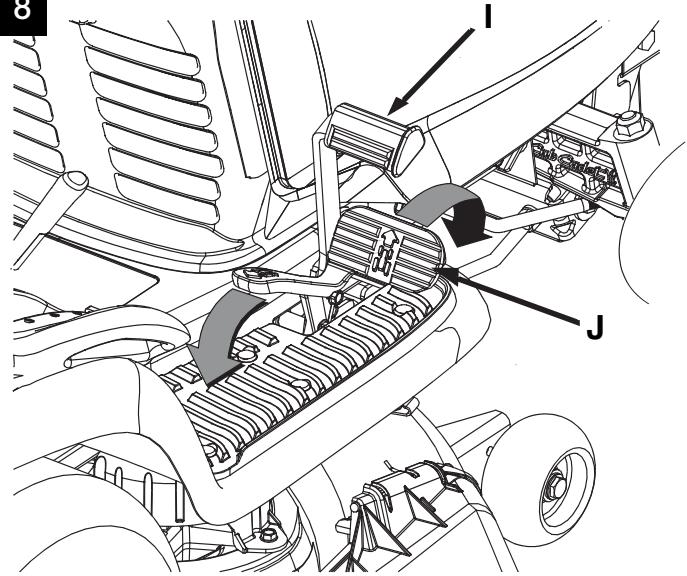

Brake pedal (I)
Figure 8
The brake pedal can be used to brake quickly, to engage and disengage the locking brake, and to switch OFF speed control.
Drive pedal (J)
Fig. 8
The drive pedal is used to adjust the speed continuously and to change direction:
Forwards = push forwards the drive pedal (in direction), the further forward, the faster.
Stop (for stationary vehicle and changing direction) = release the drive pedal (N).
Reverse = push back the drive pedal (counter to direction 串 ), the further back, the faster.
Cruise control switch (K)
Figure 9
Press the switch.
The forward speed selected at this point (but not top speed) is maintained, and the drive pedal can be released.
When the accelerator pedal or the brake pedal is depressed, the cruise control automatically switches off.
Lever for setting the cutting height (L)
Figure 1
Largest cutting height, cutters
top = lever to “H”
Smallest cutting height, cutters
bottom = lever to "L".
Can holder (G)
Figure 1
Operating safety
Also follow the instructions in the engine handbook!
Danger
Risk of injury
No person, especially children, and/or animals should be allowed to stand close to the mower while it is in use. They could be injured by stones or similar objects that might be thrown out. Under no circumstances may the unit be operated by a minor. Be particularly careful when mowing in reverse gear (units with OCR switch). Ensure that all persons are outside the working area of the unit.
Never empty the grass catcher while the engine is still running. While emptying the grass catcher, you yourself or some other person could be injured if the contents of the catcher are ejected at high speed. When mowing on steep slopes, there is a risk of the mower tipping over and you could be injured as a result. Never drive across the face of a slope, always up and down the slope. The mower should not be driven on slopes with a maximum incline greater than 20% . Never turn on a slope.
When mowing wet grass, there is a greater risk of the unit sliding as a result of reduced wheel grip. This can result in the unit crashing.
Excessive speed can increase the risk of an accident.
Maintain a safe distance at all times from particularly steep slopes, trees, bushes and hedges.
Be particularly cautious when driving in reverse.
Check the area in which you intend to use the unit and remove all objects that might be hit and propelled by the unit.
If the cutting tool hits a foreign object (e.g. stone) or if the machine starts vibrating violently: stop the engine immediately. Examine the unit for damages.Consult a specialist workshop if damage has occurred.
In the case of mowers with rotary blades, never stand in front of grass ejection holes.
Never place your hands, feet, or other parts of the body near rotating parts.
Switch OFF the engine, remove the ignition key, and disconnect the spark plug terminal before you clear the ejector of blockages and other hindrances.
Risk of suffocation from carbon monoxide
Run the internal combustion engine outdoors only.
Risk of explosion and fire
Petrol vapour is explosive and petrol itself is extremely flammable.
Fill up will petrol before you start the engine. Always keep the fuel tank sealed while the engine is running and while it is still hot.
Only refuel the unit when the engine is switched off and fully cooled. Open fire or sparks must be avoided and you should not smoke while refuelling the unit. Refuel the unit in open spaces only.
If fuel has spilled, do not start the engine. Push the mower away from the area where the petrol was spilt and wait until the petrol fumes have evaporated.
To avoid fire hazard, keep the following parts free of grass and escaping oil: engine, exhaust, battery, fuel tank.
Danger
Injury hazard due to defective mower
The unit should only be operated when it is in perfect working order.
Conduct a visual check before each use. Check in particular the safety features, cutting tools and mountings, operation elements, and threaded joints for damage and secureness.
Always replace damaged parts before operating the unit.
i Operating times
Observe the national or bylaws for the times you may operate the appliance. You may have to consult your local authority.
Before each use
Check:
all protective features
the engine-oil level (see the engine handbook)
the fuel level
the tyre pressure
- the side covering, accessory equipment, the area around the air filter for dirt and grass
Refuelling and checking the oil level
Note
The engine has already been filled with oil at the factory - please check the oil, if required refill.
Fuel with unleaded premium (regular unleaded).
- Fill the fuel tank to within 1cm of the bottom edge of the neck of the filler hole - no higher.
- Replace the fuel cap and ensure that it is secure.
- Check oil level. The oil level must be between the "Full/Max." and the "Add/Min." markings (see also the engine handbook).
Checking the tyre pressure
- Check the tyre pressure (see tyre walls) on all wheels.
Preparing for operation
- Park the appliance on a firm level surface and lock the parking brake.
Conduct all work with the engine switched off. - Withdraw the key from the ignition.
For all work on moving parts:
- Open the bonnet and disconnect the cable to the spark plug.
Adjusting the driver seat
Figure 14
Take your place on the driver seat.
- Adjust the seat to the desired position.

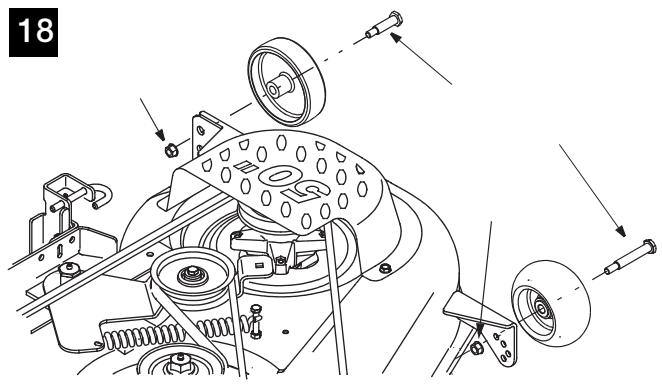

Setting the cutter wheels
Figure 18
The cutter wheels should never be lower than 6 - 12mm above the ground at the lowest cutter position. The cutter wheels are not designed to bear the loads generated by the cutters and may have to be offset accordingly.
Starting the engine
Take your place on the driver seat.
- Depress the brake pedal fully or engage the parking brake.
Switch off the engage switch (PTO).
raise the cutters to the top,
Move throttle to
If the engine is cold, pull out the choke.
Turn the ignition key to until the engine is running (attempt to start the engine for max. 5 seconds, wait 10 seconds before attempting to start the engine again).
When the engine is running, set the ignition key to 1/1.
Slowly push back the choke.
- Return the accelerator lever until the engine runs smoothly.
Stopping the engine
- Move the throttle to the middle position.
Let the engine run for approx. 20 seconds.
Move ignition key to 109/0. - Withdraw the key from the ignition.
- Engage the locking brake before leaving the appliance.
Driving the appliance
Danger
Abrupt takeoff, stopping suddenly, and driving at excessive speeds raise the risk of accidents and can cause damage to the unit.
Never set/adjust the driver's seat while the unit is moving.
i Note
Be particularly careful when reversing. Never change direction without first stopping the appliance.
Start the engine as specified.
Releasing the parking brake: Press down fully the brake pedal, and release it.
Slowly engage the drive pedal until you have reached the speed you want.
Stopping the appliance
Release the accelerator.
Press the brake pedal until the appliance is stationary.
Mowing
Never change the direction of motion when the appliance is driving or coasting (see "Driving the appliance")
Information on mowing
-
In normal mowing mode (see Operation, ignition lock): Before reversing the machine, switch off and raise the cutter deck.
-
In reverse mowing mode (see Operation, ignition lock): Exercise extreme caution when reverse mowing and do not activate unless absolutely necessary.
Start the engine as specified.
Set the throttle lever into position
- Switch on the cutter deck.
Lower the cutters.
Releasing the parking brake: Press down fully the brake pedal, and release it.
- Select forward drive and speed with the accelerator pedal (depress slowly). The appliance starts moving.
- Switch on the speed control.
General information
When adjusting the cutting height and driving speed, ensure that the machine is not overloaded.
Depending on the length, type, and dampness of the grass it may become necessary to adjust the cutting height and appliance speed for the optimum grass catcher performance.
If blockages occur, reduce the driving speed and increase the cutting height.
The best way to mow
Cut the first two rounds so the cut grass is thrown out sideways into the middle.
Never allow the grass to grow too long
- Never cut the grass too low.
Drive in a straight line.
- Never mow at high speed, particularly when a mulching kit or grass catcher is installed.
Mulching
Various appliances can also mulch when fitted with the corresponding accessories. Ask your specialised dealer for details.
Switching off the machine
- Stopping the appliance: Release the accelerator press brake pedal until the appliance is stationary.
Switch off the cutter deck. - Set the throttle lever into the middle position.
- Raise the cutters to the top.
Set the ignition key to " (stop) / 0 " after twenty seconds. - Engage the locking brake before leaving the appliance.
- Withdraw the key from the ignition.
Pushing the appliance
Figure 11 Push the appliance only when the engine is switched OFF.
- Release the parking brake.
- Release the gear lock: Pull out the lever, and press it down.
Return the gear lock lever before restarting the engine.
Tips on lawn care
Mowing
Lawns consist of various grass types. Frequent mowing promotes the growth of grass, resulting in strong roots and a firm sward. If you seldom cut the grass, you will enhance the development of high-growing types of grass and other weeds, such as clover, daisies ...).
The normal height of a lawn is approx. 4-5 cm. The grass should only be cut back by 13 rd of the overall height at any one time,
7-8 i.e. cut the lawn back to its normal height when it has reached 7-8 cm. Try not to cut the grass shorter than 4 cm, otherwise the lawn will suffer during dry periods. If the grass has grown particularly high (forexample, during a holiday period), cut it back to its normal height in several stages.
Mulching with accessory (optional)
Figure 21
The grass is chopped up fine (approx. 1 cm) during mowing and is left on the lawn. The lawn therefore retains a lot of nutrients. Please note the following:
Do not mow wet grass.
- Never mow more than max. 2 cm of the total grass length.
Drive slowly.
Have the engine at max. rpm.
Clean the mower cover regularly.
Note

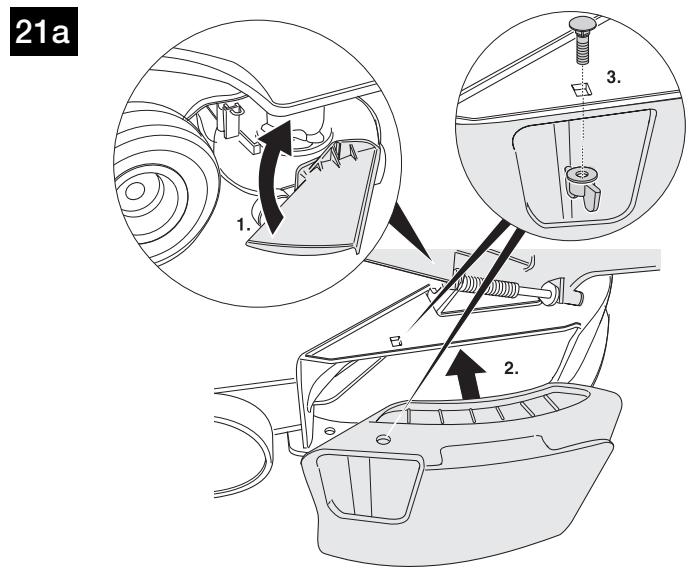

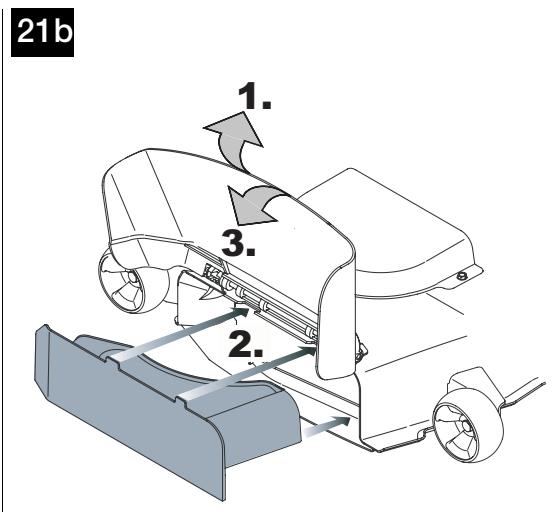

Install the mulching accessories on your model (Fig 21a/b).
Transporting the appliance
If changing location, drive the lawn tractor short distances only. Otherwise transport it by vehicle.
Note: The mower is not approved for public thoroughfares in accordance with StVO.
Short distances
Danger
Solid objects may be hit/propelled by the rotating cutting mechanism causing damage.
Always switch off the cutting mechanism before moving the mower.
Long distances
Caution
Transport damages
The mode of transport used (e.g. transport vehicle, loading ramp) must be used in accordance with guidelines (refer to the respective operating instructions). When transporting, secure the mower against slipping.
Spilt fuel pollutes the environment
The appliance must not be tilted when it is transported.
Have the transporting vehicle ready.
- Lay the loading ramp to the transporting vehicle.
- With the unit in free-wheel, push it up onto the transporting vehicle (disengage the transmission in the case of units with hydrostatic drive).
■ Engage the parking brake.
- Secure the machine to prevent it from moving.
Cleaning / Servicing
Danger
Injury hazard if engine is started inadvertently
Protect yourself against injury. Before all work on this unit
- Switch off the engine.
- Take out the ignition key.
- Actuate the parking brake.
- wait until all moving parts have come to rest and the engine has fully cooled,
- remove the spark plug connector on the engine in order to prevent the engine from accidentally being started.
Cleaning
Clean the machine
Caution
Do not use high-pressure media for cleaning.
Clean directly after mowing when possible.
- Park the unit on a solid, even surface.
- Engage the parking brake.
Note
There is a particularly high risk of rust and their corrosion when the appliance is used in the winter. Clean the appliance thoroughly after every use.
Cleaning the cutting mechanism
Danger
Injury hazard due to sharp cutting blade
Wear protective gloves.
If the unit has more than one cutting mechanism, moving one cutting mechanism may cause the other cutting mechanisms to move as well. Take special care when cleaning cutting mechanisms.
Caution
Damage to engine
The mower must not be tilted to an angle greater than 30^ . Fuel may run into the combustion chamber causing engine damage.
Raise the cutting mechanism fully.
Clean the cutting area using a scrubbing brush, a hand brush or a cloth.
Cutters with cleaning nozzle (optional)

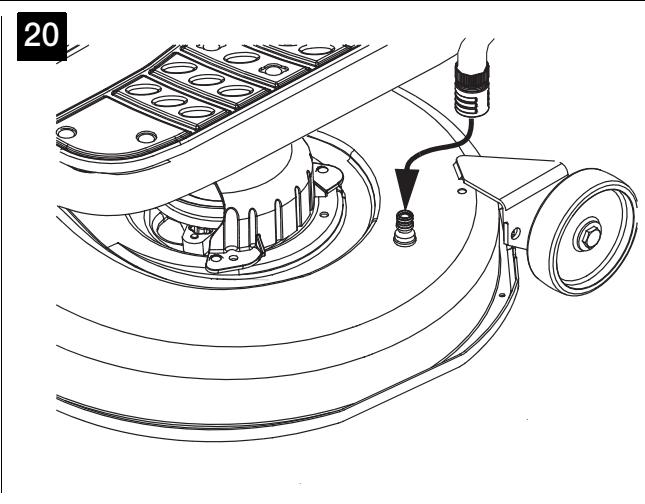

Figure 20
Place the appliance on an even surface free of debris, stones, etc., and engage the locking brake.
- Use a commercially available quick-release coupling to attach a water hose.
2.Start the engine. - Lower the cutters, and switch ON for a few minutes.
- Switch OFF the cutters and engine.
- Detach the water hose.
Repeat steps 1 to 5 for the second cleaning nozzle (if provided).
At the end of cleaning (steps 1 to 5):
■ raise the cutters to the top,
start the engine, and switch ON the cutters for a few minutes to dry them.
Servicing
Observe the servicing instructions in the engine manual. At the end of the grass-cutting season, have the lawn scarifier checked and serviced in a specialist workshop.
Caution
Environmental hazard caused by engine oil
After every oil change, bring the old oil to an appropriate collection point or a waste disposal company.
Environmental hazard caused by batteries
Used batteries do not belong in domestic waste. Bring used batteries instead to your dealer or to a waste disposal company. remove the battery before scrapping the unit.
After 5 operating hours
First engine oil change. See engine manual for subsequent intervals.
Use the oil channel or (optional) quick oil drain (Figure 16).
Every 10 operating hours
Clean or replace the air cleaner. See engine handbook.
Every 25 operating hours
- Lubricate all cutter shafts, idlers, and idler mounts with 251H EP type grease applied to their respective grease nipples. This work should be performed at a specialised workshop.
Lubricate the wheel bearings and front wheel axes with a multipurpose grease applied to their respective grease nipples. - Lubricate the cutters' front wheels with a multipurpose grease applied to their grease nipples.
Every 50 operating hours
- Grass residue and other soiling on the drive gears must be removed at a specialised garage.
Every 2 months
Inflate the tyres in accordance with the specifications on their walls.
For battery type 2 only - Fill battery cells with distilled water up to 1cm beneath the filling aperture.
If necessary
Charging the battery
When the appliance is not used for longer periods, we recommend removing the battery from the appliance and charging this before and every two months during storage and before the appliance is again put into operation.
Note
Note the information in the operating instructions for your battery charger.
Replace the fuse
- Replace defect fuses only with the equivalent rating.
Once a season
- Apply multipurpose grease to the teeth on the steering gear.
- Lubricate the steering linkage with a few drops of light oil.
Lubricate all moving parts and bearing surfaces with a few drops of oil (control levers, cutting height adjustment).
Clean the spark plug and check the gap between the electrodes or replace the plug. See engine handbook. - The rear axles must be lubricated with a special-purpose (water-repellent) grease at a specialised garage.
- Have the cutting blade sharpened or replaced in a specialist workshop.
Removing/Installing and adjusting cutter deck
Danger
Injury hazard if engine is started inadvertently
Protect yourself against injury. Before all work on this unit
- Park the appliance on a level surface
- Switch off the engine,
- Take out the ignition key,
- Switch off PTO,
- Actuate the parking brake,
- wait until all moving parts have come to rest and the engine has fully cooled,
- remove the spark plug connector on the engine in order to prevent the engine from accidentally being started.
Danger
Risk of injury from sharp cutting blade.
Wear protective gloves.
Disassembly

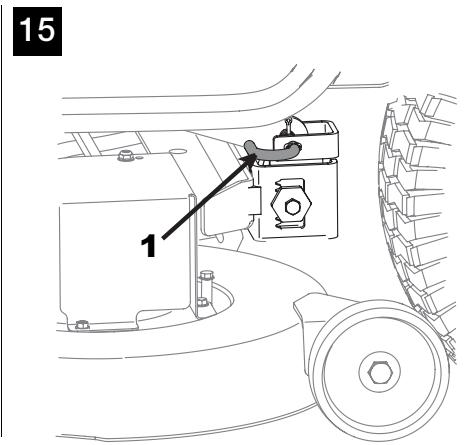

Figure 15
Install the cutter wheels at the highest position.
- Raise the cutters to the top.
- Remove the V belt from the PTO clutch. (motor pulley).
Lower the cutters.
- Withdraw the pin (1) to disconnect the cutters from the suspension.
- Repeat these steps on the left side of the appliance.
NOTE – In doing so, support the cutters firmly so that they cannot simply drop to the ground.
- Move the cutting height setting lever into the top catch.
- Push the cutters forwards and remove the front receiver.
Pull out the cutters (to the right) from beneath the appliance.
Assembly
To reinstall the cutters perform the above steps (for removing the cutters) in reverse order. Work proceeds faster when you are assisted by a second person. Make sure that the suspension units are in their respective recesses on the cutter mount and the pin has engaged correctly.
Setting the cutter level
When mowing does not appear to be parallel to the lawn the cutters can be aligned.
Note
Before aligning the cutters check the tyre pressure on the appliance.
Setting the side level

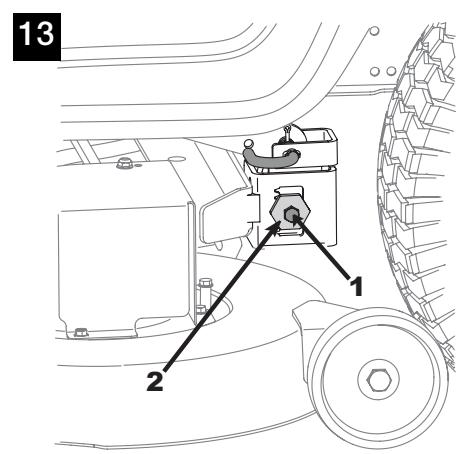

Figure 13
- Raise the cutters to the top.
Carefully turn the outer cutters (risk of injury) transverse to the drive direction.
Measure the distance between the ground and the ends of the two outer cutters. The result should be identical. To obtain the correct level you may have to turn the adjusting segment (2) on the right cutter side. To do so first loosen (but do not remove) the cap bolt (1) and retighten this after the adjustment.
Set the level from front to back

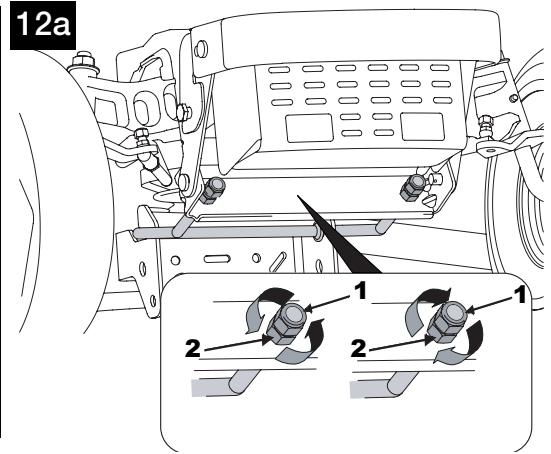

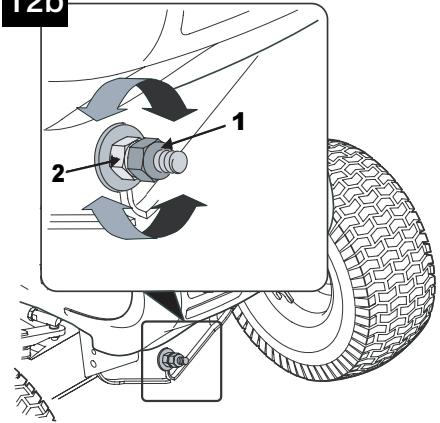

Figure 12
Note
Set / check the side level before this adjustment.
- Raise the cutters to the top.
- Carefully turn the outer cutters (risk of injury) parallel to the drive direction.
Measure the distance between the ground and the end of the right cutter. The end of the front cutter should be about 3.2 - 6mm lower than the end of the rear cutter. You may have to adjust the front receiver (3). To do so, loosen the locknut (1) and turn the setting nuts (2) steadily to obtain the correct level. After setting, retighten the locknuts (1).
Note
Both sides of the receiver must sit evenly over its whole length to the stop in the front cutter mount.
Shutting down the machine
Caution
Damage to mower materials
Store the unit with the engine cooled in a clean, dry enclosure only. Always protect the mower against rust if it is to be left for comparatively long periods, e.g. over the winter.
At the end of the season or if the appliance will not be used for longer than a month:
clean the mower and the grass catcher.
Wipe down all metal parts with an oily cloth or apply oil spray to protect against rust.
- Charge the battery with a battery charger.
Before winterising the appliance, remove the battery. The battery must then be charged and kept in a dry, cool place (protected against frost), and recharged every 4 to 6 weeks and before the next use.
- Drain out the fuel (in an open space) and prepare the engine for storage as described in the handbook for the engine.
Inflate the tyres in accordance with the specifications on their walls.
Store the unit in a clean, dry enclosure.
Warranty
In each country, the warranty conditions issued by our company and/or importer apply.
Defects in the equipment will be rectified by us free of charge during the warranty period where these are the results of flaws in the material or in the manufacture of the equipment. In case of warranty claims, please contact your dealer or nearest branch office.
Engine
The manufacturer of the engine is liable for all engine-related problems with respect to output power, power measurement, specifications, warranty, and service. Informations can be found in the owner/ operator handbook provided separately by the engine manufacturer.
Troubleshooting
Danger
Injury hazard if engine is started inadvertently
Protect yourself against injury. Before all work on this unit
- Switch off the engine,
- Take out the ignition key,
- Actuate the parking brake,
- Wait until all moving parts have come to rest and the engine has fully cooled.
- Disconnect the lead to the spark plugs on the engine so that the engine cannot start inadvertently.
Problems that occur while you are using the mower are often caused by something simple which you will probably be able to rectify yourself. In cases of doubt your specialised garage will be pleased to assist you further.
| Problem | Possible cause(s) | Action |
| Starter does not react. | Safety interlock system has actuated. | To start the engine, first sit down on the driver's seat. Press down fully the brake pedal or engage the locking brake. Switch off the PTO-switch. |
| Battery not connected properly | Connect the red cable to the positive (+) terminal on the battery and the black cable to the negative (-) terminal on the battery. | |
| Starter does not react. | Empty or weak battery. | Check battery, recharge or replace. |
| Fuse has tripped. | Replace the fuse. If the fuse trips repeatedly, find the cause (usually short-circuit). | |
| Loose earth (ground) lead between engine and frame. | Connect the earth (ground) lead. | |
| Starter runs, but engine does not start | Choke and throttle at wrong position. | Actuate the choke. Move throttle to ⿱. |
| Carburettor not receiving any fuel, fuel tank empty. | Top up with fuel. | |
| Defective or dirty spark plug. | Check spark plug; see engine manual. | |
| No ignition spark. | Have ignition checked in repair shop. | |
| Engine emits smoke. | Too much oil in engine. | Switch OFF appliance immediately. Check engine oil level. |
| Engine defective. | Switch OFF appliance immediately. Engine must be checked at specialist garage | |
| Excessive vibration. | Damaged blade drive shaft or defective cutting blade. | Switch OFF appliance immediately. Have defective parts replaced in a specialist workshop. |
| Cutting mechanism does not discharge grass or cuts unevenly. | Engine speed too low. | Increase throttle. |
| Travelling speed too high. | Set to a lower travelling speed. | |
| Cutting blade is blunt. | Arrange for service agent to sharpen or replace blade. | |
| Engine is running, cutter deck is not mowing. | V-belt torn. | Have the V-belt replaced in a repair shop. |
