Contents
For your safety 4
Assembling the appliance . . . . . . 6
Operating safety 6
Tips on lawn care 9
Transporting the appliance . . . . . 9
Servicing/cleaning 10
Laying up the vehicle . 10
Warranty 11
Engine 11
Identifying and eliminating malfunctions 11
These details are very important for identifying your appliance when you order spare parts or contact our aftersales service. The rating plate is found near the engine. Enter all the details on your appliance's rating plate in the following fields.
This and other appliance information can be found on the separate CE declaration of conformity which is a component of these operating instructions.
Illustrations
Fold out the illustrated pages at the start of the operating instructions.
For your safety
Use the appliance properly
This appliance is approved solely for use
When the appliance is fitted with an electric starter, the provided battery charger is intended exclusively to charge the battery fitted in the appliance. The battery must be charged from this battery charger only.
Using the appliance for any other purpose is considered incorrect and unapproved. The user is liable for all damage caused to third parties and their property.
Unauthorized modifications made to the mower rule out any liability on the part of the manufacturer for damage resulting therefrom.
Before using the appliance for the first time, read and follow these operating instructions carefully. Keep these instructions in a safe place for future reference. Never allow children or other persons to use the lawn mower who do not know the operating instructions. If the appliance changes ownership, hand over the operating instructions.
In this section you will find general information about safety.Warnings that apply specifically to individual parts of the appliance, functions or activities are shown at the corresponding point in this user's guide.
Before working with the appliance
Persons using the appliance must not be under the influence of intoxicants, e.g. alcohol, narcotics, medication, etc.
Persons younger than 16 years of age must not use this lawn mower - local regulations can determine the minimum age of the users.
Before you begin work, make that you are familiar with all attachments and operating controls as well as their functions.
Store fuel in approved receptacles only, and never near sources of heat, e.g. ovens, hot water tanks, etc. Fuel the appliance outdoors only.
Do not refill the fuel tank while the engine is running or if it is still hot.
Replace damaged exhausts, fuel tanks, or filler caps.
Before using the appliance, check
-
whether the grass catcher works and the deflector closes correctly. Replace damaged, worn out or missing parts immediately.
-
check for any wearing or damage to the cutters, fastening pins, and the whole cutter unit. All worn or damaged parts must be replaced in sets at a specialist workshop in order to rule out imbalances.
Spare parts must fulfil the requirements laid down by the manufacturer. You should therefore only use original spare parts or those which have been approved by the manufacturer. All repair work must be conducted exclusively at a speciaised garage.
When working with the appliance
When working with or on the appliance you must wear protective clothing. This includes:
- safety shoes,
- trousers,
- close-fitting garments,
- protective goggles, etc.
All safety devices must be installed on the appliance, and they must be complete and in a fully functional condition.
Do not make any changes to the safety devices.
Operate the vehicle only when it is in good technical condition as stipulated and delivered by the manufacturer.
Never change the engine settings preset at the factory.
Keep away from naked flames, avoid creating sparks and do not smoke.
Before all work on this appliance
If the lawn mower has an engine, always turn off it before doing any working on it (e.g. repair work and adjustments) and before transporting it (e.g. lifting or carrying) in order to avoid injury
After working with the appliance
Never leave the unit without switching off the engine and - if used - without removing the ignition key.
Safety devices

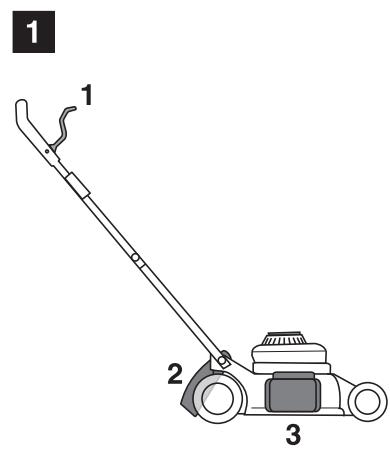

Figure 1
Danger
Never use a lawn mower if it has damaged safety devices or if there are no safety devices fitted.
Safety lever (1)
The safety lever stops the motor and cutting blades in an emergency.
There must be no attempt to circumvent this function, which is crucial for your personal safety.
Ejection flap (2) or impact protection (3)
The ejection flap/impact protection protects you from being injured by the blade or by ejected solid objects. The lawn mower must always be operated with the ejection flap or impact protection.

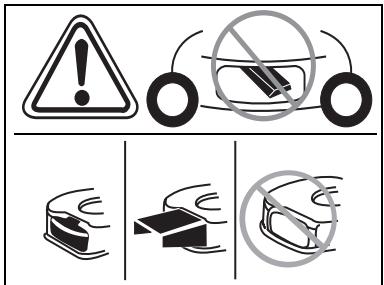

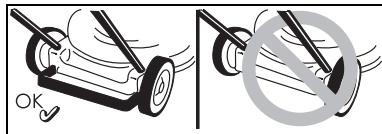

Symbols on the appliance
On the appliance you will find various symbols on adhesive labels. These symbols are explained in the following:
Attention! Before starting up the unit, read the operating instructions!
Keep third parties away from the danger area!
Switch off the engine and remove the ignition key before carrying out any work on the unit and before leaving the unit.
Please follow additional information in the section entitled "For your safety".
Before working on the cutting tools, remove the spark plug connector!
Keep fingers and feet away from the cutting tools! Switch off the lawn mower and remove the spark plug connector before adjusting, cleaning, or checking it.
Never put your hands and/or feet in the vicinity of rotating parts.
Risk of injury by losing your footing - do not work in wet or damp conditions.
Injury hazard due to grass or solid objects thrown out by mower.
No person, especially children, or animals should be allowed to stand within the working area.
Working on steep slopes can be dangerous.
Risk of injury - only work with impact protection mounted.
Risk of injury - only work with tail clamp mounted.
Risk of injury - only work with deflector mounted.
Always keep these symbols on the appliance in a legible state.
Symbols in the user's guide
Symbols are employed in the user's guide to indicate hazards or draw attention to important information. They have the following specific meanings:
Danger
Draws your attention to sources of potential danger associated with the task you are undertaking at the time which constitute a danger to persons.
Caution
Used to highlight hazards which are associated with the activity that is being described, whereby damage could occur to the appliance.
Note
This indicates important information and application tips.
Assembling the appliance
At the end of the operating instructions or as a supplement the assembly of the lawn mower is presented in pictures.
i Disposal instructions
Dispose of packaging remnants, old units, etc., in accordance with local regulations.
Operating safety
Also follow the instructions in the engine handbook.
Danger Accident
- No person, especially children, and/or animals should be allowed to stand close to the mower while it is in use. Risk of injury due to ejected stones or other objects.
Falling over
- Operate the vehicle at walking speed only.
- Be particularly careful when mowing in reverse and pulling the appliance towards you.
- When mowing on steep slopes, there is a risk of the mower tipping over and you could be injured as a result. Mow crossways to the slope, never upwards and downwards. Do not mow on inclines greater than 20% .
- Be particularly careful when changing the direction and always pay attention to a good position.
- Mowing along perimeters involves a risk of injury. Mowing near edges, hedges, or steep inclines is dangerous. Keep a safe distance from perimeters when mowing.
- If the ground is wet the mower could slip due to reduced traction and overturn. Mow only when the grass is dry.
- Work only by daylight or in good artificial lighting.
Injury
- Always maintain a safe distance from the rotating tool by means of the steering handle.
- Never place your hands, feet, or other parts of the body near rotating parts.
-
Turn off the engine and wait until the blade has stopped:
-
before tilting the lawn mower,
-
for transporting over surfaces other than grass,
-
Switch off the engine to prevent the engine from being started unintentionally: Remove ignition key (if used), leave the engine to cool down and remove the sparkplug terminal,
-
before you clear the ejector of blockages and other hindrances,
- before you check, clean, or configure the lawn mower or perform any work on it;
- immediately after a foreign object is hit. Check the appliance for damage, and have any damage repaired at a specialised garage,
-
immediately after the appliance starts to vibrate with unusual violence and before you check the appliance.
-
Never lift or carry the appliance when the engine is running.
- Check the surface on which the appliance is to be used and remove all objects that the appliance can take up and fling out.
- If the cutting tool hits a foreign object (e.g. stone) or if the machine starts vibrating violently: stop the engine immediately. Check the appliance for damage, and have any damage repaired at a specialised garage.
- In the case of mowers with rotary blades, never stand in front of grass ejection holes.

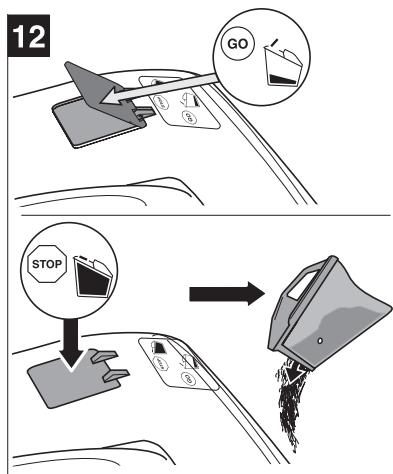

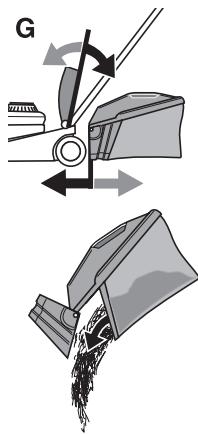

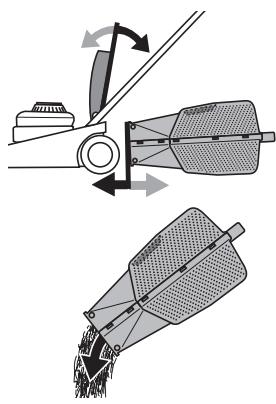

Lawn mowers with grass catchers:
- If you remove the grass catcher, you or other persons might get injured due to ejected, mowed materials or foreign bodies.

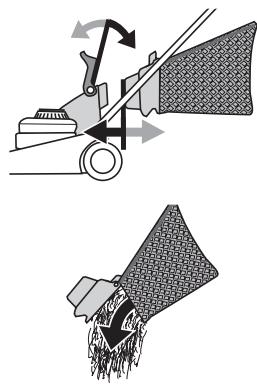

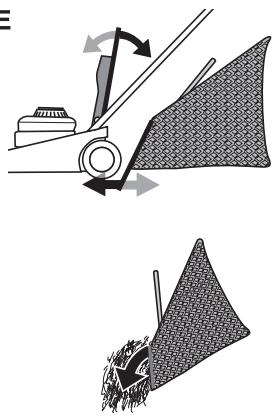

Never empty the grass sack while the engine is running. Switch off the appliance.
Danger of asphyxiation due to carbon monoxide poisoning
Run the internal combustion engine outdoors only.
Explosion and fire hazard
- Petrol vapours are explosive, and petrol is highly flammable.
- Fill the fuel before starting the engine. Keep the fuel tank closed when the engine is running or still hot.
- Fill with fuel only when the engine has been switched OFF and has cooled down. Keep away from naked flames, avoid creating sparks and do not smoke. Fuel the appliance outdoors only.
- Do not start the engine when fuel has spilt. Remove the appliance from the surface soiled with fuel and wait until the fuel vapours have evaporated.
- To avoid fire hazard, please keep the following parts free of grass and escaping oil:
engine
-exhaust
-batteries/storage batteries
petrol tank.
Tripping over
- Operate the mower at walking speed only.
Caution
Damage to the lawn mower
- Stones, scattered branches, and similar objects can damage the machine and impair its correct operation. Remove all objects from the appliance's path before every use.
- Operate the appliance only when it is in good technical condition Subject the appliance to a thorough visual check before using it. In particular, check the safety devices, controls and threaded connections for damage and secure attachment. Replace damaged parts before operating the unit.
Operating times
Comply with the national/municipal regulations concerning the times when the mower may be used (if required, contact your local authority).
i Directions
Specified positions on the unit (e.g. on the left, on the right) are always seen from the steering handle in the working direction of the unit.
Before starting up the unit for the first time
Filling the engine with oil
Caution
The lawn mower is delivered without any lubricating oil due to transportation reasons.
- Therefore, you must fill the engine with oil before putting into operation for the first time. Please see engine manual.

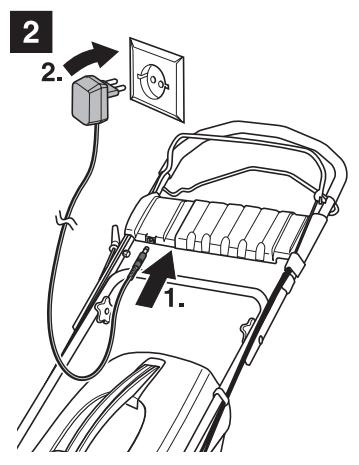

Charge the battery
(appliances with electric starter)
Caution
- Ensure that the power supply operates at 220 - 230 V and 50 Hz according to the specifications on the rating plate of the charger.
- Protect the charger from humidity, rain, snow and frost.
- Only charge the accumulator in a dry area. Do not exceed the maximum charging time of 12 hours.
- Before starting the lawn mower, disconnect the charger from the power supply and unit.
Before using the lawn mower for the first time, charge the storage battery 10 for at least 10 hours. Only use the battery charger included in the delivery.
Note
Disconnect the battery charger in reverse order.
Always make any adjustments before using the unit
Risk of injury
Before all work on this appliance
- Switch off engine,
- Remove the ignition key (if used),
- Wait until all moving parts have come to a standstill; the engine must have cooled down,
- remove the spark plug connector on the engine in order to prevent the engine from accidentally being started.

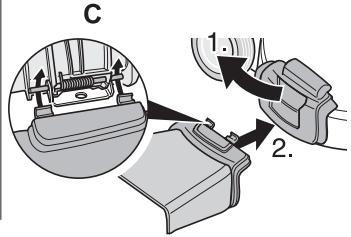

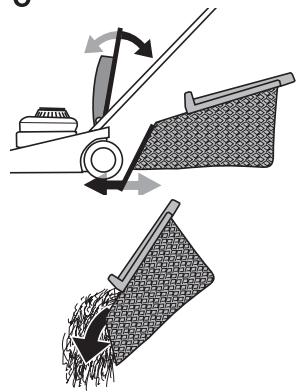

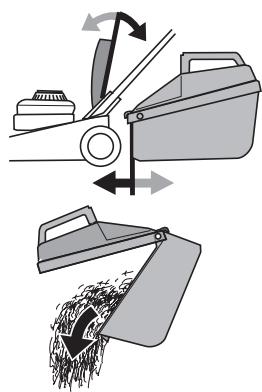

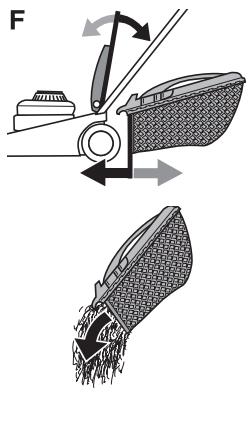

Hang the grass catcher
(only in the case of lawn mowers with grass catchers)
- Lift up the deflector flap and hook the grass sack onto the appliance.
Set the cutting height
Set the cutting height of the grass as required.
Note
If units have individual wheel adjustment, set all wheels to the same height.

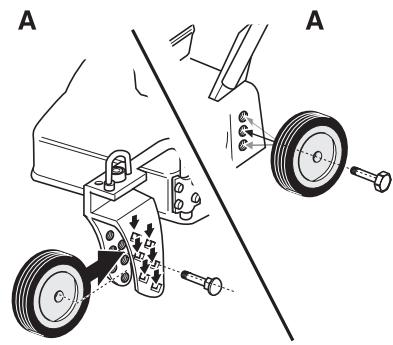

Model A:
- Attach the wheels in the position required

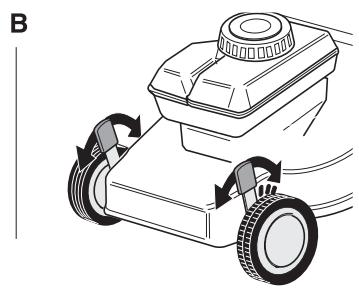

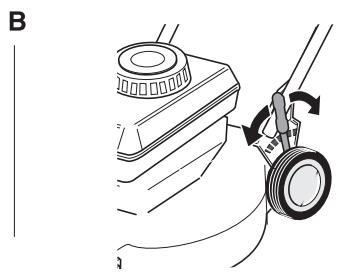

Model B:
Pull the flap and snap into place in the position required

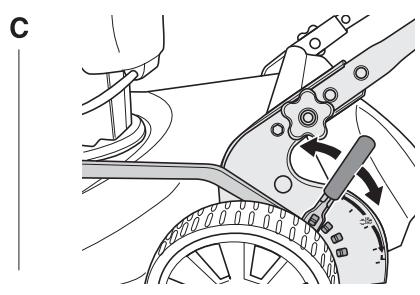

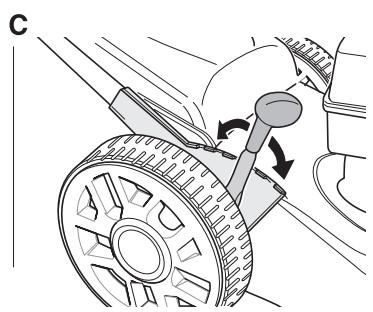

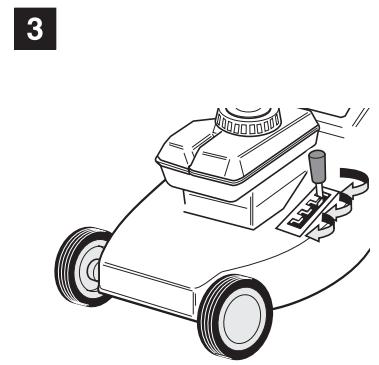

Model C:

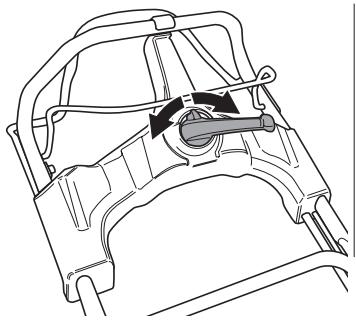

Advance or push back the lever of the central vertical adjustment and snap into place in the position required

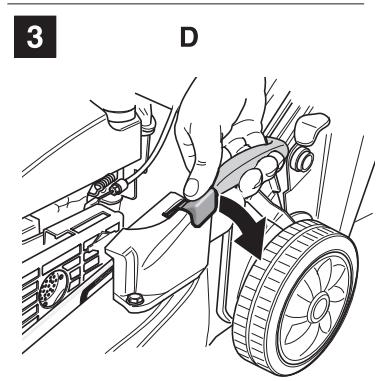

Model D:
- Press the lock button and simultaneously set the required height by either pulling or pressing on the handle. When the lock button is released, the setting selected snaps into place.

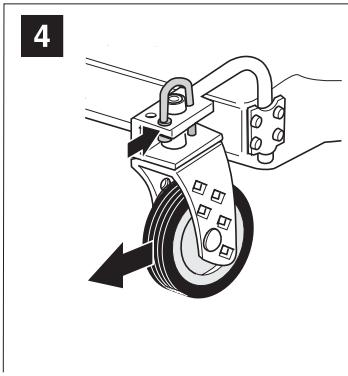

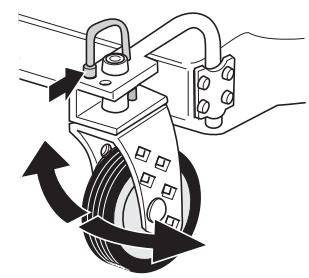

Locking front wheels
(only units with lockable front wheels)
Figure 4
Lock wheels to drive straight ahead - set the wheels in forward position and put hoop into large hole.
Wheels are freely movable - put clamp into large hole.
Filling with petrol and checking oil level
- Fill petrol tank with regular unleaded petrol.
- Fill fuel tank up to max. 2 cm below the lower edge of the inlet nozzle.
- Close fuel tank tightly.
- Check oil level and, if required, top up (see Engine manual).

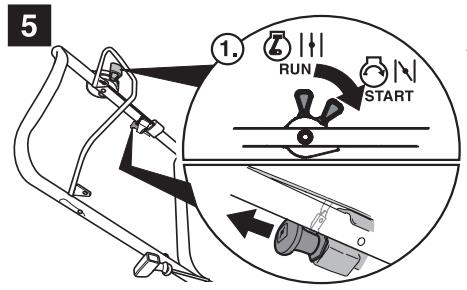

Starting the engine
Figure 5
Danger
To prevent injury:
- do not start the engine when you are standing in front of the ejector;
- Keep hands and feet well away from the cutting blade;
- never place your hands, feet, or other parts of the body near rotating parts; always keep away from the ejector;
Before starting the engine, disengage the clutches for all cutters and drives.
Do not tip the appliance when starting. Keep the appliance on an even surface with little or the shortest possible grass.
Observe the information in the engine manual.
- Some models do not have an throttle. The engine speed is set automatically. The engine always runs at the optimal engine speed.
- Even if the engine is warm, it may be necessary to actuate the choke or the primer.
- Some models have no choke and no primer. The engine is automatically set to the particular starting process.
If the engine is cold:
- Open the fuel tap (if fitted).
Appliances with choke N :
set the choke lever to N, or pull out the choke and set the accelerator lever (if fitted) to max (Fig 5A).
or

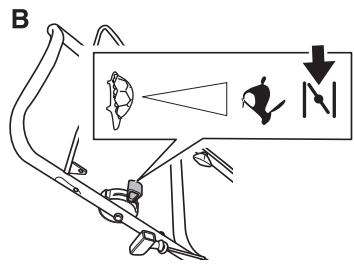

set the accelerator lever to N Fig 5B.
Units with primer:
Press primer forcefully 1-5x and move throttle (if fitted) to 12 -max - (Fig. 5C).
If the engine is warm:
- Open the fuel tap (if fitted).

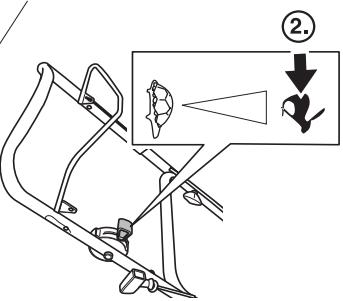

- Set throttle (if available) to 12 /max.
Appliances without electric starter
Figure 5E
- Stand behind lawn mower - Press and hold safety hoop.
- Slowly pull the starter cable grip until you feel resistance, and then pull quickly and strongly. Do not let the starter cable grip snap back, but let it return slowly.
For appliances with electric starter:
Figure 5D
- Disconnect charger from power supply and unit.
- Stand behind lawn mower - Press and hold safety hoop.
- Turn the key on the dashboard to the right and hold until the engine starts (each start attempt should be a maximum of 5 seconds. Wait for 10 seconds before the next start attempt).
Note:
If units feature electric starter, the engine (depending on model) can also be started manually with the pull-starter handle.
When the engine is running:
After starting the engine (depending on the model):
Note
If you need more information about operating the engine, please refer to the engine manual.

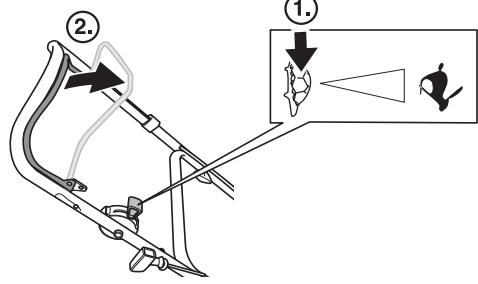

Stopping the engine
Figure 7
- Bring throttle (if available) into position /min.
- Release the safety hoop. The engine and the cutting tool stop after a short time.

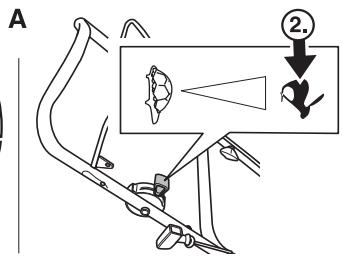

Working with the unit Engaging/disengaging gear drive
(only in the case of lawn mowers with gear drives)
Figure 6A, B, C
Putting gear drive into gear:
Pull and hold the lever/hoop.
Throwing gear drive out of gear:
Release lever/hoop.
Changing drive speed of the wheel drive
(dependently on model)
Caution
Damage to the lawn mower
Make adjustments when the engine is running only.
Figure 6D/E
- Select from the different speeds using the small lever.
Figure 6F
- Select from the different speeds using the lever ( ≈ / max. and ≈ / min).
Detaching and emptying the grass sack
(for lawn mowers without grass catchers)
Figure 11
If cut grass is left lying on the ground or if the level indicator (optional, Fig. 12) indicates that the basket is full:
- Release safety hoop and wait until the engine stops.
- Lift the deflector flap and unhook the grass sack.
Empty out the contents.
Working without the grass sack
Whenever you detach the grass sack, the deflector flap drops down. When working without a grass catcher, the mowed grass is ejected directly downwards.
Retrofitting for mulching
(for units with optional mulcher)

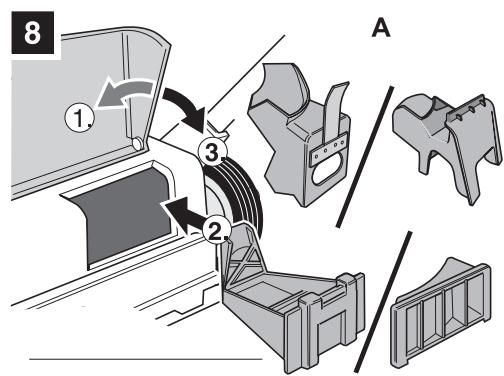

Units with rear discharge:
Figure 8A
- Lift the ejection flap.
Remove the grass catcher.
Insert mulch key (depending on model).
Lower the ejection flap.
Note
Models with integrated mulching function do not require a separate mulch key - a specially shaped rear flap assumes this function (Fig. 8B).

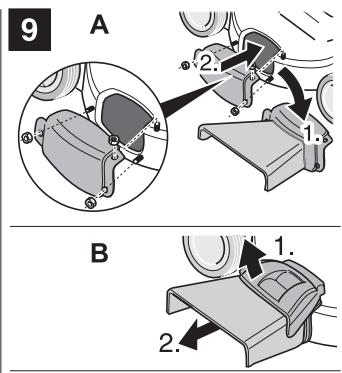

Units with side discharge:
Figure 9
- Attach impact protection/mulch lock instead of the side discharge (Fig. 9A)
or
- Remove side discharge - impact protection/mulch lock closes automatically (Fig. 9B).
Changing units over to side discharge
(dependently on model)
If fitted:
Remove grass catcher and lower the rear discharge flap.
- Lift impact protection/mulch lock and attach side discharge (Fig. 9C).
After finishing work
- Remove the ignition key (if used).
Wait until all moving parts have come to a complete stop and the engine has cooled down.
Turn off the fuel tap (if fitted - see engine manual).
- Disconnect the spark plug terminal on the engine.
Empty the grass sack.
For appliances with electric starter:
- Recharge storage battery for 10 hours.
i Note
Leave engine to cool down before placing unit in closed room.
Tips on lawn care
Here are some tips to help you keep your lawn looking healthy and ensure uniform growth.
Mowing
Lawns consist of various grass types. Frequent mowing promotes the growth of grass, resulting in strong roots and a firm sward. If you seldom cut the grass, you will enhance the development of high-growing types of grass and other weeds, such as clover, daisies).
The normal height of a lawn is approx. 4 - 5cm . Only ^1/_3 of the total height should be mown; therefore cut 7 - 8cm long grass to normal height.
Try not to cut the grass shorter than 4 cm, otherwise the lawn will suffer during dry periods. If the grass has grown particularly high (for example, during a holiday period), cut it back to its normal height in several stages.
Mulching (using the accessories)
The grass is cut into small pieces (approx. 1 cm) and left to lie on the lawn. The lawn therefore retains a lot of nutrients.
For the best possible result the grass must always be kept short, see also section "Mowing".
Observe the following when mulching:
- Do not mow wet grass.
- Never mow more than 2cm
- Mow slowly.
- Use the maximum engine speed.
- Clean the cutters regularly.
Transporting the appliance
Danger
Objects may be caught and ejected by the rotating cutter deck and cause injury and/or damage.
First stop the engine before moving it over surfaces other than grass.
Caution
Spilt fuel pollutes the environment.
The appliance must not be tilted when it is transported.
For transport on or in a vehicle, secure the appliance adequately against slipping.

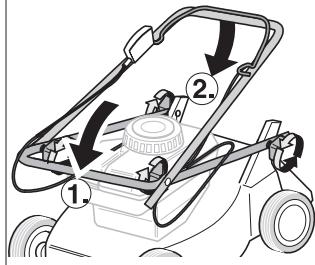

Lawn mowers with collapsible bars:
Figure 10
The steering handle can be folded down to facilitate storage.
Servicing/cleaning
Danger
To protect against injury before all work on the appliance
- switch OFF the engine,
- remove the ignition key (if used).
- wait until all moving parts have come to a complete stop and the engine has cooled down,
- remove the spark plug connector on the engine in order to prevent the engine from accidentally being started.
- which takes into account additional safety information in the engine manual.
Danger
To protect against injury from the cutters, have a specialist garage perform all work such as replacing or regrinding the cutters (special tools required).
Caution
When tilting the unit, always ensure that the spark plug is face up to prevent fuel or oil damaging the engine.
Servicing
Caution
Please observe the maintenance instructions in the engine manual. At the end of the grass-cutting season, have the appliance checked and serviced in a specialist workshop.
Caution
Environmental hazard caused by engine oil.
After changing the oil, take the waste oil to a waste oil collecting point or to a waste disposal company.
Batteries pollute the environment.
Used batteries do not belong in domestic waste. Give used batteries to your dealer or other disposal company. Remove batteries before appliances are scrapped.
Note
Observe the inspection and maintenance intervals in the engine manual.
Before each operation
(only in the case of lawn mowers with gear drives)
- The lawn mower should not drive forwards when the engine is running and when the gear drive is not engaged.
- The lawn mower should drive forwards when the engine is running and the gear drive is engaged.
If necessary, adjust the point of connection using the knurling tool/adjusting nut on the gear drive lever or Bowden cable.
After the first
2-5 operating hours
- Change oil (please see engine manual enclosed).
Each time after mowing or every 8 weeks
(only lawn mower with electric starter)
- Recharge storage battery for 10 hours.
Once a season
- Change oil (please see engine manual enclosed).
Lubricate the pivot points and torsion spring on the ejector cover.
At the end of the season the appliance must be checked and serviced at a specialist garage.
Cleaning
Caution
Clean the appliance after every use. Failure to clean the appliance can damage the materials and cause malfunctions.
Do not clean the unit with a high-pressure cleaner.
Cleaning the grass sack
(only in the case of lawn mowers with grass catchers)
The easiest time to clean the grass catcher is immediately after mowing.
- Detach and empty the grass sack.
The grass sack can be cleaned by means of a powerful jet of water from a garden hose.
- Allow the grass sack to dry out thoroughly before using it again.
Cleaning lawn mower
Danger
Work on the cutters can cause injury. Wear safety gloves for your protection.
Caution
Tilt the lawn mower in such a way that the spark plug is at the top so that the engine is not damaged due to petrol or oil.
Whenever possible, always clean the appliance directly after mowing.
Clean the cutter chamber and the ejector cover with brush, hand broom, or cloth.
- Set the appliance down on its wheels, and remove all visible grass residue and other soiling.
Laying up the vehicle
Danger
Danger of explosion and risk of being burnt.
When there is fuel (petrol) in the tank, never keep the appliance in rooms where fuel vapours can come into contact with naked flames or sparking.
Caution
Damage to mower materials.
Keep the mower only in clean and dry rooms when the engine is cold. Protect the lawn mower when storing it for longer periods of time e.g. against rust in winter.
At the end of the season or when the vehicle will not be used for longer than a month:
- drain off the fuel into a suitable receptacle, and immobilise the engine as described in the engine manual.
Caution
Drain fuel outdoors only.
Clean the appliance and the grass sack.
- To protect metal parts from rust, wipe them all down with an oilied cloth (resin-free oil) or apply an oil spray.
Charge the battery (if fitted).
Warranty
The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.
Engine
The manufacturer of the engine is liable for all engine-related problems with respect to output power, power measurement, specifications, warranties, and service. More detailed information can be found in the owner / operator handbook provided separately by the engine manufacturer.
Identifying and eliminating malfunctions
Malfunctions that occur during the operation of your lawn mower often have simple causes that you should know and be able to repair on your own. In cases of doubt your specialised garage will be pleased to assist you further.
| Problem | Possible cause(s) | Remedy |
| Starter cable resists pulling. | Safety loop has not been pressed. | Press safety loop against the upper bar. |
| Blade is blocked. | Remove spark plug connector and get rid of the blockage. |
| Engine defective. | specialist garage |
| Engine does not start. | Throttle is not in the right position. | Set throttle to position N or CHoke (if the engine is cold). |
| Set throttle to /max position or START (if the engine is warm). |
| Lawn mower is standing in long grass. | Place the lawn mower onto a surface with shorter grass. |
| No fuel in the tank. | Fill tank with clean, fresh fuel. |
| Spark plug terminal not connected. | Connect spark plug terminal. |
| Fuel old or dirty. | Replace with new fuel. |
| Engine does not start. | Air filter clogged | Clean air filter. |
| Carburettor flooded. | Unscrew spark plug, dry it, set throttle to minimum, start several times, screw spark plug back in, restart engine. |
| Choke not actuated. | Actuate the choke. |
| Primer not pressed during cold-start. | Actuate primer. |
| – For lawn mowers with electric starting devices: | Battery discharged. | Charge battery with provided battery charger. |
| Lead damaged. | Check whether electric lead OK. |
| Unusual noises (rattling, clanging, knocking). | Screws, nuts, or other fasteners loose. | Tighten parts. If the noises persist: Contact a specialist workshop. |
| Shaking, vibrations. | Cutter(s) loose. | Cutter fastening screw must be tightened at specialist garage. |
| Cutter(s) damaged. | Cutters must be replaced at specialist garage. |
| Cutters not balanced correctly. | Cutters must be replaced or balanced at specialist garage. |
| Engine not secure. | Engine must be secured at specialist garage. |
| Ragged cut or engine speed drops. | Grass too high. | Set larger cutting height, if necessary mow twice. |
| Grass is left behind or Grass sack is not filled. | Grass too damp. | Let the lawn dry. |
| Ejector clogged. | Switch OFF engine, remove hindrance. |
| Cutters blunt. | Cutters must be replaced or reground at a specialist garage. |
| Insufficient power from motor. | Mow more often. Select a greater cutting height. |
| Grass sack full. | Switch off engine. Unload grass catcher. |
| Dirty grass sack. | Switch off engine. Clean air ducts in the grass catcher. |
| Wheel drive does not work. | V belt torn or gears defect. | Damaged parts must be replaced at a specialist garage. |
