WIRELESS OPTICAL MOUSE 3000 - Souris sans fil MICROSOFT - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Souris optique sans fil
Caractéristiques techniques principales	Technologie optique, connectivité sans fil 2,4 GHz
Alimentation électrique	Pile AA
Dimensions approximatives	11,4 x 6,4 x 3,8 cm
Poids	100 g
Compatibilités	Windows, Mac OS, et autres systèmes d'exploitation compatibles avec USB
Type de batterie	Pile alcaline AA
Tension	1,5 V
Fonctions principales	Défilement fluide, boutons programmables
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter les produits chimiques agressifs
Pièces détachées et réparabilité	Pas de pièces détachées disponibles, réparation limitée
Informations générales	Conception ergonomique, idéale pour une utilisation quotidienne

FOIRE AUX QUESTIONS - WIRELESS OPTICAL MOUSE 3000 MICROSOFT

Mon souris Microsoft Wireless Optical Mouse 3000 ne s'allume pas. Que faire ?

Vérifiez si les piles sont correctement installées et si elles sont chargées. Remplacez les piles si nécessaire.

Le pointeur de ma souris ne se déplace pas correctement.

Assurez-vous que la surface sur laquelle vous utilisez la souris est propre et adaptée. Essayez sur une autre surface ou utilisez un tapis de souris.

Comment puis-je synchroniser ma souris avec mon ordinateur ?

Appuyez sur le bouton de connexion situé sous la souris et sur le récepteur USB connecté à votre ordinateur. Assurez-vous que le récepteur est bien branché.

La connexion de ma souris se déconnecte fréquemment.

Vérifiez la distance entre la souris et le récepteur. Évitez les obstacles qui pourraient interférer avec le signal sans fil. Remplacez les piles si nécessaire.

Comment changer les paramètres de la souris dans Windows ?

Allez dans 'Paramètres', puis 'Périphériques', et sélectionnez 'Souris' pour ajuster les paramètres selon vos préférences.

Ma souris ne fonctionne pas sur un certain ordinateur.

Essayez de connecter la souris à un autre port USB ou de tester un autre récepteur USB si disponible. Assurez-vous que les pilotes sont à jour.

Est-ce que je peux utiliser la souris sur un écran tactile ?

La souris peut être utilisée sur un écran tactile, mais elle est principalement conçue pour être utilisée avec un ordinateur. Les fonctionnalités tactiles peuvent varier.

Comment nettoyer ma souris ?

Éteignez la souris et retirez les piles. Utilisez un chiffon doux et légèrement humide pour nettoyer la surface. Évitez d'utiliser des produits chimiques agressifs.

Est-ce que le Microsoft Wireless Optical Mouse 3000 est compatible avec Mac ?

Oui, la souris est compatible avec Mac, mais certaines fonctionnalités peuvent nécessiter des ajustements dans les paramètres système.

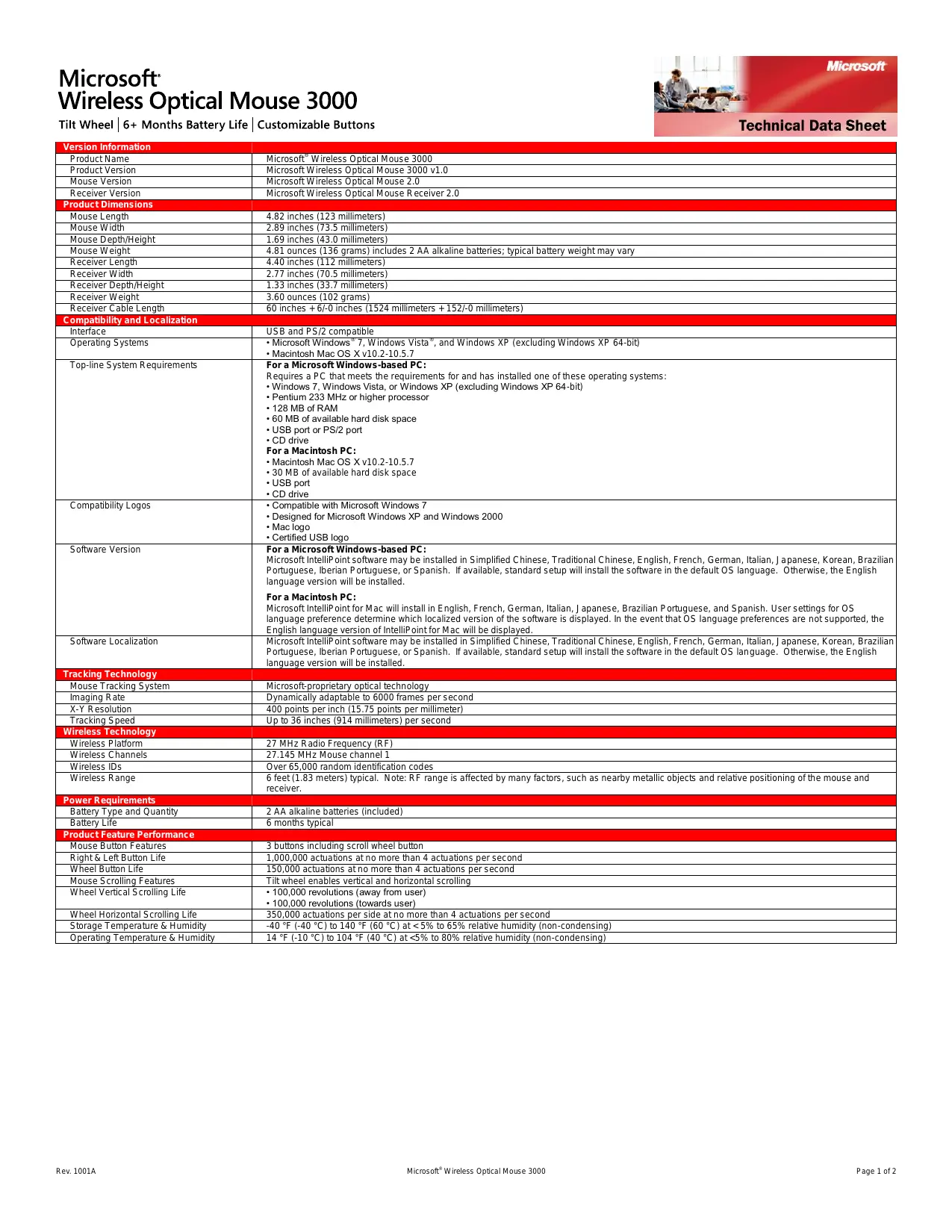

MODE D'EMPLOI WIRELESS OPTICAL MOUSE 3000 MICROSOFT

Version Information
Product Name	Microsoft Wireless Optical Mouse 3000
Product Version	Microsoft Wireless Optical Mouse 3000 v1.0
Mouse Version	Microsoft Wireless Optical Mouse 2.0
Receiver Version	Microsoft Wireless Optical Mouse Receiver 2.0
Product Dimensions
Mouse Length	4.82 inches (123 millimeters)
Mouse Width	2.89 inches (73.5 millimeters)
Mouse Depth/Height	1.69 inches (43.0 millimeters)
Mouse Weight	4.81 ounces (136 grams) includes 2 AA alkaline batteries; typical battery weight may vary
Receiver Length	4.40 inches (112 millimeters)
Receiver Width	2.77 inches (70.5 millimeters)
Receiver Depth/Height	1.33 inches (33.7 millimeters)
Receiver Weight	3.60 ounces (102 grams)
Receiver Cable Length	60 inches + 6/-0 inches (1524 millimeters + 152/-0 millimeters)
Compatibility and Localization
Interface	USB and PS/2 compatible
Operating Systems	• Microsoft Windows® 7, Windows Vista®, and Windows XP (excluding Windows XP 64-bit) • Macintosh Mac OS X v10.2-10.5.7
Top-line System Requirements	For a Microsoft Windows-based PC: Requires a PC that meets the requirements for and has installed one of these operating systems: • Windows 7, Windows Vista, or Windows XP (excluding Windows XP 64-bit) • Pentium 233 MHz or higher processor • 128 MB of RAM • 60 MB of available hard disk space • USB port or PS/2 port • CD drive For a Macintosh PC: • Macintosh Mac OS X v10.2-10.5.7 • 30 MB of available hard disk space • USB port • CD drive
Compatibility Logos	• Compatible with Microsoft Windows 7 • Designed for Microsoft Windows XP and Windows 2000 • Mac logo • Certified USB logo
Software Version	For a Microsoft Windows-based PC: Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed. For a Macintosh PC: Microsoft IntelliPoint for Mac will install in English, French, German, Italian, Japanese, Brazilian Portuguese, and Spanish. User settings for OS language preference determine which localized version of the software is displayed. In the event that OS language preferences are not supported, the English language version of IntelliPoint for Mac will be displayed.
Software Localization	Microsoft IntelliPoint software may be installed in Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Brazilian Portuguese, Iberian Portuguese, or Spanish. If available, standard setup will install the software in the default OS language. Otherwise, the English language version will be installed.
Tracking Technology
Mouse Tracking System	Microsoft-proprietary optical technology
Imaging Rate	Dynamically adaptable to 6000 frames per second
X-Y Resolution	400 points per inch (15.75 points per millimeter)
Tracking Speed	Up to 36 inches (914 millimeters) per second
Wireless Technology
Wireless Platform	27 MHz Radio Frequency (RF)
Wireless Channels	27.145 MHz Mouse channel 1
Wireless IDs	Over 65,000 random identification codes
Wireless Range	6 feet (1.83 meters) typical. Note: RF range is affected by many factors, such as nearby metallic objects and relative positioning of the mouse and receiver.
Power Requirements
Battery Type and Quantity	2 AA alkaline batteries (included)
Battery Life	6 months typical
Product Feature Performance
Mouse Button Features	3 buttons including scroll wheel button
Right & Left Button Life	1,000,000 actuations at no more than 4 actuations per second
Wheel Button Life	150,000 actuations at no more than 4 actuations per second
Mouse Scrolling Features	Tilt wheel enables vertical and horizontal scrolling
Wheel Vertical Scrolling Life	• 100,000 revolutions (away from user) • 100,000 revolutions (towards user)
Wheel Horizontal Scrolling Life	350,000 actuations per side at no more than 4 actuations per second
Storage Temperature & Humidity	-40 °F (-40 °C) to 140 °F (60 °C) at < 5% to 65% relative humidity (non-condensing)
Operating Temperature & Humidity	14 °F (-10 °C) to 104 °F (40 °C) at <5% to 80% relative humidity (non-condensing)
Certification Information
Country of Manufacture	People's Republic of China (PRC)
ISO 9001 Qualified Manufacturer	Yes
ISO 14001 Qualified Manufacturer	Yes
Restriction on Hazardous Substances	This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.
FCC ID	This device complies with part 15 of the FCC Rules and Industry Canada RSS-310. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model numbers: 1008, Wireless Optical Mouse 2.0 and 1013, Wireless Optical Mouse Receiver 2.0. FCC ID: C3K1008.
Agency and Regulatory Marks	·FCC Declaration of Conformity (USA) ·UL and cUL Listed Accessory (USA and Canada) ·RSS-310 and ICES-003 data on file (Canada) ·R&TTE Declaration of Conformity, Safety and EMC (European Union) ·GOST Certificate (Russia) ·VCCI Certificate (Japan) ·ACA/MED Declaration of Conformity (Australia and New Zealand) ·BSMI Certificate (Taiwan) ·CITC Letter (Kingdom of Saudi Arabia) ·MIC Certificate (Korea) ·CMII Certificate (China) ·MIC Certificate (Israel) ·NTC Certificate (Philippines); ·WEEE (European Union) ·EIP Pollution Control Mark, EPUP (China) ·CB Scheme Certificate (International)
Windows Hardware Quality Labs (WHQL)	ID: 1360203 Microsoft Windows 7

Results stated herein are based on internal Microsoft testing. Individual results and performance may vary. Any device images shown are not actual size. This document is provided for informational purposes only and is subject to change without notice. Microsoft makes no warranty, express or implied, with this document or the information contained herein. Review any public use or publications of any data herein with your local legal counsel.

©2010 Microsoft Corporation. The names of actual companies and products mentioned herein may be trademarks of their respective owners.
