Milan M18B - Haut-parleur Turbosound - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Caisson de basses amplifié
Marque	Turbosound
Modèle	Milan M18B
Dimensions (H x L x P)	560 x 520 x 600 mm
Poids	32 kg
Puissance amplificateur	1000 W RMS
Réponse en fréquence	35 Hz - 150 Hz
Haut-parleur	18" à bobine mobile de 3"
Impédance d’entrée	10 kΩ (symétrique)
Sensibilité	98 dB SPL (1 W / 1 m)
Pression acoustique maximale	128 dB SPL (crête)
Angle de couverture	360° (omnidirectionnel)
Connecteurs d’entrée	XLR femelle symétrique, Jack 6,35 mm symétrique
Connecteurs de sortie	XLR mâle symétrique (loop-through)
Alimentation	100-240 V AC, 50/60 Hz
Consommation électrique	200 W (moyenne), 400 W (crête)
Fonctions principales	Contrôle de volume, filtre coupe-bas, phase switch, limitation thermique et de crête
Entretien et nettoyage	Nettoyer avec un chiffon sec et doux. Ne pas utiliser de produits abrasifs ni de liquides.
Sécurité	Ne pas exposer à l’humidité, ne pas obstruer les aérations, utiliser une prise mise à la terre.
Pièces détachées et réparabilité	Référence haut-parleur : MILAN18BSP, disponible auprès du service après-vente.
Informations générales	Enceinte bass-reflex avec évent arrière. Idéal pour les applications live et installation fixe.

FOIRE AUX QUESTIONS - Milan M18B Turbosound

Comment brancher le caisson Milan M18B à une table de mixage ?

Utilisez un câble XLR symétrique de la sortie de la table (Main Out ou Sub Out) vers l’entrée XLR du caisson. Réglez le volume au minimum avant d’allumer.

Quel type de câble utiliser pour relier deux caissons en chaîne ?

Utilisez un câble XLR mâle-femelle de la sortie loop-through du premier caisson vers l’entrée du second. Assurez-vous que la polarité est respectée.

Comment régler le filtre coupe-bas (Low Cut) ?

Tournez le potentiomètre Low Cut dans le sens horaire pour augmenter la fréquence de coupure (généralement de 30 à 150 Hz). Ajustez selon les enceintes satellites utilisées.

Que faire si le caisson ne s’allume pas ?

Vérifiez le câble d’alimentation, le fusible (sur le panneau arrière) et que la prise secteur fonctionne. Si le voyant Power ne s’allume pas, contactez le SAV.

Comment utiliser le switch de phase ?

Le switch Phase (0°/180°) permet d’inverser la polarité du signal. Placez-le sur la position qui donne le niveau de graves le plus élevé à l’écoute.

Quelle est la consommation électrique du Milan M18B ?

La consommation moyenne est d’environ 200 W, avec des pics à 400 W. Utilisez un circuit électrique adapté (minimum 10 A).

Puis-je utiliser le caisson en extérieur ?

Oui, mais protégez-le de la pluie et de l’humidité. Placez-le sur une surface stable et éloignez-le des projections d’eau.

Comment nettoyer le caisson ?

Débranchez l’appareil, puis essuyez la surface extérieure avec un chiffon doux et sec. N’utilisez jamais de produit liquide ou abrasif.

Que faire en cas de distorsion ou de saturation ?

Réduisez le volume de la source ou du caisson. Vérifiez que le gain d’entrée n’est pas trop élevé. Si le voyant Limit s’allume, baissez le niveau pour éviter d’endommager le haut-parleur.

Où trouver les pièces de rechange ?

Contactez le service après-vente Turbosound ou un revendeur agréé. La référence du haut-parleur est MILAN18BSP.

MODE D'EMPLOI Milan M18B Turbosound

Installedsound

• High-performance 2,200-Watt band-pass subwoofer for PA applications
- Powerful long-excursion 18" bass driver delivers extreme low frequency energy
- Advanced processor dynamically optimises sound quality at all levels and protects driver
- Sophisticated Class-D amplifier with comprehensive over-excursion, thermal and clip limit protection
- Lightweight birch plywood cabinet, screwed and glued for absolute rigidity
- Comfortable rear handles and heavy duty wheels for easy handling and transportation
- LF boost control with variable frequency allows stereo EQ to be tuned to sound great in any venue
- Left and right stereo inputs and outputs enable two mid-highs to be used with one subwoofer
• Power, signal and limit LEDs for comprehensive system monitoring
- Pole mount socket for mounting loudspeakers at the correct height above the subwoofer
- Designed and engineered by TURBOSOUND in England

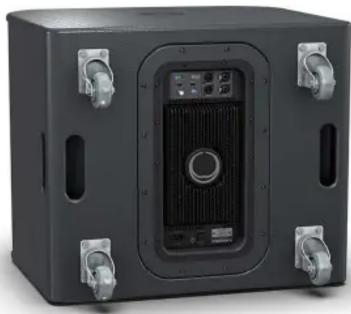

Milan M18B

2200-Watt 18" Powered Subwoofer

The Milan M18B is powered 18" bandpass subwoofer that extends the frequency range and increases the overall loudness of any Milan system.

The bandpass design produces high bass energy within the pass band, which is tuned to reinforce bass instrument frequencies, and the steep cut-off slopes ensure an effective acoustic transition to Milan full-range loudspeakers.

The onboard Class-D amplifier provides over 2,200 watts of maximum output power with plenty of headroom to power the long-excision bass driver, allowing short term transients to be reproduced with wide dynamic range. Two discrete balanced XLR inputs plus corresponding thru connections on balanced male XLR allow a stereo system comprising of two Milan full-range loudspeakers to be operated with only one subwoofer if required, the sub-bass frequencies being filtered and summed to the subwoofer drive unit. A switchable 6dB boost is available at a centre frequency between 40Hz and 90Hz, while an overall level control allows the sub-bass frequencies to be balanced with the system. A polarity switch is provided for optimum subwoofer integration. Rear panel LEDs indicate power on, signal present, and the onset of limiting action.

The birch plywopod cabinet is equipped with heavy duty wheels to aid handling and transportation, while the pole mount socket allows Milan full range loudspeakers to be mounted on top of the subwoofer with a minimal footprint.

Milan

series

MUSIC Group IP Ltd.

Trident Chambers, Wickhams

Cay, P.O. Box 146, Road Town,

Tortola, British Virgin Islands

t: [phone]

f: [phone]

e: [e-mail]

w: www.turbosound.com

Milan M18B

2200-Watt 18" Powered Subwoofer

DIMENSIONS (HxWxD)	590 x 640 x 530 mm (23.2 x 25.2 x 20.9")
NET WEIGHT	48kg (105.6lbs)
COMPONENTS	1 x 18" (457mm) LF driver
FREQUENCY RESPONSE	40Hz-100Hz ±3dB, 30Hz-150Hz -10dB
MAXIMUM SPL	134dB peak (half space)
BOOST FREQUENCY	+6dB @ 40Hz-90Hz, Q=1
CONSTRUCTION	Birch plywood, screwed and glued
CONNECTORS	Input: 2 x female XLR wired pin 2 hot; Thru: 2 x male XLR wired pin 2 hot;IEC mains connector with integrated fuseholder
CONTROLS	Level, Polarity, Boost, Boost Frequency
INDICATORS	Power LED (blue), SIG LED (green), LIMIT LED (red)
AMPLIFIER	Type: Class-DMax Output Power: 2200 WInput Sensitivity: +4dBu @ centre position for full rated powerInput Impedance: 10kΩ unbalanced, 20kΩ balancedAmplifier Protection: Full short circuit, thermal, overcurrent, DC
MAINS VOLTAGE	USA / CAN: 100-120 V~ (T 12 A H 250 V)UK / AUS / EUR: 220-240 V~ (T 6.3 A H 250 V)CN: 220-240 V~ (T 6.3 A H 250 V)JP: 100-120 V~ (T 12 A H 250 V)
POWER CONSUMPTION	280 W @ 1/8 max power
SPARES & ACCESSORIES	LS-1819 Low frequency driverRC-1819 Recone kitAMP-M15BM18B Replacement amplifier assembly
MORE INFO	More information can be found on our website: www.turbosound.com

Milan M18B

2200-Watt 18" Powered Subwoofer

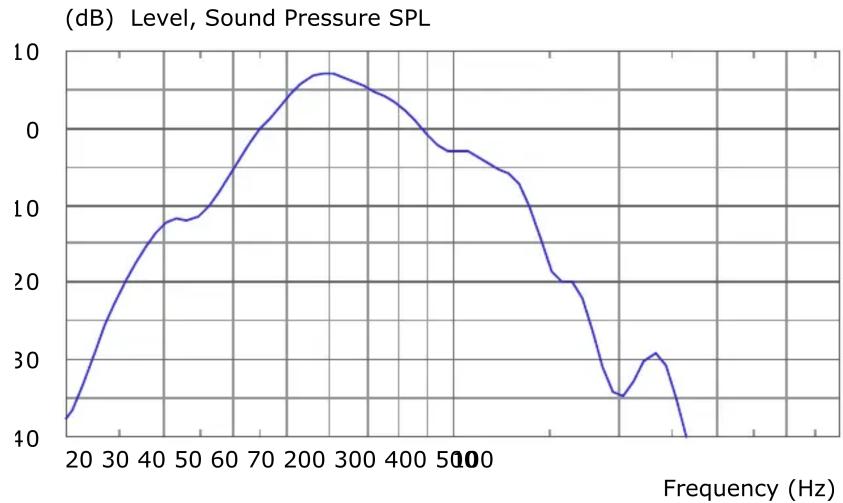

Frequency Response

livesound

portablesound

installed sound

Milan M18B

2200-Watt 18" Powered Subwoofer

A&E

Specifications

The system shall be of the bandpass type consisting of one 18" (457mm) low frequency loudspeaker together with an integrated Class-D amplifier. Performance specifications of a typical production unit shall meet or exceed the following: Frequency response, measured with swept sine wave input, shall be flat within ±3dB from 40Hz to 100Hz, and within -10dB from 30Hz to 150Hz. Maximum SPL (peak) measured with music program input shall be 134dB in half space.

Dimensions: 590mm high x 640mm wide x 530mm high (23.2" x 25.2" x 20.9"). Net weight: 48kg (105.6lbs). The loudspeaker system shall be the Turbosound Milan M18B. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verify that the above combined performance / size specifications are equalled or exceeded.

Dimensions

TOP BOTTOM

FRONT SIDE

REAR

Limited Warranty and Service Information

For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Warranty, please see complete details online at www.music-group.com/warranty.

For service, support or more information contact the TURBOSOUND location nearest you.

Europe: MUSIC Group Services UK. Tel: [phone] Email: [e-mail]

USA/Canada: MUSIC Group Services NV Inc. Tel: [phone] Email: [e-mail]

Japan: MUSIC Group Services JP K.K. Tel.: [phone] Email: [e-mail]

Copyright © 2013 MUSIC Group IP Ltd. All rights reserved. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA and TURBOSOUND are part of the MUSIC Group (music-group.com). The information contained herein is correct at the time of printing. Technical specifications and appearance are subject to change without notice. Colors and specifications may vary from actual product. MUSIC Group IP Ltd. accepts no liability for any damages or loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. All trademarks are the property of their respective owners. Products are sold through authorized Fullfillers and Resellers only. Fullfillers and Resellers are not agents of MUSIC Group IP Ltd. or any of its affiliates and subsidiaries, and have absolutely no authority to bind MUSIC Group IP Ltd. by any express or implied undertaking or representation.

MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands.
