MODE D'EMPLOI Foil RC Pro SCOTT

2023 SCOTT

FOIL RC

MANUAL

CONTENT

THE FOIL RC SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

GEOMETRY & TECHNICAL DATA 03

SEAT CLAMP ADJUSTMENT 04

SEATPOST ASSEMBLY FOR DUNCAN SL AERO & AERO COMFORT 06

CABLE ROUTING 07

SPARE PARTS 08

MANUFACTURE'S GUARANTEE 11

LEGEND

TORQUE REQUIRED

NO GREASE REQUIRED

GREASE REQUIRED

CARBON GREASE REQUIRED

THREADLOC REQUIRED

BEARING FIT REQUIRED

TORX TOOL SIZE

TORQUE AMOUNT

TASK DIFFICULTY

HEX TOOL SIZE

GEOMETRY & TECHNICAL DATA

Max/Min Rotor Size:

Front Max/Min 180mm / 160mm

Rear Max/Min 160mm / 140mm

Headset:

Top: 44×35×5.5 / 36°-45°

Bottom: 40×52×7 / 45° - 45°

Max Tyre Size:

30mm

BB Housing:

41×86.5mm

Fork Steerer:

1 - 1 1/2 inch

Axle Dimensions:

Front: 100mm Rear: 142mm

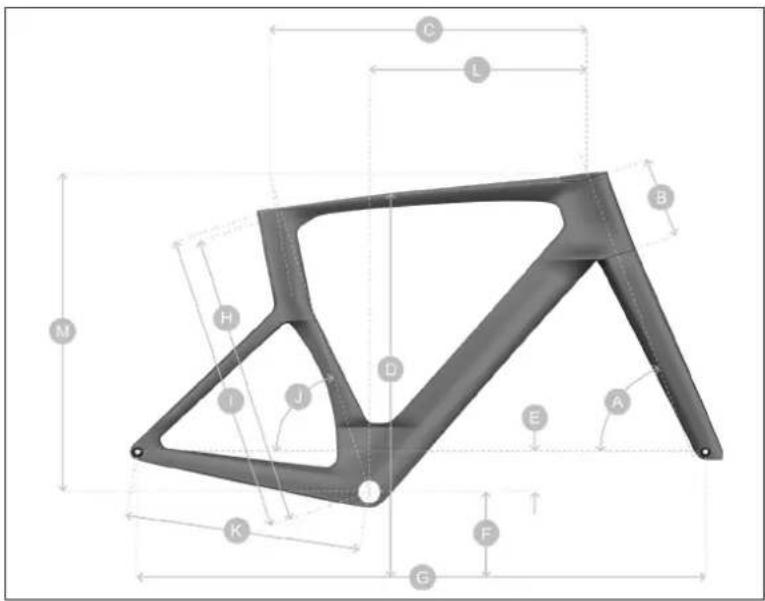

MY22 FOIL RC			47 XXS	49XS	52 S	54 M	56 LG	58 XL	61 XXL
A Head tube angle		°	70.5	71	72	72.5	73	73.3	73.3
B	Head tube length	mm	103	108	121	141	161	181	199
C	Top tube horizontal	mm	520	530	540	550	565	580	600
D	standover height	mm	746.4	759.6	779.4	801	820	838	853.3
E	BB offset	mm	-70	-70	-70	-70	-70	-70	-70
F	BB height	mm	274.5	274.5	274.5	274.5	274.5	274.5	274.5
G	Wheelbase	mm	987.7	993.7	990.7	992.6	999.9	1008.6	1022.7
H	BB center to TTC	mm	450.8	480.9	501.4	521.6	541.4	558.8	571.4
I	BB center to TST	mm	451.8 481.9		502.4 522.6	542.4	559.8 572.4
J	Seat angle	°	74.5	74.5	74	73.6	73.3	73	72.5
K	Chainstay	mm	412	412	412	412	412	412	412
L	Reach	mm	380	388	389	389	394.5	400	409
M	Stack	mm	505	511	527	548	568	589	606
	Fork Rake	mm	45	45	45	45	45	45	45
	Trail	mm	73.5	70.3	64	60.8	57.7	55.8	55.8

FOIL RC

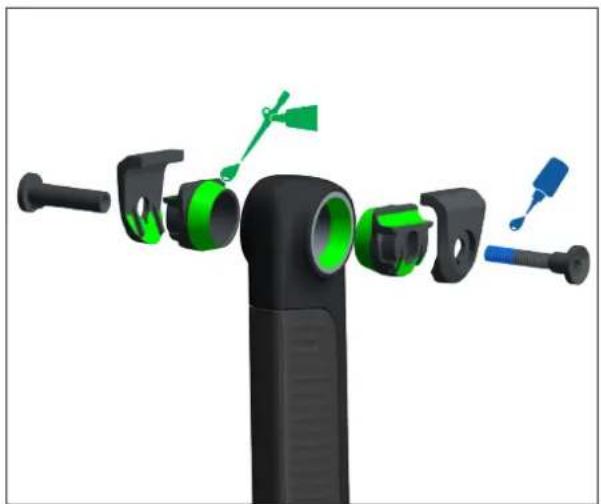

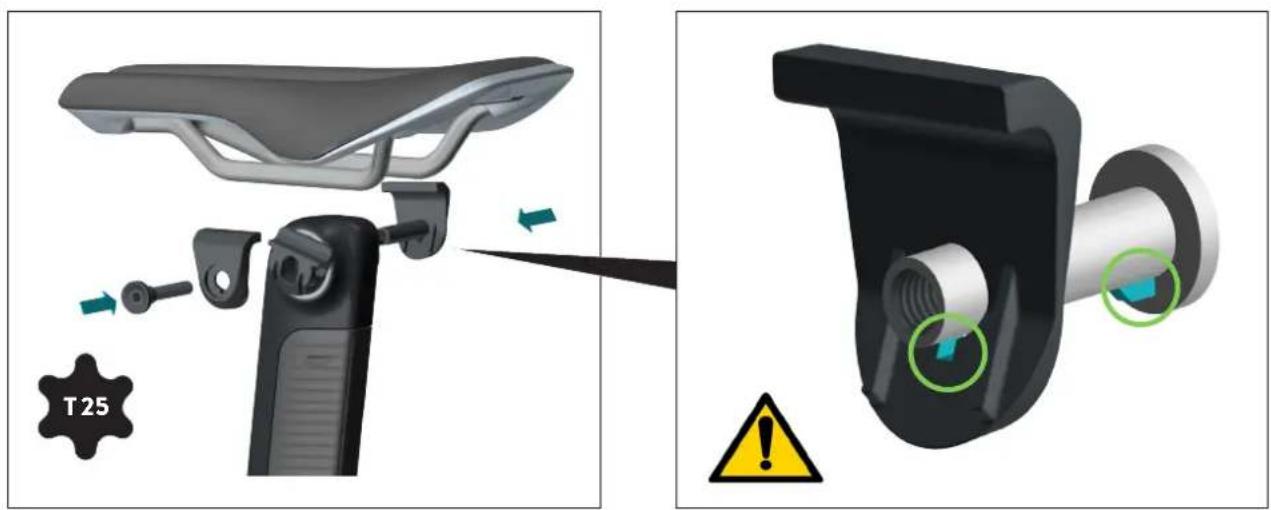

SADDLE CLAMP ADJUSTMENT

01

02

03

04

FOIL RC

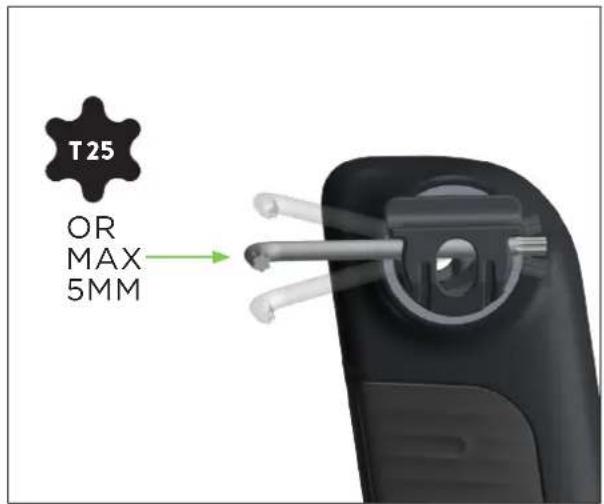

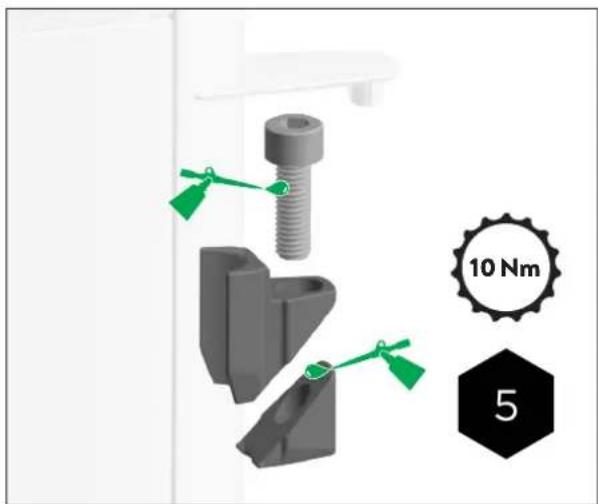

SADDLE CLAMP ADJUSTMENT *CONTINUED

05

06

07

FOIL RC

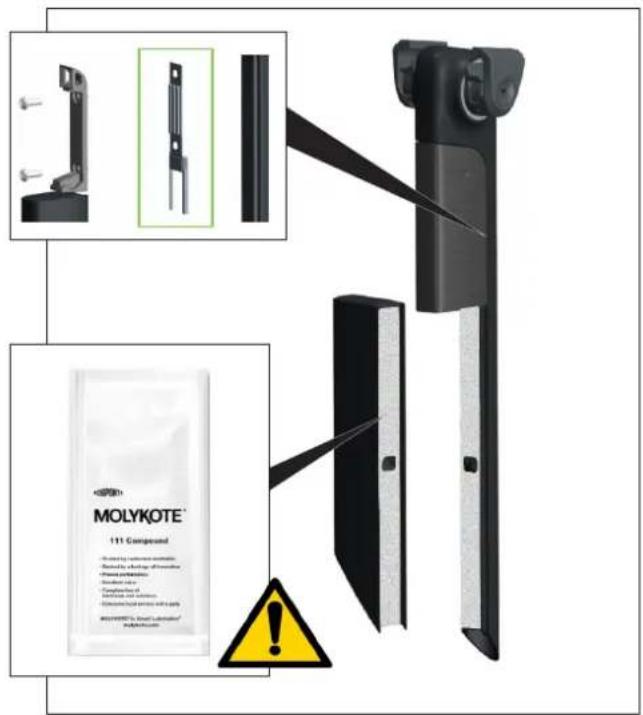

SEATPOST ASSEMBLY FOR DUNCAN SL AERO & AERO COMFORT

02 1000 KMS

* Duncan SL Aero Comfort

Carbon Grease

Duncan SL Aero Comfort & Duncan SL Aero

292895 SYN S.post Duncan SL Aero CFT, Omm

292896 SYN S.post Duncan SL Aero CFT, 15mm

292893 SYN S.post Duncan SL Aero, Omm

292894 SYN S.post Duncan SL Aero, 15mm

For XXS, XS, and Small sized frames the seatpost may need to be cut down in length to accommodate the rider's leg length and position.

Please contact your authorized Scott Dealer for assistance as you could damage your frame if carried out incorrectly.

03

FOIL RC

CABLE ROUTING

Mechanical Cable and Brake Hose routing.

Di2 Wire Routing.

FOIL RC

SPARE PARTS

297731 SCO Axle Foil 3/Plasma 7 F 23

297732 SCO Axle Foil 3/Plasma 7 R 23

296234 SCO Headset expander Foil 23

grease bolt thread only

296236 SCO Stem hardware kit Creston IC Aero 23

297669 SCO Headset top cap Foil 23

296233 SCO Headset Spacer Creston IC Aero 23

296235 SCO Stem steerer cap Creston IC Aero 23

FOIL RC

SPARE PARTS

296237 SCO Stem Hardware Kit Creston Ic Aero 23

296242 SCO BB DI2 battery mount Foil 23

296240 SCO Seatpost saddle clamp kit Foil 23

296239 SCO Seatpost clamp Foil 23

296241 SCO Seatpost rubber cover Foil 23

296238 SCO Bar Rubber Creston 1.0 Aero 23

FOIL RC

SPARE PARTS

296605 SCO Dropout Foil /Plasma DM 23 277544 SCO Dropout Addict RC 20

296243 SCO FD-Mount and blank Foil 23

MANUFACTURER'S GUARANTEE,

When purchasing a new SCOTT bicycle from an authorized SCOTT dealer, SCOTT grants a manufacturer's guarantee subject to the following provisions.

CONDITIONS

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.

DURATION

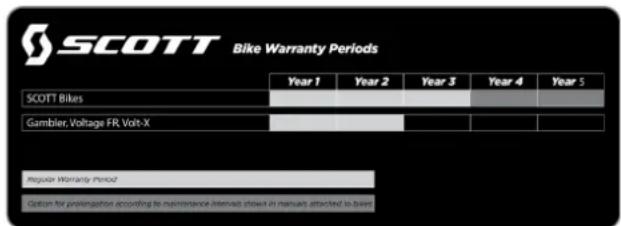

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the SCOTT manual and must be confirmed there by the stamp and signature of the authorized SCOTT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer's guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.

ASSERTION

The manufacturer's guarantee is provided by SCOTT Sports SA, Route du Crochet 11, 1762 Givisiez, Switzerland. The buyer must inspect the SCOTT bicycle immediately after purchase and notify his authorized SCOTT dealer at once in writing of any obvious defects. Hidden defects must be reported immediately after their discovery. In the event of a guarantee claim, the SCOTT bicycle must be handed over to an authorized SCOTT dealer. The latter will contact SCOTT to remedy the defect. The assertion of a guarantee claim always requires the presentation of the original proof of purchase as well as the proof of maintenance service in the SCOTT manual.

Performance of SCOTT in the event of a guarantee claim

In the event of a guarantee claim, SCOTT will, at its own discretion, repair the defect or replace the defective product with a product of similar quality, whereby colour and model deviations are possible. If a repair or replacement is not possible, a purchase price refund will be made taking into account previous use. SCOTT is entitled to commission third parties to remedy the defect.

LIMITATIONS

The manufacturer's guarantee applies exclusively to frames, swingarms and rigid forks of SCOTT bicycles. Bicycle components are excluded from this manufacturer's guarantee.

The manufacturer's guarantee does not apply to normal wear and tear, damage caused by accidents or other excessive force on the SCOTT bicycle, corrosion, improper maintenance, incorrect assembly and assembly of unsuitable components or accessories as well as cosmetic defects, for example in the varnish.

The manufacturer's guarantee does not apply to SCOTT bicycles that have been used in a rental shop.

MISCELLANEOUS

These manufacturer's guarantee provisions apply to all SCOTT bicycles as of model year 2023. Statutory warranty rights of the buyer and guarantees of component manufacturers (Shimano,

SRAM etc.) remain unaffected by this manufacturer's guarantee.

The place of jurisdiction for all disputes in connection with this manufacturer's guarantee is Freiburg, Switzerland. This manufacturer's guarantee is subject to Swiss law to the exclusion of all legislation that refers to foreign law.

© SCOTT Sports SA 2022. All rights reserved.

The information contained in this manual is in various languages but only the English version will be relevant in case of conflict.

P.E.D Zone C1, Rue Du Kiell 60 | 6790 Aubange | BelgiumDistribution: SSG (Europe) Distribution Center SA SCOTT Sports SA | 11 Route du Crochet | 1762 Givisiez | 2022 SCOTT Sports SA www.scott-sports.com Email: [e-mail]
