MODE D'EMPLOI Voltage eRIDE 900 SCOTT
2024 SCOTT
VOLTAGE eRIDE MANUAL
CONTENT
THE VOLTAGE eRIDE SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.
Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.
GEOMETRY & TECHNICAL DATA 03
HEADSET ADJUSTMENT 05
SETTING SAG 06
TWINLOC
TQ SYSTEM MANUALS 07
TQ SPARE PARTS 08
CABLE ROUTING 10
GENERAL SPARE PARTS 11
MANUFACTURE'S GUARANTEE 14
07
LEGEND
TORQUE REQUIRED
TASK DIFFICULTY
TORX TOOL SIZE
HEX TOOL SIZE
TORQUE AMOUNT
GREASE REQUIRED
NO GREASE REQUIRED
CARBON GREASE
THREADLOC REQUIRED
BEARING FIT REQUIRED
GEOMETRY & TECHNICAL DATA
| SEATPOST | mm | 31.6 | HARDWARE M.FRAME | mm | Trunnion |
| SEATPOST CLAMP | mm | 34.9 | HARDWARE LINKAGE | mm | 8 x 20 |
| TRAVEL | mm | 155 Rr 160 Fr (920) 150/155 | MAX TYRE WIDTH | in | 2.6 |
| MAIN PIVOT / CHAINSTAY | mm | 61802-2RS x 2 | |||
| SHOCK LENGTH | mm | 185 | LINKAGE / SEATTUBE | mm | 61806-2RS x 2 |
| SHOCK STROKE | mm | 55 | SEATSTAY / CHAINSTAY | mm | 61801-2RS x 4 |
| MAX ROTOR | mm | 203 Rr 203 Fr | CHAINLINE | mm | 55 |
| MAX CHAINRING | Tooth | 34 |
| 2024 VOLTAGE eRIDE | SM | MED | LG | XL | |
| A Head tube angle | ° 63.9 63.9 63.9 63.9 | ||||
| B Head tube length | mm 110 110 120 130 | ||||
| C Top tube horizontal | mm | 580 | 600 | 630 | |
| D standover height | mm | 765 | 765 | 772 | |
| E BB offset | mm | 27 | 27 | 27 | |
| F BB height | mm | 350 350 350 350 | |||
| G Wheelbase | mm | 1233 | 1253 | 1285 | |
| I BB center to TST | mm | 405 | 425 | 450 | |
| J Seat angle | ° | 77.1 | 77.1 | 77.1 | |
| K Chainstay | mm | 455 | 455 | 455 | |
| L Reach | mm | 437 | 457 | 485 | |
| M Stack | mm | 622 | 622 | 631 | |
| Fork Length | mm | 44 | 44 | 44 | |
| Trail | mm | 136 | 136 | 136 | |
VOLTAGE eRIDE
GEOMETRY & TECHNICAL DATA CONT.
Please observe the maximum seatpost insertion so not to damage the frame.
Small: 190 mm Max Insertion
Medium: 210 mm Max Insertion
Large: 235 mm Max Insertion
X-Large: 265 mm Max Insertion

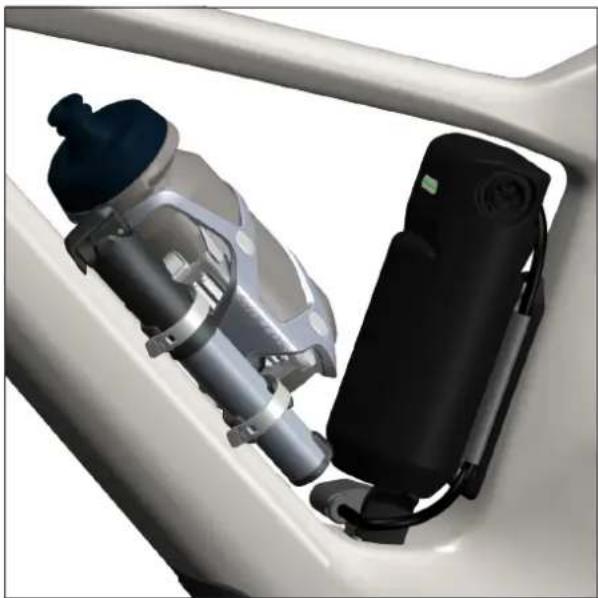

A 500 ml water bottle (with a side entry cage) and a TQ Range Extender can be used on all frame sizes.
VOLTAGE eRIDE
HEADSET ADJUSTMENT

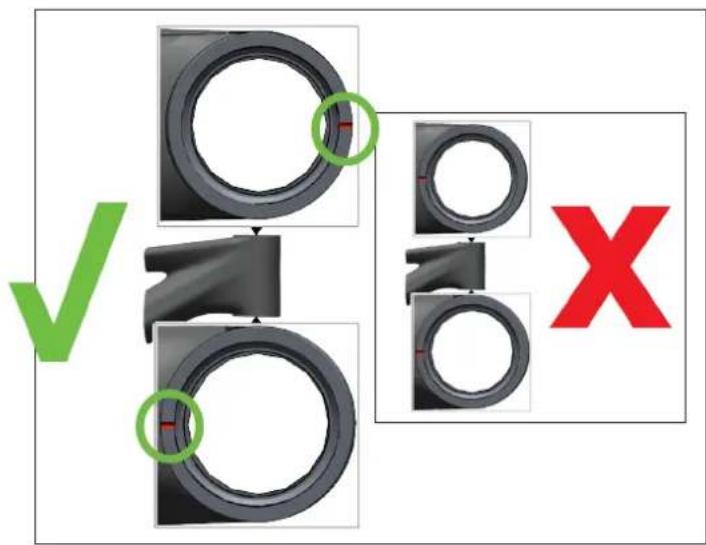

It is important to install the headset correctly depending on the set up required. There are two types of headset cups.

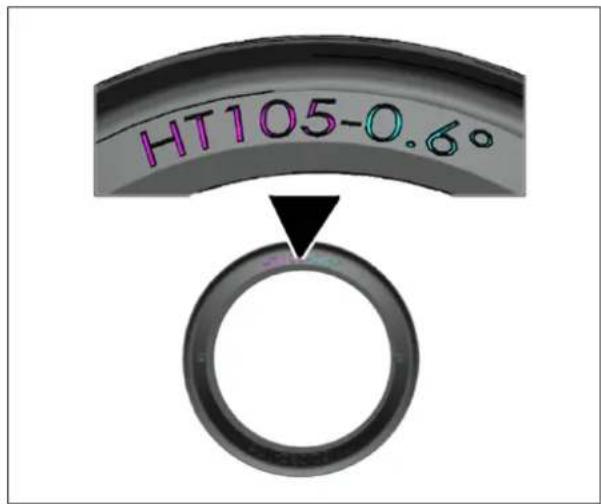

0° & 0.6° (64° & 65°) These can be identified from the stamp on the inner surface of the headset cup.
The headset is available in two options:
288251 SYN HEADSET ZS56/28.6-ZS56/40 MTB 290060 SCO HEADSET CUP KIT SPARK 22
Do not use a standard headset tool to remove these plastic headset cups.
Slacker
Steeper
VOLTAGE eRIDE

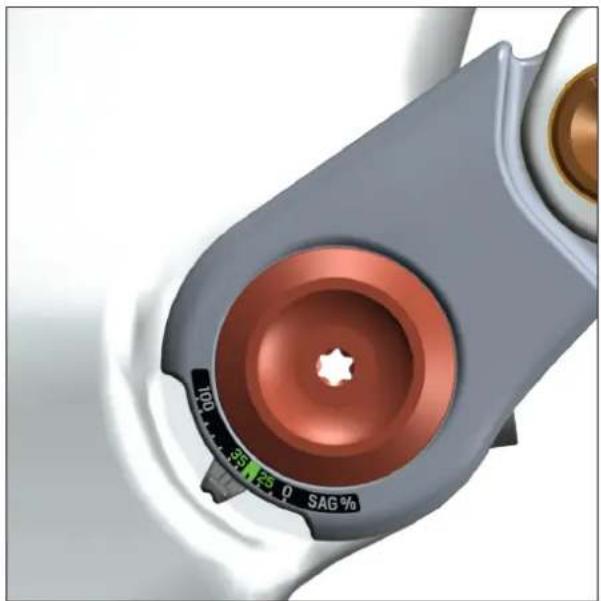

SAG ADJUSTMENT
01 02 Wear your normal riding gear, set the sage meter to zero & the twinloc in the open position.
Gently sit on the bike allowing the sag meter to move. Once completed dismount the bike gently. Check the value.
If the sag value is not to your liking within the sag range indicated, adjust the shock pressure as indicated.
VOLTAGE eRIDE
TWINLOC
MODEL NAME PART NO. CAM TYPE DROPPER
| VOLTAGE eRIDE 900 SL | TWINLOC | 290009 | BLUE CAM | YES |
| VOLTAGE eRIDE 900 TND | TRACLOC | 291219 | BLUE CAM | YES |
| VOLTAGE eRIDE 910 | TWINLOC | 290009 | BLUE CAM | YES |
| VOLTAGE eRIDE 920 | TWINLOC | 290009 | BLUE CAM | YES |
VOLTAGE eRIDE
TQ SYSTEM MANUALS
FOR TQ SYSTEM INSTALLATION PLEASE GO TO YOUR NEAREST AUTHORISED SCOTT DEALER.
Motor Manual (Multi Languages)
Battery Manual (Multi Languages)
Display Manual (Multi Languages)
Range Extender Manual (Multi Languages)
Charger Manual (Multi Languages)
General Service Manual (English Only)
VOLTAGE eRIDE
TQ SPARE PARTS
422378 SCO eRTQ RGE EXT. CABLE MTB V02 VOLTAGE
294537 SCO eRIDE TQ RANGE EXTENDER
296209 SCO eRIDE TQ SPEEDSENSOR 23

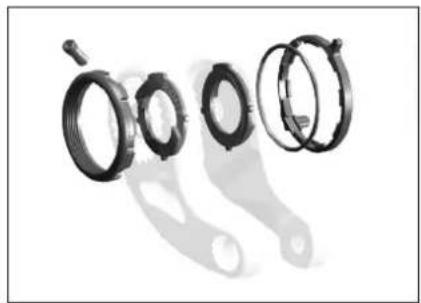

296217 SCO eRIDE TQ LOCKRING SET 23
296216 SCO eRIDE TQ H-BAR REMOTE SET 23
VOLTAGE eRIDE
TQ SPARE PARTS
422379 SCO eR VOLTAGE 24 TQ RANGE EXT. HOLDER
292632 SCO eRIDE S-SENSOR CLIP PATRON 22 (SHIMANO ROTOR)
422372 SCO eRIDE SPEEDSENSOR CLIP VOLTAGE CL 24 (SRAM ROTORS)
VOLTAGE eRIDE
CABLE ROUTING
Brake/Derailleur/Twinloc/Dropper Cable Routing
TQ System
VOLTAGE eRIDE
GENERAL SPARE PARTS

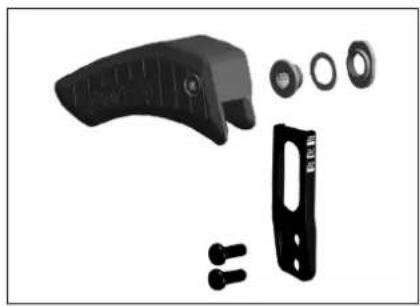

421225 SCO ERIDE CHAINGUIDE VOLTAGE 24
421226 SCO ERIDE CABLEGUIDE COVER KIT VOLT 24
421224 SCO ERIDE SHOCK COVER VOLTAGE 24
421222 SCO ERIDE SHOCK SLEEVE VOLTAGE 24
421223 SCO ERIDE SHOCK EXTENSION VOLTAGE 24
VOLTAGE eRIDE
GENERAL SPARE PARTS

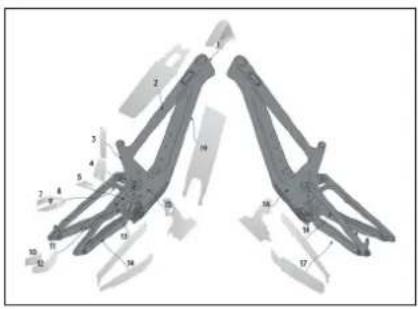

421701 SYN FRAME PROTECTION KIT VOLTAGE 24
421229 SCO ERIDE SWINGARM REP KIT VOLTAGE 24
286000 SCO DROPOUT SRAM UDH 21
Reverse Thread
296609 SCO AXLE RWS REAR 148X12 GENSCAL PLUG 23
297522 SCO STEM SPACER/TOP CAP GENIUS 23
VOLTAGE eRIDE
GENERAL SPARE PARTS
297086 SCO STEM ACCESSORY COVER COMBO 22

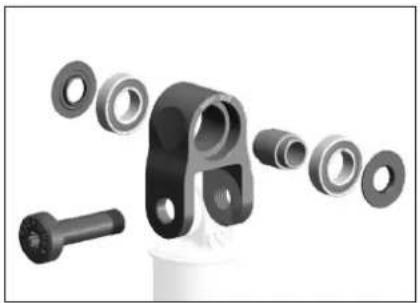

422663 SCO ERIDE LINKAGE HARDWARE KIT VOLT 24

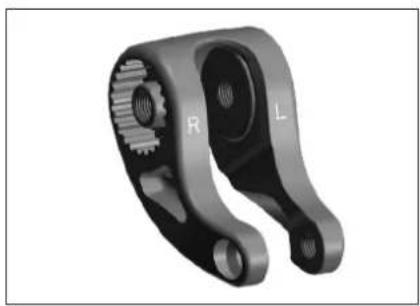

414184 SCO LINK INNER VOLTAGE-ER 24
MANUFACTURER'S GUARANTEE,
When purchasing a new SCOTT bicycle from an authorized SCOTT dealer, SCOTT grants a manufacturer's guarantee subject to the following provisions.
CONDITIONS
The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
DURATION
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the SCOTT manual and must be confirmed there by the stamp and signature of the authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer's guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.
ASSERTION
The manufacturer's guarantee is provided by SCOTT Sports SA, Route du Crochet 11, 1762 Givisiez, Switzerland. The buyer must inspect the SCOTT bicycle immediately after purchase and notify his authorized SCOTT dealer at once in writing of any obvious defects. Hidden defects must be reported immediately after their discovery. In the event of a guarantee claim, the SCOTT bicycle must be handed over to an authorized SCOTT dealer. The latter will contact SCOTT to remedy the defect. The assertion of a guarantee claim always requires the presentation of the original proof of purchase as well as the proof of maintenance service in the SCOTT manual.
Performance of SCOTT in the event of a guarantee claim
In the event of a guarantee claim, SCOTT will, at its own discretion, repair the defect or replace the defective product with a product of similar quality, whereby colour and model deviations are possible. If a repair or replacement is not possible, a purchase price refund will be made taking into account previous use. SCOTT is entitled to commission third parties to remedy the defect.
LIMITATIONS
The manufacturer's guarantee applies exclusively to frames, swingarms and rigid forks of SCOTT bicycles. Bicycle components are excluded from this manufacturer's guarantee.
The manufacturer's guarantee does not apply to normal wear and tear, damage caused by accidents or other excessive force on the SCOTT bicycle, corrosion, improper maintenance, incorrect assembly and assembly of unsuitable components or accessories as well as cosmetic defects, for example in the varnish.
The manufacturer's guarantee does not apply to SCOTT bicycles that have been used in a rental shop.
MISCELLANEOUS
These manufacturer's guarantee provisions apply to all SCOTT bicycles as of model year 2023. Statutory warranty rights of the buyer and guarantees of component manufacturers (Shimano,
SRAM etc.) remain unaffected by this manufacturer's guarantee. The place of jurisdiction for all disputes in connection with this manufacturer's guarantee is Freiburg, Switzerland. This manufacturer's guarantee is subject to Swiss law to the exclusion of all legislation that refers to foreign law.
