Explore - Chaise de jeux Cougar - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Chaise de jeux
Marque	Cougar
Modèle	Explore
Dimensions (hauteur)	125-130 cm (réglable)
Dimensions (largeur)	65 cm
Dimensions (profondeur)	53 cm
Poids net	20 kg
Charge maximale	150 kg
Matériaux	Similicuir, mousse polyuréthane haute densité, acier
Alimentation	Aucune (chaise manuelle)
Fonctions principales	Assise inclinable (90°-135°), repose-pieds escamotable, accoudoirs 3D, vérin à gaz Classe 4, dossier réglable en angle et hauteur
Mécanisme	Mécanisme inclinable avec blocage en position droite
Roulettes	5 roulettes en nylon, 6 cm de diamètre
Base	Base en acier nylon renforcé
Entretien et nettoyage	Nettoyer avec un chiffon doux légèrement humide. Ne pas utiliser de produits abrasifs.
Sécurité	Respecter la charge maximale. Utiliser sur sol stable. Vérifier régulièrement les vis et boulons.
Pièces détachées et réparabilité	Pièces disponibles via le service client Cougar. Mécanisme et vérin remplaçables.
Garantie	2 ans (pièces et main-d'œuvre)
Informations générales	Chaise de jeu ergonomique pour joueurs, design sportif, disponible en plusieurs coloris.

FOIRE AUX QUESTIONS - Explore Cougar

Comment assembler la chaise Cougar Explore ?

Suivez les étapes du manuel : fixez les accoudoirs au dossier, assemblez le siège sur le mécanisme, puis la base avec les roulettes. Serrez toutes les vis fournies. Il est conseillé d'être deux pour le montage.

Comment régler l'inclinaison du dossier ?

Tirez la poignée située sous l'assise pour déverrouiller le dossier, inclinez-le jusqu'à l'angle souhaité (verrouillage à 90° ou 135°), puis relâchez la poignée.

Les accoudoirs sont-ils réglables ?

Oui, les accoudoirs 3D offrent un réglage en hauteur (bouton sur le côté), en rotation (rotation horizontale) et en profondeur (coulissement).

Comment nettoyer le similicuir ?

Utilisez un chiffon doux légèrement humide avec un savon neutre, puis séchez avec un chiffon sec. Évitez les produits chimiques ou abrasifs.

La chaise peut-elle basculer ?

Non, la base à 5 branches et les roulettes assurent une stabilité optimale. Cependant, ne vous penchez pas excessivement en avant ou en arrière au-delà des limites.

Quelle est la hauteur d'assise maximale ?

La hauteur d'assise est réglable de 45 à 55 cm environ via le vérin à gaz (levier sous l'assise). Adaptez-la à la hauteur de votre bureau.

Le repose-pieds est-il escamotable ?

Oui, le repose-pieds se déplie en tirant sous l'assise. Il se rétracte en le poussant jusqu'à entendre un clic.

Comment contacter le service client Cougar ?

Rendez-vous sur le site officiel Cougar, rubrique Support. Vous pouvez aussi vérifier la garantie et demander des pièces détachées.

La chaise est-elle adaptée aux personnes grandes ?

Oui, le dossier haut (environ 85 cm) et l'assise large conviennent aux tailles jusqu'à 190 cm environ. La charge max de 150 kg assure la robustesse.

Que faire si la chaise grince ?

Vérifiez le serrage de toutes les vis. Si le bruit persiste, lubrifiez légèrement les points de contact métalliques avec un spray silicone. Contactez le SAV si nécessaire.

MODE D'EMPLOI Explore Cougar

FEATURES

Height lifting (Right) Tilting (Left)

Adjustable armrest

Angle adjustor

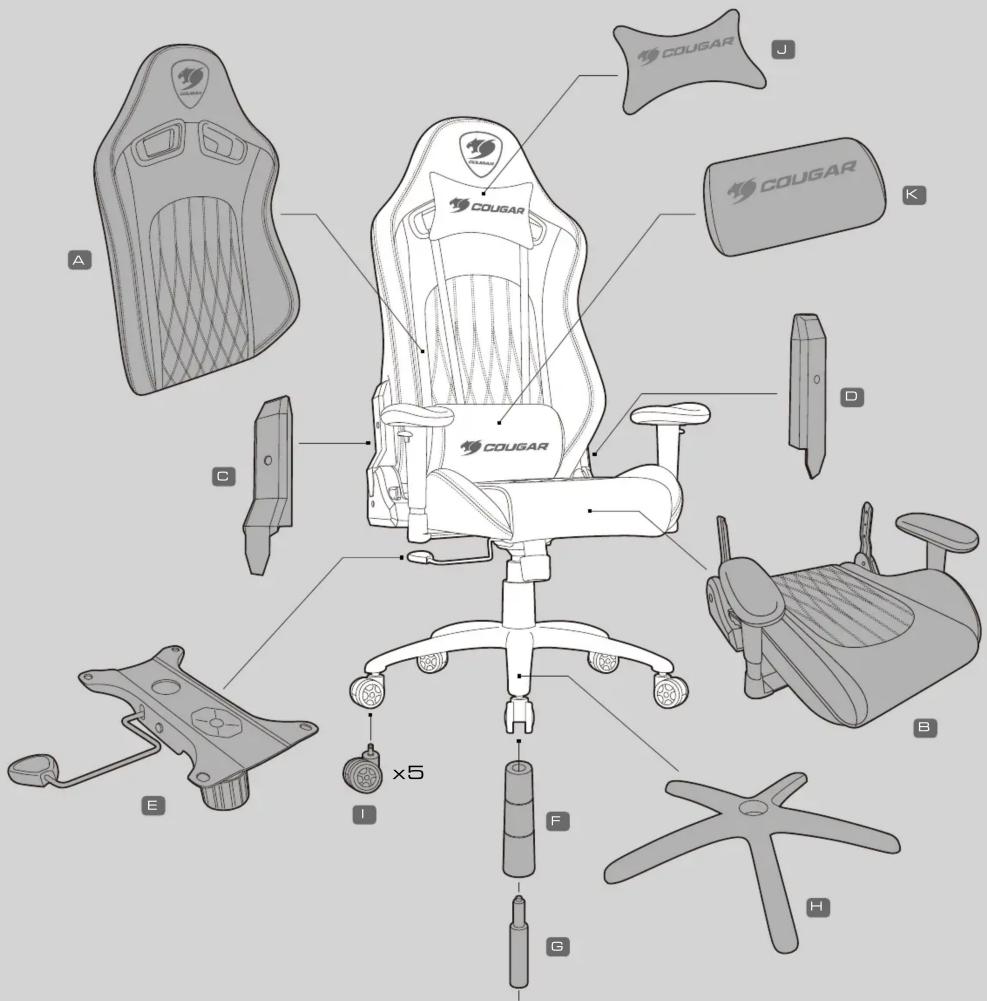

ASSEMBLY DRAWING

ACCESSORY KIT DISTRIBUTOR

1		x8
2		x2
3		x2

COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR
COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR
COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR
COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR

COUGAR EXPLORE is the perfect seat for professional level gamers. This swiveling gaming chair is a fully adjustable throne that will satisfy the most demanding gamers. With a steel frame and high quality components for extra durability and loads of options to fine tune it to your needs, COUGAR EXPLORE is ready for battle.

ENGLISH • Unparalleled comfort • Body-embracing high back design • Reclining backrest • Full steel frame • Gas lift height adjustment • Ergonomic adjustable arm rest • 5-star metal base • Breathable PVC leather • Embroidered logo • Weight limit: 120 KG

ESPACOL - Comodidad Incomparable - Diseco alto del respaldo que abraza el cuerpo - Estructura hecha totalmente en acero - Ajuste de altura con suspensión de aire - Descansabrazos ajustable - Cuero de PVC respirable - Logo bordado - Soporta hasta 120 Kg

PORTUGUKS - Conforto Incomparbvel - Design do encosto alto que abraza o corpo - Estrutura feita totalmente em azo - Ajuste de altura com suspensro de ar - Descanso de brasos ajustbvel - Couro de PVC respirbvel - Logo bordado - Suporta ati 120 Kg

РУССКИЙ • Непревзойденный комфорт • Высокая спинка • Стальной каркас • Регулировка высоты газлифта • Регулируемые подлокотники • 5-ти конечное металлическое основание • Дышашая высокопрочная ПВХ-кожа • Вышитый логотип • Поддержка веса до 120 кг

ITALIANO • Comfort incomparabile • Struttura in acciaio • Bracciolo regolabile • Base a stella (cinque raggi) in metallo • Finta pelle in PVC • Supporta fino a 120 Kg

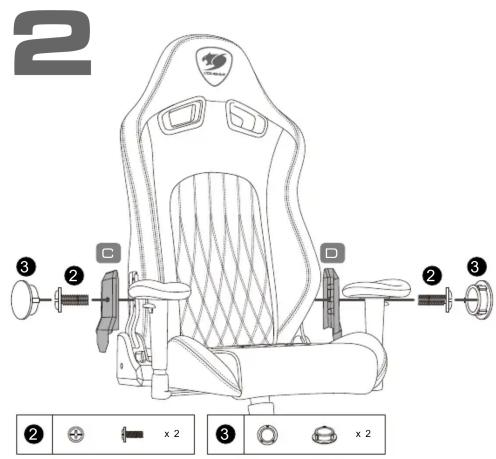

ASSEMBLING INSTRUCTION

Line drawing of a COUGAR office chair with seat, showing top and front views (no text or symbols)

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR GAMING CHAIR Warranty: 1)(sec)

This warranty gives you specific legal rights. You may also have other rights granted under local law.

These rights may vary.

WARRANTY AGREEMENT

• If the product has defects in material or manufacture, COUGAR will provide product repair and

replacement service within the warranty period.

- Our warranty service is based on the date of the invoice of warranty card.

CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED

•Any fault or damage caused by natural disasters (including storm, fire, flood, thunder, earthquake, etc). Any fault or damage caused by occidental factors and man-made reasons (including bit, spring, sand

• Any fault of damage caused by accidental factors and man-made reasons moving compression, stain corrosion, riot misuse, malicious damage, etc)

- Use in an improper operating environment (including high temperature, high humidity, water inflow, etc).

•Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still

within the warranty period and the shipping date of the product is out of warranty.

•The warranty card has been altered or its number is hard to identify.

•The warranty period has expired

•Any fault or damage caused by non-compliance with regulations stated on the user manual or improper,

Rough and careless treatment.

•Any fault or damage caused by use of parts not certified by COUGAR original manufacturer.

•The problem is caused by imp authorization from COUGAR

•The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.

•Paper carton, instruction and other accessories are

DISCLAIMERS

• COUGAR products should not be used as critical components in life support devices.

• COUGAR is not liable for any damage of life and limb or damage or loss of property caused by or during

COUGAR products' use as or with medical equipment, military equipment, traffic equipment and disaster

prevention systems

• COUGAR's warranty liability is limited to repair or replacement. The decision on whether to repair

or replace belongs exclusively to COUGAR.

• COUGAR is, to the extent not prohibited by law, not liable for any damages; expenses; lost data, revenues, savings or profits; or any incidental or consequential damages happened while the use of a defective product from COUGAR or due to its use.

LEGAL NOTICES

This manual was created by Compucase Enterprise and may not be completely or partially copied, passed on, distributed or stored without written consent by Compucase Enterprise. COUGAR® is a registered brand of Compucase Enterprise Other product and company names mentioned in this documentation may be brands or trademarks of their respective owners. Compucase Enterprise reserves the right to make changes concerning the contents of the manual and the technical data of the product without previous announcement.

MANUFACTURER CONTACT

Compucase Enterprise Co., Ltd. No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C Tel: [phone]

Service email : https://cougargaming.com/support/contact/upload/Compucase Enterprise Co.,Ltd. All rights reserved. Made in China

COUGAR USA Technical Service Tel: [phone] Mail: [e-mail]

mail. [e-mail]

ct/upload;

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

год и месяц изготовления продукции указаны в серийном номере продукта. (существует 2 способа определения даты изготовления, оба способа описаны ниже)

A После S/N: первые две цифры означают год. вторые две – месяц изготовления.

Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.

В После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже.

и означают год, последующие две цифры – месяц изготовления.

Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.

A	B	C	D	E	F	G	H	I	J
1	2	3	4	5	6	7	8	9	0

• Например AG = 17 = 2017 год

WARNING

• To adjust the chair height, gently pull the lever up. Do not use excessive force to pull the lever.

- Please wear protective gloves when assembling the chair. It is your own responsibility to use appropriate

protection to prevent any physical damage.

- When rocking the chair, using it in any other way or adjusting the height, inclination, position or balance of the

chair or any of its components, please:

- pay attention to your hand's position and keep it away from spaces in which it could get caught or be injured.

• do not make fast or violent movements.

- (when the chair is in movement) do not touch any of the chair's adjustment controls to prevent affecting its

stability and causing a potentially dangerous fall.

• (when reclining the chair to its full extent) set the related control level in lock position and keep both feet on the

around, as well as abstain from any violent, rough or strong movement which could cause the chair to tin over

less is used that this should be used, but it should be used, for these were

- Keep in mind that this chair is designed only for sitting

- DO NOT SIT ON THE EDGE OF THE CHAIR OF THE ARM RESTS.

•Do not place the chair in a location in which it is likely to be

The product's colors might fade when exposed to sunlight.

• Do not use abrasive

denicate materials.

- All parts should be checked monthly to confirm their integrity and to make sure that the screws are not loose.

•If any part of the product is or appears to be damaged, missing or loose, please contact the local distributor and

do not use the pro
