Type de produit	Vélo elliptique
Marque	Octane
Modèle	XT-One
Dimensions (L x l x H)	150 x 60 x 160 cm
Poids net	45 kg
Poids maximum utilisateur	120 kg
Alimentation console	4 piles AA (non incluses)
Résistance	Magnétique, 16 niveaux ajustables
Longueur de foulée	40 cm
Volant d'inertie	8 kg
Affichage	LCD avec rétroéclairage
Fonctions mesurées	Distance, temps, calories, fréquence cardiaque
Programmes d'entraînement	12 préréglés + 4 profils utilisateur
Connectivité	Non
Niveau sonore	Silencieux (≤ 20 dB)
Entretien	Nettoyage régulier, graissage des roulements tous les 3 mois
Nettoyage	Chiffon doux et sec, éviter produits abrasifs
Sécurité	Arrêt d'urgence, pédales antidérapantes
Garantie	2 ans
Service client	Contacter le support Octane (numéro sur le site)
Pièces détachées	Disponibles en ligne sur octane.com
Réparabilité	Réparation recommandée par un professionnel

FOIRE AUX QUESTIONS - XT-One Octane

Comment assembler le vélo elliptique XT-One ?

Suivez les étapes dans la notice. Commencez par fixer les stabilisateurs avant et arrière, puis montez le cadre central, les pédales et la console. Utilisez les outils fournis. Serrez toutes les vis avant utilisation.

Comment ajuster la résistance ?

Tournez la molette de résistance sur la console. Tournez dans le sens horaire pour augmenter la résistance, antihoraire pour diminuer. L'affichage montre le niveau de 1 à 16.

Comment mesurer ma fréquence cardiaque ?

L'appareil est équipé de capteurs tactiles sur les poignées fixes. Posez vos mains sur les capteurs pendant quelques secondes pour afficher votre fréquence cardiaque. Pour plus de précision, utilisez une ceinture cardio (non incluse).

Le vélo elliptique fait du bruit, que faire ?

Vérifiez que tous les boulons sont serrés. Lubrifiez les roulements avec un spray silicone. Placez un tapis sous l'appareil pour réduire les vibrations. Si le bruit persiste, contactez le service après-vente.

Quel entretien régulier est nécessaire ?

Nettoyez le cadre et la console après chaque utilisation avec un chiffon doux. Tous les 3 mois, graissez les roulements et vérifiez l'usure des pédales. Rangez l'appareil dans un endroit sec.

Puis-je utiliser l'appareil sans piles ?

Non, la console nécessite 4 piles AA pour fonctionner. Installez-les dans le compartiment à l'arrière de la console. Utilisez des piles alcalines de qualité.

Que faire si l'écran ne s'allume pas ?

Vérifiez que les piles sont correctement installées et pas usées. Remplacez-les si nécessaire. Vérifiez aussi le câble de connexion entre la console et le cadre. Si rien ne fonctionne, contactez le support.

Comment régler la stabilité de l'appareil ?

Utilisez les pieds réglables situés sous les stabilisateurs. Tournez-les dans un sens ou l'autre pour niveler l'appareil sur le sol. Placez un tapis pour éviter le glissement.

Quel poids maximum supporte l'appareil ?

Le poids maximum de l'utilisateur est de 120 kg. Ne dépassez pas cette limite pour éviter d'endommager l'appareil et garantir votre sécurité.

Où trouver des pièces détachées ?

Rendez-vous sur le site officiel Octane, section pièces détachées. Vous pouvez commander des pédales, courroies, roulements, etc. Utilisez la référence du modèle XT-One.

MODE D'EMPLOI XT-One Octane

"XT" CONSOLE GUIDE & SET-UP INSTRUCTIONS—STANDARD CONSOLE

TABLE OF CONTENTS

Standard Console Guide

• XT-One, XT4700, XT3700 Console Features.... 1
• Dynamic Display (LCD)....2
• Keypad Buttons....4

User (Club) Settings....7

Additional Support Information 8

• Cleaning and Maintenance....8
  • Diagnostics......8
• Programs......8
• Important Safety Information ....8
• Customer Support......8

STANDARD CONSOLE GUIDE

Get ready to Fuel Your Workout with the Octane Fitness elliptical cross trainer! The standard console offers a variety of pre-programmed workouts managed by sophisticated electronics that will keep you interested and motivated. Use this guide to become familiar with its features, data display and keypad buttons; then hop on, start pedaling, choose your workout and adjust the settings. Enjoy!

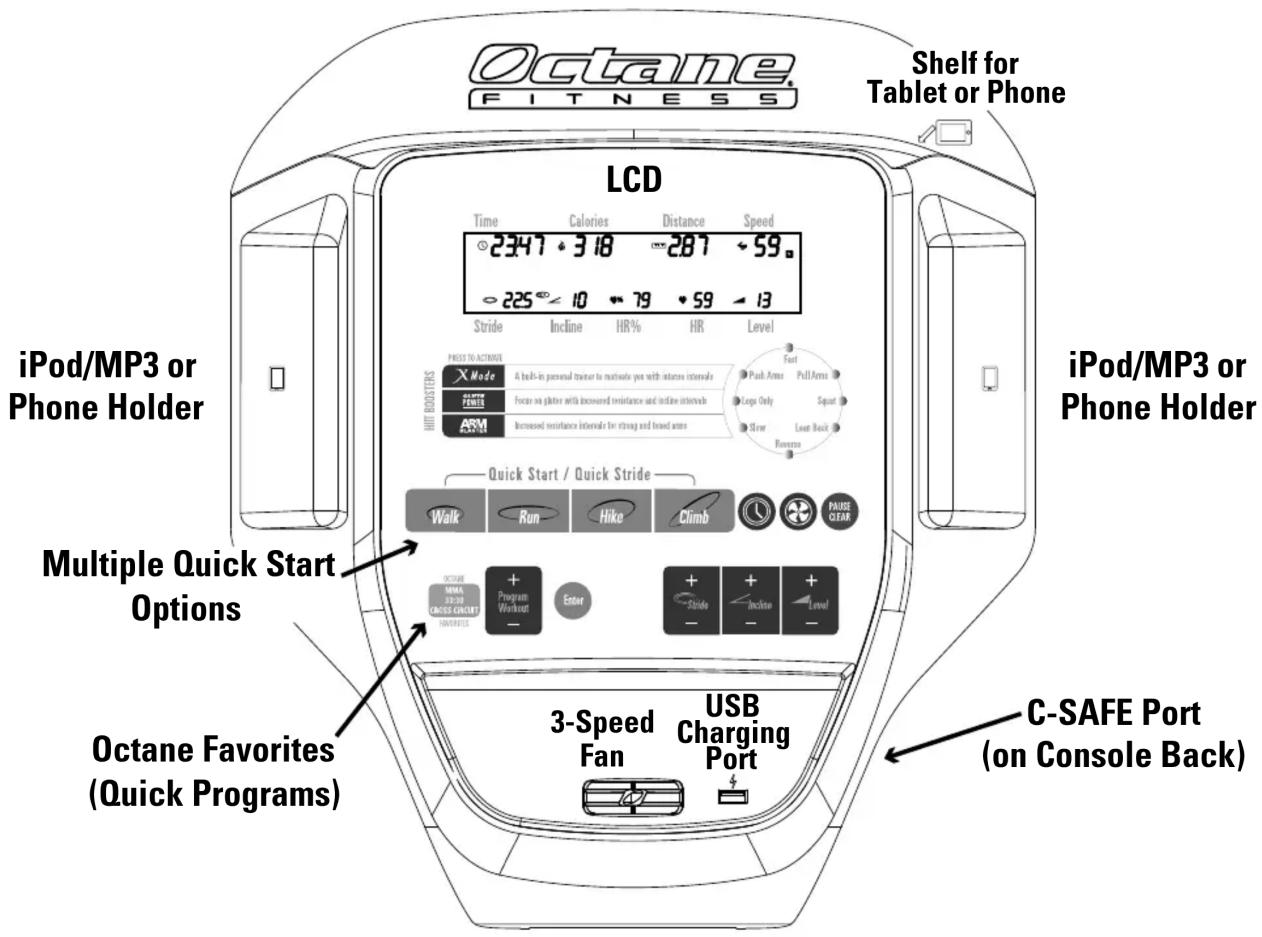

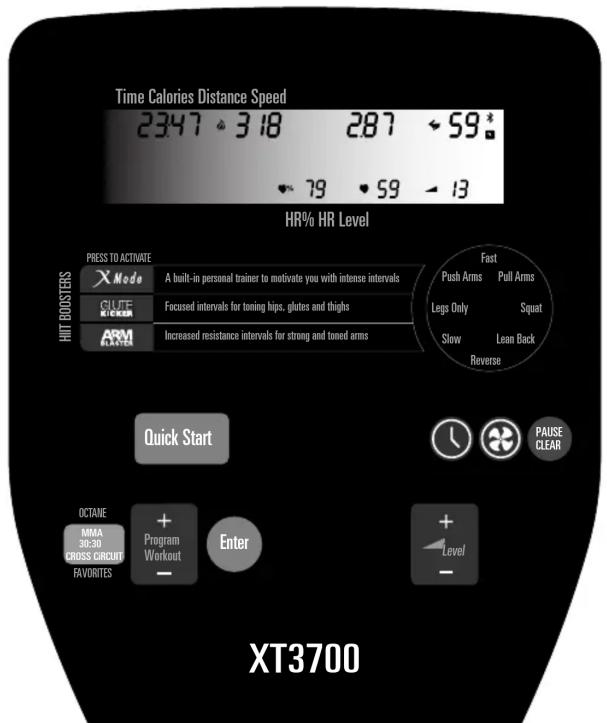

XT-One/XT4700/XT3700 Console Features

The XT standard console incorporates many features to enhance your workout experience:

• An integrated LCD that provides important workout data and instructions to keep your workout safe and interesting;
• Convenient shelves and pockets for your phone, tablet, iPod ®/MP3 and other electronic devices, plus a USB charging port to keep your devices charged throughout your workout;
  • A 3-speed fan for cooling comfort;
• Pre-programmed keypad buttons to get you into your favorite programs quickly;
  • C-SAFE input for intra-club networking.

Dynamic Display (LCD)

The top portion of the standard console is an LCD which prompts you to enter important information, dynamically displays all of the important workout data, and highlights aspects of your workout such as upcoming intervals and resistance changes. Watch the display as you set up and progress through your workout—it will guide you, motivate you, and reward you with summary information at the end of your session.

Icon Description
	Displays workout time, counting up from 0:00. Time can be increased or decreased during your workout. The maximum workout time that users can set is 99:00. When actual workout time is displayed, the timer goes up to 99:59, then the display rolls over to 0:00. Refer to User (Club) Settings later in this manual to learn how to change the maximum workout time and to switch from a “count up” to “count down” display.
	Displays an estimate of the totalcaloriesburned during the workout, based on the user’s entered weight. If no specific weight is entered, calories are based on a 150 lb. (68 kg) user.
[TTTT]	Displays an estimate of thedistanceyou have traveled. Distance can be shown in either miles (English) or kilometers (metric). The factory default setting is English. Refer to User (Club) Settings later in this manual to learn how to switch from English to metric.
	Displays your currentspeedin revolutions per minute (rpm).
	When lit, this icon indicates that ANT+ wireless communications is active and detecting signal from the optional wireless heart rate chest strap.
	Displays yourstride length, the approximate horizontal distance of the elliptical pattern in inches (English) or centimeters (metric). The stride length ranges from 20 inches (51 cm) to 28 inches (71 cm).
	When lit, this icon indicates thatSmartStrideis activated. As you vary your pace and direction, SmartStride intuitively adjusts stride length in 1-inch (2-centimeter) increments to replicate natural movement. Simultaneously press the Stride (+) and (-) buttons on the keypad to activate/deactivate SmartStride.
(XT-One)♥%	Displays theincline level(1-10), where 1 is the least incline and 10 is the greatest incline.Displays your current heart rate percentage, calculated as current heart rate divided by theoretical maximum heart rate (TMHR). Note: The standard TMHR is calculated for a 40-year old user weighing 150 lbs. (68 kg). You must have entered your age during program setup and be wearing a wireless heart rate transmitter or consistently grasping the contact heart rate sensor grips on the handlebars in order to get an accurate reading of Heart Rate % for your age and weight.
♥	Displays heart rate in beats per minute (BPM). Note: You must be wearing a wireless heart rate transmitter or consistently grasping the contact heart rate sensor grips on the stationary handlebars.
	Displays the resistance level (1-30), where 1 is the lowest resistance level and 30 is the highest.

Keypad Buttons

HIITBoosters	Ramp up any workout with the press of a button, activating one of these signature Octane Fitness high-intensity interval training boosters:This great motivational tool keeps your workout fresh and exciting in any program. Every other minute X-Mode kicks in, adding four levels of resistance and prompting you to perform combinations of eight different challenges:Fast Pick up the pace—we recommend 50-60 rpm, but you should find your own comfort level.Squat Bend slightly at the knees as you pedal. You'll feel this one in your quadriceps and glutes in no time!Reverse Pedal backwards to change the muscle focus on your entire lower body.Lean Back Grab the stationary handlebars and lean slightly backwards. This changes the muscle focus to your lower body. You will feel this in your quadriceps.Legs Only Either hold the stationary handlebars or naturally swing your arms.Push Arms Focus on pushing with your arms to work your chest and triceps.Pull Arms Focus on pulling with your arms to work your biceps and lats.Slow Slow down to 30-40 rpm to allow yourself to recover.
	Designed to boost cardiovascular endurance while building strength and muscle tone, ArmBlaster adds upper-body strength sessions to the cardio program profile that you have selected. Every minute, resistance increases for a muscle-building, 10-repetition set as you transfer the workload from your lower body to your upper body.
GLUTEPower(XT-One)	Challenge your quads and glutes with this workout booster that pushes back! Press the GlutePower button during any workout, then increase your speed. The faster you go, the greater the resistance level and the steeper the incline. Slow down again and the resistance and incline decrease.
(XT4700)	SmartStride automatically replicates natural movement by analyzing and measuring your pace and direction and intuitively adjusting stride length in 1-inch (2-centimeter) increments from 20 inches (51 cm) to 28 inches (671 cm). Press the SmartStride button and the machine will analyze your speed and make the appropriate adjustments as your pace or direction changes.
(XT3700)	GluteKicker is an aggressive subset of X-Mode that is focused on your glutes, hips, and thighs. It uses four prompts: Reverse, Squat, Fast, and Lean Back. GluteKicker sessions last for one minute, with a one-minute recovery period. Every minute, resistance increases for a muscle-building power 30-second set as you place your hands on the stationary handlebars and transfer the workload to the lower body.During a HIIT Booster session, the level of resistance can be changed by pressing any (+) or (-) key on the keypad. Press the HIIT Booster button a second time to deactivate the session.
Quick Start / Quick Stride(XT4700)(XT-One)(XT-One)	The easiest way for you to start your workout is to simply push a Quick Start button initiating a 30-minute program at resistance Level 5 (XT-One) or Level 1 (XT4700/XT3700). On the XT-One and XT4700, values for Stride and Incline (XT-One only) are set to simulate the chosen motion:Stride 22" (61 cm), Incline 1(XT-One)Stride 24" (61 cm)Stride 28" (71 cm), Incline 1 (XT-One)Stride 24" (61 cm), Incline 5 (XT-One)Stride 28" (71 cm), Incline 10 (XT-One)The calories readout will be based on a 150 lb. (68 kg) user, age 40. Once you have selected Quick Start, you can program Time, Level or Stride in any order. (Age and Weight can only be changed by selecting a program using the Program Workout button and entering the values during setup.)
	Press the clock button (Time), then any (+) or (−) to increase or decrease the time of your workout, in 1 minute increments. The standard workout time is 30:00. The maximum time is 99:00; this value can be changed in User (Club) Settings if a different maximum workout time better suits your environment.
	Press the Fan button to initiate a cool breeze to help keep you comfortable as you work out. Press again to increase the airflow (two additional levels), or a fourth time to turn it off. Move the vent as desired to direct the airflow.
Pause Clear	Press once to pause your workout. The standard pause time is 0:55. To restart a paused workout, push any key or just begin pedaling. If you stop pedaling during a workout, the unit will automatically begin a pause phase; simply start pedaling to resume your workout. Press the Pause Clear button twice within two seconds, and the machine is reset and ready for another workout.
Octane FavoritesMMA30:30	Press the Octane Favorites button to quickly jump to one of these signature programs:Battle the Octane elliptical in 5-minute rounds that include 5 alternating 'fight' and 'recover' intervals of various lengths, simulating a Mixed Martial Arts bout. The harder you punch with your arms, the harder the Octane elliptical 'fights back' with increased resistance.Press this button a second time to take on this challenging program which provides a simple test of fitness level with 5 sets of 30-second sprint and recovery intervals. For each set, the program monitors heart rate and calculates the average minimum and average maximum heart rates and the average number of beats the heart rate recovers between sprint intervals. Heart rate recovery is a relative indicator of fitness level; a higher number indicates a more rapid heart rate recovery and therefore represents a relatively better level of fitness.
CROSS CiRCUIT Solo	The third press of the Octane Favorites button takes you to this popular cross-training program which combines cardio intervals on the elliptical with sets of strength and toning exercises off the machine using Powerblocks or simple equipment such as hand weights, a fitness ball or body-weight exercises. Note: This program is available only when the CROSS CiRCUIT programs, designed for use with the optional CROSS CiRCUIT Pro Accessory, have been activated in User (Club) Settings.
CROSS CiRCUIT Group	Working out with an instructor? Toggle to this Octane Favorite and follow your trainer's lead for a great cardio and strength workout. Note: This program is available only when the CROSS CiRCUIT programs, designed for use with the optional CROSS CiRCUIT Pro Accessory, have been activated in User (Club) Settings.
Up (+) and Down (−) Keys
Program Workout	Press Program Workout (+) or (−) to scroll through the programs, then press Enter to select a program. Program changes can be made any time during your workout. When you change programs, the LCD message center prompts you to enter new program values as needed.
	Press Stride (+) or (−) to increase or decrease the stride length of the XT-One or XT4700. Each key press equals one-half (1/2) inch (English) or one centimeter (metric). The stride length ranges from 20 inches (51 cm) to 28 inches (71 cm). The default stride length for preset resistance and heart rate controlled programs is 24" (61 cm). For variable stride programs, the default forward or long stride is 28" (71 cm) and the default backward or short stride is 24" (61 cm).
	Press Incline (+) or (−) to increase or decrease the incline of the XT-One; 1 is the least incline and 10 is the steepest. For programs other than the preset Quick Start programs, the standard setting is 1.
	Press Level (+) or (−) to increase or decrease the resistance level. There are 30 levels of resistance for most programs. For heart rate controlled programs, the Level button increases your target heart rate. To save a change in target heart rate, press Enter.
Enter	Selects any of the changed values or items from the above keys.
"Hidden" Key (XT-One)
SmartStride (Stride + / -)	SmartStride, available exclusively on Octane Fitness ellipticals, automatically replicates natural movement by analyzing and measuring an exerciser's pace and direction and intuitively adjusting stride length in 1-inch (2-centimeter) increments from 20 inches 51 cm) to 28 inches (71 cm). To activate SmartStride in any program, simultaneously press the Stride (+) and (-) buttons on the keypad, then pedal at a comfortable walking speed. The machine will analyze your stride to set a baseline. Then, as you workout and your pace or direction changes, SmartStride makes the appropriate adjustments to your stride length. Size-based programming (described later in this manual) allows you to set the starting forward stride length that best fits your leg length and fitness level. To deactivate SmartStride, simultaneously press the Stride (+) and (-) buttons on the keypad a second time.

USER (CLUB) SETTINGS

Many of the standard features and controls of Octane Fitness units can be customized to fit your personal preferences or workout environment. In just a few simple steps, you can set up the machine to skip the Warm-Up, count down your workout time (instead of counting up), limit the maximum workout time, display units in English or metric, mute the console beeps and more. All of these adjustments are easily completed and are saved as the new standard for the machine—you don’t need to reset them for each use.

To access these functions, press and hold both the Level Up (+) and Level Down (−) keys for three seconds, or until you hear a beep. The following customizable functions are displayed in sequence in the LCD; use the Enter key to toggle through the available options (shown in the matrix display) for each function, and press any Up (+) or Down (−) to select a setting and move to the next function. To exit without changing any values, press Pause Clear twice.

Available functions may differ from those listed below, depending upon your software version.

Warm-Up	This feature may be turned “ON” (to include a 3-minute warm-up in each workout) or “OFF”. The factory default setting is “ON”.
Clock Direction	The cross-trainer can track workout time by counting “UP” or “DOWN”. The factory default setting is “UP”.
Max Workout Time	You may set the maximum workout time for users to the value that is best for your environment. The factory default setting is “OFF”, allowing users to use the machine for as long as they would like without reset on goal-based programs. Press the Enter key one time to move from“OFF” to ten minutes (10:00), then press and hold ENTER to scroll to any value between ten minutes (10:00) and 120 minutes. (The setting rolls back to “OFF” if you scroll past 120 minutes). Press the Up (+) or Down (−) key to save the value you desire. Note: Programs with a time value as part of the program setup are always limited to 120 minutes maximum time, even if the Max Workout Time is “OFF”.
Default Workout Time	Default Workout Time governs the standard value that users see when they program a workout with a ‘time’ setting; that is, a goal-based program. The factory default setting is 30 minutes. Default Workout Time may be set to any value between ten minutes (10:00) and the current Max Workout Time setting. If Max Workout Time is set to “OFF”, Default Workout Time is 120 minutes. Press and hold ENTER to scroll through in one-minute increments to the value you want, then press the Up (+) or Down (−) key to save the value you desire.
Unit Type	You may choose to have the weight and distance units displayed in “ENGLISH” (pounds and miles) or “METRIC” (kilograms and kilometers). The factory default setting is “ENGLISH”.
CROSS CIRCUIT Pro	Select “OFF” to disable the two CROSS CiRCUIT Pro programs (for use with the optional CROSS CiRCUIT Pro Kit). Factory default is “ON”.
Default Stride (XT-One, XT4700)	You may set the default stride length of the unit to any value between 20” and 28” (51-71 cm) in 1/2” (1 cm) increments. Use the Enter key to scroll through the possible values, then press any Up (+) or Down (−) key to select the value you desire. The factory default setting is 24” (61 cm).
Default Incline (XT-One)	You may set the default incline of the unit to any value between 1 (least incline) and 10 (steepest). Use the Enter key to scroll through the possible values, then press any Up (+) or Down (−) key to select. For programs other than the preset Quick Start programs, the factory default setting is 1.
Beep	You may turn the console sounds “ON” or “OFF”. The factory default setting is “ON”.
ID	If you have more than one Octane Fitness unit on site, use this setting to give each a unique identification number for pairing with a mobile device. Choose any value between 0 and 127. The factory default setting is 1.
Language	Choose one of several languages options for the console display. The factory default setting is “ENGLISH”.
Exit	When EXIT is displayed in the LCD, press Enter to leave User (Club) Settings. All of your selections will be saved and become the new standard settings for your machine. They may be changed at any time by repeating these setup procedures.

ADDITIONAL SUPPORT INFORMATION Cleaning and Maintenance

WARNING! This machine contains moving parts. Take caution when trying to locate and fix any problem with the machine.

Your Octane Fitness product has been manufactured to withstand many hours of hard use with minimal required maintenance. Use only a soft, slightly damp lint-free cloth to clean the console lens of your elliptical. Abrasive cloths, towels, paper towels, and similar items may cause damage to surface. Do not use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasive cleaners, as they, too, may damage the lens. Periodically wipe off the machine with a clean towel, and vacuum underneath the pedals and inside of the machine near the pedals.

Diagnostics

Your Octane product offers a diagnostics mode to test the electrical functions. These diagnostics allow you to identify the software version of your unit and to check the functions of the LCD, keypad, adjustment motors and other electrical elements. To enter the diagnostics mode, hold down the Program Workout (+) and (−) keys simultaneously for three (3) seconds. Tests and results are displayed in the LCD. Use any (+) and (−) key to navigate through the diagnostic tests options (which may vary by product and software version). For additional information and instructions for using the available diagnostics, refer to your Product Service Manual or contact Octane Fitness Customer Service at 888.OCTANE4 or 763.757.2662, extension 1.

Programs

In addition to Quick Start / Quick Stride options, your product features several built-in programs with a wide range of options to keep workouts interesting:

Manual Heart Rate Interval Fat Burn Progressive Hills (XT-One)

Random MMA CROSS CiRCUIT Solo Smart Stride (XT-One)

Distance Goal 30:30 CROSS CiRCUIT Group PowerWalk (XT4700)

Calorie Goal Constant Watts Mountain Peak (XT-One) Dual Direction (XT4700)

Interval

Constant METs

30:30 Hills (XT-One)

Stride Interval (XT4700)

Descriptions of each program are found in the Octane Fitness Program and Features Guide (Part Number 110751-001), available online at www.octanefitness.com.

Important Safety Information

The Octane Fitness Product Safety Information for Commercial Products (Part Number 107786-001), shipped with the product base unit, contains important details for safe setup and operation of the Octane Fitness product. Users are expected to be familiar with the contents of this document before using the elliptical.

Customer Support

Should you have any questions regarding your Octane Fitness product, please visit https://support.octanefitness.com where you will find answers to many common questions. To speak to an Octane Fitness Customer Service specialist, please call 888.OCTANE4 or 763.757.2662, extension 1. Live support is available Monday through Friday, 7:30 a.m. to 6 p.m. (United States Central Time).
