Croxer Evo - Jouets Chipolino - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Voiture électrique pour enfants
Marque	Chipolino
Modèle	Croxer Evo
Catégorie	Jouets
Âge recommandé	3 ans et plus
Alimentation	Batterie rechargeable 6V
Autonomie	Environ 1 à 2 heures
Vitesse maximale	3 km/h
Dimensions (L x l x h)	100 x 50 x 40 cm
Poids	8 kg
Charge maximale supportée	25 kg
Matériaux	Plastique PP, acier
Fonctions principales	Marche avant/arrière, klaxon, phares
Démarrage	Pédale d'accélérateur
Direction	Volant avec commande directionnelle
Sécurité	Ceinture de sécurité, stabilisateurs latéraux
Normes	CE, EN 71
Entretien et nettoyage	Nettoyer avec un chiffon humide, éviter les produits abrasifs
Pièces détachées	Disponibles sur le site du fabricant
Réparabilité	Indice de réparabilité non communiqué

FOIRE AUX QUESTIONS - Croxer Evo Chipolino

Quel est l'âge recommandé pour le Croxer Evo ?

Le Croxer Evo est recommandé pour les enfants de 3 ans et plus.

Comment recharger la batterie du Croxer Evo ?

Branchez le chargeur fourni sur la prise située sur le côté du véhicule, puis branchez le chargeur sur une prise murale. Le temps de charge est d'environ 8 à 12 heures.

Quelle est l'autonomie de la batterie ?

L'autonomie est d'environ 1 à 2 heures selon le terrain et le poids de l'enfant.

Le Croxer Evo peut-il rouler sur l'herbe ?

Oui, il peut rouler sur l'herbe, mais les performances sont optimales sur terrain plat et dur.

Comment nettoyer le Croxer Evo ?

Utilisez un chiffon humide pour nettoyer la carrosserie. N'utilisez pas de produits chimiques ou abrasifs.

Quelles sont les dimensions du Croxer Evo ?

Les dimensions sont d'environ 100 cm de long, 50 cm de large et 40 cm de haut.

Le Croxer Evo est-il sécurisé ?

Oui, il est équipé d'une ceinture de sécurité et de stabilisateurs latéraux pour éviter les basculements.

Comment assembler le Croxer Evo ?

Suivez les instructions de la notice : fixez les roues, le volant et la batterie. Le montage est simple et ne nécessite pas d'outils spéciaux.

Que faire si le Croxer Evo ne démarre plus ?

Vérifiez d'abord que la batterie est chargée. Si le problème persiste, vérifiez les connexions électriques et contactez le service client.

Où trouver des pièces détachées pour le Croxer Evo ?

Les pièces détachées sont disponibles sur le site officiel de Chipolino ou auprès de revendeurs agréés.

MODE D'EMPLOI Croxer Evo Chipolino

IMPORTANT! KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

INSTRUCTION MANUAL FOR USE OF KID'S TOY SCOOTER CROXER EVO

Line drawing of a three-wheeled scooter with a mounted propeller (no text or symbols)

This product is produced in conformity with the requirements of the Toy Safety Directive 2009/48/EC of the European Parliament and the Council, national legislation and the applicable to the product European Standards.

TO GUARANTEE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL:

IMPORTANT! MAIN WARNINGS!

CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION – DANGER OF FALLING!
✿ CAUTION! THE TOY IS SUITABLE FOR CHILDREN ABOVE 3 YEARS AND WEIGHT UP TO 50KG!
✿ CAUTION! DO NOT OVERLOAD! THE TOY IS NOT SUITABLE FOR CHILDEN WITH WEIGHT ABOVE 50kg.
✿ CAUTION! BEFORE USING THE TOY, TEACH THE CHILD THE CORRECT WAY TO USE IT AND THE SAFETY RULES. Using the toy requires special skills and increased caution to avoid falling and collisions.
CAUTION! WEAR PROTECTIVE EQUIPMENT – helmet, knee and elbow protectors, appropriate shoes.
✿ CAUTION! BEFORE EACH USE, CHECK IF THE HANDLEBAR IS WELL FIXED TO THE DECK AS WELL AS IF ALL SCREWS, NUT AND BOLTS ARE WELL TIGHTENED.
✿ CAUTION! USE THE TOY ONLY DURING THE DAY ON SECURED PLAYGROUNDS AT A SAFE DISTANCE FROM STREETS AND VEHICLE ROADS.
CAUTION! KEEP AWAY FROM FIRE!
CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.
CAUTION! THIS TOY IS NOT INTENDED FOR AGGRESSIVE RIDE, TRICKS AND JUMPS!
✿ ONLY an adult should open and fold the TOY!
DO NOT allow presence of children under 3 years before having assembled the TOY completely, to avoid access to small and dismantled parts!
This TOY is intended for one child ONLY!
DO NOT use the TOY if you find missing or damaged parts.
DO NOT use the brake while turning left or right, this can cause the child to fall!
DO NOT attach strings or accessories to the TOY to avoid risk of entanglement!
DO NOT put items or luggage on the handlebar to avoid risk of balance disturbance!
- The child must hold the handlebar with both hands to ride safely.
DO NOT put heavy items or objects on the TOY in order not to damage its construction.
DO NOT use another transport means to move the TOY by hauling!
DO NOT let the child using the TOY or other children close to it to touch the wheels with hands and/or put items on them!
◆ Use away from rivers, pools, stairs and hurdles!
DO NOT make changes or modifications to the construction of the TOY! If necessary, contact the dealer or an authorized service for advice and repair.
DO NOT use spare parts or other components, which are not supplied by the producer! The producer revokes all responsibility in case you have used spare parts different from the original ones or recommended by him.
- Keep the plastic bags away from children to avoid risk of suffocation!

MAIN FEATURES

The TOY is suitable for children above 6 years and weight up to 50kg.
The handlebar can be adjusted in height in 3 positions;
◆ Rubber anti-slip handle grips
✿ Rear wheel brake;
◆ Folding handle bar

MAIN PARTS

Please make sure all parts are available:

Two toy skis with numbered callouts (4) shown, one lying on the other (no text or symbols visible)

1 - HANDLEGRIPS
2 - HANDLEBAR
3 - LEVER FOR AJUSTING THE HEIGHT OF THE HANDLEBAR
4 - FRONT WHEEL* 2pcs
5 - DECK
6 - BRAKE
7 - REAR WHEEL
8 - FOLDING MECHANISM

1 - DECK

2 - HANDLEBAR

ASSEMBLY AND SAFE USE

CAUTION! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE GIVEN IN THE BELOW TEXT AND FIGURES.

CAUTION! CHECK THE SECURITY OF FIXING UPON COMPLETING EACH OPERATION!

CAUTION! THE TOY MUST BE USED WITH INCREASED CAUTION BECAUSE IT REQUIRES SKILLS TO BALANCE. IN THIS WAY YOU WILL AVOID FALLING OR COLLISIONS WHICH MAY CAUSE INJURY TO THE CHILD OR OTHER PEOPLE.

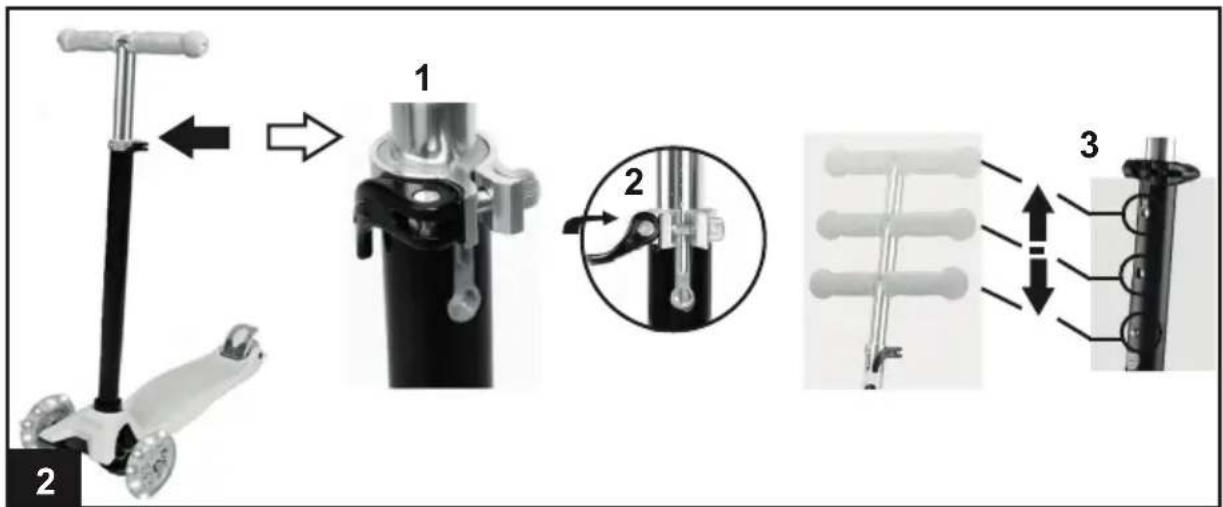

1 - HANDLEBAR ASSEMBLY

Insert the lower end of the handlebar with pressure in the opening in the deck until you hear a click and the tube of the handle bar is in the respective opening.

To remove the handlebar, press the pin and draw the handlebar out.

2 - ADJUSTING THE HEIGHT OF THE HANDLEBAR - 3 positions

- Release the lever, which adjusts the height of the handlebar.

- Press the pin and move the tube of the handlebar in the desired height until you hear a click and the pin shows through the respective opening.

- Tighten the lever, which adjusts the height of the handlebar.

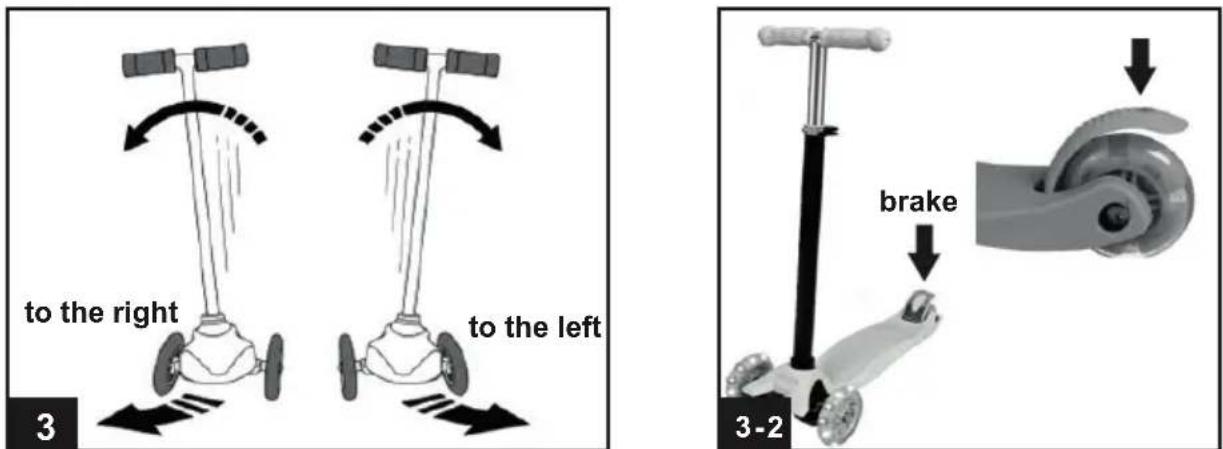

3 - SCOOTER MOVEMENT AND BRAKE USAGE

When you tilt the handlebar to the right, the wheels will turn RIGHT and the scooter will turn right.

When you tilt the handlebar to the left, wheels will turn LEFT and the scooter will turn left.

When in upright position, the scooter will move STRAIGHT.

The rear wheel has a BRAKE. To use the brake during movement, the child can step with its heel on it and press it until the scooter stops.

CAUTION! The brake must be used with only one foot!

Use of helmet, knee and elbow protectors, shoes

For more safety, the child must wear a helmet on the head, knee and elbow protectors and shoes while using the toy!

Side-by-side comparison of two helmet profiles showing correct and incorrect posture (no text or symbols)

The helmet must be steady on the head and not tilted back or not protecting the forehead.

CARE AND MAINTENANCE

Periodically check the good working order of the separate parts.
Do not cover the TOY with liquid. Clean with soft damp towel and a neutral liquid soap.
Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or spirit.
◆ Regularly oil the moving parts.
Do not use on sandy terrains.
Do not store the TOY in places with very warm air or close to heat sources, it will deform.
Store the TOY in a clean and dry space. Do not subject to direct environmental influence – sun, rain, moisture or harsh temperature changes!
Always dry the TOY or leave it to dry before storing it or using it again. Mildew may appear if you store the product damp.
In case or problems related to the normal exploitation of the product, turn to authorized service for advice and repair.

Materials used: plastic, metal, PVC

DSCRE02xxxx/WX-891
