NL45-0800WT120E26 - Maison intelligente Nanoleaf - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Panneau lumineux LED connecté
Marque	Nanoleaf
Modèle	NL45-0800WT120E26
Dimensions (par panneau)	23 cm x 23 cm x 1 cm
Poids (par panneau)	200 g
Alimentation	Adaptateur secteur 100-240 V, 50/60 Hz, sortie 12 V DC
Puissance consommée (par panneau)	2 W max
Connectivité	Wi-Fi 2,4 GHz, Bluetooth 4.0
Protocole	Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT
Fonctions principales	Contrôle via application, synchronisation musicale, scènes lumineuses, programmation
Température de couleur	1200 K à 6500 K (blanc réglable)
Spectre de couleurs	16,7 millions de couleurs RVB
Durée de vie des LED	25 000 heures
Entretien et nettoyage	Débrancher avant nettoyage, utiliser un chiffon doux et sec
Sécurité	Ne pas utiliser en extérieur, éviter l'humidité
Pièces détachées et réparabilité	Non réparable par l'utilisateur, aucune pièce détachable
Contenu de la boîte	Panneau(x) lumineux, adaptateur secteur, câble de connexion, guide de démarrage
Garantie	2 ans

FOIRE AUX QUESTIONS - NL45-0800WT120E26 Nanoleaf

Comment installer le panneau Nanoleaf ?

Fixez le panneau au mur à l'aide des supports adhésifs fournis, puis branchez l'adaptateur secteur. Connectez le panneau à votre réseau Wi-Fi via l'application Nanoleaf.

L'application ne trouve pas mon panneau, que faire ?

Assurez-vous que le panneau est sous tension et que votre téléphone est sur le même réseau Wi-Fi 2,4 GHz. Réinitialisez le panneau en maintenant le bouton d'alimentation enfoncé pendant 5 secondes.

Puis-je utiliser le panneau sans connexion Internet ?

Oui, mais les fonctionnalités de contrôle à distance et de synchronisation musicale nécessitent une connexion. Vous pouvez contrôler le panneau localement via Bluetooth.

Comment synchroniser la lumière avec la musique ?

Ouvrez l'application Nanoleaf, sélectionnez le mode 'Rythme' ou 'Music Visualizer'. Assurez-vous que le microphone de votre appareil est activé pour capter le son.

Quelle est la puissance maximale par bloc d'alimentation ?

Un adaptateur secteur peut alimenter jusqu'à 10 panneaux maximum. Au-delà, vous devez utiliser un deuxième adaptateur.

Comment réinitialiser le panneau aux paramètres d'usine ?

Maintenez le bouton d'alimentation enfoncé pendant 15 secondes jusqu'à ce que les voyants clignotent en blanc. Relâchez, puis patientez 30 secondes.

Puis-je connecter le panneau à un interrupteur mural ?

Non, le panneau doit rester alimenté en permanence pour fonctionner correctement. Utilisez plutôt l'application ou une commande vocale pour l'éteindre.

Que faire si un panneau ne s'allume pas ?

Vérifiez les connexions entre les panneaux et l'adaptateur. Essayez de débrancher et rebrancher le câble. Si le problème persiste, contactez le service client.

Les panneaux sont-ils compatibles avec HomeKit ?

Oui, les panneaux Nanoleaf sont compatibles avec Apple HomeKit. Utilisez le code HomeKit situé sur le guide de démarrage pour les ajouter à votre application Maison.

Comment nettoyer les panneaux ?

Débranchez les panneaux, puis essuyez doucement avec un chiffon non pelucheux légèrement humide. N'utilisez jamais de produits chimiques ou abrasifs.

MODE D'EMPLOI NL45-0800WT120E26 Nanoleaf

Smarter by Design

Nanoleaf Essentials

A19 | A60

Quick Start Guide

BG Кратко начално ръководствов CS Rychly návod DA Hurtig start-guide DE Schnellstart-Ratgeber EL Одногс Грногорпс Екківнанс ES Guia de inicio rápido ET Lühijuhend FI Pikaopas FR Guide de démarrage rapide HU Rövid útmutató az első lépésekhez IT Guida introduttiva LT Trumpas naudojimo vadovas LV Átrás sâkšanas rokasgrâmata NL Aan de slag-gids NO Przewodnik szybkiego startu PL Przewodnik szybkiego startu PT Guia de Iniciação Rápida RO Ghid de start rapid RU Kpatkoe руководство пользователя SK Stručná úvodná príručka SV Snabbstartsguide TR Hizli Başlangıç Kilavuzu 筒体 快速入门指南 繁體 快速入门指南 KR 빠른 시작 가이드 JP クイックスタートガイド

Simple circular symbol with a diagonal line crossing through it, no text or numbers present.

Simple line drawing of a desktop computer with a vertical screen and circular base (no text or symbols)

2

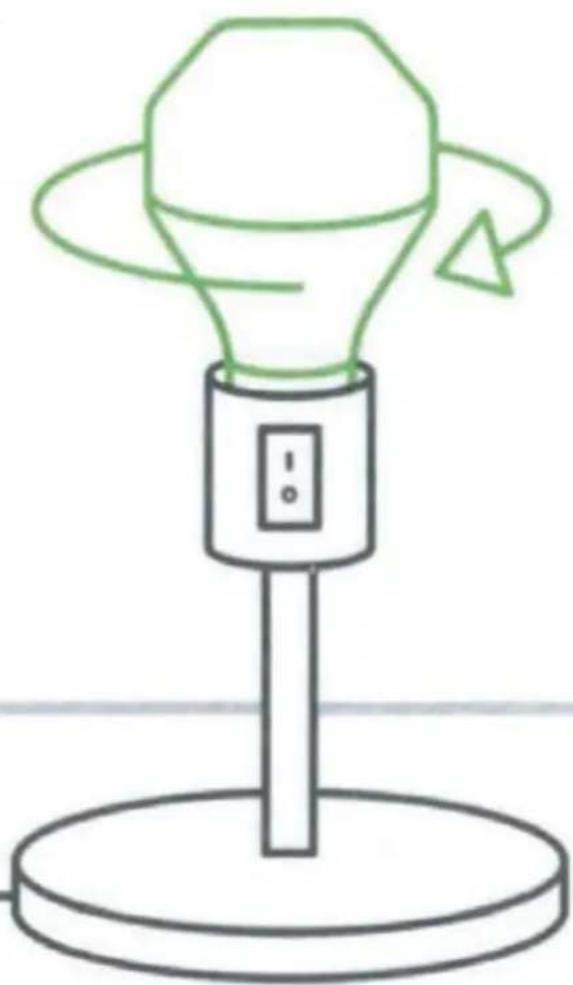

Simple line drawing of a light bulb on a stand with a circular base (no text or symbols)

EN WARNINGS & CAUTIONS Please read this safety information carefully and keep this document for future reference. Help articles and customer support is always available at helpdesk.nanoleaf.me/. This Nanoleaf® product is not designed, certified, nor intended for use in: enclosed locations that limit the flow of air and/or trap heat which contributes to an environment temperature over 40 degrees Celsius; emergency exits, emergency lighting, or other use cases involving critical systems for human safety; in conjunction with 3rd party devices that are not approved by Nanoleaf® for use with Nanoleaf® products; locations or use cases where there is a risk of electric shock; out door areas, regardless of weather conditions; wet or damp conditions; excessively humid areas; regions or countries other than that in which the product was intended for and certified for sale in. Risk of electric shock - do not use where directly exposed to water. Not for use with dimmers. Not for use in totally enclosed luminaires. When using this Nanoleaf® product: Always install the luminaire in accordance with your local building code and consult a qualified electrician if necessary. Do not open or disassemble the device, as this will void the warranty and make the product unsafe for use. While connected to the electrical supply of the building, do not place any metallic or conductive objects near any exposed metal contacts on any component. Unplug the power supply unit from the power source before moving the device. Do not allow small children to operate this device without adult supervision. Do not step on any part of the device, as this will cause breakage. Do not submerge any part of the device in water, or expose any part of the device to water. It's often unwise to stick your fingers (or other parts of your person or conductive things connected to your person) in dark places that you can't see inside. Always practice safe play with battery operated and plug-in devices. Nanoleaf® Essentials is a lighting product by Nanoleaf Ltd. that pairs to a Google Account and uses Google services

to connect to the internet. For setup and full feature access including remote control, mobile alerts, and software updates, Nanoleaf® Essentials requires a compatible assistive device (full list available at g.co/nest/assistivedevice) and a working internet connection over Wi-Fi, the free Google Home app, and an active Google Account. Minimum requirements are available at g.co/nest/devicereq. Availability and performance of certain features are service-, device-, and network-dependent and may not be available in all areas. All features, functionality, and product specifications are subject to change without notice or obligation. Voice control with the Google Assistant requires a compatible smart device. Google and related marks and logos are trademarks of Google LLC.

CLEANING AND MAINTENANCE Do not clean the device with liquid or sprays when it is connected to power. Clean with a soft dry cloth, and do not use harsh cleaning agents. Manage in accordance with disposal laws in your area. RADIO

FREQUENCY RANGE Bluetooth, Thread: 2400-2483.5 MHz, Max RF e.i.r.p power < 10dBm CE INFORMATION For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain luminaires and lamp holders and may impair contact making and lamp retention. NanoGrid Limited (Nanoleaf®) hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity is available at nanoleaf.me/eudoc/.

WARRANTY This product is covered by a limited warranty from Nanoleaf®: a two-year complimentary replacement of defective hardware. For full details visit: nanoleaf.me/warranty.

Disposal of your old product: Your product is designed and manufactured with high-quality materials and components, which can be recycled and reused. When

this crossed-out wheelie bin symbol is attached to a product, it means that the product is covered by European Directive 2012/19/EU. Please find out about your local collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help to prevent potential negative consequences for the environment and human health.

BG ПРЕДУПРЕЖДЕНИЯ И ПРЕДПАЗНИ МЕРКИ Моля, прочетете внимателно тази информация за безопасност и запазете този документ за бъдеща справка. Помощни статии и съдействие за клиенти са налични винаги на https://helpdesk.nanoleaf.me/devices. Този продукт на Nanoleaf® не е проектиран, сертифициран, нито предназначен за употреба на: Затворени места, които ограничават притока на въздух и/или поддържат топлина, което допринася за температура на околната среда над 40 градуса по Целзий; Аварийни изходи, аварийно осветление или други случаи на употреба, включващи критични системи за безопасност на хората; Заедно с устройства на трети страни, които не са одобрени от Nanoleaf® за използване с продукти на Nanoleaf®; Местоположения или случаи на използване, при които има риск от токов удар; Открити плащи, независимо от метеорологичните условия; Мокри или влажни среди; Като подово покритие или подова облицовка; Региони или държави, различни от тези, за които продуктът е предназначен и сертифициран за продажба. Опасност от токов удар - не използвайте на място, където има директен контакт с вода. Да не се използва с димери. Де се използва в напълно затворени осветителни тела. Когато използвате този продукт на Nanoleaf®: Винаги инсталирайте осветителното тяло в съответствие с местния закон за строителство и се консултирайте с квалифициран електротехник, ако е необходимо. Не отваряйте и не разглобявайте устройството, тъй като това ще

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Rated Power: 9W

Rating Input: 100-240V-, 50/60Hz

Color Temperature: 2700-6500K, RGBCW

Luminous Flux: 806lm +/- 10%

Dimensions: 6 cm x 11 cm

Models:

NL4S-0800WT120E26

NL45-0800WT240E27

NL45-0800WT240B22

NL45-0800WT240E27-TW

NL45-0800WT120E26-JP

NL45-0800WT120E26-KR

NL45-0800WT240E27-CN

NL45-0800WT120E26-LATAM

CE EAC

FCC ID: 2AEWY-NL45

IC: 20489-NL45
