LBV8541X - Caméra de surveillance Lorex - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Caméra de surveillance extérieure
Résolution	4K Ultra HD (3840 x 2160 pixels)
Angle de vue	120° diagonale
Vision nocturne	Jusqu'à 30 mètres avec LED infrarouges
Alimentation	Adaptateur secteur 12 V CC (inclus)
Dimensions (L x H x P)	70 x 150 x 70 mm
Poids	480 g
Connectivité	Ethernet RJ45, Wi-Fi 802.11 b/g/n
Stockage	Carte microSD jusqu'à 256 Go (non incluse)
Indice de protection	IP67 (résistant à la poussière et à l'eau)
Détection de mouvement	Oui, avec zones de détection personnalisables
Audio bidirectionnel	Oui, microphone et haut-parleur intégrés
Vision grand angle	Oui, avec correction de distorsion
Température de fonctionnement	-30°C à 60°C
Montage	Mur ou plafond, support inclus
Entretien et nettoyage	Nettoyer l'objectif avec un chiffon microfibre sec
Sécurité	Cryptage TLS/SSL, authentification à deux facteurs
Pièces détachées et réparabilité	Câble d'alimentation et support disponibles en option
Garantie	2 ans
Contenu de la boîte	Caméra, adaptateur secteur, kit de montage, guide de démarrage rapide

FOIRE AUX QUESTIONS - LBV8541X Lorex

Comment connecter la caméra à mon réseau Wi-Fi ?

Utilisez l'application Lorex Home, scannez le code QR sur la caméra, puis suivez les instructions pour connecter votre caméra à votre réseau Wi-Fi 2,4 GHz.

Puis-je utiliser la caméra sans abonnement ?

Oui, la caméra fonctionne en local avec une carte microSD. Certaines fonctionnalités cloud nécessitent un abonnement facultatif.

Comment réinitialiser la caméra aux paramètres d'usine ?

Maintenez le bouton de réinitialisation situé à l'arrière de la caméra enfoncé pendant 10 secondes jusqu'à ce que le voyant clignote en rouge.

La vision nocturne est-elle en couleur ?

Oui, la caméra dispose de la vision nocturne en couleur grâce à des LED infrarouges et un capteur à haute sensibilité.

Quelle est la portée de détection de mouvement ?

La détection de mouvement peut être configurée de 1 à 15 mètres selon les réglages dans l'application.

La caméra est-elle compatible avec Alexa ou Google Assistant ?

Oui, elle est compatible avec Amazon Alexa et Google Assistant pour le contrôle vocal.

Comment installer la carte microSD ?

Retirez le couvercle en caoutchouc à l'arrière de la caméra, insérez la carte microSD (face dorée vers le haut) jusqu'à ce qu'elle s'enclenche, puis refermez le couvercle.

Puis-je accéder à la caméra à distance ?

Oui, via l'application Lorex Home sur iOS ou Android, vous pouvez visualiser en direct, recevoir des alertes et revoir les enregistrements.

Quel type de câble est requis pour l'alimentation ?

Un adaptateur secteur 12 V CC est inclus. Vous pouvez également utiliser un câble d'extension PoE (Power over Ethernet) si votre réseau le supporte.

Comment nettoyer l'objectif de la caméra ?

Utilisez un chiffon microfibre doux et sec pour essuyer délicatement l'objectif. N'utilisez pas de produits chimiques agressifs.

MODE D'EMPLOI LBV8541X Lorex

Package Contents

• 4K Ultra HD Active Deterrence Security Camera
- Mounting Kit*
- BNC / Power Extension Cable*
- Power Adapter**
* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided depending on product configuration.

ATTENTION:

A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this camera (included). Only the included power adapter can be used. Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.

Safety Precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels noted in the camera's specifications.
  the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
  intense light
• Use only the supplied regulated power supply provided with the product. Use of a non-regulated, non-conforming power supply can damage the product and void the warranty.
  • Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh,
  chemical-based cleaners.
• The supplied cable is rated for surface and in-wall mounting only. Cables for floor-to-floor installations are sold separately (CMR type). These and other cables are available at lorex.com.

Changing the DVR to 4K Resolution

The output resolution of a Lorex HD DVR is set to 1080p as a default. To view 4K resolution on a 4K monitor, the output resolution must be changed using the DVR menu.

To change the output resolution through a Lorex HD DVR:

1. Right-click on the Live View to access the Quick Menu
2. Click Main Menu and then click the Setting icon ( )
3. Click Main Menu and then click the Setting Icon [ ]
4. Click Setting > Display
5. Click the Display tab.
6. In the Resolution drop-down menu, select 3840 x 2160
7. Click Apply to save and click OK to exit.

Installation Tips

• Point the camera where there is the least amount of obstructions (in thousands).
  (i.e., tree branches).
  • Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or ea
• This camera is rated for outdoor use. Installation in a sheltered location is
  recommended.

Disclaimers

• For a full list of compatible recorders, visit lorex.com/compatibility.
• Not intended for submersion in water. Installation in a sheltered location
  recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.

Troubleshooting

Problem Solution
No picture / signal • Only use the approved power supply and 4K extension cables provided with camera. • Ensure that you have set the DVR to 4K output resolution. See ‘Changing using to 4K Resolution’ for details. • The cameras are only compatible with certain Lorex HD DVRs. For the full list of compatible recorders, visit lorex.com/compatibility. • Ensure your TV or monitor is on the correct input channel. Common terms for input channels: INPUT, AV CHANNEL, LINE1, LINE2, AUX. • Ensure your DVR is properly connected to your TV or monitor. • Ensure connections are properly connected. • Ensure the camera power supply is plugged in. • Ensure that you only use the included power cable.
Picture is too bright • Ensure your camera isn’t pointed directly at a source of light (e.g., sun or spot light). • Check the brightness settings of the DVR and monitor. • Move your camera to a different location.
Picture is too dark • Check the brightness and contrast settings of the DVR and monitor.
Night vision is not working • Only use the approved power supply and 4K extension cables provided with camera. • The night vision activates when light levels drop. The area may have too much light.
Picture is not clear • Only use the approved power supply and 4K extension cables provided with camera. • Check the camera lens for dirt, dust, spiderwebs. Clean the lens with a soft, clean cloth. • Make sure that the cable run is within the limitations specified in the section ‘Cable Extension Options’.
Bright spot in video when viewing camera at night	• Night vision reflects when pointing a camera through a window. Move the camera to a different location.
The camera warning light is not switching on automatically	• Ensure that you have enabled and configured white light deterrence using a compatible DVR. See your DVR’s documentation for more information. • Ensure the active areas and schedule for white light deterrence are set properly. The default schedule for the warning light is night times (between 5PM and 7AM).
The camera siren is not switching on automatically	• The camera siren cannot switch on automatically. You can control the camera siren manually using the Lorex Cloud app or a compatible DVR.

Dimensions

	3.2" / 80mm	5.9" / 150mm
	2.8"7mm

Copyright © 2019 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

LBV8541X_LBV8543X_QSG_EN_R3

4K Ultra HD Active Deterrence

Security Camera

Quick Start Guide

English Version 3.0

Exterior view of a modern security camera (no visible text or symbols)

LBV8541X / LBV8543X SERIES

www.lorex.com

Installing the Camera

ATTENTION:

Test your camera prior to selecting a permanent mounting location by temporarily connecting the camera and cable to your DVR.

Before Installing the Camera

- Decide whether to run the cables through the wall / ceiling (drilling required) or along the wall / ceiling.

- If you run the cables along the wall / ceiling, you must run the cable through the cable notch on the base. This will keep the camera base flush to the surface when mounted.

To install your camera:

1. Set the camera in the desired mounting position and mark holes for screws through the camera base.
2. Drill the holes, then feed the cable through the mounting surface or cable notch.
   NOTE: Insert the included drywall anchors if you are mounting the camera onto drywall.
3. Mount the camera stand to the mounting surface using the provided screws. Make sure all screws are fastened tightly.

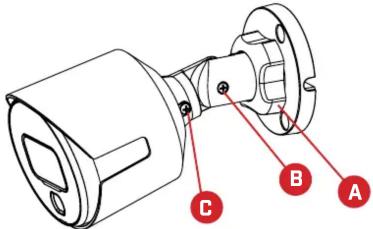

4. Adjust the camera as shown below:

A. ROTATING THE ARM: Loosen the adjustment ring by turning it counter-clockwise. Rotate the arm of the camera up to 360^ , then tighten the adjustment ring against the base.
B. BENDING THE ARM: Use a Phillips head screwdriver (not included) to loosen the adjustment screw closest to the camera base. Bend the arm of the camera up to 90^ , then tighten the screw.
C. LEVELING THE CAMERA: Use the screwdriver to loosen the adjustment screw furthest from the camera base. Rotate the camera until it is level with the viewing area, then tighten the screw.
5. Remove the vinyl film from the camera lens when your installation is complete.

Connecting the Camera

Male Power

Female Power

This camera can only be used with 4K rated extension cables. For details, see 'Cable Extension Options'.

Camera

Connect the male power head and the BNC connector to the camera.

DVR

Connect the BNC connector to a video input on your DVR.

Connect the female power head to the included power adapter.

Power Adapter Types

A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided, depending on product configuration.

Power Adapter* Mult

Camera Power Adapter*

* Only the included power adapter can be used. Images for representation only.

Setup Diagram

Extension Cable

Cable Extension Options

Extend the cable run for your camera depending on the cable type used. Additional extension cables sold separately. See table below:

Option Model Number Cable Length

1	CB120URB1A	120ft (37m)
2	CB250URB1A	250ft (76m)

Notes:

1. The extension cable must be a single stretch of cable between the DVR and camera. You cannot connect multiple extension cables to each other.

2. Indicators that your cable run may be too long:

- Camera loses video when switching to night vision.

• Video is permanently black & white (even during day time)

• Video is unclear, soft, or distorted.

1. For more information on extension cables, visit lorex.com.

Activating Deterrence

The camera's deterrence features deter suspicious activities from occurring by flashing a warning light and/or sounding a siren from the camera. You can manually control these features using the Lorex Cloud app.

NOTES:

• See your DVR's documentation for more information about enabling and automating deterrence features using a compatible DVR.
• For a full list of compatible recorders, visit lorex.com/compatibility.

REQUIREMENTS:

• Connect the camera to a compatible DVR. See 'Connecting the Camera' section for more information.
• Ensure the compatible DVR is set up remotely via the Lorex Cloud app. See your DVR's documentation for more information.

To activate deterrence manually through the Lorex Cloud app:

1. From live view, double-tap the deterrence camera to open the channel in full screen.

2. Tap the deterrence icons on the camera display to switch on/off the following deterrence features:

3. Tap the icon to switch on [icon] / off [icon] the camera warning light.

4. Tap the icon to switch on (▲/ off [ ) the camera siren.

NOTE: The camera warning light / siren will automatically switch off after 10 seconds.

Resources

Need Help?

Visit us online for up-to-date software and complete instruction manuals

1

Visit lorex.com

2

Search for the model number of your product

3

Click on your product in the search results

4

Click on the Downloads tab
