HTL1505 - Barre de son PHILIPS - Notice d'utilisation et mode d'emploi gratuit

Marque	Philips
Modèle	HTL1505
Type de produit	Barre de son
Dimensions (L x H x P)	650 x 75 x 100 mm
Poids	2,2 kg
Alimentation	100-240 V ~ 50/60 Hz
Consommation électrique	30 W
Puissance de sortie totale	60 W RMS
Nombre de canaux	2.1
Connectivité	Bluetooth, HDMI ARC, entrée optique, entrée AUX
Entrée USB	Oui (pour lecture de fichiers MP3)
Formats audio supportés	MP3, WMA, AAC
Fonctions principales	Amplification du son TV, mode nuit, égaliseur pré-réglé
Accessoires inclus	Télécommande, câble d'alimentation, câble audio 3,5 mm, câble optique, manuel d'utilisation
Température de fonctionnement	0 °C à 40 °C
Humidité de fonctionnement	20 % à 80 % (sans condensation)
Entretien et nettoyage	Débranchez l'appareil avant nettoyage. Utilisez un chiffon doux et sec. N'utilisez pas de produits abrasifs ou liquides.
Sécurité	Ne pas exposer à l'eau, à la chaleur excessive ou aux chocs. Utiliser dans un endroit bien ventilé.
Pièces détachées et réparabilité	Les pièces de rechange (télécommande, adaptateur secteur) sont disponibles via le service client Philips. Le produit n'est pas conçu pour une réparation par l'utilisateur.
Informations générales	Utilisation en intérieur uniquement. Classe de protection II. Marquage CE.

FOIRE AUX QUESTIONS - HTL1505 PHILIPS

Comment connecter la barre de son à ma télévision ?

Utilisez un câble HDMI (ARC) ou un câble optique pour une connexion optimale. Branchez une extrémité dans la barre de son et l'autre dans la TV. Sélectionnez la source correspondante sur la barre à l'aide de la télécommande.

Puis-je connecter la barre de son en Bluetooth ?

Oui, mettez la barre en mode Bluetooth en appuyant sur le bouton Source jusqu'à afficher 'BT'. Sur votre appareil (smartphone, tablette), recherchez 'Philips HTL1505' et appairez.

Que faire si le son est déformé ou faible ?

Vérifiez le volume de la barre et de la TV. Réduisez les basses si l'égaliseur est réglé trop haut. Assurez-vous que les haut-parleurs ne sont pas obstrués et que la barre est placée sur une surface stable.

Comment nettoyer ma barre de son ?

Débranchez l'appareil. Utilisez un chiffon doux et sec pour essuyer la surface. N'utilisez pas de produits chimiques, d'alcool ou de liquides. Évitez de faire pénétrer de l'humidité dans les grilles.

La télécommande ne fonctionne pas, que faire ?

Vérifiez les piles et remplacez-les si nécessaire. Assurez-vous qu'aucun obstacle ne bloque le capteur infrarouge. Pointez la télécommande directement vers la barre depuis une distance de moins de 6 mètres.

Puis-je utiliser la barre de son sans télécommande ?

Oui, utilisez les boutons situés sur la barre : le bouton de volume, le bouton Source et le bouton d'alimentation. Cependant, certaines fonctions comme l'égaliseur ne sont accessibles que via la télécommande.

Quels câbles sont fournis avec la barre de son ?

L'emballage inclut un câble d'alimentation, un câble audio 3,5 mm (jack) et un câble optique. Pour la connexion HDMI ARC, vous devrez fournir votre propre câble HDMI.

Comment régler le mode nuit ?

Appuyez sur la touche 'Nuit' (ou 'Night') de la télécommande. Cela réduit l'intensité des sons forts afin de ne pas déranger. Le mode s'active/désactive à chaque pression.

La barre de son ne s'allume pas, pourquoi ?

Vérifiez que le câble d'alimentation est correctement branché à la barre et à une prise électrique fonctionnelle. Assurez-vous que la prise est bien alimentée. Si le problème persiste, contactez le service Philips.

Où puis-je télécharger le manuel d'utilisation complet ?

Le manuel est disponible gratuitement sur le site notice-facile.com ou sur le site officiel de Philips. Vous pouvez aussi utiliser le code QR présent sur l'emballage ou la notice imprimée.

MODE D'EMPLOI HTL1505 PHILIPS

PHILIPS

1000 series

Soundbar Speaker

HTLI505

User manual

Close-up of a dark textured cylindrical object with no visible text or symbols

Contents

1 Important 2
Help and support 2
Safety 2
Care for your product 3
Care of the environment 3
Compliance 4

2 Your SoundBar 4

Main unit 4

Remote control 5

Connectors 6

3 Connect 6

Placement 6

Connect the SoundBar 7

Connect audio from TV and other devices 8

4 Use your SoundBar 9

Adjust the volume 9

MP3 player 9

Play audio through Bluetooth 10

Auto standby 10

Apply factory settings 10

Update software 10

5 Wall mount 11

6 Product specifications 11

7 Troubleshooting 12

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.

Help and support

For extensive online support, visit www.philips.com/support to:

• download the user manual and the quick start guide
  • watch video tutorials (available only for selected models)
  • find answers to frequently answered questions (FAQs)
• email us a question
  • chat with our support representative.

Follow the instructions on the website to select your language, and then enter your product model number.

Alternatively, you can contact Consumer Care in your country. Before you contact, note down the model number and serial number of your product. You can find this information on the back or bottom of your product.

Important safety instructions

• Read these instructions.
- Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
• Do not defeat the safety

purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer:

• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storm or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, + and - as marked on the unit.
- Do not mix batteries (old and new or carbon and alkaline, etc.).
- Remove batteries when the unit is not used for a long time.
- The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

- Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

• The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.
  • If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention.
• When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.
  • If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.
  • Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (for example, liquid filled objects, lighted candles).
• This apparatus may contain lead and mercury. Dispose according to local, State or Federal laws. For disposal or recycling information, please contact your local authorities. For additional assistance on recycling options, please contact www.mygreenelectronics.com or www.eiae.org or www.recycle.philips.com.
  • Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death.
  • This apparatus should not be placed in a built-in installation such as a bookcase or

rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches (20cm) or more around this apparatus.

Class II equipment symbol

This symbol indicates that the unit has a double insulation system.

Know these safety symbols

This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your

household, please do not remove product covering.

The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and

maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Care for your product

Use only microfiber cloth to clean the product.

Care of the environment

Disposal of your old product and battery

2 Your SoundBar

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains batteries covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste.

Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste. Correct disposal of old products and batteries helps prevent negative consequences for the environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see battery installation section.

Compliance

This product complies with the radio interference requirements of the European Community.

Hereby, MMD Hong Kong Holding Limited declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on www.p4c.philips.com.

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your SoundBar at www.philips.com/welcome.

Main unit

This section includes an overview of the main unit.

①

Switch the soundbar on or to standby.

② (SOURCE)

Select an input source for the soundbar.

③ Volume+/-

Increase or decrease volume.

④ Soundbar's LED indicator

• Light up red when the soundbar is in standby.

• Light up green when you switch to line in input source (3.5mm stereo audio cable).

• Light up blue when you switch to Bluetoothmode and Bluetooth devices are paired.
• Light up yellow when you switch to optical input source.
- Blink red when you increase or decrease volume, solid red when you maximize or minimize volume.
- Blink red at a low rate when you mute the soundbar.

Remote control

This section includes an overview of the remote control.

① ⏻ (Standby-On)

Switch the SoundBar on or to standby.

② LINE

Switch to LINE IN mode.

③

Switch to Bluetooth mode.

④ +/- (Volume)

• Increase or decrease volume.

⑤ Play buttons / Bluetooth PAIRING

• ▶II: Play, pause or resume play in Bluetooth mode (only for AVRCP supported Bluetooth devices).
• ◄/▶: Skip to the previous or next track in Bluetooth mode (only for AVRCP-supported Bluetooth devices).
• ▶II (Long Press): Disconnect the currently connected Bluetooth device and start a new pairing

⑥ SOUND

Choose Music, Movie or News mode.

⑦ OPT

Switch your audio source to the optical connection.

⑧

Mute or restore volume.

Connectors

This section includes an overview of the connectors available on your SoundBar

① SERVICE

For software upgrade.

② LINE IN

Line input from, for example, an MP3 player (3.5mm stereo).

③ OPTICAL

Connect to an optical audio output on the TV or a digital device.

④ DC IN

Connect the soundbar to the power supply.

3 Connect

This section helps you connect your SoundBar to a TV and other devices.

For information about the basic connections of your SoundBar and accessories, see the quick start guide.

Note

• For identification and supply ratings, refer to the type plate at the back or bottom of the product.
  • Before you make or change any connections, make sure that all devices are disconnected from the power outlet.

Placement

Place your SoundBar as shown below.

Line drawing of a double-panel air conditioner unit with a sofa and ceiling, showing airflow direction (no text or symbols)

Connect the SoundBar

Connect audio from TV and other devices

Option 1: Connect audio through a digital optical cable

Best quality audio

1 Using an optical cable, connect the OPTICAL connector on your SoundBar to the OPTICAL OUT connector on the TV or other device.

• The digital optical connector might be labeled SPDIF or SPDIF OUT.

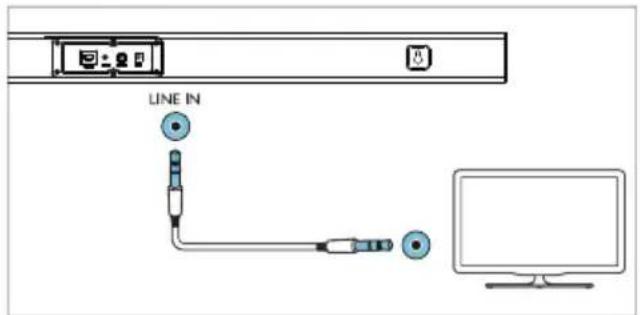

Option 2: Connect audio through a 3.5mm stereo audio cable

Basic quality audio

1 Using a 3.5mm stereo audio cable, connect the LINE IN connector on your SoundBar to the LINE connector on the TV or other device.

4 Use your SoundBar

This section helps you use the SoundBar to play audio from connected devices.

Before you start

• Make the necessary connections described in the Quick Start Guide or download the User Manual from www.philips.com/support.
- Switch the SoundBar to the correct source for other devices.

Adjust the volume

1 Press +/- (Volume) to increase or decrease a volume level.

• To mute sound, press 📄.
• To restore the sound, press ✗ again or press +/- (Volume).

Volume indicator

• When you press the volume+ to increase the volume, the SoundBar's indicator will blink red, and the volume will return to the normal state after it reaches the maximum with the SoundBar's indicator showing solid red for 2 seconds.
• When you press the volume- to decrease the volume, the SoundBar's indicator will blink red, and the volume will return to the normal state after it reaches the minimum with the SoundBar's indicator showing solid red for 2 seconds.

MP3 player

Connect your MP3 player to play your audio files or music.

What you need

• An MP3 player.
• A 3.5mm stereo audio cable.

1 Using the 3.5mm stereo audio cable, connect the MP3 player to the AUDIO IN connector on your SoundBar.
2 Press AUDIO IN on the remote control.
3 Press the buttons on the MP3 player to select and play audio files or music.

Play audio through Bluetooth

Through Bluetooth, connect the SoundBar with your Bluetooth device (such as an iPad, iPhone, iPod touch, Android phone, or laptop), and then you can listen to the audio files stored on the device through your SoundBar speakers.

What you need

• A Bluetooth device which supports Bluetooth profile A2DP and AVRCP, and with Bluetooth version 4.2 or above.
• The operational range between the SoundBar and a Bluetooth device is approximately 4 meters (13 feet).

1 Press ⚙ on the remote control to switch the SoundBar to Bluetooth mode. → The soundbar's indicator blinks blue.

2 On the Bluetooth device, switch on Bluetooth, search for and select Philips HTL1508 to start connection (see the user manual of the Bluetooth device on how to enable Bluetooth). → During connection, the soundbar's indicator blinks blue.

3 Wait until the soundbar's indicator becomes solid blue. → If the connection fails, the indicator blinks continually at a lower rate.

4 Select and play audio files or music on your Bluetooth device. • During play, if a call is coming, music play is paused. • If your Bluetooth device supports AVRCP profile, on the remote control you can press ◀/▶ to skip to a track, or press ▶II to pause/resume play.

5 To exit Bluetooth, select other source. - When your switch back to Bluetooth mode, Bluetooth connection remains active.

Note

• The music streaming may be interrupted by obstacles between the device and SoundBar, such as wall, metallic casing that covers the device, or other devices nearby that operate in the same frequency.
• If you want to connect your SoundBar with another Bluetooth device, press and hold ▶II on the remote control to disconnect the currently connected Bluetooth device.

Auto standby

When playing media from a connected device, this product automatically switches to standby after 15 minutes of button inactivity and no audio play from a connected device.

Apply factory settings

You can reset your SoundBar to the default setting mode.

1 In LINE mode, long press the power key of the remote control for 5 seconds. → The factory settings is restored.

Update software

To continually improve the product, software upgrade may be offered. Visit www.philips.com/support to check if the latest software version is available.

5 Wall mount

Note

• Improper wall mounting may result in accident, injury or damage. If you have any query, contact Consumer Care in your country.
• Before wall mounting, make sure the wall can support the weight of your SoundBar:

Screw length/diameter

Depending on the type of wall mounting your SoundBar, make sure that you use screws of a suitable length and diameter.

See the illustration in the quick start guide on how to wall mount the SoundBar.

1) Drill two holes on the wall.
2) Secure the dowels and screws in the holes.
3) Hang the SoundBar on the fastening screws.

6 Product specifications

Note

- Specifications and design are subject to change without notice.

Amplifier

• RMS total output power:
70W RMS (+/- 0.5 dB, 10% THD)
• Frequency response: 50 Hz-15 kHz / ±3 dB
• Signal-to-noise ratio:

65 dB (CCIR) / (A-weighted)
• Total Harmonic Distortion: <1%
• Input sensitivity:
• LINE IN: 450mV +/-50mV

Audio

• S/PDIF Digital audio input:
• Optical:TOSLINK
• Sampling frequency:
• MP3: 8 kHz, 11 kHz, 12 kHz, 16 kHz, 22 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
- Constant bit rate:
• MP3: 8 kbps-320 kbps

Bluetooth

• Bluetooth profiles: A2DP, AVRCP
- Bluetooth version: 5.0
• Frequency band/Output power: 2402 - 2480 MHz / ≤ 20 dBm

Main unit

Soundbar

• Power supply: 100-240 V\~, 50/60 Hz
• Power consumption: 15V/1.6A
• Standby power consumption: ≤0.5W
• Dimensions (W × H × D): 960 × 67.8 × 85.5 mm
• Weight: XX kg
• Built-in speakers: 2 × full range (52 mm/2", 4 ohm)

Remote control batteries

• 1 × AAA-R03-1.5 V

Standby information

• When the product remains inactive for 15 minutes, it automatically switches to standby or networked standby.
• When the product (soundbar) remains standby information, the power consumption in standby is less than 2W.
  • To deactivate Bluetooth connection, press and hold the Bluetooth button on the remote control.
  • To activate Bluetooth connection, enable Bluetooth connection on your Bluetooth device.

7 Troubleshooting

Warning

- Risk of electric shock. Never remove the casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www.philips.com/support.

Main unit

The buttons on the SoundBar do not work.

- Disconnect the SoundBar from the power supply for a few minutes, then reconnect.

Sound

No sound from SoundBar speakers.

• Connect the audio cable from your SoundBar to your TV or other devices.
• Reset your SoundBar to its factory settings.
• On the remote control, select the correct audio input.
  • Make sure that the SoundBar is not muted.

Distorted sound or echo.

• If you play audio from the TV through the SoundBar, make sure that the TV is muted.

Bluetooth

A device cannot connect with the SoundBar.

• The device does not support the compatible profiles required for the SoundBar.
• You have not enabled the Bluetooth function of the device. See the user manual of the device on how to enable the function.

• The device is not correctly connected. Connect the device correctly. (see 'Play audio through Bluetooth' on page 10)
- The SoundBar is already connected with another Bluetooth device. Disconnect the connected device, then try again.

Quality of audio play from a connected Bluetooth device is poor.

- The Bluetooth reception is poor. Move the device closer to the SoundBar, or remove any obstacle between the device and the SoundBar.

The connected Bluetooth device connects and disconnects constantly.

• The Bluetooth reception is poor. Move the device closer to the SoundBar, or remove any obstacle between the device and the SoundBar.
  • Turn off Wi-Fi function on the Bluetooth device to avoid interference.
• For some Bluetooth, the Bluetooth connection can be deactivated automatically to save power. This does not indicate any malfunction of the SoundBar.

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

Specifications are subject to change without notice.

Philips and Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited, or one of its affiliates, and MMD Hong Kong Holding Limited, is the warrantor in relation to this product.
