Type de produit	Haut-parleur 2 voies
Marque	Pyle
Modèle	PDWR46IFBBK
Dimensions (L x l x H)	15,2 x 10,2 x 6 cm
Diamètre du haut-parleur	10 x 15 cm (ovale)
Poids	0,5 kg
Impédance	4 ohms
Puissance maximale	100 W
Puissance RMS	50 W
Réponse en fréquence	70 Hz - 20 kHz
Sensibilité	90 dB
Matériau du cône	Polypropylène
Matériau du tweeter	Dôme en polymère
Type d'aimant	Ferrite
Alimentation	Passif (via amplificateur externe)
Utilisation recommandée	Enceinte avant ou arrière pour voiture, ou enceinte encastrable
Entretien et nettoyage	Essuyer avec un chiffon doux et sec. Ne pas utiliser de solvants.
Sécurité	Ne pas exposer à l'humidité ou aux chocs. Respecter la puissance nominale de l'amplificateur.
Pièces détachées et réparabilité	Réparation par un professionnel recommandée. Aucune pièce détachée disponible au grand public.
Informations générales	Haut-parleur 2 voies avec cône ovale 4x6 pouces et tweeter pivotant. Idéal pour une installation dans les portières ou les panneaux.

FOIRE AUX QUESTIONS - PDWR46IFBBK Pyle

Quelles sont les dimensions exactes du Pyle PDWR46IFBBK ?

Le haut-parleur a une forme ovale de 4 pouces sur 6 pouces (10,2 x 15,2 cm) avec une profondeur d'environ 6 cm.

Ce haut-parleur est-il adapté pour une installation en voiture ?

Oui, le PDWR46IFBBK est conçu pour une utilisation en automobile, généralement dans les portières ou les panneaux latéraux.

Quelle est la puissance maximale supportée par ce haut-parleur ?

La puissance maximale est de 100 watts, avec une puissance RMS de 50 watts.

Ce haut-parleur nécessite-t-il un amplificateur externe ?

Oui, c'est un haut-parleur passif qui doit être connecté à un amplificateur ou à l'autoradio.

Comment nettoyer le haut-parleur ?

Utilisez un chiffon doux et sec pour enlever la poussière. Évitez les produits chimiques et l'eau qui pourraient endommager le cône.

Puis-je réparer moi-même le haut-parleur en cas de dommage ?

Il est recommandé de faire appel à un professionnel, car le démontage peut endommager les composants internes. Les pièces détachées ne sont pas vendues au public.

Quel type de tweeter est intégré ?

Le tweeter est un dôme en polymère, conçu pour reproduire les hautes fréquences avec clarté.

Quelle est l'impédance de ce haut-parleur ?

L'impédance est de 4 ohms, ce qui est standard pour les enceintes automobiles.

Quelle est la réponse en fréquence ?

La réponse en fréquence va de 70 Hz à 20 kHz, couvrant les graves moyens et les aigus.

Le haut-parleur est-il livré avec des accessoires de montage ?

Oui, il est généralement fourni avec des vis et un cadre de montage. Consultez la notice pour plus de détails.

MODE D'EMPLOI PDWR46IFBBK Pyle

Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• Do not plug or unplug the unit with wet hands.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains.

Two white and black speaker units with visible sound waves, one white and one black, against a plain background (no text or symbols)

• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. Dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch ON the unit.
• Keep away from electronic equipment that may cause interference.

NOTE:

To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

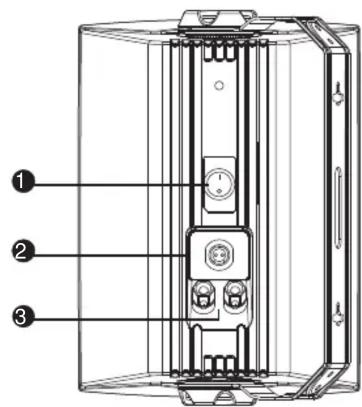

PART NAMES AND FUNCTIONS

1. Power switch
2. Infrared receiver and LED indicator
3. DC Power connector
4. Speaker output connector for passive speaker

Power ON / OFF

Short press to join speaker group

Long press to exit speaker group

Switch EQ Effect

Volume UP

Volume Down

Previous

Play / Pause

Next

Switch UP for the predefined Channel

Switch Down for the predefined Channel BT

Short press for switch to the BT play mode

Long press for switch to the BT pair mode

Short press for connect the speaker to the WIFI

Long press for restore to the factory settings

Switch between BT and WIFI

Technical line drawing of a speaker or audio device with concentric circles and mounting holes (no text or symbols)

DOWNLOAD AND INSTALL MUZO PLAYER APP

Download the Muzo Player app via Apple store or Google play.

MUZO Player Apple Store MUZO Player Google Play

POWER ON THE SPEAKER

Connect the DC adapter to the speakers and connect to 85V \~ 230V AC power, Then turn on power switch. The status indicator LED will be red and blinks fast, after about 10 sec. you will a sound which means the speaker is ready.

CONNECT THE SPEAKER TO WIFI NETWORK

Open the MUZO Palyer APP on your smart phone, the APP will automatically search for speakers. Follow the wizard step by step to complete the speaker settings.

MODEL PDWR66IFBWR46IFBWT PDWR46IFBBK PDWR66IFBWT
Power Output	200 Watt MAX(100 Watt RMS)	200 Watt MAX(100 Watt RMS)	300 Watt MAX(150 Watt RMS)	300 Watt MAX(150 Watt RMS)
Speaker Size	4.0" -inch 4.0" -inch 6.5" -inch 6.5" -inch
Single Speaker Dimensions (LxWxH)	8.54" x 6.69" x 5.90" -inches	8.54" x 6.69" x 5.90" -inches	11.81" x 8.46" x 7.44" -inches	11.81" x 8.46" x 7.44" -inches

Features:

• Universal Wall Mount Box Speakers
- Includes (2) Speakers (Active + Passive)
• Waterproof Rated Marine Grade Construction
• WiFi Wireless Music Streaming Ability
- Connect & Stream Audio via the 'MUZO Player' App
- Bluetooth Wireless Music Streaming
• 2-Way Full Range Stereo Sound Reproduction
• Built-in Digital Sound Amplifier
- Convenient Volume Control & Audio Adjustment via Remote Control
- Custom Tooled Design for High Power & Deep Bass Response
• Used for Audio Monitor and Surround Sound Applications
- Screw-Type Speaker Terminals
- Adjustable Angle Wall Mount Brackets
• Rugged & Heavy Duty Cabinet Enclosure
- Stain Resistant & Rust Proof Speaker Grills
- Daisy-Chain Ability (Active to Passive Speaker) as Stereo System
- For Indoor / Outdoor Use
- Great in the Backyard, by the Pool or on the Patio!

The 'MUZO Player' App:

• Free to Download via Your Smartphone
- Conveniently Access & Stream Your Music Library
- 'Multi-Room Mode' Connects Multiple Devices & Rooms
- Compatible with Spotify, iHeartRadio, TuneIn & More
• Available for iOS and Android

Bluetooth Connectivity:

• Built-in Bluetooth for Wireless Music Streaming
- Simple & Hassle-Free Pairing Connection
- Works with All of Today's Latest Devices (Compatible with Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Version: 4.0
- Bluetooth Network Name: 'PyleUSA'

What's in the Box:

• (1) Active Speaker
• (1) Passive Speaker
- Remote Control

• Power Adaptor Cable
• Speaker Cable

Technical Specs:

• Bluetooth Wireless Range: 100'+ ft.
• WiFi Wireless Range: 100'+ ft.
• Tweeter Type: 0.5" Silk Dome
  • T.H.D.: <0.05% @1W
• SPL: 88 dB
• Speaker Cable Length: 16' ft.
• Audio Format Support: AAC LC/LTP, HE-ACCv1, HE-ACCv2, AMR-NB, AMR-WB, FLAC, Mp3, Vorbis, PCM/WAVE, ALAC
• Remote Control Battery Operated, Requires (1) x CR-2025, Button Cell
  • Power: 100-240V (DC 19V Power Adapter)
• Sold as: Pair
