Notice
The manufacturer shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages in connection with the furnishing, performance or use of the publication.
FCC Approval
This device had been tested in accordance with the procedures and in compliance with Part 15 Subpart B of FCC Rules, and keeps all requirements according to ANSI C63.4 & FCC Part 15 B Regulation and CISPR22 Class B.
CE Standards
The CE mark as shown here indicates this product had been tested in accordance with the procedures given in European Council Directive 2004/108/EC and confirmed to comply with the Europe Standard EN55022:2006:Class B, EN 55024:1998+A1:2001+A2:2003, IEC61000-3-2:2006, IEC61000-3-3:1995+A1:2005, IEC61000-4-2:2001, IEC61000-4-3:2006, IEC61000-4-4:2004, IEC61000-4-5:2006, IEC61000-4-6:2001, IEC61000-4-8:2001, IEC61000-4-11:2004.
LEGISLATION AND WEEE SYMBOL
This marking shown on the product or its literature, indicates that it should not be disposed with other households wastes at the end of its working life. To prevent possible harm to the environment or human healthy from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their suppliers and check the terms and conditions of the purchase.
Contents
Chapter 1 Description....4
1.1 General 4
1.2 Introduction 4
1.3 Codes Read 4
1.4 Installation 4
1.5 Pin Assignment 6
Chapter 2 Configuration 8
2.1 Flow Chart 8
2.2 Loop of Programming....9
2.3 Factory Default Settings 9
2.4 Main Page of Configuration 10
Chapter 3 Interface and Reading Mode Selection......11
3.1 Interface Selection 11
3.2 Reading Mode Selection 12
Chapter 4 Communication Parameters .... 13
4.1 RS232 Communication Parameters 13
4.2 Keyboard Wedge Mode Parameters....15
4.3 Output Character Parameters....17
4.4 Wand Emulation Mode Parameters....19
Chapter 5 Barcodes & Others ....20
5.1 Symbology Selection 20
5.2 UPC/EANI/JAN Parameters....24
5.3 Code 39 Parameters....26
5.4 Code 128 Parameters....28
5.5 Interleaved 25 Parameters....30
5.6 Industrial 25 Parameters....32
5.7 Matrix 25 Parameters ......34
5.8 Codabar/NW7 Parameters 36
5.9 Code 93 Parameters....38
5.10 Code 11 Parameters....40
5.11 MSI/Plessey Parameters 42
5.12 Code 2 of 6 Parameters....44
5.13 LCD 25 Parameters 46
5.14 Telepen Parameters 48
5.15 GS1 Databar Parameters....50
Chapter 6 Miscellaneous Parameters ....52
6.1 Language Selection 52
6.2 Barcode ID....54
6.3 Reading Level 57
6.4 Accuracy....57
6.5 Buzzer Tone 57
6.6 Sensitivity of Continuous Reading Mode......58
6.7 Reverse Output Characters 59
6.8 Setup Deletion 59
6.9 Setup Insertion....62
6.10 Multi-Parallel Lines Mode 65
Chapter 7 Bluetooth Configuration ......66
7.1 Scanner Mode 66
7.2 Out of Range 67
7.3 Sleep Mode 68
7.4 Batch Mode 68
7.5 Firmware Version 69
Appendix A Decimal Value Table 70
Appendix B ASCII Table 71
Appendix C Function Key Table 75
Appendix D Numeric Keypad Table....75
Chapter 1 Description
1.1 General
Thank you for purchasing this linear imager barcode scanner. The user friendly functions make it easily to be operated to accommodate variety of environment. It also provides users with the most cost-effective solution in the market. The scanner is perfectly suitable and definitely the best choice for any retail and logistic environment.
1.2 Introduction
The decoder is an advanced and versatile decoding facility for barcoding systems .It works with variety of barcode types, reading devices, and computer interfaces. It discriminates about twenty different symbologies automatically.
This menu provides an easy way to configure the decoding options and interface selections by scanning barcodes listed in the menu.
1.3 Codes Read
The scanner supports following barcode types: UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 128, Interleave 25, Industrial 25, Matrix 25, Codabar/NW7, Code 11, MSI/Plessey, Code 93, China Post, Code32/Italian Pharmacy, Code 26, LCD 25, Telepen, GS1 Databar, and others available upon request.
1.4 Installation
Unpacking -
Remove the scanner from its packing and check it for damage. If the scanner is defected in transit, please contact your vendor immediately. Be sure that keep the packing materials with all accessories contained in the package for returning of service.
Connecting the scanner -
Keyboard wedge/RS-232C/USB:
Connect the 10-pins RS-45 male connector to the bottom of scanner and you will hear a "click" when the connection is made.
Power supply for RS-232C scanner -
There are 3 ways to supply the power: external +5V power supply adaptor, optional power cable (KBDC) which taking the power from KB wedge or +5V power supplied from the pin 9 of host.
Installing the scanner to the Host System -
- Turn off the host system.
- Connect the power if needed.
- Connect to the proper port on the host system.
- Turn on the host system.
Switching cable -
Before removing the cable from the scanner, it is recommended to turn off power on the host system and disconnect the power supply from unit.

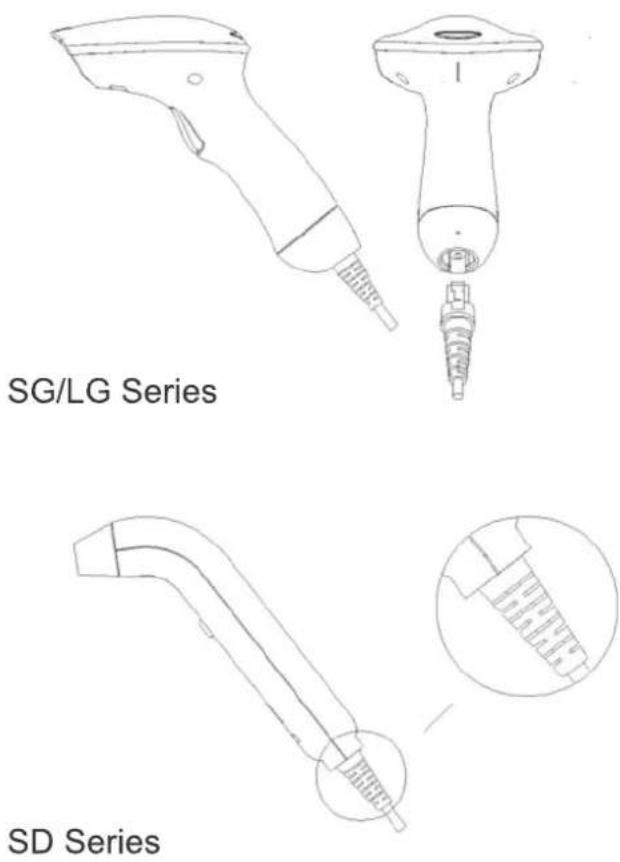

- Find the small "Pin-hole" on the bottom of the unit.
- Use a bended regular paperclip and insert the tip into the hole.
- When hear a "click", gently move out the strain-relief of the cable and it will slide out of the scanner.
1.5 Pin Assignment
A> Input Port for Mini Decoder
DB 9 Male
| Pin No. | Wand / Slot Reader | CCD / Laser Scanner |
| 1 | N.C. | S.O.S. |
| 2 | DATA | DATA |
| 3 | N.C. | N.C. |
| 4 | N.C. | N.C. |
| 5 | N.C. | TRIGGER |
| 6 | N.C. | P.E. |
| 7 | GND | GND |
| 8 | SHIELD | SHIELD |
| 9 | +5V | +5V |
B> Output Port
- PC Keyboard Output
| DIN 5 MALE | DIN 5 FEMALE |
| Pin No. | Function | Pin No. | Function |
| 1 | HOST CLK | 1 | KB CLK |
| 2 | HOST DATA | 2 | KB DATA |
| 4 | GND | 4 | GND |
| 5 | Vcc (+5V) | 5 | Vcc (+5V) |
MiniDIN 6 MALE
| Pin No. | Function | Pin No. | Function |
| 1 | HOST DATA | 1 | KB DATA |
| 3 | GND | 3 | GND |
| 4 | Vcc | 4 | Vcc |
| 5 | HOST CLK | 5 | KB CLK |
 |  |
2. RS-232 Output DB 9 Female
| Pin No. | Function |
| 2 | TXD |
| 3 | RXD |
| 5 | GND |
| 7 | CTS |
| 8 | RTS |
| Power Lead | Vcc (+5) |
3. WAND Emulation Output DB 9 Female
| Pin No. | Function |
| 2 | DATA |
| 7 | GND |
| 9 | Vcc (+5V) |
4. ADB Interface MiniDIN 4 MALE
| Pin No. | Function |
| 1 | ADB |
| 3 | Vcc |
| 4 | GND |
MiniDIN 4 FEMALE
| Pin No. | Function |
| 1 | ADB |
| 3 | Vcc |
| 4 | GND |
5. NEC 9801 Interface MiniDIN 8 MALE
| Pin No. | Function |
| 1 | RST |
| 2 | GND |
| 3 | HOST RDY |
| 4 | HOST DATA |
| 5 | RTY |
| 8 | +5V |
MiniDIN 8 FEMALE
| Pin No. | Function |
| 1 | RST |
| 2 | GND |
| 3 | KB RDY |
| 4 | KB DATA |
| 5 | RTY |
| 8 | +5V |
Chapter 2 Configuration
2.1 Flow Chart
2.2 Loop of Programming
The procedure of programming parameters is shown on the flow chart. Basically it is implemented by:
- Scan "Start Configuration".
- Scan all necessary barcodes for parameters that meet applications.
- Scan "End Configuration" to end the programming.
- To permanently save the parameters, scan "Save Parameters".
- To go back to the default settings, scan "Set All Defaults".
2.3 Factory Default Settings
The factory default settings are shown with <> and bold in the following sections. Make your own settings by following the procedures in this manual. To save the settings permanently, scan the barcode of "Save Parameters" on "Main Page of Configuration". Otherwise the settings will be lost after the decoder power is off, and all settings will go back to previous saved settings.
By scanning "Set All Default" barcodes, the settings will go back to the factory default settings.
2.4 Main Page of Configuration
bar
| Category | Value |
| ---------------------- | --------- |
| Save Parameters | $+0 |
| Recall Stored Parameters | $+1 |
| Set All Defaults | $+2 |
| Start Configuration | $+3 |
| End Configuration | $+4 |
| Abort Configuration | $+6 |
| Version Information | $+5 |
Save Parameters -
The parameters will be saved permanently.
Recall Stored Parameters -
Replace the current parameters by the parameters saved last time.
Set All Defaults -
Set all the parameters to the factory default settings.
Abort Configuration -
Terminate the current programming procedure.
Display the decoder version and date code.
Chapter 3 Interface and Reading Mode Selection
3.1 Interface Selection
Keyboard Mode
RS232 Mode
WAND Emulation
Virtual COM
3.2 Reading Mode Selection
Trigger ON/OFF
Continuous/Trigger OFF
Testing
Continuous/Auto Power On
Flash
Flash/Auto Power On
Reserved1
Auto Sense(Option)
Reserved3
Reserved4
Reserved5
Ch.4 Communication Parameters
4.1 RS232 Communication Parameters
A> Setup Baud Rate
D> Setup Parity Check
E> Setup Handshaking
RTS/CTS Enable
ACK/NAK Enable
XON/XOFF Enable
4.2 Keyboard Wedge Mode Parameters
A> Terminal Type
B> Upper/Lower Case
Upper Case
Lower Case
C> Caps Lock Detection
Enable
D> Send Character by ALT Method
Enable
E> Select Numerical Pad
ON
4.3 Output Character Parameters
A> Select Terminator
B> Time-out Between Characters
4.4 Wand Emulation Mode Parameters
A> TTL Level Representation
Bar Equals Low
B> Scan Speed Selection
Slow
C> Output Format Selection
