PRO C720S - Imprimante multifonction RICOH - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Imprimante multifonction couleur
Technologie d'impression	Laser
Résolution d'impression	1200 x 1200 dpi
Vitesse d'impression	Jusqu'à 75 pages par minute
Formats de papier pris en charge	A4, A3, B5, A5, enveloppes, etc.
Capacité du bac d'alimentation	Jusqu'à 4 500 feuilles
Connectivité	USB, Ethernet, Wi-Fi, NFC
Fonctions principales	Impression, copie, numérisation, fax
Dimensions approximatives	1 200 x 1 000 x 1 200 mm
Poids	Environ 200 kg
Alimentation électrique	220-240 V, 50/60 Hz
Consommation d'énergie	Environ 1 500 W (impression), 300 W (veille)
Entretien et nettoyage	Nettoyage régulier des rouleaux et des surfaces internes recommandé
Pièces détachées et réparabilité	Disponibilité de pièces de rechange via le réseau de service Ricoh
Sécurité	Fonctionnalités de sécurité intégrées, y compris le cryptage des données
Garantie	Garantie standard de 1 an, extension possible
Compatibilités	Compatible avec Windows, macOS, et divers systèmes d'exploitation Linux

FOIRE AUX QUESTIONS - PRO C720S RICOH

Comment résoudre un bourrage papier sur la RICOH PRO C720S ?

Pour résoudre un bourrage papier, ouvrez le couvercle de l'imprimante et retirez délicatement le papier coincé. Assurez-vous de vérifier tous les chemins du papier, y compris les bacs d'alimentation et la sortie.

Que faire si l'imprimante ne s'allume pas ?

Vérifiez que le cordon d'alimentation est correctement branché et que la prise fonctionne. Essayez de débrancher puis de rebrancher l'imprimante pour voir si cela résout le problème.

Comment remplacer une cartouche d'encre sur la RICOH PRO C720S ?

Ouvrez le panneau d'accès aux cartouches, retirez la cartouche vide en appuyant sur le bouton de déverrouillage, puis insérez la nouvelle cartouche en vous assurant qu'elle est bien enclenchée.

Pourquoi mes impressions sont-elles floues ?

Des impressions floues peuvent être causées par une tête d'impression encrassée ou un réglage incorrect de la résolution. Essayez de nettoyer les têtes d'impression via le menu de maintenance de l'imprimante.

Comment connecter la RICOH PRO C720S à un réseau Wi-Fi ?

Accédez au menu des paramètres réseau sur l'imprimante, sélectionnez l'option Wi-Fi, puis suivez les instructions pour choisir votre réseau et entrer le mot de passe.

L'imprimante affiche un message d'erreur de maintenance, que faire ?

Un message d'erreur de maintenance indique qu'un entretien est nécessaire. Consultez le manuel d'utilisation pour les étapes de maintenance recommandées ou contactez le service clientèle.

Comment ajuster les paramètres d'impression sur la RICOH PRO C720S ?

Vous pouvez ajuster les paramètres d'impression via les pilotes d'impression sur votre ordinateur. Sélectionnez l'imprimante, puis modifiez les paramètres tels que la qualité d'impression et le format du papier.

Que faire si l'imprimante ne reconnaît pas le papier ?

Assurez-vous que le papier est correctement chargé dans le bac et qu'il est du bon type et format. Vérifiez également que les guides de papier sont correctement ajustés.

Comment effectuer une mise à jour du firmware sur la RICOH PRO C720S ?

Visitez le site Web de RICOH pour télécharger la dernière version du firmware. Suivez les instructions fournies pour mettre à jour le firmware via USB ou réseau.

MODE D'EMPLOI PRO C720S RICOH

COPIER (RICOH Pro™ C720s)

Copying process:	4-drum dry electrostatic transfer system with internal transfer belt
Copy speed:	Full colour: 72 copies per minuteB/W: 72 copies per minute
Resolution:	1,200 dpi
Multiple copy:	Up to 9,999
Warm-up time:	Less than 420 seconds
First output speed:	Less than 13.5 seconds
Zoom:	25 - 400% (in 1% steps)
Memory:	Standard: 2 GBHard Disk Drive: 640 GB
Paper input capacity:	Standard: 2 x 1,000-sheet paper trays ^1 1 x 500-sheet paper tray2 x 2,000-sheet paper traysMaximum: 11,000 sheets
Paper size:	Maximum: 330.2 - 487.7 mm
Paper weight:	Standard trays: 60 - 220 g/m ^2 SRA3 LCT 3rd/4th tray: 60 - 300 g/m ^2 Duplex tray: 60 - 220 g/m ^2
Dimensions (W x D x H):	2,605 x 1,100 x 1,440 mm
Power source:	220 - 240 V, 50 - 60 Hz
Power consumption:	Maximum: Less than 5.5 kWEnergy saver mode: Less than 3.2 W

PRINTER/SCANNER

PRINTER (EFI CONTROLLER – Standard)
CPU:	Intel Core 2 Duo 2.16 GHz
Print speed:	Full colour: 72 prints per minuteB/W: 72 prints per minute
Memory:	Standard: 2 GBHard Disk Drive: 500 GB
Network protocol:	TCP/IP, IPv4, IPv6, Apple Talk, SMB
Driver:	PostScript® 3^TM , PCL5c, PCL6
VDP format:	PPML, Fiery Free Form, Creo VPS
Fonts:	PCL: 80 fontsPostScript® 3^TM : 136 + 2 MM fonts
Interface:	Ethernet 1000/100/10 base-T

SCANNER (RICOH Pro™ C720s)

Scan speed:	Black and white, full colour: Maximum 75 images per minute (at 200 dpi)
Resolution:	Up to 1,200 dpi (Network TWAIN mode)
Original size:	A5 - A3
Output formats:	TIFF (single, multi-page), PDF (single, multi-page), JPEG, High compression PDF
Bundled drivers:	Network TWAIN
Scan to e-mail:	SMTP
Destination addresses:	Maximum 500 per job
Stored destination addresses:	Maximum 2,000
Address book:	Via LDAP, locally on Hard Disk Drive or through Web Image Monitor, SmartDeviceMonitorTM
Scan to folder:	SMB, FTP or NCP protocol (with login security)
Destination:	Maximum 50 folders per job

SOFTWARE (OPTIONS)

EFI Impose

EFI Compose

EFI Color Profile Suits

Fiery Graphic Arts Package Premium Edition

OTHER OPTIONS

4,550-sheet A4 large capacity tray (RICOH Pro™C720 only), 2 x 2,000-sheet SRA3 large capacity tray, 500-sheet multi bypass tray, Bridge unit, Cooling fan unit, Buffer pass unit, Dual station cover interposer, 3,000-sheet finisher with 100-sheet stapler and jogger unit, Punch unit (2/4 switchable hole punch, Scandinavian 4-hole punch), Saddle stitch unit, Professional booklet maker, GBC StreamPunch™ III, Z-folder, DLT/A3 tray, Tab sheet unit, Stacker unit, Roll-away cart for stacker, TCRU kit, Data Overwrite Security Unit, VM card (RICOH Pro™C720S only), Counter interface unit type A

^1 With required settings.

ISO9001 certified, ISO14001 certified

All brand and/or product names are trademarks of their respective owners. Specifications and external appearance are subject to change without notice. The colour of the actual product may vary from the colour shown in the brochure. The images in this brochure are not real photographs and slight differences in detail might appear.

Copyright © 2009 Ricoh Europe PLC. All rights reserved. This brochure, its contents and/or layout may not be modified and/or adapted, copied in part or in whole and/or incorporated into other works without the prior written permission of Ricoh Europe PLC.

RICOH

For more information, please contact:

RICOH ASIA PACIFIC PTE LTD

103 Penang Road #08-01/07

VISIONCREST Commercial

Singapore 238467

Phone: [phone]

Fax: [phone]

www.ricoh-ap.com

Affordable quality for light production

RICOH

RICOH Pro™ C720/C720s

@Remote mbedded Software Architecture Designed for Microsoft® Windows XP, Windows XP v64 Edition Designed for Microsoft® Windows Server "2003, Windows Server 2003 Adobe PostScript® 3" Adobe PDF Our earth, Our tomorrow

outstanding productivity create stunningly finished output

In August's Newsletter Newsletter

Ready Auto/Color Select Full Color Block & White Text Phases Text Phases Others Serial Original Color: Common Number: Phases Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Color Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Colors Color: Color

excellent image quality

The RICOH Pro™C720/C720S colour printers address the light production requirements of printing professionals. They offer high productivity and image quality (maximum image resolution 1,200 x 1,200dpi), with a speed of 72 pages per minute. They handle coated and uncoated stocks up to 300 g/m², and offer a paper capacity of 11,000 sheets and a stacking capacity of 13,000 sheets. These innovative devices are fitted out with a wealth of finishing possibilities and are provided with options to optimise your printing process. Easy to use, they smoothly process complex print jobs from start to finish.

• Exceptional productivity – print speed of 72 pages per minute.
• High uptime – many components can be replaced by users.
• Excellent image quality – 1,200 dpi with Ricoh's latest image processing technology.
• Ease of use – tiltable, easy-to-view operation panel.
• Range of options such as extra-capacity trays and high-capacity stacker.

Heavyweight performance in a lightweight package

Scanned image of multiple pages from a publication or article, featuring butterfly images and text blocks with QR codes.

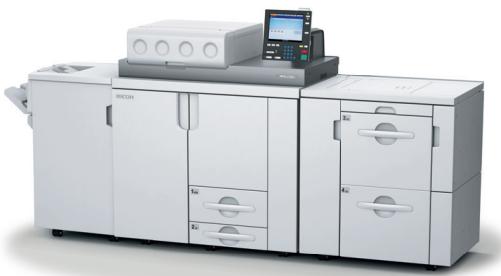

HIGH PRODUCTIVITY

The RICOH Pro™ C720/C720S offer a fast print speed of 72 pages per minute, regardless of paper type. In other words high productivity is ensured even when printing heavyweight papers up to 300g / m^2 . The RICOH Pro™ C720/C720S are therefore ideal for the quick turnaround of items printed on thick stock, such as direct mail or Point of Purchase material.

Exterior view of a modern scientific instrument with control panel and display (no visible text or symbols)

Industrial machine with control panel and digital display (no readable text or symbols)

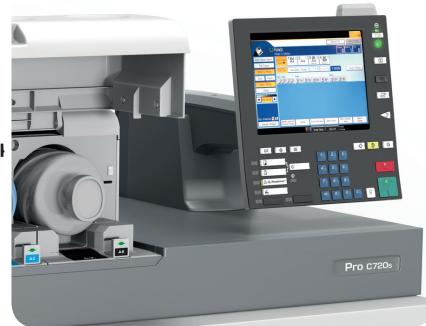

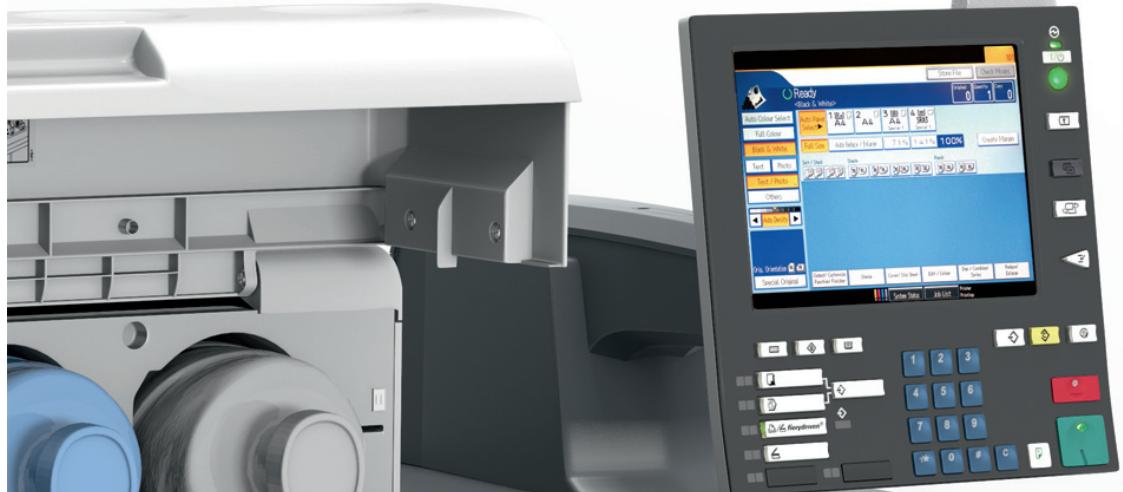

EASE OF USE

Your learning curve with the RICOH Pro™C720/C720S will be minimal as the large colour operation panel is highly intuitive. You will always have a good view of the panel, whatever your working position, as it can be tilted up and down or angled side-to-side for easy viewing. For ease of use you can choose between a regular or simplified screen display. If a paper jam or other problem should occur, animated troubleshooting procedures will enable you to fix it quickly and easily.

VARIETY OF OPTIONS

The extensive options available with the RICOH Pro™C720/C720S will help you optimise your printing process. Paper capacity can be expanded to 11,000 sheets by adding large-capacity trays. Potential multi-feeding problems that can occur when coated paper is printed are averted with the optional air-assist paper feed mechanism. Up to 13,000 sheets can be stacked with the addition of high-capacity stackers.

Multiple copies of a newspaper featuring articles on newsletters, color swatches, and agricultural imagery.

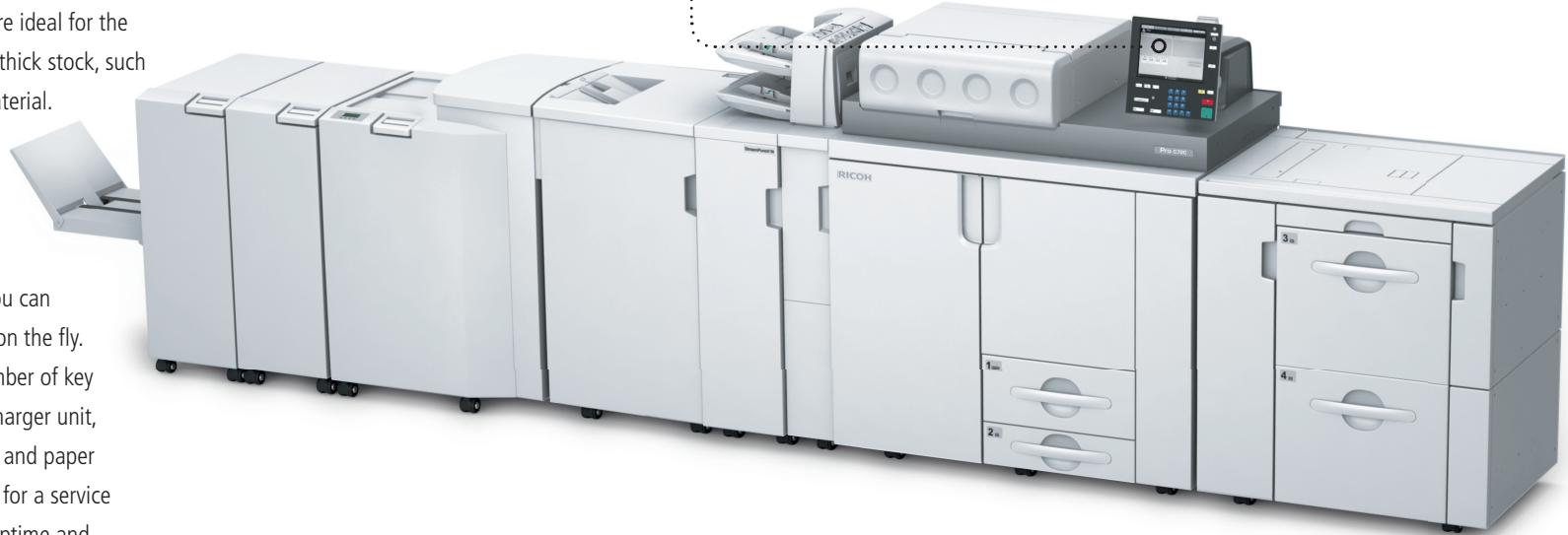

MAXIMUM UPTIME

With the RICOH Pro™C720/C720S you can load paper and replace toner bottles on the fly. Trained users can easily replace a number of key components (OPC drum, developer, charger unit, drum cleaning unit, belt cleaning unit and paper transfer roller unit) instead of waiting for a service engineer. The result? Maximise your uptime and achieve your production targets.

e ideal for the chick stock, such terial. u can on the fly. ber of key arger unit, and paper for a service time and

AUTOMATED FINISHING

The RICOH Pro™C720/C720S give you multiple ways of finishing without any extra investment. These include saddle-stitching, folding, inserting, punching and booklet-making.

EXCELLENT IMAGE QUALITY

The outstanding image quality of the RICOH Pro™C720/C720S is realised by 1,200 x 1,200 dpi multi-bit imaging and the adoption of Ricoh's latest image processing technology. Ricoh's new OPC drum – Advanced Stabilization OPC – has an extremely durable overcoat layer that produces high-quality, stable colour during continuous printing. High registration accuracy is obtained as the devices are equipped with a mechanical paper registration unit.

A3 A4

MEDIA SUPPORT

• Print full-bleed A3 documents: both systems handle SRA3 paper.
• Stack paper of up to 300g / m^2 with the finishers and stackers.
• Print on a variety of media including tab sheets, coated paper, transparencies and card stock.

SUPERIOR COLOURS WITH EFI TECHNOLOGY

The RICOH Pro™C720/C720S incorporate state-of-the-art EFI technology. The built-in EFI controller offers full Fiery functionality for swift RIPing. The powerful performance and flexible workflow solutions offered by these printers will undoubtedly meet your and your clients' high standards.
