Type de produit	Vélo électrique
Marque	SCOTT
Modèle	Contessa Voltage eRIDE 910
Catégorie	VTT électrique / Vélo de ville
Dimensions (L x H x l)	180 cm x 110 cm x 60 cm (estimation)
Poids	Environ 22 kg
Type de moteur	Moteur central Bosch Performance Line
Type de batterie	Lithium-ion, 500 Wh
Autonomie	Jusqu'à 120 km (selon mode et terrain)
Taille des roues	28 pouces (700C)
Transmission	Chaîne et dérailleur
Freins	Freins à disque hydrauliques
Éclairage	Phare avant et feu arrière LED
Modes d'assistance	Eco, Tour, Sport, Turbo
Entretien et nettoyage	Nettoyer avec un chiffon humide ; lubrifier la chaîne régulièrement ; vérifier la pression des pneus
Sécurité	Freins à disque, éclairage, réflecteurs
Pièces détachées et réparabilité	Batterie, chargeur, clés, câbles disponibles chez le revendeur
Informations générales	Garantie 2 ans ; utilisation sur terrain varié

FOIRE AUX QUESTIONS - Contessa Voltage eRIDE 910 SCOTT

Quelle est l'autonomie de la batterie ?

L'autonomie peut atteindre jusqu'à 120 km en mode Eco, mais dépend du terrain, du poids du cycliste et du niveau d'assistance utilisé.

Comment recharger la batterie ?

Retirez la batterie du vélo et branchez-la sur le chargeur fourni. Le temps de charge complet est d'environ 4 à 6 heures.

Quels sont les modes d'assistance disponibles ?

Le vélo propose quatre modes : Eco, Tour, Sport et Turbo, sélectionnables via l'écran de contrôle.

Comment entretenir le vélo ?

Nettoyez le cadre avec un chiffon humide, lubrifiez la chaîne toutes les 200 km et vérifiez régulièrement la pression des pneus (2-3 bar).

Puis-je utiliser le vélo sans batterie ?

Oui, le vélo peut être utilisé comme un vélo classique sans assistance. Cela sera plus dur en côte, mais tout à fait possible.

Quel poids maximum supporté ?

Le poids total autorisé (cycliste + bagages) est généralement d'environ 120 kg. Vérifiez le manuel pour la valeur exacte.

Comment régler la hauteur de selle ?

Desserrez le collier de selle à l'aide d'une clé Allen, ajustez la hauteur et resserrez fermement. Ne dépassez pas la marque de sécurité sur la tige de selle.

Que faire si l'écran ne s'allume pas ?

Vérifiez que la batterie est correctement insérée et chargée. Si le problème persiste, contactez un revendeur agréé SCOTT.

Où trouver des pièces de rechange ?

Les pièces comme la batterie, le chargeur ou les câbles sont disponibles chez les revendeurs SCOTT ou en ligne.

Le vélo est-il garanti ?

Oui, la garantie est de 2 ans pour les défauts de fabrication. Conservez la facture d'achat.

MODE D'EMPLOI Contessa Voltage eRIDE 910 SCOTT

2024 SCOTT

VOLTAGE eRIDE MANUAL

CONTENT

THE VOLTAGE eRIDE SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

GEOMETRY & TECHNICAL DATA 03

HEADSET ADJUSTMENT 05

SETTING SAG 06

TWINLOC

TQ SYSTEM MANUALS 07

TQ SPARE PARTS 08

CABLE ROUTING 10

GENERAL SPARE PARTS 11

MANUFACTURE'S GUARANTEE 14

07

LEGEND

TORQUE REQUIRED

TASK DIFFICULTY

TORX TOOL SIZE

HEX TOOL SIZE

TORQUE AMOUNT

GREASE REQUIRED

NO GREASE REQUIRED

CARBON GREASE

THREADLOC REQUIRED

BEARING FIT REQUIRED

GEOMETRY & TECHNICAL DATA

SEATPOST	mm	31.6	HARDWARE M.FRAME	mm	Trunnion
SEATPOST CLAMP	mm	34.9	HARDWARE LINKAGE	mm	8 x 20
TRAVEL	mm	155 Rr 160 Fr (920) 150/155	MAX TYRE WIDTH	in	2.6
			MAIN PIVOT / CHAINSTAY	mm	61802-2RS x 2
SHOCK LENGTH	mm	185	LINKAGE / SEATTUBE	mm	61806-2RS x 2
SHOCK STROKE	mm	55	SEATSTAY / CHAINSTAY	mm	61801-2RS x 4
MAX ROTOR	mm	203 Rr 203 Fr	CHAINLINE	mm	55
MAX CHAINRING	Tooth	34

2024 VOLTAGE eRIDE		SM	MED	LG	XL
A Head tube angle		° 63.9 63.9 63.9 63.9
B Head tube length		mm 110 110 120 130
C Top tube horizontal		mm	580	600	630
D standover height		mm	765	765	772
E BB offset		mm	27	27	27
F BB height		mm	350 350 350 350
G Wheelbase		mm	1233	1253	1285
I BB center to TST		mm	405	425	450
J Seat angle		°	77.1	77.1	77.1
K Chainstay		mm	455	455	455
L Reach		mm	437	457	485
M Stack		mm	622	622	631
	Fork Length	mm	44	44	44
	Trail	mm	136	136	136

VOLTAGE eRIDE

GEOMETRY & TECHNICAL DATA CONT.

Please observe the maximum seatpost insertion so not to damage the frame.

Small: 190 mm Max Insertion

Medium: 210 mm Max Insertion

Large: 235 mm Max Insertion

X-Large: 265 mm Max Insertion

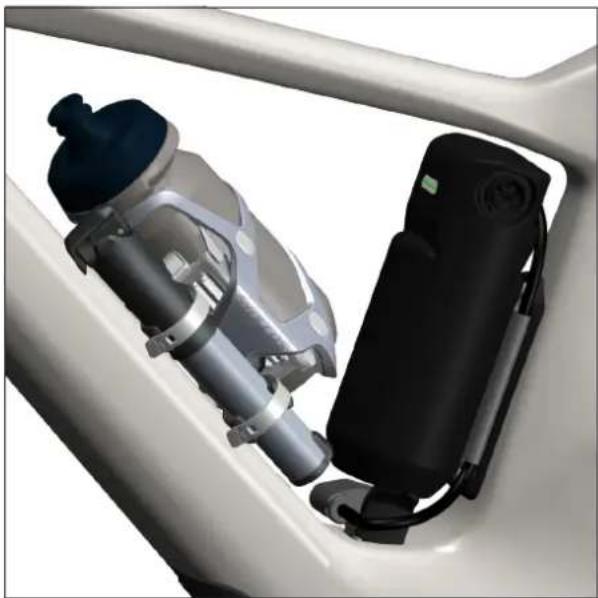

A 500 ml water bottle (with a side entry cage) and a TQ Range Extender can be used on all frame sizes.

VOLTAGE eRIDE

HEADSET ADJUSTMENT

It is important to install the headset correctly depending on the set up required. There are two types of headset cups.

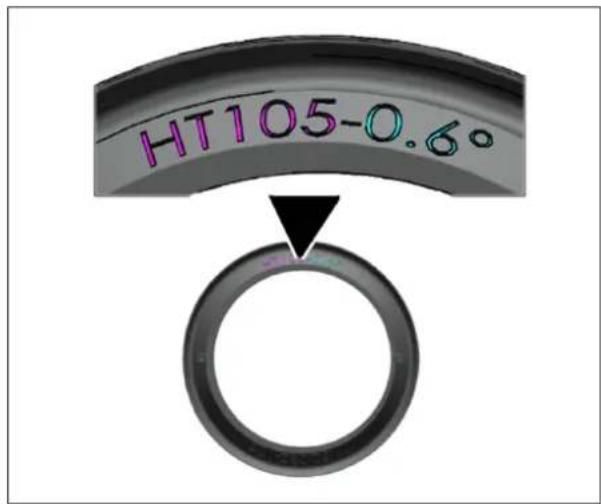

0° & 0.6° (64° & 65°) These can be identified from the stamp on the inner surface of the headset cup.

The headset is available in two options:

288251 SYN HEADSET ZS56/28.6-ZS56/40 MTB 290060 SCO HEADSET CUP KIT SPARK 22

Do not use a standard headset tool to remove these plastic headset cups.

Slacker

Steeper

VOLTAGE eRIDE

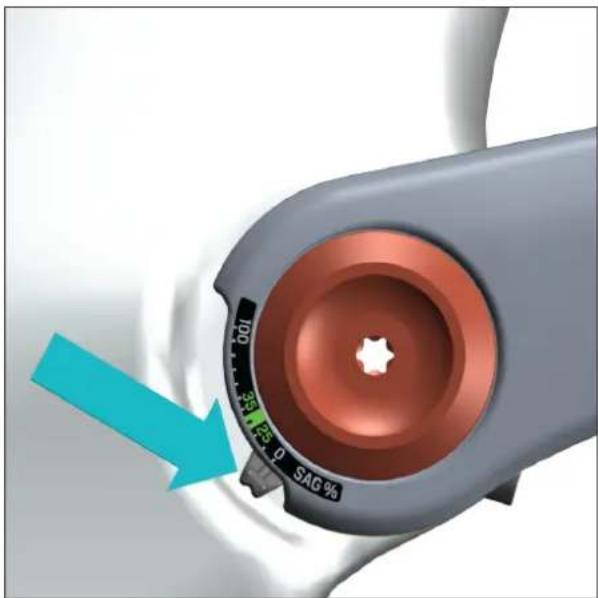

SAG ADJUSTMENT

01 02 Wear your normal riding gear, set the sage meter to zero & the twinloc in the open position.

Gently sit on the bike allowing the sag meter to move. Once completed dismount the bike gently. Check the value.

If the sag value is not to your liking within the sag range indicated, adjust the shock pressure as indicated.

VOLTAGE eRIDE

TWINLOC

MODEL NAME PART NO. CAM TYPE DROPPER

VOLTAGE eRIDE 900 SL	TWINLOC	290009	BLUE CAM	YES
VOLTAGE eRIDE 900 TND	TRACLOC	291219	BLUE CAM	YES
VOLTAGE eRIDE 910	TWINLOC	290009	BLUE CAM	YES
VOLTAGE eRIDE 920	TWINLOC	290009	BLUE CAM	YES

VOLTAGE eRIDE

TQ SYSTEM MANUALS

FOR TQ SYSTEM INSTALLATION PLEASE GO TO YOUR NEAREST AUTHORISED SCOTT DEALER.

Motor Manual (Multi Languages)

Battery Manual (Multi Languages)

Display Manual (Multi Languages)

Range Extender Manual (Multi Languages)

Charger Manual (Multi Languages)

General Service Manual (English Only)

VOLTAGE eRIDE

TQ SPARE PARTS

422378 SCO eRTQ RGE EXT. CABLE MTB V02 VOLTAGE

294537 SCO eRIDE TQ RANGE EXTENDER

296209 SCO eRIDE TQ SPEEDSENSOR 23

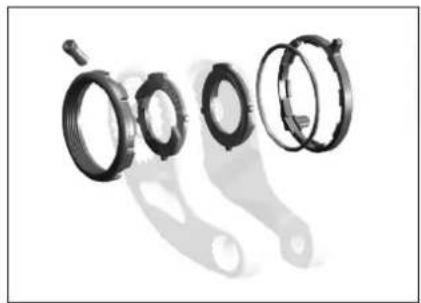

296217 SCO eRIDE TQ LOCKRING SET 23

296216 SCO eRIDE TQ H-BAR REMOTE SET 23

VOLTAGE eRIDE

TQ SPARE PARTS

422379 SCO eR VOLTAGE 24 TQ RANGE EXT. HOLDER

292632 SCO eRIDE S-SENSOR CLIP PATRON 22 (SHIMANO ROTOR)

422372 SCO eRIDE SPEEDSENSOR CLIP VOLTAGE CL 24 (SRAM ROTORS)

VOLTAGE eRIDE

CABLE ROUTING

Brake/Derailleur/Twinloc/Dropper Cable Routing

TQ System

VOLTAGE eRIDE

GENERAL SPARE PARTS

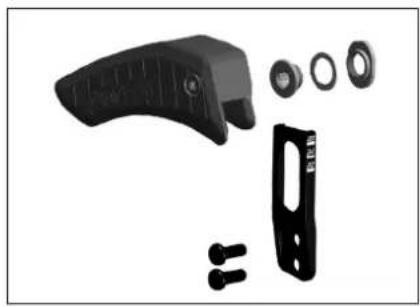

421225 SCO ERIDE CHAINGUIDE VOLTAGE 24

421226 SCO ERIDE CABLEGUIDE COVER KIT VOLT 24

421224 SCO ERIDE SHOCK COVER VOLTAGE 24

421222 SCO ERIDE SHOCK SLEEVE VOLTAGE 24

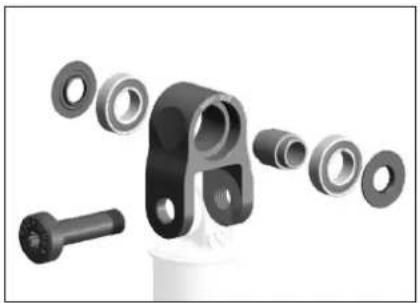

421223 SCO ERIDE SHOCK EXTENSION VOLTAGE 24

VOLTAGE eRIDE

GENERAL SPARE PARTS

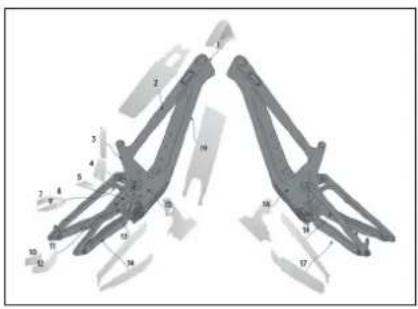

421701 SYN FRAME PROTECTION KIT VOLTAGE 24

421229 SCO ERIDE SWINGARM REP KIT VOLTAGE 24

286000 SCO DROPOUT SRAM UDH 21

Reverse Thread

296609 SCO AXLE RWS REAR 148X12 GENSCAL PLUG 23

297522 SCO STEM SPACER/TOP CAP GENIUS 23

VOLTAGE eRIDE

GENERAL SPARE PARTS

297086 SCO STEM ACCESSORY COVER COMBO 22

422663 SCO ERIDE LINKAGE HARDWARE KIT VOLT 24

414184 SCO LINK INNER VOLTAGE-ER 24

MANUFACTURER'S GUARANTEE,

When purchasing a new SCOTT bicycle from an authorized SCOTT dealer, SCOTT grants a manufacturer's guarantee subject to the following provisions.

CONDITIONS

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.

DURATION

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the SCOTT manual and must be confirmed there by the stamp and signature of the authorized SCOTT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer's guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.

ASSERTION

The manufacturer's guarantee is provided by SCOTT Sports SA, Route du Crochet 11, 1762 Givisiez, Switzerland. The buyer must inspect the SCOTT bicycle immediately after purchase and notify his authorized SCOTT dealer at once in writing of any obvious defects. Hidden defects must be reported immediately after their discovery. In the event of a guarantee claim, the SCOTT bicycle must be handed over to an authorized SCOTT dealer. The latter will contact SCOTT to remedy the defect. The assertion of a guarantee claim always requires the presentation of the original proof of purchase as well as the proof of maintenance service in the SCOTT manual.

Performance of SCOTT in the event of a guarantee claim

In the event of a guarantee claim, SCOTT will, at its own discretion, repair the defect or replace the defective product with a product of similar quality, whereby colour and model deviations are possible. If a repair or replacement is not possible, a purchase price refund will be made taking into account previous use. SCOTT is entitled to commission third parties to remedy the defect.

LIMITATIONS

The manufacturer's guarantee applies exclusively to frames, swingarms and rigid forks of SCOTT bicycles. Bicycle components are excluded from this manufacturer's guarantee.

The manufacturer's guarantee does not apply to normal wear and tear, damage caused by accidents or other excessive force on the SCOTT bicycle, corrosion, improper maintenance, incorrect assembly and assembly of unsuitable components or accessories as well as cosmetic defects, for example in the varnish.

The manufacturer's guarantee does not apply to SCOTT bicycles that have been used in a rental shop.

MISCELLANEOUS

These manufacturer's guarantee provisions apply to all SCOTT bicycles as of model year 2023. Statutory warranty rights of the buyer and guarantees of component manufacturers (Shimano,

SRAM etc.) remain unaffected by this manufacturer's guarantee. The place of jurisdiction for all disputes in connection with this manufacturer's guarantee is Freiburg, Switzerland. This manufacturer's guarantee is subject to Swiss law to the exclusion of all legislation that refers to foreign law.
