MODE D'EMPLOI SRK-12H3 Hoshizaki
Parts List
Condensing Unit Serenity Series
Models SRK-12H/3
CONTENTS
Auxiliary Codes....3
Note About Ordering Parts 3
A. Condensing Unit & Refrigeration Circuit....4
B. Control Box Assembly....6
C. Accessories & Labels 7
Auxiliary Codes
SRK-12H
C-0 February 2013
C-1 August 2013
D-0 February 2014
E-0 July 2015
SRK-12H3
C-0 February 2013
C-1 August 2013
D-0 January 2014
E-0 January 2015
F-0 January 2016
Auxiliary Code Breakdown
The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates significant part changes within a year. Base is "O" and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.

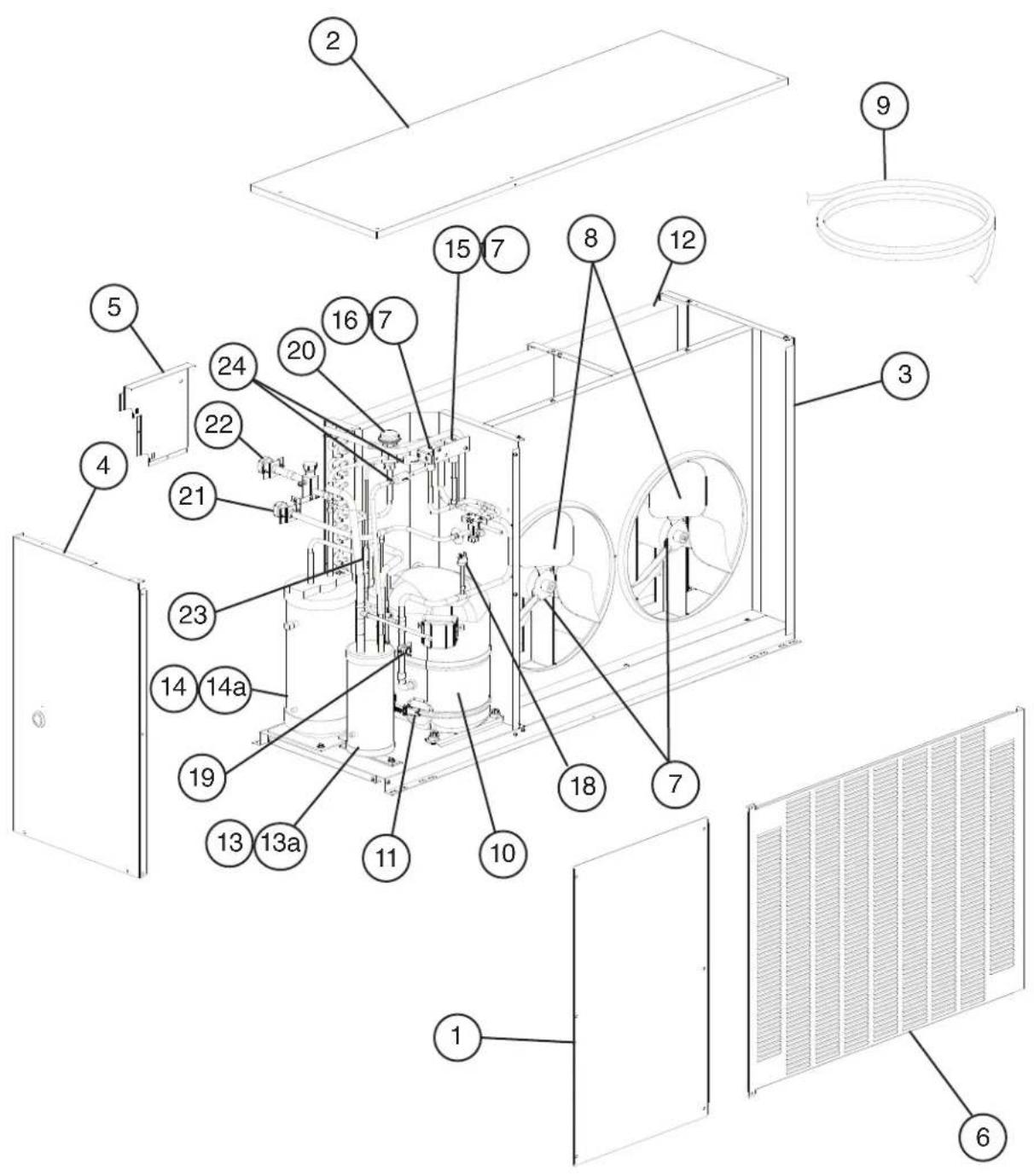

A. Condensing Unit & Refrigeration Circuit
SRK-12H, SRK-12H3
C-0 to F-0

| Title: A. Condensing Unit & Refrigeration Circuit Model: SRK-12H, SRK-12H3 | |||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | |||||||
| C-0 to F-0 | |||||||||||
| Condensing Unit | |||||||||||
| 1 Front Panel 3A3293-01 1 | |||||||||||
| 2 Top Panel 2A3242-01 1 | |||||||||||
| 3 Right Side Panel 3A3291-01 1 | |||||||||||
| 4 Left Side Panel 2A4981-01 1 | |||||||||||
| 5 Access Panel 4A4739-01 1 | |||||||||||
| 6 Louver Panel | 2A3241-01 1 | ||||||||||
| 7 Fan Motor | 4A3201-01 2 | ||||||||||
| 8 Fan Blade | 4A3614-01 2 | ||||||||||
| 9 Wire Kit | 4A5657-02 1 | ||||||||||
| Refrigeration Circuit | |||||||||||
| 10 | Compressor | SRK-12H | 4A4134-03 | 1 | |||||||
| SRK-12H3 | 4A4135-03 | 1 | |||||||||
| 11 | Crankcase Heater | 4A5397-02 | 1 | ||||||||
| 12 | Condenser | 1A0980-01 1 | |||||||||
| 13 | Accumulator | 3A6803-01 1 | |||||||||
| 13a Bolt 5x12 | 7B0230512 2 | ||||||||||
| 14 | Receiver | 438209-01 1 | |||||||||
| 14a Bolt | 7B0230512 2 | ||||||||||
| 15 | Hot Gas Valve Body | 4A3978-01 1 | |||||||||
| 16 | Liquid Line Valve Body | 4A3276-01 | 1 | ||||||||
| 17 | Valve Coil | 4A3277-01 2 | |||||||||
| 18 | High-Pressure Switch | 463180-01 | 1 | ||||||||
| 19 | Dishcargle Line Thermostat | 440664-01 | 1 | ||||||||
| 20 | Headmaster (C.P.R.) | 4A0229-02 | 1 | ||||||||
| 21 | Liquid Line Coupling | 434072-01 1 | |||||||||
| 22 | Suction Line Coupling | 4A3826-01 1 | |||||||||
| 23 | Check Valve | 4A1373-01 | 1 | ||||||||
| 24 | Strainer | 441569-02 | 2 | ||||||||
B. Control Box Assembly
SRK-12H, SRK-12H3
C-0 to F-0

| Title: B. Control Box Assembly Model: SRK-12H, SRK-12H3 | |||||||||||
| IndexNo. Description | Material orModel Number | Part Number | Required Number | ||||||||
| C-0toD-0 | E-0toF-0 | ||||||||||
| 1 Start Capacitor SRK-12H | 145-174MFD,220VAC | 3A0076-11 1 | 1 | ||||||||
| 2 Run Capacitor SRK-12H | 30MFD,370VAC | 3A2005-03 1 | 1 | ||||||||
| 3 Start Relay SRK-12H 4A1107-13 1 | 1 | ||||||||||
| 4 Magnetic Contactor 4A0794-01 | 1 1 | ||||||||||
| 5 Fan Motor Capacitor 10 MFD,250VAC | 443192-01 | 2 2 | |||||||||
| 6 Fuse Holder | 4A5443-01 1 | 1 | |||||||||
| 7 Fuse AG C-10A,250VAC | 4A0893-07 1 | 1 | |||||||||
| 8 | Main Transformer | SRK-12H3 | 4A0817-01 | 1 | - | ||||||
| 4A5695-01 | 1 | ||||||||||
| 9 | Voltage Tap Switch | SRK-12H3 | 4A1477-01 | 1 | 1 | ||||||
C. Accessories & Labels
SRK-12H, SRK-12H3
C-0 to F-0

| Title: C. Accessories & Labels Model: SRK-12H, SRK-12H3 | |||||||||||
| IndexNo. Description | Material orModel Number | Part Number | Required Number | ||||||||
| C-0toF-0 | |||||||||||
| 1 Leg 3A3716G01 2 | |||||||||||
| 1a Hex Head Bolt w/Washer 8×16, SS | 7B0230816 16 | ||||||||||
| 1b Hex Nut M8, SS 7N12-0800 16 | |||||||||||
