MODE D'EMPLOI DN-SC2000 DENON
DN-SC2000

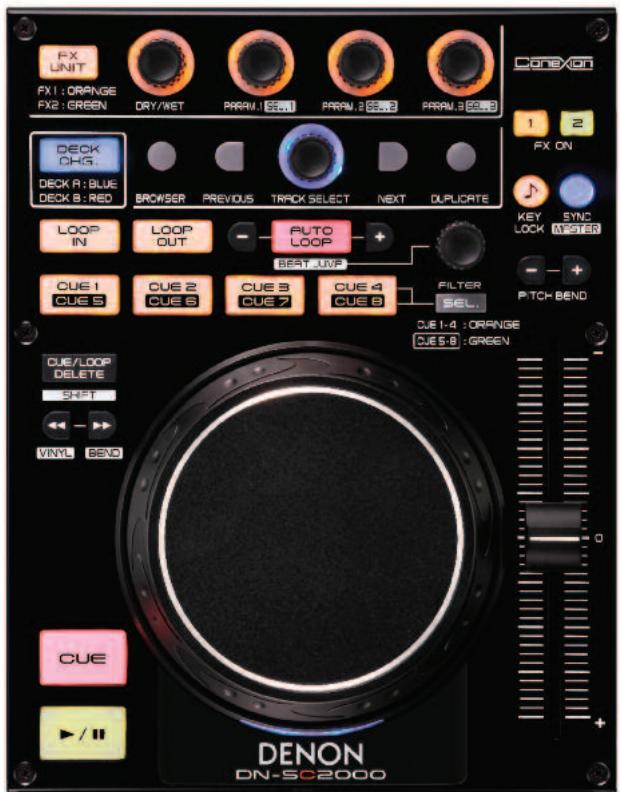

USB MIDI Controller with 2-deck Support
MIDI USB
The Denon DN-SC2000 is an affordable, professionally spec'd and constructed MIDI controller for Native Instruments® TRAKTOR™ Pro, providing a serious portable control solution for laptop DJs. A dual layer system, the DN-SC2000 provides simultaneous switchable control of both TRAKTOR decks, with visual deck colour change. Connecting to Mac® or Windows PC via a single USB2.0 interface (from which the unit is also powered), advanced features include MIDI mapable capability, auto loop function, a wide range of EFX, rugged pitch slider, pitch lock, automatic beat sync, durable rubber button controls and more.
The solid steel constructed unit incorporates Denon's new high resolution 105-mm touch sensitive jog wheel, smooth 100-mm long pitch slider, Pitch Lock function, file browse navigation buttons and rotary encoder file selector knob, large size Cue & PLAY buttons, eight hot cue/sampler buttons with dual bank selector key, Auto Loop button with Beat Jump and Manual Loop In/Out buttons, EFX Unit 1 and 2 layer and on/off buttons with colour change LEDs, EFX parameter encoders, Denon's legacy Pitch Bend key, a SYNC button for beat matching between decks, and an assignable Shift key.
DISCOVER MORE AT WWW.DENONDJ.EU
Features
- Optimised for Traktor Pro users and supported by Virtual DJ
- Intuitive 2 deck control by single unit, with visible deck colour change
- Newly designed, high resolution 105mm Touch-Sensitive Jog Wheel
- Smooth 100mm long Pitch Slider with high 14-bit resolution
- Pitch Lock function - holds the pitch value position until the NULL point is reached when using both layers for control
- File browse navigation buttons & rotary encoder file selector knob w/illuminated ring
Large size Cue & PLAY buttons - 8 (4 + 4) Hot Cue/Sampler buttons w/dual bank selector key
- Auto Loop Button w/ Beat Jump (Loop Cut) & Manual Loop In/Out buttons
- EFX Unit 1 & 2 layer button w/color change LED
- Dry/Wet Parameter encoder knob w/illuminated ring
- 3 EFX Parameter encoder knobs w/illuminated ring
- EFX 1&2 ON/OFF buttons w/color change LEDs
- Powerful Shift Key - used for various dual button operation
- Search Keys (<< >>) to advance around within the file
Denon's legacy "Pitch Bend" keys - Vinyl & Pitch Bend Jog modes
SYNC button for beat matching between decks

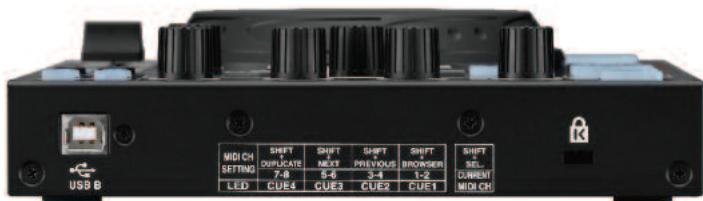

Key Lock on/off button with LED confirmation - Utility presets to adjust paired MIDI channels, 1-8 and other items
- USB 2.0 full speed Composite device
- USB bus powered, no wall adaptor required
- Kensington lock terminal to prevent theft
- High Quality Steel Cabinet in a compact size
DENON DJ
DN-SC2000
USB-MIDI-Controller für 2 Decks
Specifications
General
Type: USB MIDI Controller
Dimensions: 170 (W) x 30 (H) x 220 (D) mm
(6-11/16" x 1-3/16" x 8-21/32")
Weight: 1.3 kg (2 lbs 13.86 oz)
Power supply: 5 V (USB Bus Power)
Current consumption: 450 mA
Operational temperature: 5 - 35^
Operational humidity: 25 - 85%
Storage temperature: -20 - 60 °C
USB I/F
USB connector: USB 2.0 (Full Speed)
USB MIDI I/O 1 port

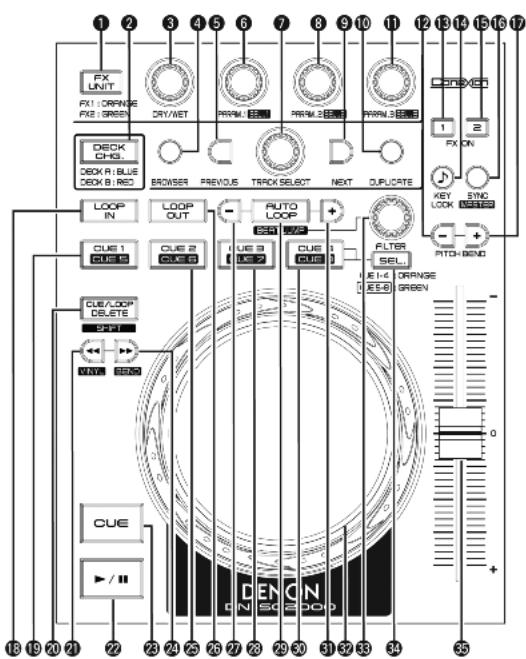

| Items | MIDI command | ||
| Command | Number | Value | |
| 1.FX UNIT | SW ON: 0x9n SW OFF: 0x8n | 0x58 | SW ON: 0x40 SW OFF: 0x00 |
| 2.DECK CHG. | 0x03 | ||
| 3.DRY/WET SW (FX1) | 0x15 | ||
| 3.DRY/WET SW (FX2) | 0x55 | ||
| 4.BROWSER | 0x64 | ||
| 5.PREVIOUS | 0x30 | ||
| 6.PARAM.1 SW (FX1) | 0x12 | ||
| 6.PARAM.1 SW (FX2) | 0x52 | ||
| 7.TRACK SELECT KNOB SW | 0x28 | ||
| 8.PARAM.2 SW (FX1) | 0x13 | ||
| 8.PARAM.2 SW (FX2) | 0x53 | ||
| 9.NEXT | 0x29 | ||
| 10.DUPLICATE | 0x65 | ||
| 11.PARAM.3 SW (FX1) | 0x14 | ||
| 11.PARAM.3 SW (FX2) | 0x54 | ||
| 12.BEND - | 0x0D | ||
| 13.FX ON 1 | 0x56 | ||
| 14.KY LOCK | 0x06 | ||
| 15.FX ON 2 | 0x57 | ||
| 16.SYNC | 0x6B | ||
| 17.BEND + | 0x0C | ||
| 18.LOOK IN | 0x37 | ||
| 19.CUE1 | 0x17 | ||
| 19.CUE5 | 0x21 | ||
| 20.CUE/LOOP DELETE(SHIFT) | 0x60 | ||
| 21.FAST SEARCH - | 0x11 | ||
| 22.PLAY | 0x43 | ||
| 23.CUE | 0x42 | ||
| 24.FAST SEARCH + | 0x10 | ||
| 25.CUE2 | 0x18 | ||
| 25.CUE6 | 0x22 | ||
| 26.LOOK OUT | 0x39 | ||
| 27.BEAT - | 0x69 | ||
| 28.CUE3 | 0x19 | ||
| 28.CUE7 | 0x23 | ||
| 29.AUTO LOOP | 0x1D | ||
| 30.CUE4 | 0x20 | ||
| 30.CUE8 | 0x24 | ||
| 31.BEAT + | 0x6A | ||
| 32.Jogwheel touch | 0x51 | ||
| 33 FILTER SW | 0x68 | ||
| 34.SEL | 0x1A | ||
| Items | MIDI command | ||
| Command | Number | Value | |
| 3.DRY/WET KNOB (FX1) | 0xBn | 0x55 | Increment 0x00 |
| Increment / Decrement | Decrement 0x7F | ||
| 3.DRY/WET KNOB (FX2) | 0x59 | Increment 0x00 | |
| 3.DRY/WET KNOB (FX2) | Decrement 0x7F | ||
| 6.PARAM.1 KNOB (FX1) Increment / Decrement | 0x56 | ||
| 6.PARAM.1 KNOB (FX2) Increment / Decrement | 0x5A | ||
| 7.TRACK SELECT KNOB Increment / Decrement | 0x54 | ||
| 8.PARAM.2 KNOB (FX1) Increment / Decrement | 0x57 | ||
| 8.PARAM.2 KNOB (FX2) Increment / Decrement | 0x5B | ||
| 11.PARAM.3 KNOB (FX1) Increment / Decrement | 0x58 | ||
| 11.PARAM.3 KNOB (FX2) Increment / Decrement | 0x5C | ||
| 32.JOGWHEEL FWD/REV | 0x51 | Reverse 0x3F~0x01 | |
| Foward 0x41~0x7F | |||
| slow fast | |||
| *relative data 2048Pulse/cycle | |||
| 33.FILTER KNOB Increment / Decrement | 0x5D | Increment 0x00 | |
| Decrement 0x7F | |||
| 35 PITCH SLIDER | 0xEn | 0xffx(LSB) | 0xmm (MSB) |
