SVL610 - Lave-linge SVAN - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Lave-linge frontal
Marque	SVAN
Modèle	SVL610
Capacité de lavage	6 kg
Vitesse d'essorage maximale	1200 tours/min
Classe énergétique	F
Niveau sonore (lavage/essorage)	58 dB / 77 dB
Dimensions (H x L x P)	85 x 60 x 55 cm
Poids net	65 kg
Alimentation électrique	230 V, 10 A
Consommation d'eau annuelle	~10 000 L
Nombre de programmes	15
Fonctions principales	Départ différé, Lavage rapide, Anti-taches, Rinçage supplémentaire
Entretien et nettoyage	Nettoyage régulier du filtre et du bac à lessive, vidange de sécurité
Sécurité	Sécurité enfant, Système anti-débordement, Détection de surcharge
Pièces détachées et réparabilité	Disponibles auprès du SAV SVAN, indice de réparabilité 7.4/10
Informations générales	Notice d'utilisation disponible en PDF sur notice-facile.com

FOIRE AUX QUESTIONS - SVL610 SVAN

Comment installer mon lave-linge SVAN SVL610 ?

Placez l'appareil sur un sol stable, retirez les vis de transport, branchez les arrivées d'eau et l'évacuation, puis mettez à niveau en ajustant les pieds. Consultez la notice d'installation fournie.

Que faire si le lave-linge ne démarre pas ?

Vérifiez que la porte est bien fermée, que l'alimentation électrique est branchée et que le programme est sélectionné. Si le problème persiste, le filtre d'arrivée d'eau pourrait être obstrué.

Comment nettoyer le filtre de la pompe ?

Débranchez l'appareil, ouvrez la trappe inférieure, dévissez le filtre, nettoyez-le sous l'eau courante et remettez-le en place. Faites-le tous les 3 mois.

Quelle lessive utiliser pour le SVL610 ?

Utilisez une lessive adaptée aux machines à laver frontales, dosée selon la dureté de l'eau et le niveau de saleté. Évitez les produits moussants pour préserver le système de lavage.

Pourquoi le tambour tourne-t-il lentement pendant l'essorage ?

Cela peut être dû à un déséquilibre de charge. Répartissez uniformément le linge ou réduisez la charge. Si le problème persiste, vérifiez le capteur de vitesse.

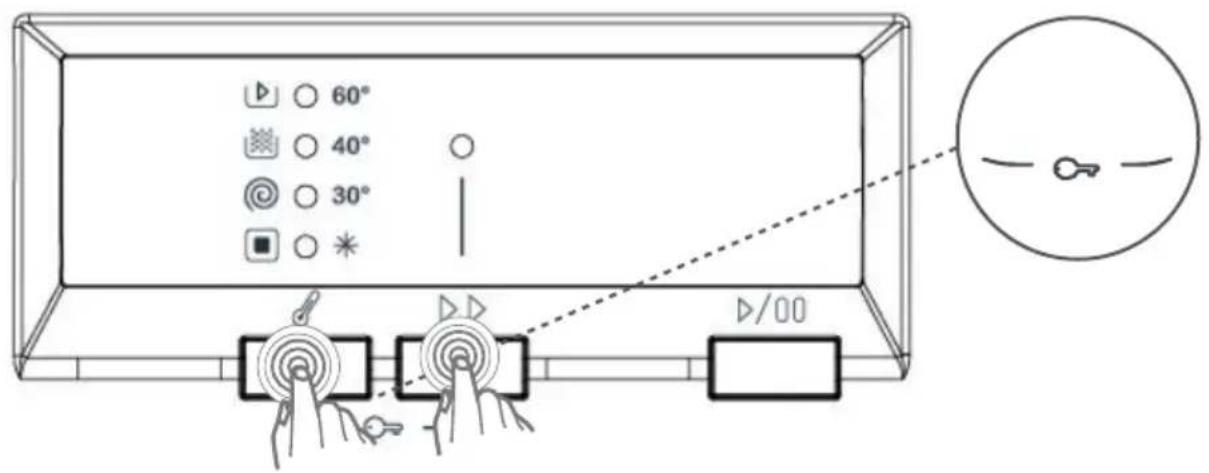

Comment activer la sécurité enfants ?

Appuyez simultanément sur les touches 'Température' et 'Essorage' pendant 3 secondes jusqu'à ce que le symbole de verrouillage s'affiche. Pour désactiver, répétez l'opération.

Quels sont les programmes de lavage disponibles ?

Les programmes incluent Coton, Synthétiques, Délicats, Rapide 30 min, Anti-taches, Laine, Rinçage + Essorage, et Vidange. Choisissez selon le type de tissu.

Le lave-linge affiche un code d'erreur E20, que faire ?

Le code E20 indique un problème de vidange. Nettoyez le filtre de la pompe et vérifiez que le tuyau d'évacuation n'est pas plié ou obstrué. Consultez la section dépannage de la notice.

Comment améliorer l'efficacité énergétique du lavage ?

Utilisez des programmes à basse température (30-40°C), chargez la machine au maximum sans la surcharger, et nettoyez régulièrement le filtre pour optimiser la consommation d'eau.

Où trouver les pièces détachées pour le SVL610 ?

Les pièces comme les courroies, résistances, ou joints sont disponibles sur le site du fabricant ou chez les revendeurs agréés. Utilisez le modèle et numéro de série pour commander.

MODE D'EMPLOI SVL610 SVAN

WASHING MACHINE

User

Manual

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

CHAPTER-1: BEFORE USING THE APPLIANCE

• Correct Usage 6-7
• General warnings 8-9-10-11
  • Safety warnings 12-13-14-15-16-17
  • Packaging and Environment 18
  • Savings Information 19

CHAPTER-2: OVERVIEW OF YOUR DEVICE

• General Appearance 20-21
• Specifications .22

CHAPTER-3: INSTALLATION

• Removing transportation safety screws 23-24......
  • Adjusting Adjustable Stays 25-26-27
  • Electrical connection 28
  • Water inlet hose connection 29-30
  • Water discharge connection 31......

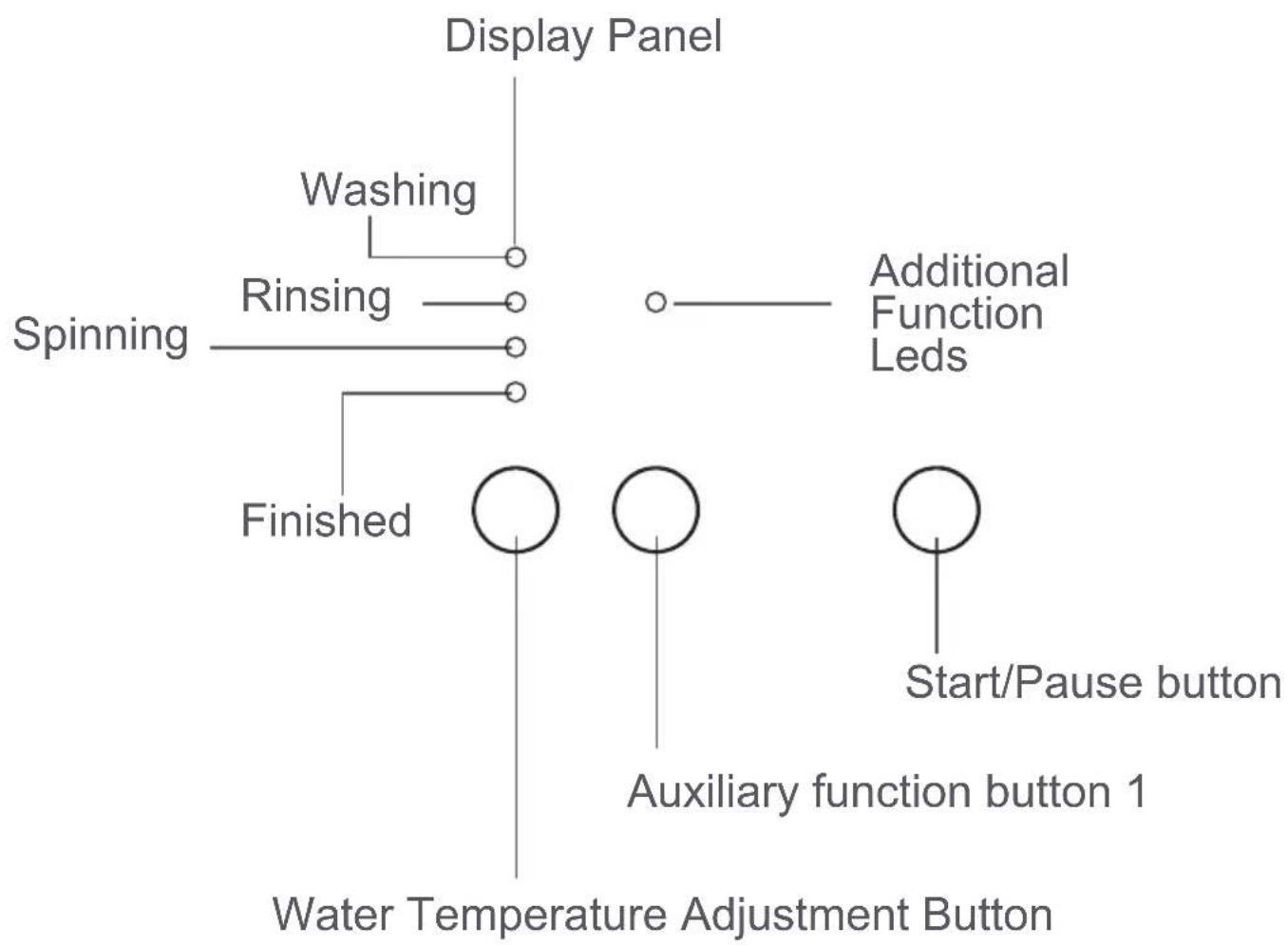

CHAPTER-4: INTRODUCTION OF CONTROL PANEL .....32

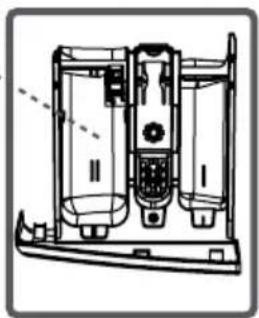

• Detergent drawer 33-34
• Programme knob 35
Electronic display 36-37

CHAPTER-5 PRELIMINARY PREPARATION FOR LAUNDERING

• Separating laundries 38-39

CONTENTS

• Putting laundries in the machine 40
• Adding detergent into machine 41
  • Operating your machine 42-43-44
  • Auxiliary Functions 45-46-47-48-49-50-51-52-53
  • Child lock 54
• Cancelling programme 55
  • Finishing programme 56

CHAPTER-6: PROGRAM TABLE ..... 57-58-59-60-61-62-63-64

CHAPTER-7: MAINTENANCE AND CLEANING OF YOUR MACHINE

• Warning 65
  • Water inlet filters 66
• Pump filter 67-68
  • Detergent drawer 69....
  • Liquid detergent apparatus 70

CHAPTER-8: FLUSH STOPPER / BODY / DRUM .....71

CHAPTER-9: TROUBLE SHOOTING 72-73-74-75-76

CHAPTER-10: AUTOMATIC FAULT WARNINGS AND

WHAT TO BE DONE 77

CHAPTER-11: PRACTICAL INFORMATION....78-79-80

• How to read the energy label and saving energy 81-82...
• Disposal of your old machine 83......

• Definitely read the user's manual.
• Your machine is designed to be used domestically. Commercial use will cause your warranty to be cancelled.

Simple line drawing of an open book with no text or symbols visible

- Keep your pets away from your machine.

- Please check the packaging of your machine before installation, and the outer surface after the package is opened. Do not operate damaged machines or machines with opened package.

- Have your machine installed only by authorized service. Any interference to your machine by anyone other than authorized services shall cause your warranty to be void.

- The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Use your machine only for laundries that have been specified as suitable for washing by the manufacturer.

- Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee).

- Your machine is not covered under warranty for faults caused by any kind of external factors (pesticides, fire, etc.).

- Please do not throw away this user manual; keep it for future reference. You or somebody else might need it in the future.

Note: Machinery specifications may vary depending on the product purchased.

• The necessary ambient temperature for your machine’s ideal operation is 15-25°.
• Frozen hoses can tear and explode. In regions where temperature is below zero, ambient temperature might endanger the safe operation of electronic card.
• Please ensure that the clothes you will place in your machine do not contain any foreign substances (nail, needle, coins, lighter, matches, clip etc.) in their pockets. These foreign substances can damage your machine.
• Before starting to use your machine, you may call the nearest authorized service and request free-of-charge help for installation, operation and use of your machine.

• It is recommended to perform the first washing operation in 90^ Cotton programme and without laundry by inserting 1/2 scale of detergent in 2nd compartment of the detergent drawer.

• As detergent or softener exposed to air for a long time may cause residues, put your detergent or softener in the detergent drawer at the beginning of every washing.

• It is advised that you unplug your machine and close the water inlet tap if you will not use your machine for a long time. Also, leaving the door of your machine will prevent the formation of bad odors due to humidity.
• Some water might be left in your machine after the trials and tests conducted due to Quality Control procedures. This will not damage your machine.
• Remember that packaging materials of your machine may be dangerous for children.
• Keep the packaging materials in a place where children cannot reach or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.

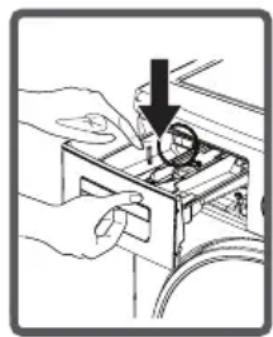

- Never open the detergent drawer when the appliance is running.

- In case of any breakdown, unplug the appliance first and then turn the tap off. Do not attempt to repair by yourself, always contact for authorized service advice.

Line drawing of a washing machine with front panel and side buttons (no text or symbols)

- The amount of laundry you put in your washing machine should not exceed the maximum amount indicated.

- Never force the door to open when the machine is running.

- Washing floury clothes in your machine damages the machine. Do not wash floury clothes in your machine.

Line drawing of a washing machine with no text or symbols

• Please adhere to detergent/fabric conditioner manufacturers’ the use of fabric conditioner or similar products in your machine.
• Set up your machine in a place where its door can be completely opened. (Do not set up your machine in places where its door cannot be fully opened.)
• Set up your machine at locations that can be fully ventilated and could have constant air circulation.

You must read these warnings. You can thus protect yourself and your beloved ones against fatal injuries and risks.

DANGER OF GETTING BURNT!

Do not touch discharging hose and water during discharging as the appliance may reach high temperatures when running.

DEATH RISK DUE TO ELECTRICAL CURRENT!

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged plug sockets
• Never pull the cable when unplugging – always grip the plug itself.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Never touch the machine with wet hands or feet.
• Call the nearest authorized service for a replacement if the power cord malfunctions.

Two electrical socket symbols with a diagonal line crossing them, no text or labels present.

Simple line drawing of a mechanical or electrical component with no text or symbols

Hand holding a power outlet with a diagonal line crossing it (no text or symbols)

Simple line drawing of a hand holding a square with a diagonal line crossing through it (no text or symbols)

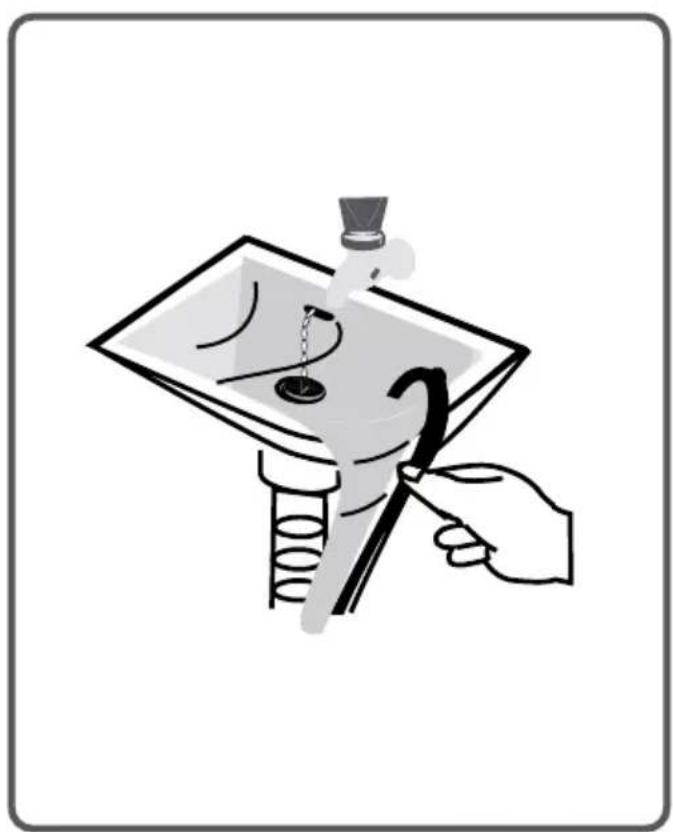

Flooding risk!

• Check whether the water runs fast or not before placing the discharge hose on the sink.
  • Take necessary measures to prevent the slipping of your hose.
• The backfiring force of a hose that is not placed appropriately can displace the hose. Prevent the stopper inside your sink from blocking the sink hole.

Illustration of a hand using a tool to clean or inspect a funnel-shaped object (no text or symbols present)

Illustration of a hand using a tool to clean or inspect a surface with a funnel and spiral tube (no text or symbols)

Danger of Fire!

• Do not keep inflammable liquids near your machine.
• The sulphure content of paint removers might cause corrosion. For this reason, never use paint-removing materials in your machine.
• Never use products that contain solvent material (like washing gas) in your machine.
• Remove all the objects in the pockets of your laundries (needle, paperclip, lighter, matches etc.) when placing them your machine.

Fire and Explosion risk may occur.

Fall and injury hazard!

• Do not climb on your machine. The upper table of your machine may break and you might get injured.
• Tidy the hose, cable and packaging of your machine during installation. You might trip over and fall.
• Do not turn your machine upside down, or on its side.
• Do not lift your machine by holding it from extruding parts (detergent drawer, door). These parts might break and cause you to get injured.
• There’s the risk of tripping and injury if the materials like hose and cables are not properly stored after your machine is installed.

Machine must be carried by 2 people or more.

Line drawing of two workers standing beside a large washing machine (no text or symbols)

Child safety!

- Do not leave children unattended near the machine. Children might lock themselves up into the machine and death risk might occur.

- Door glass and surface might be extremely hot while your machine operates. Thus, especially touching the machine might give damage to the skins of children.

Line drawing of a hand holding a bandage or tape (no text or symbols)

• Keep packaging material away from children.
• Poisoning might occur if the detergent and maintenance materials are consumed, and eyes or the skin might be irritated if they come into contact with the skin. Keep the cleaning materials away from the reach of children.

Removal of packaging materials

Packaging materials protect your machine from any damage that might occur during transportation. Packaging materials are environment friendly as they are recyclable. Recycling material provides both raw material savings and decreases waste production.

Disposal of old machine

Electrical or electronical old devices might still contain salvagable parts. So, never throw away your old devices that you do not use into the waste.

Ensure that the parts of your old electronic or electrical devices are reused by giving them to the gathering centres foreseen by related authorities.

Please ensure your old appliances are kept in an appropriate place for the safety of children until they are taken outside the house.

Some important information to get more efficiency out of your machine:

- The amount of laundry you put in your washing machine should not exceed the maximum amount indicated.

By this way, your machine shall run in saving mode.

- Not using the pre-wash feature for little and normal-dirty laundry shall save electricity and water.

Transportation Safety Screw

Water Inlet Valve

Discharging Hose

Power Cable

Transportation Safety Screw

Transportation Safety Screw

Transportation Safety Screw

Technical line drawing of a washing machine interior with internal components and wiring (no text or labels)

CHAPTER -2: OVERVIEW OF YOUR DEVICE TECHNICAL SPECIFICATIONS

Operating voltage / frequency (V/Hz)	(220-240) V~/50Hz
Total current (A)	10
Water pressure	Maximum: 1 MpaMinimum : 0.1 Mpa
Total power (W)	2100
Maximum dry laundry capacity (kg)	6
Spinning revolution (rev / min)	1000
Programme number	15
Dimensions (Height x Width x Depth) (mm)	845 x 597 x 497

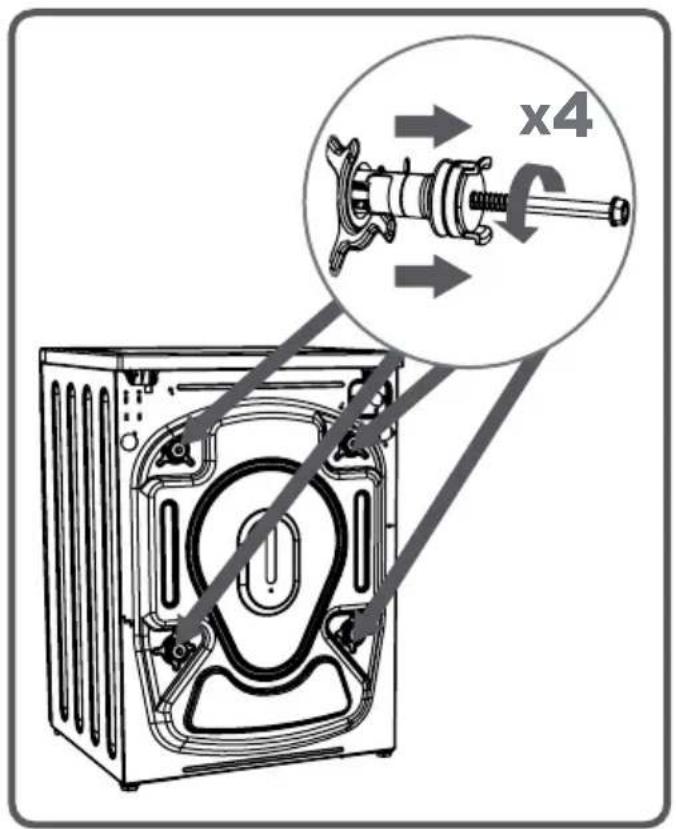

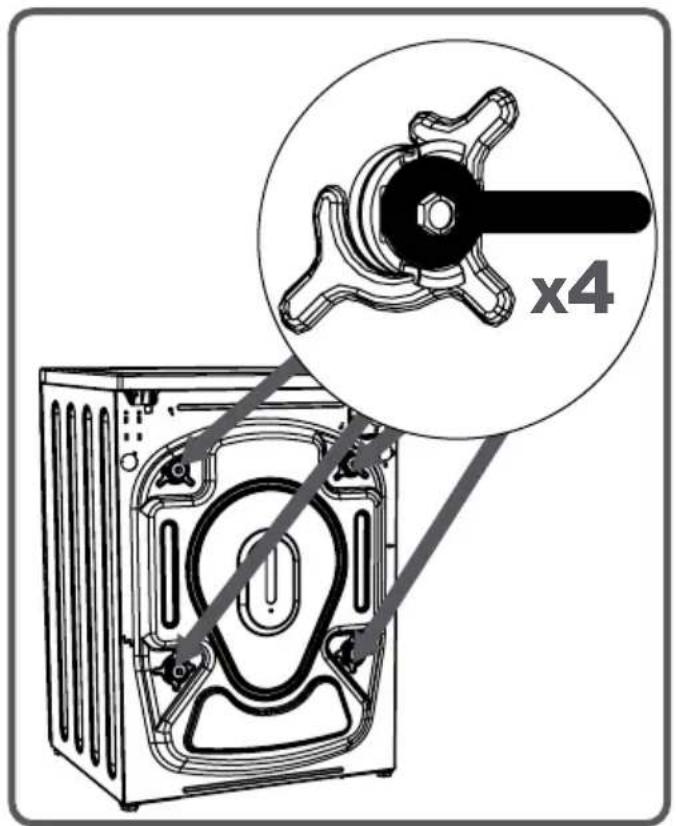

Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee).

For this reason, transportation safety screws shall be loosened by being rotated in counter-clockwise using an appropriate wrench.

Transportation screws shall be removed by pulling out.

Fit the plastic transportation screw taps delivered in accessories bag to the palces where transportation screws have been removed.

The transportation safety screws should be stored to be used in case of transportation.

NOTE: You should absolutely remove the transportation screws of your machine before the first usage. Faults occurring in the machines operated with transportation screw fitted shall be out of scope of warranty.

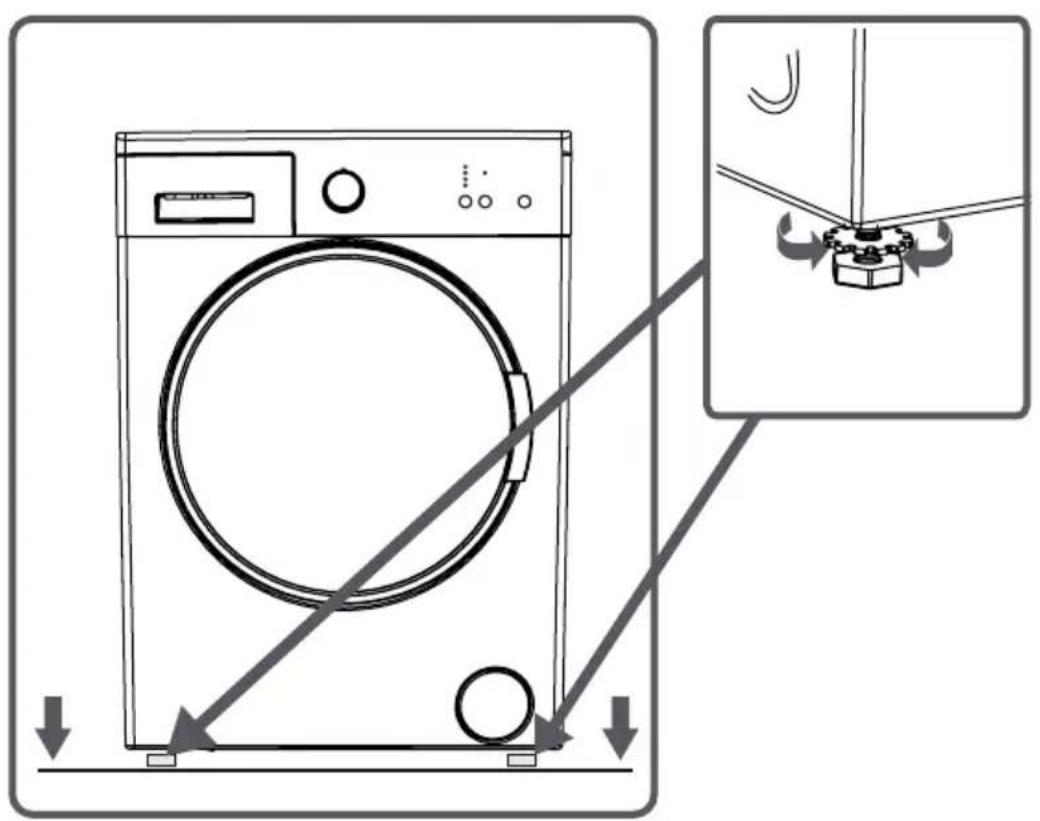

Diagram of a washing machine showing internal components and a close-up view of the internal structure (no text or symbols present)

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground.
• You can adjust the balance of your machine through the stays.
• Loosen the plastic adjustment nut.

• Adjust the stays upward and downward by rotating them.
  • After maintaining the balance, compress the plastic adjustment nut upward again.

CHAPTER -3: INSTALLATION OF THE MACHINE (ADJUSTING ADJUSTABLE STAYS)

- Never put cardboard, wood or suchlike materials under your machine if you are intending to stabilize the distortions on the ground.

- When cleaning the ground, on which your machine rests, be careful not to disorder stays stabilization.

Line drawing of a front-loading washing machine with no text or symbols

• Your washing machine is set to 220-240V and 50Hz.
• The mains cord of your washing machine is equipped with a specific earthed plug. This plug should always be inserted to a earthed socket of 10 amps.
• The current value of the fuse should be 10 amps. Fuse current value of the power line connected to this plug should also be 10 amperes.
• If you don’t have such a receptacle and fuse confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage.

NOTE: Operating your machine under low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

Diagram showing two electrical plugs connected to a wall socket, with an arrow indicating direction (no text or symbols)

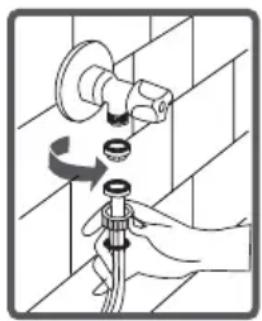

- Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specifications.

White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable for machines with double water inlets).

- To eliminate water leakages in points of contact, 1 or 2 nuts are provided in the hose package (applicable for machines with double water inlets). Fit these nuts to the ends of new water inlet hoses on the side of faucet.

- Mount new water inlet hoses to a 34 ", threaded faucet.

- Connect the white-elbow end of the water inlet hoses to the white-filtered water inlet valve on the rear side of the machine and the red-elbow end to red-filtered one (applicable for machines with double water inlets). Tighten plastic parts of the junctions using your hand.

In uncertain conditions, have the connection works be done by a qualified plumber.

- Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more efficiently.) (0,1 Mpa pressure means that more than 8 litres of water will flow through a fully-tapped faucet per one minute.)

- Ensure that points of contact do not leak by tapping the faucet completely after carrying making the connections.

Line drawing of a coiled hose with two connectors (no text or symbols)

Diagram of a car fuel pump with valve and valve components (no text or labels)

Illustration of a hand holding a pipe fitting with a valve inserted, showing mechanical components (no text or symbols)

CHAPTER -3: INSTALLATION OF THE MACHINE (WATER INLET HOSE CONNECTION)

• Ensure that the new water inlet hoses are not bent, broken, crushed and resized.
• If your machine has double hot water inlets, the temperature of hot water inlet should be maximum 70^ .

Note: Use only the new water inlet hose coming with your machine while making water inlet connections of your machine. Never use old, used or damaged water inlet hoses.

• The end of water discharge hose can be fitted to a specific apparatus directly attached to dirty water discharge hole or outlet joint of the basin elbow.
• Never attempt to extend the water discharge hose by jointing.
• Do not put discharging hose of your machine in a vessel, bucket or sink.
• Make sure that the water discharge hose does not bend, buckle, be crushed or extended. Please note:
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.

Diagram of a pipe fitting with a coiled cable attached to a sink (no text or symbols)

Diagram showing a pipe installation with an inset illustrating the curved structure (no text or symbols present)

- You can use the liquid level determination plate when you want to wash your laundry with liquid detergent. You can use your liquid detergents in all programs without prewashing. Place the liquid detergent apparatus in the second compartment (which is available inside the machine) of the detergent drawer (*) and set the detergent amount. (Use the recommended amount of liquid detergent by detergent producers).

Do not exceed the MAX level, use only for liquid detergent, do not use this aparatus for powder detergent and take it out.)

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a device's internal components, showing exploded view with no visible text or symbols

Liquid Detergent Apparatus

Main wash detergent compartment

Softener

Compartment

Pre-wash detergent compartment

Powder detergent level stages

Technical line drawing of a mechanical component or tool (no text or symbols)

Powder detergent spade (*)

(*) Machinery specifications may vary depending on the product purchased.

SECTIONS

Main wash detergent compartment:

In this compartment, only materials like detergent (liquid or powder), lime preventer and such can be used.

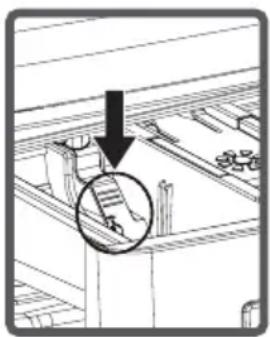

You can find the liquid detergent apparatus inside your machine at first installation. (*)

Technical line drawing of a cylindrical device with a base and handle, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Fabric conditioner, starch, detergent compartment:

You can use softener for your laundry (recommended amount and type by the producer is recommended). Sometimes the fabric conditioners you use for your laundry mar remain in this compartment. The reason for this is that the conditioner is not viscous. To prevent this situation, more viscous liquid softeners are recommended to be used or the softener could be thinned and then used.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components (no text or symbols)

Pre-wash detergent compartment:

This compartment must only be used when

the pre-wash feature is selected.

Pre-wash feature is recommended for very dirty

laundry.

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

(*) Machinery specifications may vary depending on the product purchased.

• You can select the programme you want to wash your laundry in through programme knob.
• You may set the programme selection operation by rotating the programme knob in both directions.
• Ensure that the programme knob is exactly on the programme you want to select.

From the function leds of your machine, the washing water temperature of your machine, the auxiliary functions you have selected and the stage of the programme you are running on your machine.(☐ pre wash / wash state, ☐ rinsing stage, ☎ spinning stage).

Furthermore, electronic display will warn you by means of led combinations that will turn on its display when a fault occurs on your machine and notify you of the completion of the washing programme by revealing expression of “Finished” on the display as soon as the washing programme you have selected has finished as well.

• Your laundry has product labels on them that specify their specifications. Wash or dry your laundry according to the specifications on the product label.
• Separate your laundries according to their types (cotton, synthetic, sensitive, wool etc.), their temperatures (cold, 30°, 40°, 60°, 90°) and degree of contamination (slightly stained, stained, highly stained).
• Never wash your coloured and white laundry together.
• Wash your coloured laundries separately in the first washing as they may bleed.
• Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up.

CAUTION: WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included within the scope of warranty.

• Zip up and button up your laundries.
• Remove the metallic or plastic hooks of tulle curtains or curtains or place them in a washing net or bag and then muzzle them.
• Reverse textiles such as pants, knitwear, t-shirt and sweat suit.
• Wash socks, handkerchief and suchlike small laundries in a washing net.

• Open the door of your machine.
• Spread your laundries in your machine.

Line drawing of a washing machine with front panel and side door (no text or symbols)

NOTE: Note: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.

Illustration of a washing machine with a handle inserting into it (no text or symbols)

You can take the following table of weights as an example.

LAUNDRY TYPE WEIGHT (gr)
Towel	200
Linen	500
Bathrobe	1200
Quilt cover	700
Pillow slip	200
Underwear	100
Tablecloth	250

• Put each item of laundry separately.
• Ensure that no laundry is stuck between the cover and bellow seal when closing the door of your machine.
• Push the door of your machine until hearing the locking sound to close it.
• Close the door of your machine properly, otherwise your machine will not start the washing operation.

The amount of detergent you will put in your machine will depend on the following criteria:

• Your detergent utilization will be based on the degree of contamination of your laundries. Do not prewash your less stained laundries and put your slight amount of detergent in the 2nd compartment of the detergent drawer.
• For your much stained laundries, select a programme including prewashing, and put 14 of the detergent you will put in the detergent drawer in the 1st compartment of the detergent drawer while putting the remaining 34 of it into 2nd compartment.
• Use detergents produced for automatic washing machine in your machine. The amount of detergent you will use for your laundries is printed on the detergent package.
• The higher the degree of hardness of the water the more detergent you will use.
• The amount of the detergent you will use will increase as the amount of your laundries increase.
• Put the softener in the softener compartment in the detergent drawer. Do not exceed the MAX level. Otherwise, softener will flow into washing water through flushing.
• Softeners with high density are required to be thinned to a degree before being put in the drawer. Because high-density softener will clog the flush and avoid the flow of the softener.

• You can use your liquid detergents in all programs without prewashing. For this, fit liquid detergent level plate in the accessories bag or the liquid detergent apparatus (*) into 2nd compartment of the detergent drawer and set the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid detergent plate.

• Plug your machine in.

• Open the water faucet.
• Open the machine door.
• Spread your laundries in your machine.
• Push the door of your machine until hearing the locking sound to close it.

Simple line drawing of an electric plug with a socket and cable (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Selecting programme

Select the convenient programme for your laundries on the programme table.

AUXILIARY FUNCTIONS

Before starting the programme, you can optionally select an auxiliary function.

• Press on the button of auxiliary function you would like to select.
• If auxiliary function symbol on electronic display flashes continuously, the auxiliary function you have selected will be activated.
• If auxiliary function symbol on electronic display blinks, the auxiliary function you have selected will not be activated.

Reason for non-activation:

• The auxiliary function you want to use in the washing programme you have selected is not applicable.
• Your machine has passed over the stage, during which the auxiliary function you would like to select would be implemented.
• It is not compatible with an auxiliary function you have selected previously.

HALF-LOAD DETECTION SYSTEM

Your machine features a half-load detection system.

In case you put approximately half or less amount of launderies of maximum laundry capacity in your machine, your machine will run so as to save washing time, water consumption and energy in some programmes. When the half-load function is active, the machine can complete the programme you have set in a shorter time.

1- Temperature selection

You can select the washing water temperature with the washing water temperature adjustment button.

When you select a new programme, there won't be any display on the temperature adjustment leds on the display panel. When you press the temperature adjustment button, the max. temperature value of the programme you have selected shall appear on the led display panel.

You can gradually decrease the washing water temperature between the maximum washing water temperature of the selected programme and cold washing * selections by pressing temperature adjustment button.

If you have missed the washing water temperature you wanted, you can return to the intended temperature by continuously pressing the washing water temperature adjustment button.

NOTE: When 90° programme is selected, the max. temperature value of the selected programme is not displayed on the display panel. When the temperature value is decreased to 60°, 40°, 30°, *(cold washing) temperature levels by pressing the temperature adjustment button, the decreased temperature value is displayed on the display panel.

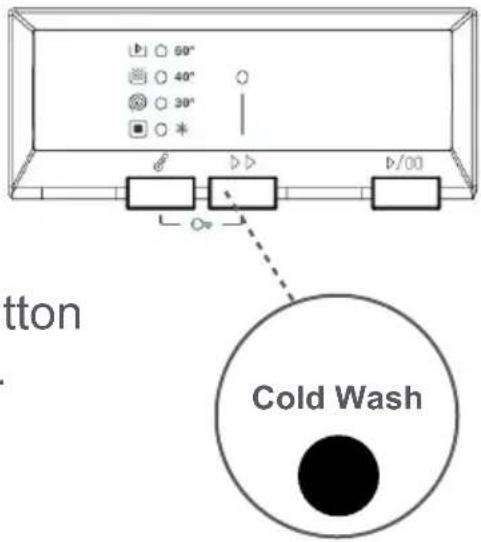

- Cold Wash(\*)

You can use this auxiliary function when you want to wash your laundry with cold water (tap water).

You may make the programme active by pressing the cold wash auxiliary function button when the led light of the * symbol turns on.

3- Anti- Allergic(\*)

In the programmes where this auxiliary function is active, you may have your machine perform an Extra rinse operation on your laundries prior to latest rinsing operation.

You may make the programme active by pressing the anti-allergic auxiliary function button when the led light of the 🔊 symbol turns on.

Anti-allergic

4- Easy ironing(\*)

You can enable your laundries to be taken out less wrinkled as the washing operation is completed by employing this auxiliary function.

You may make the programme active by pressing the easy ironing auxiliary function button when the led light of the symbol turns on.

5- Pre-Wash(\*)

You can expose your very dirty laundries to prewashing operation prior to main washing by using this additional function. When using this function, you should put detergent in front washing compartment of the detergent drawer.

You may make the programme active by pressing the pre wash auxiliary function button when the led light of the symbol turns on.

Pre-wash

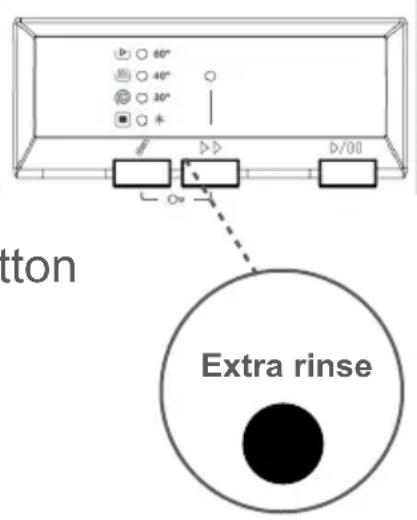

6- Exstra Rinse(\*)

You can make additional rinse operation on your laundry by using this additional function.

You may make the programme active by pressing the Extra rinse auxiliary function button when the led light of the 🎨 symbol turns on.

□- No Spin(\*)

If you don't want to perform spinning on your laundry, you can use this auxiliary function.

By pushing the no spin button, button, 🔒 when the led light of the symbol turns on.

8- Rapid Wash(\*)

By using this auxiliary function, you can wash your laundry in a shorter time and spending less energy and water. ( It is advised that laundry that is less than half the capacity of the selected washing programme is placed.)

You may make the programme active by pressing the rapid wash auxiliary function button when the led light of the ▶ symbol turns on.

NOTE: In case you put half or less than half of the laundry capacity of the washing programme you have selected in your machine, your machine will detect this thanks to automotive half-load detection system and the programme you have selected will wash your laundries in a shorter time to consume less energy and water. When your machine detects half load, the led of the 📋 symbol shall turn on automatically.

Start/Pause button

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Standby led on the electronic display will blink.

CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (CHILD LOCK)

To avoid programme flow from being affected if programme buttons are pressed or programme button is turned when performing washing operation in your machine, child lock is available.

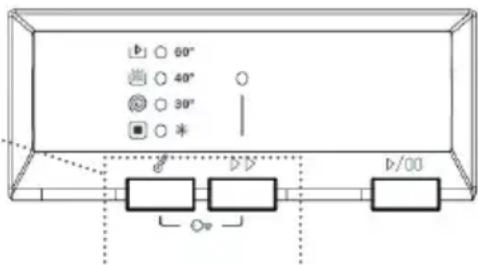

Child lock will be activated in case pressed on both auxiliary functions 1 and 2 at the same time for more than 3 seconds. You can see the auxiliary function leds on the display when activated.

If pressed any button while child lock is active, the Additional Function Leds will blink on the display.

If while the child lock is engaged and any programme is running, the programme knob is switched to the CANCEL position and another programme is selected, the programme previously selected continues from where it left.

To deactivate it, it will be sufficient to press on the same buttons for more than 3 seconds. When the child lock is deactivated, the Additional Function Leds will blink on the display.

If you want to cancel any programme running:

1- Switch the programme knob to "CANCEL" position.
2- Your machine will stop the washing operation and the programme will be cancelled.

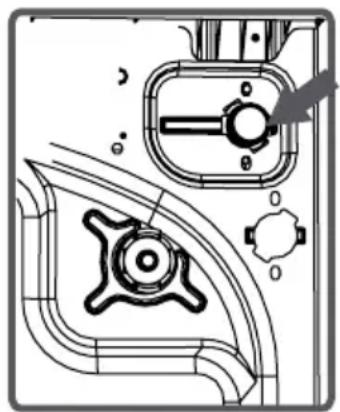

3- To get rid of the water accumulated in the machine switch the programme knob to any programme.
4- Your machine will perform the necessary discharge operation and cancel the programme.
5- You can run your machine by selecting a new programme.

Your machine will stop by itself as soon as the programme you have selected finishes.

- End led will blink on the display panel.

• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries.
• Switch the programme knob to CANCEL position.
• Unplug your machine.
• Turn the water faucet off.

COTTON 90°

Washing temperature (°C)	90°
Maximum dry laundry amount (kg)	6,0
Detergent compartment	2
Programme duration (Min.)	195
Laundry type / Descriptions	Very dirty, cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.

Pre-Wash Cotton

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	6,0
Detergent compartment	1&2
Programme duration	160
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

COTTON ECO 60 C°
Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	6,0
Detergent compartment	2
Programme duration (Min.)	200
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.

COTTON 40 C°
Washing temperature (°C)	40°
Maximum dry laundry amount (kg)	6,0
Detergent compartment	2
Programme duration (Min.)	195
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 3,0 kg), bedclothes, etc.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

ECO 20°

Washing temperature (°C)	20°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration (Min.)	94
Laundry type / Descriptions	Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc.

EASY CARE

Washing temperature (°C)	40°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration (Min.)	90
Laundry type / Descriptions	Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)

WOOL

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment	2
Programme duration	45
Laundry type / Descriptions	Woollen laundries with machine wash labels.

RINSING

Yıkama sıcaklığı (°C)	-
Maximum dry laundry amount (kg)	6,0
Detergent compartment	-
Programme duration	36
Laundry type / Descriptions	If you want to additionally rinse your laundries upon completion of washing operation, you may use this programme for any kind of laundries.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

SPINNING

Washing temperature (°C)	-
Maximum dry laundry amount (kg)	6,0
Detergent compartment	-
Programme duration	17
Laundry type / Descriptions	If you want to additionally Spinning your laundries upon completion of washing operation, you may use this programme for any kind of laundries.

SENSITIVE/HAND WASH

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment	2
Programme duration	91
Laundry type / Descriptions	Laundry recommended for hand wash or sensitive laundry.

SPORTS WEAR

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	83
Laundry type / Descriptions	Sportswear.

MIXED

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	83
Laundry type / Descrip-	Dirty cotton, synthetics, colour and flax textiles can be washed together.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

BLOUSES / SHIRTS

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	106
Laundry type / Descriptions	Dirty cotton, synthetic and synthetic-mixed shirts and blouses can be washed together.

DAILY 60 min.

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	60
Laundry type / Descrip-	You can wash your dirty cotton, colour and flax textiles at 60°C in 60 minutes.

If you have the rapid washing auxiliary function in your machine, then if you put 2 kg or less laundry in your machine, your machine will automatically wash for laundry for 30 minutes.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

RAPID 15 min.

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment	2
Programme duration	15
Laundry type / Descriptions	You can wash your slightly stained, cotton, colured and flax textile within only 15 minutes.

NOTE: As the washing period is short, less amount of detergent is required to be used compared to other programmes. The programme period will increase if your machine detects instable loading. You can open the door of your machine 2 minutes after the completion of washing operation. (The duration of 2 minutes required to open the door of your machine is not included in the washing period.)

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

Unplug your machine before starting the maintenance and cleaning of your machine.

Turn the tap water off before starting the maintenance cand cleaning of your machine.

Simple line drawing of an electrical outlet with a plug and socket (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

CAUTION: Your machine's parts might be damaged if cleaners with solvent agents are used.

Do not use cleaning materials with solvent agents.

Filters to avoid dirt and foreign substances in the water from penetrating into the machine are available both on the side of faucet and on the ends of water valves along the water inlet

hose of your machine.

If your machine cannot intake sufficient amount of water despite water faucet being open, these filters should be cleaned.

(It is recommended that you clean your pump filter once in 2 months.)

• Detach the water inlet hoses.
• Remove the filters on water inlet valves using pliers and then clean it with a brush in water.
• Disassemble the filters on the side of faucet side of water inlet hoses manually and clean it.
  • Having the filters cleaned, you can fit them in the same way reversely.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

CAUTION:

Filters of water inlet valves may be clogged due to contaminated water faucet or lack of necessary maintenance or valves may be broken down, causing water leaking into your machine continuously.

The breakdowns that may arise due to these reasons are out of the scope of warranty.

A filter system which avoids threads remaining from your laundries and tiny materials from entering into the pump during water discharging operation carried out by your machine after completing washing so prolonging the lifecycle of your pump is available. It is recommended that you clean your pump filter once in 2 months. To clean pump filter:

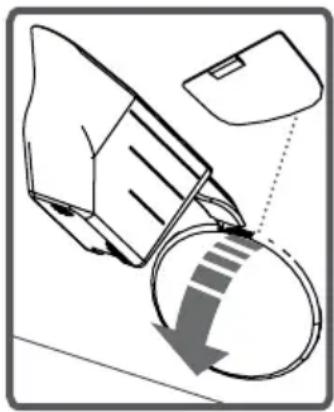

• To open the pump cover, you can use the powder detergent spade (*) or liquid detergent level plate coming out of your machine.
• Fit the end point of the plastic part to the gap of the pump cover and push it back. This will open the cover.
• Before opening the filter cover, settle a vessel in front of the filter cover to prevent the water remained in the machine from flowing on the ground.

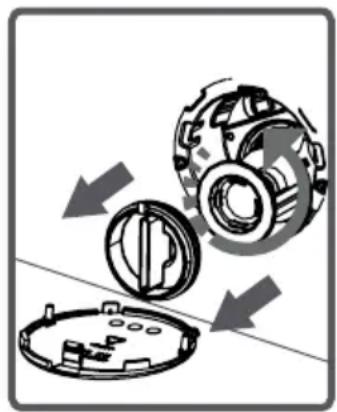

• Loosen the filter cover in counter-clockwise and then empty water.

Note: You may have to empty the water collection vessel several times according to the amount of water in the machine.

Diagram showing a mechanical component with a circular arrow indicating direction, no text or symbols present

Mechanical assembly diagram showing a disassembled component with arrows indicating motion (no text or symbols)

(*) Machinery specifications may vary depending on the product purchased.

CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (PUMP FILTER)

- Clean the foreign materials in the filter with a brush.

• After cleaning the filter, fit the filter cover and tighten it by rotating it in clockwise direction.

- While closing the pump cover, ensure that the parts on the inner side of the cover to match the holes on the front panel side.

- You can reattach the pump cover in the reverse order that you removed it.

Illustration of a medical procedure showing hand placement on a surgical instrument (no text or symbols present)

Technical illustration of a mechanical component with two views: top shows internal gear assembly, bottom shows circular housing (no text or symbols)

Mechanical assembly diagram showing two circular components with red fasteners and a dashed line indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and triangular base (no text or symbols)

WARNING!

As water in the pump may be hot, wait un-til it cools down.

Your detergents may deposit residue in detergent drawer and housing of detergent drawer over time.

To clean the residue formed, disassemble the detergent drawer in particular periods. It is recommended that you clean your pump filter every 2 months.

To eject the detergent drawer:

- Pull the detergent drawer up to the end

- Keep on pulling by depressing on the section shown below in the detergent drawer and keep pulling and then unsettle the detergent drawer.

Illustration of a hand inserting a device into a rack with an arrow indicating the process (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols)

• Flush it using a brush.
• Collect residues in the housing of the detergent drawer without dropping them inside the machine.
• Assemble the detergent drawer after drying it using a towel or dry cloth.
• Do not wash your detergent drawer in dishwasher.

Liquid Detergent Apparatus (\*)

Take out the liquid detergent level apparatus for cleaning and maintenance purposes as shown in the picture and clean well detergent residues. Put the apparatus back into its place. Make sure no residues are left inside.

(*) Machinery specifications may vary depending on the product purchased.

Technical line drawing of a mechanical device with an upward arrow indicating assembly or operation (no text or symbols present)

Technical line drawing of a mechanical device with internal components and an arrow indicating assembly (no text or symbols)

Flush stopper

Disassemble the detergent drawer. Disassemble the flush stopper and clean the softener residues completely. Refit the flush stopper after cleaning it. Check whether it has settled properly.

Technical line drawing of a cabinet or appliance with internal compartments and fan-like elements (no text or symbols)

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Diagram of an inclined ramp with an upward arrow indicating motion (no text or symbols)

Body

Clean the outer body of your machine with warm water and a non-inflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry it using a soft and dry cloth.

Technical line drawing of a 3D rectangular frame with internal slots and a curved cutout (no text or symbols)

Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. This objects lead to formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

Technical illustration of a cylindrical mechanical component with internal cross-section (no text or symbols)

All repairing operations required for your machine should be carried out by our authorised service. If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows:

• Unplug your machine.
• Turn the water faucet off.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Your machine does not start.	It is not plugged. Plug machine in.
	Fuses out of order.	Replace the fuses.
	Electricity cut-off.	Check mains power.
	Start/Pause button not pressed.	Press on Start/Pause button.
	Programme dial ‘stop’ position.	Switch the programme button to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off.	Turn your faucet on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged.	Clean water inlet hose filters. (*)
	Valve inlet filter clogged.	Clean the valve inlet filters. (*)
	The machine door not completely closed.	Close the machine door.

(*) See the chapter regarding maintenance and cleaning of your machine.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Your machine does not discharge water.	Discharging hose clogged or twisted.	Check the discharging hose, then either clean or untwist.
	Pump filter clogged.	Clean the pump filter. (*)
	Laundries settled in the machine non-homogeneously.	Spread your laundry in the machine evenly.
Your machine vibrates.	The feet of your machine have not been adjusted.	Adjust the feet on your machine. (**)
	Safety stays fitted for transportation not disassembled.	Disassemble the safety stays of your machine. (**)
	Less amount of laundry in the appliance.	This will not block operation of your machine.
	Your machine is overloaded with laundry or laundry settled unevenly.	Do not put in laundry more than the amount recommended and settle the laundry in the machine evenly
	Your machine rests on a hard surface.	Prevent your machine from resting on hard surfaces.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press on Start/Pause button. To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture in the detergent drawer. After 5-10 minutes, Press on Start/Pause button again. In your next washing operation, Adjust the detergent dose accordingly.
	Wrong detergent used.	Use detergents produced only for automatic washing machines in your machine.
Unsatisfactory washing result.	The contamination degree of your laundries does not match the programme you have chosen.	Select the programme appropriate for the contamination degree of your laundries. (See programme table)
	Amount of detergent used insufficient.	Adjust the amount of detergent based on the amount and contamination degree of your laundries.
	Laundries in excess of maximum capacity put in your machine.	Load your machine with laundries, amount of which will not exceed maximum laundry capacity.
Unsatisfactory washing result.	Water being hard. (Contaminated, lime water etc.)	Adjust the amount of detergent based on the instruction of detergent manufacturer.
	Laundries distributed in your machine non-homogenously.	Spread your laun-dries in the ma-chine properly and homogeneously.
As soon as the ma-chine is loaded with water, water dis-charges.	The end of water discharging hose is too low for the machine.	Set the water dis-charging hose on appropriate height. (**) (**)
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	—
Laundries have detergent residues on them.	Non-dissolving particles of some detergents may stick to your laundries as white spots.	Perform an Extra rinse by setting your machine to “Rinsing” programme, or clean the spots using a brush after your laun-dries dry.
Grey spots appear on the laundries.	The reason for such spots may be oil, cream or ointment.	Apply the maximum amount of detergent instructed by the deter-gent manufacturer in the next washing operation.

(**) See the chapter regarding installation of your machine.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Spinning operation is not performed or runs late.	No fault. Unbalanced load control system has been activated.	Unbalanced load control system will try to spread your laundries homogeneously.Spinning operation will begin after your laundry is spread. Place the laundry in the machine in a balanced fashion the next time.

Your machine is equipped with the systems which are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations.

TROUBLE CODE		POSSIBLE FAULT	WHAT TO DO
EC		The door of your machine is left open.	Close the machine door. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service immediately.
EC		The water pressure or the water level inside the machine is low.	Turn on the faucet. Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically. Unplug the machine, turn off your faucet and contact the nearest authorised service.
EC		The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service. (*)
EC		Your machine has excessive amount of water.	Your machine will discharge water by itself. Pursuant to discharging operation, turn off your machine and unplug it. Turn off your faucet and contact the nearest authorised service.

(*) See the chapter regarding maintenance and cleaning of your machine.

Alcoholic drinks: Spotted area should initially be washed using cold water, and then be wiped with glycerine and water and rinsed with vinegar-mixed water.

Shoe shine: Spot should be rubbed out gently without damaging the cloth and be scrubbed and rinsed with detergent. If not removed, it should be scrubbed using the mixture obtained by adding 1 scale of alcohol (96°) into 2 scales of water, and then be washed with warm water.

Tea and coffee: Stretch the spotted area of your laundry throughout the opening of a vessel, and pour hot water as much as the type of your laundry can resist.

In case the type of your laundry permits, wash with bleacher.

Chocolate and cocoa: After submerging your laundries in cold water and rubbing it using soap or detergent, wash it in temperature that fabric type of your laundry can resist. In case the oil stain is still visible, wipe with oxygen water (3%).

Simple line drawing of a wine bottle with a label (no text or symbols on the bottle itself)

Simple line drawing of a boots (no text or symbols)

Simple line drawing of a mug with handle and side rim, no text or symbols present

Simple line drawing of a steaming cup (no text or symbols)

Tomato paste: After rubbing out the dried substances without damaging your laundry, submerge it in water for 30 minutes, and then scrub and wash it with detergent.

Bouillon-Egg: Remove dried spot residues on your laundry, and then wipe it with a sponge or soft cloth submerged in cold water previously. Scrub with detergent, wash with diluted bleacher.

Grease and oil stains: Firstly, wie the residues. Scrub the spot with detergent and wash it with warm soapy water.

Mustard: Apply glycerine on spotted area. Scrub with detergent and wash. If the spot cannot be removed, wipe with alcohol. (For synthetic and colour fabrics, a mixture of 1 scale of alcohol and 2 scales of water should be used)

Simple line drawing of a tomato (no text or symbols)

Simple line drawing of an egg with a gear inside, no text or symbols present

Simple line drawing of a pitcher with liquid and handle (no text or symbols)

Simple icon of a trash bin with a lid, no text or symbols present

Fruit: Stretch the spotted area of your laundry throughout the opening of a vessel, and pour cold water on it. Do not pour hot water on the spot. Wipe with cold water and apply glycerine. Allow 1-2 hours, wipe with a few drops of white vinegar, and rinse it.

Grass stain: Wipe the stained part with detergent. If the type of your cloth permits bleacher using, wash with bleacher. Wipe your woollen laundries with alcohol. (For colour fabrics, a mixture of 1 scale of pure alcohol and 2 scales of water)

Oil paint: Spot should be removed by applying thinner before drying. Then it should be wiped with detergent and washed.

Burn stain: If your laundry is suitable for applying bleacher, you can add bleacher into washing water. For wool fabric, a cloth previously submerged in oxygen water should be covered over the stain and it should be ironed after putting a dry cloth on this cloth. It should be washed after being rinsed properly.

Simple line drawing of a peach with a leaf, enclosed in a square frame (no text or symbols)

Simple line drawing of three curved lines inside a square frame (no text or symbols)

Line drawing of a paintbrush with a handle and bristles (no text or symbols)

Simple flame icon illustration (no text or symbols)

Blood stain: Submerge your laundries in cold water for 30 minutes. If the stain is not removed, then submerge in a mixture of water and ammoniac (3 spoons of ammoniac in 4 litres of water) for 30 minutes.

Crema, ice cream and milk: Submerge your laundries in cold water and scrub the spotted area with detergent. If the spot is not removed, apply bleacher to the extent suitable for your laundries. (Do not use bleacher for colour laundries.)

Mould: Mould stains should be cleaned as soon as possible. Stain should be washed with detergent water, nevertheless if it cannot be removed, it should be wiped with oxygen water (3%).

Ink: Subject the spotted area to running water and wait until the flow of inked water ends. Then wipe it with lemon-added water and detergent, and wash it after allowing 5 minutes.

Abstract black ink splatter on white background, no text or symbols present

Illustration of a waffle ice cream cone with chocolate swirls (no text or symbols)

Simple line drawing of a mushroom with a leafy base (no text or symbols)

Simple line drawing of a pen with a droplet on the tip (no text or symbols)

Energy and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, laundry amount, additional function selection, voltage fluctuations. It will reduce energy and water consumption to use your machine with the laundry capacity proposed for the selected programme, wash your laundries less dirty or daily laundries in short programmes, carry out cleaning and maintenance periodically, use your machine in convenient time intervals specified by electricity vendor.

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment.

You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly.

Recycling materials will help natural resources be preserved.

For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

CE
