Type de produit	Lave-linge
Marque	SVAN
Modèle	SVL650D
Capacité de charge	6 kg
Hauteur	85 cm
Largeur	60 cm
Profondeur	55 cm
Poids net	65 kg
Alimentation électrique	220-240 V, 50 Hz
Puissance absorbée	2000 W
Programmes de lavage	Coton, synthétiques, délicat, rapide, laine, rinçage+essorage
Vitesse d'essorage maximale	1400 tr/min
Niveau sonore (lavage)	58 dB(A)
Niveau sonore (essorage)	76 dB(A)
Classe énergétique	A+
Consommation d'eau par cycle	48 L
Consommation d'énergie par an	180 kWh
Fonctions spéciales	Départ différé, lavage à froid, arrêt cuve pleine, sélection température
Système de sécurité	Sécurité enfants, protection surverse, contrôle de mousse
Entretien et nettoyage	Nettoyage du filtre, tiroir à lessive, tambour : programme nettoyage
Pièces détachées disponibles	Courroie, pompe de vidange, résistance, filtre, hublot
Réparabilité	Indice de réparabilité : 7.2 / 10

FOIRE AUX QUESTIONS - SVL650D SVAN

Comment installer correctement mon lave-linge SVAN SVL650D ?

Placez l'appareil sur un sol stable et horizontal. Dévissez les boulons de transport à l'arrière. Raccordez les tuyaux d'arrivée d'eau et de vidange. Branchez la prise électrique. Pour plus de détails, consultez le manuel d'installation fourni.

Que faire si le tambour ne tourne pas ?

Vérifiez que le programme n'est pas en pause. Si le problème persiste, contrôle de la courroie et du moteur. Nettoyez le filtre de vidange et vérifiez qu'il n'y a pas de corps étrangers. Si rien ne fonctionne, contactez le service après-vente.

Comment nettoyer le filtre de vidange ?

Débranchez l'appareil. Ouvrez le volet inférieur, placez un bac sous le filtre. Tournez le filtre dans le sens inverse des aiguilles d'une montre pour le retirer. Nettoyez-le sous l'eau courante. Remettez-le en place et fermez le volet.

Que signifie le code erreur E10 ?

Le code E10 indique un problème d'arrivée d'eau. Vérifiez que le robinet d'eau est ouvert, que le tuyau n'est pas plié ou bouché, et que la pression d'eau est suffisante. Si l'erreur persiste, inspectez le filtre d'entrée du robinet.

Comment détartrer mon lave-linge ?

Utilisez un détartrant spécial lave-linge ou du vinaigre blanc. Lancez un programme coton à 90°C sans linge avec le produit dans le bac à lessive. Renouvelez l'opération tous les 3 mois pour éviter l'accumulation de calcaire.

Puis-je utiliser de la lessive liquide ?

Oui, mais utilisez la dose adaptée. Si vous utilisez une lessive liquide, versez-la dans le bac prévu (compartiment II) ou utilisez un doseur à placer directement dans le tambour. Évitez la lessive en poudre pour les programmes à basse température.

Comment activer la sécurité enfants ?

Appuyez simultanément sur les touches 'Température' et 'Essorage' pendant 3 secondes. Un voyant s'allume. Pour désactiver, répétez l'opération. Cette fonction empêche toute modification des réglages pendant le cycle.

Le lave-linge vibre beaucoup pendant l'essorage, que faire ?

Vérifiez que l'appareil est de niveau : ajustez les pieds réglables. Assurez-vous que les boulons de transport ont été retirés. Répartissez le linge uniformément dans le tambour. Réduisez la vitesse d'essorage si nécessaire.

Quelle est la capacité de charge maximale ?

La capacité maximale est de 6 kg pour un lavage normal. Ne dépassez pas cette charge pour garantir un bon lavage et éviter d'endommager l'appareil. Pour les programmes spécifiques (laine, délicat), la charge est réduite.

Où trouver les pièces détachées pour mon SVL650D ?

Les pièces détachées sont disponibles chez les revendeurs agréés SVAN ou sur des sites spécialisés. Utilisez le numéro de modèle pour commander. Les pièces courantes comme le filtre, la courroie ou la pompe de vidange sont facilement trouvables.

MODE D'EMPLOI SVL650D SVAN

svan

User Manual

Front Loading Washing Machine

Front view of a white washing machine with a circular vent and control panel (no visible text or symbols)

SVL650D

This applicate is intended for household use only

Content

Safety Notifications 3

Part Name 4

Installation Instruction 5

Methods of Door Lock and Remove 9

The Usage Method of the Detergent Box 10

Function Introduction of Operating Panel 11

The Introduction of Function and Program 12

The Introduction of Washing Programs 16

Maintenance 17

Varieties of Functions 19

Notice before Washing 19

Non-fault Conditions 21

Troubleshooting Guide 22

Specification 22

WARNING

- This appliance is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities,or lack of experience and knowledge, unless they hare been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

- This appliance is intended to be used in household and similar applications

• Manual loss, Call our service number.

• Water pressure:0.03-1Mpa.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Safety Notifications (Please Must Follow)

- In order to prevent the harm or damage to the user or the person and property of others, please make sure to follow the safety issues.

Warnings

● The risk of electric shock.

1. Please use 220V-240V, above 10A with ground wire dedicated socket.
2. When inserting and pulling out the power cord please use the plug, please.
   Don't use the damaged power cord. When the power cord pin is dirty please wipe clean with dry cloth in time.
   3.Do not use the wet hand to insert or pull out the plug.
3. Please pull out the plug when finishing, repairing or cleaning.

● The danger of fire and current leakage
1. Do not allow the washing machine close to the fire, or lighted cigarettes, candles and volatile materials.
2. Please do not sprinkle the water on the control panel of washing machine.
3. Please do not put the washing machine in the place of wet and outside place.
4. Please fix the drain pump and make sure the sewer unobstructed.

● The danger of high temperature

1. When washing in high temperature, the door glass will be heating. Please do not touch the door glass, especially children.
2. When opening the door after high temperature washing, please wait for the temperature cooled down to a safe level and the door will unlocked automatically.

● The danger of injury

1. Do not put any heavy things on the top of the washing machine.
2. If you want to move the machine, please remember ask for help.
3. Please do not ask unprofessional people to repair the machine.

● The danger of explosion

1. Please do not washing the cloths which stained with kerosene, gasoline, thinner, inflammable goods.
   2.Please do not washing when gas leakage.

● The danger of getting hurt

1. Please handle the carton box after removing, don't let the children touch or eat.
   2.Do not allow the children to operate or climb up to the washing machine.
2. Please close the door after use to avoid the children enter into the drum.

● The danger of damage the cloths

1. Please do not wash the cloths which is waterproof, like Raincoat, feather products, sleeping bags
2. Please wash the cloths which can be washed, if you have any doubt, please following the instructions.

- When pull out the plug, the lock can be unlock even if there is lot of water inside.

So please check the water level inside before unlock the door in order to avoid the unnecessary loss.

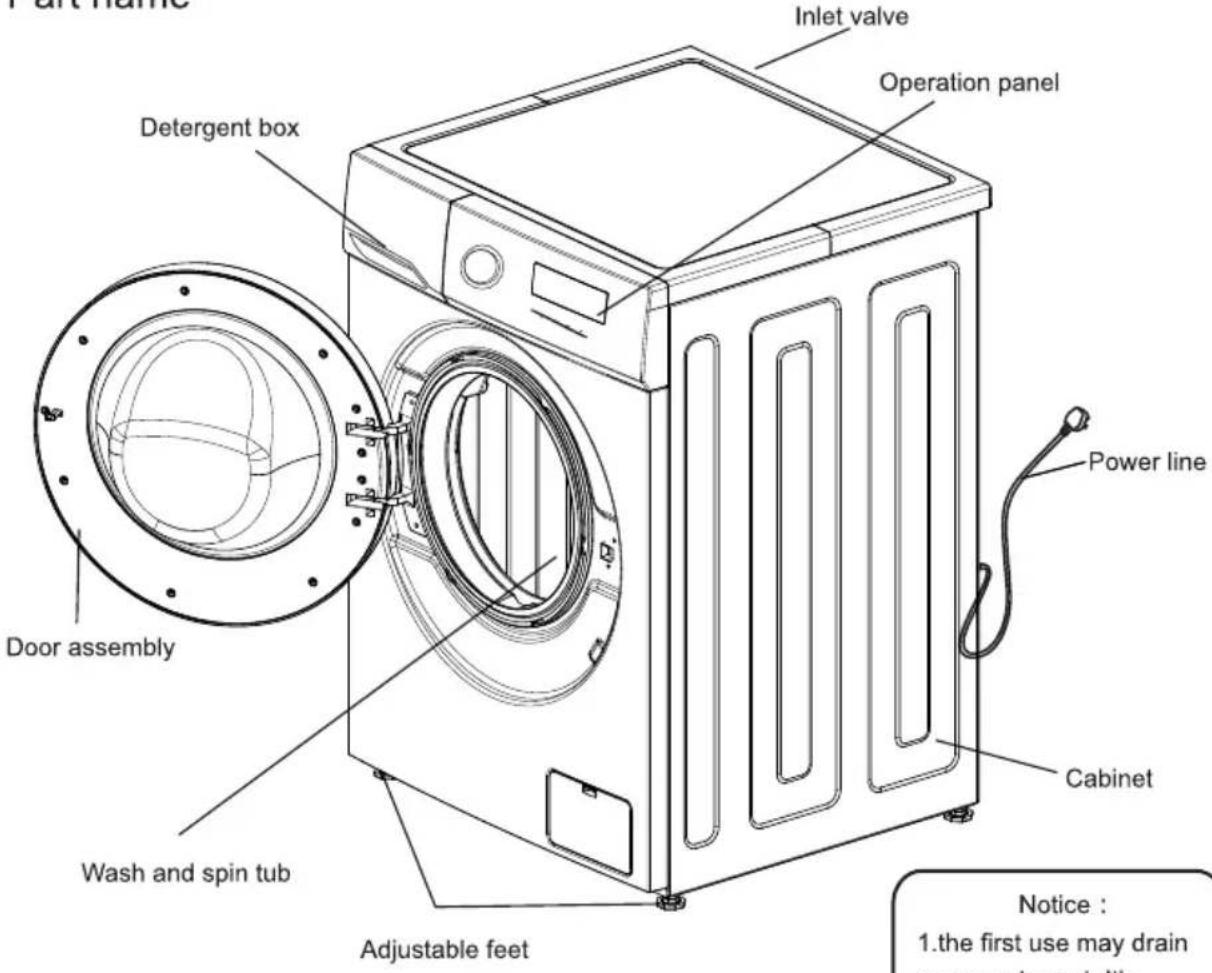

Part name

Attachment specification

user manual	water supply hose	wrench	transportation bolt caps

Part name

The above picture is just for reference, the detailed information should be based on the real product!

Notice :

1. the first use may drain some water out. It's residual water after performance test, belong to the normal phenomenon.
2. After each use, please pull the plug and turn off the faucet to prevent accidental flood or fire.

Installation instruction

● Make sure the temperature of the places where the washer is installed or placed above 0^ C or put it outside.
- Place the washer correctly according to management standards and regulations.
- Keep the base of washer ventilated when it is placed on the ground with carpet.
- There are too much pests in villages. Please keep the surroundings clean because any damages caused by cockroaches or other pests don't belong to warranty.

Transportation bolt

Washers are installed with transport bolt to prevent internal damage in transit.

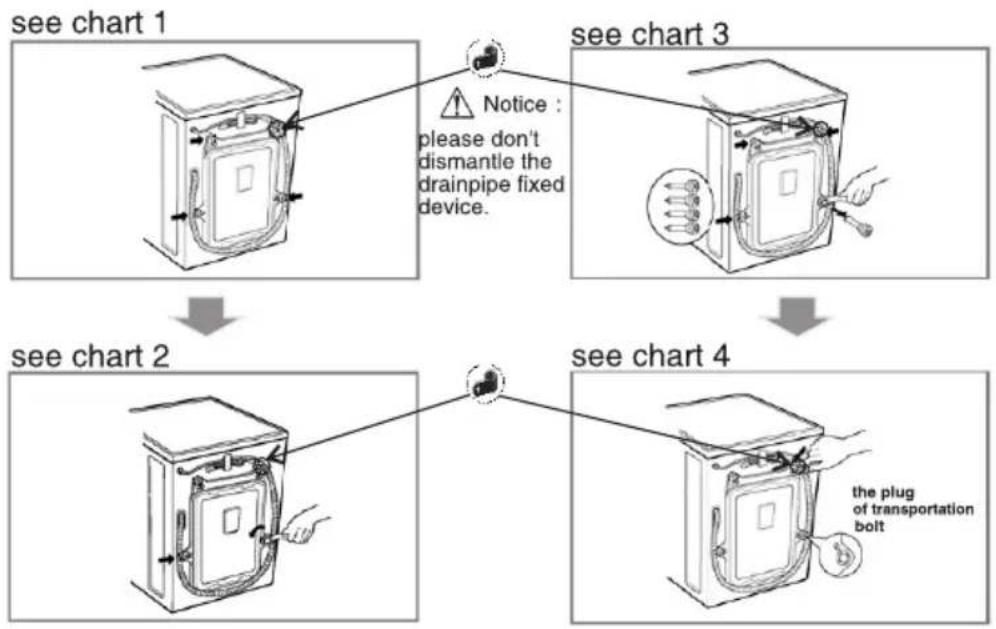

Dismantle the transportation bolt

1. In order to prevent internal damage in transit, 4 bolts are installed. Before using the washer, dismantle the bolt. (see chart I)

- If the bolts are not dismantled, violent vibration, noise and trouble will be caused.

1. Use the attached wrench to loosen the 4 bolts. (see chart 2)

2. Twist the bolt rubber slightly and then pull out the bolts, keep the bolts and wrench as standby.(see chart 3)

● The bolts should be remounted no matter when to transport the washer.

1. Use attached stopples to seal the screw holes. (see chart 4)

Requires for positions

Horizontal adjustment:

● The slant angle should be less than 1 degree.

Power outlet

● The distance between any side of washer and power outlet should be within 1.5 meters.

- Don't use too many electrical appliances in one outlet.

Environment cleaning

- It's necessary to clean the wall, door and ground.

● Install the washer on a hard and steady ground with floor drain rather than soft blanket or wooden floor.

- Don't put dirty clothes or some other goods on a washer's head cover, otherwise it may impact the normal operation.

⚠ Notice

Power connection

1. Don't use the wiring board or something like that.

2. If the power lines are damaged, please contact professionals to repair.

3. After the use of washer, pull the plug and turn the tap off.

4. Connect the washer with grounded outlet to correspond to the wiring principles.

5. Place the washer in which is easy to connect the outlet.

- Contact the maintenance center and ask professionals to repair the washer. Laypeople may cause damages and troubles on the washer.

- Don't put the washer in the place where the temperature is below zero. The pipes will be frozen and break. Moreover, the temperature below zero will damage the programming controller.

- If move the washer in an environment whose temperature is below zero, please keep the washer at room temperature for a few hours before starting it.

Grounding introduction

- A washer must have the grounding devices. If a trouble happens, the device can reduce the risk of electrical shock. The device is equipped with a cable (including a wire and a grounded plug). The grounded plug must be inserted in an appropriate outlet. If you want to know if the washer is grounded correctly, please contact with professional maintenance staff. If the plug can't match with the outlet, please don't change the plug by yourself.

- Once your washer smokes or emits an odor, please cur the power and contact with professional maintenance staff.

Washers should be connected with water inlet. Please use attached new plumbing rather than the old.

In order to ensure the quality, water injection tests are carried out before the washer leaves factory, so there may be water inside the internal tub, door seals and door panel, which are normal.

Water inlet connection

1. The pressure of supply water should be between 30kPa and 1000kPa.
2. Don't abrade the screw thread when connect the inlet pipes with valves.
3. Please install dropping equipment if the pressure of supply water surpasses 1000kPa.

● Two seals are supplied in the connectors of both ends of the pipe to prevent water leaking.
● Turn on the tap and check if the connectors leak.
- Check the pipes regularly. Please change them if necessary.
● Make sure the pipes don't be damaged or twine with each other.

The connection of inlet pipes and taps

1 Check the rubber seals on both sides of the hose. Insert a rubber seal into the threaded fittings on each hose to prevent leaking.

2 Connect the water supply hoses to the water faucets tightly by hand and then tighten another 2/3 turn with pliers. -Connect the blue hose to water faucet.

WARNING - Do not overtighten. Damage to the coupling can result.

3 After connecting inlet hose to water faucets, turn on the water faucets to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket, and check the water temperature.

Simple line drawing of a faucet dispensing liquid into a bowl (no text or symbols)

4 Connect the hoses to the water inlet tightly by hand and then tighten another 2/3 turn with pliers.

WARNING - Do not overtighten the hoses. Overtightening can damage the valves resulting in leaking and property damage.

5 Check for leaks by turning on the faucets. If water leaks, check steps 1 to 4 again.

• Such washing machine is designed for home appliances, please do not install it on ship, traveling truck or plane.
• Please turn off the stopcock if long time out of use. (e.g vacation)
• Please remove plug and cancel door lock function to avoid child locking himself/herself inside.
• Packing materials(e.g film, foam) could harm child's safety and cause asphyxia! Attention: MAKE ALL PACKING MATERIEALS OUT OF CHILD REACH.

Install drain-pipe

• Please fix the drain-pipe by a lifting rope.
• For the sake of lightening damage or ground leakage, please place the drain-pipe correctly.
• In order to avoid siphon, the height of drain-pipe should be between (0.85m-1.25m), moreover, the terminal of drain-pipe should not be placed in water.
• If the drain-pipe is too long, please do not force to insert it into washing machine, which would cause abnormal noises. (Please check sketch map next page)

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

the instruction of installation of pipe

Horizontal Adjustment

● To avoid noise and vibrate by adjusting washing machine level.

place it at the room corner preferably.

- If ground not level, please adjust alignment pins.( Do not put wood pieces or something like), please make sure four alignment pins touch ground tightly, and machine level completely.

Illustration of a single washing machine with front panel and side door (no text or symbols)

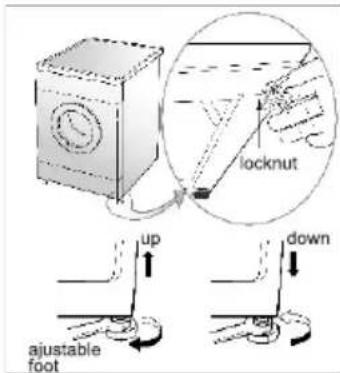

- Adjust adjustable feet

Adjust the adjustable feet to make sure the washing machine in balance, which can be placed on the ground steadily. After settling, screw the locknut to guarantee.Do not place the washing machine in the platform ,which is higher than the ground, in order to prevent the machine from falling down because of other accidents.

- The diagonal check

Applying force downward on the diagonal of the washing machine, washing machine should not shake. (both diagonal need to check, if the washing machine shake, must readjust adjustable foot.)

Methods of Door Lock and Remove

DOOR LOCK

- After operating, the door will be locked automatically and "DOOR LOCK" light/picture on the panel is lighting.

Remove Door Lock

- When "DOOR LOCK" light/picture is lighting, press "Start/Pause", WASHING/DRAINING drum stop operating. Please wait for about 2 minutes, door lock will be removed automatically.

- Foam overflowing if open the door during operating, please catch foam with towel.

- If temperature is too high, the door can not be opened during operating.

- If water level is too high, the door can not be open during operating.

The Usage Method of the Detergent Box

The Recommendations on detergent use at the various temperatures

• When washing heavily soiled whites, we recommend using cotton programs of 60°C or above and a normal washing powder(heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results.
• For washes between 40°C and 60°C, the type of detergent used needs to be appropriate for the type of fabric and level of soiling.
  Normal powders are suitable for "white" or colour fast fabrics with high soiling, while liquid detergents or "colour protecting" powders are suitable for coloured fabrics with light levels of soiling.
• For washing at temperatures below 40°C we recommend the use of liquid detergents or detergents specifically labeled as suitable for low temperature washing.

Function Introduction of Operating Panel

1. Power Button

● Turn on or turn off power.
- When procedure finish, press Power to cut off power.

1. Delay Button

2. Delay Time

3. Delay time refers to the period from appoint to start.

4. Speed Button

5. Select the Speed according to the capacity and variety of cloths.

6. Different procedure, different speed select range, but the speed of drum clearance no choice.

7. Temp. Button

8. Select water temperature according to the variety and contamination degree.

9. Different procedure, different water temperature range, some no choice.

10. Start/Pause Button

11. Press it to start operating

12. Press it to pause during operation, press again to continue.

13. Program Button

- Select program according to variety and contamination of cloths.

1. Tub Clean

2. For the sake of clearing the scouring remained, and completing sterilization&disinfection

3. Press Speed+Temp. for more than 3 seconds to start tub clean program.

4. Child-Lock Button

5. Press it to guard against child operating.
   ● Child-Lock operating, other buttons unavailable except Power.

6. Press Pre Delay for more than 3 second to ON/OFF Child-Lock function.

The introduction of function and program

Usage of routine clothes

1.Preparations

• Open the door put clothes in and closes the door.
• Pull out the detergent box, add detergent and close the box.
• Connect the inlet pipes and make sure the tap turned on.

2. Press the power button

1. The programs can be selected according to requirements.

- Cotton--- Eco40-60 ---Sports---Underwear---Wool---Duvet Spin---Rinse+Spin---Quick 15'---Baby Care---Synthetic---Mix

1. Press start/Pause button and begin to wash

2. When all operations finished, the buzzer emits a noise.

3. Screen shows END, and buzzer rings.

4. Open the door to get cloths out.
5. Unplug and turn off the stopcock.

The usage of self-compiled program

Use this when need to set up the temperature, times of rinse and the revolution of spin.

1. Prepare to wash

• Open the door, put clothes in and close the door.
• Pull out the detergent box, add detergent and close the box.
• Connect the inlet pipes and make sure the tap turned on.

2. Press the power button

1. The programs can be selected according to requirements.

2. Press Temp./Speed/Delay to setup water temperature, dewatering speed and appoint time.

3. Press the Start/Pause button to start washing.

4. When all operations finished, the buzzer emits a noise.

5. Screen shows END and buzzer rings.

6. Get cloths out.
   • Unplug and turn off the stopcock.

The introduction of Wool program

This function is set for woolen and fibrous clothes. Please confirm the washing icon in clothes before washing them.

1. Preparation for washing

• Open the door, put clothes in and closes the door.
• Pull out the detergent box, add detergent and close the box.

• Connect the inlet pipes and make sure the tap turned on.

• Press the power button, connect the power.

• Rotate the program button and choose the "Wool"

• Please choose appropriate temperature and rotate speed according to requirements.

• Press the Start/Pause button and begin to wash.
• When all operations finished, the buzzer emits a noise.

● Washing capacity should be less than 2 kg.
- When finish all programs, please take out all clothes quickly to prevent them from distorting.
● The washing can't be ordered.
- In order to prevent clothes from damaging, the water temperature should be less than 40°C.
- Please separate white or bright color clothes from dark clothes.
- Use the detergent specially for woolen clothes to prevent damaging them.

The introduction for Eco40-60 program

Wash the clothes lightly polluted can save time and energy.

1. Preparation for washing

2. Open the door, put clothes in and closes the door.

3. Pull out the detergent box, add detergent and close the box.

4. Connect the inlet pipes and make sure the tap turned on.

5. Press the power button, connect the power.

6. Rotate the program button and choose the "Eco40-60"

7. Please choose appropriate temperature and rotate speed according to requirements.
8. Press the Start/Pause button and begin to wash.
9. When all operations finished, the buzzer emits a noise.

- When the washer is working, if you want to change its setting, please press the Start/Pause button to stop running temporarily and then choose the program you need.

The introduction for Baby Care program

This function can use high temperature to sterilize and remove the mites.

1. preparation for washing

2. Open the door, put clothes in and closes the door.

3. Pull out the detergent box, add detergent and close the box.

4. Connect the inlet pipes and make sure the tap turned on.

5. Press the power button, connect the power.

6. Rotate the program button and choose the "Baby Care"

7. Please choose appropriate temperature and speed according to requirements.

8. Press the Start/Pause button and begin to wash.
9. When all operations finished, the buzzer emits a noise.

The introduction for Spin program

1. preparation for washing

- Open the door, put clothes in and closes the door.

1. Press the power button, connect the power.

2. Rotate the program button and choose the "Spin"

- Pressing "Speed" button can adjust the speed.

1. Press the Start/Pause button

- Begin to drain away water and spin.

1. When all operations finished, the buzzer emits a noise.

● Before spinning, please make sure there are no nails, keys or other foreign matters in the tub to avoid unnecessary loss.
● During the process of spinning, the actual spinning speed may be inconsistent with the program speed, which is because the washer adjust the speed according to the balance between clothes.
- There may be rhythmic drone during spinning, which is the normal voice of drain bump rather than the machine fault.

The introduction of Tub Clean function

1. Preparation for washing

2. Please make sure nothing in the tub before cleaning.

3. Open the distribution box, add the liquid bleach in the main box.
4. Don't add detergent or laundry detergent to prevent causing too much foam.
5. Close the distribution box.

6. Please make sure the inlet pipes connected well and the tap turned on.

7. Press the power button, connect the power.

8. Press the "Speed" and "Temp." button for more than three seconds at the same time, which can choose the tub cleaning program.

9. Press the Start/Pause button.

● The programs begin to operate after the door locked.

1. When all operations finished, the buzzer emits a noise.

● After finish the program, dry the inside part of the machine to prevent the door from distorting.
- If there are children at home, please don't open the door for too much time.

The introduction of Child Lock function

● Prevent children from using the washer.

- Set the solving method: when the washer is operating, press the "Pre Delay" for more than three seconds and the child-lock works; then pressing "Pre Delay" for more than three seconds can relieve child-lock.

- When the washer is operating, after setting the child-lock, all buttons cannot work except the power button; once the child-lock is set, when the washer finishes all programs, press the power button to cut the power and the child-lock can't relieve by itself, when the washer operates again, press "Pre Delay" for mare than three seconds to relieve the child-lock.

- When the child-lock is working, if you want to change the washing program, please relieve child-lock first and restart the machine to choose new washing program; if you want to change the temperature or the speed, please relieve child-lock first, then press the Start/Pause button, and change the temperature and speed at last.

The introduction of washing programs

program	temperature (°C)	revolution (rpm)	time (m)
Cotton	cold water(20°C,40°C,60°C,90°C)	800(0,400,600,1000)	88
Eco 40-60	40°C(cold water,20°C,60°C)	1000(0,400,600,800)	198
Sports	20°C(cold water,40°C)	800(0,400,600)	79
Underwear	40°C(cold water,20°C)	800(0,400,600)	71
Wool	cold water(20°C,40°C)	600(0,400)	56
Duvet	60°C(cold water,20°C,40°C,90°C)	1000(0,400,600,800)	119
Mix	cold water(20°C,40°C)	800(0,400,600)	66
Synthetic	40°C(cold water,20°C,60°C,)	800(0,400,600)	73
Baby Care	60°C(40°C,90°C)	800(0,400,600)	107
Quick 15'	cold water(20°C,40°C)	600(0,400,800)	15
Rinse+spin		800(0,400,600,1000)	34
Spin		800(0,400,600,1000)	14

- Remarks:

1. The time consumption will be changed according to the water pressure, cloths variety, quantity, water temperature.
2. The difference between displayed on screen and actual time consumption will happen.
3. If speed is too lower, poor washing effect will happen, please add more rinse time.
4. Different parameters, different models.

5. When self-designed default procedure is energy procedure, the washing time will be increased automatically.

6. The eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation;

7. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration;
8. The household washing machine or the household washer-dryer up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings;
9. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content
10. How to find the model information stored in the product database, as defined in Regulation (EU) 2019/2014 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product
11. You can Check the manual and the QR code on the energy efficiency label

Maintenance

• Please maintenance washing machine to extend service life.
• Before maintenance, please unplug.

Body of washing machine

After washing, please clean it with soft cloth. If much contamination, please use appropriate detergent or soap.

• Do not watering directly.
• Do not use putty-powder, diluent, gasoline, alcohol to clean machine body.

Door Gasket Ring

After washing, please remove contamination, wastepaper and so on, if foreign matter exists, please remove.

The Clearance of Detergent Box

Please clean the detergent box regularly. Pull it out and wash with clean water, then insert back.

The Clearance of Universal coupling (Suggest:Once/ half year)

- If waste accumulated, it will influence water inlet speed.

1. Take off the soft pipe from connecting part side.
2. Take off the screwing device according to the arrow showed.
3. Wash the inside of the screwing device.
4. Install the cleaned crewing device with the inlet soft pipe.

The clearance of inlet water valve (Suggest:Once/ half year)

1. Take off the soft pipe from washing machine side.
2. Take off the filter net from water valve.
3. Clean the filter net with tooth-brash.
4. Install the soft inlet pipe.

Maintenance

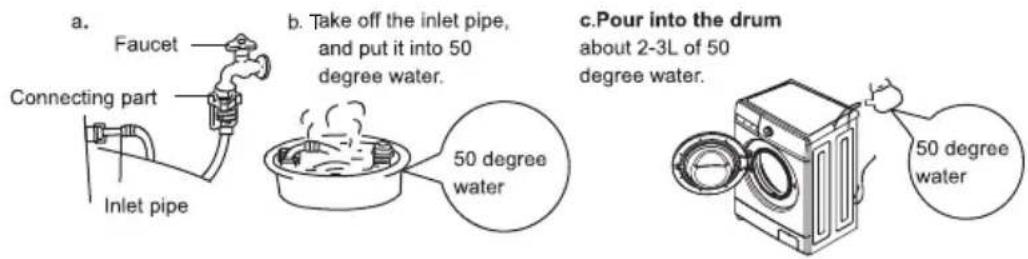

When washing machine is frozen

1. Cover stopcock and connecting part with hot towel.
   2.Ake off the inlet pipe, and put it into 50 degree water.
2. Pour into the drum about 2-3L of 50 degree water.
3. Connect inlet pipe, turn on the stopcock and start the washing machine, please check whether inlet and outlet is normal.

The Clearance of dewatering-pump filter( Suggest: once/month)

1. Press fastener on the pump after dewtering and power off, open the lid of water-pump filter. (Attention: if hot water inside, please go ahead after it be cold.)
2. Take off the filter anti-anticlockwise.
3. Wash the filter.
4. Direct at pump and insert the filter, tighten it clockwise and tighten the lid. Attention: a. Please tighten the filter well to avoid leak. b. Please do not clean during operation.

The Drum Clearance (Suggest once/month)

After using for a period, some dirt maybe exist. You can clean the inside and outside of drum by operating the drum procedure.

Attention: please do not put cloths and detergent when clearing the drum.

Varieties of Functions

Function	Description
Child lock	Statement	In order to avoid child misplay
	Setup to remove	During operation, press PRE DELAY for more than 3 seconds, please unplug and or press PRE DELAY to remove Child Lock
compensation of power-off	Statement	when power is connected after power off, the time point will continue from the previous stop time point.
Door self-lock	Statement	After selecting procedure, the door locked automatically, 2 minutes after operation over, lock removed.
Clearance of the drum	Statement	To remove wasted and germ, please sterilize to clean the drum.
	Setup to remove	Press TEMP.+ SPEED for more than 3 seconds to select tub clean.
Delay	Statement	Press DELAY to select time of washing, Display screen shows 24 hours level, one hour/one level. press it for long time, time shows circular.

Notice before Washing

1. Washing guide identification

- Please check cloths washing guide identification, which shows cloths texture and washing method.

2.Classification washing

- Please wash cloth of the same texture, different texture, different water temperature, speed and washing procedure, please split deep colored cloths from white cloths. Split dyed cloths from cotton, otherwise the white cloths would be discolored. If possible, please do not wash high contaminated cloths with clean ones together.

- The degree of pollution (serious, moderate, slight)

classify clothes and wash according to the degree.

• color (white, light color, deep color)

classify them and wash.

- velveteen (easy to fall off, easy to be adhered)

classify the white and the deep color.

3. Notes

• When put big and small clothes together, put the big first and they have to be less than half of total clothes. Please don't wash single cloth because it may cause the trouble of imbalance. Please add one or two similar clothes.
• Small clothes like silk stockings and handkerchiefs should be put into mesh bags to wash. Before washing the bra with steel rings, please take the rings off. If it is inconvenient to do this, please put them into mesh bags to prevent the bra slipping into the gap between internal and external tubs.
• Check all pockets and make sure nothing in them. Nails, hairpin, match, pen, coin and key will damage your washer and clothes.
• Zip up all clothes, fix the button and hook and tie the loose belt, make sure that other clothes cannot be damaged by them.
• Firstly use the water with a little detergent to wash the parts with too many stains, such as collar and cuffs, which can make the clothes cleaner.
• Check the door seals and make sure nothing on them.
  • Make sure there is nothing in the tub before washing.
• To make sure there is cloth caught in the door sealing ring, in order to avoid the cloths and door seal ring from damaging.

Simple line drawing of a bag with patterned design and handle (no text or symbols)

Line drawing of a hand pouring liquid from a bottle into a container (no text or symbols)

Medical illustration showing a cross-sectional view of a tissue structure and a magnified view of a hand holding a finger (no text or labels)

Illustration of a bowl with a cross mark on the side (no text or symbols)

Non-fault conditions

The door can't open.	● The program is running. ● There are clothes between the door and door seals.
There is an odor.	● There may be a smell of rubber because some components are made up of rubber.
There is too little water when wash and rinse.	● Roller washing machine just needs a little water when operating.
No water inflowing.	● Is the tap turned on? ● Is the inlet pipe frozen? ● Are the filters blocked?
Water inflows halfway	● If the water level declines, the washer will supply water automatically.
Water outflows when washing.	● Check if add the detergent with too much bubbles.
Remaining time changes	● If clothes are off center when spin, spinning time will extend to correct the deviation.
There is abnormal noise when spin.	● Check if the power line touches with cabinet. ● Have the transport bolts been dismantled? ● Are there some hairpins or coins in the roller?
The washer can't work after the failure of electricity.	● The washer will stop working after the failure of electricity. When the power is restored, it still can't continue to work. Please press the power button and reset the program.

Troubleshooting guide

Phenomenon	check points	solutions
Washer can't start	Check if press the power button or start/pause button?Is the plug pulling out?Is there a power failure?Check if cut the leakage protector?	Press the power button or start/pause button.Connect the plug.Please wait.Open the leakage protector.
Spinning screen shows "UE"	Check if disassemble the carriage bolt?Is the machine placed steadily?Are the clothes too small or light?Are the locknuts on under the feet tightened up?	Disassemble the carriage bolt.Place the machine on a steady ground.Add more clothes.Tighten up the locknuts.
Water inflow screen shows "IE"	Check if turn the tap off?Is the water supply cut off or the water pressure too low?Are the water inlet pipes frozen?Are the filters blocked?	Open the stopcock.Please wait.Use hot water to unfreeze the pipes.Take out the filters and clean them.
Water outflow screen shows "OE"	Are the outlet pipes placed too highly?Are the outlet pipes frozen?Are the outlet pipes blocked?Are the floor drain blocked?	Please put away the outlet pipes and make sure the height within 1M.Use hot water to unfreeze the pipes.Take out the foreign matter and dredge the pipes.Clean the floor drain.
Door trouble screen shows "DE"	Make sure if start the washer without closing the door well.	Make sure the door truly closed
No heating screen shows "LE"	Please pull the plug and entrust the after-sales service
Continuous water inflow screen shows "FE"	Close the stopcock, pull the plug and entrust the after-sales service.
The screen shows "LE" or "CE" when wash tub doesn't rotate.	Close the stopcock, pull the plug and entrust the after-sales service.
Too much foam	Check if add too much detergent?If use the low bubble detergent which is especially for front loading washing machine?	Add reasonable amount of detergent.Use the detergent correctly.

Specification

Rated washing capacity	6.0kg
Rated spinning capacity	6.0kg
Rated voltage	220-240V~,50Hz
Rated washing power	250W
Rated spinning power	400W
Rated heating power	1500W
Maximum power	1750W
External dimension	60x 44x85 cm

The introduction of frequently-used programs

The following data just for reference only

program	temperature (°C)	time (m)	water consumption (L/cycle)	energy consumption (KWh/cycle)	revolution (rpm)	maximum load	Average remaining moisture content
Wool	Cold	56		0.0532	600	≤2kg	95%
Cotton 20°C	20	1:33	58	0.25	800	rated	76%
Cotton 90°C	80	2:39		1.7660	800	rated	76%
Synthetic 40°C	40	1:13		0.5545	800	≤4kg	80%
Quick 15'	Cold	15		0.0435	800	≤3kg	80%

Supplier's name or trade mark:

Supplier's address (b):

Model identifier: SVL650D

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	6.0		Dimensions in cm	Height	85
				Width	60
				Depth	44
EEI_w (°)	90.1		Energy efficiency class (°)	E
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.730		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	45	Remaining moisture content (°) (%)	Rated capacity	60
	Half	40		Half	60
	Quarter	40		Quarter	64
Spin speed (°) (rpm)	Rated capacity	1000	Spin-drying efficiency class (°)	C
	Half	1000
	Quarter	1000
Programme duration (°) (h:min)	Rated capacity	3:18	Type	free-standing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	74		Airborne acoustical noise emis-sion class (°) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Information to be included in the technical documentation for household washing machines

PARAMETER	UNIT	VALUE
Rated capacity for the eco 40-60 programme, at 0,5 kg intervals (c)	kg	6.0
Energy consumption of the eco 40-60 programme at rated capacity ( E_W,full )	kWh/cycle	0.910
Energy consumption of the eco 40-60 programme at half rated capacity ( E_W,1/2 )	kWh/cycle	0.600
Energy consumption of the eco 40-60 programme at quarter rated capacity ( E_W,1/4 )	kWh/cycle	0.550
Weighted energy consumption of the eco 40-60 programme ( E_W )	kWh/cycle	0.730
Standard energy consumption of the eco 40-60 programme ( SCE_W )	kWh/cycle	0.810
Energy Efficiency Index ( EEI_W )	—	90.1
Water consumption of the eco 40-60 programme at rated capacity ( W_W,full )	L/cycle	45.0
Water consumption of the eco 40-60 programme at half rated capacity ( W_W,1/2 )	L/cycle	41.0
Water consumption of the eco 40-60 programme at quarter rated capacity ( W_W,1/4 )	L/cycle	40.0
Weighted water consumption ( W_W )	L/cycle	43
Washing efficiency index of the eco 40-60 programme at rated capacity ( I_w )	—	1.04
Washing efficiency index of the eco 40-60 programme at half rated capacity ( I_w )	—	1.04
Washing efficiency index of the eco 40-60 programme at quarter rated capacity ( I_w )	—	1.04
Rinsing effectiveness of the eco 40-60 programme at rated capacity ( I_R )	g/kg	5.0
Rinsing effectiveness of the eco 40-60 programme at half rated capacity ( I_R )	g/kg	5.0
Rinsing effectiveness of the eco 40-60 programme at quarter rated capacity ( I_R )	g/kg	5.0
Programme duration of the eco 40-60 programme at rated capacity ( t_w )	h:min	3:18
Programme duration of the eco 40-60 programme at half rated capacity ( t_w )	h:min	2:36
Programme duration of the eco 40-60 programme at quarter rated capacity ( t_w )	h:min	2:36
Temperature reached for minimum 5 min inside the load during eco 40-60 programme at rated capacity (T)	°C	45
Temperature reached for minimum 5 min inside the load during eco 40-60 programme at half rated capacity (T)	°C	40
Temperature reached for minimum 5 min inside the load during eco 40-60 programme at quarter rated capacity (T)	°C	40
Spin speed in the spinning phase of the eco 40-60 programme at rated capacity (S)	rpm	1000
Spin speed in the spinning phase of the eco 40-60 programme at half rated capacity (S)	rpm	1000
Spin speed in the spinning phase of the eco 40-60 programme at quarter rated capacity (S)	rpm	1000
Remaining moisture content for the eco 40-60 programme at rated capacity ( D_full )	%	60
Remaining moisture content for the eco 40-60 programme at half rated capacity ( D_1/2 )	%	60
Remaining moisture content for the eco 40-60 programme at quarter rated capacity ( D_1/4 )	%	64
Weighted remaining moisture content (D)	%	61
Airborne acoustical noise emissions during eco 40-60 programme (spinning phase)	dB(A) re 1 pW	74
Power consumption in ‘off mode’ ( P_o )	W	0.50
Power consumption in ‘standby mode’ ( P_sm )	W	N/A
Does ‘standby mode’ include the display of information?	—	NO
Power consumption in ‘standby mode’ ( P_sm ) in condition of networked standby (if applicable)	W	N/A
Power consumption in ‘delay start’ ( P_ds ) (if applicable)	W	4.00

Environmental Protection

Correct Dispasal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

svan
