CFD-V10 - Système Hi-Fi SONY - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Système Hi-Fi portable
Marque	Sony
Modèle	CFD-V10
Dimensions (L x H x P)	400 x 220 x 250 mm
Poids	3,5 kg
Alimentation	Secteur 230 V ~ 50 Hz ou 6 piles R20 (non fournies)
Consommation électrique	15 W
Fonctions principales	Lecteur CD, platine cassette, radio FM/AM
Puissance de sortie	2 x 5 W RMS
Entrée auxiliaire	Oui (prise jack 3,5 mm)
Sortie casque	Oui (prise jack 3,5 mm)
Bandes radio	FM 87,5-108 MHz, AM 530-1710 kHz
Antenne FM	Fil escamotable
Affichage	Écran LCD rétroéclairé
Réveil/minuterie	Oui (arrêt différé et réveil)
Entretien et nettoyage	Nettoyer avec un chiffon sec et doux. Ne pas utiliser de solvants ni d'eau.
Sécurité	Ne pas exposer à l'humidité, aux sources de chaleur, ni insérer d'objets métalliques.
Pièces détachées et réparabilité	Les pièces sont disponibles auprès du service après-vente Sony. Réparation par un technicien agréé recommandée.
Informations générales	Utilisation intérieure uniquement. Température de fonctionnement : 5 °C à 35 °C.

FOIRE AUX QUESTIONS - CFD-V10 SONY

Comment régler l'horloge sur le Sony CFD-V10 ?

Appuyez sur le bouton CLOCK (ou TIME SET). Utilisez les touches TUNING +/– pour régler les heures, puis appuyez à nouveau sur CLOCK pour les minutes. Confirmez avec ENTER.

Comment enregistrer de la radio sur une cassette ?

Insérez une cassette vierge dans la platine. Sélectionnez la source radio en appuyant sur RADIO. Appuyez sur RECORD (ou ◉) pour démarrer l'enregistrement. Appuyez sur STOP pour arrêter.

Que faire si le CD ne se lit pas ?

Vérifiez que le CD n'est pas rayé ou sale. Nettoyez-le avec un chiffon doux du centre vers l'extérieur. Assurez-vous que le disque est bien centré dans le tiroir. Essayez d'appuyer sur CD puis PLAY. Si le problème persiste, essayez un autre CD.

Comment utiliser l'entrée auxiliaire ?

Branchez un câble audio jack 3,5 mm de votre appareil (smartphone, lecteur MP3) à la prise AUX IN à l'avant ou à l'arrière. Appuyez sur AUX pour sélectionner la source. Réglez le volume sur l'appareil externe.

Comment régler la minuterie d'arrêt (veille) ?

Appuyez plusieurs fois sur SLEEP pour choisir la durée (15, 30, 60 ou 90 minutes). L'appareil s'éteindra automatiquement après le temps choisi.

Pourquoi le son est-il faible en mode radio ?

Déployez complètement l'antenne FM filaire. Pour AM, orientez l'appareil. Vérifiez que la station est bien syntonisée : utilisez les touches TUNING +/– pour un réglage fin.

Comment nettoyer l'appareil ?

Débranchez l'appareil. Utilisez un chiffon doux et sec pour essuyer le boîtier. Ne jamais utiliser d'alcool, de solvants ni de produits abrasifs. Pour les têtes de cassette, utilisez un coton-tige légèrement imbibé d'alcool isopropylique.

Comment changer les piles ?

Éteignez l'appareil et débranchez-le du secteur. Ouvrez le compartiment à piles au dos. Insérez 6 piles R20 (LR20) en respectant les polarités + et –. Refermez le couvercle.

L'appareil ne s'allume pas, que faire ?

Vérifiez que le cordon secteur est bien branché et que la prise fonctionne. Si vous utilisez des piles, testez-les avec un autre appareil ou remplacez-les. Vérifiez le fusible (si accessible) : il se peut qu'il ait grillé. Contactez le service après-vente si nécessaire.

Comment mémoriser des stations de radio ?

Syntonisez la station désirée. Appuyez sur MEMORY. Utilisez les touches PRESET +/– pour choisir un numéro de préréglage (1 à 20). Appuyez à nouveau sur MEMORY pour confirmer.

MODE D'EMPLOI CFD-V10 SONY

WARNING

To prevent fire or shock hazard, do not expose the player to rain or moisture.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Warning

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

The FUNCTION selector is located at the front. When you turn on the player, the OPR/BATT indicator lights up.

For customers in Canada

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Information

For customers in the United States

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Owner's Record

The model number is located at the bottom and the serial number is located in the battery compartment. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. CFD-V10 Serial No.

lattery life

For CD radio cassette-corder:

FM recording

Sony R20P: approx. 13.5 h

Sony alkaline LR20: approx. 20 h

Tape playback

Sony R20P: approx. 7.5 h

Sony alkaline LR20: approx. 15 h

CD playback

Sony R20P: approx. 2.5 h

Sony alkaline LR20: approx. 7 h

Dimensions

Approx. 425 × 160 × 246 mm (w/h/d) (16 ¾ × 6 ¾ × 9 ¾ inches) (incl. projecting parts)

Aass

Approx. 4 kg (8 lb. 13 oz) (incl. batteries)

upplied accessory

AC power cord (1)

Design and specifications are subject to change without notice.

Precautions

On safety

• As the laser beam used in the CD player section is harmful to the eyes, do not attempt to disassemble the casing. Refer servicing to qualified personnel only.
• Should any solid object or liquid fall into the player, unplug the player, and have it checked by qualified personnel before operating it any further.

On power sources

• For AC operation, use the supplied AC power cord; do not use any other type.
  • The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.
• Unplug the player from the wall outlet when it is not to be used for an extended period of time.
• For battery operation, use six size D (R20) batteries.
• When the batteries are not to be used, remove them to avoid damage that can be caused by battery leakage or corrosion.
• The nameplate indicating operating voltage, power consumption, etc. is located at the bottom.

On placement

- Do not leave the player in a location must heat course, or in a place

• Do not place anything within 10 mm of the side of the cabinet. The ventilation holes must be unobstructed for the player to operate properly and prolong the life of its components.
• If the player is left in a car parked in the sun, be sure to choose a location in the car where the player will not be subjected to the direct rays of the sun.
• Since a strong magnet is used for the speakers, keep personal credit cards using magnetic coding or spring-wound watches away from the player to prevent possible damage from the magnet.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the CD player section. Should this occur, the player will not operate properly. In this case, remove the CD and wait about an hour for the moisture to evaporate.
• If the player has not been used for a long time, set it in the playback mode to warm it up for a few minutes before inserting a cassette.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Notes on CDs

- Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.
• Do not expose the CD to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight as there can be a considerable rise in temperature inside the car.
• Do not stick paper or sticker on the CD, nor scratch the surface of the CD.
  • After playing, store the CD in its case.

If there is a scratch, dirt or fingerprints on the CD, it may cause tracking error

Location of controls

Playing a CD
1 Set FUNCTION to CD.

2 Press ▲OPEN/CLOSE down to open the CD compartment and place a CD on the CD compartment.

3 Close the compartment.

4 Press ▶II. The player plays all the tracks once.

To	Do this
Adjust the volume	Turn VOLUME.
Adjust the tone	Turn TONE.
Stop playback	Press ■.
Pause playback	Press ▶II. Press again to resume play after pause.
Go to the next track	Press ▶I.
Go back to the previous track	Press ◀◀.
Locate a point while listening to the sound	Press ▶▶(forward) or ◀◀(backward) while playing and hold down until you find the point.
Remove the CD	Press ▲OPEN/CLOSE.
Turn off the player	Set FUNCTION to TAPE (CD/RADIO OFF).

Listening to the radio

1 Set FUNCTION to FM or AM.

2 Turn TUNE to tune in a radio station. If the received FM stereo is too weak, the reception becomes monaural.

To	Do this
Adjust the volume	Turn VOLUME.
Adjust the tone	Turn TONE.
Turn off the radio	Set FUNCTION to TAPE (CD/RADIO OFF).

To improve broadcast reception

Reorient the antenna for FM. Reorient the player itself for AM.

Playing a tape

1 Set FUNCTION to TAPE (CD/RADIO OFF).

2 Press ■▲ to open the tape compartment and insert a recorded tape. Close the compartment.

With the side you want to play on facing upward.

3 Press ▶.

To	Do this
Adjust the volume	Turn VOLUME.
Adjust the tone	Turn TONE.
stop.playback	Press ■▲.
fast-forward or rewind the ape	Press ▶▶ or ◀◀ for the side facing upward
'ause playback	Press II. Press the button again to resume play after pause.
ject the cassette.	Press ■▲.

Recording

1 Insert a blank tape.

With the side you want to record on facing forward.

2 Select the program source you want to record.

To record from the CD player, set FUNCTION to CD and insert a CD.

To record from the radio, set FUNCTION to FM or AM and tune in the station you want.

3 Press ● (▶ is depressed automatically.)

To	Press
Stop recording	■▲
Pause recording	■Press the button again to resume recording after pause.

Tips

• Adjusting the volume or the tone will not affect the recording level.
• For best results, use the AC power as a power source for recording.
  • To erase a recording, proceed as follows: 1 Set FUNCTION to TAPE (CD/RADIO OFF).
  2 Press ●

Notes on cassettes

Break off the cassette tab from side A or B to prevent accidental recording. If you want to reuse the tape for recording, cover the broken tab with adhesive tape.

- The use of a cassette with more than 90 minutes of play time is not recommended except for long, continuous recording or playback.

Troubleshooting

General

The power does not come on.

• Connect the AC power cord securely.
  • Make sure the batteries are inserted correctly.
• Replace all the batteries with new ones if they are weak.

There is no audio.

• Make sure the FUNCTION selector is set to the function you want to operate.
- Adjust the volume.
- Unplug the headphones when listening through speakers. (excluding US model.)

CD Player

The CD does not play/ “--” lights in the display even when a CD is in place.

• Make sure that the CD compartment is closed.
- Place the CD with the label surface up.
- Clean the CD.
• Take out the CD and leave the CD compartment open for about an hour to dry moisture condensation
- Make sure the FUNCTION selector is set to CD.

The sound drops out.

• Reduce the volume.
• Clean the CD, or replace it if the CD is badly damaged
• Place the player in a location free from vibration.
• Cleans the lens with a commercially available blower.

Radio

Audio is weak or has poor quality.

• Replace all the batteries with new ones if they are weak.
• Move the player away from the TV.

The picture of your TV becomes unstable.

- If you are listening to an FM program near the TV with an indoor antenna, move the player away from the TV.

Tape player

The tape does not move when you press an operation button.

- Close the cassette compartment securely.

The ● button does not function/ The tape does not play.

• Make sure the safety tab on the cassette is in place.
- Make sure the FUNCTION selector is set to CD, AM or FM.

The tape does not erase completely.

• Clean the erasing heads.
• Replace all the batteries with new ones if they are weak.

The tape does not record.

• Make sure the tape is inserted properly.
  • Make sure the safety tab of the cassette is in place.

The audio is weak/The audio quality is poor.

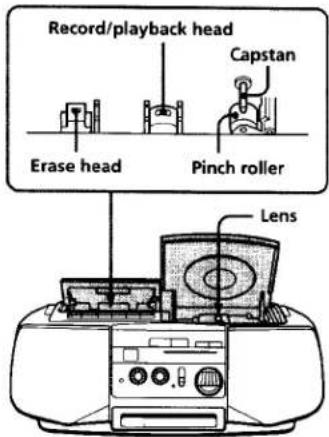

• Clean the heads, pinch roller and capstan with a cotton swab slightly moistened with cleaning fluid or alcohol.
• Demagnetize the heads and all metal parts in the tape path with a commercially available tape head demagnetizer.

The sound is distorted.

- The TYPE II (high position) or TYPE IV (metal) tape is being used. Use TYPE I (normal) tape only.

Choosing the power sources

Use the AC power source whenever you record since recording consumes much power.

Connecting the AC power cord

Insert one end of the supplied AC power cord to the AC IN socket at the rear of the player, and the other end to the wall outlet.

Using the player on batteries

Insert six size D (R20) batteries (not supplied) into the battery compartment. To use the player on batteries, disconnect the AC power cord from the player.

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

With 2.8-ohm loads, both channels driven from 150 - 10,000 Hz; rated

2 W per channel-minimum RMS power, with no more than

10 % total harmonic distortion in AC operation.

Other Specifications

CD player section

System

Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wave length: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 μW

(This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.)

Spindle speed

200 r/min (rpm) to 500 r/min (rpm) (CLV)

Number of channels

Frequency response

20 - 20,000 Hz +1 / -2 dB

Wow and flutter

Below measurable limit

Radio section

Frequency range

FM: 87.6 - 108 MHz

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 120 s (sec.) with Sony

cassette C-60

Frequency response

TYPE I (normal): 70 - 10,000 Hz

General

Speaker

Full range: 10 cm dia., 2.8 ohms, cone type (2)

Outputs

Headphones jack (stereo minijack)

For 16 - 68 ohms impedance

headphones (excluding US model)

Power output (excluding US model)

2 W + 2 W (at 2.8 ohms, 10 %

harmonic distortion)

Power requirements

230 V AC, 50 Hz (Australian model)

120 V AC, 60 Hz (Other models)

9 V DC, 6 size D (R20) batteries

Power consumption

AC 20 W
