Walkman WM-FS395 - Magnétocassette SONY - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Magnétocassette (lecteur/enregistreur)
Marque	Sony
Modèle	Walkman WM-FS395
Dimensions (L x H x P)	Environ 115 x 85 x 35 mm
Poids	Environ 180 g (sans piles)
Alimentation	2 piles AA (1,5 V)
Autonomie des piles	Environ 15 heures (lecture continue)
Fonctions de lecture	Lecture, arrêt, avance rapide, retour rapide, pause
Enregistrement	Enregistrement intégré avec microphone intégré
Sortie audio	Prise jack 3,5 mm pour écouteurs stéréo
Écouteurs fournis	Écouteurs stéréo avec câble court
Clip ceinture	Clip rotatif intégré pour fixation à la ceinture
Commande au casque	Non, commandes sur l'appareil
Entrée microphone	Prise microphone 3,5 mm (mono)
Compatibilité cassette	Cassettes audio standard (type I, II, IV)
Entretien et nettoyage	Nettoyer les têtes et les galets avec un coton-tige imbibé d'alcool isopropylique
Sécurité	Ne pas exposer à l'humidité ; utiliser des piles recommandées
Pièces détachées et réparabilité	Piles, écouteurs, courroie de transmission disponibles auprès de revendeurs spécialisés
Informations générales	Appareil portable avec design robuste, idéal pour une utilisation en extérieur

FOIRE AUX QUESTIONS - Walkman WM-FS395 SONY

Comment insérer une cassette ?

Ouvrez le couvercle du compartiment à cassette en appuyant sur le loquet. Placez la cassette avec la bande visible vers l'extérieur et la face souhaitée vers le haut. Refermez le couvercle jusqu'au déclic.

Que faire si la bande se coince ?

Arrêtez immédiatement la lecture. Ouvrez le compartiment et retirez la cassette délicatement. Si la bande est emmêlée, utilisez un crayon pour la rembobiner manuellement. Vérifiez que les galets sont propres.

Comment enregistrer avec le microphone intégré ?

Insérez une cassette vierge. Appuyez sur la touche 'Record' (souvent rouge) tout en maintenant 'Play' enfoncé. Parlez dans le microphone intégré situé sur le dessus. Pour arrêter, appuyez sur 'Stop'.

Quel type de piles utiliser ?

Utilisez deux piles AA (LR6) alcalines ou rechargeables. Les piles rechargeables offrent une autonomie moindre. Respectez la polarité indiquée dans le compartiment.

Comment nettoyer les têtes de lecture ?

Éteignez l'appareil et retirez les piles. Ouvrez le compartiment à cassette. Utilisez un coton-tige légèrement imbibé d'alcool isopropylique pour nettoyer délicatement les têtes de lecture et les galets en rotation. Laissez sécher avant utilisation.

Pourquoi le son est-il faible ou déformé ?

Vérifiez le volume et la propreté des têtes. Nettoyez les têtes si nécessaire. Assurez-vous que la cassette n'est pas usée. Testez avec un autre casque. Si le problème persiste, les piles peuvent être faibles.

Peut-on brancher des haut-parleurs externes ?

Non, la sortie audio est conçue uniquement pour des écouteurs ou un casque avec une impédance de 16 à 32 ohms. Brancher des haut-parleurs peut endommager l'appareil.

Comment utiliser le clip ceinture ?

Le clip rotatif se trouve à l'arrière de l'appareil. Faites-le pivoter à 90 degrés pour le déplier, puis fixez-le à votre ceinture ou à une bande. Assurez-vous qu'il est bien verrouillé.

Que faire si la touche 'Play' ne fonctionne pas ?

Vérifiez que la cassette est correctement insérée et que les piles sont chargées. Si le problème persiste, il peut y avoir une obstruction mécanique. N'essayez pas de forcer ; contactez un service de réparation.

Comment régler la vitesse de la bande ?

La vitesse de lecture est fixe (4,76 cm/s). Un réglage est possible uniquement via un potentiomètre interne à l'aide d'un tournevis d'horloger, mais cela n'est pas recommandé sans compétence technique.

MODE D'EMPLOI Walkman WM-FS395 SONY

Sony Corporation © 1994

Printed in Taiwan, R.O.C.

OWNER'S RECORD

The model number is located at the rear and the serial number is located inside the cassette holder. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. WM-FS395

Serial No.

Getting Started

Opening the Cassette Holder

Closing the Cassette Holder

To close the cassette holder, set the lever firmly to LOCK. If you do not set the lever to LOCK, the cassette holder remains open.

Getting Started

If the cassette holder cannot be opened\*

Open the rubber cap, then open the cassette holder. When the cassette holder opens, remember to close the rubber cap. (The Walkman is not water-resistant with the cassette holder open.)

• Since the Walkman is airtight, you may not be able to open the cassette holder because of a sudden change in air pressure inside the Walkman which happens after being transported on a plane or moving from a warm place to a cold place.

Inserting Battery

Insert two AA (R6) batteries in correct polarity.

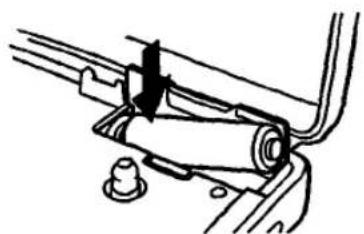

Removing Battery

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Notes on battery

• When you do not use your Walkman for a long time, remove the battery to avoid any damage caused by battery leakage and subsequent corrosion.
• When the battery become weak, the BATT indicator will dim and the sound will be distorted or unstable. In such a case, replace both batteries.
• Concerning the battery life, see "Specifications".

Using the Belt Clip

With the supplied belt clip, you can wear your Walkman on a belt for convenient use.

Removing the belt clip

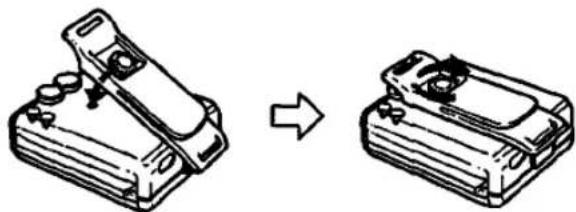

Attaching the belt clip

Diagram showing a device being processed from a base to a final box (no text or symbols present)

Using the Hand Strap

With the supplied hand strap, you can carry your Walkman in your hand for convenient use.

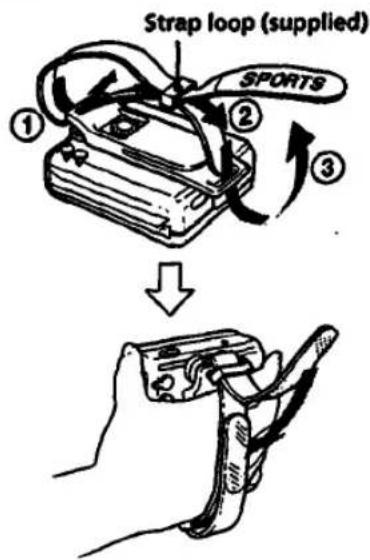

Attaching the hand strap

Playing Cassettes

1 Set the FUNCTION selector to TAPE.

2 Insert a cassette.

Line drawing of an open toolbox with a tool inserted, no text or symbols present

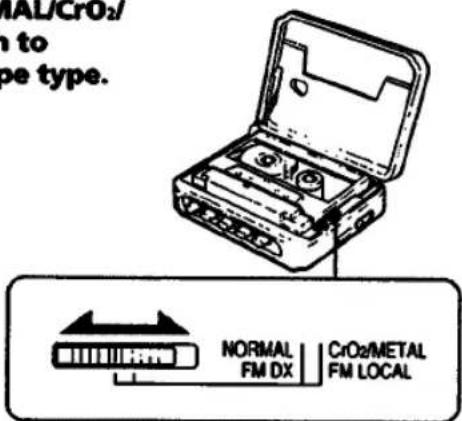

3 Set the NORMAL/CrO2/METAL switch to match the tape type.

4 Press ◀ PLAY.

Operating the Cassette Player

To stop	Press ■ STOP.
To wind the tape	Press ▶▶or ◀◀.
To change sides	Press ◀◀▶ DIR.
To adjust the volume	Set the VOL control.

Notes on the tape transport direction

The tape transport direction changes automatically at the end of

a cassette, and the tape plays both sides repeatedly.

Notes on playing cassettes

• Do not use cassettes longer than 90 minutes except for long continuous playback.
• If your Walkman has not been used for a long time, run the Walkman for a few minutes before inserting a cassette.
• Avoid winding the headphones cord around the Walkman. The buttons may be kept pressed, causing unnecessary battery usage.
• Do not open the cassette holder while the tape is running.

Using MEGA BASS

Set the MEGA BASS switch to ON to produce deep and powerful sound.

When using MEGA BASS

If the AVLS selector is set to 1 or 2, the MEGA BASS effect is reduced.

Using DOLBY NR

Set the DOLBY NR switch to ON to play DOLBY NR processed tapes.

Listening to the Radio

Improving Radio Reception

Improving FM reception

Extend the headphones cord or adjust the FM DX/FM LOCAL switch.

Improving AM reception

Diagram of a mechanical device with rotating arrows indicating rotation (no text or symbols)

1 Set the FUNCTION selector to FM or AM.

2 Tune in the desired station.

To tune off	Set the FUNCTION selector to TAPE (RADIO OFF).
To adjust the volume	Set the VOL control.

To mute the radio sound

Press and hold ■ STOP/RADIO MUTE as long as you want, during radio reception.

Release the button to resume sound.

Note

If you have inserted a cassette with a metallic shell or label, and interference in radio reception occurs, remove the cassette.

Using AVLS

AVLS (Automatic Volume Limiter System)

The AVLS selector allows you to limit the maximum volume of your Walkman personal stereo without degrading the sound quality.

- When you set the AVLS selector to 1 or 2 (around 95 dB and 85 dB respectively), the maximum volume is kept down to protect your ears.

- When the AVLS selector is set to either position 1 or 2, the playback sound may be distorted or unstable according to the music (especially the bass boosted part). If this happens, turn down the volume.

- When the AVLS selector is turned off, you will be able to enjoy the full volume capability of your Walkman personal stereo.

Specifications

Radio Frequency

FM: 87.6 - 108 MHz

AM: 530 - 1,710 kHz

Power Requirements

3 V DC Batteries AA (R6) x 2

Battery Life

(approximate hours when using the batteries specified below)

Battery	Playback	Radio
Sony Alkaline AM3 (N)	7 hours	30 hours
Sony SUM-3 (NS)	3 hours	13 hours

Dimensions

104.4 × 120.5 × 50 mm (4 ½ × 4 ¼ × 2 in.) (w/h/d)

incl. projecting parts

Mass 300 g (10.6 oz) incl. batteries

Supplied Accessories

- Stereo headphones (1)

-Belt clip (1)

- Hand strap (1)

-Strap loop (1)

Design and specifications are subject to change without notice.

Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

"DOLBY" and the double-D symbol ☐ are trademarks of Dolby Laboratories Licensing Corporation.

Precautions

Notes on Headphones

Concerning road safety

Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

Taking Care of Your Walkman

- Before opening or closing the cassette holder, be sure to wipe off water, dust or sand on the exterior of the Walkman.

- Avoid exposing the Walkman to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock. Never leave the Walkman in a car parked in the sun.

- Since water in the headphones jack may cause rust, cover it with the attached rubber cap when the headphones are not in use.

• The supplied headphones are not meant to be immersed in water or come in continuous contact with water. If they are accidentally dropped into water or get wet, dry them with a soft cloth. Never use an electric hair dryer.

- If the Walkman or the headphones are immersed in salt water, be sure to wash them in non-running fresh water. Never wash them under running water, and never use soap or detergent.

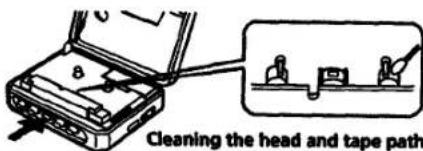

- Prolonged use may contaminate the tape head. If sound drop-out or excessive noise occurs, clean the head and tape path with alcohol.

- Clean the headphones plug periodically for optimum sound.

- Do not use alcohol, benzine or thinner to clean the case.

About the rubber packing

- Any sand or dust on the rubber packing will prevent the cassette holder from closing tightly, and water may leak in. Brush off the dust once in a while.

• We recommend the packing to be changed every year. Replacement packing is available at an authorized Sony Service Facility.

If you have any question or problem concerning your Walkman, please consult your nearest Sony dealer.
