Type de produit	Magnétocassette portable (Walkman)
Marque	Sony
Modèle	Walkman WM-FX24
Dimensions (approx.)	110 x 80 x 30 mm
Poids (avec piles)	Environ 200 g
Alimentation	2 piles AA (1,5 V)
Formats supportés	Cassette audio compacte
Fonctions principales	Lecture cassette, radio FM/AM, arrêt automatique, contrôle de tonalité, prise casque stéréo
Connectivité	Prise casque 3,5 mm
Entretien et nettoyage	Nettoyer régulièrement les têtes et le chemin de bande avec un kit de nettoyage adapté.
Sécurité	Tenir hors de portée des enfants ; ne pas exposer à l'humidité ou à des températures extrêmes.
Pièces détachées et réparabilité	Piles, écouteurs (non fournis), cassette de nettoyage ; réparation par un technicien spécialisé.
Caractéristiques radio	FM stéréo et AM, avec recherche manuelle et présélections
Autonomie estimée	Environ 20 heures avec des piles alcalines (lecture cassette)
Informations générales	Utilisation avec cassettes audio standard ; garantie limitée Sony

FOIRE AUX QUESTIONS - Walkman WM-FX24 SONY

Comment insérer une cassette dans le Walkman WM-FX24 ?

Ouvrez le compartiment cassette en faisant glisser le couvercle vers le haut. Insérez la cassette avec la bande visible vers le bas et la face souhaitée vers vous. Refermez le couvercle jusqu'au déclic.

Comment régler la radio FM/AM ?

Réglez le sélecteur sur RADIO/ON. Utilisez la molette TUNING pour choisir une station. Pour l'accord fin, tournez lentement. La bande FM est stéréo lorsque le voyant STEREO s'allume.

Que faire si la cassette ne tourne pas ?

Vérifiez que les piles sont correctement insérées et non déchargées. Assurez-vous que la cassette n'est pas bloquée ou endommagée. Appuyez sur STOP puis sur PLAY. Si le problème persiste, nettoyez les têtes.

Comment nettoyer les têtes du magnétocassette ?

Utilisez une cassette de nettoyage spéciale. Insérez-la et appuyez sur PLAY pendant 10 à 15 secondes. Vous pouvez aussi nettoyer les têtes avec un coton-tige imbibé d'alcool isopropylique (appareil éteint).

Puis-je utiliser des écouteurs autres que ceux fournis ?

Oui, tout casque ou écouteur avec une prise jack 3,5 mm est compatible. Assurez-vous que l'impédance est adaptée (16-32 ohms recommandé) pour un son optimal.

Que signifie le voyant 'STEREO' sur la radio ?

Le voyant STEREO s'allume lorsque vous captez une émission FM en stéréo. Si la réception est faible, l'appareil bascule automatiquement en mono pour réduire le bruit.

Comment économiser les piles ?

Éteignez l'appareil avec le sélecteur sur OFF après chaque utilisation. Utilisez des piles alcalines de bonne qualité. Diminuez le volume. Évitez de laisser l'appareil en pause prolongée.

Le son est faible ou distordu, que faire ?

Vérifiez le niveau de volume et la tonalité. Nettoyez les têtes et le chemin de bande. Essayez une autre cassette. Si le problème persiste, les écouteurs sont peut-être défectueux.

Puis-je enregistrer avec le Walkman WM-FX24 ?

Non, ce modèle est un lecteur uniquement. Il ne permet pas l'enregistrement. Pour enregistrer, utilisez un magnétophone avec fonction d'enregistrement.

Comment changer les piles ?

Éteignez l'appareil. Ouvrez le compartiment des piles au dos en faisant glisser le couvercle. Insérez deux piles AA en respectant les polarités (+/-). Refermez le couvercle.

MODE D'EMPLOI Walkman WM-FX24 SONY

WALKMAN

Radio Cassette Player

wm-FX21/22/23/24

Operating Instructions

WALKMAN is a trademark of Sony Corporation.

Sony Corporation © 1993

Printed in Malaysia

OWNER'S RECORD

The model number is located at the rear and serial number is located inside the cassette holder. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ____

Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Featuring

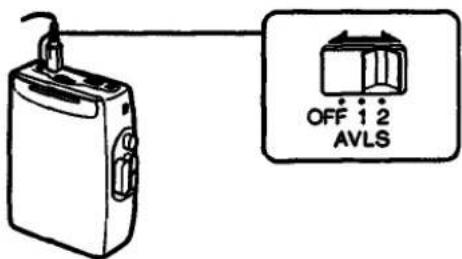

AVLS (Automatic Volume Limiter System)

The AVLS selector allows you to limit the maximum volume of your WALKMAN personal stereo without degrading the sound quality.

• When the AVLS selector is set to either position 1 or 2 (around 95 dB, 85 dB respectively), the volume will be kept at a moderate level without the degradation of the sound quality, even if you attempt to turn the volume up higher.
• When the AVLS selector is set to either position 1 or 2, the playback sonud may be distorted or unstable according to the music (especially bass boosted part). If this happens, turn down the volume.
• When the AVLS selector is turned off, you will be able to enjoy the full volume capability of your WALKMAN personal stereo.

Getting Started

Using with Batteries

Insert two AA (R6) batteries in correct polarity.

Notes

• When you are not going to use your Walkman for a long time, remove the batteries to prevent damage from battery leakage and corrosion.
• When the sound becomes unstable, replace the old batteries with new ones.

Using External Power Sources

You can connect the following external power sources through the DC IN 3 V jack located on the bottom. (When you plug a cord into the DC IN 3 V jack, the internal batteries are automatically bypassed.)

• House current using an AC-E30L AC power adaptor
• 12 V car battery using a DCC-E130L car battery cord

Note

Use only the recommended AC-E30L AC power adaptor (not supplied). Do not use any other AC power adaptor.

Polarity of the plug

Using With a Rechargeable Battery (FX22 only)

Before using, charge the rechargeable battery with the supplied charger. With the rechargeable battery, a tape can be used for 2.5 hours and the radio for 9.5 hours in a one-time charge.

Charging time varies according to the remaining amount of power (approx. 4 hours).

Open the battery compartment lid and insert the rechargeable battery after charging.

Simple line drawing of a toy car on a rectangular base (no text or symbols)

Notes

• The name plate indicating operating voltage, power consumption, etc. is located on the bottom exterior of the charger.
  • The battery may become warm during charging.
• Use only the rechargeable battery NC-AA (WM) with the supplied battery charger.
• Do not short circuit the battery connecting points of the unit when the rechargeable battery is installed.
• If the rechargeable battery is new or it has not been used for a long time, it may not be charged completely. (The playing time is shorter.)
  The battery will be charged completely after it is used several times.

Playing Cassettes

1 Insert a cassette.

Diagram of a door with an arrow indicating rotation or movement, no text or symbols present

2 Set the TAPE/AM/FM selector to TAPE.

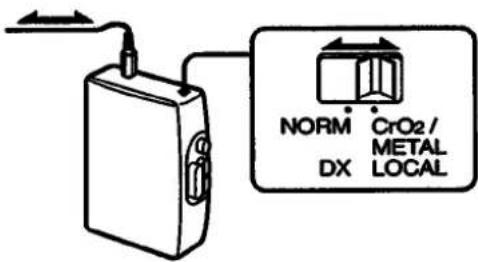

3 Select NORM or CrO2/METAL mode to match the tape type.

4 Press PLAY.

PLAY

Operating the Cassette Player

To stop	Press ■STOP.
To wind the tape	Press ▶▶ or ◀◀.
To adjust the volume	Set the VOLUME control.

Notes on playing cassettes

• Do not use cassettes longer than 90 minutes except for long continuous playback.
  • If your Walkman has not been used for a long time, run the Walkman for a few minutes before inserting a cassette.
• Avoid winding the headphones cord around the Walkman. The buttons may be kept pressed, causing unnecessary battery usage. (FX24)

Using MEGA BASS (FX23/24 only)

Set the MEGA BASS switch to ON to produce deep and powerful sound.

And set the HIGH and LOW control to adjust the tone level. (FX24)

FX23

FX24

Note

If the AVLS selector is set to 1 or 2, the MEGA BASS effect is reduced.

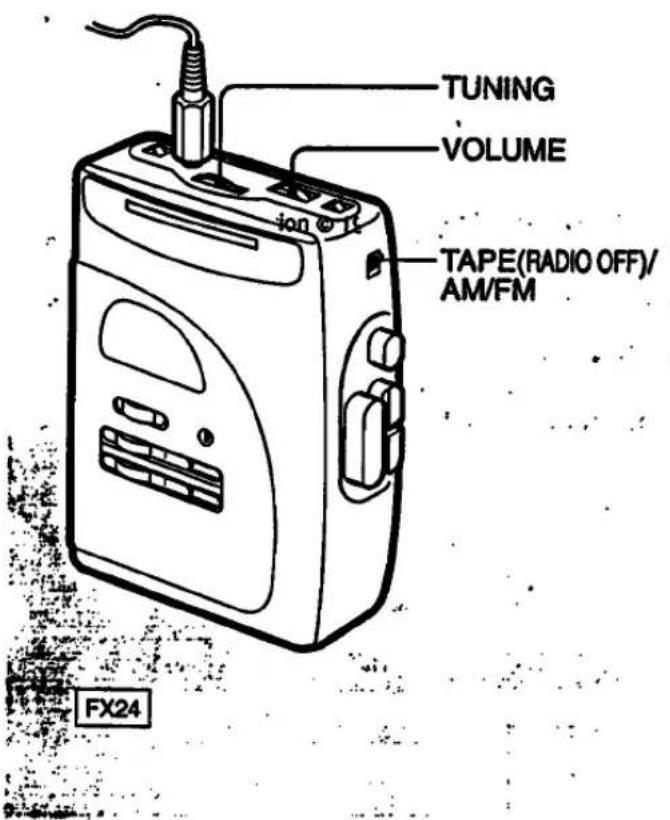

Listening to the Radio

1 Set the TAPE/AM/FM selector to AM or FM.

2 Tune in the desired station.

To turn off	Set the TAPE/AM/FM selector to TAPE.
To adjust the volume	Set the VOLUME control.

Note

If you have inserted a cassette with a metallic shell or label and radio reception interference occurs, remove the cassette.

Improving Radio Reception

Improving FM reception

Extend the headphones cord or adjust the DX/LOCAL selector.

Improving AM reception

Rotate the Walkman.

Diagram of a device with bidirectional arrows indicating rotation or movement (no text or symbols)

Using the Belt Clip

With the supplied belt clip, you can wear your Walkman on a belt for convenient use.

Removing the belt clip

Lift the tab slightly and push down with your finger to remove the belt clip from the Walkman.

Attaching the belt clip

Align the belt clip with the grooves on the back of the Walkman and slide the belt clip up until you hear a click, to firmly attach it to the Walkman.

Precautions

Notes on headphones

Road Safety

Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

Taking Care of Your Walkman

• Avoid exposing the Walkman to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock. Never leave the Walkman in a car parked in the sun.
• Prolonged use may contaminate the tape head. If sound drop-out or excessive noise occurs, clean the head and tape path with alcohol.

Simple line drawing of a switch mechanism with a magnified inset showing the lever (no text or symbols)

• Clean the headphones plug periodically for optimum sound.
• Do not use alcohol, benzine or thinner to clean the case. If you have any question or problem concerning your Walkman, please consult your nearest Sony dealer.

Specifications

Radio Frequency

FM: 87.6 - 108 MHz

AM: 530 - 1.710 kHz

Power Requirements

3 V DC Batteries AA (R6) x 2

External DC 3 V power sources

Battery Life

(approximate hours when using the batteries specified below)

Battery	Playback	Radio
Sony Alkaline AM3 (N)	7 hours	30 hours
Sony SUM-3 (NS)	3.5 hours	15 hours
Rechargeable battery NC-AA (WM) (Full charge)	2.5 hours	9.5 hours

Supplied Accessories

• Stereo headphones (1)
• Belt clip (1)
• Rechargeable battery (2) (FX 22 only)
• Battery charger (1) (FX 22 only)

Optional Accessories

• AC power adaptor AC-E30L
• Car battery cord DCC-E130L

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.
