Type de produit	Récepteur stéréo intégré
Marque	Technics
Modèle	SU-A700MK3
Puissance de sortie	2 × 100 W RMS sous 8 ohms
Réponse en fréquence	5 Hz – 100 kHz
Distorsion harmonique totale	< 0,005 %
Rapport signal/bruit	> 100 dB
Entrées audio	Phono (MM/MC), CD, Tuner, Aux, Tape 1, Tape 2
Sorties audio	Préampli, Enceintes (A/B), Casque, Tape 1 (enregistrement)
Impédance d’enceintes	4–16 ohms
Dimensions (L × H × P)	430 × 120 × 330 mm
Poids	8,5 kg
Alimentation	220–240 V CA, 50/60 Hz
Consommation électrique	250 W
Fonctions principales	Sélecteur d’entrée, contrôle de tonalité (aigus/graves), balance, loudness, filtre infra-basses, atténuateur
Entretien et nettoyage	Dépoussiérer avec un chiffon doux et sec. Ne pas utiliser de produits chimiques.
Sécurité	Débrancher avant nettoyage. Ne pas obstruer les ouvertures de ventilation.
Pièces détachées et réparabilité	Disponibles auprès de revendeurs agréés Technics. Indice de réparabilité : 7,5/10
Informations générales	Notice d’utilisation originale incluse. Période de garantie : 2 ans.

FOIRE AUX QUESTIONS - SU-A700MK3 TECHNICS

Comment brancher des enceintes sur le SU-A700MK3 ?

Utilisez les borniers à vis à l’arrière. Connectez le fil rouge à la borne + et le fil noir à la borne −. Veillez à respecter l’impédance minimale de 4 ohms.

Quelle puissance max pour les enceintes ?

Le récepteur délivre jusqu’à 100 W RMS par canal sous 8 ohms. Choisissez des enceintes supportant au moins cette puissance.

Comment nettoyer l’appareil ?

Utilisez un chiffon doux et sec. N’utilisez jamais de solvants ou de produits abrasifs. Débranchez l’appareil avant tout nettoyage.

Puis-je brancher une platine vinyle ?

Oui, utilisez l’entrée Phono. Si votre platine est à cellule MM, réglez le sélecteur sur MM. Pour une cellule MC, sélectionnez MC (si disponible).

Que faire si l’appareil ne s’allume pas ?

Vérifiez le cordon d’alimentation et le fusible. Si le problème persiste, contactez un service agréé Technics.

Comment utiliser la fonction Loudness ?

Appuyez sur le bouton Loudness pour renforcer les graves et aigus à faible volume. Cela compense la sensibilité de l’oreille humaine.

Qu’est-ce que le filtre infra-basses ?

Le filtre infra-basses (Subsonic filter) élimine les fréquences très basses (en dessous de 20 Hz) qui peuvent endommager les enceintes. Activez-le lors de la lecture de vinyles.

Comment connecter un magnétophone ?

Utilisez les prises Tape 1 ou Tape 2. La sortie Tape permet l’enregistrement, tandis que l’entrée sert à la lecture.

Puis-je bi-câbler mes enceintes ?

Le SU-A700MK3 ne permet pas le bi-câblage direct. Utilisez des ponts si vos enceintes sont bi-câblables avec une seule paire de bornes.

Où télécharger la notice originale ?

La notice est disponible gratuitement en PDF sur notice-facile.com. Recherchez Technics SU-A700MK3 et téléchargez-la.

MODE D'EMPLOI SU-A700MK3 TECHNICS

Technics®

Stereo Integrated Amplifier

SU-A700MK3

SU-A600MK3

Operating Instructions

Dear Customer

Thank you for purchasing this Technics product. For optimum performance and safety, please read these instructions carefully.

These operating instructions are applicable to the SU-A700MK3 and SU-A600MK3 models. These operating instructions, however, fundamentally explain the operation of SU-A700MK3 model.

Furthermore, the differences between the SU-A700MK3 and SU-A600MK3 are as shown in the table below.

(O = included, x = not included)

	SU-A700MK3	SU-A600MK3
Remote control transmitter	○	×
Batteries	○	×

Please check and identify the supplied accessories

AC power supply cord....1 (For United Kingdom) (For others)

(RJA0049-K)

(RJA0019-2A)

Remote control transmitter (RAK-SU129WH) ..... 1 SU A700MK3 only

Batteries....2 SU A/00MK3 only

Use numbers indicated in parentheses when asking for replacement parts.

Contents

Caution for AC mains lead(For United Kingdom)	3
Suggestions for safety	4
Front panel controls	5
Connections	6

Listening to Sound	8
To adjust the tone quality	9
To adjust the sound balance	9
When listening through headphones	9

Recording	10
To record from compact discs, etc.	10
Tape-to-tape recording	10

Technical specifications

11

Troubleshooting guide

Back cover

(For United Kingdom)

("EB" area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📄 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol 12 .

Before use

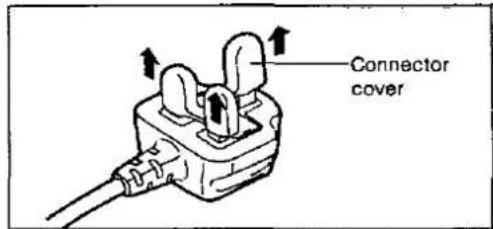

Remove the connector cover as follows.

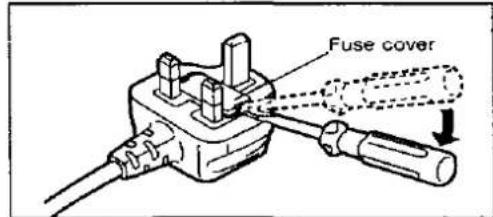

How to replace the fuse

1. Remove the fuse cover with a screwdriver.

1. Replace the fuse and attach the fuse cover.

Suggestions for safety

Placement

Avoid placing the unit in areas of:

- direct sunlight

• high temperature

• high humidity

• excessive vibration

- uneven surfaces (Place the unit on a flat level surface.)

Such conditions might damage the cabinet and/or other component parts and thereby shorten the unit's service life.

Ventilation

• Place the unit in a well ventilated position at least 10 cms away from wall surfaces etc
• Ensure that curtains and similar materials do not obstruct the ventilation holes.

Stacking

Never place heavy items on top of the unit or the power cord.

Voltage

• It is very dangerous to use an AC power source of high voltage such as for an air conditioner.
  A fire might be caused by such a connection.
  • A DC power source can not be used.
  Be sure to check the power source carefully, especially on a ship or other place where DC is used.

Power cord protection

• Avoid cuts, scratches or poor connection of the AC mains cord, as this may result in fire or electric shock hazard.
  Excessive bending, pulling or slicing of the cord should also be avoided.
• Do not pull on the cord when you are disconnecting the power, as this could cause an electric shock. Grasp the plug firmly when you disconnect the power supply.
• Never touch the plug with wet hands or a serious electric shock could result.

Foreign materials

• Ensure that no foreign objects, such as needles, coins, screwdrivers etc., accidentally fall into the unit or through the ventilation holes
  Otherwise, a serious electric shock or malfunction could occur.
• Be extremely careful about spilling water or liquid on/into the unit, as a fire or electric shock could occur. (Disconnect the power plug and contact your dealer immediately if this occurs.)
• Avoid spraying insecticides onto the unit as they contain flammable gases which can be ignited.
• Insecticides, alcohol, paint thinner and similar chemicals should never be used to clean the unit as they can cause flaking or cloudiness to the cabinet finish.

Maintenance

Clean the cabinet, panel and controls with a soft cloth lightly moistened with mild detergent solution.

Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

Service

• Never attempt to repair, disassemble or reconstruct the unit if there seems to be a problem.
  A serious electric shock could result if you ignore this precautionary measure.
• If a problem occurs during operation (the sound is interrupted, indicators fail to illuminate, smoke is detected, etc) contact your dealer or Authorized Service Center immediately
• Disconnect the power supply if the unit will not be used for a long time. Otherwise the operation life could be shortened.

CAUTION

Do not place a tape deck or CD player on top of this unit. Heat radiated from the top of this unit may cause damage to the tape or CD software.

Simple line drawing of a box with a 'X' symbol crossed out, no text or labels present.

NO

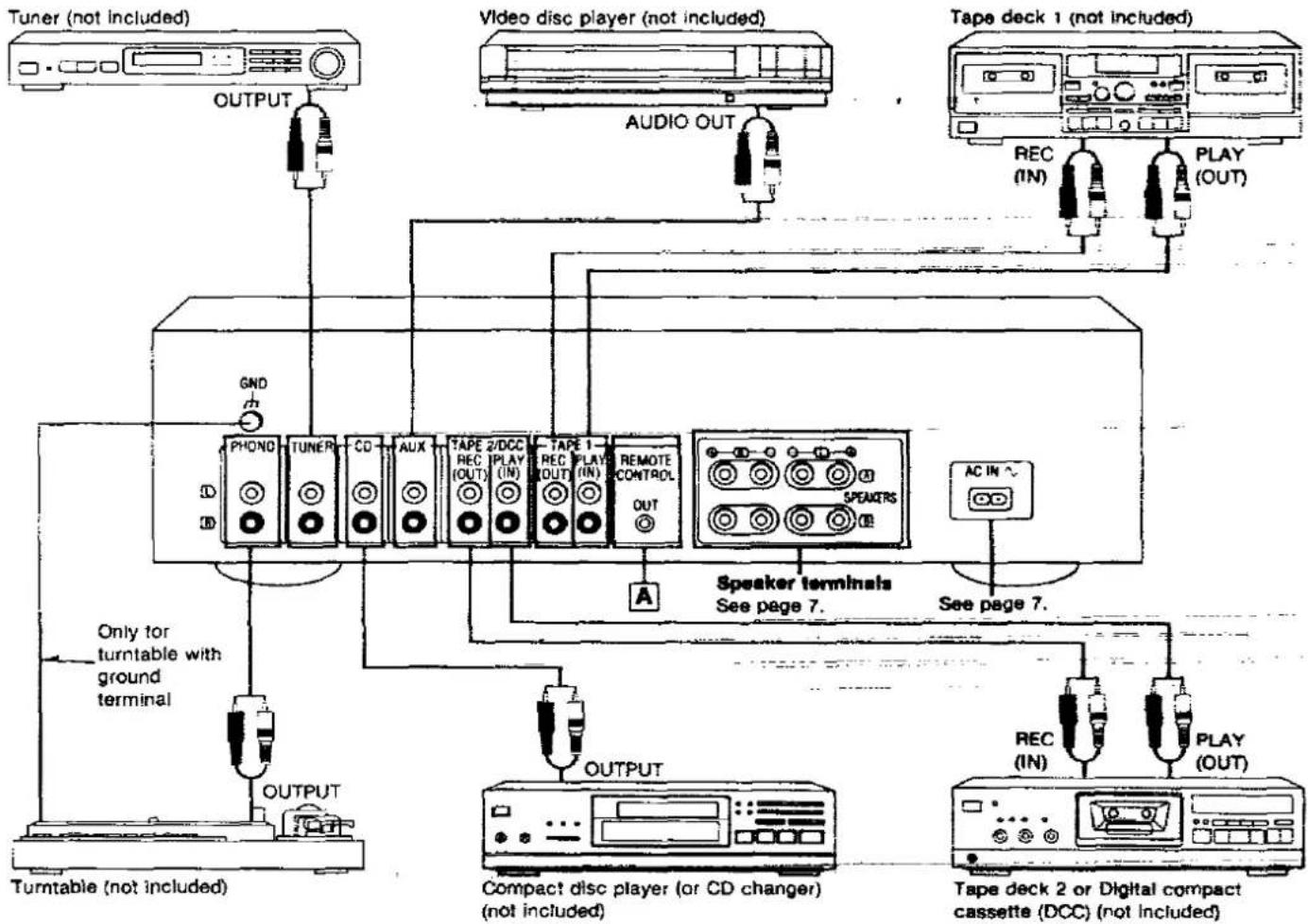

To connect to each terminal

Make connections to each component in the system by using stereo connection cables (not included).


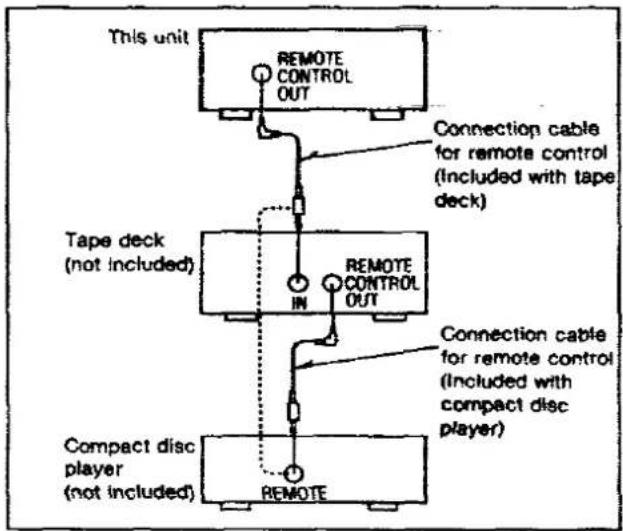

A "REMOTE CONTROL OUT" terminal

SU-A700MK3 only

Connect the connection cable for the remote control to a Technics tape deck and/or CD player (or CD changer) which has the appropriate remote control terminal as shown at the right.

If a tape deck is not being used, the CD player (or CD changer) can be connected directly (dotted line).

Note

For a tape deck and/or CD player (or CD changer) with a remote control sensor, this connection is not necessary.

To connect the speakers

① Strip off the outer covering, and twist the center conductor.

② Turn completely to the left.

③ Insert the wire and turn completely to the right. Pull the cord to assure a proper connection.

Note Be sure to only connect positive (+) cords to positive (+) terminals, and negative (−) cords to negative (−) terminals.

Note

To prevent damage to circuitry, never short-circuit the positive (+) and negative (−) speaker wires.

■ "B" terminals

For connection to a second pair of speakers.

■ Speaker Impedance

• When only the "A" or only the "B" terminals are used: 4—16 ohms
• When both the "A" and the "B" terminals are used simultaneously: 8–16 ohms

About the cooling fan

The cooling fan operates at high power output levels only. (There is no cooling fan for some countries.)

To connect the AC power supply cord

FOR UNITED KINGDOM ONLY BE SURE TO READ THE CAUTION FOR THE AC POWER SUPPLY CORD ON PAGE 3 BEFORE CONNECTING THE AC POWER SUPPLY CORD.

Note

The configuration of the AC power supply cord differs according to area.

Insertion of Connector

Even when the connector is perfectly inserted, depending on the type of inlet used, the front part of the connector may jut out as shown in the drawing.

However there is no problem using the unit

Listening to Sound

Before operation, set VOLUME to the "MIN" position.

Press POWER to switch on the power.

Press A and/or B to select the speaker system(s) to be used.

A and B refer to the speaker terminals at the rear of the unit.

The corresponding indicator above will illuminate to indicate which speaker system is selected.

A: Sound can be heard from the speakers connected to the "A" terminals.

B: Sound can be heard from the speakers connected to the "B" terminals.

A and B: Sound can be heard simultaneously from the speakers connected to the "A" terminals and the "B" terminals.

off: No sound will be heard from the speakers. (Both indicators will turn off.)

Press TAPE MONITOR so that the "SOURCE" indicator illuminates.

Note

When a graphic equalizer connected to the "TAPE 1" or "TAPE 2/DOC" terminals is used, set the selector to the "TAPE 1" or "TAPE 2/DOC" position.

Press to select the desired source.

The corresponding indicator above will illuminate to indicate which button is selected.

TAPE 1: To listen to tape (TAPE 1).

TAPE 2/DCC: To listen to tape (TAPE 2) or digital compact cassette (DCC).

AUX: To listen to equipment connected to the "AUX" terminals.

CD: To listen to compact discs.

TUNER: To listen to radio broadcasts.

PHONO: To listen to phono discs.

Start the desired source.

(Refer to the appropriate operating instructions for details.)

Yum VOLUME to adjust the volume level.

After listening is finished

Be sure to reduce the volume level, and switch the power to the standby condition by pressing POWER.

To adjust the tone quality

TONE

ON DEFEAT

Set TONE to the "ON" position.

If set to the "DEFEAT" position, tone controls have no effect.

Turn BASS to adjust the low-frequency sound.

Turn TREBLE to adjust the high-frequency sound.

To adjust the sound balance

BALANCE

Turn BALANCE to adjust the left/right sound balance.

When listening through head- phones

Use VOLUME to reduce the volume level, and connect the headphones.

If sound from speakers is not wanted, press SPEAKERS (A) and/or (B) to turn off the speaker select indicators.

Note

Avoid listening for prolonged periods of time to prevent hearing damage.

Recording

To record from compact discs, etc.

It is possible to record from units which are connected to the rear "AUX", "CD", "TUNER" or "PHONO" terminals to cassette tape decks or DCC decks which are connected to the "TAPE 1" or "TAPE 2/DCC" terminals.

Before recording, prepare the tape deck or DCC for recording (recording level adjustment, etc.). See the tape deck's or DCC's operating instructions for details.

1

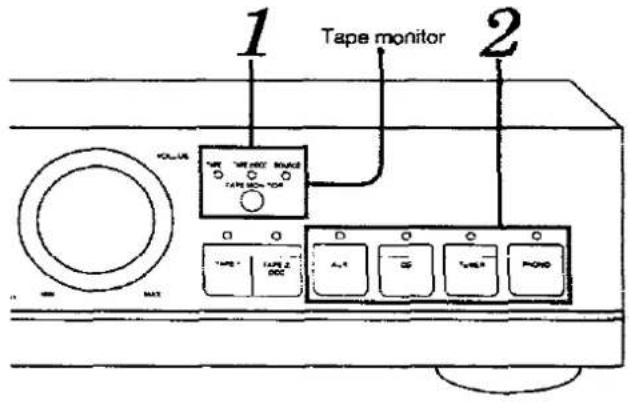

Press TAPE MONITOR so that the "SOURCE" Indicator Illuminates.

2

Select the program source to be recorded.

AUX: To record from equipment connected to the "AUX" terminals.

CD: To record from compact discs. TUNER: To record from radio broadcasts. PHONO: To record from phone discs.

3

Begin recording. Follow your tape deck's or DCC's operating instructions.

4

Begin the source to be recorded.

To check the sound recorded while recording is being made

If a cassette tape deck with 3 heads is connected to the "TAPE 1" or "TAPE 2/DCC" terminals, it is possible to check the sound being recorded onto the tape.

Tape-to-tape recording

It is possible to record from tape deck 1 (the cassette tape deck which is connected to the "TAPE 1" terminals) to tape deck 2 (the cassette tape deck or DCC deck which is connected to the "TAPE 2/DCC" terminals) and vice versa.

Preparation

• Before recording, prepare the tape deck or DCC for recording (recording level adjustment, etc.).
  See the tape deck's or DCC's operating instructions for details
• Load tapes which have been advanced to the end of the leader tape into both decks.

To record from tape deck 2 to 1

1

Press TAPE MONITOR so that the "SOURCE" Indicator illuminates.

2

Press "TAPE 2/DCC".

3

Begin tape deck 1 for recording and tape deck 2 for playback.

To record from tape deck 1 to 2

1

Press TAPE MONITOR so that the "SOURCE" indicator illuminates.

2

Press "TAPE 1".

3

Begin tape deck 2 for recording and tape deck 1 for playback.

Press TAPE MONITOR to select the deck (tape deck 1 or 2) and set the monitor switch on the tape deck to "TAPE".

TAPE 1: when recording on tape deck 1 TAPE 2/DCC: when recording on tape deck 2

Technical specifications (DIN 45 500)

20 Hz-20 kHz continuous power output
(at 240 V for United kingdom)

both channels driven	[SU-A700MK3] : 2 × 45 W (8 Ω)
	[SU-A600MK3] : 2 × 37 W (8 Ω)

1 kHz continuous power output both channels driven (THD: 1%)

[SU-A700MK3] : 2×55 W (8 Ω)

2×80 W (4 Ω)

[SU-A600MK3] : 2×45 W (8 Ω)

2×60 W (4 Ω)

63 Hz - 12.5 kHz continuous power output both channels driven (THD: 0.7%)

[SU-A700MK3] : 2×50 W (8 Ω)

2×70 W (4 Ω)

[SU-A600MK3] : 2×40 W (8 Ω)

2×55 W (4 Ω)

Total harmonic distortion

rated power at 20 Hz-20 kHz

0.01% (8 Ω)

Intermodulation distortion (60 Hz: 7 kHz = 4:1, SMPTE)

rated power	0.007% (B Ω)
residual hum and noise	1 mV

Damping factor 60 (8 Ω)

30 (4 Ω)

Headphones output level/Impedance

Load impedance

A or B	4-16 Ω
A and B	8-16 Ω

input sensitivity/impedance

PHONO MM	2.5 mV/47 kΩ
TUNER, CD, AUX, TAPE 1, TAPE 2/DCC	150 mV/22 kΩ

Phono maximum Input voltage (1 kHz, RMS)

MM	150 mV (150 mV, IHF '66)

SIN (rated power, 4 Ω)

PHONO MM

76 dB (78 dB, IHF '66)

TUNER, CD, AUX, TAPE 1, TAPE 2/DCC

91 dB (99 dB, IHF '66)

SN at -28 dB power (4 Ω)

PHONO MM	68 dB
TUNER, CD, AUX, TAPE 1, TAPE 2/DCC	70 dB

S/N at 50 mW (4 Ω)

PHONO MM	64 dB
TUNER, CD, AUX, TAPE 1, TAPE 2/DCC	64 dB

Frequency response
PHONO MM
RIAA standard curve ±1 dB
(30 Hz - 15 kHz)
TUNER, CD, AUX, TAPE 1, TAPE 2/DCC
3 Hz-80 kHz (+0, -3 dB)
+0 dB, -0.3 dB (20 Hz-20 kHz)
Tone controls
BASS
50 Hz, +10 to -10 dB
TREBLE
20 kHz, +10 to -10 dB
Output voltage
TAPE 1, TAPE 2/DCC REC OUT
150 mV
Channel balance (AUX 250 Hz-6.3 kHz)
±1 dB
Channel separation (AUX 1 kHz)
50 dB
GENERAL
Power consumption
[SU-A700MK3] 200 W
[SU-A600MK3] 170 W
Power supply
For continental Europe
AC 50 Hz, 230 V
For United Kingdom
AC 50 Hz, 230 V-240 V
Dimensions (W × H × D)
430×125×318 mm
Weight
[SU-A700MK3]: 6.7 kg
[SU-A600MK3] : 6.1 kg

Notes:

1. Specifications are subject to change without notice. Weight and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

Troubleshooting Guide

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions.

Problem	Probable cause(s)	Suggested remedy
Problems noted at all times
No sound is heard when the power is switched ON.	The power cord plug is not completely inserted.	• Confirm that the power cord plug is connected completely.
	Connections to the speakers, etc. are incomplete or incorrect.	• Check to be sure that all connection wires are correctly connected
	The input selector setting is incorrect.	• Check to be sure that the selection of the desired sound source is made correctly.
	The speaker selector is set incorrectly.	• Set it to the correct position.
	The tape monitor function is on.(TAPE 1 or TAPE 2/DCC indicator is illuminated)	• When listening to a source other than a tape or DCC, press TAPE MONITOR so that the “SOURCE” indicator illuminates.
When listening to stereo sound, the sound lacks depth (i.e. thin bass, tinny sound).	One of the speakers is connected out of phase [(+)→(-), (-)→(+)].	• Reconnect the speakers maintaining proper polarity [i.e., (+)→(+), (-)→(-)].
When listening to stereo sound, the left and right sounds are reversed.	The left and right speaker connections, source connections, or graphic equalizer connections are reversed.	• Check all connections and correct them if necessary.
A low-pitched noise (“hum” or “buzz”) is heard.	The power cord or a fluorescent light, etc., is near the connection wires.	• Try separating this unit as far as possible from the electric appliance.
Sound is not heard from one of the speakers.	The speaker wires are disconnected.	• Check and correct the connections of the speaker wires.
	The balance control is set too far to one side.	• Set so that sounds are heard at the center, between the speakers.
Sound stops during a performance, or no sound is heard when the power is switched ON.	The protection circuitry has functioned because the positive and negative speaker connection wires are “shorted”, speakers with an impedance less than the indicated rated impedance of the amplifier are used, or DC voltage appears in the output, causing the protection circuitry to function.	• Turn the unit OFF, and, after determining and correcting the cause, turn the unit ON once again.• Use the speakers of the proper impedance rating.

Matsushita Electric Industrial Co., Ltd.

Central P.O. Box 288, Osaka 530-91, Japan
