Type de produit	Récepteur stéréo intégré
Marque	Technics
Modèle	SU-A909
Puissance de sortie	100 W par canal (8 ohms, 20 Hz – 20 kHz, 0.02% DHT)
Réponse en fréquence	5 Hz – 100 kHz (-1 dB)
Rapport signal/bruit	110 dB (CD, ligne)
Entrées	6 lignes (CD, tuner, aux, magnétophone, platine 1 et 2), 1 entrée phono (MM)
Sorties	2 haut-parleurs (A/B), 1 casque, 1 pré-sortie, 1 enregistrement
Tuner intégré	FM/AM (FM stéréo, 87,5 – 108 MHz; AM 530 – 1 710 kHz)
Sensibilité FM	1,5 µV (IHF)
Dimensions (L x H x P)	430 x 83 x 290 mm
Poids	5,2 kg
Alimentation	110 – 240 V, 50/60 Hz, 150 W (consommation)
Fonctions spéciales	Contrôle de tonalité graves/aigus, loudness, filtre subsonique, moniteur d'enregistrement, sélecteur d'impédance haut-parleurs
Entretien et nettoyage	Débrancher avant nettoyage ; utiliser un chiffon doux sec ; éviter produits chimiques
Sécurité	Ne pas ouvrir le capot ; éviter l'humidité ; utiliser des haut-parleurs d'impédance adaptée
Pièces détachées / Réparabilité	Contacter un service agréé Technics ; pièces disponibles jusqu'à épuisement des stocks
Informations générales	Notice d'utilisation disponible en PDF sur notice-facile.com

FOIRE AUX QUESTIONS - SU-A909 TECHNICS

Comment brancher des enceintes sur le SU-A909 ?

Utilisez les borniers à vis à l'arrière de l'appareil. Connectez le fil positif (généralement rouge) à la borne + et le négatif à la borne -. Respectez l'impédance recommandée (4 à 16 ohms). Les sorties sont divisées en A et B pour deux paires d'enceintes.

Comment syntoniser une station FM ?

Tournez le bouton TUNING ou utilisez la molette de recherche manuelle. Le tuner affiche la fréquence. Pour un réglage précis, utilisez le mode MONO si le signal est faible. Les stations peuvent être mémorisées avec les préréglages (20 stations).

Que faire si le son est déformé ou saturé ?

Vérifiez d'abord le volume (ne pas dépasser 80% de la course). Assurez-vous que les enceintes ont une impédance adaptée (8 ohms recommandés). Désactivez la fonction LOUDNESS si elle est enclenchée. Si le problème persiste, testez avec une autre source.

Puis-je utiliser le SU-A909 avec une platine vinyle ?

Oui, l'appareil dispose d'une entrée PHONO (MM) adaptée aux cellules aimant mobile. Branchez la platine sur cette entrée et reliez la terre de la platine à la borne GND située à côté. Si votre platine a une cellule MC, utilisez un transformateur externe.

Comment nettoyer l'appareil ?

Débranchez toujours l'appareil avant le nettoyage. Utilisez un chiffon doux et sec. N'utilisez pas de produits chimiques ou abrasifs. Pour les connecteurs, vous pouvez utiliser un nettoyant pour contacts électronique en respectant les précautions.

Que signifient les voyants LED à l'avant ?

Le voyant POWER s'allume en vert lorsque l'appareil est sous tension. Les voyants SPEAKERS A/B indiquent quelle paire d'enceintes est active. Le voyant MUTING s'allume en cas de sourdine. Le tuner affiche la fréquence et l'indicateur de force du signal.

Pourquoi le son est-il faible sur une source particulière ?

Vérifiez le niveau de la source (ex. CD ou platine). Assurez-vous que le sélecteur d'entrée est correctement positionné. Certaines entrées, comme PHONO, ont un gain plus faible, ce qui est normal. Utilisez le contrôle de volume pour compenser.

Comment brancher un casque ?

Insérez la fiche jack 6,35 mm dans la prise PHONES située à l'avant. La sortie haut-parleur est alors automatiquement coupée. Le volume est réglable avec le bouton principal.

Que faire si l'appareil ne s'allume pas ?

Vérifiez le câble d'alimentation et la prise secteur. Assurez-vous que le fusible (situé près de l'entrée d'alimentation) n'est pas grillé ; le cas échéant, remplacez-le par un modèle identique. Si le problème persiste, contactez un service après-vente agréé.

Comment régler les graves et les aigus ?

Utilisez les boutons BASS et TREBLE situés sur la façade. Tournez-les vers la droite pour augmenter, vers la gauche pour diminuer. La fonction LOUDNESS renforce les basses fréquences à faible volume ; activez-la ou désactivez-la selon vos préférences.

MODE D'EMPLOI SU-A909 TECHNICS

Stereo Control-Power Amplifier SU-A909

Operating Instructions

Front view of a black electronic device with control panel and display screen (no visible text or symbols)

Black-and-white illustration of a person reading a piano keyboard, with no visible text or symbols on the main subject.

Accessories

Please check and identify the supplied accessories.

AC mains lead (1) (VJA0733)

Line drawing of a coiled electrical plug with terminal connectors (no text or symbols)

Amplifier connection cable (1) (RJL6D001B10)

Stereo phono cable (1) (SJP2276)

Remote control transmitter (1) (RAK-SUA11WH)

Batteries (2)

Use numbers indicated in parentheses when asking for replacement parts.

Note

The included AC mains lead is for use with this unit only. Do not use it with other equipment.

Dear Customer

Thank you for purchasing this Technics product. For optimum performance and safety, please read these instructions carefully.

These operating instructions are applicable to the following systems.

System	Control amplifier	Power amplifier
SU-A909	SU-C909U	SE-A909S

Table of contents

Before use

Caution for AC mains lead 3

Suggestions for safety 4

Front panel controls....5

The remote control 6

Connections 7

Operation

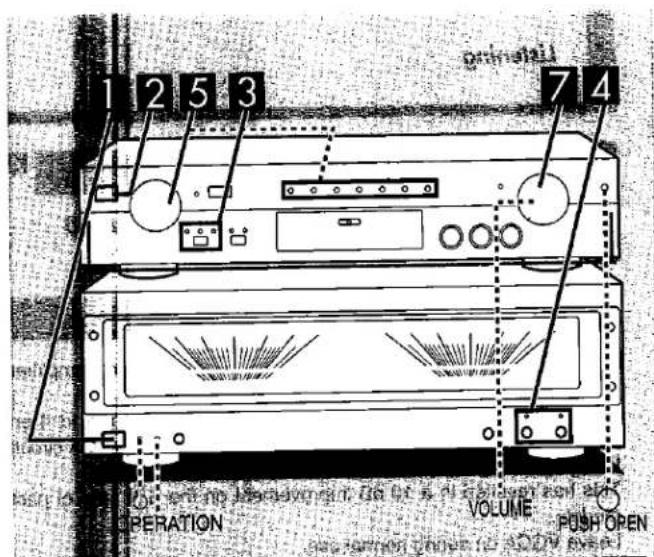

Listening....11

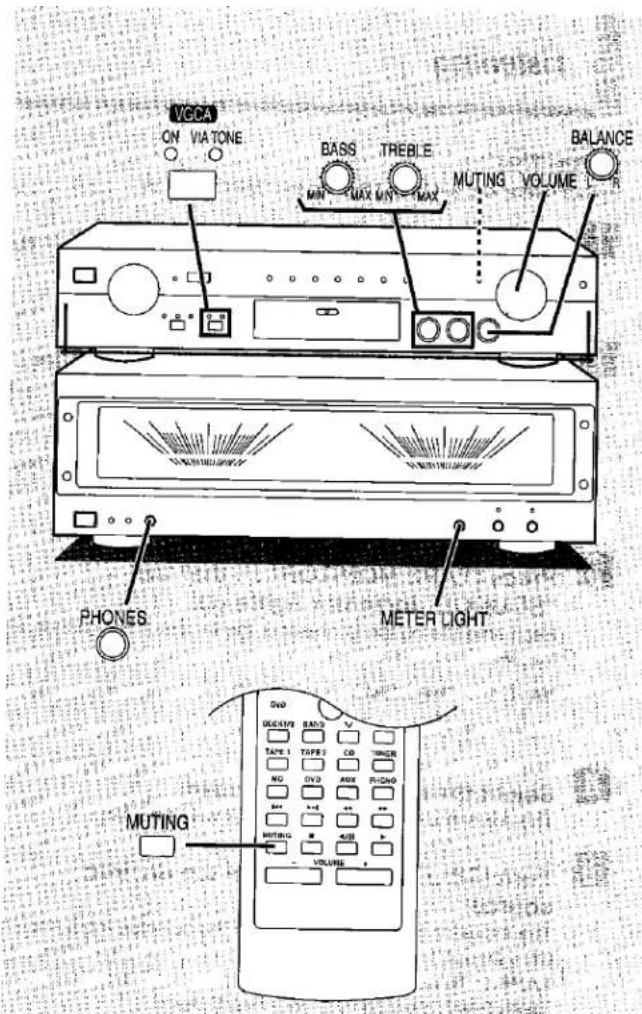

To adjust the sound balance 12

The VGCA circuit....12

To adjust the tone quality 12

To mute the sound level 12

To listen through headphones....12

Turning the power meter light on/off....12

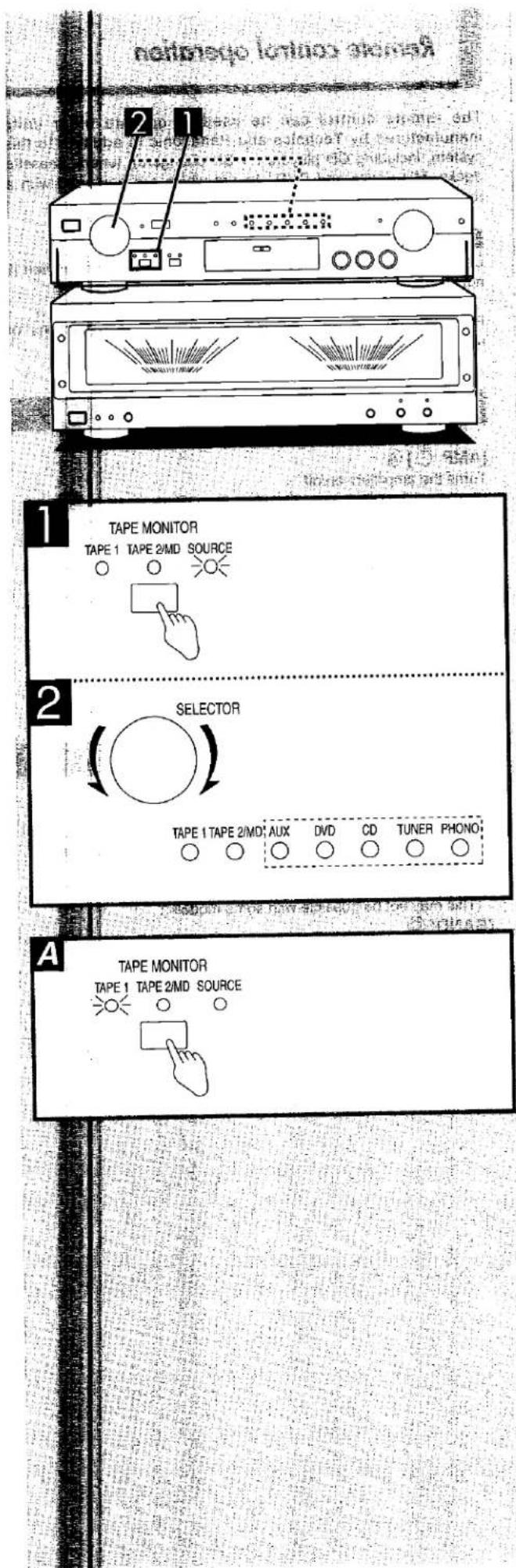

Recording....13

To check a recording....13

Using the remote control

Remote control operation....14

Reference

If the clear panel comes off....17

Maintenance 17

Technical specifications....18

Troubleshooting guide....19

(For United Kingdom)

("EB" area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 🎨 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL 12 OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF-KEEP DRY.

Before use

Remove the connector cover.

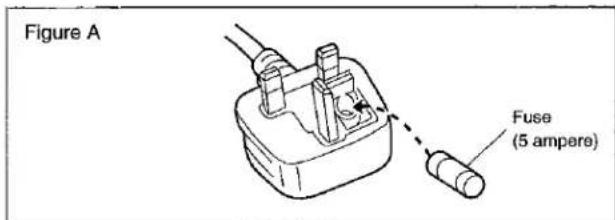

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

1. Replace the fuse and close or attach the fuse cover.

Placement

Avoid placing the unit in areas of:

• direct sunlight
  • high temperature
• high humidity
  • excessive vibration
• uneven surfaces (Place the unit on a flat level surface.)
  Such conditions might damage the cabinet and/or other component parts and thereby shorten the unit's service life.

Stacking

Never place heavy items on top of the unit or the AC power cord.

Voltage

• It is very dangerous to use an AC power source of high voltage such as for an air conditioner.
  A fire might be caused by such a connection.
• A DC power source can not be used.
  Be sure to check the power source carefully, especially if on a ship or other place where DC is used.

AC mains lead protection

• Avoid cuts, scratches or poor connection of the AC mains lead, as this may result in fire or electric shock.
  Excessive bending, pulling or slicing of the AC mains lead should also be avoided.
• Do not pull on the AC mains lead when you are disconnecting the power, as this could cause an electric shock. Grasp the plug firmly when you disconnect the AC mains lead.
• Never touch the plug with wet hands or a serious electric shock could result.

Foreign materials

• Ensure that no foreign objects, such as needles, coins, screwdrivers etc., accidentally fall into the unit.
  Otherwise, a serious electric shock or malfunction could occur.
• Be extremely careful about spilling water or liquid on/into the unit, as a fire or electric shock could occur.
  (Disconnect the power plug and contact your dealer immediately if this occurs.)
• Avoid spraying insecticides onto the unit as they contain flammable gases which can be ignited.
• Insecticides, alcohol, paint thinner and similar chemicals should never be used to clean the unit as they can cause flaking or cloudiness to the cabinet finish.

Service

• Never attempt to repair, disassemble or reconstruct the unit if there seems to be a problem.
  A serious electric shock could result if you ignore this precautionary measure.
• If a problem occurs during operation (the sound is interrupted, indicators fail to light up, smoke is detected, etc.) contact your dealer or Authorized Service Center immediately.
• Disconnect the AC mains lead if the unit will not be used for a long time. Otherwise the operation life could be shortened.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT IN CABINET OR IN ANOTHER CONFINED SPACE IN ORDER TO KEEP WELL VENTILATED CONDITION. ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION CONDITION TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING.

CAUTION

Do not place a tape deck or disc player on top of the power amplifier.

Heat radiated from the top of this unit may cause damage to software.

Because doing so might also cover the ventilation holes, do not place anything on top of this unit apart from the control amplifier for this system.

Main units

No.

Name

Ref. page

① Unit on/off button ( ■ ⏻ = ⏻/l)

and remote standby indicator (⏻) ......11

Use this button to turn the unit on and off.

(off): The unit is in standby mode.

( on ); The unit is on. The unit can be turned on and off with the remote control. When the unit is turned off with the remote control it is in remote standby and the indicator lights.

The unit is still using a small amount of power in the standby and remote standby conditions. Standby uses less power.

Note

The control amplifier switches between ON and the standby mode only if the power amplifier [■ ⏻ — ⏻/I] switch is in the "■ ⏻/I" position.

② Input selector (SELECTOR)....11

③ Remote control signal sensor

④ Input Indicator ....11

⑤ Mutling indicator (MUTING)....12

⑥ Volume control (VOLUME) .....11

⑦ Panel button (PUSH OPEN)

Press to open the clear panel. Close by hand.

⑧ Tape monitor button/indicators

(TAPE MONITOR)....11

⑨ VGCA button/indicators (VGCA)....12

⑩ "ADVANCED VIRTUAL BATTERY OPERATION" indicator

This will illuminate to indicate that the advanced virtual battery (a circuit which removes the noise contained in the power supply while playing a sound input source) is functioning.

No.

Name

Ref. page

⑪ Tone contols (BASS, TREBLE)....12

⑫ Balance control (BALANCE) ......12

⑬ Unit on/off button (■ ⏻ = ⏻/l) and remote standby indicator (⏻)....11

Use this button to turn the unit on and off.

■ (off): The unit is in standby mode.

( on ): The unit is on. The unit can be turned on and off from the control amplifier. When the unit is turned off from the control amplifier, it is in remote standby and the indicator lights.

The unit is still using a small amount of power in the standby and remote standby conditions. Standby uses less power.

⑭ Operation indicator (OPERATION) .....11

⑮ Headphone jack (PHONES)....12

⑯ Power meters

Indicate the output (watts) of this unit.

When speakers having an impedance of 8 are connected, the output level will be as indicated. However, if the speaker impedance is 16 , the output level will be one-half the indicated value, and if the impedance is 4 , the output level will be double the indicated value.

Actual output = meter indication × 8 (Ω) impedance of the speakers (Ω)

⑰ Power meter light button (METER LIGHT)....12

⑱ Speaker select buttons/indicators (A SPEAKERS B)....11

A

B

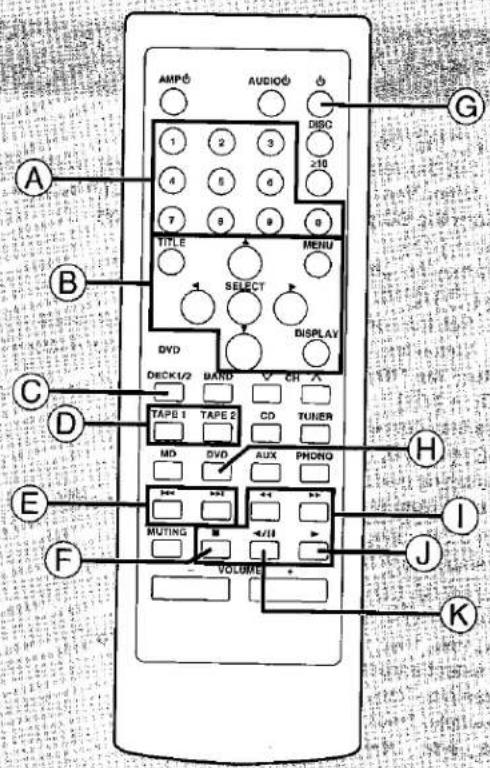

The remote control

No. Name Ref. page

⑲ Amp on/off button (AMP ⏻)....14
⑳ Numbered buttons....14
② Title button (TITLE)....16
②2 Band select button (BAND) 14
②3 Deck 1/2 select button (DECK1/2)....16
② Input select buttons

(TAPE 1, TAPE 2, CD, TUNER, MD, DVD, AUX, PHONO)....

②5 Skip buttons ( |◀◀, ▶▶|)....15
② Stop button (■)....15
⑳ Muting button (MUTING)....12, 14
28 Audio equipment off button (AUDIO ⏻)....14
⑲ Equipment on/off button ( ⏻ )....14
③0 Disc button (DISC)....15
③1 ≥10 button (≥10)....14
③2 Menu button (MENU)....16
③3 Cursor/select buttons (◀, ▶, ▲, ▼, SELECT)......16
③4 Display button (DISPLAY)....16
③5 Channel up/down buttons (∧ CH ∨)......14
③6 Search buttons ( ◀◀, ▶▶ )....15
③7 ◀/Ⅱ button (◀/Ⅱ)....15
③8 ▶ button (▶)....15
③9 Volume buttons (- VOLUME +) 14

Batteries

Insert so the poles (+ and −) match those in the remote control.

Do not;

• mix old and new batteries.
• use different types at the same time.
• heat or expose to flame.
• take apart.
• short circuit.
• attempt to recharge alkaline or manganese batteries.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

If electrolyte leaks from the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any part of your body.

Do not use rechargeable type batteries.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Replace if the unit does not respond to the remote control even when held close to the front panel.

If the battery lid comes loose, slide it back into place horizontally.

Use

Aim at the sensor, avoiding obstacles, at a maximum range of 7 meters directly in front of the unit.

• Keep the transmission window and the unit's sensor free from dust.
• Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

Do not;

• put heavy objects on the remote control.
  • take the remote control apart.
• spill liquids onto the remote control.

Stereo phono cable (1 included with this system)

Amplifier connection cable (included)

Control amplifier and power amplifier connections

Make sure that the power supply for all components has been turned off before making any connections.

Connect the AC mains lead to the amplifier only after all other connections between components have been made.

"PRE OUT 2" terminals:

These terminals let you connect a second power amplifier.

When connecting a graphic equalizer

- Connect it between the PRE OUT terminals of the control amplifier and the INPUT terminals of the power amplifier.

- If sound deteriorates when the graphic equalizer is connected between the control and power amplifiers

Passing the sound through the tape deck can improve sound quality. Connect the power amplifier as shown at the top of the page. Then connect the graphic equalizer and tape deck as shown here.

Press [TAPE MONITOR] on the control amplifier to select TAPE 1 (→ page 11). Set the graphic equalizer's selector to "SOURCE" when playing sources other than the tape deck used in this connection (see the graphic equalizer's manual for details).

Stereo phono cable (1 included with this system)

Connections to other equipment

Connecting the speakers

Connecting the speaker cables

NO

Caution

To prevent damage to circuitry, never short-circuit the positive (+) and negative (-) speaker wires.

Speaker Impedance

When only the "A" or only the "B" terminals are used: 4–16 Ω When the "A" and "B" terminals are used simultaneously: 8–16 Ω

"B" terminals

For connection to a second pair of speakers.

Connecting the power supply

Household mains socket

BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE CONNECTION.

Connect the AC mains lead only after all other connections have been made.

Insertion of Connector

Even when the connector is perfectly inserted, depending on the type of inlet used, the front part of the connector may jut out as shown in the drawing.

However there is no problem using the unit.

Multi-amplifier system setup

The two PRE OUT terminals on the control amplifier allow you to connect a second power amplifier. This kind of setup with the Technics SE-A1010 (not included) unleashes a multitude of system configurations which will give you better control over sound quality in the listening ambient and gain clearer sound than ever before.

This explains how to connect a Technics SE-A1010.

To use one amplifier for the high region and one for the low region

This illustration shows connection that allows control of the treble range level with [LEVEL CONTROL] on SE-A1010. If you would rather have control over the bass range level, connect SE-A1010 to the LF terminals on the speakers.

(See the SE-A1010's operating instructions for details.)

To use as left/right monaural amplifiers

Left and right channel separation will be better and sound orientation improved.

1

2

3

4

5

7

Listening

Preparation

Before operation, set [VOLUME] to the "MIN" position.

1 Press [■ ⏻ /I] of the power amplifier to the “- ⏻/I” position. “ ⏻ ” indicator will light up.

2 Press [■ ⏻ — ⏻/l] of the control amplifier. Both amps will turn ON and, about 4 seconds later, the "OPERATION" indicator on the power amplifier will light up. Once the control amplifier has been turned on, both amplifiers can then be turned ON or OFF simultaneously. Use [■ ⏻ — ⏻/l] on the control amplifier when turning the system on or off.

3 Press [TAPE MONITOR] so that the "SOURCE" indicator lights up.

Each time the button is pressed, the indicator will change as follows.

4

Select the speakers to be used.

The corresponding speaker indicator will illuminate.

5

Turn [SELECTOR] to select the desired source.

The indicator which corresponds to the selected input source will light up.

TAPE 1: Tape deck

TAPE 2/MD: Second tape deck or MD deck

AUX: Component connected to the "AUX" terminals

DVD: DVD player

CD: CD player (or CD changer)

TUNER: Tuner

PHONO: Turntable

6

Start the desired source.

Refer to the appropriate operating instructions for details.

7

Adjust the volume.

Operation indicator (OPERATION)

This indicator illuminates when the power amplifier is in the normal operating condition.

If the (+) and (−) wires of the speaker cables are shorted, or if a circuit abnormality such as DC voltage in the power output to the speakers is detected, the protection circuit will operate and the "OPERATION" indicator will turn off.

Using this system with SE-A1010

If an SE-A1010 power amplifier is connected as described in the connections section (→ page 10), it will also be switched between on and standby the same as this system's SE-A909S when power operations are done on the control amplifier (step 2).

Note

This system's amplifiers will both be turned off if the power amplifier is turned off, but you will not be able to turn them on again with the remote control when in this condition, and further, if an SE-A1010 is connected, it will remain on (use its power button to turn it off).

Listening

To adjust the sound balance

A

Turn [BALANCE] to adjust the left/right sound balance.

The VGCA circuit

This unit features a state-of-the-art variable gain control amplifier (VGCA).

Rather than reducing the volume of the input signal and then amplifying it as was done in the past, this unit uses the VGCA circuit to change the gain of the amplifier itself.

This has resulted in a 10 dB improvement on the S/N ratio of past models.

Leave VGCA on during normal use.

VGCA is switched on at the time of purchase.

To adjust the tone quality

B

① Press [VGCA] to turn the "VIA TONE" indicator on.
② Turn [BASS] to adjust the low-frequency sound. Turn [TREBLE] to adjust the high-frequency sound.

Press again to turn VGCA on again. Sound is heard unadjusted.

To mute the sound level

C

Remote control only

Press [MUTING].

The "MUTING" indicator on this unit will light up.

Press once again to return to the previous volume level. The "MUTING" indicator will turn off.

Note

Muting is also canceled when the unit is turned off.

To listen through headphones

D

Decrease the volume at the control amplifier, and connect the headphones.

Plug type: 6.3 mm stereo

If sound from speakers is not wanted, press SPEAKER [A] and/or [B] to turn off the speaker indicators.

Note

Avoid listening for prolonged periods of time to prevent hearing damage.

Turning the power meter light on/off

E

Press [METER LIGHT].

Note

If the unit is turned off while the power meter light is on, a small click will be heard a few seconds later. This is an automatic adjustment by the internal mechanism, not an indication of malfunction.

Recording

Connect the tape deck or MD deck to either of the "REC (OUT) (TAPE 1 or TAPE 2/MD)" terminals on the back of the unit.

1 Press [TAPE MONITOR] so that the "SOURCE" indicator lights up.
2 Turn [SELECTOR] to select the source to be recorded.

AUX: Equipment connected to the AUX terminal.

DVD: DVD player

CD: CD player (or CD changer)

TUNER: Tuner

PHONO: Tumtable

3 Begin recording on tape deck or MD deck. Follow your equipment's operating instructions.
4 Begin the source to be recorded.

Note

Some DVD players need special settings before recording. See the DVD player's operating instructions for details.

Recording between TAPE 1 and TAPE 2/MD

You can record from TAPE 1 to TAPE 2/MD and vice versa.

From TAPE 1 to TAPE 2/MD

① Press [TAPE MONITOR] so "SOURCE" lights.

② Turn [SELECTOR] so "TAPE 1" lights.
③ Start recording on the recording deck and playback on the playback deck.

From TAPE 2/MD to TAPE 1

In step ②, turn [SELECTOR] so "TAPE 2/MD" lights.

To check a recording

With a tape deck with 3 heads, it is possible to monitor the sound recorded.

Press [TAPE MONITOR] to select "TAPE 1" or "TAPE 2/MD" and set the monitor switch on the tape deck to "TAPE".

TAPE 1: To monitor the deck connected to the TAPE 1 terminals.

TAPE 2/MD: To monitor the deck connected to the TAPE 2/MD terminals.

Note

When finished using the tape monitor, press [TAPE MONITOR] again to select "SOURCE".

Remote control operation

The remote control can be used to operate other units manufactured by Technics and Panasonic in addition to this system, including CD players (or CD changers), tuners, cassette decks, MD decks and DVD players which are equipped with a remote control sensor.

Note

Depending on the model, there may be cases where operation is not possible.

For details on how to do this, refer to the operating instructions for the respective component.

Amplifier and system control buttons

[AMP ⏻] Ⓐ

Turns the amplifiers on/off.

[TAPE 1, TAPE 2, CD, TUNER, MD, DVD, AUX, PHONO]

For selecting input source. (→ page 11.)

[-VOLUME+]⑧

Adjust volume.

[MUTING] Ⓔ

Mutes the sound. (→ page 12.)

[AUDIO ⏻]⑤

Turns off the audio components.

(This may not be possible with some models.)

Tuner control buttons

[TUNER] [⏻] ⏻ Ⓖ

[TUNER]...Set the remote control to the tuner mode. Press this button first before trying to use the following buttons.

• To turn the tuner on/off

[TUNER] → [①]

(This may not be possible with some models.)

[BAND] ©

For selecting band.

[VCH∧]①

For selecting channel sequentially.

[1-9,0] [≥10] Ⓑ Ⓗ

For selecting channel directly.

(Example: Channel 1)...[1]

(Example: Channel 10)...[≥10] → [1] → [0]

Remote control operation

CD player (or CD changer) and MD deck control buttons

[CD] [◎] Ⓕ Ⓓ

[CD]...Set the remote control to the CD player mode. Press this button first before trying to use the following buttons.

• To turn the CD player (or CD changer) on/off

[CD] → [ ⊙ ]

(This may not be possible with some models.)

[MD] [ ⏻ ] Ⓑ Ⓓ

[MD]...Set the remote control to the MD deck mode. Press this button first before trying to use the following buttons.

• To turn the MD deck on/off

[MD] → [○]

(This may not be possible with some models.)

[DISC] [1-9, 0, ≥10] [▶] E A G

For selecting disc and track.

• To start from the desired disc (CD changer only)

For 5 CD changer

(Example: Disc 5)...[DISC] → [5] → [▶]

For MEGA CD changer ※

(Example: Disc 5)...[DISC] → [5] → [▶]

(Example: Disc 10)...[DISC] → [1] → [0] → [▶]

• To select a track

(Example: Track 1)...[1]

(Example: Track 10)...[≥10] → [1] → [0]

[◀◀, ▶▶], ◀◀, ▶▶, ■, ◀/■, ▶] ©

[▶]...Starts playback

[◀◀] [▶▶]...Skip backward/forward to other tracks.

[◀◀] [▶▶]...Search through the current track for parts you want to hear, during playback.

[◀/Ⅱ]...Pauses playback. To resume playback, press [▶].

[■]...Stops playback.

※ "MEGA CD changer" is any Technics CD changer that takes more than 50 discs.

Remote control operation

Cassette deck control buttons

[TAPE 1, TAPE 2] [ ⏻ ] Ⓓ G

[TAPE 1] [TAPE 2]...Set the remote control to the cassette deck mode. Press the button which corresponds to the cassette deck being used (TAPE 1 or TAPE 2). Press one of these buttons first before trying to use the following buttons.

• To turn the cassette deck pn/off

[TAPE 1] or [TAPE 2] → [∅]

(This may not be possible with some models.)

[DECK1/2] ©

(Double cassette deck only)

Switches between DECK 1 and DECK 2.

[◀◀, ▶▶, ■, ◀/■, ▶] ①

[▶]...Starts playback from side A.

[◄/■]...Starts playback from side B. (Only for cassette decks with reverse function)

[◀◀] [▶▶]...Rewinds/fast forwards the tape.

[■]...Stops playback.

DVD player control buttons

[DVD] [⏻] Ⓗ Ⓗ

[DVD]...Set the remote control to the DVD player mode. Press this button first before trying to use the following buttons.

• To turn the DVD player on/off

[DVD] → [ ⏻ ]

(This may not be possible with some models.)

[TITLE, MENU, DISPLAY, SELECT, ◀, ▶, ▲, ▼] [1–9, 0] ⑧ A

• To select the title

[TITLE] → [◀] [▶] [▲] [▼] → [SELECT]

• To use the DVD menu

[MENU] → [◀] [▶] [▲] [▼] → [SELECT]

• To clear the DVD menu [MENU]

• To use on-screen graphic controls

(Graphic user interfaces, GUI, are a feature of some DVD players. See your player's manual for details.)

[DISPLAY] → [◀] [▶] → [1-9] [0] or [▲] [▼] → [SELECT]

[◀◀, ▶▶] [▶] [◀/■] [■] Ⓔ Ⓙ Ⓑ Ⓕ

[▶]...Starts playback.

[◀◀] [▶▶]...Skips to other tracks or chapters.

[◀/Ⅱ]...Pauses playback. To resume playback, press [▶].

[■]...Stops playback.

A

###	###
###	###
###	###
###	###

If the clear panel comes off A

① Insert the panel as shown in the illustration.
② Ensure the panel is parallel to the unit, then press firmly down and in on the levers until they click into place.
③ Check that the panel now moves correctly. If it does not, remove it and repeat the above procedure.

Maintenance

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in a soap-and-water solution or a weak detergent solution.

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

SU-C909U

Input sensitivity/impedance

PHONO MM	2.5 mV/47 kΩ
TUNER, CD, DVD, AUX, TAPE 1, TAPE 2/MD	200 mV/22 kΩ

Total harmonic distortion (VGCA ON)

(VOL MAX 20 Hz–20 kHz)
PHONO MM	0.01%
TUNER, CD, DVD, AUX, TAPE 1, TAPE 2/MD	0.01%

S/N (VGCA ON)

PHONO MM	75 dB (77 dB, IHF '66)
TUNER, CD, DVD, AUX, TAPE 1, TAPE 2/MD
	103 dB (100 dB, IHF '66)
	114 dB (IHF A S=2 V rated output)

Frequency response

PHONO MM	RIAA standard curve ±1 dB (30 Hz–15 kHz)
TUNER, CD, DVD, AUX, TAPE 1, TAPE 2/MD

3 Hz-100 kHz (+0, -3 dB)

+0 dB, -0.3 dB (20 Hz-20 kHz)

Phono maximum input voltage (1 kHz, RMS) MM

Tone controls
BASS	+10 dB, -10 dB (50 Hz)
TREBLE	+10 dB, -10 dB (20 kHz)
Muting (Remote control only)	-∞ dB
Output voltage
TAPE 1, TAPE 2/MD REC OUT	200 mV
PRE OUT	1 V

GENERAL

Dimensions (W×H×D)	430×91.5×300 mm
Weight	2.85 kg

SE-A909S

20 Hz–20 kHz continuous power output both channels driven 2×70 W (8 Ω)

1 kHz continuous power outputboth channels driven (THD: 1%)	2×85 W (8 Ω)
	2×120 W (4 Ω)

63 Hz–12.5 kHz continuous power output both channels driven (THD: 0.7%) 2×80 W (8 Ω)

	2×105 W (4 Ω)
Total harmonic distortion rated power at 20 Hz-20 kHz	0.015% (8 Ω)

Intermodulation distortion (50 Hz: 7 kHz=4:1, SMPTE) rated power 0.007% (8 Ω)

Residual hum and noise	0.3 mV
Damping factor	70 (8 Ω)

35 (4 Ω) Headphones output level/impedance 540 mV/330 Ω

Load Impedance
A or B	4-16 Ω
A and B	8-16 Ω
Input sensitivity/Impedance	1 V/20 kΩ
S/N (rated power, 4 Ω)	95 dB (115 dB, IHF '66)
Frequency response
INPUT	5 Hz-100 kHz (+0,-3 dB)
	20 Hz-20 kHz (+0 dB,-0.5 dB)

GENERAL

Power supply	AC 50 Hz, 230–240 V
Power consumption	285 W
Standby	1.6 W
Dimensions (W×H×D)	430×158×344 mm
Weight	10.1 kg

Notes:

1. Specifications are subject to change without notice. Weight and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.

Problem	Probable cause(s)	Suggested remedy	Page(s)
Common problems
Unit doesn't come on.	The AC mains lead is not fully inserted.	· Confirm the plug is fully inserted.	9
The power buttons on both amplifiers are pressed to “■ ⏻ ⏻/l” but they do not come on.	You pressed [■ ⏻ ⏻/l] on the control amplifier first.	· Turn the power amplifier on before turning the control amplifier on.	11
Sound Is not heard.	The tape monitor function is on.	· Press [TAPE MONITOR] so the "SOURCE" indicator lights up.	11
	Connections are incomplete or incorrect to the speaker systems, etc.	· Check to be sure that all connection wires are correctly connected.	7-10
	The incorrect input source has been selected.	· Select the correct source.	11
	The speaker(s) selector is(are) set incorrectly.	· Turn ON the speaker indicator(s).	11
	The muting function is on.	· Press [MUTING] on the remote control.	12
The left and right sounds are reversed.	The left and right cables are reversed.	· Check and correct all connections.	7-10
The sound lacks depth (i.e. thin bass, tinny sound).	One of the speakers is connected out of phase [(+) → (-), (-) → (+)].	· Reconnect the speakers maintaining proper polarity [i.e., (+) → (+), (-) → (-)].	9, 10
Low-pitched "hum" or "buzz" Is heard.	An AC mains lead or a fluorescent light, etc., is near the connection wires.	· Try separating this unit from the electric appliance.	-
Sound is not heard from one of the speakers.	The speaker wires are disconnected.	· Check and correct the connections of the speaker wires.	9, 10
	The balance control is set too far to one side.	· Set so sounds are heard in the center.	12
Sound stops during a performance, or no sound is heard when the power is switched ON.	The protection circuitry has functioned because the positive and negative speaker connection wires are "shorted", speakers with an impedance less than the indicated rated impedance of the amplifier are used, or DC voltage appears in the output, causing the protection circuitry to function.	· Switch OFF the power, and, after determining and correcting the cause, switch ON the power once again.· Use speakers of the proper impedance rating.	-9

While using the remote control
The remote control does not function.	Batteries are incorrectly placed.	• Insert the batteries so that the positive (+) and negative (−) polarities are correct.	6
	The remote control batteries are drained.	• Replace them with new batteries.

Matsushita Electric Industrial Co., Ltd.

Osaka 542-8588, Japan

En

RQT5170-B

H0699MK0 (D)
