Armor Pro - Chaise de jeu Cougar - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Chaise de jeu
Marque	Cougar
Modèle	Armor Pro
Dimensions (H x L x P)	120 cm x 70 cm x 55 cm
Poids	20 kg
Capacité de poids maximale	120 kg
Matériaux	Acier, mousse à haute densité, similicuir
Alimentation	Aucune (mécanique)
Fonction d'inclinaison	Oui, verrouillable jusqu'à 180 degrés
Accoudoirs réglables	Oui, 3D (hauteur, rotation, profondeur)
Appui-tête et coussin lombaire	Inclus, amovibles
Réglage en hauteur	Vérin à gaz, classe 4
Base et roulettes	Base en acier, roulettes silencieuses
Entretien et nettoyage	Nettoyer avec un chiffon doux et eau savonneuse. Éviter les solvants.
Sécurité	Conforme aux normes européennes de stabilité et de résistance
Pièces détachées et réparabilité	Accoudoirs, vérin, roulettes disponibles en service après-vente
Garantie	2 ans

FOIRE AUX QUESTIONS - Armor Pro Cougar

Comment assembler la chaise Cougar Armor Pro ?

Suivez le manuel fourni : fixez la base, insérez le vérin, placez l'assise, fixez le dossier et les accoudoirs. Serrez toutes les vis avec la clé Allen incluse.

Quel est le poids maximum supporté ?

La chaise Cougar Armor Pro supporte jusqu'à 120 kg.

Comment régler la hauteur du siège ?

Utilisez le levier sous l'assise pour actionner le vérin à gaz. En position assise, soulevez le levier pour monter ou descendez en appuyant sur le levier.

Les accoudoirs sont-ils réglables ?

Oui, les accoudoirs 3D permettent un réglage en hauteur, rotation et profondeur pour un confort optimal.

Comment nettoyer la chaise en similicuir ?

Utilisez un chiffon doux légèrement humide avec de l'eau savonneuse. Évitez les produits abrasifs ou solvants qui pourraient endommager le revêtement.

Peut-on incliner le dossier ?

Oui, le dossier s'incline jusqu'à 180 degrés et peut être verrouillé dans plusieurs positions à l'aide du levier situé sous l'accoudoir droit.

Les coussins lombaire et cervical sont-ils amovibles ?

Oui, les coussins sont amovibles et ajustables en hauteur pour s'adapter à votre morphologie.

Quelle est la durée de vie du vérin à gaz ?

Le vérin à gaz est conçu pour durer plusieurs années avec une utilisation normale. En cas de défaillance, il peut être remplacé via le service après-vente.

Les roulettes sont-elles adaptées à tous les sols ?

Les roulettes sont silencieuses et adaptées aux sols durs (carrelage, parquet) et moquette. Pour les sols fragiles, utilisez un tapis de protection.

Où trouver des pièces détachées ?

Contactez le service après-vente Cougar via le site officiel. Les pièces comme les accoudoirs, le vérin ou les roulettes sont disponibles séparément.

MODE D'EMPLOI Armor Pro Cougar

FEATURES

Line drawing of an office chair with visible seat, armrests, and decorative patterns (no text or symbols)

Height lifting (Right) Tilting (Left)

Adjustable armrest Angle adjustor

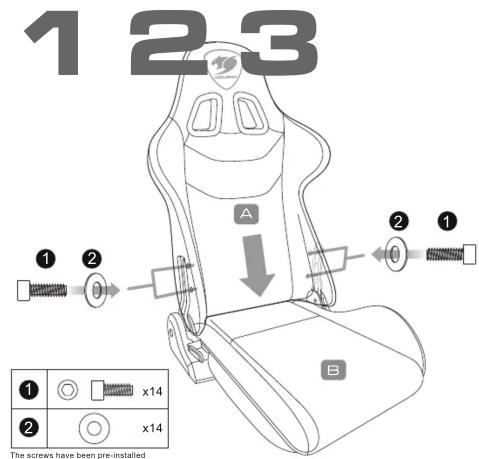

ASSEMBLY DRAWING

ACCESSORY KIT DISTRIBUTOR

1		4		x2
2		5		x1
3

1 2 The screws have been pre-installed on the chair's parts

COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR
COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR
COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR
COUGAR	COUGAR	COUGAR
CAR	COUGAR	COUGAR

COUGAR ARMOR PRO is the perfect seat for professional level gamers. This swiveling gaming chair is a fully adjustable throne that will satisfy the most demanding gamers. With a steel frame and high quality components for extra durability and loads of options to fine tune it to your needs, COUGAR ARMOR PRO is ready for battle.

ENGLISH

- Unparalleled comfort - Body-embracing high back design - Full steel frame - Gas lift height adjustment - 3D Adjustable arm rest - 5 star metal base - Breathable PVC leather + Micro suede-like texture - Embroidered logo - Weight limit : 120kg

ESPACOL - Comodidad Incomparable - Diseco alto del respaldo que abraza el cuerpo - Estructura hecha totalmente en acero - Ajuste de altura con suspensiyn de aire - Descansabrazos ajustable - Cuero de PVC respirable - Logo bordado - Soporta hasta 120 Kg

PORTUGUKS - Conforto Incomparóvel - Design do encosto alto que abrazao corpo - Estrutura feita totalmente em azo - Ajuste de altura com suspensro de a - Descanso de brasos ajustóvel - Couro de PVC respiróvel - Logo bordado - Suporta ati 120 Kg

ITALIANO • Comfort incomparabile • Struttura in acciaio • Bracciolo 3D regolabile • Base a stella (cinque raggi) in metallo • Finta pelle in PVC • Supporta fino a 120 Kg

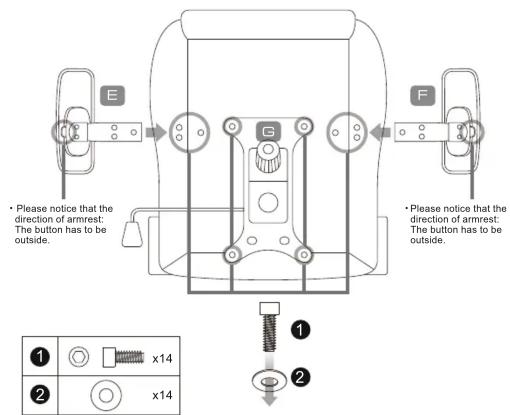

ASSEMBLING INSTRUCTION

4

5

Line drawing of a Cousar gaming chair with seat, showing top and front views (no text or symbols)

6

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product: COUGAR GAMING CHAIR

Warranty : 1 Year

This warranty gives you specific legal rights. You may also have other rights granted under local law

WARRANTY AGREEMENT

•If the product has defects in material or manufacture, COUGAR will provide product repair and

replacement service within the warranty period. Our warranty service is based on the date of the

Our warranty service is based on the date of the invoice of CONDIPTIONS. WHITE FREE MAINTENANCE IS NOT PROVIDED

CONDITIONS WHERE FREE MAINTENANCE IS NOT THROVIDED

*Any fault or damage caused by natural disasters (including storm, fire, flood, thunder, earthquake, etc).

•Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash,

moving, compression, stain, corrosion, riot, misuse, malicious damage, etc).

•Use in an improper operating environment (including high temperature, high humidity, water inflow, etc)

•Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still

within the warranty period and the shipping date of the product is out of warranty

•The warranty card has been altered or its number is hard to identify

•The warranty period has expired.

•Any fault or damage caused by non-compliance with regulations stated on the user manual or improper,

rough and careless treatment.

•Any fault or damage caused by use of parts not certified by COUGAR original manufacturer

•The problem is caused by improper repair or adjustment by the buyer or any manufacturer without

The problem is caused by imp authorization from COUGAR

•The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.

The product is not acquired from an authorized distributor of the company or is acquired from inert sources. Paper carton instruction and other accessories are not warranted

DISCLAIMERS

• COUGAR products should not be used as critical components in life support devices.

• COUGAR is not liable for any damage of life and limb or damage or loss of property caused by or during

COOLAR products' use as or with medical equipment, military equipment, traffic equipment and disaster

COUGAR products prevention systems

prevention systems.

• COUGAR'S warranty liability is limited to repair or replacement. The decision on whether to repair

or replace belongs exclusively to COUGAR.

• COUGAR is, to the extent not prohibited by law, not liable for any damages; expenses; lost data, revenues, savings or profits; or any incidental or consequential damages happened while the use of a defective product from COUGAR or due to its use.

LEGAL NOTICES

This manual was created by Compucase Enterprise and may not be completely or partially

copied, passed on, distributed or stored without written consent by Compucase Enterprise.

COLIGAR® is a registered brand of Compucase Enterprise Other product and company names

COORDING is a registered brand of Compaccase Enterprise Other product and company names mentioned in this documentation may be brands or trademarks of their respective owners.

Compucase Enterprise reserves the right to make changes concerning the contents of the

manual and the technical data of the product without previous announcement.

MANUFACTURER CONTACT

Compuase Enterprise Co Ltd

Compucase Enterprise Co., Ltd. No. 375, loss 54, An Hu Road for 2 Truys, Trivus, RGC

No. 225, Lane 54, An Ho

Tel:[phone]

Service email: https://cougargaming.com/support/contact/upload/

Compucase Enterprise Co. Ltd. All rights reserved. Made in China

COUGAR USA Technical Service

Tel: [phone]

Mail: [e-mail]

Mail. [e-mail]

ct/upload/

e in China

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

A. FATE ON TURUS TRAVEL WITH THE SURVEY TRAVEL WITH THE

A После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.

В. После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже.

и означают год, последующие две цифры — между изготовления

S/N: DAG02REVI000001, означает что товар был произведен в феврале.

A

B

C

D

E

FG

H

I

J

12

345

67

8

90

Например AG = 17 = 2017 год

WARNING

* To adjust the chair height, gently pull the lever up. Do not use excessive force to pull the lever.

* Please wear protective gloves when assembling the chair. It is your own responsibility to use appropriate

Please wear protective gloves when assume protection to prevent any physical damage.

• When rocking the chair, using it in any other way or adjusting the height, inclination, position or balance of the

When rocking the chair, using it in any other way of adjusting the height, inclination, position or balance of the chair or any of its components, please:

• pay attention to your hand's position and keep it away from spaces in which it could get caught or be injured.

pay attention to your hand's position and • do not make fact or violent movements

- do not make fast or violent movements. - (when the chair is in movement) do not touch any of the chair's adjustment controls to prevent affecting its

- (when the chair is in movement) do not touch any of the chair's adjustment controls to prevent affecting its stability and causing a potentially dangerous fall.

stability and causing a potentially dangerous tail.

* (when reclining the chair to its full extent) set the related control level in lock position and keep both feet on the

ground, as well as abstain from any violent, rough or strong movement which could cause the chair to tip over

a. Losses in paired blocks this appear in developed only: four stitches and clarifications, and blocks it should be used only for these years.

- keep in mind that this chair is designed only for sitting

- Do not sit on the edge of the chair or the arm rests.

* Do not place the chair in a location in which it is likely to be subjected to prolonged sunlight exposure.

The product's colors might fade when exposed to sunlight.

• Do not use abrasive products or scrub energetically when cleaning. Please stick to gentle products suitable for

delicate materials.

- All parts should be checked monthly to confirm their intensity and to make sure that the results are not less

• All parts should be checked monthly to confirm their integrity and to make sure that the screws are not loose.

* If any part of the product is or appears to be damaged, missing or loose, please contact the local distributor and

do not use the prod

Maximum stationary weight capacity 120kg. Please do not place any body or object above 120kg on this chair.
