Marque	Panasonic
Modèle	MC-E851
Type de produit	Aspirateur traîneau
Alimentation	220-240 V, 50/60 Hz
Puissance nominale	800 W
Système de collecte	Avec sac
Capacité du réservoir	3,5 litres
Filtration	Filtre HEPA lavable
Niveau sonore	72 dB
Dimensions (L x l x h)	400 x 280 x 200 mm
Poids	4,5 kg
Longueur du câble	8 m
Rayon d'action	10 m
Brosse principale	Brosse électrique motorisée
Accessoires inclus	Suceur plat, brosse douce, embout pour meubles
Entretien	Filtre lavable, changer le sac régulièrement
Sécurité	Arrêt automatique en cas de surchauffe
Pièces détachées	Sac, filtre, brosse disponibles
Réparabilité	Indice de réparabilité : 7,5/10

FOIRE AUX QUESTIONS - MC-E851 PANASONIC

Comment changer le sac de l'aspirateur Panasonic MC-E851 ?

Ouvrez le capot avant, retirez le sac plein et insérez un nouveau sac compatible. Refermez le capot jusqu'au clic.

Comment nettoyer le filtre HEPA ?

Retirez le filtre et lavez-le à l'eau tiède savonneuse. Laissez sécher complètement avant de le remettre.

Que faire si l'aspirateur ne s'allume pas ?

Vérifiez la prise, le câble et l'interrupteur. Si rien ne fonctionne, le moteur peut être en surchauffe : attendez 30 minutes.

Comment utiliser la brosse motorisée ?

Branchez l'aspirateur, enfoncez le pédale pour allumer la brosse. Passez sur les tapis et moquettes.

Où trouver des sacs de rechange pour le MC-E851 ?

Les sacs Panasonic Type U ou compatibles sont disponibles en magasin ou en ligne. Référence : C-123.

L'aspirateur perd en puissance, que faire ?

Vérifiez le sac (plein ?), le filtre (encrassé ?) et le tuyau (bouché ?). Nettoyez ou remplacez si nécessaire.

Comment ranger le câble d'alimentation ?

Appuyez sur le bouton d'enroulement situé à l'arrière de l'aspirateur pour ranger le câble automatiquement.

Puis-je utiliser l'aspirateur sur du parquet ?

Oui, utilisez la brosse douce fournie ou réglez la brosse motorisée en position parquet.

Que signifient les voyants lumineux ?

Le voyant rouge indique un sac plein ou un filtre bouché. Le voyant vert indique un fonctionnement normal.

Comment débloquer un tuyau obstrué ?

Débranchez l'aspirateur, retirez le tuyau et utilisez un objet long et flexible pour retirer le bouchon.

MODE D'EMPLOI MC-E851 PANASONIC

Operating Instructions

Vacuum Cleaner

MC-E851, MC-E852, MC-E853

Black-and-white illustration of a hand holding a Panasonic motorcycle, no text or symbols visible

Panasonic

Please carefully study the Operating Instructions before altempung to operate the unit and note the listed precautions.

This appliance was produced to EN 55014.

Dear Panasonic Customer

May we take this opportunity to thank you for purchasing this Panasonic Vacuum Cleaner.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

An 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📂 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover.

Fuse Cover Part N.° AMC8GD48C0000

Simple line drawing of a plug with a wire and a curved arrow indicating rotation (no text or symbols)

This appliance is provided with a flexible cord and if this becomes damaged, the repair must be made by an Authorised Service Centre, as a special tool is required.

IMPORTANT SAFETY INSTRUCTIONS

When using this vacuum cleaner, please observe these basic precautions.

WARNING: To reduce the risk of fire, electric shock, or injury:

1. Do not leave the vacuum cleaner plugged in to mains outlet. Unplug from the outlet when not in use and before maintenance.
2. Electric shocks can occur if used outdoors or on wet surfaces.
3. Make sure that hands and feet (particularly of small children) are kept away from the cleaner.
4. Do not use with damaged cord or plug. If the vacuum cleaner is not working as it should, or it has been either dropped, damaged, left outdoors, or come into contact with water, consult an authorised Service agent.
5. Do not pull, carry or use by the cord, close the door on the cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over the cord. Keep cord away from heated surfaces.
6. Do not handle plug or vacuum cleaner with wet hands.
7. Do not put any object into openings. Do not use with any opening blocked, keep free of dust, lint, hair, and anything that may block or reduce air flow.
8. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
9. Do not use without dust bag and/or filters in place.
10. Turn off all controls before unplugging.
11. Use extra care when cleaning on stairs.
12. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
13. This appliance should be serviced by an authorised Panasonic agent, and only genuine Panasonic spare parts should be used.

CAUTIONS

Simple line drawing of a cigarette with a cross crossed over it, no text or symbols present.

1) Never let the cleaner pick up wet matter, mud or burning ashes, etc.

Line drawing of a robotic device connected to a grid array (no text or symbols)

3) Keep the cleaner away from heat sources such as electric fire, etc.

Simple line drawing of a mechanical assembly with screws and parts (no text or symbols)

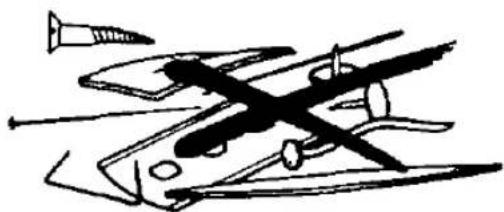

2) Before using the cleaner, remove large or sharp objects from the floor to avoid damaging the dust bag.

Illustration of a vacuum cleaner connected to a power outlet, with a prohibition symbol (no text or labels present)

4) Do not pull on the power cord when disconnecting it from the mains, always pull on the plug body itself.

For domestic use only. (This cleaner is not designed for use in workshops or garages)

This cleaner includes an automatic thermal safety device which automatically turns off the power if the suction inlet, hose or extension wand is clogged.

If this occurs, disconnect from the mains, remove the material responsible for the clogging and then wait about ten minutes, before operating your cleaner again.

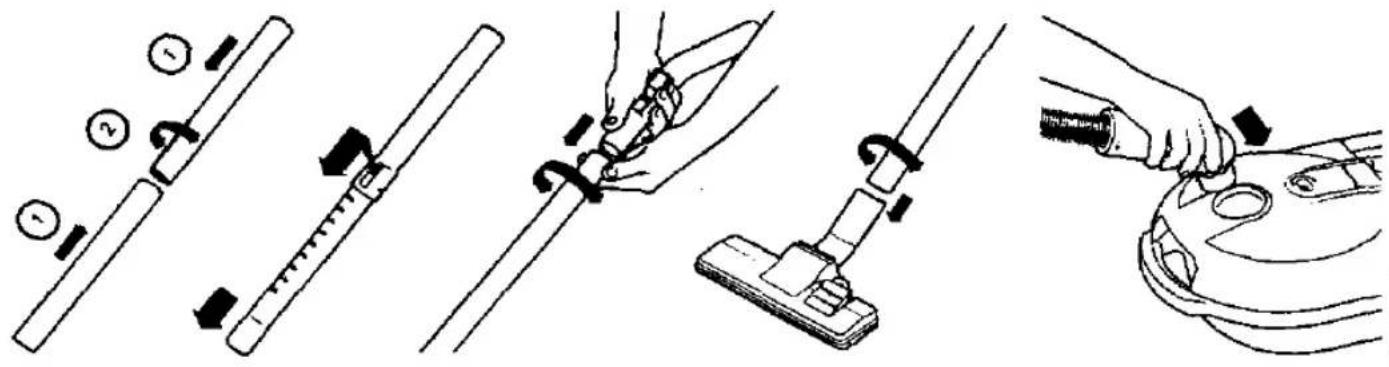

A) HOW TO ASSEMBLE YOUR CLEANER

B) HOW TO OPERATE YOUR CLEANER

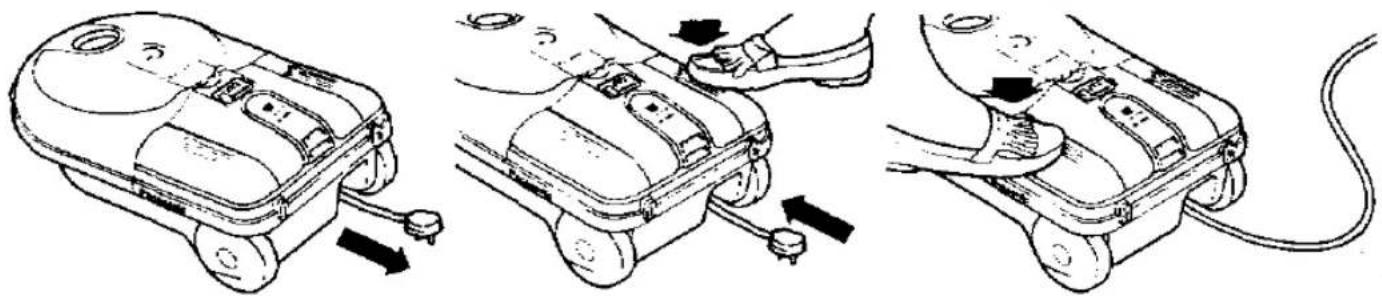

1) Automatic cord rewind

Three-step diagram showing a hand operating a small device in different states of the device (no text or symbols present)

3) Floor nozzle Floor nozzle selector pedal

Four technical diagrams showing mechanical assembly steps with no visible text or symbols

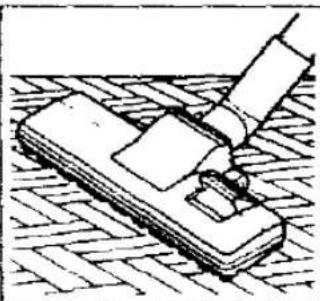

Hard floor

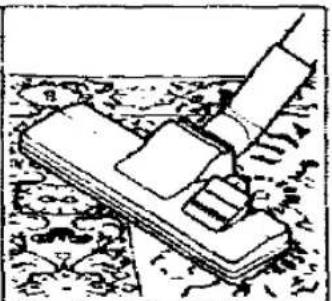

Carpet
Regularly clean the vacuum cleaner head

4) Accessoires

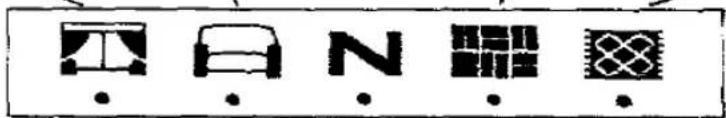

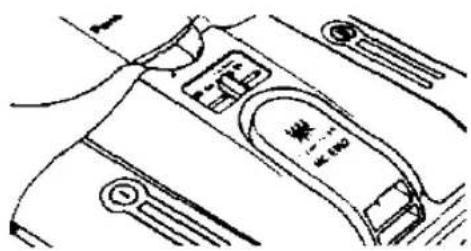

C) VARIABLE POWER CONTROL (MC-852, MC-E853 only)

This vacuum cleaner has a variable power control to select the most suitable power, according to your cleaning needs.

Line drawing of a vehicle's rearview and side profile (no text or symbols)

Quick cleaning for hard flooring
For more in-grained dirt on carpets

Curtains
Upholstery

Line drawing of a hand holding a tool near curtains (no text or symbols)

Simple line drawing of a hand holding a tool on a surface, no text or symbols present

Simple line drawing of a mechanical device on a textured surface (no text or symbols)

Illustration of a mechanical device with attached components, set on textured ground (no text or symbols)

MC-E852

MC-E853

Hand holding a pen next to a stylized face diagram (no text or symbols)

Simple line drawing of a hand holding a pen, poised to write on a surface (no text or symbols)

Isometric line drawing of a mechanical component or assembly (no text or symbols)

Line drawing of a mechanical assembly or tool with no visible text or symbols

NOTE: These vacuum cleaners have been designed for normal household use. Do not use in garage or outdoors.

D) DUST BAG CHECK INDICATOR

You should change the paper bag when the yellow mark appears in the window, in order to maintain the best efficiency.

NOTE: If it shows full, while the dust bag is still empty, check to see if the hose or connection pipe is clogged.

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or labels)

Cross-sectional diagram of a mechanical component with internal structure (no text or symbols)

Please use only genuine Panasonic bags

E) HOW TO REPLACE THE DUST BAG

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

I) Release the hook as is shown by arrow, lift the dust cover up and take it off.

Diagram of a car interior showing internal components and a hand holding a tool (no text or symbols visible)

II) Grip the cardboard of the dust bag and pull it out.

Illustration of a hand holding a pen and a test tube, with a magnified inset showing a pen tip (no text or symbols)

III) Slide off the bar at the bottom of the dust bag and empty. Fold the open end up and replace the bar.

Technical line drawing of a car interior showing internal components and a directional arrow (no text or labels)

IV) Install the dust bag putting the cardboard on the guides of the bag support.

The dust bag can be re-used once or twice. Dust bags should be changed regularly for max. efficiency of vacuum cleaner.

IMPORTANT: Fold the dust bag 2 times to avoid dust leakage. (Be careful not to throw away the bar).

Diagram of a car's front bumper with a curved arrow indicating motion (no text or symbols)

V) Close the dust cover.

IMPORTANT: When the dust bag is not in position or it has not been installed correctly, the dust cover will not close.

F) CARE OF FILTERS

The vacuum cleaner has two filters, one central filter installed in the dust bag compartment that protects the motor (Fig. 1). The other, clean air filter (electrostatic), is installed in the exhaust cover situated in the top rear side of your cleaner, and it retains any small dust particles which may be present in the exhausted air (Fig. 2).

It is advisable to change the clean air filter when it becomes dirty. As a guide, once or twice a year is usually sufficient.

When you change the clean air filter (non washable), we advise that the central filter is washed. Simply rinse it out in warm water and dry thoroughly before replacing.

CENTRAL FILTER (Fig. 1) Part no. AMC8GF03D1000

To remove the central filter, hold at the top (as illustrated) and pull it up. Important: Ensure that the filter is dry before re-installing it into the cleaner.

CLEAN AIR FILTER (Fig. 2, Fig. 3)

Part no. AMC8GF28D1000

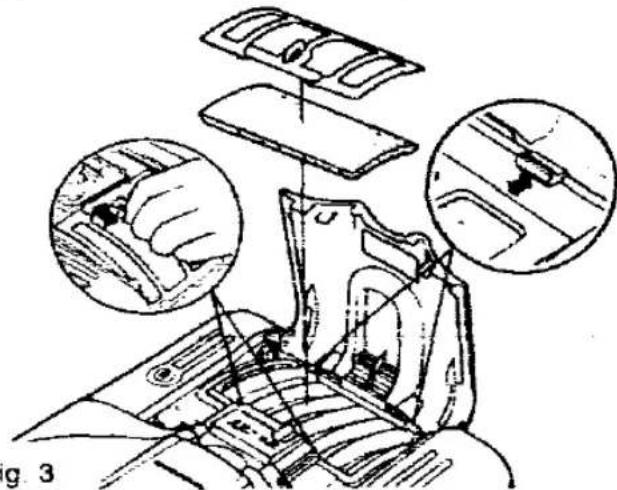

To change the clean air filter, lift up the exhaust cover and remove the filter support as shown in Fig. 2 and Fig. 3.

IMPORTANT: Do not forget re-install the filters before use.

Fig. 1

Line drawing of a hand inserting into a mechanical component (no text or symbols)

Line drawing of a hand operating a mechanical device with no visible text or symbols

Fig. 2

Fig. 3

G) HOW TO STORE YOUR CLEANER

The vacuum cleaner includes a clip system, which is built onto the body of the cleaner, which will keep the extension wand, hose and nozzle in a vertical position for easy storage.

Technical line drawing of a mechanical device with no visible text or symbols
