MODE D'EMPLOI NV-HD605 PANASONIC

Panasonic

Video Cassette Recorder

NV-HD605

Series

Operating Instructions

Illustration of a device emitting exhaust smoke from a bottle onto a surface, with a smaller container and a book labeled 'NEW' (no text or symbols on main elements)

VIDEOplus+ Hi-Fi NICAM

SUPER DRIVE

MULTI-INTELLIGENT CONTROL

VQT6601-1

Before attempting to connect, operate or adjust this product, please read these instructions completely.

Dear Customer

May we take this opportunity to thank you for purchasing this Panasonic Video Cassette Recorder.

We would particularly advise that you carefully study the Operating Instructions before attempting to operate the unit and that you note the listed precautions.

Auto Setup


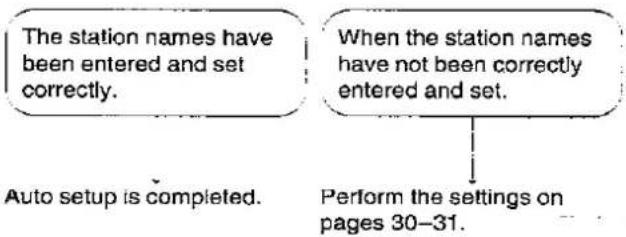

    B --> C["Auto Setup is finished."]

Video Plus+ Programming System

Programming is now easier than ever: simply enter the PlusCode provided in the programme schedule column carried by newspapers and magazines.

- Video Plus+ and PlusCode are trademarks of Gemstar Development Corp. Video Plus+ system is manufactured under license from Gemstar Development Corporation.

Crystal View Control

Introducing Crystal View Control, and innovative new technology for high picture quality. This technology uses a CVC microprocessor to intelligently control the relationship between the tape heads and circuitry, bringing out the maximum performance of each. The result is consistently optimum picture quality.

PDC (Programme Delivery Control) What Is PDC?

PDC is a signal system transmitted by TV broadcasters to control the start and stop time of each programme. This signal is used by the VCR to control the start and stop time of programmed timer recordings.

PDC is particularly useful when the broadcaster changes the time for a programme from the published time. the VCR's timer recording start and stop time will be controlled by the broadcaster, e.g. when the programme is delayed or extended. Recording can also be interrupted by the broadcaster, e.g. news flash, and resumed when the programme restarts.

At present PDC transmission does not cover all areas and stations in the UK, please check with the broadcasters in your area for details.

Line drawing of a person sitting on a couch watching TV in a living room with a potted plant (no text or symbols)

IMPORTANT

Your attention is drawn to the fact that the recording of pre-recorded tapes or discs or other published or broadcast material may infringe copyright laws.

WARNING

TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

FOR YOUR SAFETY

■ DO NOT REMOVE OUTER COVER.

To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Contents

Caution for AC Mains Lead 4

Unpacking 5

Infra-red Remote Controller 6

Controls and Connection Sockets 8

Setting Up

Connections 12

Tuning the TV to your VCR 14

Auto Setup 15

Basic Operations

Playback 18

Manual Recording 20

Advanced Operations

Timer Recording 24

•Using On Screen Display 24

●Programming the Video Plus+ PlusCode 26

Editing 27

- Assembly Editing 27

Other Functions 28

Various Settings

Storing TV Broadcasts Into your VCR 30

Settings Using On Screen Display 33

Setting the Clock of your VCR 35

Helpful Hine

Before Requesting Service .... 38

Precautions 41

Specifications 42

Caution for AC Mains Lead

For your safety please read the following text carefully

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS 1362.

Check for the ASTA mark 📄 or the BSI mark 🌐 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

Under no circumstance should either of these wires be connected to the earth terminal of the three pin plug, marked with the letter E or the Earth Symbol.

How to replace the Fuse

- There are two types of the AC Mains Lead assembly: A and B as shown below.

1 Open the fuse compartment with a screwdriver.
2 Replace the fuse and fuse cover.

Simple line drawing of a plug socket with wires (no text or symbols)

Technical line drawing of a mechanical component with two parts, no visible text or symbols

Check and identify the supplied accessories, and then set up this VCR after reading "Setting Up".

Line drawing of a desktop computer chassis with buttons and dials (no text or symbols)

RF coaxial cable for connecting between this VCR and a TV (1 pc.) VJA0728-A or VJA0963

Batteries for the remote controller. (2 pcs.) UM3 or R6 type

Remote controller (1 pc.) EUR571355

Two empty rectangular batteries side by side, no text or symbols visible

AC mains lead (1 pc.) VJA0733 or VJA0733-A

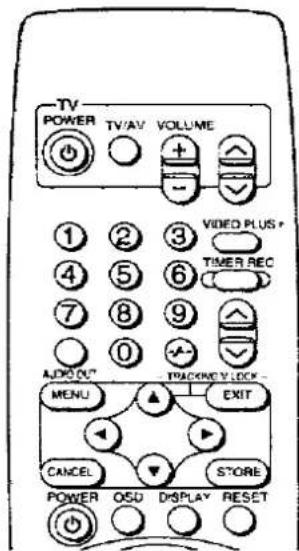

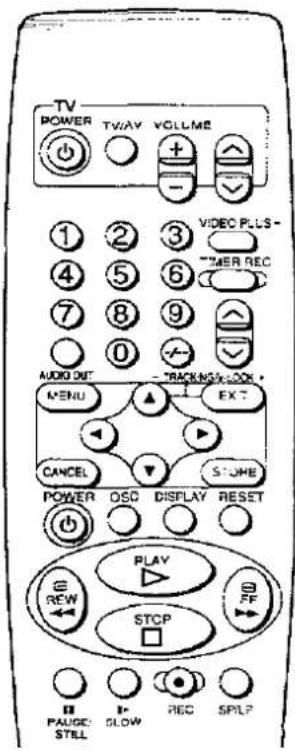

Infra-red Remote Controller

1 POWER (TV)

To switch the TV from on to standby mode or vice versa. In standby mode, the TV is still connected to the mains.

- With some TV models, it may only be possible to switch the TV to standby mode using this button. In this case, use TV/AV or (TV) to switch to TV on.

2 TV/AV

To select the TV input.

3 Programme Position Selector Buttons

- To select the programme positions (1–99).

9:⑨

19: ④→①→⑨

●To enter a PlusCode.

4 AUDIO OUT

To select the desired sound mode. At the every push of this button, the audio output mode changes as follows.

→ Stereo → Left → Right → Normal audio track

The Left (L) and Right (R) Indicators shown which sound mode is selected in the following way.

Stereo: Both the L and R Indicators appear.

Left: The L Indicator appears.

Right: The R Indicator appears.

Normal: Both the L and R Indicators don't appear.

5 MENU

To make On Screen Display Main Menu appear on the TV screen.

6 ▲ ▼ ◀ ▶

To make selections from On Screen Display.

7 CANCEL

To cancel the settings made for a timer recording.

8 POWER (VCR)

To switch the VCR from on to standby mode or vice versa. In standby mode, the VCR is still connected to the mains.

9 OSD

For the On Screen Display Function.

10 REW (REWIND)

In the stop mode: To rewind the tape. In the playback mode: To search backward. In the rewind mode: To obtain high speed picture. "◀◀" is lit.

11 PLAY

To start playback. "▷" is lit.

12 STOP

To stop any playback or recording.

13 PAUSE/STILL

During playback: Still picture. During recording: To interrupt recording.

14 SLOW

For the slow motion playback function. "☐> is lit.

15 SP/LP

To select the tape speed desired for recording. SP gives the best picture quality. LP gives the longest recording time.

16 REC

To start a recording.

17 FF (FAST FORWARD)

In the stop mode: To fast forward the tape. In the playback mode: To search forward. In the fast forward mode: To obtain high speed picture.

"▷▷" is lit.

18 RESET

To reset the tape counter (elapsed time) to "0:00.00".

- The tape counter is automatically reset to "0:00.00" when a video cassette is inserted.

19 STORE

To make selections from On Screen Display.

20 DISPLAY

To change the indication on the VCR Display. →Clock→Counter→Remaining Tape Time—

21 TRACKING/V-LOCK

To adjust the tracking and the vertical locking. (See page 19.)

22 EXIT

To make On Screen Display disappear on the TV screen.

23 ∨ ∧ (VCR)

To select the required programme position (TV station) of the VCR.

24 TIMER REC

To turn the timer recording function on and off. ☐ is lit or not lit. Once operating timer recording function, the normal VCR operation is not possible unless this button is set to off.

25 VIDEO PLUS+

For the programming the Video Plus+ PlusCode.

26 ∨ ∧ (TV)

To select the required programme position (TV station) of the TV.

27 VOLUME

To adjust the volume of the TV.

28 Infra-red Transmitter

Power Source for the Remote Controller

The remote controller is powered by 2 "AA", "UM3" or "R6" size batteries. The life of the batteries is about one year, although this depends on the frequency of use.

Precautions for Battery Replacement

• Load the new batteries with their polarity (⊖ and ⊖) aligned correctly.
• Do not apply heat to the batteries, or an internal short-circuit may occur.
• If you do not intend to use the remote controller for a long period of time, remove the batteries and store them in a cool and dry place.
• Remove spent batteries immediately and dispose of them.
• Do not use an old and a new battery together, and never use an alkaline battery with a manganese battery.

Installing the Batteries

Technical line drawing of a three-part mechanical component with no visible text or symbols

Manufacturer's Settings

Panasonic televisions can be operated with the provided remote controller.

First, confirm that the television can be operated correctly. If the television does not operate correctly, press the TV/AV button while pressing the POWER (VCR) button. To return to the original settings, press the POWER (TV) button while pressing the POWER (VCR) button.

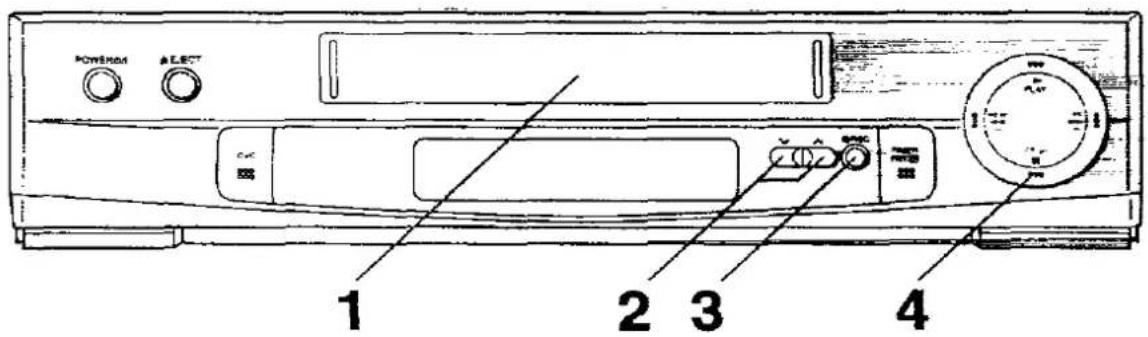

Controls and Connection Sockets

This gives a detailed explanation of the function of each button, switch and connection socket.

① POWER ⏻/A

Press to switch the VCR from on to standby mode or vice versa. In standby mode, the VCR is still connected to the mains.

② EJECT

To eject a video cassette.

③ Cassette Compartment

Insert a video cassette here.

4 REW (REWIND)

In the stop mode: To rewind the tape. In the playback mode: To search backward. In the rewind mode: To obtain high speed picture. “<<” is lit.

⑤ PLAY

To start playback. " > " is lit.

6 Standby Indicator

This indicator is lit when the VCR is turned off or the VCR is timer recording standby mode.

⑦ CVC (Crystal View Control)

ON: The CVC function continually monitors tape characteristics for optimum picture quality. - The CVC indicator is lit on the VCR display. - This control should normally be left in the ON position.

OFF: Turn off the CVC function.

• The CVC indicator is not lit.

⑧ Infra-red Remote Control Receiver Window

9 Display

10

To select the required programme position (TV station).

11 REC

To start a recording.

12 TIMER REC

To turn the timer recording function on and off. ☐ is lit or not lit. Once operating timer recording function, the normal VCR operation is not possible unless this button is set to off.

13 STOP

To stop any playback or recording.

14 FF (FAST FORWARD)

In the stop mode: In the playback mode: In the fast forward mode: “>>>” is lit.

To fast forward the tape. To search forward. To obtain high speed ... picture.

15 AV1

This 21-pin scart terminal carries input and output signals for both picture and sound. TV sets equipped with a similar socket can be connected here. This is also called Scart

Peritel

Euro Connector

Euro AV

1 AUDIO OUTPUT CH2 (R) 13 RED GROUND
2 AUDIO INPUT CH2 (R) 14 BLANKING
3 AUDIO OUTPUT CH1 (L) GROUND
4 AUDIO GROUND 15 RED
5 BLUE GROUND 16 BLANKING
6 AUDIO INPUT CH1 (L) 17 VIDEO OUTPUT
7 BLUE GROUND
8 SWITCHING VOLTAGE 18 VIDEO INPUT
9 GREEN GROUND GROUND
10 No connection 19 VIDEO OUTPUT
11 GREEN 20 VIDEO INPUT
12 No connection 21 GROUND

Caution: RGB reservation for only E/E operation when connecting the Pay TV decoder

16 RF OFF/TEST SIGNAL

RF OFF: Set to this position when the VCR is connected to the TV via the 21-pin scart cable.

TEST SIGNAL OFF:

Set to this position when the VCR is connected to the TV via the RF coaxial cable only.

TEST SIGNAL ON:

Set to this position when tuning the TV into the VCR.

The test signal is transmitted on channel 36 initially.

17 RF IN

To connect to the external aerial.

18 AC IN-

To connect to the main power supply.

19 AV2

To connect to a decoder, another VCR or a satellite receiver.

20 AUDIO OUT

To connect the sound to a stereo audio system.

21 CH ADJ.

To adjust the RF transmitting channel 30-42.

22 RF OUT

To connect to the aerial terminal on a TV set.

Setting Up

Connections

I his tells you how to connect with an aerial, IV, etc.

Tuning the TV to your VCR

The VCR supplies a signal to the TV set via the RF coaxial cable on channel 36 of the UK broadcasting system. Your TV must be tuned into this channel in order to view the VCR playback picture.

If the connection to the TV includes the 21-pin scart cable, the playback picture can be viewed by selecting AV on your TV. The RF coaxial cable must still be connected as shown on page 12, but the TV need not be tuned to channel 36.

Auto Setup

When the VCR is turned on after connecting the aerial lead and the mains lead, Auto setup (Auto tuning and Auto clock setting) starts.

Connections

This tells you how to connect with an aerial. TV, etc.

Basic Connections

The following connections are required to record and play back the VCR through TV set:

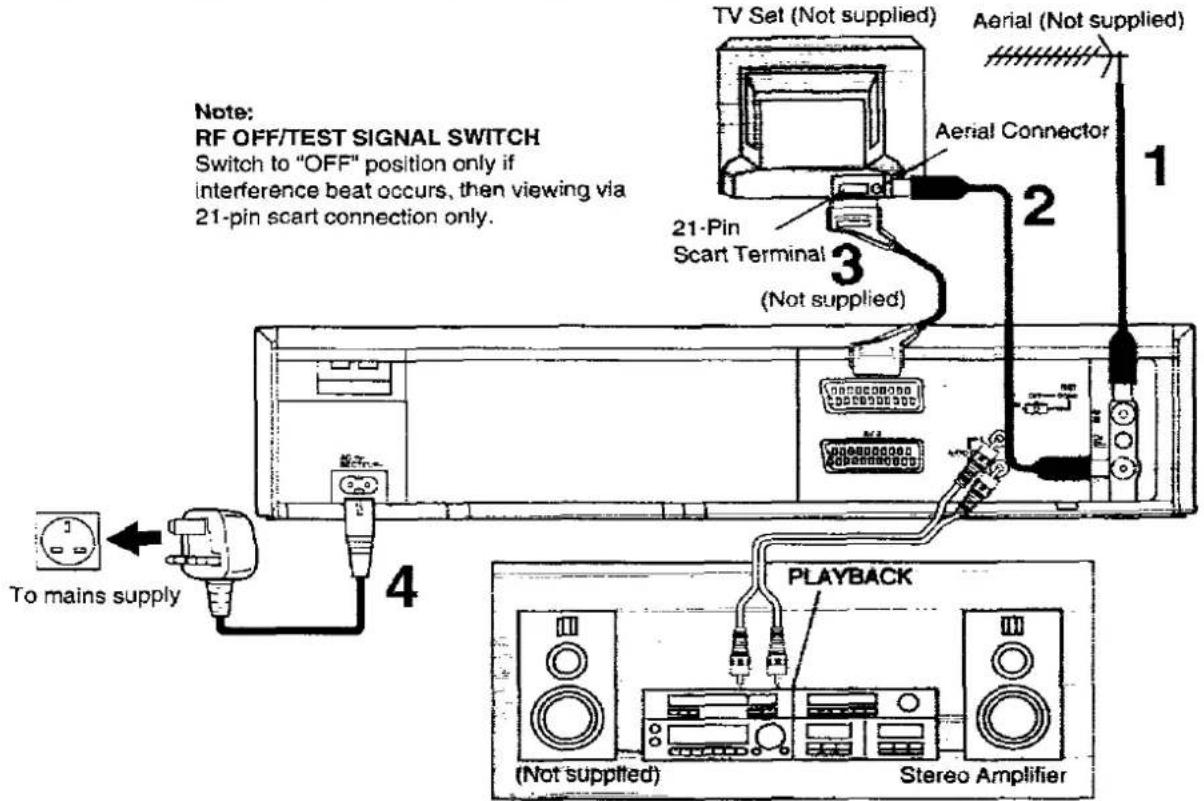

Connection to a TV Set with 21-Pin Scart Terminal

• Connection to a Stereo Amplifier

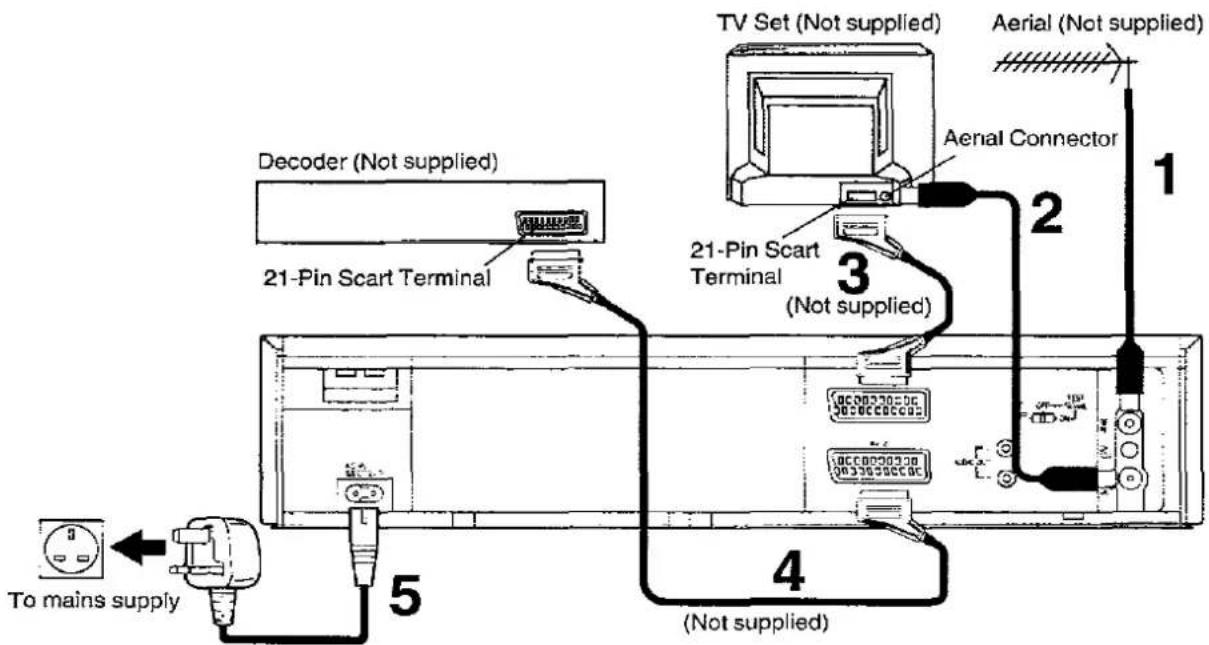

Connection to a Decoder

Notes:

• "RGB" is an abbreviation for "RED/GREEN/BLUE" signals. If the TV with RGB input capability is connected to AV1 and the unit with RGB output capability is connected to AV2, the TV can receive RGB signal from the unit through the VCR.
• Use full-wired 21-pin AV cables for the connection.
• Selection of RGB or normal video output is done by the external equipment connected to AV2 terminal.
  •RF OFF/TEST SIGNAL SWITCH
  Switch to "OFF" position only if interference beat occurs, then viewing via 21-pin scart connection only.

Tuning the TV to your VCR

It is possible to view the video picture on your TV in the same way that you watch TV broadcasts.

If you have connected the VCR to the TV through the 21-pin scart terminal, then you do not need to follow the procedure mentioned below.

Preparations

• Turn on the TV.
• Refer to the operating instruction of the TV set and carry out tuning/preset procedure.

Operations

1	[c8w5]		Turn on the VCR.
2			To generate a test pattern, set RF OFF/TEST SIGNAL to TEST SIGNAL ON.
3	On Screen Display		Set the TV to an unused position which you wish to use for your video playback.Tune the TV until the test pattern appears on the screen.On Panasonic TV the programme number 0 should be selected to obtain best performance.When the VCR is turned on after connecting the aerial lead and the mains lead, Auto setup (Auto tuning and Auto clock setting) starts. (See next page.)
	(During Auto Setup)	(After Auto Setup)
4			Set RF OFF/TEST SIGNAL to TEST SIGNAL OFF.

3

Note:

The test signal is transmitted on channel 36 of the UK broadcasting channels. If you are encountering interference from another broadcast on the video channel, you may readjust to a free channel (30–42) by using the CH ADJ. screw which is located on the rear of the VCR. Please note that if the CH ADJ. screw is used then you will have to return your TV to the test signal as in Item 2 to 4 above.

Auto Setup

Auto Setup

When the VCR is turned on after connecting the aerial lead and the mains lead, Auto setup (Auto tuning and Auto clock setting) starts.

On Screen Display

• The Auto setup is searching for TV station from minimum to maximum and memorizing the data for every programme position.
• The Auto setup takes two or more minutes to complete the search for TV station and the clock setting.
• If the clock setting screen appears after auto setup has been completed, refer to page 35 and proceed with the setting.

Note:

If VCR is not correctly set by Auto setup, see Various Settings on pages 30–32 and 35.

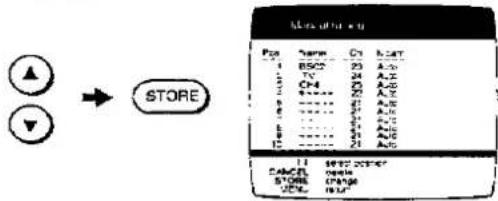

Viewing the TV station list

Use the following steps to confirm that the Auto setup is correctly set.

Preparations

• Confirm that the TV is on and the VCR viewing channel is selected.
• Turn on the VCR.

1 Press MENU.

2 Select Station list.

3 Select the desired TV station, if you want to view the broadcast.

Basic Operations

Playback

Manual Recording

Playback

Operations Display Symbols

Other Playback Functions

To obtain High Speed Picture during Fast Forward or Rewind

Keep FF pressed during fast forward.

Keep REW pressed during rewind.

To adjust the tracking and the vertical locking

For manual tracking adjustment

The + and - buttons are used to adjust the tracking when, for example, noise bars on the picture are better removed manually than by the automatic digital tracking control.

Press both buttons together to return to automatic digital tracking control.

For slow tracking adjustment

When noise bars appear during Still or Slow playback, switch over to slow playback and adjust with the + or - button to reduce the noise bars.

For vertical locking adjustment

Use the + and -- buttons to minimize any vertical jitter during still-picture playback.

- Even after manual adjustment, noise bars or vertical jitter may not be eliminated completely, especially for tapes recorded on another VCR. This is not malfunction.

Notes:

• Audio reproduction of linear (conventionally recorded) tapes will be monaural when played back on the FM Hi-Fi video recorders.
• Cue, review or slow playback will be automatically released after 10 minutes, and still playback after 5 minutes.

• In "LP" mode only:

• During any playback mode other than normal playback, the picture may have some noise bars, the colour may be unstable, or a black and white picture may appear.

• When playing back a tape which was recorded on another VCR, it may be necessary to adjust the Tracking Control. In some cases the picture quality may still be inferior. This is due to limitation of format.

Manual Recording

Operations Display Symbols

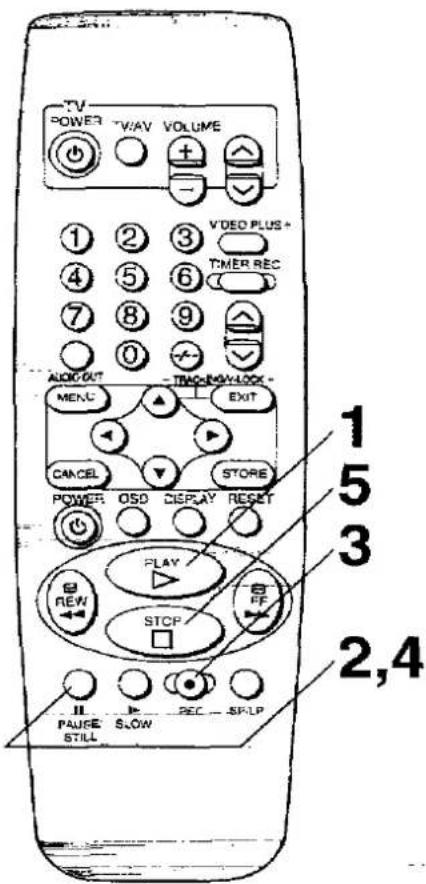

1

2

3

4

Insert a cassette tape.

- If it has already been inserted, press POWER to turn the VCR on.

Select TV station.

Start recording.

Stop recording.

To select the Desired Tape Speed

Press RECORDING SP/LP before recording.

SPLP

SP gives the best picture quality. LP gives the longest recording time.

To Interrupt Recording

Press PAUSE/ STILL during recording.

Press again to continue recording.

II PAUSE STILL

To record One TV Programme while Viewing Another Programme

1 Refer to the manual recording operations steps 1 to 3 (page 20).
2 Select the TV programme on your TV set you wish to view at the present time.

To display the Approximate Remaining Tape Time

1 Select Tape Length from On Screen Display and select the corresponding cassette tape length. See page 34. On Screen Display

◀ E-180: For E30, -60, -90, -120 and -180 tapes.

E-195: For E195 tape.

E-240: Fo: E240 tape.

E-260 ▶: For E260 and -300 tapes.

2 Press DISPLAY.

●The remaining tape time may not be displayed correctly depending on the tape used.

Notes:

• When a video cassette with a broken off tab is inserted, the "☐" indication will flash to indicate that recording is not possible.
  ●The recording pause mode will be automatically released after 5 minutes and be back to the stop mode.

The NICAM Broadcast System

This VCR is equipped with the NICAM sound system. NICAM is a 2 Channel sound broadcast system to provide either a high quality stereo sound track or

2 independent MONO sound tracks, M1 and M2. NICAM programmes are always accompanied by standard sound broadcasts and you can select the desired sound with AUDIO OUT during playback.

●The NICAM digital stereo sound can only be recorded on the Hi-Fi audio track.
- To record the regular sound (ordinary normal sound) on the FM audio tracks when a NICAM programme is received, select NICAM OFF during manual tuning procedure. See page 30.

Important Note for the NICAM System

When this VCR is switched on, the tuner will automatically switch to a NICAM broadcast, if NICAM is being transmitted. During test transmissions, it is possible that the sound received doesn't correspond to the picture being viewed. In order to receive a synchronized sound and picture, select monaural sound with AUDIO OUT or NICAM OFF setting. This will only apply until NICAM transmissions are fully operational.

At this time the NICAM signal is transmitted on stereo channels only, since the M1 and M2 formats are not yet available.

Advanced Operations

Timer Recording

Using On Screen Display

Up to 8 timer programmes can be recorded up to one month in advance by setting the timer, including weekly and daily programmes.

Programming the Video Plus+ PlusCode

Editing

Assembly Editing

This function can be used to make up an edited tape from other recordings or video sources.

A new scene can be added to the end of a previous one.

Other Functions

On Screen Display

Other Automatic Functions

Timer Recording

Using On Screen Display

Up to 8 timer programmes can be recorded up to one month in advance by setting the timer, including weekly and daily programmes.

Preparations

• Insert a cassette tape with an intact erasure prevention tab.
• Confirm that the TV is on and the VCR viewing channel is selected.

For Example:

Programme position (channel): 2
Date: 27th, October
Starting time: 20:02
Ending time: 21:30
(Present date; 16th, October)

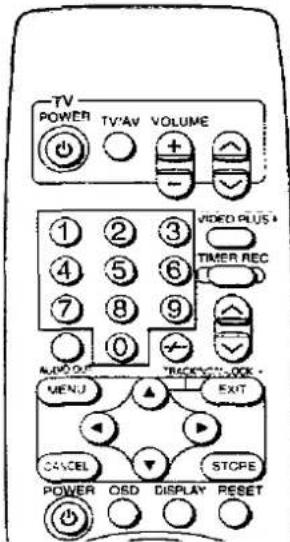

Follow the operation guide on screen display. Set each item by using ▲ ▼ ◀ ▶.

Operations

1 Press MENU, and then select Timer recording.
2 Select the unoccupied position.
3 Set Programme position (channel) "2".
4 Set Date "27/10".
5 Set Starting time "20:02". When it is kept pressed, the indication changes in 30-minute steps.
6 Set Ending time "21:30".
7 Select the desired Tape speed (SP/LP).
8 Select PDC ON or OFF (----).

- PDC is automatically set to ON if the TV station transmits PDC signals. But it can be set to OFF manually if desired.

9 Press STORE. • For the setting other programmes in succession, repeat steps 2–9.

10 To activate timer recording, press TIMER REC.

Weekly Timer Recording

In step 4, select the desired day by pressing ▼.

Daily Timer Recording

For this timer function, several groups of days can be selected.

Ⓐ Daily recording from Monday to Friday.
B Daily recording from Monday to Saturday.
© Daily recording from Sunday to Saturday.

In step 4, select the desired days by pressing ▼.

Timer Recording from External Signal Source

If Timer Recording is performed by a unit connected to the AV1 or AV2 Socket, select the A1 or A2 for the programme position.

A1: Through the AV1 socket.

A2: Through the AV2 socket.

Checking a Timer Programme

Confirm that the TV is on and the VCR viewing channel is selected.

1 Press MENU, and then select Timer recording.
2 Press STORE.

- On Screen Display may be distorted in the PDC recording standby mode.

On Screen Display

Cancelling a Timer Programme

Confirm that the TV is on and the VCR viewing channel is selected.

1 Press MENU, and then select Timer recording.
2 Press STORE.
3 Select the desired timer programme.
4 Press CANCEL.

PDC (Programme Delivery Control) How to use PDC?

(1) The VCR detects if broadcast stations transmit PDC signal or not at the time of "Auto-setup" only, and stores this information in its memory. If broadcast stations introduce or discontinue PDC transmission later on, "Auto-setup" must be carried out again to update the VCR's memory.
(2) PDC mode will be automatically set to "ON" when using "Video Plus+" codes for timer programming, if the stations have been memorised by the VCR as having PDC transmission. PDC mode will be automatically set to "OFF" if the start time is altered during timer programming.
(3) PDC mode will be automatically set to “---” (no PDC) when using “Video Plus+” codes for timer programming, if the stations have not been memorised by the VCR as having PDC transmission.
(4) PDC mode will be automatically set to "OFF" when timer programming is done, for any station, by the "On-Screen" timer recording method, because the start time can be entered freely by the user. To use PDC recording in this case, if the station transmits PDC signal, set PDC mode to "ON" and ensure that the start time is set to exactly the same as the published time, e.g. in newspapers, magazines, etc. If this is not done correctly, recording will not start.

Notes on PDC recording:

(1) PDC recording will start approximately some seconds before the broadcast programme commences and may stop some seconds before or after the end of the programme, depending on the control from the broadcaster.
(2) Normally programmed timer recording data is automatically cancelled after recording is completed. Under the following conditions the programmed timer recording data will be automatically cancelled at 4 a.m. of the next day.

(a) If PDC signal cannot be detected during PDC timer recording, the VCR will perform normal timer recording (without PDC).
(b) If a timer recording is incomplete due to insufficient tape or cancellation by the user.
(c) If timer recording is still in progress at 4 a.m.
(d) If the broadcaster transmits a PDC signal to suspend or interrupt the recording. In these cases, the VCR will remain in the timer standby condition after timer recordings have been completed.

(3) If PDC is set to "ON" manually for the station which does not have PDC transmission, the VCR will perform normal timer recording (without PDC).
(4) In case of multiple timer programmings, while the VCR is in timer standby mode the VCR will periodically check PDC status of the programmed stations with PDC in turn for any change in the start time of each programme. But while the VCR is recording a programme, it can only check the PDC status of that programme being recorded.
(5) If the actual broadcasting times of timer recordings overlap (regardless of whether they are PDC-controlled), the recording that starts first always has priority, and the recording of the later programme will start only after the first timer recording has finished.

Programming the Video Plus+ PlusCode

Programming is now easier than ever: simply enter the PlusCode provided in the programme schedule column carried by newspapers and magazines. PlusCodes are numbers which are assigned to each programme listed in the TV programme schedule carried in newspapers and TV guides. When these codes are entered and STORE is pressed, the codes are converted into the actual programming.

Preparations

• Insert a cassette tape with an intact erasure prevention tab.
• Confirm that the TV is on and the VCR viewing channel is selected.

Operations

1 Press VIDEO PLUS+.
2 Enter a Video PlusCode for the TV programme to be recorded. Example: 920216

3 Press STORE.

- To extend the ending time or to make any corrections, use buttons ▲▼◀▶.

When programming for the first time using a Video Plus+ PlusCode, "--" will appear for the programme position because the station has been manually tuned;

In this case, select the programme position of your VCR which receives the TV station you entered the Video Plus+ PlusCode for at step 2 using button

▲ or ▼.

- Next time Video Plus+ PlusCode for this station is entered, the correct position will appear.

4 Press STORE once more to confirm. •The VCR will go into timer recording standby mode.

Note:

The VCR will automatically change to the timer recording standby mode after about 1 minute. If STORE is not pressed.

5 When programming two or more programmes, repeat steps 1–4.

Notes:

• To release from the standby mode, press TIMER REC.
• When the PlusCode is used for programming, the recording time may be slightly longer than the actual programme time.
• The procedures for checking and cancelling a timer programme are the same as on page 25.

Assembly Editing

This function can be used to make up an edited tape from other recordings or video sources.

A new scene can be added to the end of a previous one.

Preparations

• Connect a movie camera or another VCR to this VCR as shown.
• Insert a recorded cassette tape with an intact erasure prevention tab.
• Select the video source required by pressing to set A1 or A2.

A1: Through the AV1 socket.
A2: Through the AV2 socket.

Operations

1 Search for the end of the previous recording.

2 Press PAUSE/ STILL.

3 Press REC to switch the VCR from the pause mode to the recording standby mode.

4 Start the new recording by pressing PAUSE/ STILL again.

5 Press STOP to stop recording.

Note:

The new sound will be recorded on both the normal and Hi-Fi sound tracks, only monaural sound recording is possible on the normal sound tracks.

Recording VCR

Other Functions

On Screen Display

Press OSD to make the On Screen Display appear on the TV screen.

① TV station
② Nicam or Mono Indicator

When receiving a TV programme, the type of sound system in which it is broadcast is automatically indicated.

- If NICAM OFF is selected during manual tuning procedure, Mono indicator is always displayed. (See page 30.)

3 Audio Output Mode Indicators

The Left (L) and Right (R) Indicators show which sound mode is selected with AUDIO OUT.

Stereo: Both the L and R Indicators appear.

Left: The L Indicator appears.

Right: The R Indicator appears.

Normal: Both the L and R Indicators don't appear.

Note:

When the item "On screen display" is set to OFF, the On Screen Display will not appear except for error message. (See page 33.)

Other Automatic Functions

Line drawing of a computer monitor with buttons and a dial (no text or symbols)

Automatic Playback

When a cassette without an erasure prevention tab is inserted, the VCR starts playback automatically.

VCR-off Playback

When the VCR is off, an inserted cassette can be played back by pressing PLAY.

Automatic Rewinding

When the tape reaches its end during recording (except for timer recording) or playback, it will automatically be rewound to the beginning.

Automatic Switching Off and Ejection

When the VCR is switched off, and inserted cassette can be ejected simply by pressing EJECT. The VCR will eject the cassette and automatically turn itself off again.

Various Settings

Storing TV Broadcasts into your VCR

The VCR is fitted with its own TV tuner (just like a normal TV set) and can be pre-set to receive up to 99 TV broadcast stations.

Settings Using On Screen Display

Setting the Clock of your VCR

The built-in clock is used to activate the timer for automatic recording and must be set to the correct time.

Storing TV Broadcasts into your VCR

Introduction

The VCR is fitted with its own tuner (just like a normal TV set) and can be pre-set to receive up to 99 TV broadcast stations.

When your video cassette recorder is plugged in for the first time, the Auto Setup feature will tune in your channels automatically.

However, under certain circumstances in some transmission areas certain channels may not be assigned a channel name or their normal channel position. If this is the case they will need to be tuned manually. If Auto Setup is not successful, please follow the steps below.

Preparation

Confirm that the TV is on and the VCR viewing channel is selected.

Manual Tuning Procedure

Follow the operation guide on screen display.

Operations

1 Press MENU. MENU

2 Select Settings.

On Screen Display

3

Select Tuning.

4

Select Manual.

5

Select desired programme position.

6

Select the Signal Transmission Channel (Ch) if known.

→ ① - ⑨ Use the numeric buttons. Example: 33

- Use ▲ ▼ to search for the station if channel number is not known.

7

Select NICAM Auto.

- Select NICAM OFF to record the normal sound during a NICAM broadcast or if the stereo sound is distorted due to inferior reception conditions.

8

Press MENU, and then press EXIT.

- Repeat steps 5 to 8 before pressing EXIT if manual tuning for other station is required.

Entering the Station Name

Follow the steps 1 to 4 on page 30.

5 Select the station(s) named **** for which you wish to setup name. Establish which channel you are viewing, by checking your TV Guide/ Newspaper. On Screen Display

6 Highlight the TV station name.

7 Enter characters into all five ××××× positions, from the table using the arrows and press STORE after each character. Use blank space if required, to enter a blank select the area between Z and ×.

8 Press MENU once. If you wish to change or setup, any other TV station names repeat steps 5→8.

9 Press EXIT. EXIT

Changing the Programme Position

Follow the steps 1 to 4 on page 30, then follow the example below.

5 Select the station(s) named "BBC1".

6 Select the number location you want to set the channel.

① - ⑨ Use the numeric buttons. Example: 1

7 Press MENU once.

8 To amend other programme positions repeat steps 5→7.

9 When correctly tuned your station list will look like this. (Channel information will vary.)

- This is needed for using Video Plus+ PlusCodes correctly.

10 Press EXIT.

Note:

When channels have been set with manual tuning, the channel position will need to be entered in the highlighted box the first time Video Plus+ is used.

Channel Plan

	VHF	UHF
NV-HD605B	—	21-69
NV-HD605BL	A-J(CATV: 104-470 MHz)	21-69

Blanking of Unoccupied Programme Positions

Follow the steps 1 to 4 on page 30.

5 Select the TV channel you want to delete.

6 Press CANCEL.

On Screen Display

- Repeat steps 5 and 6 for another unoccupied programme positions to skip during the selection of the programme positions.

7 Press EXIT.

Auto Setup Restart

If the VCR is moved to a different TV transmission area, you may have to return your VCR. Follow the procedure below.

Follow the steps 1 to 3 on page 30.

4 Select Auto setup restart.

5 Press STORE.

Shipping Condition

If you want to return the VCR to the factory-preset condition, follow the procedure below. Follow the steps 1 to 3 on page 30.

4 Select Shipping condition.

5 Press STORE.

6 Press STORE again.

Note:

To re-tune VCR, disconnect mains lead and then reconnect mains lead. If VCR is off, turn on the VCR. Auto setup will start automatically.

Settings Using On Screen Display

Preparations

• Confirm that the TV is on and the VCR viewing channel is selected.
• Turn on the VCR.

VCR functions

On Screen Display

1 Press MENU, and then select Settings.

ON: The On Screen Display will appear on the TV screen by pressing OSD.
OFF: The On Screen Display will not appear even if OSD is pressed.

VCR Display

1 Select VCR Display.

On Screen Display

2 Select ON, OFF or DIMMED.

ON: When VCR is turned off, the characters are lit in the VCR display.

OFF: When VCR is turned off, the characters are not lit in the VCR display.

DIMMED: When VCR is turned off, the characters are dimmed in the VCR display.

To select the Corresponding Cassette Tape Length for Displaying the Approximate Remaining Tape Time

1 Select Tape Length.

2 Select the corresponding cassette tape length.

◀ E-180: For E30, -60, -90, -120 and -180 tapes.

E-195: For E195 tape.

E-240: For E240 tape.

E-260 ▶: For E260 and -300 tapes.

- The times displayed may differ depending on the tape used.

AV2 Connection

1 Select AV2 Connection.

2 Select VCR/SAT or DECODER.

VCR/SAT: When another VCR or the satellite receiver is connected to the AV2 socket.

DECODER: When the decoder is connected to the AV2 socket.

After All Settings are selected

Press STORE, and then press EXIT to make On Screen Display disappear.

Setting the Clock of your VCR

The built-in clock is used to activate the timer for automatic recording and must be set to the correct time.

The built-in digital clock employs the 24-hour system.

If VCR is not correctly set by Auto setup, follow the procedure below.

Preparations

- Confirm that the TV is on and the VCR viewing channel is selected.

- Turn on the VCR.

Manual Clock Setting

Follow the operation guide on screen display.

Operations

1 Press MENU, and then select Settings.
2 Select Clock.
3 Select Manual setting.
4 Set Time (H/M). - When it is kept pressed, the indication changes in 30-minute steps.

5 Set Date (D).
6 Set Month (M).
7 Set Year (Y).

On Screen Display

8 Press STORE. •The clock will start.
9 Press EXIT.

Automatic Clock Setting

Follow steps 1 to 2 of the above procedure.

3 Select Automatic setting.

4 Press STORE.

•The clock is set automatically.

Notes:

●The clock operates for at least 60 minutes by its backup system in the event of power failure.
- When the item "Automatic clock-set is" is ON, on the on screen display, Automatic time correcting function is activated.

The Automatic time correcting function will only work when the VCR is in standby. This function will not work during timer recording standby mode.

Helpful Hints

Before Requesting Service

Before requesting service, check the following points once again.

Precautions

Please read these cautions before you operate this VCR.

Specifications

Before Requesting Service

Before requesting service, check the following points once again.

Message of On Screen Display
——Message of On Screen Display is displayed.
MESSAGE	CAUSE	REMEDY
This action is not possible before time and date is set	VIDEO PLUS+ is pressed when date and time are not set.	Set date and time.
Please insert Video tape	REC, PLAY, FF or REW is pressed when no cassette in the VCR.	Insert a video cassette.
Please use unprotected tape	REC is pressed without tab of Cassette.	Use a cassette with tab.

Self Test Indication
This VCR has a self-diagnosis and display function. If the VCR detects trouble during installation or during use, the following indications automatically appear in the VCR display. Indications are displayed in the form of a single English letter plus two numbers such as [H01].
INDICATION	CAUSE	REMEDY
H □ □	Some trouble has occurred.(Numbers following H and F differ according to the status of the VCR.)	Consult your dealer for further advice.
F □ □

VCR will not operate correctly
SYMPTOM	CAUSE	REMEDY	CHECKED
VCR display is not illuminated.	Mains lead is not connected.	Reconnect mains lead to VCR.
	VCR Display setting is OFF.	Set VCR Display to ON or DIMMED. See page 34.
VCR display is illuminated but VCR will not operate.	VCR is in timer mode.	Press TIMER REC to operate VCR manually.
	Safety devices are operating.	Disconnect mains lead and wait for 1 minute.Reconnect mains supply and check functions.
	Condensation may have formed.	Do not operate VCR for 1 hour.

Playback will not operate correctly
SYMPTOM	CAUSE	REMEDY	CHECKED
Picture noisy or not in colour. Horizontal bars or lines run down the screen.	Tracking is not correct.	Adjust the tracking. See page 19.
	TV set is not tuned to VCR.	Operate RF OFF/TEST SIGNAL on VCR and check TV tuning. See page 14.
	Video heads are clogged or worn.	Consult your dealer for further advice.Head cleaning by service agent is not covered by warranty.
Recording will not operate correctly
SYMPTOM	CAUSE	REMEDY	CHECKED
Indication flashes whenever recording is attempted.	Erasure prevention tab on cassette is broken off.	Use tape with intact erasure prevention tab, or cover tab hole with adhesive tape, if original recording is no longer required.
Picture is recorded with noise or blank screen.	Aerial or aerial lead is defective.	Check aerial connection to VCR. See page 12. Check your normal TV picture. If there is no picture, check your aerial.
	VCR is not correctly tuned.	Re-tune VCR. See pages 30-31.
	A1 or A2 is selected.	Select the required TV programme.
Timer recording cannot be performed.	Clock or calendar is Incorrectly set.	Check clock and calendar. Set to present time. (Note this is a 24 hour clock.) See page 35.
	Recording start or end time setting is incorrect.	Set recording start and end time correctly.
	VCR is not set for timer recording.	Press TIMER REC after programming for timer recording.
AV external recordings cannot be made.	A1 or A2 is not selected.	Select A1 or A2 by pressing √ ∧.
	External AV connections are incorrect.	Check that connections for external video and audio source are correct. See page 27.

Remote controller will not work correctly
SYMPTOM	CAUSE	REMEDY	CHECKED
Remote controller does not operate correctly.	Remote controller transmitter beam is not reaching VCR.	Ensure that remote controller is being pointed at VCR and that transmitter beam is not obstructed.
	Distance is too far.	Use remote controller within 7 m of VCR. If this range is not possible, replace batteries.
	Batteries are exhausted.	Replace batteries. Note precaution for replacement on page 7.
	Batteries are incorrectly fitted with (+/−) reversed.	Fit batteries correctly as shown on page 7.

Please read these cautions before you operate this VCR.

Avoid Sudden Changes in Temperature

If the VCR is suddenly moved from a cold place to a warm place, condensation may form on the tape and inside the VCR.

Humidity and Dust

Avoid places where there is high humidity or much dust, which may cause damage to internal parts.

Do Not Obstruct the Ventilation Holes

The ventilation holes prevent abnormal increases in temperature. Do not block or cover these holes. Especially avoid covering the holes with soft materials such as cloth or paper.

Keep away from High Temperature

Keep the VCR away from extreme direct heat such as direct sunlight, heating radiators, or closed automobiles.

Keep Magnets away

Never bring a magnet or magnetized object near the VCR because it will adversely affect the performance of the VCR.

No Fingers or Other Objects Inside

Touching internal parts of this VCR is dangerous, and may cause serious damage to the VCR. Do not attempt to disassemble the VCR. There are no user serviceable parts inside.

Keep Water away

Keep the VCR away from flower vases, tubs, sinks, etc. CAUTION: If liquids are spilled into the VCR, serious damage could occur. If you spill any liquid into the VCR, consult qualified service personnel.

Cleaning the VCR

Wipe the VCR with a clean, dry cloth. Never use cleaning fluid, or other chemicals. Do not use compressed air to remove dust.

Stacking

Place the VCR in a horizontal position, and do not place anything heavy on it.

Video Head Clogging

The video heads place picture signals on the tape during recording and read picture signals from the tape during playback and they are, therefore, of critical importance for the picture quality. If the VCR is used over extremely long periods of time, these heads may become dirty and clogged. In such a case, the signals can no longer be recorded correctly, and the playback picture will be distorted accordingly. This is the case, for example, during the playback of a tape, the sound is reproduced normally, but no picture is seen, or the picture is greatly distorted. When such a symptom case occurs have the recorder checked by qualified service personnel.

Head cleaning by service agent is not covered by warranty.

Condensation may form in the VCR If:

• The VCR is in a room where the heater has just been turned on.
  ●The VCR is in a room with steam or high humidity.
  ●The VCR is brought from cold surroundings into a well-heated room.
  ●The VCR is suddenly brought from cool surroundings, such as an air-conditioned room or car, to a place which is hot and humid.

Note:

Do not operate the VCR for at least 1 hour if any of the above conditions occur. This VCR does not incorporate a dew sensor.

Tape Care

Some do's and don'ts on tape care.

DO:

1) Use a good quality branded tape, such as Panasonic.
2) Keep in the Box supplied with your tape, or a video case, when not in use.
3) Try to use all the tape on a cassette by making recordings not only at the tape start but also in the middle and end sections. This will avoid many repeated recordings at the beginning of the tape resulting in premature wear.
4) Take care to insert a tape correctly into the VCR to avoid damage.

DO NOT:

1) Expose the tape to high humidity or temperature.
2) Expose to liquid.
3) Expose to dust particles by storing directly on a carpet for example.
4) Use a damaged tape or attempt to repair.
5) Dismantle the cassette housing.
6) Attempt to lift the front cassette flap or touch the tape surface.

Specifications

NV-HD605B...(U.K. model), BL...(EIRE model)

Power Source:	220-240 V AC 50-60 Hz
Power Consumption:	22 watts
Video Recording System:	2 rotary heads, helical scanning system
Video Heads:	4 heads
Tape Speed:	SP; 23.39 mm/sec.LP; 11.7 mm/sec.
Tape Format:	VHS tape
Record/Playback Time:	SP; 240 min. with NV-E240LP; 480 min. with NV-E240
VIDEO
Television System:	CCIR; 625 lines, 50 fields, PAL colour signal
Modulation System:	Luminance; FM azimuth recordingColour signal; converted subcarrier phase shift recording
Input Level:	AV1/AV2;	1.0 Vp-p.	75 ohm, terminated
Output Level:	AV1/AV2;	1.0 Vp-p.	75 ohm, terminated
	RF Modulated;	UHF channel 36 (±6).	75 ohm
AUDIO
Input Level:	AV1/AV2;	-6 dBV.	more than 10 kohm
Output Level:	AV1/AV2;	-6 dBV.	less than 1 kohm
	AUDIO OUT (PHONO);	-6 dBV.	less than 1 kohm
Audio Track:	1 track (Normal-mono only), 2 channels (Hi-Fi sound-stereo)
Video Horizontal Resolution:	Colour; more than 240 lines (SP)
Dynamic Range:	Audio; more than 90 dB (Hi-Fi audio track)
Audio Frequency Response:	20 Hz-20 kHz
Wow and Flutter:	0.005% Wrms/Hi-Fi
Operating Temperature:	5°C-40°C
Operating Humidity:	35%-80%
Weight:	4.2 kg
Dimensions:	430 (W)×99.9 (H)×315 (D) mm
Standard Accessories:	1 pc. RF Coaxial Cable1 pc. Remote Controller2 pcs. "R6" size batteries1 pc. AC Mains Lead

Weight and dimensions shown are approximate.

Specifications are subject to change without notice.
