CPA265 - Accessoire de projecteur Chief - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Support de projecteur
Marque	Chief
Modèle	CPA265
Utilisation recommandée	Projecteurs jusqu'à 22,7 kg (50 lb)
Matériau	Acier à haute résistance
Couleur	Noir
Dimensions (l x h x p)	40,6 x 25,4 x 15,2 cm
Poids net	2,7 kg
Type de fixation	Montage au plafond
Compatibilité VESA	Jusqu'à 600x400 mm
Inclinaison	+/- 15 degrés
Rotation	360 degrés
Dégagement du plafond	15 à 45 cm
Fonctions principales	Support réglable, installation facile, gestion des câbles intégrée
Entretien et nettoyage	Essuyer avec un chiffon sec ; ne pas utiliser de produits abrasifs
Sécurité	Fixation sécurisée au plafond (poutre en bois ou béton) ; vérifier la charge maximale
Pièces détachées et réparabilité	Contacter le service client Chief pour les pièces de rechange
Garantie	Garantie constructeur limitée de 5 ans

FOIRE AUX QUESTIONS - CPA265 Chief

Quel est le poids maximal supporté par le Chief CPA265 ?

Le Chief CPA265 peut supporter un projecteur pesant jusqu'à 22,7 kg (50 lb).

Ce support est-il compatible avec tous les projecteurs ?

Il est compatible avec la plupart des projecteurs utilisant une fixation VESA standard jusqu'à 600x400 mm.

Quels outils sont nécessaires pour l'installation ?

Vous aurez besoin d'une perceuse, d'une clé à molette, d'un tournevis et d'un niveau à bulle. Les vis de montage sont fournies.

Le support permet-il d'ajuster l'angle du projecteur ?

Oui, il offre une inclinaison de +/- 15 degrés et une rotation à 360 degrés pour un positionnement optimal.

Comment installer le support au plafond ?

Fixez la plaque de base au plafond en utilisant des ancrages adaptés (fournis) sur une poutre en bois ou du béton. Ensuite, accrochez le projecteur sur le support et ajustez selon vos besoins.

Y a-t-il un système de gestion des câbles ?

Oui, le Chief CPA265 intègre un système de gestion des câbles pour les dissimuler et maintenir une installation propre.

Quelle est la hauteur de dégagement minimale du plafond ?

Le dégagement du plafond est réglable de 15 à 45 cm selon la configuration.

Le support est-il livré avec des instructions d'installation ?

Oui, une notice d'installation détaillée est incluse dans l'emballage. Vous pouvez également la télécharger gratuitement sur notre site.

Comment nettoyer le support ?

Utilisez un chiffon doux et sec pour dépoussiérer. Évitez les produits chimiques ou abrasifs qui pourraient endommager la finition.

Que faire si une pièce est endommagée ou manquante ?

Contactez le service client Chief pour obtenir des pièces de rechange ou signaler un problème. La garantie constructeur de 5 ans couvre les défauts de fabrication.

MODE D'EMPLOI CPA265 Chief

INSTALLATION INSTRUCTIONS

CPA Pin Connector Adapter

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Do not use this product outdoors.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the CPA265 does not exceed 50 lbs (22.68 kg).

- The weight capacity of the CPA265 may be limited to the lowest weight capacity of any other component located between the CPA265 and the supporting structure.

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

IMPORTANT ! : CPA265 is intended for use with UL Listed CPA Series pipes: CPA018, CPA024, CPA036, CPA048, CPA060, CPA072, CPA084, CPA096, CPA108, CPA120.

IMPORTANT ! : The CPA265 adapter is compatible with projector mounts with a 1 1/2" NPT threaded opening.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

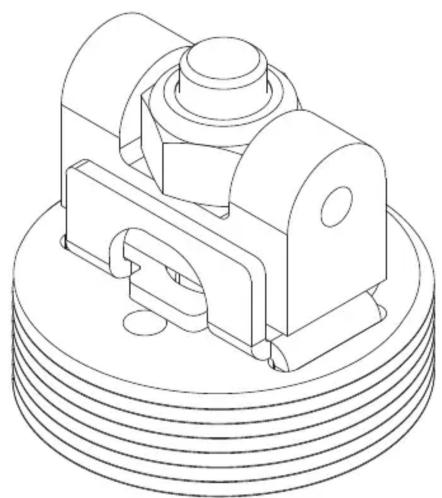

PARTS FOR INSTALLATION

INSTALLATION

Installing to a CPA Pipe

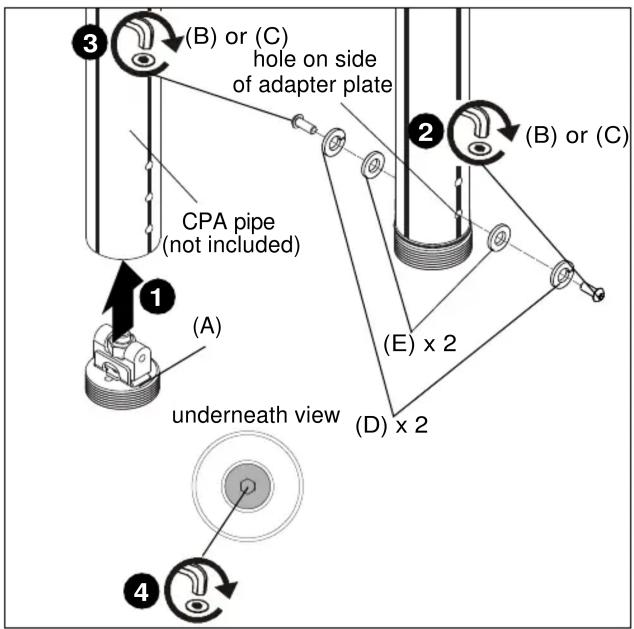

1. Making sure holes are aligned on CPA265 (A) and CPA column (not included), lift CPA265 (A) into bottom opening of CPA column. (See Figure 1)
2. Install either one M6x16 button head screw (B) or security screw (C) through M6 lock washer (D) and M6 flat washer (E) into hole on side of CPA pipe where the adapter plate on CPA265 is located. (See Figure 1)
3. On the opposite side of CPA pipe, use the other M6x16 button head screw (B) or security screw (C), an M6 lock washer (D) and an M6 flat washer (E) to secure CPA265 to CPA column. (See Figure 1)

Figure 1

1. Use "L"-shaped M6 hex key (F) to tighten bottom bolt. (See Figure 1)

Install to Projector Mount

IMPORTANT ! : The CPA265 adapter is compatible with projector mounts with a 1 1/2" NPT threaded opening.

1. Thread projector mount (not included) onto the CPA265 (A) until hand tight.

2. Turn projector mount clockwise or counter-clockwise until front of mount is facing target.

3. Secure projector mount to pipe by turning set screw with a 5/32" hex key until tight.

CAUTION: DO NOT OVERTIGHTEN! Over-tightening of set screw can damage threads on pipe.

Figure 2

1. Turn security screw (access from bottom of projector mount) (See Figure 3) using a Phillips screwdriver until set screw cannot be seen through set screw access hole in projector mount. (See Figure 3)

Figure 3

Installation Instructions
