28-75mm f/2.8 Di III RXD Sony FE - Objectif TAMRON - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Objectif zoom
Marque	Tamron
Modèle	28-75mm f/2.8 Di III RXD Sony FE
Monture	Sony FE (monture E plein format)
Longueur focale	28-75 mm (zoom)
Ouverture maximale	f/2,8 constante
Ouverture minimale	f/22
Construction optique	15 éléments en 12 groupes
Angle de champ	75°23' à 32°21' (plein format)
Mise au point	Autofocus avec moteur RXD (pas à pas)
Distance minimale de mise au point	0,19 m (grand-angle) / 0,39 m (télé)
Rapport de reproduction maximal	1:2,9 (à 28 mm)
Diamètre de filtre	67 mm
Dimensions (diamètre x longueur)	73 mm x 117,8 mm
Poids	550 g
Alimentation	Aucune (objectif sans pile)
Fonctions principales	Zoom, mise au point manuelle (focus by wire), stabilisation dépend du boîtier
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec, éviter les solvants
Sécurité	Ne pas exposer à l'eau, utiliser un pare-soleil
Pièces détachées et réparabilité	Service après-vente Tamron, pare-soleil et bouchons inclus
Informations générales	Compatibilité plein format Sony FE, joint d'étanchéité à la monture, revêtement fluorine

FOIRE AUX QUESTIONS - 28-75mm f/2.8 Di III RXD Sony FE TAMRON

Cet objectif est-il compatible avec un boîtier Sony APS-C ?

Oui, il est compatible, mais la distance focale équivalente sera d'environ 42-112,5 mm en raison du facteur de recadrage.

L'objectif possède-t-il une bague d'ouverture ?

Non, l'ouverture est contrôlée électroniquement depuis le boîtier. Il n'y a pas de bague d'ouverture manuelle.

Quelle est la stabilisation d'image ?

L'objectif n'intègre pas de stabilisation. Il repose sur la stabilisation intégrée au boîtier Sony (SteadyShot).

Comment nettoyer les lentilles ?

Utilisez un chiffon en microfibre doux et sec. Pour les taches tenaces, humidifiez légèrement le chiffon avec un nettoyant pour optiques. Évitez les solvants.

Quel est le diamètre du filtre ?

Le diamètre du filtre est de 67 mm.

Quel est le poids de l'objectif ?

L'objectif pèse environ 550 grammes.

Comment mettre à jour le firmware de l'objectif ?

Utilisez le logiciel TAMRON Lens Utility ou le TAMRON TAP-in Console pour connecter l'objectif à un ordinateur et effectuer les mises à jour.

L'objectif est-il résistant aux intempéries ?

Oui, il est doté d'un joint d'étanchéité à la monture et d'une construction résistante à l'humidité, mais il n'est pas complètement étanche.

Quelle est la distance minimale de mise au point ?

En position grand-angle (28 mm), la distance minimale est de 0,19 m, offrant un rapport de reproduction de 1:2,9.

Le pare-soleil est-il inclus ?

Oui, un pare-soleil en forme de pétale est fourni avec l'objectif.

MODE D'EMPLOI 28-75mm f/2.8 Di III RXD Sony FE TAMRON

1

Sony

2

28-75mm F/2.8 Di III RXD

For Sony Full-frame mirrorless

* The C€ Marking is a directive conformity mark of the European Community (EC).
* Das €-Zeichen entspricht der EC Norm.
* La marquage C€ est un marquage de conformité à la directive CEE (CE).
* La marca C€es marca de conformidad según directiva de la Comunidad Europea (CE).
* Il marchio € attesta la conformita alla directiva della Comunità Europea (CEE).
* CC标志表示符合欧州共同体(EC)指标

The EEC Conformity Report applies to the Council Directive 2014/30/EU, 2011/65/EU and is used by Tamron Co., Ltd., manufacturer of this product.

Thank you for purchasing the Tamron lens as the latest addition to your photographic equipment. Before using your new lens, please read the contents of this Owner's Manual thoroughly to familiarize yourself with your lens and the proper techniques for creating the highest quality images possible. With proper handling and care, your Tamron lens will give you many years of photographing beautiful and exciting pictures.

- Explains precautions that help to prevent problems.

- Explains things you should know in addition to basic operations.

PART NAMES (Refer to Fig. 1)

1 Lens hood	2 Hood attaching alignment mark
3 Hood locking mark	4 Filter ring
5 Hood release mark	6 Zooming ring
7 Focal length scale	8 Focal length mark
9 Focus ring	10 Lens attachment mark
11 Lens-camera interface contacts

MAIN SPECIFICATIONS

Model	A036
Focal Length 28-75 mm
Maximum Aperture F/2.8
Angle of View 75	°23' - 32'11'
Lens Construction 12/15
Minimum Object Distance (MOD)	0.19 m (7.5") (Wide) / 0.39 m (15.4") (Tele)
Maximum Magnification Ratio 1:2.9 (Wide MOD) / 1:4 (Tele MOD)
Filter Size	ø 67 mm
Length 117.8 mm (4.6)	")
Diameter	ø 73 mm
Weight 550 g (19.4 oz)
Lens Hood HA036

• Length: From lens front to mount surface.

- Features and appearances of lenses listed in this owner's manual are subject to change without notice.

ATTACHING AND REMOVING THE LENS

Remove the rear cap of the lens. Align the lens attachment mark ⑩ and mounting mark on the camera, and then insert the lens.

Turn the lens clockwise until it locks.

To remove the lens, turn the lens in the opposite direction while pressing the lens release button on the camera.

- Turn off the power of the camera before attaching or removing the lens.

- For details, please read the instruction manual of your camera.

SWITCHING FOCUS MODE (Ref. Figs. 1, 2)

Select the desired focus mode on the camera.

For manual focusing, turn the focus ring ⑨ to acquire the desired focus.

For details, please read the instruction manual of your camera.

- In AF mode, it may be difficult for autofocus to work depending on the subject.

ZOOMING (Ref. Figs. 1, 2)

Turn the zooming ring⑥ to adjust the focal length (Zoom position) to a desired position.

LENS HOOD (Ref. Figs. 1, 3 - 5)

A bayonet-type lens hood ① is provided as standard equipment.

We recommend shooting with the hood properly attached because the lens hood eliminates stray light that may affect the picture.

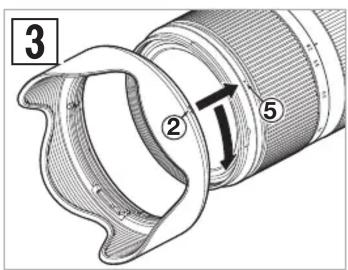

■Using the lens hood (Ref. Figs. 3, 4)

Align the hood attaching alignment mark ② of the hood with the hood release mark ⑤ of the lens. Rotate the hood ① in the direction of the arrow until the hood locking mark ③ meets the hood release mark ⑤.

■Stowing the lens hood (Ref. Fig. 5)

You can stow the lens hood ① by attaching it in reverse.

Align the hood locking mark ③ of the hood with the hood release mark ⑤ of the lens. Rotate the hood ① in the direction of the arrow until the hood attaching alignment mark ② meets the hood release mark ⑤.

- Be aware that the perimeter of the photographed image may be darkened if the hood ① is not attached properly.

PRECAUTIONS WHEN SHOOTING

• An internal focusing (IF) system is employed to shorten the minimum focus distance. Because of this, the angle of view may be wider than that of lenses using other focusing systems when shooting at a distance closer than infinity.
• When using the flash, remove the lens hood and stand as far as possible from the subject. Depending on the lens and flash used, the lens may block the light from the flash and darken the bottom of the screen.
• Differences in the display systems of cameras may result in the display of values different from the maximum and minimum aperture values in the specifications. This is not an indication of an error.

TO ENSURE LONG-TERM SATISFACTION

• Remove dust and soiling on the lens by using a blower or soft brush. Do not touch the lens with your fingers.
• To clean the lens surface, lightly wipe it starting from the center with a commercially available lens cleaning paper, a clean cotton cloth or a microfiber cloth (cleaning cloth for glasses, etc.) soaked in lens cleaner. Do not use a silicone cloth.
• Clean the lens barrel using a silicone cloth. Never use benzene, thinner, or other organic solvents.
• The front element has been coated to prevent water and oily substances from adhering. Since it will repel water, do not use lens cleaners or other substances but only a dry cloth to clean the front element.
• Mildew is a major problem for lenses. Store your lens in a clean, cool, and dry place. When you store the lens in a lens case, store it with a commercially available drying agent and replace the drying agent occasionally.
• Do not touch the lens-camera interface contacts. If dust or stains cause contact problems, signals are not transmitted properly between the lens and camera, and malfunctions may occur.
• If the temperature changes suddenly, moisture may form within the camera and lens and cause malfunctions.
  To prevent this, seal your equipment in a plastic bag or similar container. After your equipment has adjusted to the ambient temperature, remove it from the bag and use it as usual.

Disposal of Electrical and Electronic Equipment in Private Households. Disposal of used Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol indicates that this product shall not be treated as household waste. Instead it shall be collected separately for the recycling of electrical and

electronic equipment.

If the new products are purchased, this product might be handed over to the distributor or the collection system of waste electrical and electronic equipment eventually.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product or components of this product.

If this product is disposed illegally, it might cause a possibility of penalties. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

TAMRON

ENGLISH

Precautions for Safe Use of Tamron Lenses

For safe operation be sure to carefully read the "Precautions for Safe Use of Tamron Lenses" and the manual before using the product.

After reading them, store them in a place where they can easily be reviewed whenever needed. Caution instructions are divided into the following two categories according to the degree of danger involved.

WARNING

This indicates instructions which if not followed or if performed incorrectly could lead to death or serious injury.

• Do not view the sun or other strong light source directly through the lens or through a camera while using this lens.
  Doing so could cause loss of vision, damage to the lens and/or the camera, and possibly cause the lens and/or camera to ignite.
• Do not dissemble, repair, or modify the lens.
  This could damage the lens or camera.
• Keep the lens out of the reach of small children.
  There is a risk of injury if the lens is dropped or falls down.

CAUTION

This indicates instructions which if not heeded or if performed incorrectly could lead to bodily injury or physical damage

• Do not place lens in direct sunlight or leave it in an extremely hot place such inside a car. Doing such could damage the internal parts of the lens or cause a fire.
• Always attach the lens cap whenever the lens is not in use.
• When attaching the lens to the camera, ensure that the lens has been properly attached to the camera and firmly locked.
  If the lens is not attached properly, it could be difficult to remove or it could fall off causing damage or injury.
• Do not use this lens for any application other than photography.
• Do not transport the lens while it is still attached to a tripod.
